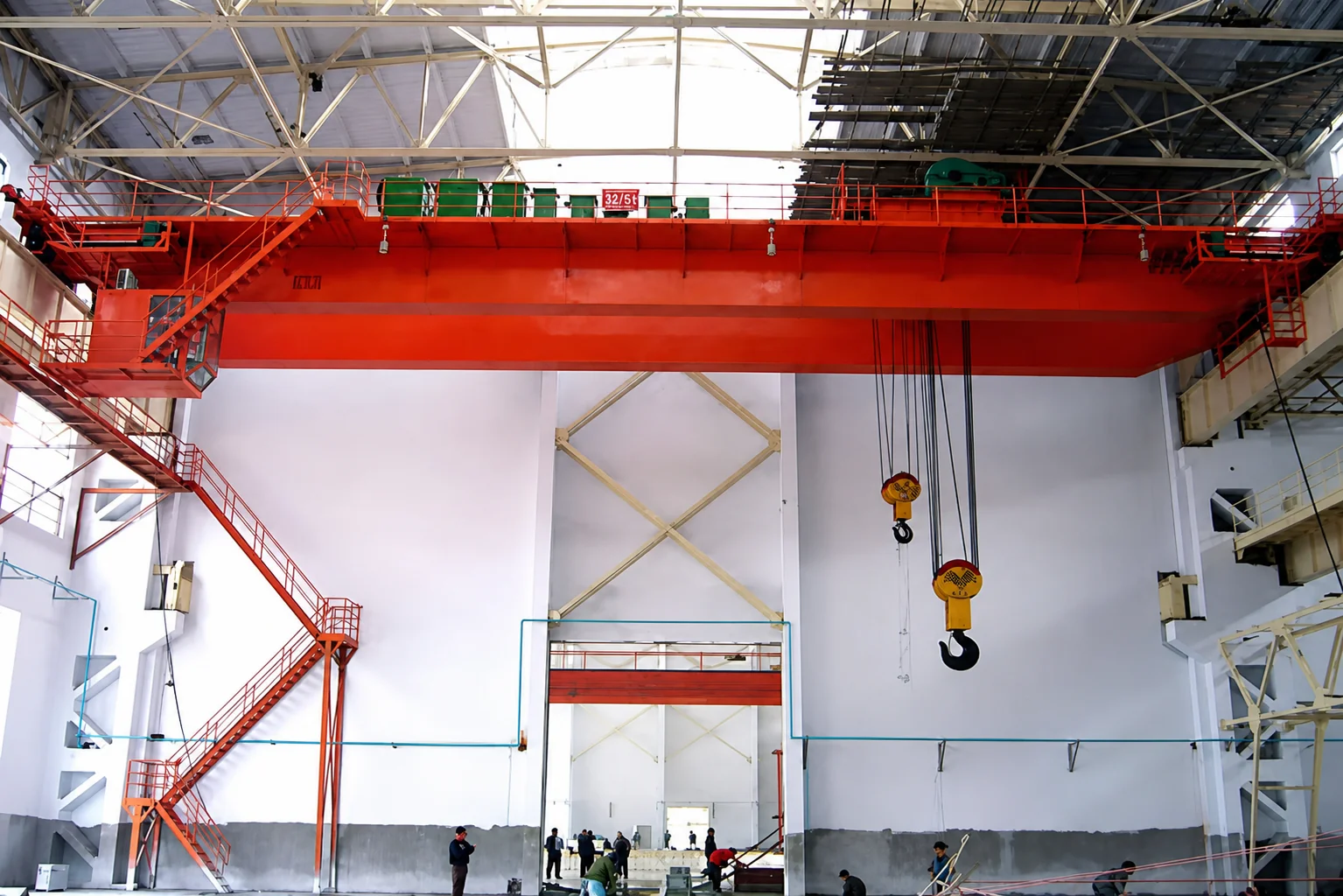

The Complete Guide to Explosion-proof Crane Anti-Spark Design
Petroleum, chemical, mining, pharmaceutical and other high-risk industries operate in complex environments, where combustible gases, volatile vapors and flammable and explosive dusts are common. Conventional cranes are easy to produce electric arc, mechanical friction spark and electrostatic accumulation during operation, which is easy to ignite explosive medium, cause explosion and fire accidents, cause casualties and equipment shutdown losses, and cannot meet the safety operation standards under high-risk conditions.
The anti-spark design of explosion-proof crane is the core safety guarantee for lifting operations in high-risk scenarios. Different from the traditional passive explosion-proof method, the design eliminates all kinds of ignition sources from the source and actively avoids explosion risks. It is not only a hard condition for overseas high-risk projects to be put into operation in compliance with regulations, but also the key for enterprises to reduce equipment operation and maintenance costs, ensure continuous safe production and avoid responsibility for safety accidents. This paper comprehensively explains its design points, technical standards and industry applications in detail.
What Is Explosion-proof Crane Anti-Spark Design?
Definition and working principle
The anti-spark design of Henan Mine Crane manufactured explosion-proof crane is a systematic equipment optimization scheme based on explosion-proof safety specifications for inflammable and explosive hazardous working environment. The core is to completely eliminate all kinds of ignition sparks in the whole operation cycle of crane through multiple technical means such as structural transformation, material replacement, electrical protection and electrostatic diversion, so as to prevent sparks, high temperature heat sources from contacting explosive media, thus avoiding explosion accidents.
Its core working principle is mainly divided into three aspects, from the source to eliminate spark generation, the overall equipment for all-round explosion-proof protection, while continuing to release the accumulation of static electricity three logics. Source blocking means replacing metal materials that are easy to generate sparks, optimizing mechanical structure, eliminating friction and impact sparks. Full protection is to do explosion-proof sealing treatment for all electrical components to prevent electric short circuit and electric arc spark generated by leakage. Dynamic discharge is to build a safe operation system without ignition source in an all-round way by means of exclusive antistatic structure, real-time dredging of electrostatic charges accumulated during equipment operation, avoiding electrostatic discharge sparks.
Key design requirements
The spark-free explosion-proof design is not a single component transformation, but a systematic engineering of the whole machine, which must strictly meet the four core design requirements.
- Zero ignition requirements under all working conditions: no open fire, arc, friction spark and high temperature heating point shall be produced in all operation links such as crane lifting, operation, braking and limit, and the surface temperature of equipment shall be strictly lower than the ignition temperature of explosive medium.
- Material adaptability requirements: All moving parts that are easy to friction, impact and electrostatic accumulation must be made of spark-free, antistatic and corrosion-resistant materials to eliminate mechanical sparks caused by hard steel collision and adapt to humid and corrosive high-risk working conditions.
- Electrical explosion-proof requirements: The electrical system, circuit, connection port and control elements of the whole machine shall pass explosion-proof certification, and have sealing, explosion-proof and safety protection capabilities to eliminate ignition hazards caused by electrical faults.
- Static electricity controllable requirements: The entire equipment has a complete static electricity discharge path, and the grounding system is stable and reliable. It can export static electricity generated during operation in real time to avoid static electricity accumulation, breakdown and discharge, and at the same time meet international and domestic explosion-proof level compliance standards.
Main Spark Sources in Crane Operation
Electrical spark sources
Electric spark is the most common and dangerous ignition source in Henan Mine Crane manufactured explosion-proof crane operation, and it is also the core cause of most industrial explosion accidents. Crane electrical system structure is complex, frequent movement, long-term operation is prone to various types of fault spark. Common sources of electrical sparks include: electric arcs and sparks generated when the motor starts, stops, and runs overloaded. Contact sparks generated by frequent switching of control elements such as contactors, relays, switches, and buttons. Cable aging, damage, extrusion wear caused by short circuit, leakage spark.
At the same time, loose terminals, failure of line insulation layer and lax sealing of electric control box will lead to dust and combustible gas intrusion into the interior, which will aggravate the probability of electrical short circuit and produce continuous electric spark. In addition, frequency converters, sensors and other precision electrical components failure, voltage and current fluctuations overload, will also produce high temperature arc, instantly reach the explosive medium ignition conditions, trigger safety accidents.
Mechanical spark sources
Mechanical spark belongs to high frequency recessive ignition source, which is easy to be ignored. It is mostly produced in the friction and impact process of crane mechanical movement. The core moving parts of conventional cranes, such as wheels, rails, hooks, pulleys, brakes, rope guides, etc., are mostly made of ordinary carbon steel. In high-frequency operation, long-term friction between wheels and rails, start-stop collision, will produce a large number of mechanical sparks and high-temperature particles.
The repeated friction and collision between hook and lifting workpiece, wire rope and pulley groove, and severe friction and heat generation during emergency braking of brake pad will produce dot sparks and high temperature heat sources. At the same time, the wear, deformation and loosening of parts caused by long-term operation of equipment will aggravate the probability of hard impact and continuously generate mechanical sparks. This kind of spark has short duration and strong concealment, but it is enough to ignite light combustible dust and volatile gases, which has great potential safety hazards.
Static electricity risks
Electrostatic spark is an invisible killer in high-risk dust and gas environment. In the continuous operation of crane, the relative movement and friction contact of various parts will continuously generate electrostatic charges. Constant friction between wire rope and pulley, cargo and sling, wheel and track, fuselage and air dust will lead to static electricity accumulation.
If the equipment lacks perfect antistatic design and discharge structure, electrostatic charge cannot be exported in time, and will continue to accumulate in the fuselage, lifting appliance, wire rope and other parts. When the electrostatic voltage reaches the breakdown threshold, electrostatic discharge sparks will be generated. Compared with electrical and mechanical sparks, electrostatic spark energy is small, but it accurately adapts to the ignition threshold of combustible gas and dust, which is one of the main explosion causes in fine high-risk scenes such as chemical industry, pharmacy and aluminum powder processing.
Key Technologies of Anti-Spark Design
Explosion-proof electrical components
Explosion-proof electrical component technology is the core means to block electrical sparks. All electrical components of the whole machine adopt special accessories for compliance explosion protection, and are equipped with systematic explosion-proof protection technology. The core components include explosion-proof motor, explosion-proof contactor, explosion-proof switch, explosion-proof electric cabinet, explosion-proof cable and explosion-proof terminal. All components have passed authoritative explosion-proof certification and have triple protection characteristics of explosion-proof, increased safety and intrinsic safety.
The electric control box of the equipment is integrally formed by thick steel plate, the joint surface is precisely machined, and the gap is strictly controlled within the explosion-proof standard range, which can effectively block the internal arc and flame leakage. The cable inlet port is equipped with special explosion-proof sealing joint, and the packing sealing technology is adopted to prevent the invasion of combustible medium and the spark of loose line. At the same time, the electrical system is equipped with overload, short circuit, phase loss and overheat multiple protection devices. Once electrical fault occurs, it will automatically shut down, eliminate electrical spark from the source, and adapt to various hazardous gas environments in Zone 1 and Zone 2 and dust environments in Zone 20, Zone 21 and Zone 22.
anti-sparking mechanical design
Spark-free mechanical design focuses on all moving friction and impact parts, and completely eliminates mechanical sparks through dual schemes of material replacement and structural optimization. For wheel, pulley, hook, rope guide, brake pad and other spark-prone parts, completely replaced by brass, aluminum bronze, beryllium copper and other copper alloy anti-spark materials, instead of traditional carbon steel materials, to avoid metal hard friction, impact spark
In the structural optimization, optimize the assembly accuracy of components, reduce component clearance and running sloshing, and reduce the probability of friction impact. Braking system adopts stable and flexible braking structure, matched with flame-retardant anti-spark brake pads to avoid severe friction, high temperature and spark caused by emergency braking. Polishing and passivation treatment shall be done to all edges and burrs of metal parts to prevent sparks from collision at sharp parts during lifting operation. At the same time, the transmission system adopts a fully sealed design to avoid dust from entering and aggravating the wear of components, and to ensure long-term stable operation without sparks.
Anti-static protection
Anti-static protection design to build a full range of electrostatic discharge system, completely solve the electrostatic accumulation discharge hidden danger. First of all, all parts of the Henan Mine Crane manufactured crane metal structure, track, sling, wire rope and so on are reliably grounded, and the grounding resistance is strictly controlled within 0.1 Ω to ensure that static electricity is quickly exported.
Secondly, non-metallic parts such as wheels, buffer blocks and seals are made of special antistatic materials, and the surface resistance is controlled in the standard range to avoid electrostatic accumulation. Anti-static discharge devices are installed at key parts of equipment to dynamically remove static electricity generated during operation. At the same time, regularly calibrate the stability of grounding system, eliminate electrostatic retention caused by loose grounding and corrosion, comprehensively avoid explosion risk caused by electrostatic spark, and adapt to various high-dust, high-volatility and high-risk operation scenarios.
Materials and Components Used in Anti-Spark Cranes
Spark-resistant materials
The material selection of anti-spark explosion-proof crane directly determines the explosion-proof safety level. All core friction parts are made of special anti-spark materials with high adaptation, high wear resistance and anti-static. In terms of metal materials, copper alloy materials such as aluminum bronze, brass and beryllium copper alloy are preferred. These materials have moderate hardness and will not produce open flame sparks during friction and impact. At the same time, they have corrosion resistance, oxidation resistance and wear resistance, and are suitable for chemical and wet corrosion conditions.
For non-metallic materials, asbestos-free flame retardant and antistatic braking materials are used for braking parts, explosion-proof and flame-retardant engineering plastics are used for insulating parts, and corrosion-resistant and antistatic rubber materials are used for sealing parts. All materials have been explosion-proof spark test, electrostatic test, temperature test, can be-20 ℃ to 60 ℃ wide temperature range stable operation, long-term operation without spark, no electrostatic accumulation, fully meet the explosion-proof requirements of high-risk conditions.
Specialized crane components
In addition to the core material, anti-spark explosion-proof crane equipped with a full set of professional explosion-proof special parts, to achieve complete explosion-proof no dead angle. Special parts include explosion-proof lifting hook, anti-spark pulley block, anti-static wire rope, explosion-proof walking wheel, flexible explosion-proof brake, explosion-proof limiter, explosion-proof buffer and other mechanical parts. All parts are customized for explosion-proof working conditions to eliminate potential safety hazards of common parts.
Electrical special parts cover explosion-proof frequency conversion control system, explosion-proof lighting, explosion-proof emergency stop device, explosion-proof signal alarm, etc. All parts have passed IECEx, GB explosion-proof certification, suitable for different explosion-proof scenarios. A complete set of special parts match each other and cooperate with each other to form a complete spark-free explosion-proof system, which not only ensures operation safety, but also takes into account equipment lifting efficiency and durability.
Explosion-proof Standards and Protection Levels
Understanding explosion-proof classifications
The protection level of explosion-proof cranes has strict hierarchy division, which is mainly classified according to the explosive medium type and dangerous area level of the working environment. According to the type of medium, it can be divided into two categories: gas explosion prevention and dust explosion prevention. Gas explosion prevention is suitable for oil and gas, chemical volatile gas scene, dust explosion prevention is suitable for mine, powder processing, pharmaceutical dust scene.
According to the classification of hazardous areas, the gas environment is divided into Zone 1 (continuous explosive gas environment) and Zone 2 (accidental explosive gas environment). Dust environment is divided into 20 areas, 21 areas, 22 areas. At the same time, according to the explosion-proof protection capability, the equipment is divided into Ex d explosion-proof type, Ex e increased safety type, Ex ia intrinsic safety type and other protection types. Different types are suitable for different danger level scenarios. The higher the level, the stronger the explosion-proof protection capability and the higher the safety redundancy. Enterprise selection should strictly match the site working condition level to avoid safety accidents caused by insufficient protection.
International safety standards
The design, production, inspection and acceptance of Henan Mine Crane manufactured anti-spark explosion-proof crane must strictly comply with the global general international safety standards and domestic national standards. International core standards include IECEx international explosion-proof certification standards and ATEX EU explosion-proof standards, which are the core basis for equipment export and cross-border project compliance, and standardize the material requirements, structural standards, electrostatic protection and electrical explosion-proof parameters of spark-free design.
How Anti-Spark Design Improves Crane Safety and Reliability
Reducing explosion risks
The spark-free design solves the potential safety hazards of explosion-proof cranes from the core level of ignition source, completely eliminates three core ignition causes: electrical arc, mechanical friction impact and electrostatic discharge, and minimizes the explosion risk under high-risk conditions. Compared with traditional passive explosion-proof equipment, the active anti-spark design can achieve zero point fire in the whole operation cycle, which is completely suitable for continuous and high-risk flammable and explosive operation environment.
At the same time, the systematic explosion-proof protection system can withstand various sudden working condition risks such as equipment aging, component wear, operation errors, and environmental fluctuations, avoid safety accidents caused by single protection failure, and comprehensively ensure the safety of operators, equipment, and production lines., to eliminate major economic losses and safety accountability issues caused by explosion accidents.
Improving equipment durability
Standardized anti-spark explosion-proof design not only improves safety, but also greatly prolongs the service life of equipment and reduces operation and maintenance costs. Special anti-spark copper alloy material, anti-static wear-resistant materials, with strong corrosion resistance, wear resistance, impact resistance, can effectively resist chemical corrosion, dust wear, high frequency impact and other working conditions, reduce the aging of parts, damage probability.
Explosion-proof sealing structure can isolate dust and corrosive gases from invading the equipment, protect electrical components and transmission structures from environmental erosion, and reduce equipment failure frequency. Conventional ordinary cranes have high annual failure frequency and frequent component replacement under high-risk conditions, while Henan Mine Crane manufactured anti-spark explosion-proof cranes greatly reduce equipment loss through material and structure optimization, and the service life of the whole machine can be increased by more than 30%, significantly reducing enterprise equipment procurement and operation and maintenance costs.
Ensuring reliable operation
High-risk industrial production requires very high continuity and stability of equipment. Equipment shutdown failure will directly lead to production line shutdown and cause huge economic losses. Spark free explosion-proof crane adopts systematic and refined explosion-proof design, multiple protection of electrical system, stable and wear-resistant mechanical structure, continuous and effective electrostatic protection, greatly improved anti-interference ability and environmental adaptability of equipment.
The equipment can operate continuously and stably under severe conditions such as high temperature, dust, corrosion, inflammable and explosive, etc., and prevent sudden shutdown and equipment failure caused by spark hidden danger, electrical failure and electrostatic problem. At the same time, the standardized design structure makes equipment operation and maintenance more convenient, troubleshooting is simpler, effectively guarantees the continuous, efficient and stable operation of industrial production lines, and provides core equipment support for large-scale production of enterprises.
Applications of Explosion-proof Anti-Spark Cranes
Oil and gas industries
The oil and gas industry is the core application scenario of spark-free explosion-proof cranes, covering the whole process conditions of oilfield exploitation, oil and gas refining, oil and gas storage, pipeline operation and maintenance, etc. In this kind of scenario, natural gas, volatile gas of crude oil and light combustible oil gas exist all the year round, which is easy to form explosive mixed gas, and the requirements for spark protection of equipment are extremely high.
Spark free explosion-proof crane can perfectly adapt to the lifting operation of oil and gas platform, refining workshop and storage tank area. In the process of equipment maintenance, material transfer and component lifting, there is no spark and no electrostatic hidden danger in the whole process, effectively avoiding the risk of oil and gas explosion. It is an essential core equipment for safe production in the oil and gas industry. It is widely used in onshore oil fields, offshore drilling platforms, oil and gas processing plants and other scenarios.
Chemical and pharmaceutical industries
The chemical and pharmaceutical industries have complex working conditions, and a large amount of volatile combustible gases, chemical dust and organic solvent vapor will be generated during production, storage and transportation. The hidden dangers of explosion are dense and the risks are extremely high. Fine chemical industry, pesticide production, pharmaceutical synthesis, powder pharmaceutical workshops, etc., strict requirements for equipment ignition source control, ordinary cranes are completely unable to adapt.
Spark free explosion-proof crane through all-round spark-free, anti-static, anti-corrosion design, can safely complete the lifting and transfer of chemical raw materials, pharmaceutical intermediates, finished materials, production equipment, eliminate spark caused by medium combustion explosion accidents, meet the chemical industry, pharmaceutical industry refined, high-level explosion-proof safety standards, adapt to indoor workshops, storage areas, outdoor equipment areas and other multi-scene operations.
Mining and hazardous areas
Mining industry and various high-risk explosion-proof areas are important application areas of anti-spark explosion-proof cranes. Coal mine, nonferrous metal mine, powder mine operation process, will produce a lot of coal dust, metal dust, mining combustible gas, dust accumulation is easy to form explosive mixtures, small sparks can cause major mine accidents.
With the advantages of mechanical friction-free spark, electrical arc-free and static discharge, the sparking-free explosion-proof crane can safely adapt to hoisting scenarios such as underground mine, open-pit Kuangqu, ore bin transfer and mine equipment maintenance. At the same time, it can also be used in grain processing, aluminum processing, spraying workshop, dangerous goods storage and other high-risk areas where flammable and explosive dust and gas exist. It is the core safety lifting equipment for high-risk conditions in the whole industry.
