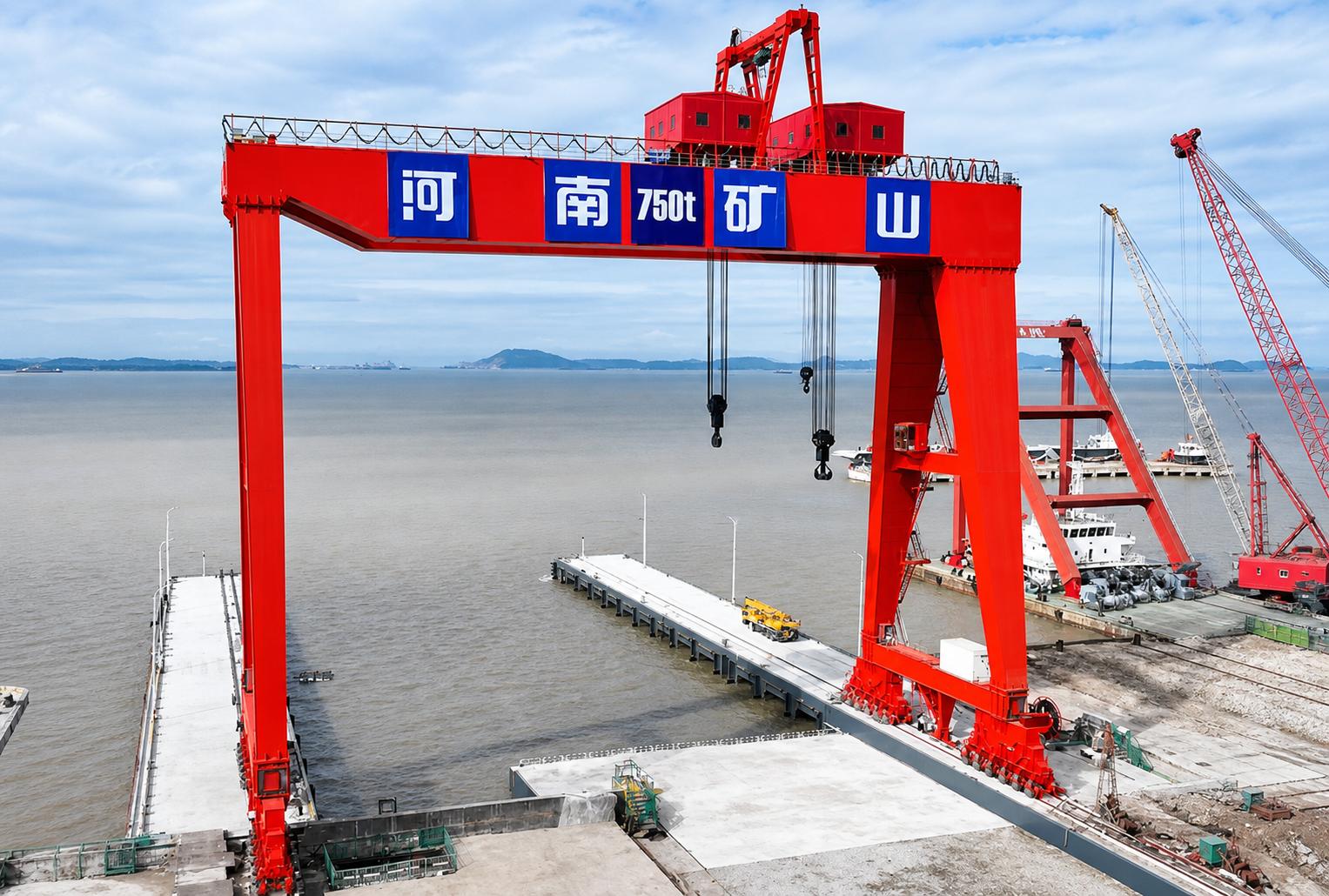

How Does Port Crane Automation Affect Terminal Operating Costs
With the upgrading of global shipping capacity and the continuous expansion of port throughput, coupled with higher labor costs and a shortage of skilled operators, the disadvantages of traditional manual control of port cranes, port shore bridges, and field bridge equipment are becoming more and more prominent.Large manual operation errors, high energy consumption, frequent equipment downtime, operation and maintenance losses and hidden dangers of cargo damage continue to drive up the overall operating expenses of the terminal.In this context, the automation upgrade of port cranes has become the core direction of the intelligent upgrading of ports. Through standardized, unmanned, and digital operation modes, the cost structure is optimized from multiple dimensions of manpower, energy consumption, maintenance, and operating losses, and the efficiency and profitability of terminal operations are comprehensively improved.
How Port Crane Automation Changes Operating Costs
The core operating costs of ports and terminals are mainly composed of labor costs, energy consumption costs, equipment maintenance costs, failure loss costs, and operation error loss costs. It is also a rigid expenditure that is difficult to optimize for a long time in traditional terminals.Henan Mine Crane manufactured port crane automation uses intelligent control system, unmanned operation module, AI intelligent operation and maintenance, and precise scheduling system to reconstruct the terminal cost structure from the root cause, so as to achieve the dual cost-reducing effect of reducing operating expenses and reducing operating losses, and the cost optimization effect will continue to increase with the lengthening of the operation cycle and the increase of throughput.
Labor and energy savings
Labor and energy consumption are the two core variable costs of traditional fully automatic port crane operations, and they are also the expenditure sectors with the largest decline after automation transformation.Under the traditional manual operation mode, a single shore container crane requires 4-5 operators to be on duty in shifts, and at the same time it needs to be equipped with command, inspection, and auxiliary docking personnel. Salary, social security, training, shift subsidies, personnel management and other expenses are superimposed. Labor costs remain high all year round, and there are perennial difficulties in recruiting and large mobility of personnel in high-risk port jobs, which indirectly increases management costs and operational risk costs.The intelligent automated port crane adopts remote centralized control + unmanned autonomous operation mode. Only 1-2 monitoring personnel are required for a single equipment to complete the on-duty control of multiple equipment, without the need for on-site high-frequency operation.
In terms of energy consumption savings, traditional manual operations have problems such as frequent emergency stops, idling, overload operations, and irregular start-stop, and invalid energy consumption accounts for an extremely high proportion.The smart port crane is equipped with an intelligent energy consumption control system, a precise start-stop algorithm, and an energy recovery device. It can automatically match the optimal power according to the weight of the container, the operating distance, and the operating trajectory to eliminate invalid idling and overload energy consumption.The measured data show that automated operations can reduce the energy consumption of a single box by 20%-25%, and the annual power saving of large ports can reach the level of one million degrees, and the long-term energy consumption savings are very impressive.
Maintenance and downtime
Equipment maintenance costs and downtime losses are hidden high costs that can easily be ignored by traditional terminals.The uncertainty of manual operation will lead to uneven wear and tear of core components such as wire ropes, spreaders, bearings, motors, and reducers of port cranes, and frequent sudden failures.The traditional maintenance model focuses on regular maintenance and post-failure maintenance. There are dual problems of excessive maintenance, wasteful costs, and delayed maintenance that cause major failures. Unplanned downtime is uncontrollable, which directly disrupts the operation schedule of the pier, causing idle berths and loss of ships in port.
The fully automatic port crane is equipped with AI intelligent diagnosis, 3D visual monitoring, and real-time acquisition system of equipment status. It can monitor the operation data of the core components of the equipment 24 hours a day, accurately predict the fatigue, wear and hidden faults of the components, and automatically generate preventive maintenance plans, transforming the traditional post-mortem maintenance mode into an active preventive maintenance mode.At the same time, the operation trajectory of automated port cranes is standardized, the operation actions are standardized, and the wear of core components is uniform and controllable, which greatly extends the service life of the equipment, reduces the frequency of replacement of large parts, and further dilutes long-term maintenance costs.The stable equipment attendance rate also completely avoids indirect economic losses such as ship stagnation, yard congestion, and order delays caused by sudden equipment failures.
Handling errors and losses
The randomness error of manual operation is the core source of the invisible loss of the terminal.Traditional port crane lifting operations rely on the experience of operators, and are prone to problems such as container alignment deviation, tilt of spreader, unstable grasping, and misplaced placement. Light ones require secondary alignment and repeated operations, which lengthen the operation time and waste energy and manpower. Heavy ones cause container bumps, box damage, cargo damage, and even safety accidents such as container falling boxes and stacking collapses.In addition, operational errors can also lead to chaotic stacking in the yard, chaotic box positions, and mismatches between the documents and the actual goods. Subsequent manual verification, rectification and adjustment are required, which takes up terminal manpower and site resources, and when serious, it will affect the timeliness of delivery of the goods, resulting in additional losses such as cargo damage compensation, customer complaints, and route delays.
The intelligent port crane relies on a high-precision positioning system, intelligent anti-shake technology, and automatic alignment algorithm. The operating error can be controlled at the millimeter level, and the whole process is standardized and independently completed. Grasping, translation, box dropping, and stacking operations completely avoid human operation errors.On the one hand, it eliminates the invalid costs caused by secondary operations, on the other hand, it greatly reduces cargo damage, safety accidents, box dislocation and other problems, effectively reduces terminal operation losses and compensation costs, and guarantees zero errors and zero additional losses in operations.
How Automation Improves Terminal Operations
The core value of modern port crane automation is not only a single-dimensional cost reduction, but also an all-round upgrade of the terminal operation system to solve the traditional terminal efficiency bottleneck, waste of site, chaotic equipment coordination, unstable operation level and other core pain points.Through intelligent, standardized, and digital operation modes, a comprehensive upgrade of terminal throughput capacity, site utilization rate, equipment collaborative efficiency, and operational stability is realized, and a refined and efficient modern terminal operation system is constructed.
Faster container handling
Container loading and unloading efficiency is a key indicator to measure the core competitiveness of the terminal, which directly determines the utilization rate of the terminal's berths, the speed of ship turnover and the daily throughput.Traditional manual operation is affected by the status, experience, fatigue, and weather adaptability of operators. The operating speed fluctuates greatly, and the operating time of a single box is unstable. During peak hours, it is very prone to berth congestion and ships waiting to dock.
The automated port crane is equipped with optimal path planning algorithm, intelligent anti-shake system, and continuous operation logic. There is no need for manual rest, changing of guards, and adaptation and adjustment, and it can achieve 24-hour uninterrupted continuous operation.The system can predict the operation instructions and plan the operation trajectory in advance, eliminate hesitation, errors, repeated alignment and other invalid time-consuming manual operations, and greatly compress the loading and unloading time of a single box.Landing data show that the container loading and unloading efficiency of automated terminals is more than 30% higher than that of traditional artificial terminals, the turnover efficiency of berths is significantly improved, and the daily throughput of single berths has achieved a significant breakthrough, effectively alleviating the operating pressure during peak port periods.
Better yard utilization
The limited land resources and insufficient site utilization rate of the terminal yard are the common pain points of many traditional ports.The accuracy of manual stacking operations is limited. In order to avoid safety risks and avoid box collisions, the stacking spacing is too large, the stacking height is limited, and there is a large amount of idle space on the site.At the same time, the manual box space planning is highly arbitrary, and similar containers are scattered and stacked, and the height is chaotic, resulting in a serious waste of yard space, and the limited site cannot carry greater throughput, restricting the increase of terminal production capacity.
Henan Mine Crane manufactured automated crane is equipped with an intelligent yard dispatching system, which can intelligently plan the optimal yard location, yard spacing and yard height according to the container size, type, arrival time, and departure priority, so as to maximize the compression of idle space and organize the yard layout within the range of safety standards.Standardized and high-precision stacking operations can greatly improve the space utilization rate of the yard, allowing the original yard to carry more container stocks, and the storage and turnover capacity of the terminal can be improved without the need for new land expansion, greatly saving the high cost of terminal land expansion and site transformation.
Improved equipment coordination
In traditional terminal operations, equipment such as shore bridges, field bridges, collection trucks, and unmanned transport vehicles rely on manual scheduling. There are problems such as lag in information, deviation in instructions, and disconnection of connections, which are prone to equipment waiting, idle resources, and job conflicts.For example, after the loading and unloading of the shore bridge is completed, the collection card is not in place in time, the congestion of the field bridge operation leads to the shutdown and waiting of the shore bridge, and the operation routes of multiple equipment overlap and conflict, which seriously reduces the overall operating efficiency and causes a waste of equipment resources.
The automated port will build an integrated intelligent dispatching platform, and all port cranes, transportation equipment, and yard equipment will realize data exchange and collaborative linkage.The system can uniformly allocate equipment tasks, plan operation routes, and synchronize operation rhythm according to the ship's berthing plan, yard inventory, and operation priority, so as to realize the seamless connection of shore bridge loading and unloading, card collection and transshipment, and yard bridge stacking.Through intelligent collaborative scheduling, the invalid waiting time of equipment has been greatly reduced, and the comprehensive utilization rate of equipment has been significantly improved, completely solving the problem of traditional terminal equipment fighting each other and chaotic scheduling.
Consistent operating performance
There is great instability in the operating performance of traditional artificial docks. There is a huge gap in the operating efficiency of day and night, sunny and rainy days, newcomers and old employees, and the quality of operations is uneven.Factors such as personnel fatigue, weather effects, human error, and mood swings will directly lead to a decline in operational efficiency and an increase in error rates. The overall operating quality of the terminal cannot be standardized and controlled, and it is difficult to stably undertake large-volume and time-sensitive shipping orders.
Henan Mine Crane manufactured intelligent port cranes rely on system procedures to operate throughout the process, regardless of personnel status, weather environment, and operating time. Regardless of day and night, cold, heat, rain and snow, they can maintain a unified operating speed, operating accuracy and operating standards, and achieve stable operation around the clock.Stable and consistent operating performance makes core indicators such as terminal throughput, operation timeliness, and operation error rate controllable and predictable, which facilitates the terminal to formulate standardized operating plans, accurately plan production capacity, stabilize service quality, and enhance shipping customer recognition and cooperation stickiness.
What Does Port Crane Automation Cost?
Many port companies have a wait-and-see attitude towards automation upgrading. The core concern lies in the high initial input cost and complex input dimensions, making it difficult to accurately calculate the overall budget.The cost of automation transformation of smart port cranes is not a single equipment cost, but covers the whole process costs of hardware equipment, control systems, hardware and software transformation, system integration, installation and commissioning. It is mainly divided into two modes: procurement of new automation equipment and transformation of traditional equipment. The cost investment of different programs is significantly different.
Crane equipment and control systems
Hardware equipment and core control system are the core cost subjects of automation upgrade.The hardware terminal includes equipment for automated shore bridges, field bridges, and gantry cranes, as well as supporting hardware such as high-precision positioning sensors, intelligent spreaders, anti-shake devices, data acquisition terminals, remote monitoring terminals, and safety protection equipment. It is the basic carrier for unmanned operations and precise operations.As the core control center of automation equipment, the control system includes core modules such as autonomous operation control procedures, intelligent energy consumption control systems, fault diagnosis systems, safety protection systems, and remote control systems, which directly determine the accuracy, stability and safety of equipment automation operations.The algorithm accuracy, response speed, and compatibility of the high-end intelligent control system are stronger, and it can be adapted to high-frequency and high-throughput port operation scenarios, and the corresponding cost investment is relatively higher. It is the core investment sector to ensure the effectiveness of automated operations.
New cranes vs retrofitting
The automation of port cranes is mainly divided into two modes: the procurement of new automated port cranes and the intelligent transformation of traditional port cranes. It is adapted to the budget conditions and equipment status quo of different terminals, and the cost differences are very obvious.The new automated crane procurement model is suitable for scenarios where new terminals and old equipment are completely eliminated. The advantage lies in strong equipment compatibility, complete automation functions, and optimal operating performance. There is no need to worry about the hardware limitations of old equipment, but the overall investment in the early stage is high, including the full cost of the whole machine equipment, a full set of intelligent supporting hardware, and a dedicated control system. It is suitable for long-term planning and large-scale operation of large hub ports.
The traditional port crane transformation and upgrading model is a cost-effective and optimal solution for small and medium-sized terminals. There is no need to replace the entire equipment. Only by installing intelligent sensors, upgrading the control system, installing intelligent operation modules, and retrofitting the transmission and energy consumption systems, semi-automatic and even fully automated operations can be achieved.The investment in transformation is only 30%-50% of the purchase of new equipment, which can maximize the activation of existing equipment assets, reduce the threshold for technical transformation, and adapt to the upgrading needs of stock terminals with limited budgets and good equipment conditions.
Software and system integration
The integration of hardware and software systems is an easily overlooked but vital cost sector.The automation of a single equipment cannot achieve the overall efficiency enhancement of the terminal. The port crane automation system must be connected with the terminal TOS terminal operating system, yard dispatching system, ship management system, security monitoring system, and energy consumption management system to achieve data exchange and global collaboration.System integration costs include customized software development, interface adaptation, data docking, platform linkage, late iterative upgrades, system operation and maintenance costs.High-quality system integration services can solve multi-device and multi-system compatibility conflicts, realize unified scheduling and control of job data, and solve the problem of non-interoperable intelligent operation of equipment and the overall system. It is a key investment to ensure the landing effect of automation transformation and maximize the release of cost reduction and efficiency. Value.
Installation and commissioning
Installation, commissioning and project landing costs are necessary expenses for automation upgrades. They mainly include equipment entry installation, line laying, 5G base station supporting construction, hardware debugging, software adaptation, on-site trial operation, personnel training, project acceptance and other expenses.The installation accuracy requirements of large-scale port cranes in the port are high and the commissioning process is complex. A professional technical team is required to complete the global commissioning to ensure stable equipment operation, accurate system response, and safety protection in place.At the same time, the skills training costs of later operators and operation and maintenance personnel are also included in this section to ensure that the terminal team can skillfully operate, operate and maintain automation equipment, and ensure that the equipment can operate stably for a long time after the technical reform.Complete installation, commissioning and landing services are the basis for avoiding equipment failures, system vulnerabilities, and hidden dangers in operations, and directly determine the landing effect and service life of automation equipment.
How to Evaluate the ROI of Port Crane Automation
Henan Mine Crane manufactured intelligent port crane automation upgrade is a medium- and long-term fixed asset investment. It cannot judge the cost performance based on short-term investment alone. It needs to accurately calculate the ROI through the four core dimensions of throughput, single-box operation cost, investment payback period, and long-term value, and objectively evaluate the investment value of automation upgrading to provide data support for terminal technical reform decision-making.
Terminal throughput
Terminal throughput is the core basic indicator of the return on automation investment.The increase in operational efficiency, equipment attendance, and yard utilization brought about by automation transformation will eventually be converted into an increase in throughput.Compared with traditional terminals, automated terminals can achieve 24-hour uninterrupted and efficient operation, with no idle equipment, no gaps in operations, and no waste in the yard. Under the same berth and site conditions, the throughput can be steadily increased by more than 30%.The increase in throughput directly drives the increase in terminal revenue, while diluting the fixed operating costs of the terminal, so that the management costs, site costs, and equipment depreciation costs per unit of cargo continue to decline.The higher the throughput, the more obvious the efficiency advantages and cost advantages of automation equipment, and the faster the return on investment, which is the core positive indicator for evaluating ROI.
Cost per container move
The cost of single-box operation is the most intuitive core indicator to measure the cost-reducing effect of automation, and it is also the core basis for ROI calculation.The cost of a single box covers all operating expenses such as labor costs, energy consumption costs, maintenance costs, loss costs, and downtime sharing costs for a single box.Combined with the measured data of the industry, after the automation transformation, the labor cost of a single box at the terminal has been reduced by 60%-80%, the energy consumption cost of a single box has been reduced by 20%-25%, and the maintenance and loss costs have been reduced by more than 15%. , The comprehensive single box operation cost can be greatly optimized.For medium-sized terminals with an annual throughput of more than one million, a small decrease in the cost of a single box will bring annual cost savings of tens of millions, and the long-term cumulative cost-reduction benefits are very considerable. It is a key data that reflects the value of automation investment.
Payback period
The payback period is the most concerned landing indicator for port companies, and it refers to the cycle in which the investment in automation transformation recovers all costs through the annual cost reduction and efficiency gains.According to different terminal transformation models, throughput models, and regional labor and electricity price costs, there are reasonable differences in the payback period.Industry standardized calculation data show that the medium-sized million standard box terminal adopts the equipment transformation model, and the static investment payback period is about 6-8 years.Adopting a new automation equipment procurement model, the payback period is about 8-10 years.As subsequent technological iterations mature, equipment operation and maintenance costs continue to decline, and throughput steadily increases, the payback period will be further shortened.At the same time, the service life of automated port crane equipment can reach 15-20 years, which can create net income for the terminal for a long time after the return of capital, and the investment stability is extremely strong.
Long-term investment value
The core value of Henan Mine Crane manufactured modern port crane automation is not only short-term cost savings, but also has strong long-term investment value and asset appreciation attributes.First, automation upgrading is the core just need of smart port construction, which is in line with the development trend of global port intelligence, and can help terminals break through the bottleneck of traditional operating capacity, enhance market competitiveness, and stabilize shipping customer resources.
Second, the standardized and digital operation mode of automated port cranes can help the terminal achieve refined management, accumulate massive amounts of operation data, and provide data support for subsequent iterative upgrading of smart ports and global intelligent transformation, and continue to explore the space for cost reduction and efficiency enhancement.Third, the automated terminal has a higher safety factor and stronger operational compliance, which can significantly reduce the risk of safety accidents and policy compliance risks, and avoid large compensation and rectification losses.From the perspective of long-term assets, the value preservation rate of automated port crane equipment is higher. Compared with old manual equipment, the value of late replacement and revitalization is stronger, which can build a long-term, stable and sustainable profit system and operational advantages for the terminal.
Henan Mine Crane Factory Custom
Port crane automation can fundamentally optimize the terminal operation mode, effectively control various costs such as manpower, energy consumption, maintenance and operating losses, and comprehensively improve loading and unloading efficiency, site utilization and equipment coordination level, bringing stable long-term benefits and investment value to the terminal.In view of the budget and operational needs of ports of different sizes, Henan Mine Crane Factory can provide new automated crane customization and intelligent transformation solutions for traditional equipment, adapt to various terminal upgrade scenarios, and help ports easily achieve cost reduction and efficiency. Enhance the competitiveness of core operations.
