Crane Rail Misalignment: Wheel Wear, Alignment Inspection and Fixes
In the long-term heavy-duty operations of various large cranes such as bridge, gantry, tower, etc., track dislocation is a very hidden high-risk failure, and it is also the core cause of most equipment failures.Many operation and maintenance personnel focus on maintaining core components such as main beams, motors, and brakes, ignoring the problem of track accuracy offset. Although minor misalignment will not directly stop, it will continue to cause wheel wear, equipment vibration, rail gnawing and other problems, greatly increasing operation and maintenance costs. Over time, it will cause the crane to deviate and derail, laying major safety hazards. More than 70% of the crane wheel abnormal loss and fuselage jitter problems in the industry are all due to excessive track alignment deviation.

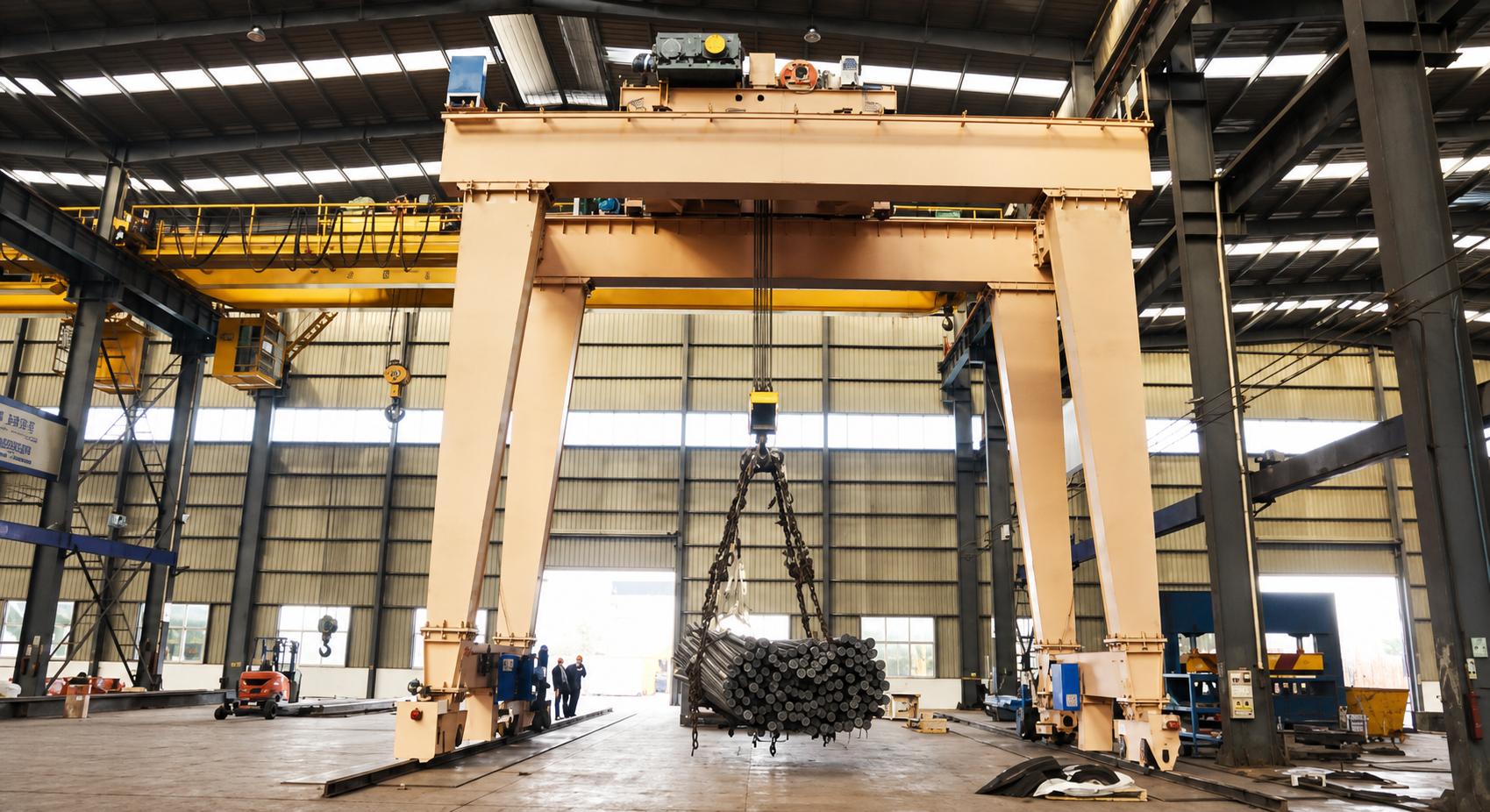

What Is Crane Rail Misalignment and Why Does It Matter?
Crane track misalignment is a geometric accuracy fault where the straightness, track gauge, elevation, and parallelism of the track deviate from industry standards, covering various forms such as overall offset, local bending, height difference, and uneven track gauge.This kind of deviation is different from dominant faults such as rust and surface wear, which are extremely concealed and will continue to accumulate.As the core foundation of the operation of Henan Mine Crane manufactured crane, unbalanced track accuracy will disrupt the walking trajectory of the equipment, causing problems such as deviation, caton, and uneven resistance, causing wheel load to be biased, and gradually reducing the operating accuracy of the whole machine, affecting accurate hoisting operations.
Track misalignment, fuselage skew, wheel wear and safety hazards will form a closed loop of vicious failures, and deviations will force the wheels to tilt and fit the track, causing common rail gnawing problems.Long-term friction and extrusion will cause unilateral wheel wear and rim damage, and deformed wheels will further increase track offset, exacerbate equipment vibration and abnormal noise, and overload and lose transmission components such as motors and reducers.Severe misalignment can lead to unbalanced lifting force, uncontrolled shaking of the crane, and even accidents such as derailment and distortion of the main beam, bringing serious safety risks and high production and maintenance losses.
Signs and Common Causes of Crane Rail Misalignment
Uneven wheel and rail wear
Uneven wear of wheels and tracks is the most important initial sign of crane track dislocation, and it is the key basis for operation and maintenance investigation.Under normal working conditions, the wheels and track tread wear evenly and there is no obvious friction damage.Once the alignment deviation of the track occurs and the contact angle of the wheel is unbalanced, problems such as unilateral partial wear, thinning of the rim, peeling of the tread, etc. will occur, and dense scratches and depressions will also occur on the side of the track.According to industry standards, excessive wear of rims and tread surfaces can determine the existence of long-term orbital dislocation. Such asymmetric wear will continue to amplify the accuracy deviation and cause irreversible equipment loss.
Abnormal noise and vibration
The abnormal noise and vibration of the crane when it is running are typical mid-term fault signals for track dislocation, which can be intuitively and quickly identified.When the equipment is walking normally, it is stable, low-noise, and there is no obvious jitter, and the deviation of the track alignment will cause the wheels to continue to rub and squeeze the track, resulting in abnormal sound of gnawing the track, caton impact sound, and the fuselage will shake with regularity.The greater the misalignment deviation, the more obvious the vibration and noise.Long-term operation with faults will cause fatigue stress on the main beam and end beam, cause deformation of the fuselage structure, continue to expand the scope of equipment failures, and exacerbate the loss of the whole machine.
Rail gauge and elevation errors
Gauge error and elevation error are the core geometric faults of track misalignment, and they are also the fundamental causes of equipment wear and abnormal noise.Excessive gauge is manifested as uneven track width and narrowness, forcing the wheels to continue to rub sideways when walking; elevation errors are divided into local ups and downs and overall gaps, which will cause the crane to tilt and force, uneven wheel load, unilateral overload and pressure, and unilateral suspension.These two types of deviations not only accelerate the loss of track and wheels, but also cause equipment deviation and braking offset, which seriously affect the stability of hoisting. After exceeding the standard, it is necessary to stop and correct immediately.
Loose fasteners and foundation settlement
Loose fasteners and foundation settlement are the most common causes of crane track dislocation in industrial plants.Long-term heavy-duty and high-frequency start and stop of the crane will produce a continuous impact force, causing the track bolts, pressure plates, and pads to loose and shift, causing the track to lose its fixed constraints, and gradually offset and bend problems.At the same time, the foundation of the plant is affected by heavy pressure, rainwater erosion and natural sedimentation, which is prone to cracking and uneven collapse, causing the track to tilt and sink.This kind of progressive failure has strong concealment in the early stage, and continuous operation will continue to exacerbate the problem of misalignment, causing various chain equipment failures.
How to Inspect Crane Rail Alignment
Inspect rails, wheels, joints, and fasteners
Accurate inspection of appearance parts is the basic step of track alignment inspection, and it is necessary to follow the inspection logic from the parts to the whole, from the appearance to the details.First check the track body to see if there is wear, scratches, cracks, flaking, or deformation on the track tread, and whether the track joints are uneven, misplaced, and the gaps exceed the standard.Secondly, check the walking wheels of the crane, check the degree of wear on the tread of the wheels, the integrity of the rims, and the flexibility of the wheel rotation, and check whether there are problems such as stagnation, deformation, and eccentricity.
Focus on investigating the track connection nodes and fixed parts, and check the track joint connectors, fixing bolts, compression plates, and buffer pads one by one to confirm that there are no loose bolts, missing accessories, offset plates, aging and failure of pads, etc.At the same time, check whether the limit position of the track end and the buffer device are intact, so as to avoid the track offset and equipment wear caused by the failure of the accessories, and fully lock in the hidden dangers of failure visible in the appearance.
Measure gauge, elevation, straightness, and span
Geometric size detection is the core of determining the degree of track dislocation and formulating a repair plan. Professional tools such as laser aligners and level meters are required to detect the four core parameters of track gauge, elevation, straightness and span according to industry standards.Measure and record data in segments along the track, investigate problems such as uneven track width, height gap, bending offset, etc., check the difference between the actual track parameters and the equipment factory standards, accurately locate the fault point and the deviation amplitude, all test data must be completely archived, and strictly compare the industry acceptance specifications to determine whether the deviation exceeds the standard.
Track inspection needs to be combined with wheel alignment, runway geometry and equipment operating status comprehensive verification to avoid single inspection leading to failure omissions.The staff needs to verify the parallelism and verticality of the wheel installation, investigate the deformation and cracking of the runway steel beams and foundations, and lock the root cause of structural dislocation.At the same time, the measured data is matched with the working conditions of equipment deviation, rail gnawing, abnormal noise, etc., to distinguish the main and secondary fault problems, accurately identify the proportion of track, wheel, and structural deformation faults, eliminate blind maintenance, and ensure that track correction and repair work are accurate and efficient.
How to Fix Crane Rail Misalignment
Adjust rail position and fasteners
For minor track misalignment and loose fasteners, priority is given to low-cost repair solutions such as fastening correction and position fine-tuning to adapt to initial faults with small deviations.First, the bolts, pressure plates, and pads of the entire line of the track are fully tightened and reset, and the aging, deformed, and missing fasteners are replaced to restore the fixed strength of the track and eliminate the problem of loosening and offset of the track.Combined with the previous measurement data, the track level, verticality and spacing are accurately adjusted by increasing or decreasing the track pads, fine-tuning the position of the pressure plate, and correcting the centerline of the track, and minor gauge errors, elevation errors, and straightness deviations are corrected.After the adjustment is completed, review the dimensional data one by one to ensure that all parameters return to the industry standard tolerance range, and solve the wear and abnormal noise problems caused by minor misalignment from the source. The repair cost is low, the efficiency is high, and the normal operation of the equipment can be quickly restored.
Correct local alignment problems
In view of regional misalignment faults such as local bending of the crane track, local high and low deviations, and local gauge offsets, a fixed-point and accurate correction scheme is adopted, without the need to disassemble and assemble the track as a whole.The laser alignment instrument is used to accurately mark the fault point, and the curved track is straightened and corrected by hydraulic correction equipment, and the thickness of the pad is fine-tuned for the local high and low gap area to correct local settlement and tilt problems.For the problem of wrong joints and uneven gaps in the track joints, re-adjust the position of the joints, compactor the butt gaps, and correct the height difference of the joints to ensure that the track is smooth and smooth throughout the process.Local correction follows the principle of ”small amplitude, multiple fine-tuning, and repeated review" to avoid secondary deformation of the track caused by one-time large adjustments, accurately solve the rail gnawing and caton failures caused by local misalignment, and maximize the retention of the original track service life.
Repair damaged rails and runways
For track and runway structures with minor wear, scratches, rust, and surface damage, professional repair techniques are used to extend the service life of the equipment and avoid the continuous expansion of damage.Minor scratches and wear grooves on the tread of the crane track shall be repaired by polishing, welding, and polishing techniques to restore the flat working surface of the track.For friction damage and slight deformation on the side of the track, plastic correction, polishing and trimming are carried out to eliminate the friction points of the track.At the same time, repair the support structure of the runway, strengthen and level the slightly cracked foundation and deformed support steel beams, repair the structural defects of the runway, and solve the problem of track dislocation caused by slight foundation settlement and slight structural deformation.After the repair is completed, the working surface of the track is thoroughly polished to remove burrs and sharp angles, ensure that the wheels walk smoothly, and completely eliminate the hidden dangers of abnormal friction and vibration.
Replace severely damaged rails
For the track of the crane that is severely damaged and cannot be repaired, it must be replaced as a whole in time to prevent sick operation.When the track flakes off in a large area, deep cracks, severe bending deformation, severe tread wear, or the track metal is exhausted or hardened, and the accuracy and structural strength cannot be restored by local repair, the old and damaged track needs to be removed and replaced with a brand new track of the same model and specification.Track replacement needs to strictly follow the installation specifications, and laser alignment calibration is used throughout the process to accurately control the track gauge, elevation, straightness, and parallelism, and update all fasteners, pads, and buffer accessories simultaneously to ensure that the installation accuracy of the new track is up to standard.After the replacement is completed, no-load and heavy-duty test runs will be carried out, and the operating status of the equipment will be comprehensively tested to confirm that there are no problems such as deviation, abnormal noise, vibration, and partial wear, and the severe track misalignment failure will be completely solved.
How to Prevent Repeated Rail Misalignment
Schedule regular rail and wheel inspections
The establishment of a normalized regular inspection system is the core means to prevent the recurrence of orbital dislocation.Enterprises need to formulate daily, weekly, and monthly three-level inspection plans based on the frequency and load intensity of Henan Mine Crane manufactured cranes, and daily inspections focus on investigating abnormal operating noise, vibration, and wheel wear marks.Weekly inspections check the tightness of fasteners, the appearance of the track, and the state of the joints.A comprehensive accuracy test is carried out once a month to measure core data such as track gauge, elevation, and straightness.At the same time, an equipment operation and maintenance ledger is established to record each inspection data, wear conditions, and maintenance records, so as to achieve traceability of track and wheel status, predict the development trend of deviations in advance, and intervene in correction in time during the stage of minor misalignment to avoid the accumulation of minor faults into severe equipment failures, and prevent the recurrence of track misalignment from the institutional level.
Monitor abnormal wear and crane travel
In daily operation and maintenance, focus on monitoring abnormal equipment losses and changes in operating conditions to achieve early detection and early handling of faults.Pay attention to the wear speed of the wheels and tracks in real time. If the wear suddenly increases in the short term and the wear on one side increases rapidly, stop immediately to check the accuracy of the track alignment.Closely monitor the walking status of the crane, and once abnormalities such as slight deviation, intermittent caton, abnormal noise, and jitter are found, they will be detected and corrected in time.At the same time, monitor the operating load of the motor and reducer. Track misalignment will lead to increased walking resistance and abnormal equipment load. Electrical data is used to assist in judging track faults, multi-dimensional monitoring of equipment status, and accurately capture hidden hidden dangers of misalignment to avoid continuous deterioration of faults.
Recheck alignment after major repairs
After the crane or track system completes the overhaul, replacement of accessories, and structural transformation, the track alignment accuracy must be re-reviewed, which is the key to operation and maintenance that can easily be ignored.Large-scale operations such as main beam repair, wheel replacement, end beam correction, foundation repair, and local track rectification will indirectly change the force structure of the equipment and the track reference, which may cause secondary alignment deviations.After all large-scale maintenance operations are completed, it is necessary to comprehensively re-test the track gauge, elevation, straightness, and span, simultaneously verify the wheel alignment accuracy and runway geometry, fine-tune and repair the minor deviations caused by the maintenance in time, and confirm that all parameters meet the standards before entering formal operations, completely eliminate the recurrence of track dislocation after maintenance.
When Should You Repair or Replace the Crane Rail System?
Repair vs. replacement factors
Crane track maintenance and replacement are mainly determined based on the deviation range, degree of damage, equipment working conditions and operation and maintenance costs.For minor faults such as minor misalignment, local wear, and loose fasteners, priority is given to maintenance and correction, with lower costs and shorter downtime.If the track is deformed in a large area, metal fatigue, multiple cracks, or foundation settlement leads to repeated misalignment and a surge in maintenance frequency, and the accuracy and safety of the operation cannot be guaranteed, the entire track system needs to be replaced in time based on the age of the equipment and production requirements.
When wheel replacement is insufficient
Most companies have operation and maintenance misunderstandings. They only replace worn crane wheels but do not deal with track dislocation, which leads to the new wheels gnawing and grinding again in the short term.If there is loss and abnormal noise of equipment deviation one to three months after the wheel is replaced, it means that the root cause of the failure is the track accuracy exceeds the standard and the runway structure is deformed.Operation and maintenance need to give priority to correcting track alignment, repairing track defects, and then replacing brand new wheels in order to completely solve the vicious circle of repeated wheel wear and tear.
When to consider runway or crane modernization
When the crane track and equipment experience systematic and structural aging failures, runway renovation or equipment modernization and upgrading need to be considered.Tracks that have been in use for more than ten years are prone to overall deformation and fatigue damage, and repeated corrections still fail to meet the standards. Problems such as continuous foundation settlement and deformation of the main beam and walking mechanism will cause frequent failures and shutdowns.The accuracy of the old track cannot be adapted to the needs of heavy-duty and high-precision hoisting. Refurbishing the runway and upgrading equipment can effectively reduce operation and maintenance costs and improve operation safety and operating efficiency.
Henan Mine Crane Factory Custom Custom
Crane track misalignment is a common hidden danger that eats away at equipment life and drags down production efficiency. Long-term deviations can cause problems such as wheel wear, equipment jitter, and frequent downtime, which greatly increases the operation and maintenance costs of enterprises, and also hides safety risks.Doing a good job of track inspection, correction and maintenance is the key to the long-term stable operation of the crane.As a professional crane manufacturer, Henan Mine Crane Factory relies on mature equipment manufacturing and a complete set of maintenance and adjustment technology to solve all kinds of track matching failures in one stop, adapt to the needs of multi-scenario operations, and escort the safe and efficient production of enterprise equipment.
