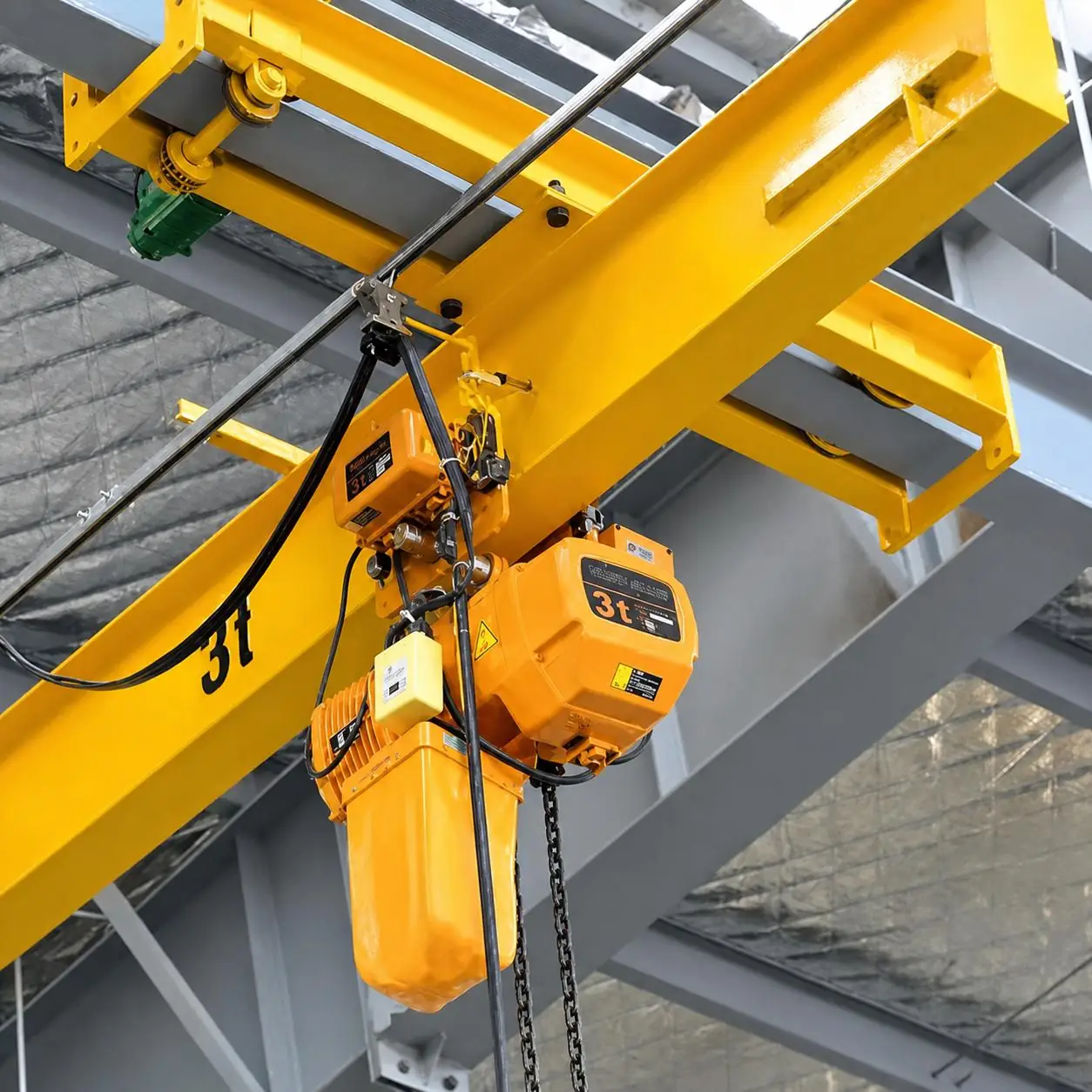

Overhead Crane Motor Selection: Slip Ring Motors vs. Squirrel Cage Inverter Motors

The crane motor is the core power unit of the bridge crane, which directly affects the stability, positioning accuracy, service life and operation and maintenance costs of the equipment.Unlike standard industrial motors with steady-state and continuous operation such as water pumps and fans, lifting motors need to withstand the alternating working conditions of frequent start-stop, forward and reverse rotation and heavy-duty braking, which ordinary industrial motors are not capable of.

The mainstream motors of bridge cranes are divided into two types: winding rotor slip ring motors and squirrel cage variable frequency motors. The two have significant differences in control methods, heavy-duty performance, maintenance costs and automation adaptability.Improper selection can cause the motor to overheat, positioning deviation, frequent downtime, and even cause safety accidents such as heavy-duty falls.

This article briefly compares the differences between special motors for lifting and ordinary motors, systematically analyzes the principles, advantages, disadvantages and application scenarios of the two types of motors, and provides standardized selection steps and common misunderstandings to help users quickly complete accurate selection, taking into account equipment safety, operating efficiency and life cycle costs.

What Makes an Overhead Crane Motor Different From a Standard Industrial Motor

The standard industrial motor is designed according to the S1 continuous working system, which is suitable for constant load and long-term stable operation; while the lifting motor is developed for S3/S4/S5 intermittent alternating working conditions, and has exclusive advantages in the four dimensions of start-stop tolerance, heavy-duty torque, heat capacity, and brake control.

Resistant to thermal and mechanical shocks

Lifting equipment can start and stop, reverse direction and brake dozens of times per hour. Each action will produce inrush current and mechanical load, causing the motor to heat up repeatedly and the transmission structure to continue to be loaded.Standard motors cannot withstand this kind of cyclic fatigue, and long-term use will cause early failure problems such as insulation aging, bearing damage, and rotor failure.

High starting torque

Lifting operations need to overcome static loads, friction and mechanical resistance, and must output high torque in a stationary state to avoid the hook and the load shaking.The selection of models needs to clarify three types of key torques: rated torque (uniform speed operation), starting torque (static lifting), and crash torque (overload protection).The winding motor relies on the rotor resistance to achieve low current and high torque start-up, while the squirrel cage motor uses a frequency converter to accurately control the torsion.

Intermittent working system and heat-resistant bearing capacity

The lifting motor is adapted to the IEC standard S3, S4, and S5 intermittent working system, and the core parameter is the CDF cyclic load continuity rate.（25%/40%/60%）， Determine the long-term heat resistance and continuous operation ability of the motor.It is strictly forbidden to match the power only according to the lifting weight. Under high-frequency conditions, the heat loss of the same power motor is greater, and the single power selection can easily cause the motor to overheat and burn down.

Coordination of speed regulation and braking

Ordinary motors are mostly running at constant speed, without fine control.The lifting motor needs to cooperate with the drive and braking system to achieve slow start and slow stop, precise speed regulation, and timing linkage. The torque is built before the brake is loosened when starting, and the speed is stabilized before the brake is locked when stopping, effectively suppressing load swing and drift, and ensuring lifting safety and positioning accuracy.

Slip Ring Motor for Overhead Cranes

The winding rotor slip ring motor is the standard configuration of traditional heavy-duty cranes. With its stable heavy-duty start-up performance, it is widely used in harsh working conditions such as steel mills, foundries, shipyards, and ports, especially suitable for old equipment transformation scenarios.

Working principle

The rotor adopts a three-phase winding structure, and an external variable resistor is connected through a slip ring and a carbon brush.Large resistors are connected in series at start-up to reduce the start-up current and increase the start-up torque; the resistors are removed step by step with the increase of the speed to achieve stepped smooth acceleration and adapt to the needs of heavy-duty start-up.

Core advantage

• Super heavy-duty start-up performance: The RUNSE winding rotor lifting motor can output peak torque in a stationary state, the start-up current is low, there is no sudden heat loss, and the overload margin is sufficient. It is perfectly adapted to the crane's heavy-duty static start-up conditions, and the start-up is stable without stall.
• Flexible heavy-duty operation experience: relying on graded resistance speed regulation technology to achieve progressive flexible acceleration, it effectively cushions mechanical shocks, weakens transmission wear, and greatly extends the service life of the reducer, wheels, main beams and other machine structures.
• High stability and reliability in harsh working conditions: it is natively adapted to the special heavy-duty working system for S4 and S5 lifting, which has the characteristics of high temperature resistance, dust resistance, and load fluctuation resistance. It has long been adapted to harsh industrial scenarios such as steel mills, foundries, and ports. The adaptability of working conditions has been verified by the market for a long time.
• Low-cost adaptation of old equipment: it is perfectly compatible with traditional contactor + resistive electronic control system. There is no need to replace the circuit and electronic control cabinet as a whole for the transformation of old cranes, which greatly reduces the cost of transformation and shortens the construction period, and the cost-effective landing is extremely high.

Main short board

• Large labor costs: carbon brushes and slip rings are conventional vulnerable parts, and they are prone to wear, carbon deposits, and ignition problems in long-term operation. They need to be cleaned, repaired, and replaced regularly, continuously increasing the daily operation and maintenance workload and labor costs.
• High operating energy consumption: relying on resistance voltage divider speed regulation, excess electrical energy is efficiently dissipated in the form of heat energy, and there is no energy-saving control logic. Under long-term high-frequency operation conditions, the overall energy consumption is significantly higher than that of the frequency conversion control system.
• Limited speed regulation accuracy: only stepped gear speed regulation is supported, stepless fine-tuning cannot be achieved, the accuracy of low-speed alignment is insufficient, and the load start-stop shaking suppression effect is limited, making it difficult to adapt to high-precision hoisting operations.
• Higher risk of downtime: the entire electronic control system has a wide range of accessories, complex circuits, many vulnerable parts, concentrated equipment failure points, and wear and tear of accessories can easily cause equipment failure and shutdown, affecting production continuity.

Squirrel Cage Inverter Motor for Overhead Cranes

The RUNSE squirrel cage inverter motor is composed of a high-strength squirrel cage body + a dedicated lifting VFD inverter. With its minimalist and sturdy mechanical structure, extremely low operation and maintenance load and high-precision stepless speed regulation characteristics, it has become the mainstream preferred power solution for modern new bridge cranes and automated intelligent lifting equipment.

Working principle

The squirrel cage motor rotor has no winding, no slip ring, no carbon brush, and has a strong and durable structure.Relying on the VFD inverter to adjust the frequency and voltage, stepless speed regulation, flexible acceleration and deceleration, and closed-loop torque control are realized, which replaces the traditional resistance speed regulation logic and is suitable for high-precision and stable lifting operations.

Core advantage

• One-piece sturdy structure: RUNSE squirrel cage inverter motor has no sliding vulnerable structures such as slip rings and carbon brushes. The mechanical structure of the whole machine is extremely simple and durable, and the failure rate is extremely low. There is no need for frequent disassembly and maintenance. Only basic routine maintenance is required, which greatly reduces the labor and downtime costs of late operation and maintenance.
• Stepless precision speed regulation: relying on special lifting VFD frequency conversion technology to achieve stepless flexible speed regulation throughout the process, it supports low-speed micron-level fine-tuning, which can effectively suppress the swing of heavy lifting loads, eliminate offset drift, and greatly improve the accuracy of hoisting alignment and operation stability.
• High efficiency, energy saving and consumption reduction: abandon the traditional resistance heating and energy consumption mode, the motor power is accurately output on demand, and there is no invalid heat loss; the high-end configuration can be matched with the regenerative braking system, which recycles heavy-duty descent and braking potential energy, and long-term high-frequency operation can significantly reduce the power consumption of the factory.
• All-round intelligent adaptation: it can be seamlessly connected to PLC control system, encoder closed-loop feedback, intelligent anti-swing, remote monitoring and fully automatic hoisting system, and can be adapted to new industrial scenarios such as smart factories, unmanned lifting, and automated assembly lines. There is plenty of room for iterative equipment upgrades.

Main short board

• High threshold for system matching: the selection and parameter setting of frequency converters are strictly required. Ordinary general-purpose frequency converters cannot be adapted to special working conditions such as heavy loads, instantaneous shocks, and closed-loop torsion control, and are prone to overload, instability, and error reporting. Problems.
• Strict electrical protection requirements: the frequency conversion PWM output is prone to harmonics and voltage spikes, and long-term operation will affect the motor insulation and bearings. Special insulation for lifting, bearing protection devices and filter components must be matched to avoid electrical aging damage.
• There are shortcomings in low-speed heat dissipation: conventional self-fan-cooled motors have insufficient heat dissipation air volume under low-frequency and low-speed precise alignment conditions, which can easily cause heat accumulation in the windings. For long-term low-speed operations, an independent forced air-cooled structure must be selected to avoid heat accumulation and burning.
• Weak fault responsiveness: the system debugging is extremely professional and relies on accurate parameter matching; if there is no emergency bypass redundancy design, the inverter failure will directly lead to equipment downtime and affect production continuity.

Slip Ring Motor vs. Squirrel Cage Inverter Motor: Key Differences

The two types of motors for Bridge Crane have their own advantages and disadvantages, and there is no absolute advantage and complete substitution relationship. It is necessary to select the type in combination with the working conditions of the entire electromechanical system.

Comparison of structural characteristics

RUNSE winding rotor motor: The rotor is equipped with independent winding, slip ring and carbon brush structure, and relies on external resistors to adjust torque and speed. It belongs to a combined mechanical and electrical speed regulation structure, and there are sliding vulnerable parts.

RUNSE squirrel cage inverter motor: it adopts a closed cast aluminum/cast copper integrated rotor, no slip ring, carbon brush and other wear accessories, and has a minimalist and sturdy structure. It relies on A VFD inverter to regulate frequency, voltage and torque throughout the process, and it is strictly controlled by pure electricity.

Comparison of working conditions

Advantage scenarios of winding rotor motors: mainly focus on strong heavy-duty start-up, tolerance to harsh environments, compatible with old electronic control, relying on stepped resistance to speed regulation and stable output power, suitable for high-impact, high-load traditional heavy-duty working conditions, outstanding resistance to load fluctuations.

Advantage scenarios of squirrel cage inverter motors: the main focus is stepless precision speed regulation, low operation and maintenance losses, energy saving and consumption reduction, intelligent system linkage, relying on flexible electrical control to achieve smooth operation, suitable for high-precision, automated and intelligent new lifting operation scenarios.

Cost and stability comparison

Winding rotor motor: the initial procurement and transformation cost of equipment is lower, the heavy-duty torque reserve is sufficient, and the operating stability is strong.However, in the late stage, the maintenance frequency of carbon brushes and slip rings is high, the energy consumption is large, and the long-term operation and maintenance costs are high.

Squirrel cage inverter motor: The investment in supporting electronic control and frequency conversion in the early stage is higher, the whole machine has no vulnerable sliding parts, the failure rate is extremely low, the energy-saving effect is excellent, the equipment has a longer service life, and the comprehensive use cost of the whole life cycle is lower.

In summary, there are no absolute advantages and disadvantages of the two types of motors. Enterprises need to combine on-site working conditions, old and new equipment, automation upgrade needs and long-term operation and maintenance planning to select and adapt to specific types.

How to Select Between Slip Ring and Squirrel Cage Inverter Motors

Crane motor selection should not have a single reference to power parameters, but should be combined with working conditions, torque, electronic control, braking and on-site environment to match comprehensively.Relying on RUNSE's many years of experience in the research and development and landing of lifting motors, A standardized seven-step selection method has been summarized, which can avoid equipment failures and safety hazards from the source and adapt to various lifting operation scenarios.

1. Approved professional work system level: according to the equipment start-stop frequency, load fluctuation ratio, and continuous running time, the special work system for S3/S4/S5 lifting is accurately determined, and the corresponding CDF cyclic load continuity rate is matched to ensure that the motor is adapted to intermittent and alternating lifting conditions, and long-term fatigue operation is eliminated.
2. Scientific accounting of the rated power of the motor: abandon the misunderstanding of selecting the type based solely on the lifting weight, and combine the rated load of the equipment, its own weight, lifting operating speed, mechanical transmission loss and working condition redundancy coefficient for comprehensive accounting to ensure that the motor power reserve is sufficient and adapted to the operating needs of all working conditions.
3. Strictly check the limit peak torque: fully cover the extreme operating conditions such as heavy-duty lifting, load drop, high-speed acceleration, and frequent reversing, and accurately check the peak torque of the motor; the complete frequency conversion system needs to be combined with the overall torque curve of the motor and the inverter to check to eliminate overload, stall, and insufficient torque.
4. Precise matching complete control system: the winding rotor motor is adapted to the traditional electronic control system of graded resistors and contactors; the squirrel cage inverter motor needs to match the special inverter for lifting according to the peak torque of the equipment, and it is equipped with vector speed regulation, closed-loop control and braking unit to ensure the stability and accuracy of system control.
5. Linkage matching brake timing system: strictly calibrate the linkage timing of the motor output torque and the mechanical brake to realize the closed-loop logic of first building torque, then loosening the brake, first stabilizing the speed after stopping, and then locking, completely eliminating safety hazards such as slip hooks, load drift, and instantaneous overload.
6. Adapt to complex on-site working conditions and environments: for special industrial scenarios such as high temperature, high dust, humidity and rain, plateau low pressure, explosion-proof and anti-corrosion, targeted matching of motor insulation level, shell protection level and exclusive heat dissipation structure to ensure long-term and stable operation of equipment in harsh environments.
7. Overall accounting of the whole life cycle costs: the selection is not limited to the unit price of equipment purchase, and comprehensively considers the long-term costs of equipment energy consumption, daily maintenance, parts replacement, failure and shutdown losses, and optimizes the cost-effective and stable solutions to achieve cost reduction and efficiency.

When Should You Choose a Slip Ring Motor

• Extreme heavy-duty and harsh working conditions: suitable for harsh operating environments with high temperature, high load and high impact such as steel mills, foundries, ladles, shipyards, ports, etc., The motor has sufficient torque reserves and strong resistance to load fluctuations, which can stably cope with high-frequency heavy-duty start and stop conditions for a long time.
• Old equipment renovation project: perfectly compatible with traditional resistance and contactor-type old electronic control systems, no need to replace equipment lines and cabinets on a large scale, low renovation cost, short construction cycle, and suitable for the upgrading and replacement of old-fashioned cranes.
• Scenarios without a professional frequency conversion operation and maintenance team: the control logic is simple, the operation and maintenance threshold is low, and there is no need for professionals to debug the frequency conversion parameters. It can operate stably by relying on conventional maintenance, and it is suitable for small and medium-sized factories, traditional heavy industry workshops and other scenarios.
• Supplementary note: With the iteration of frequency conversion technology, high-end heavy-duty frequency conversion systems can equivalent replace the performance of winding motors. Therefore, this selection is only for scenario optimization and is not the only adaptation solution.

When Should You Choose a Squirrel Cage Inverter Motor

• General light lifting conditions: suitable for small and medium-sized bridge cranes and conventional storage lifting equipment in workshops, with durable structure, simple operation and maintenance, and high cost performance to meet the needs of daily lightweight lifting operations.
• New intelligent equipment project: adapt to the intelligent lifting equipment and automated assembly line lifting unit of the new plant, which can be seamlessly connected to the PLC intelligent system, and adapt to the factory automation and intelligent upgrade planning.
• High-precision and stable operation scenarios: relying on the advantages of stepless frequency conversion and speed regulation, it accurately realizes low-speed fine-tuning, anti-swing, and fixed-point alignment, and is suitable for scenarios with high operating accuracy requirements such as precision workpiece hoisting, warehousing, and precise palletizing.
• High-frequency energy-saving operation and maintenance scenarios: suitable for high-frequency start-stop and long-term operation of lifting conditions, the energy-saving effect is significant, and there are no vulnerable sliding parts, the operation and maintenance cost is extremely low, and it supports remote monitoring and intelligent control of equipment.

Common Mistakes in Overhead Crane Motor Selection

• One-sided selection, power-only theory: simply match the motor power based on the rated lifting weight of the crane, ignoring the special working system for lifting, peak torque reserve and circulating heat loss. Under high-frequency alternating working conditions, the motor is prone to overheating, insufficient power, frequent failures and other problems.
• Mixed use of ordinary industrial motors: misuse of ordinary motors of the S1 continuous working system to replace special motors for lifting, which cannot withstand frequent start-stop, heavy-duty shocks and alternating thermal stress, which can easily cause insulation aging and bearing damage, leading to early equipment failure and sudden drop in life.
• Misuse of general-purpose inverter matching: equipped with ordinary general-purpose inverter, there is no special vector torsion control, overload protection and brake co-program for lifting, and it cannot be adapted to heavy-duty start-up and instantaneous impact conditions, and it is prone to unstable start and stop, overload error reporting, hoisting out of control and other hidden dangers.
• Ignoring the shortcoming of low-speed heat dissipation: Ignoring the characteristics of insufficient heat dissipation in low-speed operation of variable-frequency motors, and not configuring a forced air-cooled structure, long-term low-speed alignment and fine-tuning operations will cause heat accumulation in the windings, causing the motor to overheat, insulation breakdown, winding burning and other failures.
• Brake timing matching imbalance: The motor output torque does not match the mechanical brake timing logic, and there are problems such as first loosening the brake, then building the torque, or stopping and locking hysteresis, which can easily cause load drift, slip hooks, and instantaneous overload, laying major safety risks.
• One-sided pursuit of low-cost procurement: the selection only focuses on the initial procurement cost of equipment, ignoring long-term operating energy consumption, daily maintenance, parts replacement and shutdown losses caused by downtime, and the overall life cycle cost is higher.

Conclusion

There are no absolute advantages or disadvantages of the two types of lifting motors. The core depends on the working conditions and system adaptation: the winding rotor motor is suitable for the transformation of old equipment, high temperature and heavy load, and traditional electronic control scenarios; the squirrel cage inverter motor is suitable for new projects, precise speed regulation, energy-saving operation and maintenance, and intelligent automation upgrade scenarios.The selection of models needs to abandon the power-only theory and comprehensively consider the working system, torque, load, working conditions, environment and life cycle costs to ensure the coordinated and stable operation of the whole machine system.

Henan Mine Crane can customize suitable lifting motor drive and electronic control solutions according to the actual working conditions and automation needs of the site.If you have crane selection, transformation, and upgrade needs, you can consult at any time to obtain professional technical solutions and exclusive quotations.
