How Does Explosion-Proof Crane Prevent Sparks in Hazardous Areas?
In hazardous areas of oil, gas, chemical and other high-risk industries, the slightest spark can trigger a fatal explosion, resulting in injuries, equipment damage and huge economic losses, which can also lead to production line shutdowns, compliance penalties and other chain problems. The spark protection capability of explosion-proof cranes is crucial, and its definition, protection mechanism, selection and maintenance points need to be clarified in order to avoid safety and compliance risks.
What Is an Explosion-Proof Crane?
Definition and core function
Explosion-proof cranes are special lifting equipment designed for hazardous environments, mainly used in hazardous areas where flammable gases, vapors or dust exist. Its core function is to eliminate any ignition source that may be generated during the operation of the equipment through a full range of structural design and component optimization, to prevent ignition of the surrounding flammable and explosive substances, and to protect the safety of personnel, equipment and production environment. Compared with ordinary cranes, every component of explosion-proof cranes has gone through strict explosion-proof design, eliminating the possibility of sparks from the root, which is also the core difference between them and ordinary cranes.
Typical applications
Explosion-proof cranes are used in all kinds of high-risk industries all over the world, especially in the fields with very high safety requirements.
- Oil and gas refineries: Used for lifting and transferring crude oil and refined oil products, and dealing with the risk of flammable gas leakage.
- Chemical plants: Handling of flammable, explosive and corrosive chemical materials, avoiding chemical reactions caused by sparks during operation.
- Offshore platforms: Adapting to the high humidity and salt spray marine environment, and preventing the risk of explosion caused by oil and gas leakage.
- Mining and metallurgy: Responding to flammable dust, gas and other hazardous substances in mines to ensure the safety of lifting mining equipment.
- LNG terminals: Lifting and maintaining LNG tanks and equipment in low temperature and flammable environments.
Why Sparks Are Dangerous in Hazardous Areas
Common explosion triggers
In hazardous areas, sparks are the most important ignition source for triggering explosions, and if there is no special explosion-proof design during crane operation, it is very easy to produce the following three types of sparks, which will become a hidden danger of explosion.
- Electrical sparks: Crane motors, junction boxes, control circuits and other electrical components during operation, if there is a short circuit, poor contact, insulation aging and other problems, electrical sparks will be generated, igniting the surrounding flammable gas or dust.
- Mechanical friction sparks: Crane hooks, wire rope, gears, braking systems and other mechanical components, in the operation, braking or collision process, due to friction, impact generated by the high temperature sparks, especially metal-to-metal friction, the spark temperature can be as high as hundreds of degrees, enough to ignite flammable and explosive substances.
- Electrostatic discharge sparks: Crane operation process, equipment and air, friction between the goods will produce static electricity, if the static electricity can not be exported in time, accumulated to a certain extent will occur discharge, generate electrostatic sparks, triggering an explosion.
These three types of sparks seem small, but can ignite the flammable material in the hazardous area in an instant, resulting in irreparable damage, therefore, the protection of lifting equipment in hazardous areas of the spark is the core of the key to protect the safety of operations.
Real-world risk scenarios
The following three types of scenarios are high-frequency scenarios of explosion triggered by sparks in the hazardous area, which are worthy of vigilance by all enterprises.
- Crane motor overheating and gas ignition: In Zone 1 hazardous area of petroleum refineries, overloading and poor heat dissipation of ordinary crane motors lead to high temperatures, which not only generate hot surface ignition, but also may trigger internal coil short circuit, generating electrical sparks, igniting leaking natural gas or crude oil vapors, resulting in explosion in the workshop.
- Metal collision during lifting: During offshore platform operation, crane hooks collide violently with metal goods and equipment, generating mechanical friction sparks, and there may be leaking oil and gas around the platform, and the sparks instantly ignite the oil and gas, triggering a fire or even an explosion, threatening the safety of platform personnel.
- Poor grounding leads to static buildup: In chemical workshops, cranes are not installed with effective grounding systems, the static electricity generated during operation cannot be exported in time and accumulates on the surface of the equipment, when the electrostatic voltage reaches a certain threshold, a discharge spark occurs, igniting the flammable dust or chemical vapors in the workshop, leading to production line stoppages.
This shows that spark protection in hazardous areas is a must, and an explosion-proof crane that meets international standards is the key to eliminating such risks.
How Explosion-Proof Cranes Prevent Sparks
Explosion-proof crane spark protection is not a single measure, but through electrical, mechanical, structural and other aspects of the synergistic design, from the root to eliminate the possibility of sparks, while blocking the sparks and flammable substances in contact with the following five core protection mechanisms, but also Henan Mine Crane Factory supply explosion-proof cranes of the core technical advantages.
Explosion-proof electrical components
The electrical system is one of the main sources of sparks generated by the crane, so explosion-proof cranes need to use all special explosion-proof electrical components to eliminate electrical sparks from the source. Explosion-proof motors are designed with explosion-proof shells, which can withstand internal pressure and prevent sparks and flames from leaking even if there is an internal short-circuit, sparks or explosion, thus fundamentally isolating the electrical sparks from contact with flammable substances, and at the same time, the motors have high efficiency, low energy consumption, and long service life of the key components and very low failure rate.
Sealed junction box and wiring system adopts fully sealed design, which can effectively prevent flammable gas and dust from entering into the interior, avoiding sparks due to loose wiring and poor contact, and at the same time, the cables are fixed by explosion-proof stuffing box to ensure the sealing integrity. Intrinsically safe control circuits limit current and voltage to a safe range, so that even in the event of a short-circuit or malfunction, there will be no sparks sufficient to ignite flammable substances, which is suitable for hazardous areas where high control accuracy is required.
Anti-spark mechanical design
For the spark generated by mechanical friction and collision, the material optimization and structural design can minimize the spark generated by Henan Mine Crane Factory supply explosion-proof crane hooks, pulleys, gears, brake pads and other friction-prone, easy to collide with the parts, are used in bronze, stainless steel alloys, and other non-sparking materials instead of the traditional carbon steel, even if friction, collision, no sparks. Even in the event of friction and collision, no sparks will be generated, and all metal parts are also sprayed with anti-rust and anti-static paint to further reduce safety risks.
By optimizing the mechanical transmission structure and applying special explosion-proof grease on the gears, bearings and other moving parts, the friction between parts can be reduced, and the heat and sparks generated by friction can be reduced and the service life of the parts can be extended at the same time. The buffer braking system can avoid metal-to-metal impact during braking and reduce braking sparks. With the dual braking system, the load can be safely braked and stopped when either brake fails, preventing collision sparks caused by falling heavy objects.
Static electricity elimination
Static electricity discharge is a source of sparks that can be easily ignored in hazardous areas. Explosion-proof cranes need to ensure that static electricity is exported in a timely manner to avoid accumulation through a perfect static electricity elimination system. The main structure of the crane, metal parts, electrical equipment are connected to a special grounding device, grounding resistance is strictly controlled at 4Ω or less, the static electricity generated in the operation process can be timely channeled into the earth, from the root to prevent the accumulation of static electricity.
The surface of the equipment is sprayed with anti-static coating, which can reduce the generation and accumulation of static electricity, and the cables are made of anti-static material to avoid static electricity generated by the friction between the cables and the equipment and the ground. At the same time, the structural design of the equipment is optimized to ensure that all metal parts form a good conductive connection between the construction of a continuous electrostatic discharge path, completely eliminating the discharge of sparks caused by the local accumulation of static electricity, to protect the safety of operations.
Temperature control and heat limitation
High-temperature surfaces may also ignite flammable substances, so explosion-proof cranes not only to prevent sparks, but also need to strictly control the operating temperature of the equipment, to avoid high temperatures become the ignition source. Motor, brake system and other heat-producing parts are designed according to T1-T6 temperature level, T1 maximum temperature 450 ℃, T6 maximum temperature 85 ℃, according to the characteristics of flammable substances in the hazardous area, matching the corresponding temperature level, to ensure that the surface temperature of the equipment does not exceed the ignition temperature of flammable substances.
Thermal sensors are installed on key components such as motors and gearboxes to monitor the temperature of the equipment in real time. When the temperature exceeds the safety threshold, the system will automatically shut down to avoid sparks or ignition of flammable substances caused by excessive temperature. Low heat emission brake components can reduce the heat generated during braking to avoid high braking surface temperatures, and with optimized heat dissipation structures, it can ensure rapid heat dissipation and maintain safe operating temperatures.
Fully sealed and pressurized enclosures
Fully sealed and pressurized enclosures prevent flammable gases and dust from entering the equipment, avoiding internal sparks from igniting external flammable materials, and protecting the internal components of the equipment. The equipment shell adopts IP65 and above protection level fully sealed design, which can realize dust-proof, water-proof, anti-flammable gas intrusion to ensure that the internal components operate in a clean and safe environment, and avoid the dust from entering to trigger the internal short-circuit sparks.
Some high-end explosion-proof cranes are equipped with positive-pressure explosion-proof system, which can inject clean air or inert gas into the inside of the equipment shell, so that the pressure inside the shell is higher than the pressure of the external environment, thus preventing flammable gases and dust from entering the inside, and fundamentally eliminating the contact between the internal sparks and the external flammable substances, especially suitable for Zone 1 and other high-risk areas, further enhancing the safety of explosion-proof.
Key Components That Make a Crane Explosion-Proof
A qualified Henan Mine Crane Factory crane explosion-proof crane, its spark protection ability depends on the synergistic effect of various key components, the following three core components are the key to ensure explosion-proof performance.
Explosion-proof hoist system
The hoist system is the core operating component of the crane, and it is also the key area that is prone to sparks, so it needs to be specially designed. Special steel wire rope or stainless steel chain with anti-friction and anti-breakage is used to reduce the friction with pulleys and hooks to avoid sparks, and some high-end products are equipped with stainless steel load chain to enhance the protection performance; the gear box adopts a fully sealed design and is filled with special explosion-proof grease, which reduces friction sparks and heat, prevents the intrusion of flammable substances, and guarantees the system's stable operation.
Explosion-proof control system
The control system directly controls the operation of the crane, and its explosion-proof performance directly affects the overall spark protection effect, the intrinsically safe design of the wireless remote control can be used, the control signal is stable, even if there is a malfunction, it will not produce sparks, and it has the ability to resist interference, and it is suitable for the operation of complex hazardous areas. If pendant control is used, the buttons and wiring are all explosion-proof design and sealed shell, which can avoid electrical sparks during operation, and at the same time, the operation is convenient, which is easy for the operator to control the equipment accurately.
Explosion-proof power supply
The power supply system is the main source of electrical sparks, and needs to adopt all-round protection design, cable through the pipe wiring to avoid exposure, wear and tear, to prevent short-circuit sparks due to breakage, and optimize the routing design to keep away from the area where flammable substances gather. Selection of flame retardant, excellent insulation properties of the armored cable, not only to prevent cable breakage, but also in case of fire to prevent the spread of fire, to avoid internal short-circuit sparks, all-round protection of power supply safety.
Types of Explosion-Proof Cranes for Different Industrie
Different industries, different hazardous areas have different operational needs, now there are three mainstream types of explosion-proof cranes to ensure that they are suitable for all kinds of operational scenarios, to achieve precise spark protection.

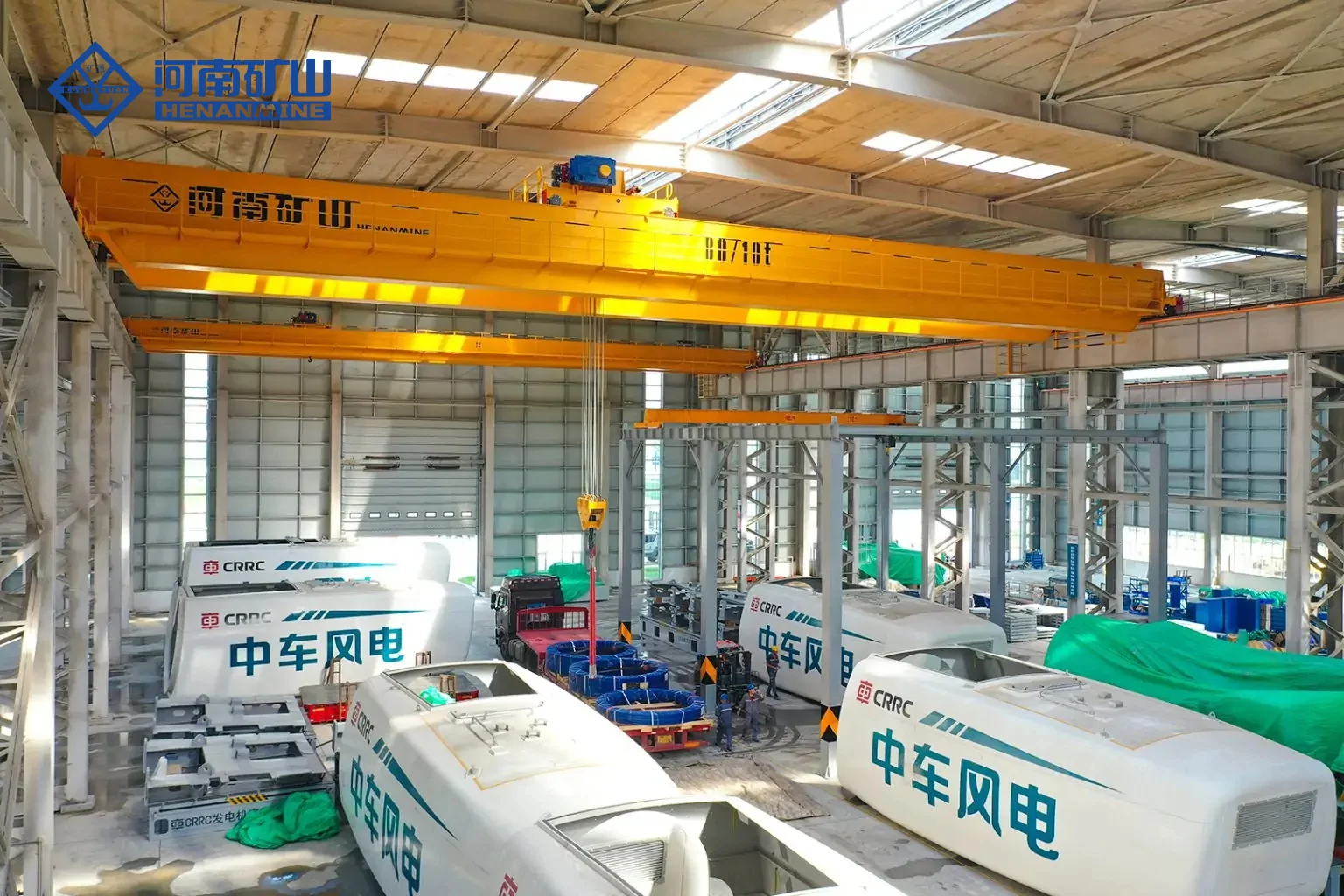

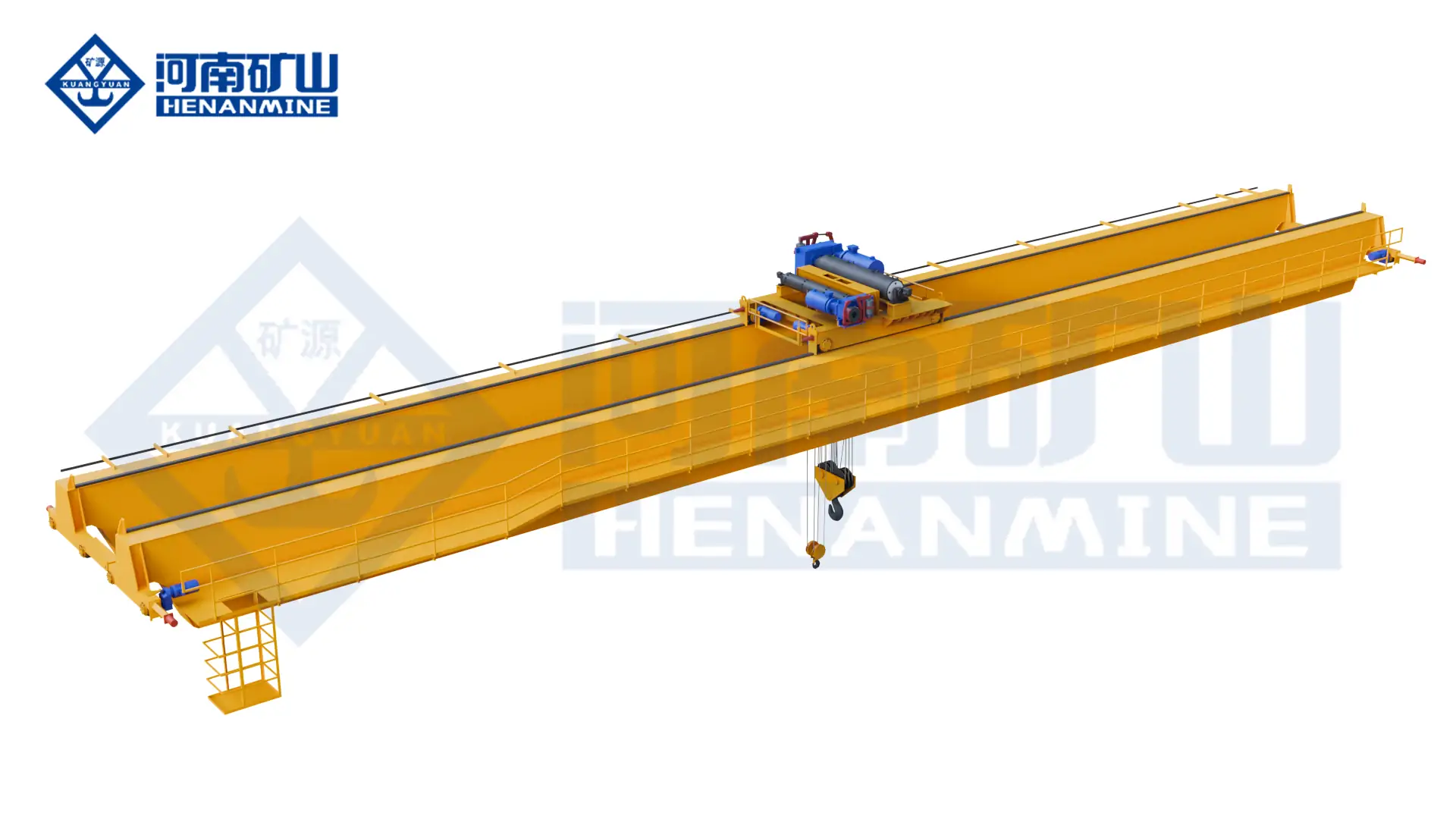

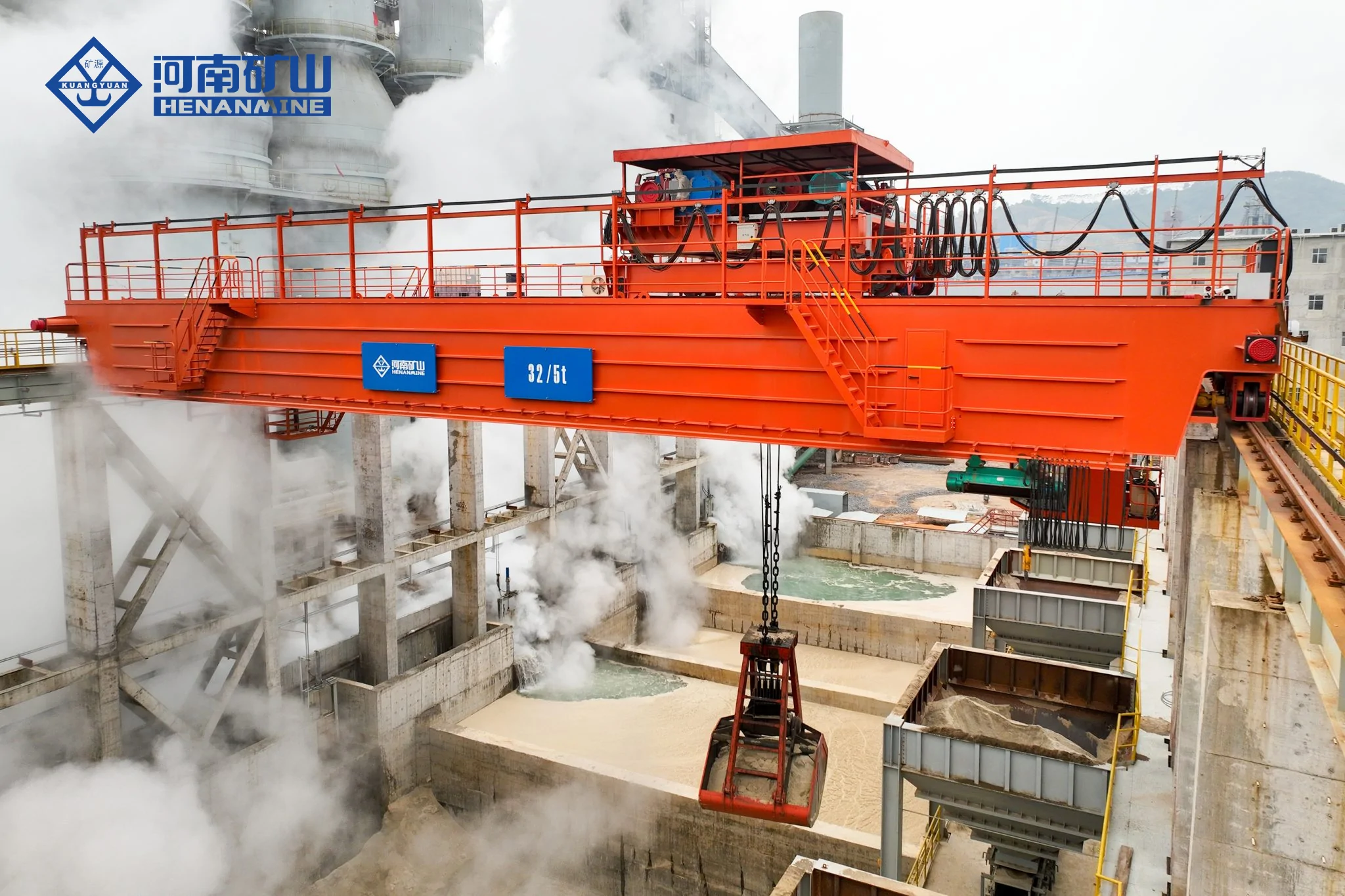

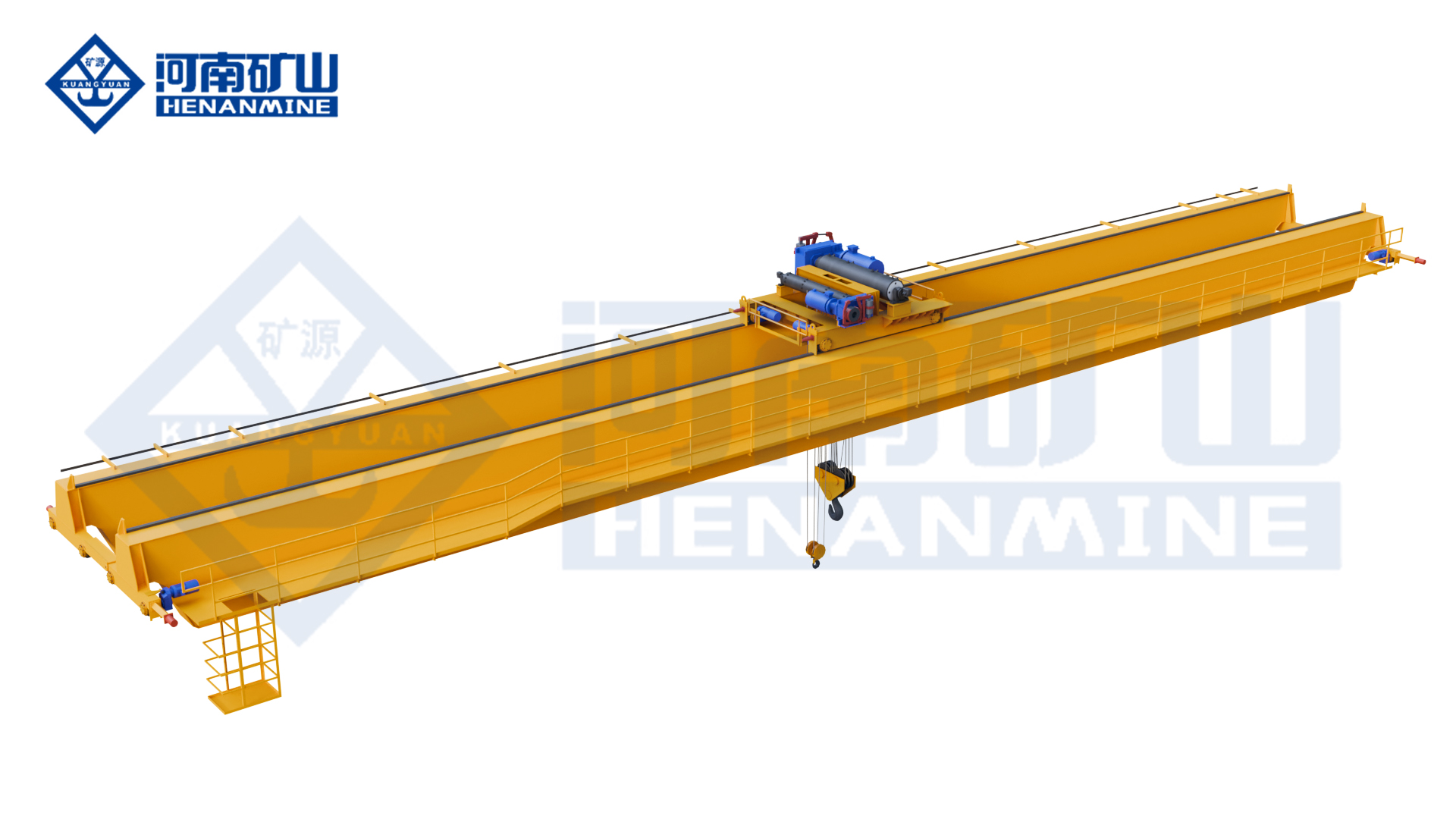

Explosion-Proof Overhead Crane
Suitable for indoor workshops, refineries and other indoor hazardous areas, the bridge structure, running smoothly, and can flexibly complete the lifting of indoor equipment, goods, especially for chemical workshops, pharmaceutical factories and other indoor high-risk scenarios, and its fully sealed design can effectively prevent the intrusion of dust, flammable gases, and eliminate the generation of sparks.

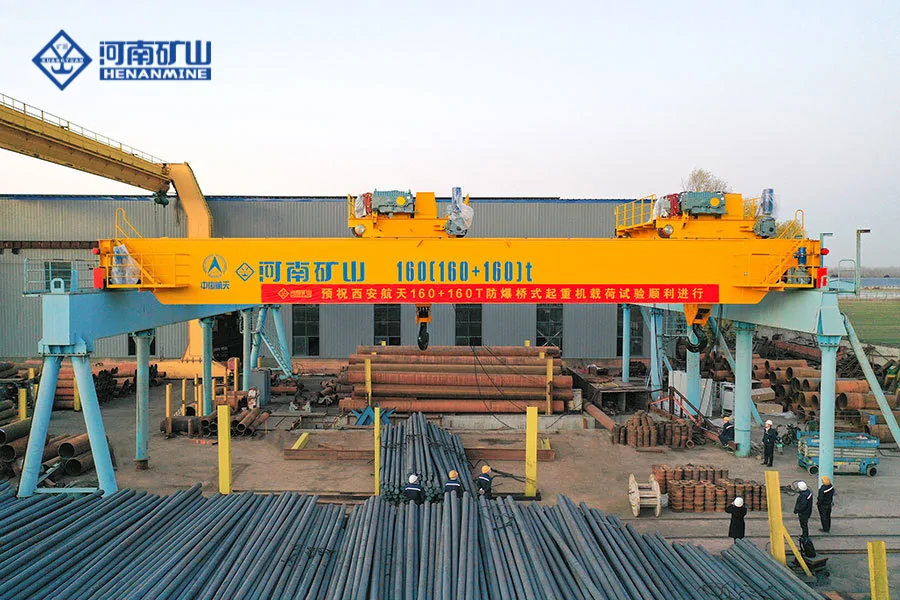

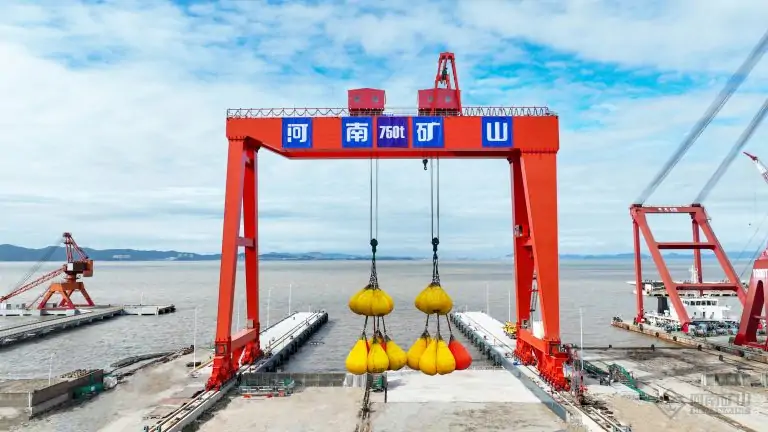

Explosion-Proof Gantry Crane
Explosion-Proof Gantry Crane is suitable for outdoor hazardous areas, such as ports, LNG terminals, open-pit mines, etc. It adopts the portal structure, which does not require the support of the plant, and can work flexibly in the open-air environment with strong lifting capacity, and is suitable for the outdoor environment with high humidity, high salt spray, strong winds, etc. It is also equipped with the perfect design of windproof, lightning protection and antistatic, which prevents the risk of sparks caused by outdoor environmental factors, and ensures the safety of outdoor high-risk operations.
Explosion-Proof Jib Crane
It is suitable for narrow and confined dangerous space, such as small chemical workshop, equipment maintenance area, etc. It adopts cantilever structure, occupies small space, flexible operation, and can realize 360°rotation lifting, which can accurately complete the lifting of goods in narrow space, and its compact structure design with spark-proof mechanical parts can effectively avoid sparks generated by improper operation in narrow space, which is suitable for the operation needs in confined dangerous area. confined hazardous areas.
How to Choose the Right Explosion-Proof Crane
Choosing an explosion-proof crane that meets your needs and international standards is the key to ensuring operational safety and avoiding compliance risks. The following four steps to help you quickly select the type, to avoid selection errors.
Identify hazardous zone classification
First of all, you need to identify the hazardous zone classification, which is the core premise for selecting Henan Mine Crane Factory supply explosion-proof cranes. According to international standards, the hazardous zone is mainly divided into Zone 0 (long-term presence of flammable substances), Zone 1 (may periodically presence of flammable substances), Zone 2 (occasional presence of flammable substances), as well as the North American standard Class I Div 1 (frequent presence of flammable gases), Class I Div 2 (occasional presence of flammable gases).
Different hazardous areas have different requirements for the explosion protection level of cranes, for example, Zone 1 requires the use of Ex d, Ex p and other high-level explosion-proof design, while Zone 2 can be selected according to the needs of the appropriate type of explosion protection, to avoid excessive selection of increased costs or inadequate selection of safety risks.
Match explosion protection level
Match explosion protection level according to the classification of the hazardous area, mainly including the equipment category. 2G is suitable for gas hazardous area, 3G is suitable for dust hazardous area. Combined with the type of explosion protection, it ensures that the level of protection matches the hazardous area, eliminating the risk of sparks at the source.
Consider environmental factors
- Gas group: The flammable gases in different areas are different, class IIA (such as propane), class IIB (such as ethylene), class IIC (such as hydrogen), the difficulty of ignition gradually decreases, and the degree of danger gradually rises, according to the type of flammable gases in the work area, select the corresponding explosion-proof cranes, for example, hydrogen environment needs to choose the IIC type of explosion-proof equipment, to ensure that sparks will not ignite the hydrogen.
- Temperature Class Requirements: According to the ambient temperature of the operation area and the ignition temperature of flammable substances, select the corresponding temperature class (T1-T6), for example, high temperature environment needs to choose T6 class (maximum temperature of 85 ° C) of the crane, to avoid the surface temperature of the equipment is too high ignition of flammable substances.
Advantages of Using Explosion-Proof Cranes
The use of Henan Mine Crane manufactured explosion-proof cranes in line with international standards not only eliminates the risk of sparks, but also brings a number of core advantages to help enterprises reduce costs and increase efficiency, and compliance operations.
- Enhance operational safety: Eliminate sparks from the root, effectively prevent explosions, fires and other safety incidents, protect operators and equipment safety, reduce the risk of casualties and equipment damage.
- Meet international compliance requirements: Passing ATEX, IECEx and other international certifications ensures that the equipment meets the safety standards of the target market, avoiding the risks of penalties and work stoppages due to compliance issues, and smoothly developing overseas markets.
- Reduce the risk of catastrophic accidents: Eliminate spark-induced explosions to avoid huge economic losses and brand reputation damage due to accidents, and safeguard the normal operation of enterprises.
- Reduce the cost of insurance and liability: Due to the higher safety performance of explosion-proof cranes, the insurance cost of the enterprise will be significantly reduced, and at the same time, reduce the risk of legal liability caused by safety accidents.
- Enhance operational continuity: Avoid production line stoppages due to safety accidents and compliance issues, ensure continuous operation and improve production efficiency, as well as low equipment failure rates and low maintenance costs, further enhancing operational stability.
Maintenance Tips for Long-Term Safety
The spark protection performance of explosion-proof cranes needs to be safeguarded through standardized maintenance. Long-term neglect of maintenance will lead to a decline in the explosion-proof performance of the equipment, triggering the risk of sparks. The following maintenance tips will help extend the service life of the equipment and ensure long-term safe operation.
Routine inspection checklist
It is recommended to carry out routine inspection every day before operation and once a week, focusing on the following three points to detect hidden danger in time.
- Electrical sealing integrity: Check the sealing of the junction box, cable joints, and the equipment shell to see if the sealing rubber ring is aging and broken, and whether the cable is exposed and worn to ensure that no flammable gas or dust enters the interior to avoid generating electrical sparks.
- Grounding system effectiveness: Check whether the grounding device is loose, off, with professional instruments to detect the grounding resistance, to ensure that the grounding resistance does not exceed 4Ω, to ensure that static electricity can be exported in a timely manner, to avoid static electricity buildup discharge.
- Wear and tear of mechanical parts: Check the wear and tear of mechanical parts such as hooks, wire ropes, gears, brake pads, etc., see whether there are cracks and deformation, and replace the parts with serious wear and tear in time to avoid friction and collision sparks.
Preventive maintenance strategy
In addition to daily inspection, need to develop a regular preventive maintenance program to ensure that Henan Mine Crane manufactured explosion-proof is the long-term stable operation of the crane.
- Regular maintenance: According to the frequency of equipment use and operating environment, every 6 months to 1 year to carry out a comprehensive maintenance, check the electrical components, mechanical components of the operating state, replacement of aging parts, optimize equipment performance. Monthly minor inspection, quarterly major inspection, annual in-depth maintenance, forming a complete maintenance file for easy traceability.
- Replacement of certified parts only: If it is necessary to replace equipment parts, you must choose special parts with international explosion-proof certification, and it is strictly prohibited to use ordinary parts instead, so as to avoid the risk of sparks due to parts not meeting the explosion-proof requirements. Explosion-proof tools must be used during maintenance to avoid sparks caused by metal collision.
- Environment-adapted maintenance: According to the environmental characteristics of different overseas regions, targeted maintenance is carried out, such as regular rust-proofing of equipment in high salt fog areas, and strengthening of equipment heat dissipation checks in high temperature areas, to ensure that the equipment is adapted to the environment and to avoid the failure of spark protection caused by environmental factors.
Henan Mine Crane Factory Custom
In the oil, gas, chemical and other high-risk industries around the world, sparks are the core danger that causes explosions, and explosion-proof cranes, as the core lifting equipment in hazardous areas, their spark protection ability directly determines the safety of operations, compliance and continuity of business operations. Choosing an explosion-proof crane that meets international standards and is suitable for your operation scenario is not an additional cost investment, but a key investment in personnel safety, equipment safety and enterprise development.
Henan Mine Crane Factory can provide customized explosion-proof lifting solutions according to your industry needs, hazardous area classification, and operating environment, as well as one-stop services to help you achieve safe, efficient and compliant operations in hazardous areas. If you need professional advice, please feel free to contact us, we will provide you with the best quality products and services to protect your safety.
