Storage Crane vs Overhead Crane: Which Fits Indoor Warehouse
In the material storage and handling scenarios of indoor warehouses and industrial plants, storage cranes and overhead cranes are the two types of core lifting equipment with the highest utilization rate. Many warehouse managers and factory purchasers often fall into a dilemma when selecting equipment: it is not clear whether the indoor warehouse should be equipped with storage crane or overhead crane, and it is easy to have problems such as equipment selection dislocation, space waste, capacity mismatch, operation and maintenance cost exceeding the standard, etc.
Both types of equipment seem to be able to complete cargo lifting and handling, but there are great differences in core dimensions such as applicable scenarios, space utilization, load capacity, automation level and input cost. This article will comprehensively disassemble the basic characteristics, core differences, selection standards, cost differences and common mistakes of storage cranes and overhead cranes, help all kinds of indoor storage and production warehouses accurately match the equipment, and improve the efficiency of storage operations and long-term return on investment.
Storage Crane and Overhead Crane Basics
What is a storage crane?
Storage crane is an intelligent lifting storage equipment specially customized for storage scenarios. Relying on the core working principle of track walking, precise lifting and intelligent dispatching, it completes the whole process operation of automatic access, displacement, inventory and homing of goods with storage management system. Different from traditional lifting equipment, it does not take "heavy handling" as the core, but takes "refined storage management, efficient use of space, unmanned operation" as the design core, and is the standard equipment of modern intelligent warehouse and high three-dimensional warehouse.
At present, storage cranes are widely used in automated three-dimensional warehouse, high-shelf storage, cold chain storage, electronic component storage, precision material storage and other scenarios, especially suitable for batch regular, various categories, high-frequency access, long-term static storage of goods operations. Whether it is standard pallet goods, regular box materials, or small precision industrial materials, standardized storage management can be realized through storage cranes.
Its core advantages are very suitable for modern storage needs. The first is high-precision operation. The positioning error of equipment can be controlled at millimeter level, which can accurately connect high-level shelves and avoid deviation and collision damage of goods. The second is to save space extremely. The equipment runs on the top track without occupying the ground passage space, which can greatly reduce the width of the warehouse roadway and maximize the storage area. The third is highly automated, which can be connected to WMS, WES and other intelligent storage systems to realize unmanned access, automatic inventory and intelligent scheduling without manual intervention and adapt to 24-hour uninterrupted storage operations.

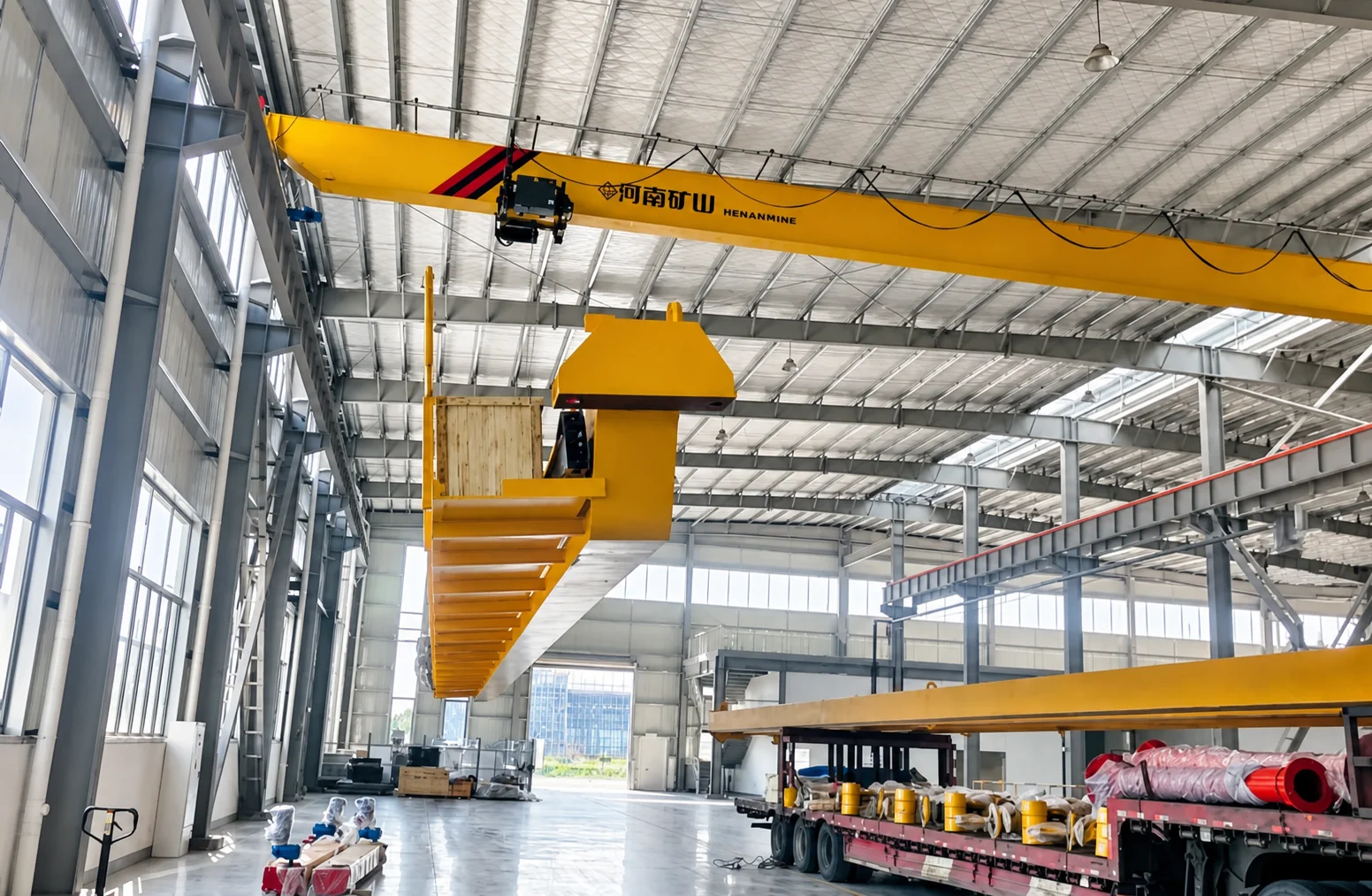

What is an overhead crane?
Henan Mine Crane manufactured bridge crane is also often referred to as crane, crane, is a common heavy lifting equipment in the industrial field, mainly composed of main beam, end beam, electric hoist, walking track, control system, track fixed on both sides of the plant column or top steel beam, can cover a large area of the plant, to achieve three-dimensional space cargo lifting, translation, transfer operations. Equipment structure is stable, bearing capacity is strong, is the core of traditional industrial plant lifting equipment.
The application scenarios of overhead cranes are more inclined to production processing and heavy material transfer, mainly used in industrial production workshops, heavy material warehouses, finished product storage, equipment maintenance workshops and other scenarios. Common operations include loading and unloading of heavy raw materials, transfer of large finished workpieces, docking of materials in production processes, lifting and maintenance of heavy equipment, etc., which are essential basic equipment for production-oriented factories.
The core features of this device focus on overload and flexibility. First of all, it has super heavy load capacity, which can adapt to the lifting and handling of heavy goods from several tons to hundreds of tons to meet the needs of industrial heavy material operations. The second is flexible operation and strong universality, manual control and wireless remote control. The operation scope covers the whole plant span, which is not limited by fixed location. It can meet the temporary handling and cross-regional transfer requirements of various irregular and heavy materials. At the same time, the equipment structure is durable, the anti-loss ability is strong, and it is suitable for high-frequency and high-intensity industrial production operation scenarios.
Key Differences Between Two Crane Types
Application differences
The core application scenarios of storage cranes focus on automated storage and retrieval operations, and the core services are warehousing, cargo management and inventory turnover. Its operating logic is "precise access, fixed-point homing, and batch management", which is suitable for standardized warehousing scenarios where goods are organized, have large inventory, require long-term storage, and are frequently in and out of warehouses. For example, e-commerce intelligent warehouse, auto parts three-dimensional warehouse, precision electronic storage, food cold chain high-level warehouse, etc., the core requirements are efficient storage, accurate retrieval, less labor, Henan Mine Crane manufactured storage crane can be perfectly matched, effectively solve inventory chaos, low manual access efficiency, difficult utilization of high-level shelves and other problems.
Bridge crane main production operations and heavy material handling, core services in production processing, temporary transfer, heavy lifting. It does not focus on cargo storage management, but focuses on dynamic handling of materials, which is suitable for raw material loading, semi-finished product transfer, finished product loading, heavy equipment displacement, equipment maintenance lifting and other scenarios in production workshop. Mechanical processing, steel structure manufacturing, heavy industry production and other industrial warehouses, goods are mostly heavy, irregular workpieces, no need for refined storage management, more flexible heavy-duty handling capacity, this is the core advantage of the bridge crane.
Space utilization
The design core of the storage crane is to maximize the use of vertical storage space, specifically optimized for high-level three-dimensional warehouses. Traditional forklifts and manual access are limited by equipment height and manual operation limits, unable to utilize high-rise warehouse space, and need to reserve wide working lanes. The storage crane can adapt to ten meters or even dozens of meters of high shelves, fully excavate the vertical space of the warehouse, and at the same time, the equipment operation roadway is narrow, without reserving a large amount of ground operation space, which can double the storage capacity in the limited warehouse area, perfectly solving the pain point of insufficient space in small and medium-sized warehouses and low storage density in large warehouses.
The core of space optimization of Henan Mine Crane manufactured overhead crane is to improve the overall handling efficiency of workshop, and the space utilization logic is completely different from that of storage crane. It is erected on the top of the plant, completely does not occupy the ground operation space, the ground can be freely arranged production equipment, material stacking area, access channels, mainly to solve the heavy material ground handling congestion, manual handling limited problems. However, it can not optimize the vertical storage space, can not dock high-level shelf storage, can only complete the plane, three-dimensional space of material transfer, can not improve the storage capacity of warehouse goods.
Load capacity
Storage cranes do not pursue ultra-large loads, but focus on precise material storage operations. The loads are mostly light and medium weights, and the conventional load range is 0.5 tons to 5 tons. Suitable for pallet goods, boxed materials, small regular industrial products and other lightweight, standardized goods, the operation focus is not "heavy", but "accurate, stable, fast", to the greatest extent to protect precision materials, regular goods from loss, to ensure the standardization and integrity of storage inventory.
Bridge crane mainly heavy industrial material handling, load coverage is very wide, conventional industrial models load 5 tons to 50 tons, large custom models can reach hundreds of tons. Specially deal with steel, heavy machinery parts, large molds, heavy equipment and other heavy weight materials, can meet the industrial production of high strength, large tonnage lifting transfer needs, is the only preferred equipment for heavy material operations, this is also the storage crane can not replace the core advantage.
Automation level
Storage crane is the core component of intelligent storage system, which originally supports fully automated and intelligent operation. The equipment can be seamlessly connected with WMS warehouse management system, AGV dispatching system and intelligent sorting system, realizing automatic warehousing of goods, accurate positioning and storage, automatic delivery on demand, automatic inventory counting and automatic fault warning without manual operation in the whole process, realizing unmanned operation of warehouse with extremely high automation degree and intelligent precision, and meeting the upgrading requirements of modern intelligent warehouse.
The degree of automation of the Henan Mine Crane manufactured bridge crane is relatively basic, and the core function focuses on the basic lifting operation. Conventional models are mainly manual control and wireless remote control. They can only complete basic actions such as lifting, translation, start and stop, and have no intelligent storage scheduling and automatic access functions. Some customized models can be equipped with simple automation modules, but they can only realize fixed path repeated operations, cannot connect intelligent storage systems, do not have inventory management and intelligent scheduling capabilities, and their core value is always to efficiently complete heavy material handling rather than intelligent storage management.
How to Select the Right Warehouse Crane
Choose storage crane when
- High-density storage is required: If your indoor warehouse core needs are to improve storage capacity and achieve high-density cargo storage, especially with high-level shelves and three-dimensional storage architecture, you need to maximize the use of warehouse space, and storage cranes are the best choice. It can fully excavate the vertical storage space, reduce the occupied area of the roadway, greatly improve the storage capacity per unit area, and adapt to the storage scenario with large inventory and regular goods.
- Automated operation is preferred: If the enterprise pursues unmanned and intelligent warehouse operation, it wants to reduce labor costs, reduce manual operation errors and improve access efficiency, and give priority to storage cranes. The equipment can realize full-process automatic operation, adapt to 24-hour uninterrupted operation, greatly improve storage turnover efficiency, and adapt to intelligent storage upgrading requirements.
- Warehouse space is limited: For small and medium-sized warehouses, expensive storage sites, indoor warehouses with fixed floor space, space resources are limited, and it is impossible to reserve wide forklift passages and a large amount of operation space. Storage crane narrow roadway, high space utilization characteristics, can achieve maximum storage in a limited site, perfect solution to space constraints.
Choose overhead crane when
- Heavy loads need frequent handling: If the warehouse is dominated by heavy materials, large workpieces, and large-tonnage equipment, and the daily handling frequency is high and the operation intensity is high, Henan Mine Crane manufactured bridge crane must be selected. Its super heavy load capacity and stable structural performance can easily cope with high frequency and heavy load operation, ensure efficient propulsion of production and handling, and have no load limitation problem.
- Flexible transportation is important: if there is no fixed location in the operation scene, the cargo form is irregular, and flexible transportation across regions and multiple directions is required, the operation flexibility is extremely high. The bridge crane has a large range of three-dimensional operation capability and flexible control characteristics, which can adapt to the handling requirements of various non-standard materials. The degree of freedom of operation far exceeds that of storage cranes.
- Production operations are involved: if the warehouse has production, processing and maintenance functions, it belongs to production-type industrial warehouse, and needs to connect production processes to complete production supporting operations such as material loading and unloading, workpiece transfer and equipment hoisting. The overhead crane is more suitable for the scene demand, which can perfectly connect the whole production process and ensure production continuity.
Consider future needs
Expansion plans: When selecting models, it is necessary to plan the future expansion demand of the warehouse in advance. If it is planned to increase the number of shelves, expand the storage scale and increase the storage capacity of goods, the expandable storage crane system will be preferred to support the expansion of shelves and the extension of equipment tracks in the later period. If heavy production lines will be added in the future and heavy load operation requirements will be lifted, space for upgrading and transformation of overhead cranes can be reserved.
Automation upgrades: For enterprises with long-term intelligent upgrade planning, priority is given to the layout of storage cranes, and their original intelligent systems can be iteratively upgraded to adapt to subsequent storage system optimization and unmanned scenario expansion. If the bridge crane is selected, the automation module can be reserved in advance to install the interface to avoid the high cost of the later transformation.
Long-term operation efficiency: Based on the judgment of the company's long-term operating model, it has long focused on warehousing, storage and inventory turnover, focusing on efficient, low-cost, and refined management. Warehousing cranes have higher long-term cost performance. Long-term production processing, heavy-duty handling, the pursuit of stability and versatility, bridge crane more suitable for long-term operation needs.
Cost Comparison of Storage and Overhead Cranes
Initial investment
Equipment cost: The unit price of storage crane equipment is relatively higher, because it integrates intelligent control system, precision positioning module, automatic dispatching system, high-level walking mechanism and other precision accessories, intelligent and precise configuration increases the basic cost of equipment. Bridge crane structure is simple, accessories universal, mature technology, the same load specifications, equipment procurement unit price is lower, the basic hardware investment is more cost-effective.
Installation requirements: The installation process of storage crane is complex, and it needs to be matched with high-level shelves, storage rails, intelligent electric control system and signal transmission system for synchronous construction. The installation cycle is long, the construction accuracy is high, and the professional team is required for accurate debugging. The installation labor and construction costs are high. Bridge crane installation process standardization, only need to fix the track, build the main beam, debugging lifting system, simple construction, short cycle, lower installation cost.
Building conditions: Storage cranes have strict requirements on warehouse building conditions, requiring sufficient indoor floor height, regular building structure, stable load-bearing walls and beams, and some old warehouses need to be renovated before installation, which will generate additional renovation costs. Henan Mine Crane manufactured bridge crane adaptability is stronger, conventional industrial plants, warehouses can be installed, the building height, structure requirements are lower, no large-scale transformation, adapt to a wider range of scenarios.
Maintenance cost
Control system maintenance for storage cranes: The core loss of storage cranes is concentrated in precision components such as intelligent control systems, sensors, positioning modules, scheduling software, etc. Daily maintenance requires regular detection of circuit signals, calibration of positioning accuracy, upgrading of system programs, and maintenance of sensing equipment. It requires high professionalism of operation and maintenance personnel, and annual maintenance costs are relatively high. However, the mechanical structure loss of the equipment is small, the incidence of mechanical failure is low, and the overall failure is mainly fine tuning of the electronic control system.
Mechanical maintenance for overhead cranes: bridge cranes are mainly mechanical structures, simple electric control systems, and the core of operation and maintenance is concentrated on mechanical components such as main beams, end beams, electric hoists, wire ropes, and traveling wheels. Under long-term heavy load operation, the probability of mechanical wear, loosening and loss is high, and it is necessary to regularly lubricate, tighten and replace vulnerable mechanical parts. The operation and maintenance threshold is low, the price of accessories is cheap, and the daily maintenance cost is low. Ordinary technicians can complete basic maintenance work.
Long-term value
Labor savings: storage crane can realize fully unmanned operation, completely replace manual access, inventory, handling positions, greatly reduce the storage manual configuration, long-term can save a lot of labor salary, management costs, labor saving advantages. Bridge cranes still need special personnel to control, can only replace heavy physical handling, can not reduce the core operator, labor cost saving space is limited.
Efficiency improvement: storage crane standardization, automatic operation, stable access speed, no manual error, 24 hours of uninterrupted operation, storage turnover efficiency greatly improved, effectively reduce the cost of cargo detention. The operation efficiency of overhead crane depends on the operator, the operation speed is not fixed, and it can only complete the handling, and the storage efficiency cannot be optimized. The overall efficiency improvement is limited to the production and handling process.
Return on investment: In the short term, overhead cranes cost less and return faster. In the long run, the storage crane under the intelligent storage scenario, with the advantages of low labor cost, high turnover efficiency, low cargo loss and long-term iteration, can recover the excess investment in 3-5 years, and the long-term return on investment far exceeds that of the traditional bridge crane, which is suitable for the long-term development of enterprises.
Storage Crane or Overhead Crane: Which One Fits?
Quick selection guide
Storage crane for automated warehouses: If your site is an indoor intelligent warehouse, a three-dimensional high-rise warehouse, and an automated storage center, the core requirements are high-density storage, unmanned operations, refined inventory management, and storage space saving. The goods are mainly standardized and regular materials, and the storage crane is preferred. It is the core equipment of modern intelligent storage, which can comprehensively improve the storage automation level, space utilization rate and turnover efficiency, and adapt to e-commerce, auto parts, electronics, cold chain, logistics storage and other scenarios.
Overhead crane for industrial lifting: If your site is a production workshop, heavy industry warehouse, equipment maintenance site, the core requirements are heavy material handling, flexible cross-regional transfer, production process docking, goods are mostly heavy, irregular industrial workpieces, no high-density storage requirements, overhead crane is the best choice. Strong equipment stability, sufficient load, flexible operation, perfect for mechanical manufacturing, steel structure, heavy industry, mold processing and other industrial production scenarios.
Customized crane solutions
Standardized cranes on the market are difficult to adapt to the personalized needs of all warehouses. The site layout, floor height, load bearing, load demand, automation planning and operation flow of different warehouses are different. Blind selection of standard equipment is easy to cause poor adaptability, low efficiency and high cost. At this time, customized lifting solutions from professional manufacturers are particularly important.
Reliable crane manufacturers can customize the exclusive equipment scheme one-to-one according to the actual load demand, site size, floor height condition, operation mode and automatic upgrade planning of the warehouse, and comprehensively adapt the scene from the aspects of equipment specification, track layout, control system, automation configuration, etc., so as to avoid the waste of funds caused by excessive equipment performance, eliminate the operation limitation caused by insufficient configuration, and maximize the improvement of equipment adaptability and long-term operation value.
Henan Mine Crane Factory Custom
Henan Mine Crane Factory has been deeply engaged in the research and development, design, manufacturing, installation and operation of lifting equipment for decades. It focuses on providing customized storage cranes and bridge cranes for various indoor warehouses and industrial plants. Relying on mature production system, professional technical team and perfect service system, it helps global customers to accurately select and efficiently implement lifting equipment projects.
Henan Mine Crane Factory has full process professional design and manufacturing capabilities. It can customize intelligent storage cranes of different specifications and various overhead cranes according to the spatial layout, floor height, cargo load, operation frequency, automation requirements and long-term expansion planning of customers 'warehouses. All equipment adopts national standard high-quality steel and precision core accessories. After multiple quality inspection and performance debugging, it has the core advantages of strong stability, low failure rate, low energy consumption, wide adaptability and long service life, which can perfectly adapt to various indoor storage and industrial production scenarios.
