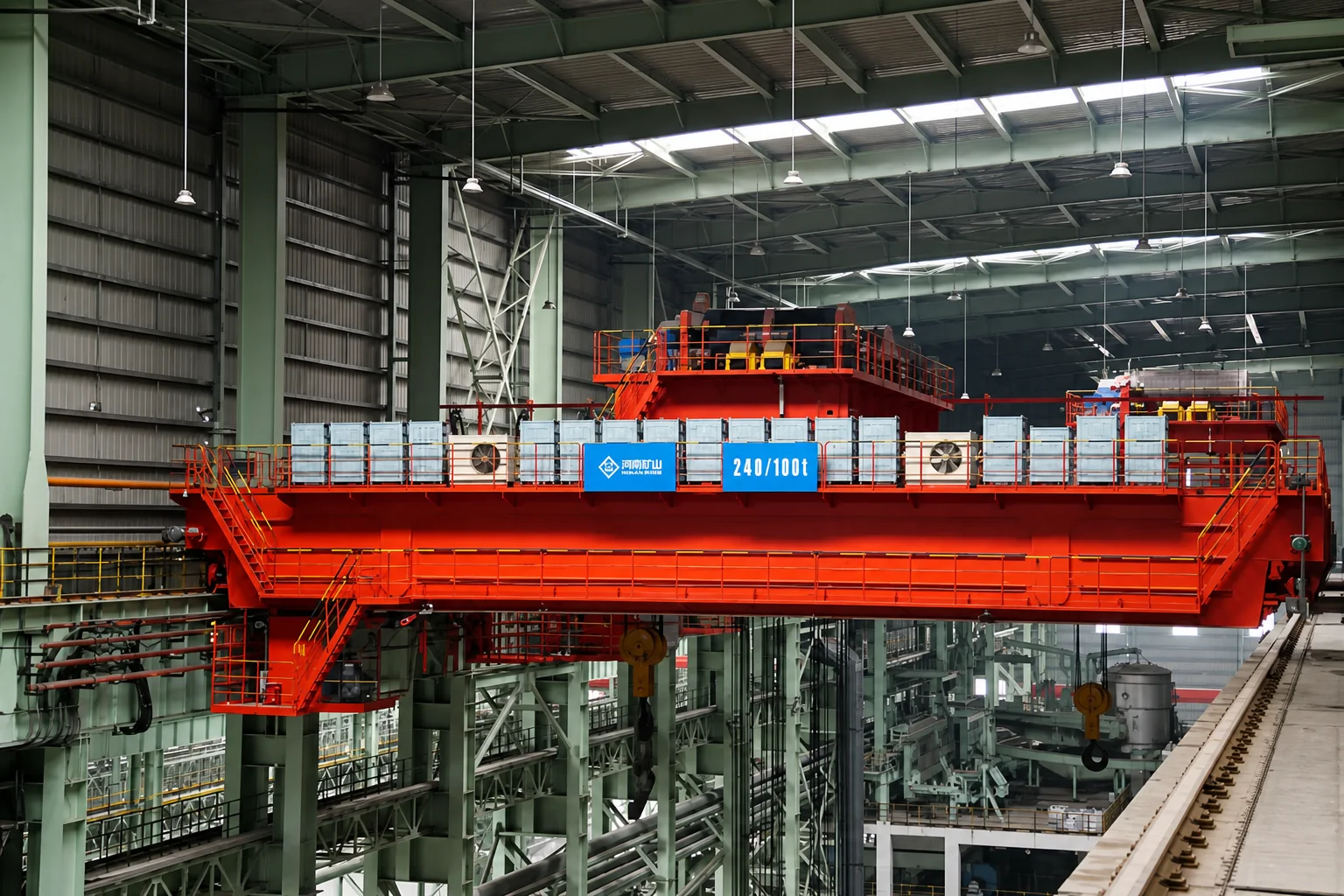

How to Choose a Fully Automatic Metallurgical Crane for a Steelmaking Workshop?
With the acceleration of intelligent transformation of iron and steel industry, the disadvantages of traditional manual hoisting mode in steelmaking workshop become more and more obvious. High temperature, high dust bad working conditions, not only easy to cause manual operation safety accidents, manual control accuracy and efficiency is difficult to meet the needs of modern steelmaking continuous production. Nowadays, fully automatic metallurgical cranes and intelligent steel bridge cranes have become the core standard equipment for improving quality and efficiency and ensuring safe production in steel mills.
Compared with traditional equipment, Henan Mine Crane Factory supply automatic steel-making crane and automatic ladle crane are suitable for high-risk working conditions in steel-making workshop, and their advantages are very prominent. The equipment can realize unmanned lifting of molten steel, avoid manual high-risk operation risks, and improve operation accuracy by virtue of accurate positioning and intelligent anti-shaking functions. The 24-hour uninterrupted operation mode can not only stabilize production capacity, reduce operation errors, but also help steel mills reduce operational risks and achieve safe and efficient production.
Evaluate the Working Conditions Before Selecting a Metallurgical Crane
Lifting requirements
The core of the selection is to match the accurate lifting parameters of the steelmaking workshop, and to eliminate the problems of equipment overload, insufficient efficiency, and inability to adapt to working conditions caused by inconsistent parameters. The rated lifting capacity shall strictly match the maximum lifting load of the workshop, covering heavy load conditions such as full ladle, heavy scrap hopper and furnace body accessories, and reserve 10%-20% safety margin. Long-term full load and overload operation is strictly prohibited. The main working conditions of steelmaking are concentrated in 50 t-200 t, which needs to be accurately customized according to converter tonnage and ladle specifications.
The lifting height shall be comprehensively calculated in combination with the floor height of the plant, the height of the furnace body, the height of the continuous casting equipment and the stroke of the lifting appliance. It is necessary to ensure that there is no obstruction in the whole process of ladle lifting, alignment and dropping. Meanwhile, a safety margin shall be reserved to avoid the lifting appliance top collision and bottom collision accidents. The lifting height of the conventional steelmaking workshop shall be reserved with a safety margin of more than 1.5m to ensure the operation safety.
The working span shall be fully matched with the steel structure span of the steel-making workshop, accurately match the track spacing of the cart, and the error shall be controlled within 5 mm to ensure the stable operation of the cart, no deviation of track fit, and avoid problems such as operation jamming, deviation and wear.
Working grade is the core index of metallurgical crane selection, which directly determines the durability and adaptability of the equipment. Steelmaking workshop belongs to high-frequency and heavy-duty continuous operation scene. FEM A7-A8 and ISO M7-M8 heavy duty equipment must be selected to adapt to more than 20 high-frequency cyclic operations per hour. Ordinary M5-M6 light equipment shall not be selected to avoid fatigue damage and frequent failure of equipment during long-term high-load operation.
Workshop environment
The extremely complex working environment of steelmaking workshop puts forward strict requirements for the protection performance of Henan Mine Crane Factory supply automatic metallurgical cranes, and the selection must be targeted to four environmental pain points. First of all, high temperature environment, workshop long-term existence of molten steel heat radiation, furnace body high temperature baking, local area temperature can reach 60 ℃ above, equipment must be equipped with special high temperature protection structure, core electrical components, cables, motors need to adapt to high temperature conditions, eliminate high temperature aging, short circuit, failure and other problems.
The second is high dust and thick smoke environment. Steelmaking, scrap feeding and steel slag treatment will produce a large amount of metal dust and smoke, which are easy to adhere to the equipment track, motor and electrical control cabinet, resulting in equipment jamming, poor heat dissipation and circuit failure. The selected equipment shall have a fully enclosed dustproof structure, and the key moving parts and electrical equipment shall be dustproof sealed.
Steelmaking production line has the characteristics of uninterrupted continuous production throughout the year. The equipment needs long-term high-frequency start-up and shutdown, cyclic operation, and no long-time shutdown maintenance window. Therefore, the selected equipment must have the characteristics of high strength anti-fatigue, high stability, and low failure rate, and adapt to the operation mode of the whole year.
At the same time, the workshop air contains trace corrosive gases and metal particles produced by smelting, which will corrode the steel structure and parts of the equipment for a long time. Attention shall be paid to the anti-corrosion design of the equipment when selecting the type. The bridge, trolley and metal parts shall be anti-corrosion sprayed and anti-rust treated to improve the anti-corrosion ability of the equipment and prolong the service life.
Safety requirements
Safety production is the bottom line of steel-making lifting equipment selection, which must strictly comply with the safety standards of metallurgical industry and be equipped with multiple safety protection structures. The equipment must adopt double-beam heavy structure. Compared with single-beam structure, double-beam bridge frame has stronger bearing capacity, higher stability and better impact resistance, which can perfectly adapt to heavy load, high frequency and high temperature metallurgical conditions, and eliminate structural deformation and collapse risk.
It must be equipped with a high-performance emergency braking system, with multiple braking functions such as instantaneous power failure braking, overload braking, collision braking, abnormal displacement braking, etc., which can quickly lock the equipment in case of sudden failure, accidental collision, abnormal load, and prevent major safety accidents such as falling of hanging objects and equipment out of control.
The redundant lifting system is an essential configuration for molten metal lifting equipment. The core lifting mechanism, drive motor, and braking system adopt dual sets of redundant design. When one set of system fails, the other set of system can instantly take over the operation, ensuring the entire process. Heavy-loaded materials such as ladles will not fall, avoiding major safety hazards from the root cause, and are the core safety guarantee for high-risk working conditions in steelmaking.
Exclusive high temperature protection design is indispensable, equipment should be equipped with professional heat shield, isolation of molten steel high temperature heat radiation. H-class high temperature resistant special cable is adopted to prevent high temperature aging cracking. Electric control cabinet, motor, sensor and other precision parts shall be insulated and sealed to ensure stable operation of equipment in high temperature environment and avoid electrical failure.
Choose the Right Automation Level for a Steel Mill Crane
Manual vs automatic crane
There are essential differences between manual crane and automatic steel-making crane in operation mode. Manual crane completely depends on the operator's on-site control, all lifting, transfer, alignment actions are manually completed, operational flexibility depends on personnel experience, there is no standardized operation process. Automatic crane to preset program automatic operation as the core, the whole process without manual intervention, only in special conditions to support remote manual intervention, standardization of the operation process.
There is a significant difference in operation efficiency. Manual cranes are affected by personnel's physical strength, experience and state. The operation rhythm is unstable, the alignment takes a long time, the failure rate is high, and the daily operation volume is limited. Automatic crane running rhythm constant, fast response speed, accurate alignment, 24 hours of continuous operation, comprehensive operation efficiency can be increased by more than 30%, perfect for steelmaking high production needs.
In terms of safety performance, manual operation has great man-made risks. Operators are in close contact with high temperature and heavy equipment, which is easy to cause fatigue errors, improper operation and other problems. Fully automatic mode realizes man-machine separation, unmanned close operation in the whole process, with multiple intelligent safety protection, the accident incidence rate is greatly reduced, and the safety level is far higher than that of traditional manual equipment.
The cost aspect needs to balance short-term investment with long-term return. Automatic crane early procurement, commissioning investment is higher than manual equipment, but long-term operation can greatly save labor costs, reduce equipment loss, reduce production accidents and material waste, 1 - 2 years to recover the difference cost. Manual equipment has low investment in the early stage, but it has high labor cost, high failure rate, large capacity loss, and higher long-term comprehensive operation cost, which does not meet the upgrading needs of modern intelligent steel mills at all.
Automation technologies
- Intelligent control system: Intelligent control system is the core center of automatic metallurgical crane, the core is equipped with PLC programmable control module, supporting full-process programmed automatic operation. Staff can enter operating procedures in advance according to the process parameters of each steelmaking process, and the equipment can complete the entire process independently without manual real-time control. At the same time, the system supports remote centralized control and can be connected to the intelligent management and control platform of steel mills to realize coordinated operation and unified scheduling of multiple cranes and adapt to the needs of large-scale steelmaking production.
- Positioning technology: accurate positioning technology is the core of ensuring operation accuracy. Equipped with high-precision laser positioning module, it can accurately collect equipment position and lifting object position data in real time to achieve millimeter level accurate alignment. Equipped with intelligent anti-swing control technology, it can monitor and inhibit the swing of lifting objects in real time, effectively solve the problem of shaking of lifting objects caused by high temperature airflow and equipment operation, ensure stable and accurate ladle transfer and pouring process, and greatly improve the process qualification rate. The equipment runs accurately at a constant speed throughout the process, without impact and offset, and adapts to the requirements of high-precision steelmaking technology.
- Smart monitoring: Intelligent monitoring system realizes digital control of the whole life cycle of equipment, and can track core parameters such as equipment operation status, load data, temperature data and operation track in real time. With automatic fault diagnosis function, it can identify potential problems such as line aging, motor abnormality, braking fault and positioning deviation in advance, and automatically send out early warning prompt to avoid running with fault. At the same time, it supports real-time storage and statistical analysis of operation data, providing accurate data support for steel mill production management, equipment operation and maintenance, and capacity optimization.
Check the Key Design Features of a Fully Automatic Metallurgical Crane
Heavy-duty structure
Henan Mine Crane Factory supply automatic metallurgical crane adapted to steel-making heavy load conditions must adopt strengthened heavy structure design to ensure high strength, high stability and long life operation. The equipment bridge is welded with thickened steel. After the overall annealing process, the welding stress is completely eliminated. It has strong deformation resistance, fatigue resistance and impact resistance. It can withstand the harsh working conditions of high frequency and heavy load and high temperature radiation for a long time without deformation and cracking of the bridge.
The running trolley adopts integral reinforced casting structure. The core accessories such as small wheels, bearings and transmission shafts are made of high-strength wear-resistant materials. After precision machining, they have strong bearing capacity and good wear resistance. They can adapt to long-term high-frequency reciprocating operation and prevent the trolley from jamming, deviation and excessive wear.
The overall structure has been optimized for special working conditions, and the durability strengthening design has been made for the continuous operation characteristics of steelmaking. Under the premise of normal standard operation and maintenance, the overall service life of the equipment is far longer than that of ordinary lifting equipment, which can effectively reduce the replacement and overhaul costs of steel mill equipment and meet the long-term stable operation requirements of production lines.
Lifting system
Automatic metallurgical crane equipped with professional main and auxiliary double lifting system, the main lifting mechanism to undertake ladle, heavy material heavy lifting operations, to meet the needs of large tonnage load landing. The auxiliary lifting mechanism assists in accurate alignment, light load commissioning, equipment maintenance and other operations, primary and secondary matching, adapting to various steelmaking operation scenarios, and giving consideration to heavy load capacity and operation accuracy.
The lifting system is equipped with multiple reliable braking devices, double braking redundancy design, stable deceleration of working braking, emergency locking of safety braking, double protection to prevent the risk of slipping and falling objects. The brake system is suitable for high temperature and high frequency operation conditions, with sensitive braking, low wear and high stability. It will not cause brake failure and brake deviation for a long time.
Equipped with high-performance variable frequency drive system, stable stepless speed regulation during start-up, operation and braking, no impact and no jitter, accurate control of take-off and landing speed and operation rhythm, adaptation to the stability requirements of molten steel transfer, avoiding shaking and spilling of molten steel caused by sudden change of speed, and comprehensively improving operation safety and stability.
Safety protection
The equipment is equipped with a full set of intelligent safety protection systems to avoid the risks of steel-making and lifting operations in an all-round way. The overload protection device can monitor the lifting load in real time. Once overload, partial load and other abnormal conditions occur, it will automatically lock the equipment and issue early warning to prevent structural damage and falling accidents caused by overload operation.
Through infrared and radar dual detection technology, the intelligent collision avoidance system identifies workshop equipment, walls, obstacles and other operation equipment in real time, predicts collision risks in advance, automatically decelerates, avoids and stops, effectively avoids equipment collision accidents, and protects equipment and production line safety.
Equipped with emergency stop button and intelligent emergency stop system, in case of sudden failure, unexpected working condition and potential safety hazard, emergency stop can be realized by pressing one key, all operating mechanisms can be locked instantaneously, dangerous operation can be terminated quickly, accident loss can be minimized, and safety production of workshop can be guaranteed in all aspects.
Heat-resistant design
For continuous high temperature radiation conditions in steelmaking workshop, the equipment is equipped with exclusive heat resistance protection design. Dismountable high temperature resistant heat shield is installed in key heated areas to effectively isolate high temperature heat radiation generated by furnace body and molten steel, so as to avoid long-term high temperature aging damage of steel structure and electrical components.
The equipment adopts H-class high temperature resistant special cables, which have high temperature resistance, strong insulation performance and excellent anti-aging performance. It can work stably in high temperature environment for a long time, eliminate cable cracking, short circuit, leakage and other electrical faults, and adapt to special working conditions of metallurgical high temperature.
All precision electrical components such as electrical control cabinets, sensors, drive motors, control modules, etc. are sealed and insulated, equipped with independent heat dissipation and cooling structures to isolate high temperature and dust intrusion, ensuring accurate, stable and continuous operation of the core control system in harsh high temperature environments, and greatly reducing equipment failure rates.
How to Select a Reliable Fully Automatic Metallurgical Crane Manufacturer
Manufacturing capability
High-quality manufacturing capacity is the core guarantee of equipment quality, selection cooperation manufacturers must have deep metallurgical lifting equipment production experience. Henan Mine Crane Factory specializes in metallurgical crane R & D and manufacturing for many years. It is familiar with the pain points of steelmaking, ironmaking and continuous casting. It can optimize the equipment structure, protection performance and automation procedures to avoid the problem of insufficient adaptability of general equipment.
Manufacturers must have perfect testing capabilities, with a full set of load test, high temperature simulation test, precision calibration, safety performance testing equipment, each factory equipment has passed no-load, static load, dynamic load and high temperature durability test, strictly against the metallurgical industry A7/A8 safety standards, to ensure equipment accuracy, stability, safety standards.
At the same time, it needs to have a professional engineering technical support team, which can provide personalized customization, working condition survey, scheme design and technical optimization integrated services. It can customize the fully automatic metallurgical crane scheme for different steel mill workshop span, tonnage, process and environment, instead of universal mass production equipment, so as to ensure that the equipment accurately meets the production line requirements.
Project experience
Henan Mine Crane Factory, which has a large number of experience in steel plant landing projects, is preferred. Rich practical operation cases in metallurgical industry are the best proof of equipment reliability. It is necessary to check the landing cases of fully automatic ladle crane, intelligent bridge metallurgical crane and automatic scrap hoisting equipment in the past steelmaking workshop of the manufacturer to confirm that the equipment can perfectly adapt to the high temperature, heavy load and continuous operation conditions of steelmaking.
Pay attention to the operation reputation and long-term use feedback of similar projects of manufacturers, give priority to manufacturers with long-term stable operation of equipment, low failure rate and good intelligent effect, avoid manufacturers with no experience in metallurgical working conditions and only producing ordinary cranes, and avoid problems such as poor equipment adaptability, frequent failures and failure to realize full automatic operation.
At the same time, check the professional installation and construction records of the manufacturer. Metallurgical intelligent cranes have extremely high requirements for installation accuracy and debugging technology. Manufacturers with standardized installation and refined debugging procedures can ensure that the equipment installation accuracy meets the standard, the automation system is debugged in place, and it can be quickly put into mass production.
Service support
Perfect full-process service system is the guarantee of long-term stable operation of equipment. Henan Mine Crane Factory provides one-stop installation and commissioning services, arranging professional engineering teams to conduct on-site survey, installation, commissioning and training to ensure normal and automatic operation of equipment upon landing, and helping steel mills quickly master equipment operation and basic operation and maintenance skills.
Sufficient spare parts supply capacity is crucial, metallurgical crane core accessories specifications special, universal accessories can not be replaced. High-quality manufacturers will establish a perfect spare parts inventory system, which can quickly respond to parts replacement and maintenance needs, avoid long-term downtime of equipment due to missing parts, and reduce production line shutdown losses.
At the same time, it is necessary to provide lifelong technical support and after-sales operation and maintenance services, including regular on-site inspection, equipment maintenance, system upgrade, rapid repair of faults, technical Q & A and other services. According to the upgrading requirements of intelligent production line of steel works, it can provide intelligent iterative optimization scheme of equipment to ensure long-term efficient operation of equipment in an all-round way.
Future Trends of Fully Automatic Cranes in Steel Manufacturing
Smart factory integration
In the future, fully automatic metallurgical cranes will be deeply integrated into the steel intelligent factory system, relying on industrial Internet of Things technology to achieve full equipment interconnection. Lifting equipment is no longer an independent operation unit, but can be linked with converter, continuous casting machine, dust removal system and production line management and control platform in real time to realize data exchange and collaborative operation and build an integrated intelligent production system.
Fully realize digital management. Equipment operation data, production operation data and operation and maintenance data are automatically uploaded to the cloud platform. Managers can monitor equipment status, production progress and energy consumption data in real time through terminals, realize digitalization and visualization of the whole process of production, operation and maintenance and management, and completely replace the traditional manual account management mode. Centralized centralized management and control will become the mainstream trend. A single platform can centrally control multiple lifting equipment in the workshop, intelligently schedule operation tasks, optimize operation paths, avoid idle equipment and operation conflicts, greatly improve the overall production coordination efficiency of the workshop, and adapt to the production needs of large-scale intelligent steel mills.
AI-based crane operation
AI intelligent control will gradually replace traditional programmed control and become the core technology of the new generation of metallurgical cranes. Relying on AI algorithm, the equipment can independently identify production conditions, dynamically optimize operation paths, automatically adjust operation rhythm, operation speed and alignment parameters according to real-time furnace state, material state and workshop environment, and adapt to complex and changeable steelmaking conditions.
Predictive maintenance technology is fully popularized. AI system can accurately predict potential faults such as wear and tear of equipment parts, aging of lines and performance attenuation through long-term data accumulation, generate maintenance scheme in advance, realize active preventive maintenance, completely change the traditional mode of maintenance after failure, and greatly reduce equipment failure rate and shutdown loss. The intelligent adaptive control technology continues to upgrade, and the equipment can independently adapt to different tonnage materials, different process links and different environmental states, automatically correct operation parameters, realize intelligent adaptive operation in the whole scene, and further improve production accuracy and operation stability.
Unmanned steel workshops
Unmanned steelmaking workshop is the ultimate development trend of the industry, and fully automatic metallurgical cranes will become the core equipment of unmanned workshops. In the future, the lifting operation will be fully controlled remotely without on-site attendance. All lifting, feeding, transfer and alignment operations will be completed independently by the equipment, and only remote monitoring by backstage personnel is required.
Automatic implementation of the whole process of material handling, unmanned lifting operation in the whole process from scrap warehousing, furnace charging, molten steel transfer, continuous casting production and billet delivery, opening up the automatic closed loop of steelmaking production line and completely getting rid of manual dependence. Comprehensively upgrade the workshop safety production system, completely eliminate the risk of manual high-risk operation, realize the essential safety production of steelmaking workshop, greatly improve the production efficiency and standardization degree, and assist the steel industry to upgrade to high-end, intelligent, safe and efficient.
Henan Mine Crane Factory Custom
Choosing a fully automatic metallurgical crane requires more than standard lifting capacity. Steel plants need equipment that can withstand high temperature, heavy loads, continuous operation, and complex production environments. With rich experience in metallurgical lifting equipment, Henan Mine Crane Factory provides customized crane solutions designed for steelmaking, casting, and smelting applications, including intelligent control systems, safety protection, and high-performance structures.
From project design and manufacturing to installation and after-sales support, Henan Mine Crane Factory focuses on delivering reliable full-lifecycle lifting solutions. By combining advanced automation technology with industry-specific crane design, the company helps steel mills improve production efficiency, reduce operational risks, and move toward safer and smarter steel manufacturing.
