How to Choose an RTG Crane for Container Yard?
Tire gantry cranes (RTG cranes for short) are special mobile lifting equipment for container yards, the core is used to optimize the container storage and transfer, and improve operational efficiency; selecting the right RTG crane is crucial to the operational efficiency, cost control and safety of the yard.
This article provides RTG crane selection guide for container yard operators, logistics managers and procurement personnel, combined with practical experience and technical points, focusing on Henan Mine Crane customized solutions to help practitioners scientific selection.
What is RTG Crane?
RTG cranes have the core features of flexible movement and strong adaptability, which can realize 360 ° free movement and trackless transfer between yards, and can be flexibly adapted to different layouts of the yard environment.
Its core function is to complete the container storage, extraction and field transfer, the key components include lifting trolley, gantry structure, operating mechanism, etc., the operation mode can be selected according to the needs of remote control, cab operation or pendant control (pendant manipulation), adapted to different operational scenarios.
RTG Cranes and Other Types of Crane Differences
Compared with the shore bridge (Ship-to-Shore, referred to as STS cranes), RTG cranes do not need to be fixed on the quay shore, with mobility advantages, focusing on container storage operations within the yard, while the shore bridge is mainly used for cargo handling between the ship and the terminal;
Compared with Rail-Mounted Gantry Cranes (RMG cranes for short), RTG cranes do not need to lay fixed rails, are more flexible, and are more suitable for yards with variable layouts and medium-sized yards, and have lower infrastructure investment, and can be flexibly adjusted to the operating area according to the development of the yard.
Commonly Used Areas in Container Yards
RTG cranes in the container yard application scenarios can be divided into two categories of core operational purposes and applicable places, as follows:
Core operational uses: container stacking (1 over 7 stacking configuration can be achieved, maximizing the revitalization of yard space), transfer between storage blocks, road/railway truck cargo docking and turning operations, comprehensive coverage of the core operational scenarios in the yard;
Applicable places: widely used in ports, inland yards, logistics parks, is to enhance the efficiency of cargo turnover in all types of places, to ensure smooth operation of the core equipment.

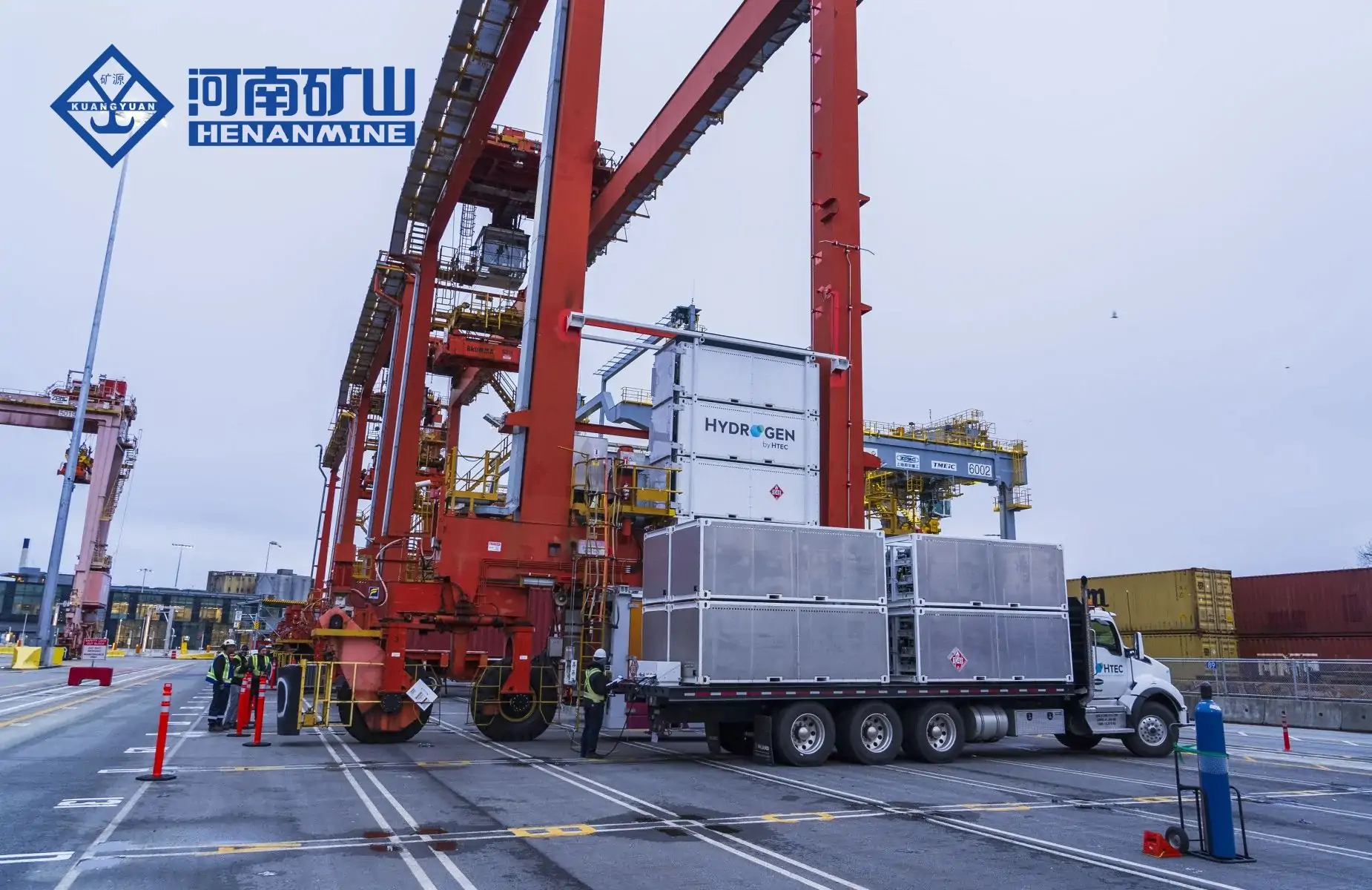

Key Factors for Choosing RTG Cranes
Carrying Capacity and Operating Range
Container Loading Capacity
When selecting the model, it is necessary to reasonably assess the lifting capacity of RTG cranes according to the maximum weight of common containers in the yard (such as 20-foot, 40-foot containers and high containers).
Different models of RTG cranes have a lifting capacity of 10-800 tons, and Henan Mine Crane can customize the appropriate lifting specifications according to the actual operational needs of users to ensure that the equipment can stably cope with the daily and peak operational loads.
Stacking Height and Operating Range
Stacking height and operating range need to be combined with the layout of the yard, space constraints and future expansion planning to determine the comprehensive RTG crane span range is usually 18-35 meters, stacking height of 6-18 meters, and all support customized adjustment. Choosing the right span and stacking height can reduce the secondary handling of containers, maximize the storage density of the yard, and reserve space for future business expansion.
Mobility and Maneuverability
Tire Configuration
RTG cranes are mainly available in 4-wheel and 8-wheel (and above) tire configurations, each with its own advantages: the 8-wheel configuration is more stable and suitable for higher stockpile heights and greater load capacity; the 4-wheel configuration is more flexible and suitable for smaller yards with narrower aisles. Henan Mine Crane can provide suitable tire configuration according to the topographic conditions and operational requirements of the yard to ensure stable operation of the equipment under different site conditions.
Turning Radius and Yard Size
Yard size, layout complexity (such as narrow passages, multiple storage blocks) and terrain conditions directly determine the mobility needs of RTG cranes. RTG cranes are equipped with 90 ° turning and in-situ slewing functions, without the need to lay a fixed track, flexible adjustment of the operating position, easy to adapt to different layouts of yards, greatly enhancing operational flexibility and reducing the efficiency loss caused by site constraints.
Automation and Technology Integration
Automated RTG Cranes (ARTGs)
Automated RTG cranes (ARTGs) are an industry trend with significant advantages:
- A single operator can control multiple devices, significantly improving the efficiency of yard operations and reducing labor input;
- Effectively reduce human error, significantly improve the accuracy of container handling, reduce the risk of cargo damage;
- Reduce the operator's labor intensity, improve operational safety protection, and further enhance the safety of yard operations;
- Guarantee the standardization and consistency of the operation process, and minimize the impact of human factors on operational efficiency.
At the same time, for the existing RTG cranes, it can also be upgraded through the addition of automatic steering and other automation components to improve equipment performance.
Control System and Software
Advanced control system is the core guarantee for the efficient and stable operation of RTG cranes, using PLC + distributed bus control technology, real-time monitoring of operating conditions, intelligent anti-shaking, precise positioning and remote control and other full-process functions, all-round support for the efficient operation of the equipment.
Among them, the intelligent anti-shaking technology and synchronized motion control complement each other, which can effectively improve the container handling accuracy, reduce the risk of cargo damage, further optimize the operational efficiency, and accurately match the demand for refined and efficient operation of the yard.

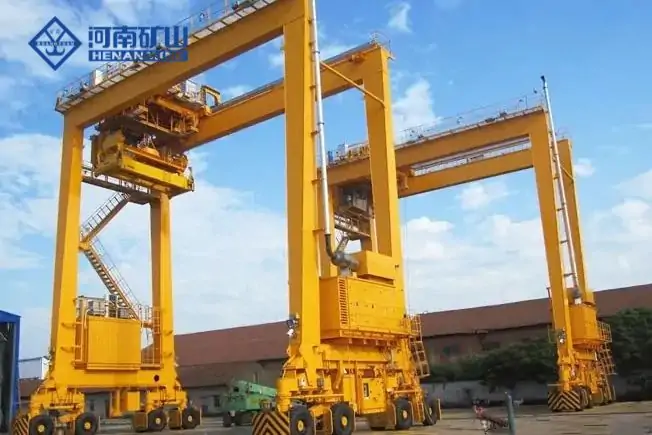

Fuel Efficiency and Environmental Considerations
Hybrid and Electric RTG Cranes
With the popularization of the concept of environmental protection and operational cost control needs to improve, electric, hybrid and diesel-electric hybrid RTG cranes are gradually becoming the mainstream choice. Electric models can realize zero exhaust emissions, suitable for areas with high environmental requirements;
Hybrid and diesel-electric hybrid models can significantly reduce fuel consumption, Henan Mine Crane hybrid + variable speed technology can effectively reduce energy consumption, and its electric hybrid models are equipped with battery charging system, which can realize unlimited range, taking into account environmental protection and operational continuity.
Fuel Consumption and Maintenance Costs
Long-term operational efficiency needs to focus on fuel consumption and maintenance costs. The regenerative braking technology of RTG cranes can recover energy during the descent of cargoes, realizing energy recycling;
The modular component design facilitates late maintenance and reduces the difficulty and time cost of repair; the electric model does not require regular maintenance of the diesel engine, which further reduces maintenance expenditure and makes long-term operation more cost-effective.
Durability and Maintenance Requirements
Long-term Durability
Container yard operating environment is complex, often facing strong winds, salt spray, high load operation and other harsh conditions, so RTG cranes need to have strong durability. The equipment should be made of high-strength steel, anticorrosive materials, and have a sturdy structural design that can withstand the erosion of harsh environments and extend the service life of the equipment. All RTG products of Henan Mine Crane comply with international standards such as FEM and GB to ensure the long-term stable operation of the equipment.
Maintenance Costs
Maintenance costs are directly related to the long-term operating budget of the container yard, and when selecting the model, you need to pay attention to the maintenance cycle of the equipment, component accessibility, spare parts supply capacity and remote monitoring functions, in order to lay the foundation for the long-term stable operation of the equipment.
Henan Mine Crane adopts modular component design, equipped with convenient maintenance panels for quick maintenance; at the same time, it provides a perfect spare parts supply system and CMS status monitoring system, which can monitor the real-time operating status of the equipment, warn of failures in advance, reduce downtime, and lower long-term maintenance costs.
Safety Performance
Operator Safety
RTG cranes need to be equipped with perfect safety protection devices to protect the operator's personal safety, mainly including anti-collision system, stability control, overload detection, zero-speed hovering, ergonomic cab and emergency stop button. Among them, the automatic steering function can reduce the operator's repetitive operation, alleviate fatigue, further enhance operational safety, and avoid safety accidents caused by human errors.
Safety Standard Compliance
When selecting the model, you need to ensure that the equipment meets the requirements of international and local safety regulations to avoid facing penalties due to compliance issues, and at the same time to protect the safety of operators and equipment. All RTG products of Henan Mine Crane are designed and manufactured in strict compliance with global safety standards, fully meeting all kinds of safety compliance requirements, providing reliable safety for yard operations.
Evaluation of Manufacturer and Supplier Selection
Manufacturer Reputation
When choosing RTG cranes, you need to focus on evaluating the manufacturer's industry experience, past performance, customer feedback and global layout, manufacturers with good reputation can provide more reliable products and services.
Henan Mine Crane has rich experience in the field of RTG crane customization, focusing on providing customized solutions for global container yards, with reliable product quality and perfect service, won the recognition of global customers.
After-sales Service and Warranty
Perfect after-sales service is the key support to ensure the long-term stable operation of RTG cranes, and when selecting the type, you need to focus on the supplier's on-site maintenance response, professional technical support, adequate supply of spare parts and reasonable warranty terms, to avoid all-round risks of equipment operation.
Henan Mine Crane has always attached importance to after-sales service, providing a full range of technical support and on-site maintenance services, perfect spare parts supply system to ensure that spare parts in place in a timely manner, and reasonable warranty terms for the user to reduce the risk of using the equipment to minimize the loss of downtime.
Customized Capability
Different container yards have significant differences in layout planning, operational requirements and spatial conditions, so the manufacturer's customization ability is crucial to the selection decision.
Henan Mine Crane can provide customized services according to the specific needs of users in terms of carrying capacity, span, stacking height, power system and operation mode, design one-stop solutions to accurately match the operation process and space requirements of the yard, and solve the core pain points of users.
Cost Consideration
Initial Procurement Costs and Long-term Operating Costs
The cost of RTG cranes needs to consider the initial procurement cost and long-term operating costs: the initial procurement cost includes the equipment type, customization costs, transportation costs, etc.; long-term operating costs cover fuel/energy consumption, maintenance and repair costs, labor costs, etc. With high energy efficiency and excellent durability, Henan Mine Crane RTG cranes can significantly reduce long-term operating costs. Although there may be a certain amount of investment in the initial purchase, it is more cost-effective in the long run.
Financing Methods
Enterprises can choose to lease or purchase two financing methods according to their own financial situation, both have their own advantages and disadvantages: purchase mode of the initial capital investment is larger, but in the long run, no need to pay rent, you can have the ownership of the equipment; leasing mode of the initial capital pressure is smaller, can be flexibly adjusted to the number of equipment, suitable for short-term operations or cash-strapped enterprises, you need to combine with their own financial situation to make a reasonable choice.
Cost and Benefit Analysis
When selecting a model, you need to conduct a comprehensive cost and benefit analysis, weighing the initial procurement costs and long-term benefits. High-quality RTG cranes can bring efficiency, downtime (downtime) reduction, maintenance cost reduction, safety enhancement and other benefits, Henan Mine Crane customized RTG solutions can help users to achieve a balance between short-term investment and long-term benefits, maximizing the benefits of yard operations.
Case Study
Large Port Yard
An ice-free port in the Baltic Sea is an important international trade hub in the region, with a huge throughput and extremely high requirements for operational efficiency and safety.
The port chose to retrofit the existing RTG cranes with auto-steering technology, upgrading them to automated RTG cranes, realizing a single operator controlling multiple units, and significantly increasing the operational throughput;
Meanwhile, the fuel-efficient design effectively reduces fuel consumption and operating costs, solves the efficiency and cost pain points under high load operation, and realizes efficient, safe and low-cost operation.
Small and Medium Container Yard
An inland medium-sized container yard, subject to space constraints and large fluctuations in cargo throughput, requires flexible and adaptable RTG cranes.
The yard chose Henan Mine Crane customized RTG cranes, which adopt hybrid power systems and flexible tire configurations to adapt to narrow yard aisles and variable workloads;
At the same time, through the customization of the span and stacking height, maximizing the use of limited space, without additional investment in infrastructure renovation, to achieve a low-cost, high-efficiency mode of operation, perfectly suited to the operational needs of small and medium-sized yards.
Henan Mine Crane Factory Custom
Henan Mine Crane Factory provides a full range of customized RTG cranes, covering a carrying capacity of 10-800 tons, span of 18-35 meters, stacking height of 6-18 meters, according to the user's needs to choose a variety of power systems such as diesel, electric, hybrid and other power systems, as well as a variety of operating modes such as remote, cab, pendant and so on.
Our one-stop solution is designed to solve the core pain points in yard operation, lack of mobility, high energy cost, low efficiency of manual operation and high maintenance cost, and provide safe, efficient and low-cost cargo handling solutions for container yards of all sizes.
