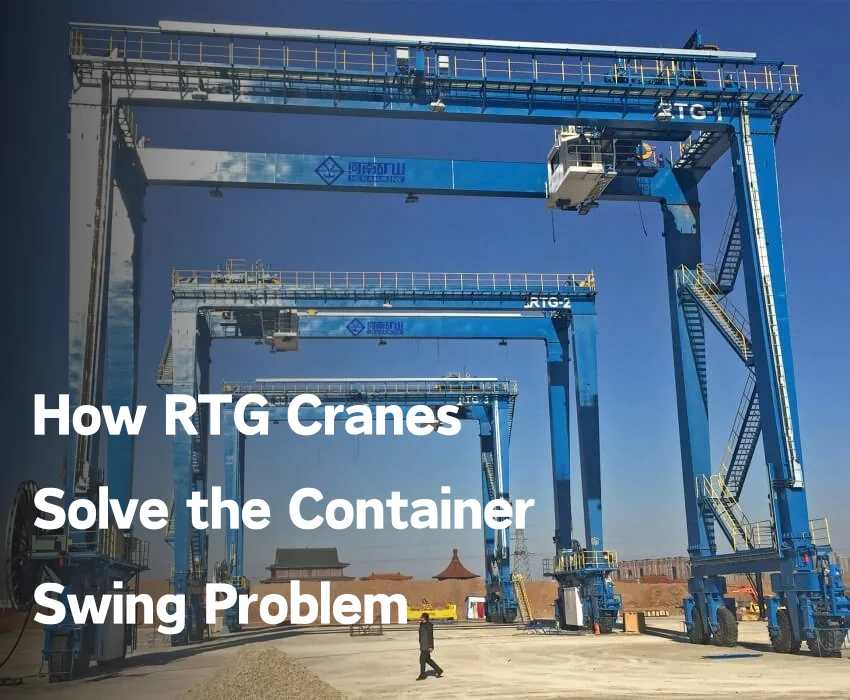

How RTG Cranes Solve the Container Swing Problem

Every operator who has worked an RTG crane knows the frustration: you accelerate the trolley, the container swings forward, you decelerate, it swings back. You wait. The clock ticks. A truck sits idle below. Another crane is blocked in the adjacent bay.

Container swing—formally called load sway—is one of the most persistent productivity killers in container terminal operations. Industry data shows that waiting for sway to settle can occupy more than one-third of the entire move time for less experienced operators. In a terminal handling hundreds of thousands of TEUs per year, that lost time compounds into millions of dollars in avoidable cost.

RTG crane engineering has delivered a range of solutions, from passive mechanical dampers to fully active AI-assisted control systems, that can reduce or completely eliminate container swing. This article explains the physics of the problem, the technology families used to solve it, how leading OEMs implement anti-sway today, and what terminal operators should look for when specifying or upgrading their RTG fleet.

What Is Container Swing?

Container swing in an RTG crane is a classic pendulum effect. A container suspended from the trolley via wire ropes behaves exactly like a pendulum bob on a string: once displaced from vertical, it oscillates back and forth until friction gradually brings it to rest.

The physics are straightforward. The pendulum period—the time for one full back-and-forth cycle—depends only on rope length, not on container weight. Longer ropes (i.e., greater hoist height) produce slower, longer swings that are harder to manage manually.

Swing is induced whenever the trolley or crane gantry accelerates or decelerates. When the trolley moves forward, the container lags behind, then overshoots when the trolley stops. At the end of a travel movement, the container continues forward to the end of its arc, reverses, and oscillates until damped. Wind load, jerky operator inputs, and uneven yard surfaces compound the problem.

The primary causes of RTG container swing include:

• Sudden acceleration or decelerationof the trolley or gantry
• High travel speedsover long distances
• Wind or environmental disturbancesacting laterally on the container
• Jerky or inexperienced operator inputs
• Variable rope lengthas containers are hoisted to different heights across a stacking block

For container handling, accurate placement must be precise to within a few millimeters. Any residual swing at the end of a move must be fully damped before the spreader can be lowered onto the target container. This is the core productivity cost of uncontrolled sway.

What Causes Container Sway in RTG Crane Operations?

Before exploring solutions, it is worth understanding the scale of the problem. Industry sources indicate that countering sway can occupy up to 30% of the average move time during container handling operations. For a crane completing 25 moves per hour, that is the equivalent of losing 7–8 productive moves per hour to swing management alone.

The impact is not evenly distributed. Experienced operators can "drive into the swing"—actively compensating by jogging the trolley in the direction of sway to damp the oscillation. Only the most skilled operators can simultaneously kill sway and position the load in a single continuous motion. Everyone else completes these as two separate operations: kill the swing first, then fine-position.

Beyond productivity, uncontrolled container swing creates direct safety risks: containers can collide with adjacent stacks, damage spreaders, strike truck trailers in the landside lane, or injure ground personnel. In automated RTG operations, residual swing is simply incompatible with the precision required for unattended placement—making anti-sway technology a functional prerequisite for any automation program.

The economic calculus is clear. Anti-sway technology is not a luxury upgrade. It is a core productivity and safety investment that pays back quickly in high-throughput terminals.

Which RTG Anti-Sway Solutions Are Available?

RTG crane anti-sway technology has evolved through three distinct solution families. Each has different cost profiles, maintenance requirements, and effectiveness characteristics.

1. Mechanical and Hydraulic Passive Damping Systems

The earliest approach to container swing control was entirely mechanical. These systems use special hoist reeving geometry or physical damper mechanisms to resist swing forces directly on the spreader or head block.

Hydraulic sway damping systems—historically common on RTG cranes, with systems produced by suppliers such as Italy's Rima Group—use inclined auxiliary ropes connected between the spreader or head block and hydraulic cylinders on the trolley. When the container swings, the ropes go taut and the hydraulic circuit absorbs and dissipates the sway energy. These are passive systems: they damp existing sway but cannot prevent it from initiating.

The limitations of hydraulic and mechanical passive systems are significant:

• The following is one way of assuming the dampening process to work: They cannot stop the swing beginning but can dampen it after.
• Once the trolley has stopped, the operator is still required to wait for the hydraulic damping to settle before lowering the container
• They have elevated maintenance levels to take into account: hydraulic systems, seals, cylinders and rope elements all need financial investment to keep maintained
• Effective only in one direction unless a multi-axis reeving scheme is introduced.

When dealing with current high-throughput processes, passive hydraulic damping is treated as an old standard that is not as effective as more advanced techniques.

2. Electronic Open-Loop (Feedforward) Control Systems

The use of VFD’s and PLC’s on crane drives has made electronic only solutions practical. Open loop anti-sway systems essentially mathematically manipulate the crane's motion profile to avoid pole effects10.

The system uses a mathematical model of pendulum dynamics—taking rope length (derived from hoist drum encoder position) and load characteristics as inputs—to calculate an optimized acceleration/deceleration curve for every trolley movement. Rather than applying a simple ramp-up/ramp-down velocity profile, the system shapes the motion so that the resulting pendulum forces cancel each other out by the time the trolley reaches its destination.

Open-loop systems require no additional sensors on the load itself. The PLC predicts behavior based on the motion model and issues corrective drive commands proactively. The key advantage is simplicity: no sway angle sensors to maintain, no closed-loop feedback latency.

The critical limitation: open-loop systems cannot respond to external disturbances such as wind or impacts, because there is no measurement of actual load position. If the container swings for a reason the model did not predict, the system cannot correct it. Open-loop electronic anti-sway is best suited for indoor or sheltered operations where wind loading is not a factor.

3. Closed-Loop Active Feedback Systems (Best Practice for RTG)

The most widely used method for outdoor operating RTG's is an active closed loop anti sway system that uses real time sensor feedback with feedforward control. This system address both internally induced sway, from the crane movements, and externally induced sway, from external forces such as the wind.

These systems combine several components:

• Inclinometers / sway sensors will record the actual swing angle of the load.
• The motion state data can be read from transport state by hoist encoders and trolley position sensors.
• Load cells can be used for rough card control or to convert container weight to a new control parameter. To use it in either of these ways a load cell must be calibrated against the weight of an empty container.
• The PLC takes all of the sensor data and performs the combined feedback + feedforward control algorithm.
• The VFDs on the trolley and hoist drives respond to the corrective speed and acceleration commands in 5-10 msec.

Overall control logic is a continuous loop. The feedforward (planning) compensates for anticipated sway and thus prevents it. The feedback (correction) compensates for any residual sway in the container whatever its source (including swing induced by a rate command to a passive load, like a container). The container arrives at the target, pretty much free of residual swing, immediately ready to be lowered.

How Do Leading RTG Crane Manufacturers Reduce Container Swing?

Konecranes: Active Load Control (ALC)

Konecranes has also invented something called Active Load Control (ALC) a proprietary technology which Konecranes claim all but removes container sway. ALC is a closed-loop actively managed, predefined motion system implemented into the RTG's main control system. It utilizes intelligent profiles together with real time sway detection so that the operator can handle rough yard surface conditions, whether working manually or fully automated.

ALC for automation to support the ARTG (Automated RTG) systems of Konecranes, who claim that automation without it cannot be true automation as the best possible automated container placement cannot be achieved. And any terminal with Konecranes RTGs and ALC can then move onto full automation, without changing the yard equipment the sway control has been built-in and proven.

Liebherr: Eight-Rope Anti-Sway Reeving

Liebherr's approach to RTG anti-sway combines mechanical reeving geometry with electronic drive control. Their standard RTG configuration features an eight-rope reeving anti-sway system, which distributes the hoist load across a geometry that is inherently more resistant to pendulum oscillation than a simple two-rope or four-rope reeving. Precise simultaneous drive motion control removes the need for a head block or side shift mechanism, further simplifying the lifting interface.

Konecranes (Earlier System): Hybrid Rope-and-Electronic Approach

An earlier Konecranes system for RTG cranes—a precursor to the modern ALC—used four AC motor-driven winches controlling four auxiliary ropes reeved from the main hoist rope drum to the head block and back to auxiliary winches on the trolley. The ropes were inclined in both trolley and gantry travel directions, providing sway prevention effectiveness in two axes. Each winch was controlled independently by PLC algorithms. This hybrid solution went hand in hand with the mechanical efficiency of the damping via rope and the intelligence of the electronic control.

ABB: Dual-Mode Electronic Systems

ABB currently has two electronic anti-sway products available for use by cranes the first is an closed-loop system designed for outdoor container crane applications that measures load motion to dampen both motion-induced and wind-induced sway, and the second is an open-loop system that is used for indoor overhead crane applications where external disturbances are not present. The closed-loop system is completely integrated into the main PLC control architecture of the crane.

How Does RTG Anti-Sway Technology Work?

Knowing the details of the operation of a typical modern closed loop RTG anti-sway system enables terminal engineers, operators and procurement managers to assess system specifications more accurately.

Step 1: Motion planning When the operator hits a trolley travel switch, the anti sway plc doesn't respond by directly commanding the full drive speed. Instead it develops an optimal motion profile based on current rope length (from hoist encoder), load weight measurement, distance to travel, and the allowable percentage of sway. This yields a unique acceleration profile for the move.

Step 2. Feedforward control Based on the current pendulum dynamics model the system calculates the sway it can expect to obtain from the prior moves, and programs the control signals to the VFDs accordingly. The trolley accelerates between stops across a shaped velocity profile - typically reversing and accelerating briefly just before reaching the destination - to null out the pendulum forces at the target.

Step 3. Feedback sensors in real-time The sway sensors (inclinometers) constantly determine the actual swing angle of the container as it is moved. Trolley position encoders check trolley travel. Load cells observe the target load. All information updates immediately to the control PLC.

Step 4. Corrective action if feedback sensor indicates the actual sway no longer matches the model (as a result of wind, rough surface etc. or model error), the PLC will send corrective commands to the VFD in milliseconds, such as a small counter-motion “kick” signal, brief speed reduction, or collective tension correction to the hoist.

Step 5: Zero Sway Arrival The cargo reaches its destination with zero or near-zero residual sway. The operator (or automated controller) may lower the spreader immediately. The control cycle which includes starting to move the cargo, stopping that movement, and arriving at the destination with zero residual sway is completed faster than the operator perceives each separate step.

What Are the Main Anti-Sway RTG Modes?

Most modern RTG anti-sway systems are designed to operate in different modes which can be selected according to the type of terminal and automation level:

Manual anti-sway mode. The operator fully controls the crane's motion, with the anti-sway system tapping in to even acceleration/deceleration curves and neutralize detected sway. To the operator, the crane feels more docile and stable, without an autonomous system “fighting” him/her.

Semi-Automatic Mode The operator simply chooses a destination position whereby the anti-sway system automatically takes care of the travel profile and positioning while the operator observes and can take control if necessary. This mode greatly lessens operator skill and fatigue while still retaining a human in the loop.

In fully-automatic mode (ARTG operation), the anti-sway logic exists within the automated cycle control system. The container pick and place cycle is performed without operator intervention, however the anti-sway system assists at each step.

How Does Anti-Sway Improve Productivity?

RTG cranes with anti-sway are viewed by terminal operators as an advantage for utilization of cranes in the following dimensions:

Throughput increase: Reducing the time operators wait for sway to settle or adjusting it manually allows cycle times per move to drop. Even a 10–15% reduction in average cycle time can lead to a large increase in containers per crane-hour.

Less skilled: Less-skilled operators are able to place containers with accuracy close to the levels of proficient operators when active anti-sway control assistance is used. Faster training and enhanced operator consistency is achieved.

Safety enhancement: By ensuring the container is moved in a controlled & predictable manner, the risk of a container to container collision, spreader damage and truck trailer impacts, as well as personnel risk, can be minimized, within the landside lane.

Less mechanical wear: A smoother, more consistent acceleration and deceleration cycles less fatigue hoist ropes, sheaves, spreader pins and drive components delaying maintenance intervals and lowering replacement costs.

Automation enablement: For terminals considering the move toward automation for RTG operation, automation enabling of the terminal requires effective sway eliminating. No matter how accurately Automated Container Placement systems position the containers at terminal, they cannot achieve unmanned operation if the process is not accurate enough.

How to Choose the Right RTG Anti-Sway System?

Before specifying for RTG crane anti-sway or upgrading the anti-sway capability, terminal operators need to take into account:

Indoor vs. outdoor operation. RTG yards located outdoors will experience wind loading that cannot be mitigated by open-loop control systems. The appropriate, but more costly, solution is the use of a closed-loop control system with meancaswingfeedback.

Automation roadmap. If the terminal plans to eventually automate RTGs, the anti-sway must be able to support automated cycle control. Ensure the system is compatible with the RTG's standard automation-ready control architecture and that a credible OEM upgrade path exists.

Integrated with other controls. Naturally-integrated anti-sway systems, directly integrated into the crane's main PLC/VFD house, are more reliable and simplified to operate and maintain than retrofit add-ons with separate local drives and hardware. How does the OEM connect the anti-sway logic to the main drives?

Sensor maintenance.Closed-loop systems need sway sensors (or inclinometer or whatever). So, what maintenance schedules, failure modes, operation of bot when sensor data is lost? Design that can fail “safe” (back to open-loop) rather than fail/disengage sway control.

Operator interface and mode selection. Consider how conveniently and intuitively operators will be able to select anti-sway modes, receive the system status, and take over control when necessary. If the HMI is confusing or inaccessible, the technology will not be used effectively.

Frequently Asked Questions

Frequently Asked Questions

Q: What is container swing in an RTG crane? A: Container swing (or load sway) is the swinging of a suspended container caused by the acceleration and deceleration of the trolley or crane gantry. The container swings like a pendulum, being pulled backward or forward of the suspension point until friction slow it down. In RTG cranes it needs to be kept to a minimum for accurate placement.

Q: How does an RTG crane anti-sway system work? A: The current RTG anti-sway systems incorporate feedfoward control (predicting swing based on the planned motion mathematically) and closed loop feedback (detecting the sway angle with inclinometer sensors). The PLC constantly modifies the trolley velocity profile with Variable Frequency Drives to eliminate the swing before it is initiated and nullify any swing if it occurs.

Q: Is it possible to completely eliminate RTG container swing? A: Certainly. Active closed loop anti-sway systems can be used to eradicate container swing and do not only reduce it. Konecranes Active Load Control (ALC) is one such system and is used at fully automated RTG terminals with zero-sway arrival to enable unmanned container placing.

Q: How do open loop and closed loop anti-sway systems differ? A: Open loop systems utilize the mathematical model of the crane's motions to derive a motion profile which is designed not to induce any load swing. There is no direct measurement available of the load's actual position. External forces such as wind load cannot be compensated for in the open loop system. Closed loop(actively fed back) systems constantly measure the actual sway angle, and react to cancel this in real time. Offlode swing as well as externally induced swing are addressed by a closed loop system. In outdoor RTG function closed-loop systems are implemented.

Q: How much is container sway costing in terms of throughput? A: The manufacturing industry appears to identify this cost at over 1/3rd of the total move time, if not more, for novice operators. Even experienced workers experienced cost above and beyond in every cycle from anti-sway systems. The throughput benefit would therefore be considerable, clocking in at anywhere from 10–25% on average, depending on new/old baseline.

Q: Is active sway elimination a functional requirement for RTG automation? A: Yes, in a practical sense. Automated RTG operations require that the spreader can be precisely positioned at the pick or place point with very low residual sway levels so that the vision and the positioning systems can detect and effectively interface with the container corner castings. Therefore active sway reduction/imposition is a functional requirement rather than an additional feature.
