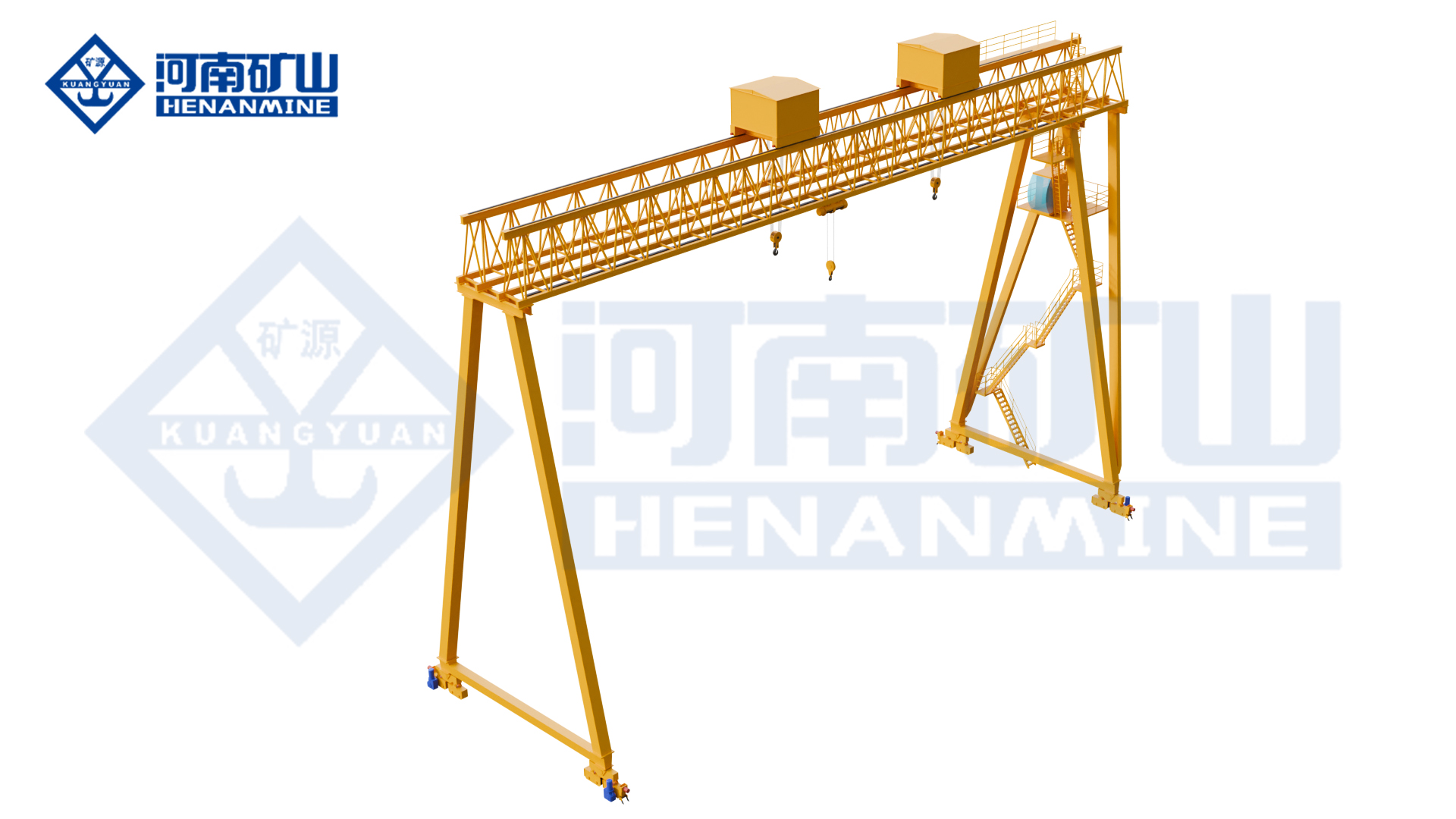

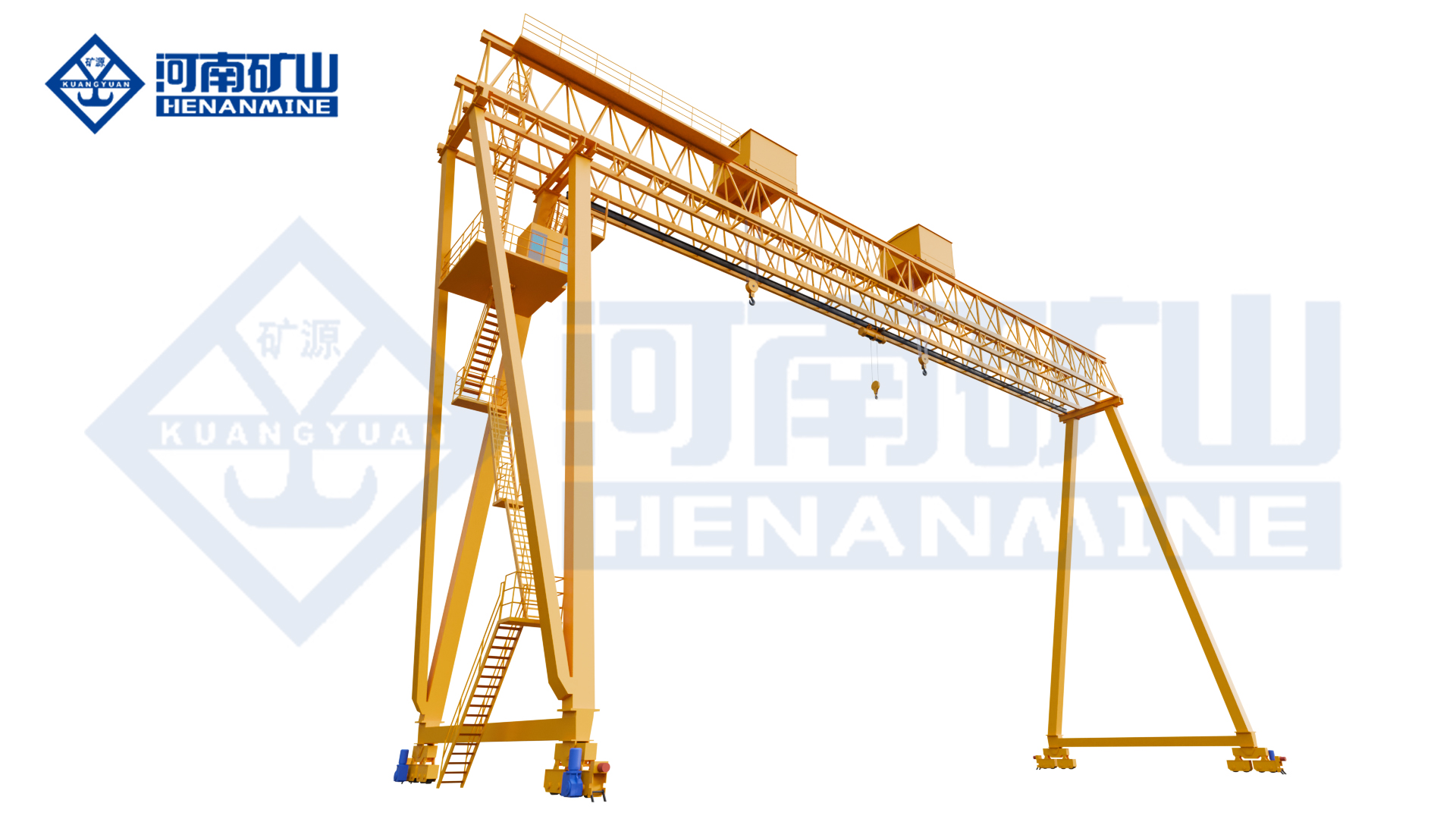

Double Girder Truss Gantry Crane

Henan Mine Crane MEH Double Trolley Truss Gantry Crane is a lightweight + modular + double trolley high-efficiency coordinated heavy-duty lifting equipment specially designed for open-air construction sites, prefabricated component yards, large yards, warehousing and logistics parks, with the core of large-span coverage, long component lifting and high-frequency material transfer, and it is the preferred intelligent lifting equipment for the large-span open-air operation scenarios.

Double Trolley Truss Gantry Crane perfectly solves the core pain points of global engineering customers, such as difficult transportation of large-span equipment, long installation period, high cost of overweight, poor wind resistance in the open air, and inaccurate positioning, and the equipment has passed ISO, CE, and FEM international certifications.

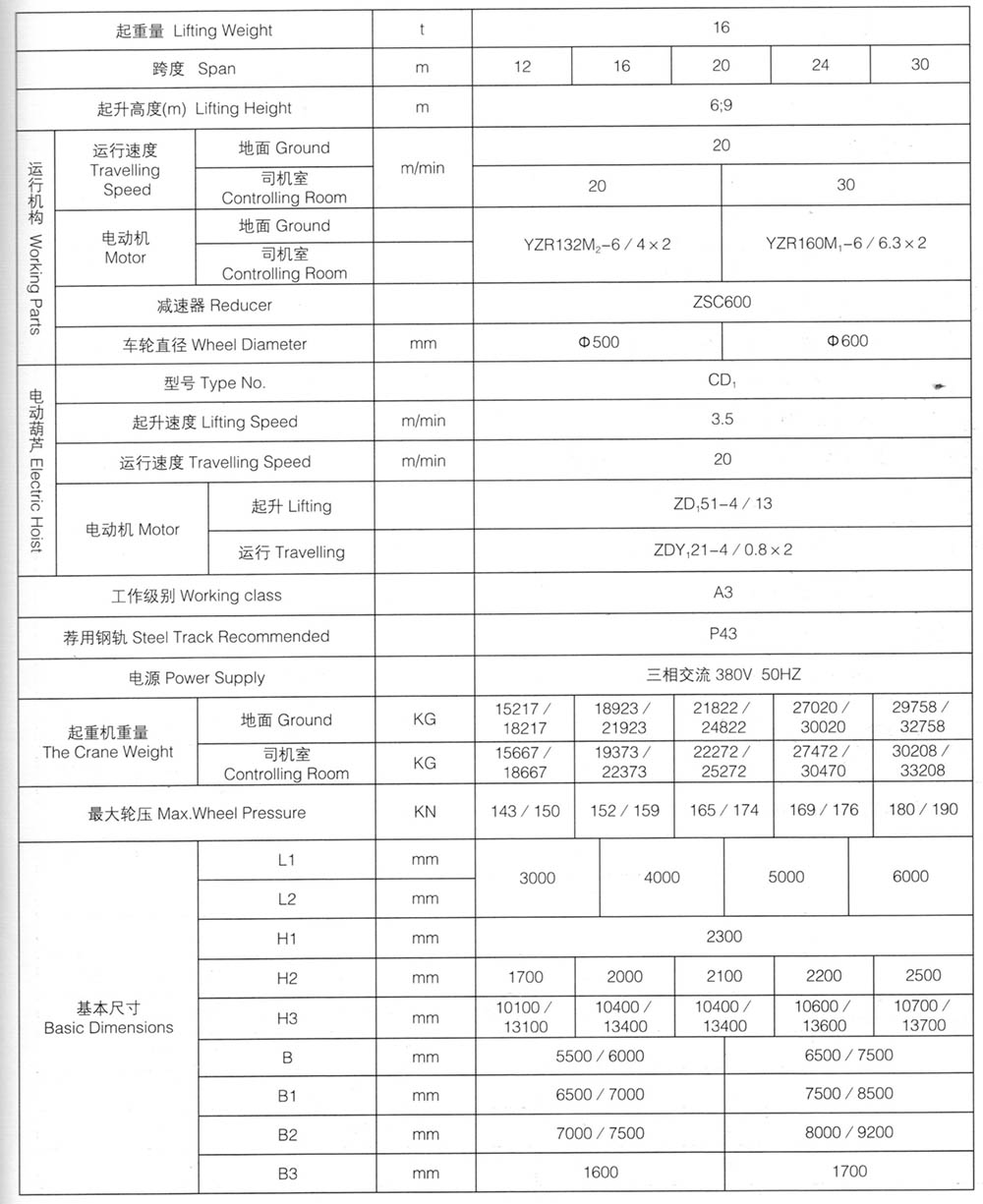

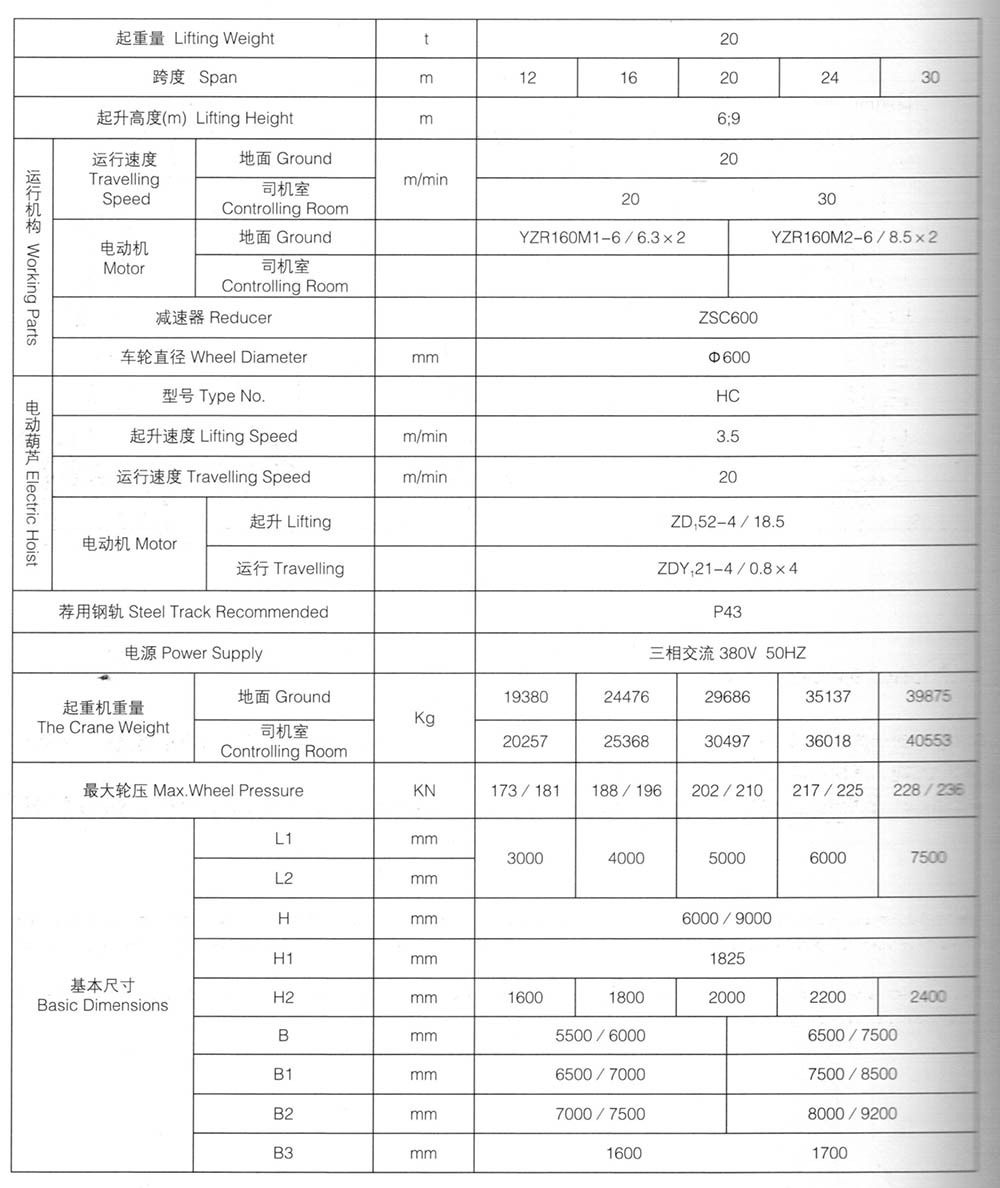

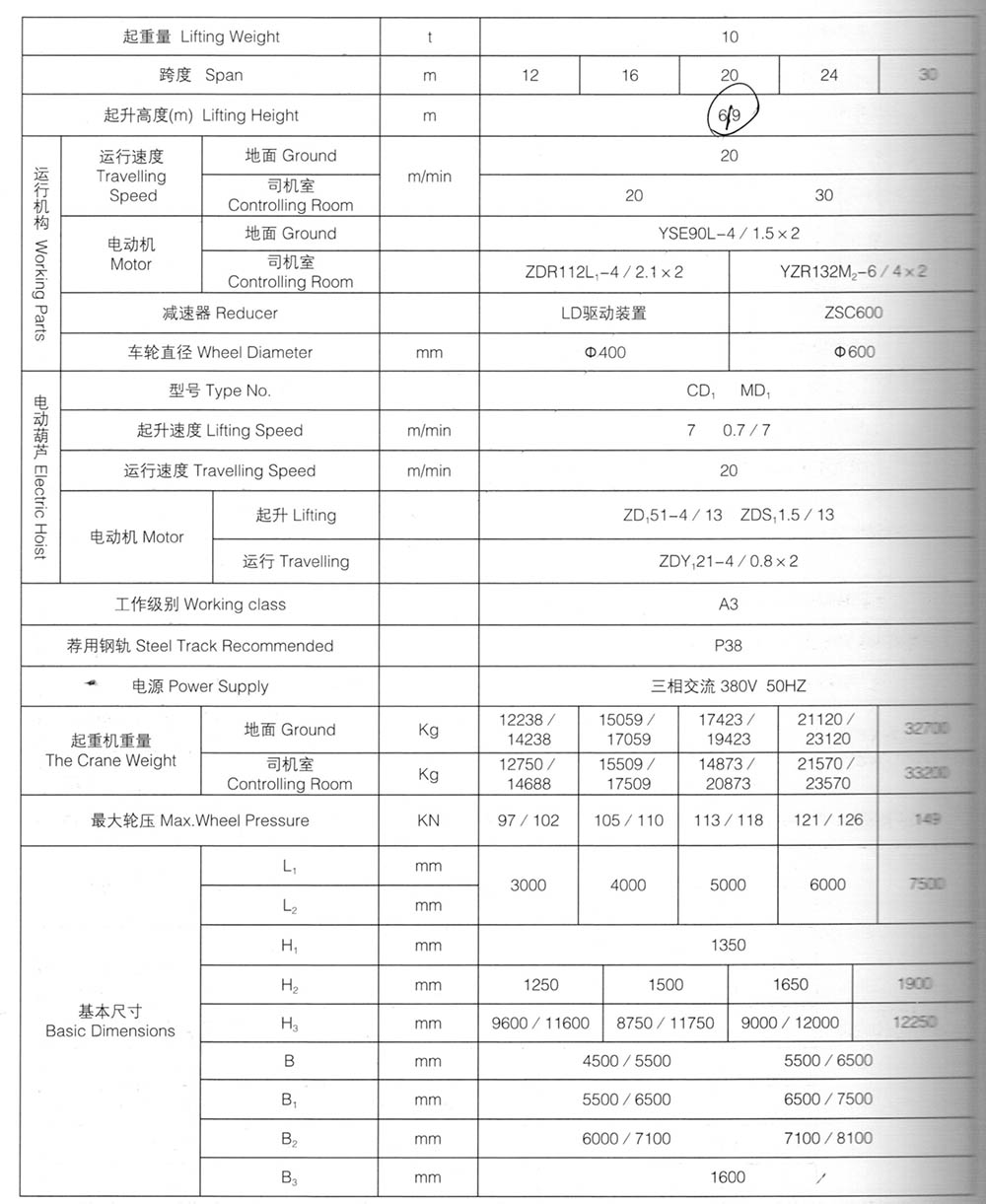

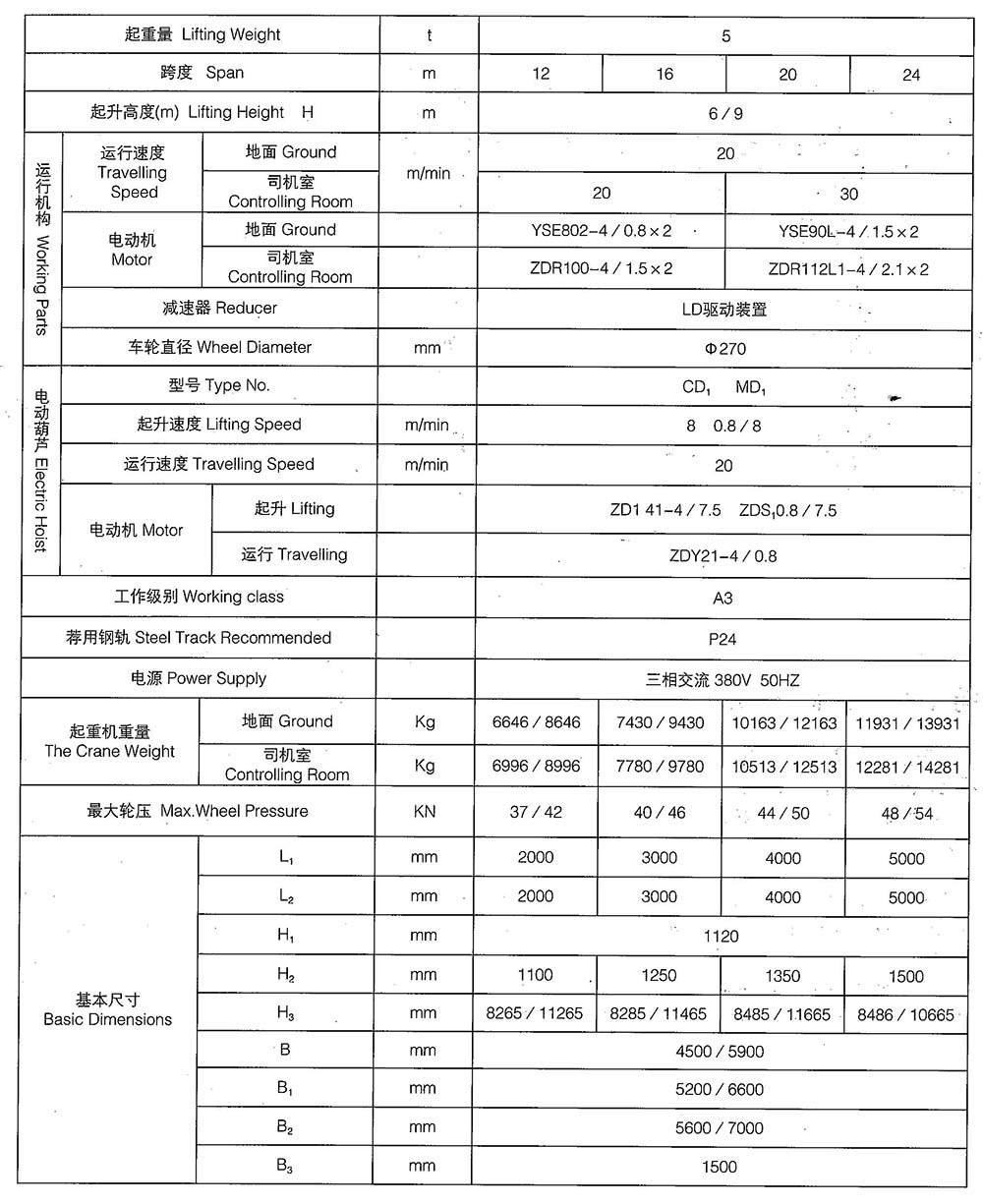

1. Product core positioning and design standards

Henan Mine Crane MEH double trolley lattice gantry crane is positioned as a lightweight and efficient gantry crane for global open-span projects / yards, and is suitable for all kinds of construction sites, prefabrication yards and open-air yards around the world.

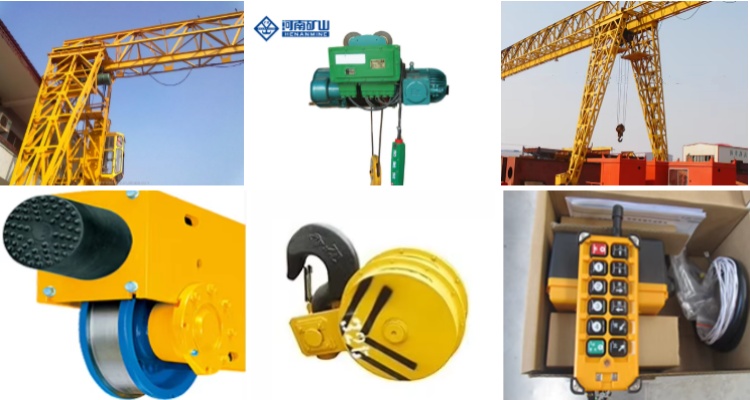

2. Core Structure and Function Design

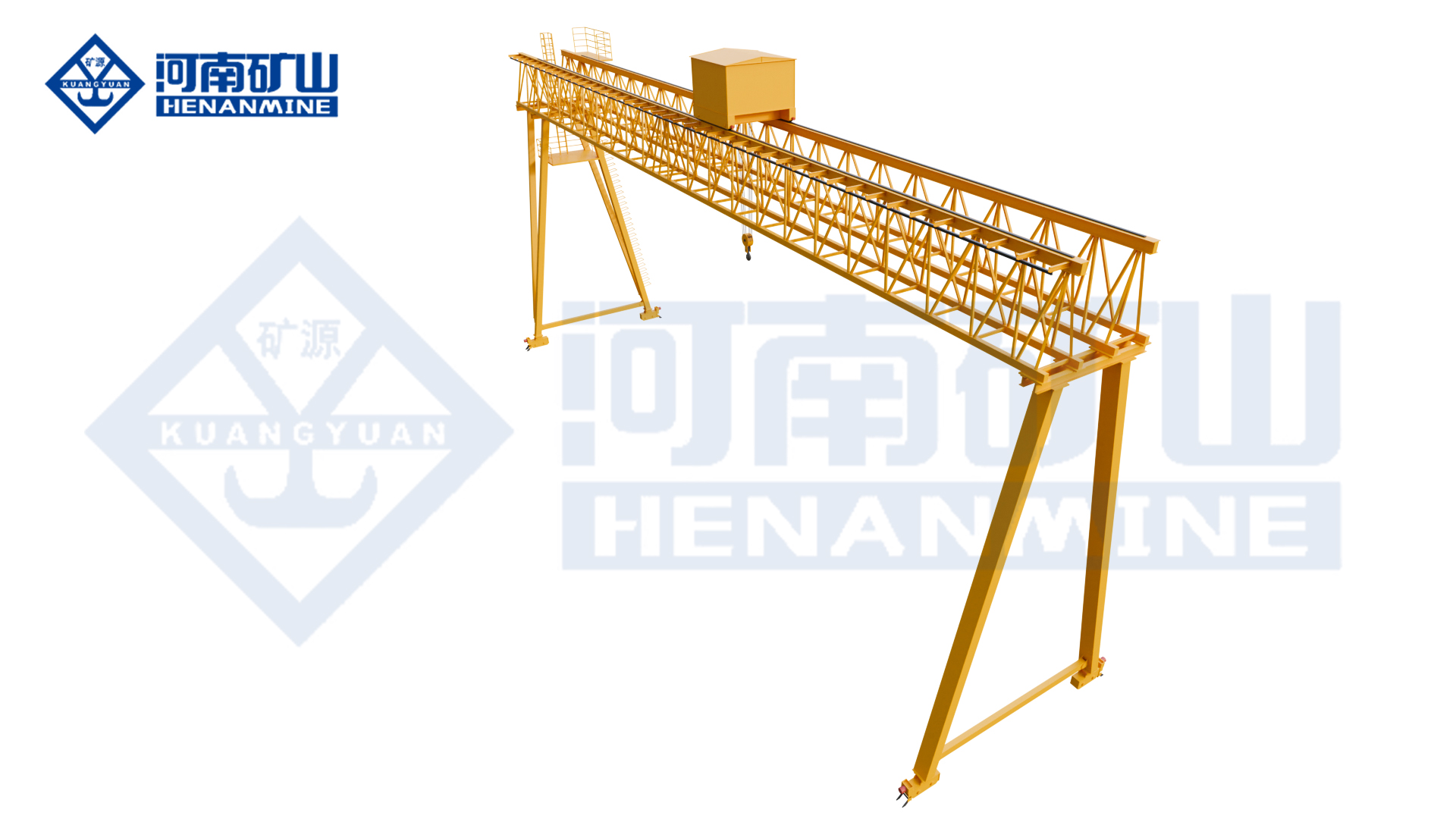

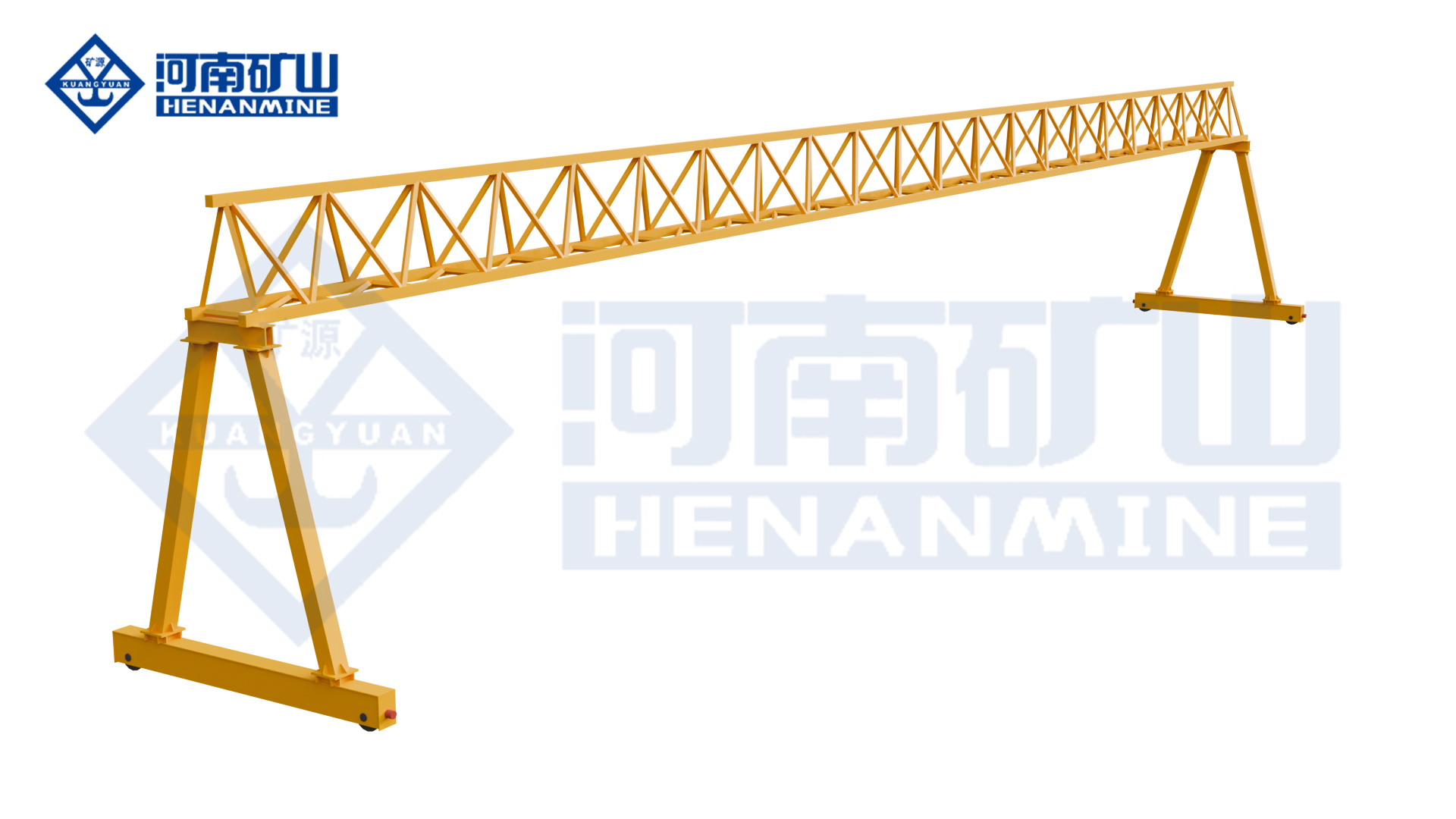

1. Truss-type double main beam lightweight structure: adopting truss-type double main beam design, compared with the traditional box-type beam self-weight reduction of 30% +, high strength and deformation resistance, wind resistance, suitable for large-span (12-30m) operation, stable operation in open windy conditions.

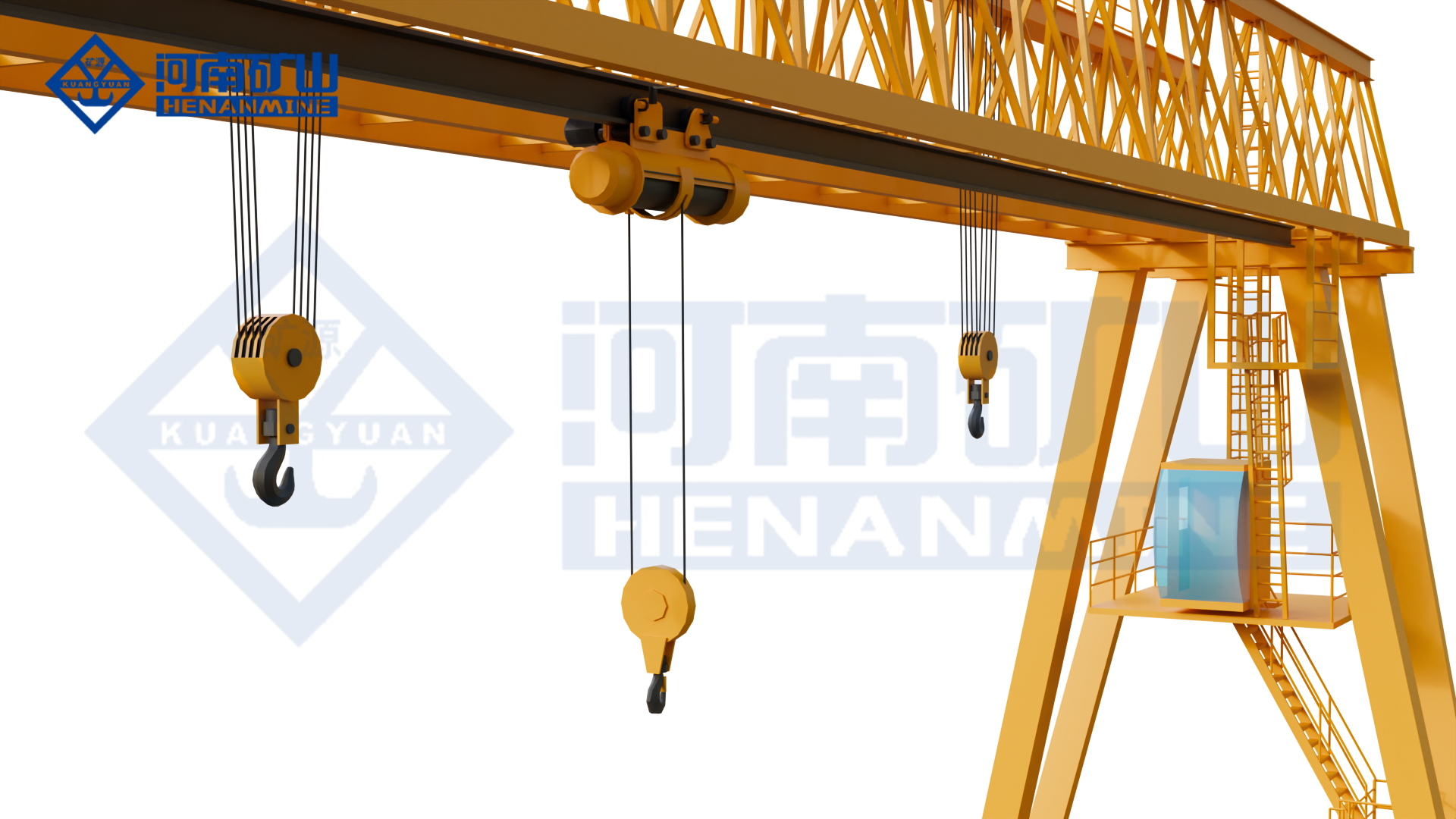

2. Double trolley cooperative operation system: equipped with two independent lifting trolleys, supporting synchronous linkage / independent operation, synchronized with the smooth lifting of long prefabricated components, steel structure, independent of the division of labor lifting different materials, one machine multi-purpose, operational efficiency increased by 50% +.
3. Frequency conversion speed control system: the lifting and running mechanism adopts frequency conversion speed control, with wide speed range, smooth starting and braking, no impact and shaking, accurate positioning of lifted materials, and suitable for precision prefabricated components lifting.
4. Segmented modular quick assembly: the main girder and end girder adopt segmented structure, which can be disassembled and adapted to the transportation in narrow space, and can be quickly assembled on site by high-strength bolts, which can shorten the installation cycle by 60%+, and does not require large-scale lifting equipments.
5. Large-span flexible customized design: the span of the main girder can be customized according to the needs (12-30m), covering a wide working area; the lifting height can be flexibly adjusted (6-18m), taking into account the lifting of goods on the ground as well as the stacking and installation of equipments in the high altitude.
6. Open-air environment and safety protection: the whole machine is anticorrosive coated, windproof, rainproof and rustproof, suitable for -25℃~+60℃ open-air environment; overload, limit, emergency stop and windproof anchoring device are equipped as standard to ensure the safety of open-air operation.

3. Core product advantages

1. Light weight, cost reduction and efficiency: light weight of truss structure reduces the cost of plant/railway infrastructure by 25%+, and the transportation is more convenient without the need of heavy transportation vehicles.
2. Double trolleys for efficient cooperation: synchronized lifting of long parts and independent division of work, covering the needs of multiple scenarios and doubling the turnover efficiency of the yard.
3. Modularized easy to install and transport: Segmented and split for transportation, even in narrow places; bolt splicing without welding, installation can be completed in 2-3 days on site, significantly shortening the construction period.
4. Frequency conversion and smooth positioning: Frequency conversion and speed control without impact, no shaking of lifting materials, accurate positioning, and protection of prefabricated components and steel structure without bumping.
5. Wide span coverage: 12-30m large span customization, covering a wide working area at a time, without the need for multiple equipment splicing, saving equipment investment.
6. Easy to export with global compliance: ISO/CE/FEM certification, global voltage/frequency customization, worry-free customs clearance and direct landing.
7. Advantage against imported brands: under the same span and performance, the procurement cost is 30%-40% lower, and the installation cycle is shortened by half; the truss structure is more suitable for open-air and windy working conditions, and 30 spare parts warehouses around the world with 8-hour quick response, leading in after-sales efficiency.



4. Global Adaptation Application Scenarios

• Core scenarios: lifting prefabricated components at open-air construction sites, transferring at outdoor yards of steel structure factories, stacking materials at large cargo yards, and loading and unloading heavy goods at warehousing and logistics parks.
• Extended Scenarios: Lifting of extra-long steel materials in railroad yards, lifting of components in wind power equipment assembly yards, prefabricated panel yards for assembled buildings, and transfer of light materials in rear yards of ports.
• Environment: -25℃~+60℃ stable operation, IP54 dustproof and rainproof, suitable for the harsh working conditions of high wind, high dust and humidity in the open air.

5. Global exclusive service

• Provide a full set of technical drawings, operation manuals, certification documents in English, support global customs clearance and local acceptance.
• 7×24 hours multi-language remote technical support, overseas engineers’ door-to-door installation and commissioning and operation training.
• 30 global spare parts warehouses, 72 hours direct delivery of core components, to ensure that the equipment does not stop.
