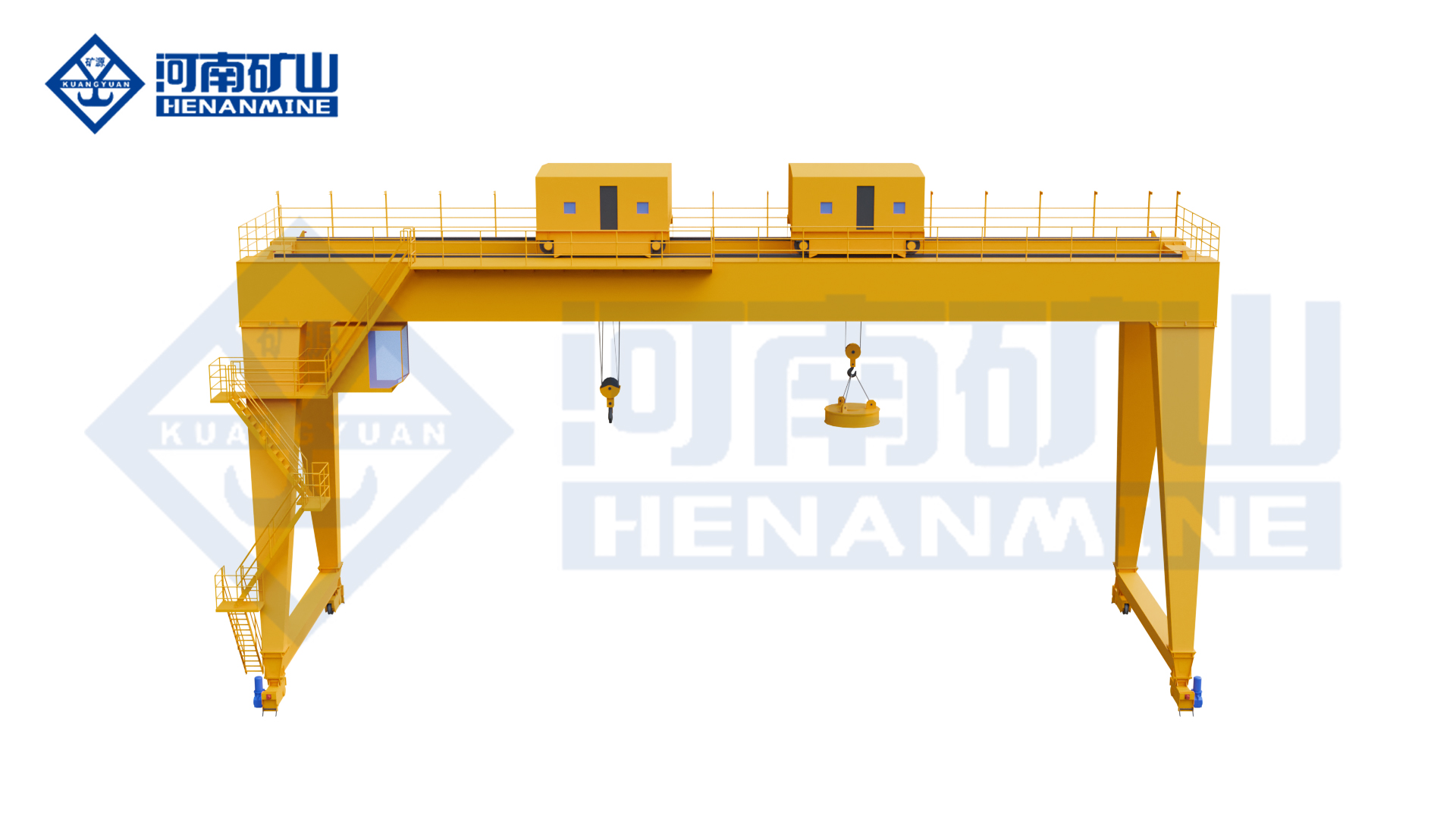

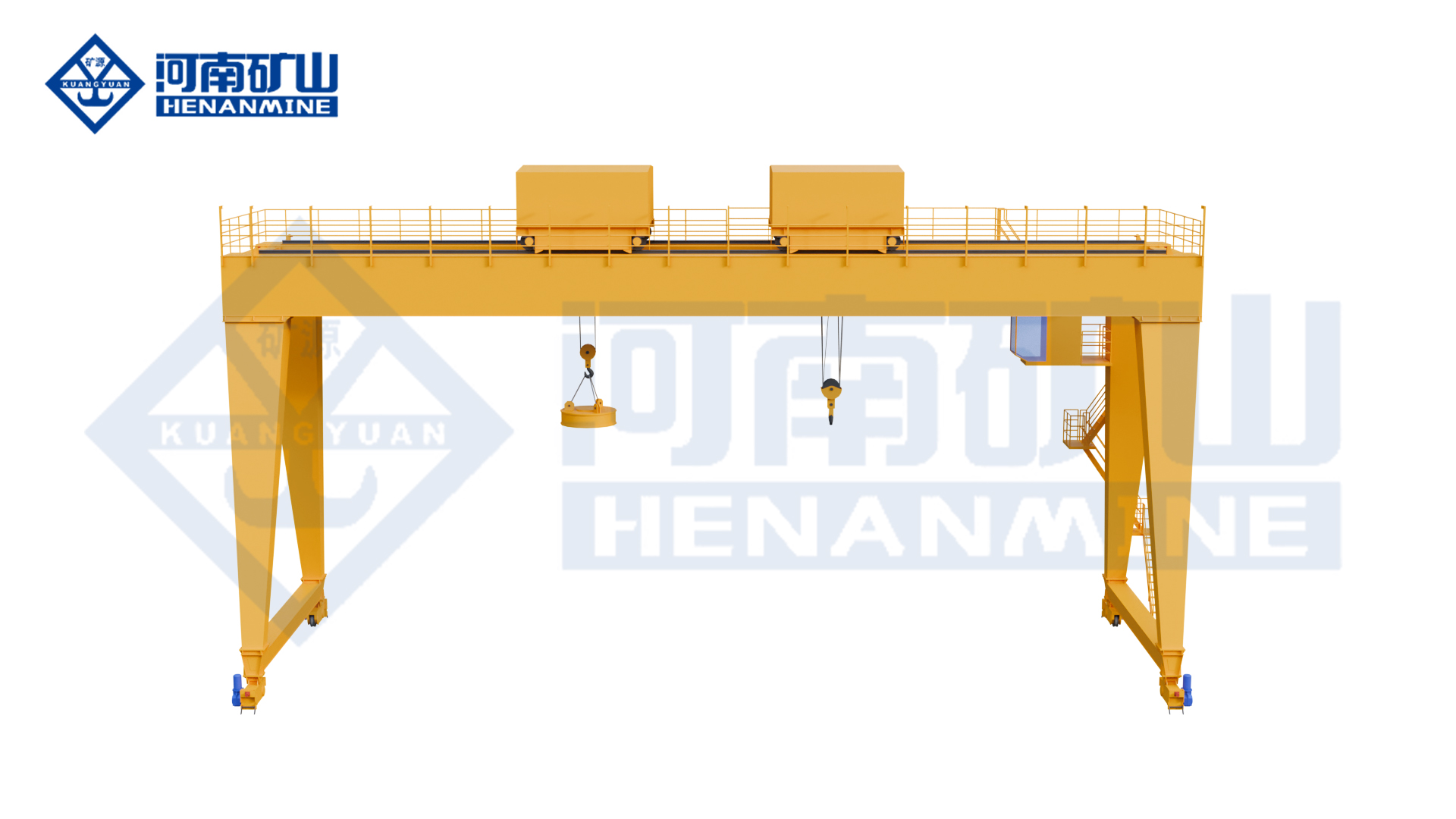

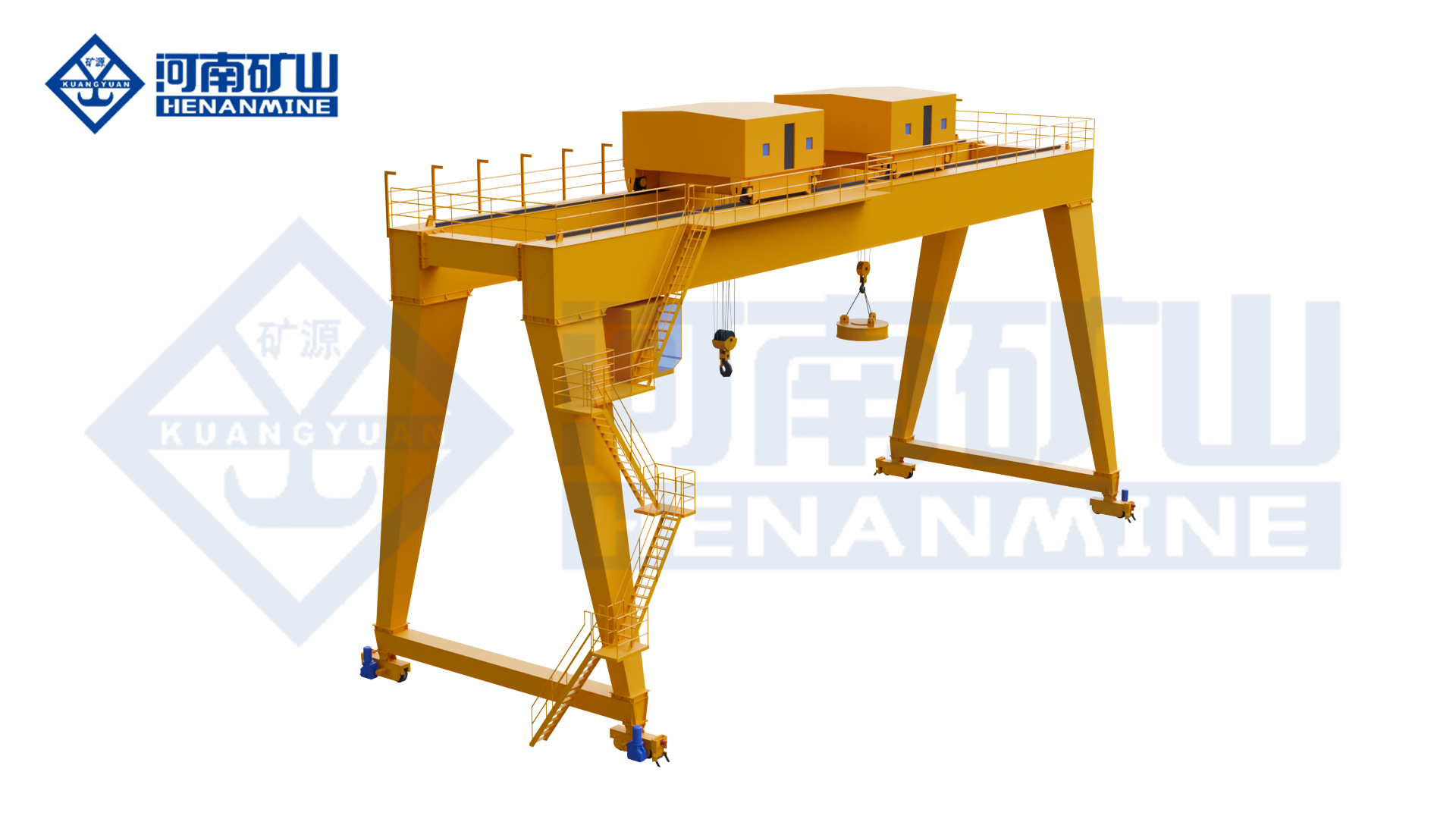

Electromagnetic Hook Double Gantry Crane
Henan Mine Crane Crane MEN is a double trolley + electromagnetic/hook dual mode heavy-duty transfer equipment specially designed for metallurgical steel mills, scrap recycling yards, port yards and heavy manufacturing workshops.
Lifting Capacity
10t - 50t or Customized
Crane Span:
18m - 35m or Customized
Lifting Height
8m-24m or Customized
Working Class
A3~A8 or Customized
Power Supply
220-690V, 50/60Hz
Crane Travel Speed
15-45m/min

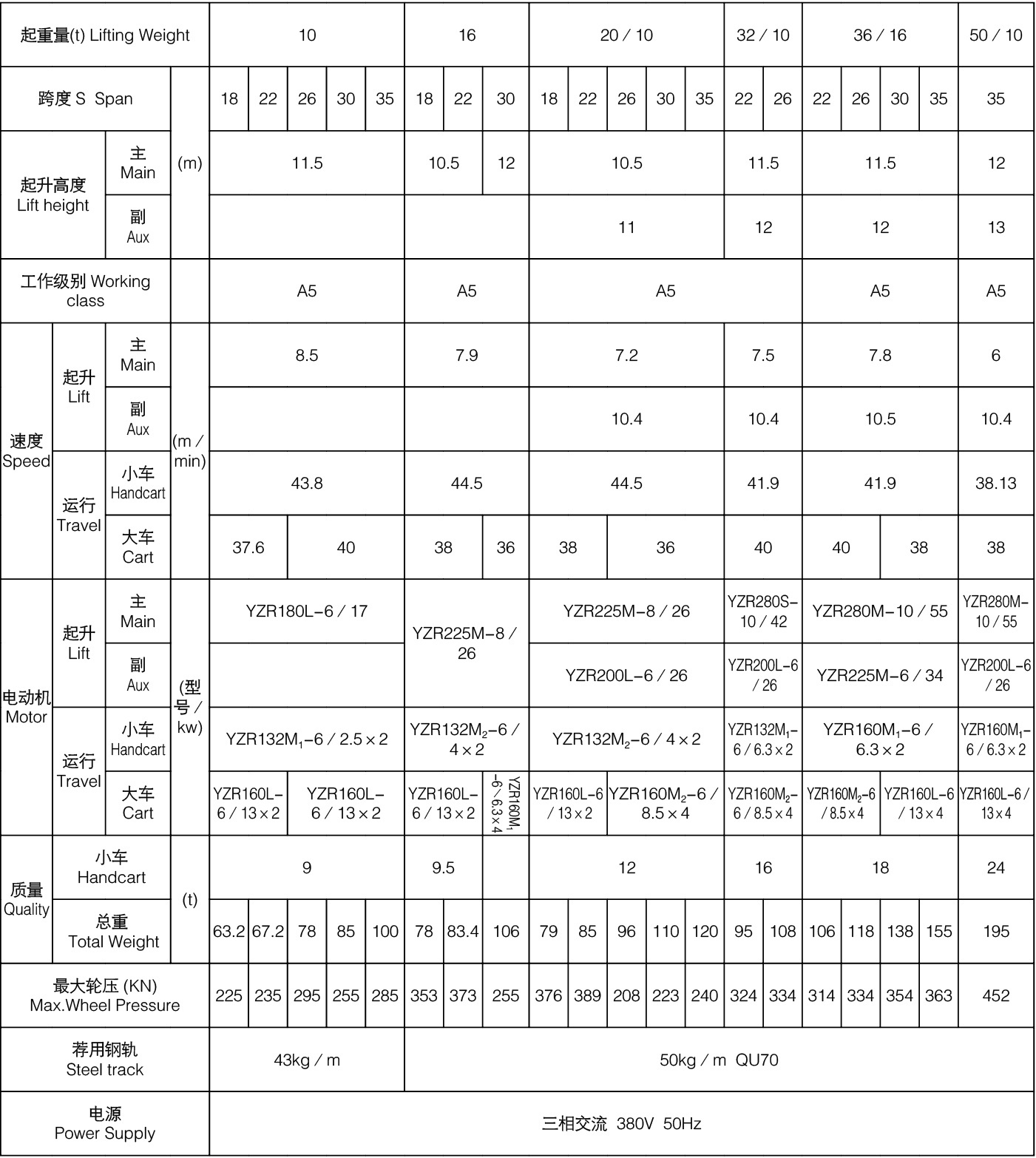

Parameters of Electromagnetic Hook Double Gantry Crane Manufactured by Henan Mine Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Model | MEN | – | Type Test Code |
| Crane Type | General Double Girder Gantry Crane | – | Dual Trolley, Electromagnetic & Hook |
| Rated Lifting Capacity | 10-50 | t | Customizable |
| Span | 18-35 | m | Adjustable for yard |
| Lifting Height | 8 – 24 | m | Customizable |
| Working Duty | A3-A8 | – | Heavy duty for 24h continuous operation |
| Trolley Quantity | 2 | – | Synchronous / Independent operation |
| Lifting Device | Hook + Electromagnetic Magnet | – | Dual purpose for scrap and heavy components |
| Magnet Response Time | 0.5-1 | s | Fast pick-and-place for steel scrap |
| Working Cycle | 80-100 | cycles/h | High efficiency scrap handling |
| Control System | PLC + Touch Screen + WLK Controller | – | Precise and easy operation |
| Hoisting Speed | 3 – 12 | m/min | VFD adjustable |
| Travel Speed | 15-45 | m/min | Stable & efficient |
| Protection Level | IP54 | – | Dustproof & rainproof for outdoor |
| Power Supply | 220-690V, 50/60Hz | V | Global customizable |
| Material | High-Strength Q355B Steel | – | Finite element optimized, anti-deformation |
| Certification | ISO, CE, FEM | – | Direct global export |
| Application | Steel Mill, Scrap Yard, Port, Outdoor Warehouse | – | Scrap steel, steel billet, heavy component lifting |
Product Introduction of Henan Mine Crane Electromagnetic Hook Double Gantry Crane
Henan Mine Crane Crane MEN is a double trolley + electromagnetic/hook dual mode heavy-duty transfer equipment specially designed for metallurgical steel mills, scrap recycling yards, port yards and heavy manufacturing workshops.
It is the core intelligent lifting equipment for outdoor heavy-duty and multi-material transfer scenarios, with hook lifting heavy components, electromagnetic suction cup adsorption of scrap/steel, synchronized/independent operation of two trolleys, PLC intelligent control, and high-frequency and efficient gripping.
1. Product core positioning and design standards
Henan Mine Crane MEN double trolley electromagnetic hook dual-purpose gantry crane is positioned as a global metallurgy / scrapyard special dual-mode heavy-duty high-efficiency gantry cranes, the working level A3-A8, to meet the 24-hour continuous operation of three shifts, to meet the world’s various types of steel mills, scrap yards, port yards outdoor heavy-duty scenarios.
2. Core structure and functional design
- Rigid structure of double main beams for heavy loads: double main beams are welded as a whole, and the force distribution of main beams, outriggers and end beams is optimized by finite element analysis, which is of high strength and anti-deformation, suitable for heavy loads of 10-50t, and no twisting and shaking in outdoor long-term operation.
- Dual Trolley Cooperative Operation System: Equipped with two independent lifting trolleys, supporting synchronous linkage/independent operation, it can be used for double hook cooperative lifting of extra-long components, or single trolley electromagnetic suction cup and single trolley hook can be divided into operation, so that one machine can realize the combination of multiple working conditions.
- Electromagnetic/Hook Dual Mode Switching: Equipped with mechanical hook + electromagnetic suction cup as standard, the hook can lift billets and heavy components, while the electromagnetic suction cup can quickly adsorb scrap steel, steel plates and profiles, switching modes in one key to adapt to different material transfer.
- PLC intelligent control system: the linkage table is equipped with PLC module + man-machine interface touch screen, with WLK-type master command controller, with clear feel, clear gear, supporting zero self-recovery and locking, which can accurately control the electromagnetic suction and release, trolley operation and lifting action, and the operation is simple and easy to get started.
- High-frequency and high-efficiency electromagnetic system: the electromagnet suction and release action is controlled by current interruption, the response time is only 0.5-1 seconds, and the steel transfer can complete 80-100 gripping cycles per hour, which greatly improves the efficiency of continuous operation, and it is suitable for high-frequency loading and unloading of scrap yards.
- Flexible power supply and safety protection: optional cable reel and skid line power supply, suitable for outdoor yard layout; overload, limit, emergency stop, anti-detachment, electromagnetic power loss protection, safe and stable under harsh outdoor working conditions.
- Outdoor environment adaptable design: the whole machine adopts anticorrosive coating, windproof, rainproof, rustproof, adaptable to – 25℃~+60℃ outdoor environment, IP54 protection, can be operated for a long period of time in dusty, humid, and salt spray conditions.
3. Core product advantages
- Dual-mode Multi-purpose: Electromagnetic/hook can be switched by one key, which can take care of both scrap adsorption and heavy components lifting, no need to purchase two machines, equipment investment cost is reduced by 50%+.
- Dual Trolleys: Synchronized/independent operation of dual trolleys makes the lifting of long components more stable, doubles the efficiency of division of labor, and improves the efficiency of yard turnover by 60%+.
- High-frequency and high-efficiency electromagnetic operation: fast electromagnetic response, more gripping cycles, scrap transfer efficiency far exceeds that of ordinary single-mode Cranes, suitable for high-frequency operations in scrap yards.
- Intelligent control, precise and stable: PLC + touch screen control, clear gears, accurate positioning, novice quickly get started, reduce the rate of manual error.
- Heavy-duty deformation resistance and durability: Finite element optimized double main girder structure, no deformation under heavy load, stable long-term outdoor operation, service life is 30%+ longer than ordinary gantry cranes.
- Easy to export with global compliance: ISO/CE/FEM full certification, global voltage/frequency customization, worry-free customs clearance, direct landing.
- Advantage against imported brands: under the same configuration and operational efficiency, the procurement cost is 35%-45% lower, the customization cycle is 50% shorter, the dual-mode double trolley design is more suitable for metallurgical waste scenarios, 30 spare parts warehouses around the world, 8-hour rapid response, and the after-sales efficiency is leading in all aspects.
4. Global Adaptation Application Scenarios
- Core scenarios: steel scrap/billet transfer in metallurgical steel mills, steel scrap loading and unloading in recycling yards, heavy steel/structural components lifting in port yards, and outdoor lifting in heavy machinery manufacturing workshops.
- Extended scenarios: steel stacking in railroad yards, outdoor component transfer in steel structure factories, material loading and unloading in recycling centers, and heavy cargo handling in large warehouses.
- Environment: -25℃~+60℃ stable operation, IP54 dustproof and rainproof, suitable for outdoor open air, high dust, humidity, salt spray, windy and harsh working conditions.
5. Global exclusive service
- Provide a full set of technical drawings, operation manuals, certification documents in English, support global customs clearance and local acceptance.
- 7×24 hours multi-language remote technical support, overseas engineers door-to-door installation and commissioning and operation training.
- 30 global spare parts warehouses, 72 hours direct delivery of core components, to ensure that the equipment does not stop.
What Can Henan Mine Crane Electromagnetic Hook Double Gantry Crane Offer You?
| Value Category | Specific Benefits | Description |
| Dual Function | Electromagnetic & Hook Combined | Switch between magnet for scrap steel and hook for heavy components, one crane for multiple uses |
| Double Trolley | Synchronous / Independent Operation | Dual trolleys for long component lifting or divided tasks, 60% higher efficiency |
| Lifting Efficiency | Fast Magnet Response | Electromagnet response in 0.5-1s, 80-100 cycles per hour for high-frequency scrap handling |
| Intelligent Control | PLC + Touch Screen Operation | Precise control, clear gears, zero-position reset, easy operation for global workers |
| Structural Durability | Finite Element Optimized Double Girder | High rigidity, anti-deformation, stable under heavy load, long service life outdoors |
| Safety Performance | Comprehensive Safety Protection | Overload, limit, emergency stop, anti-derailment, power-off protection for safe outdoor operation |
| Environmental Adaptability | Outdoor Weather Resistance | Anti-rust, windproof, rainproof, IP54, suitable for -25℃~+60℃ harsh outdoor conditions |
| Global Compliance | International Certifications | ISO/CE/FEM certified, global voltage customizable, direct export without modification |
| Cost Saving | One Crane Replaces Two | Reduce equipment investment by 50%+, low maintenance cost, high cost performance |
| Customization | Custom Parameters & Design | Custom load, span, lifting height, magnet size for different yards and materials |
| After-Sales | Global Rapid Support | 30 overseas warehouses, 8h global response, 72h spare parts delivery |
Parameters of Anode Carbon Block Stacking Crane
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 100T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Details of the Anode Carbon Block Stacking Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
What industries are the Electromagnetic Hook Double Gantry Crane suitable for?
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
-
Steel Structure Outdoor YardElectromagnetic hook gantry machine with two trolleys can work together, hook lifting heavy steel large parts, electromagnetic suction cup adsorption of steel plates, steel sections, a machine to meet the two types of material transfer stacking.
-
Scrap Steel Recycling and Processing ParkElectromagnetic hook gate machine electromagnetic mode grabs loose scrap steel, metal edges and corners, hook lifting the whole bundle of heavy scrap steel materials, double trolley division of labor operation, improve the efficiency of sorting turnover.
-
Steel open-air logistics yardElectromagnetic hook gantry gantry large span covers the whole cargo yard, double trolleys operate independently or synchronously, taking into account the lifting of profiles, plate magnetism yarding, suitable for large-volume shipment and loading.
-
Field assembly site for heavy equipmentElectromagnetic hook gantry hook lifts large machine frames and machine components, electromagnetic adsorption of all kinds of metal spare parts, double trolleys are precisely aligned, which is convenient for field assembly construction.
-
Metallurgical enterprise open-air material yardElectromagnetic hook gantry is suitable for open-air high dust working condition, electromagnetic lifting billet, magnetic furnace charge, hook lifting heavy material pallet, to ensure the continuous transfer of raw materials in the factory.
-
Bridge steel structure prefabrication siteElectromagnetic hook gantry machine with double trolley lifts bridge steel box girders and large templates, electromagnetic suction cups adsorb reinforcement bars and plate auxiliary materials, to meet the needs of prefabrication project operation of roads and bridges.
-
Open-air storage area for large pipe profilesElectromagnetic hook gantry hook lifting heavy seamless steel pipes and profiles, electromagnetic adsorption of steel plate coils and flat materials, efficiently completing the zonal stockpiling and vehicle loading and unloading.
-
Outdoor operation and maintenance of industrial plantsElectromagnetic hook gantry machine utilizes double trolleys for flexible deployment, hooks for lifting and loading large unit equipment, electromagnetic transfer of metal parts and maintenance consumables, suitable for outdoor maintenance in the factory.
-
Metal products open-air processing baseElectromagnetic hook gantry lifts heavy components to be processed, magnetic suction transfers semi-finished plates, synchronized operation of double trolleys, suitable for open-air large-scale production flow.
