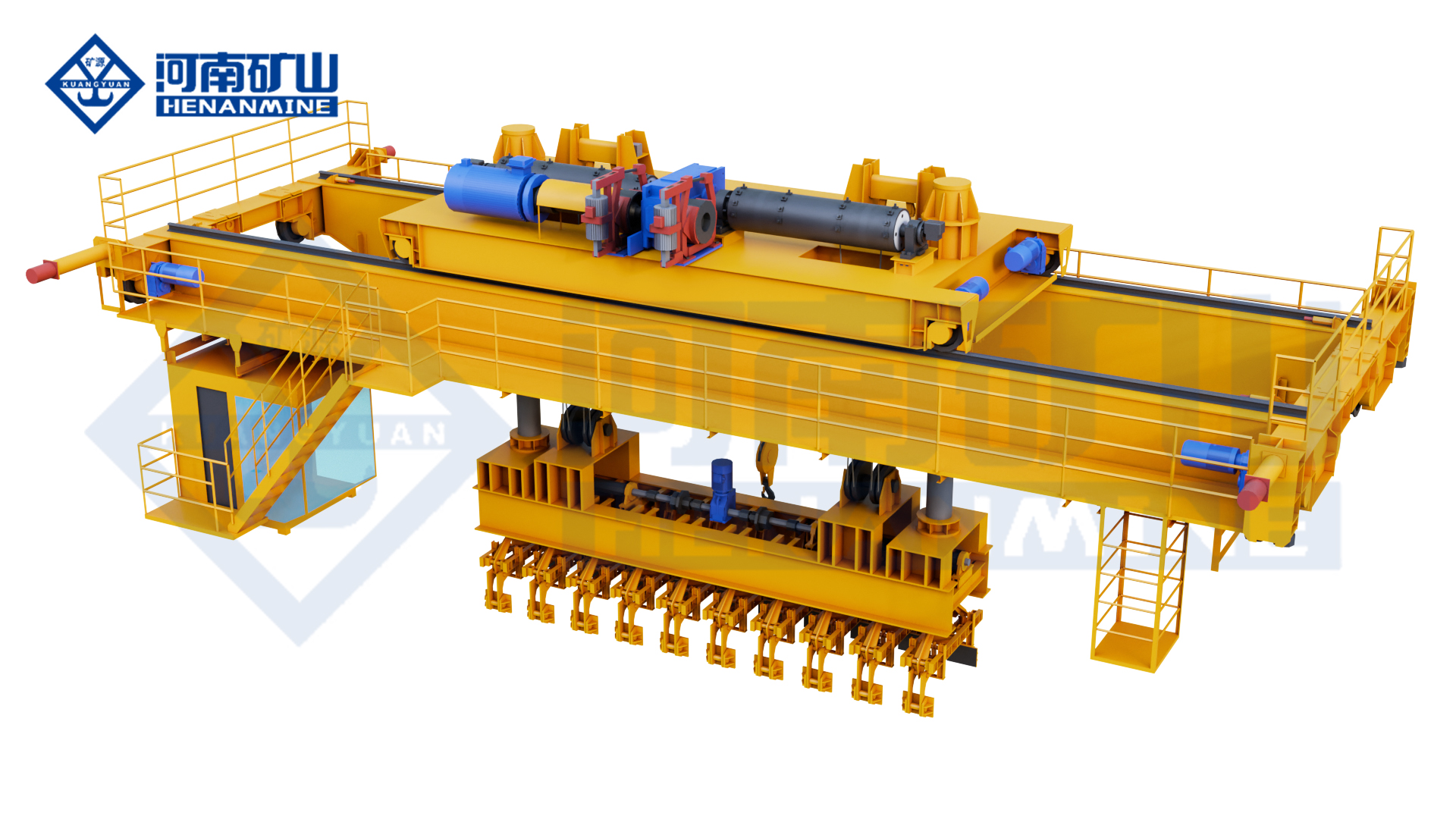

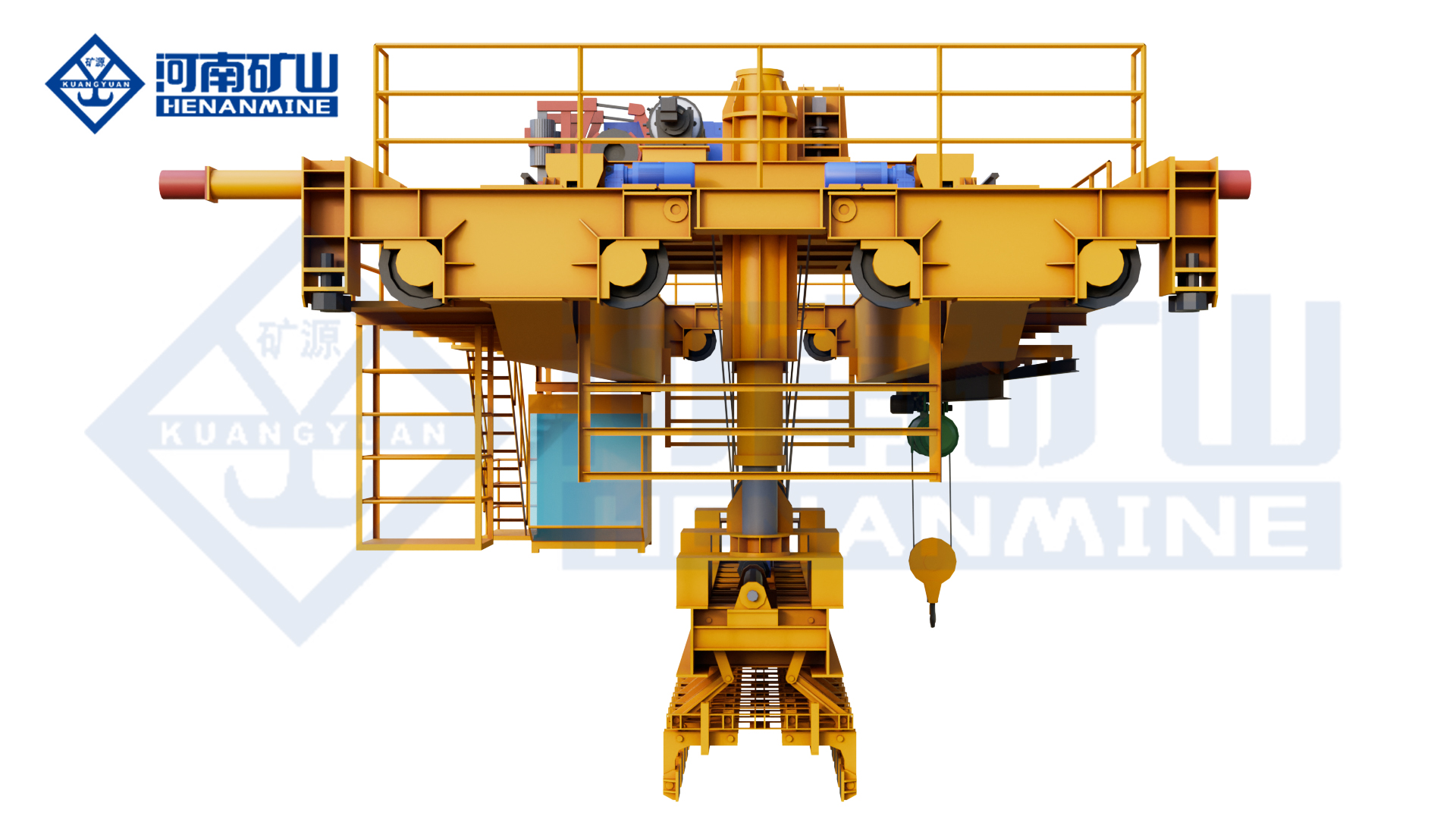

Anode Carbon Block Stacking Crane
Henan Mine Crane is a special material transfer equipment specially designed for carbon and aluminum anode warehouse, which is responsible for efficient stacking, accurate handling and sporadic lifting of raw and matured anode and charcoal.
Lifting Capacity
10t - 30t or Customized
Crane Span:
13.5m - 40m or Customized
Lifting Height
6m-20m or Customized
Working Class
A6~A8 or Customized
Power Supply
220-690V, 50/60Hz
Crane Travel Speed
6-60m/min
Parameters of Anode Carbon Block Stacking Crane Manufactured by Henan Mine Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Model | YDJ | – | Type Test Code |
| Crane Type | General Overhead Crane | – | Special for anode carbon block |
| Rated Lifting Capacity | 10 – 30 | t | Customizable as per demand |
| Span | 13.5-40 | m | Adjustable for workshop |
| Lifting Height | 6 – 20 | m | Customizable |
| Working Duty | A6-A8 | – | Heavy duty for continuous operation |
| Control System | PLC + Laser Positioning + RFID + HMI | – | Manual/Auto mode |
| Speed Regulation | VFD 1:10 | – | Hoisting & traveling mechanism |
| Clamp Type | Mechanical / Hydraulic Profiled Clamp | – | Anti-crushing, anti-overturning |
| Hoisting Speed | 2.5-6 | m/min | VFD adjustable |
| Travel Speed | 6-60 | m/min | Stable & efficient |
| Protection Level | IP54 | – | Dust resistant for carbon plant |
| Power Supply | 220-690V, 50/60Hz | V | Global customizable |
| Material | High-Strength Q355B Steel | – | Optimized for heavy duty |
| Certification | ISO, CE, FEM | – | Direct global export |
| Application | Carbon Plant, Aluminum Smelter | – | Anode carbon block stacking & handling |
Product Introduction of Henan Mine Crane Anode Carbon Block Stacking Crane
Henan Mine Crane is a special material transfer equipment specially designed for carbon and aluminum anode warehouse, which is responsible for efficient stacking, accurate handling and sporadic lifting of raw and matured anode and charcoal.
1. Product core positioning and design standard
Henan Mine Crane YDJ anode carbon block stacking crane is positioned as a special equipment for intelligent stacking and handling of anode carbon blocks in global aluminum and carbon plants, and it is suitable for all kinds of anode carbon block storage and transfer scenarios in the world.
2. Core structure and function design
- PLC Intelligent Control System: PLC is the control core, with laser positioning to realize accurate identification of stacking position, barcode/RFID scanning to complete the whole life cycle information traceability of carbon blocks, HMI man-machine interface to monitor the operation status in real time, supporting manual/automatic mode switching with one key, and data linkage with factory MES system to realize intelligent warehousing management.
- Frequency conversion and energy-saving drive mechanism: the lifting and running mechanism adopts frequency conversion speed control with a speed range of 1:10, which provides smooth operation, low noise, low energy consumption, and no impact start/stop, effectively protecting the structure of the equipment and the integrity of the charcoal briquettes.
- Specialized profiling clamping device: Mechanical/hydraulic dual drive is optional, the profiling design perfectly fits the surface of charcoal briquettes, the clamping force is adjustable to avoid crushing charcoal briquettes, equipped with anti-tip-over cushioning structure, and some of the clamps support rotary fine-tuning to fit the deviation of charcoal briquettes’ placing and to enhance the accuracy of stacking.
- Multi-scenario operation adaption: It can be used for both batch charcoal block stacking and handling, as well as piecemeal material lifting in the workshop, which makes it a multi-purpose machine and covers the whole process of operation in the charcoal warehouse.
- Full-dimensional safety protection: Equipped with double brakes, limit protection, leakage monitoring, overload protection and other devices to ensure the safety of continuous operation under high temperature and dusty working conditions.
3. Core product advantages
- Intelligent automation reduces cost and increases efficiency: laser positioning + RFID tracking + MES linkage, realizes semi-automatic / fully automatic stacking, reduces manual intervention, and improves warehouse management efficiency by more than 50%.
- Flexible clamping and protection of charcoal briquettes: profiling fixture + adjustable clamping force, preventing the briquettes from crushing and tipping over, reducing material loss, and adapting to the full specifications of raw/ripe anode briquettes clamping.
- Frequency conversion, energy saving and low operation and maintenance: 1:10 range of frequency conversion, energy consumption reduced by 20%+, low noise, low failure, annual operation and maintenance costs significantly lower than conventional models.
- Dual-mode control is more flexible: manual/automatic switching freely, taking into account the needs of regular operations and intelligent warehousing, easy to operate.
- Global compliance and easy to export: ISO/CE/FEM certification, global voltage/frequency customization, worry-free customs clearance, direct landing.
- Heavy-duty continuous operation: A6-A8 heavy-duty working level, suitable for 24-hour three-shift continuous operation in carbon plants, durable structure and long life.
4. Global Application Scenarios
- Core scenarios: aluminum electrolysis plant anode block warehouse stacking, carbon plant raw/ripe block handling, anode assembly workshop block transfer.
- Extended scenarios: lifting materials in graphite electrode production workshop, loading and unloading in prebaked anode production line, auxiliary lifting of sporadic materials in metallurgical workshop.
- Environment: -25℃~+60℃ stable operation, IP54 dustproof protection, suitable for high dust and high temperature working conditions in carbon plant.
5. Global exclusive service
- Provide a full set of technical drawings, operation manuals, certification documents in English, support global customs clearance and local acceptance.
- 7×24 hours multi-language remote technical support, overseas engineers’ door-to-door installation and commissioning and operation training.
- 30 global spare parts warehouses, 72 hours direct delivery of core components, to ensure that the equipment does not stop.
What Can Henan Mine Crane Anode Carbon Block Stacking Crane Offer You?
| Value Category | Specific Benefits | Description |
| Intelligent Control | PLC + Laser Positioning + RFID | Precise stacking location, carbon block traceability, HMI monitoring, manual/auto switchable |
| System Integration | MES System Compatible | Connect with factory MES for intelligent warehouse management & data interaction |
| Energy Saving & Stable | VFD Speed Regulation 1:10 | Smooth running, low noise, low energy consumption, no impact to protect carbon blocks |
| Clamping Performance | Profiled Special Clamp | Adjustable clamping force, anti-crushing, anti-overturning buffer, rotary fine adjustment |
| Operation Efficiency | Full Process Handling | Realize stacking, handling, sporadic lifting for anode carbon blocks in one machine |
| Working Duty | Heavy Duty A6-A8 | Suitable for 24h three-shift continuous operation in carbon plant & smelter |
| Safety Performance | Comprehensive Safety Protection | Dual brake, limit, overload, missing clamp monitoring to ensure safe operation |
| Global Compliance | International Certifications | ISO/CE/FEM certified, global voltage customizable, direct export without modification |
| Adaptability | Wide Carbon Block Usage | For green & baked anode carbon blocks in carbon plant & aluminum electrolysis plant |
| Maintenance | Low Failure & Easy Maintenance | Stable structure, durable parts, low failure rate, global spare parts supply |
| Cost Efficiency | High Cost Performance | Lower investment & maintenance cost, better than imported similar cranes |

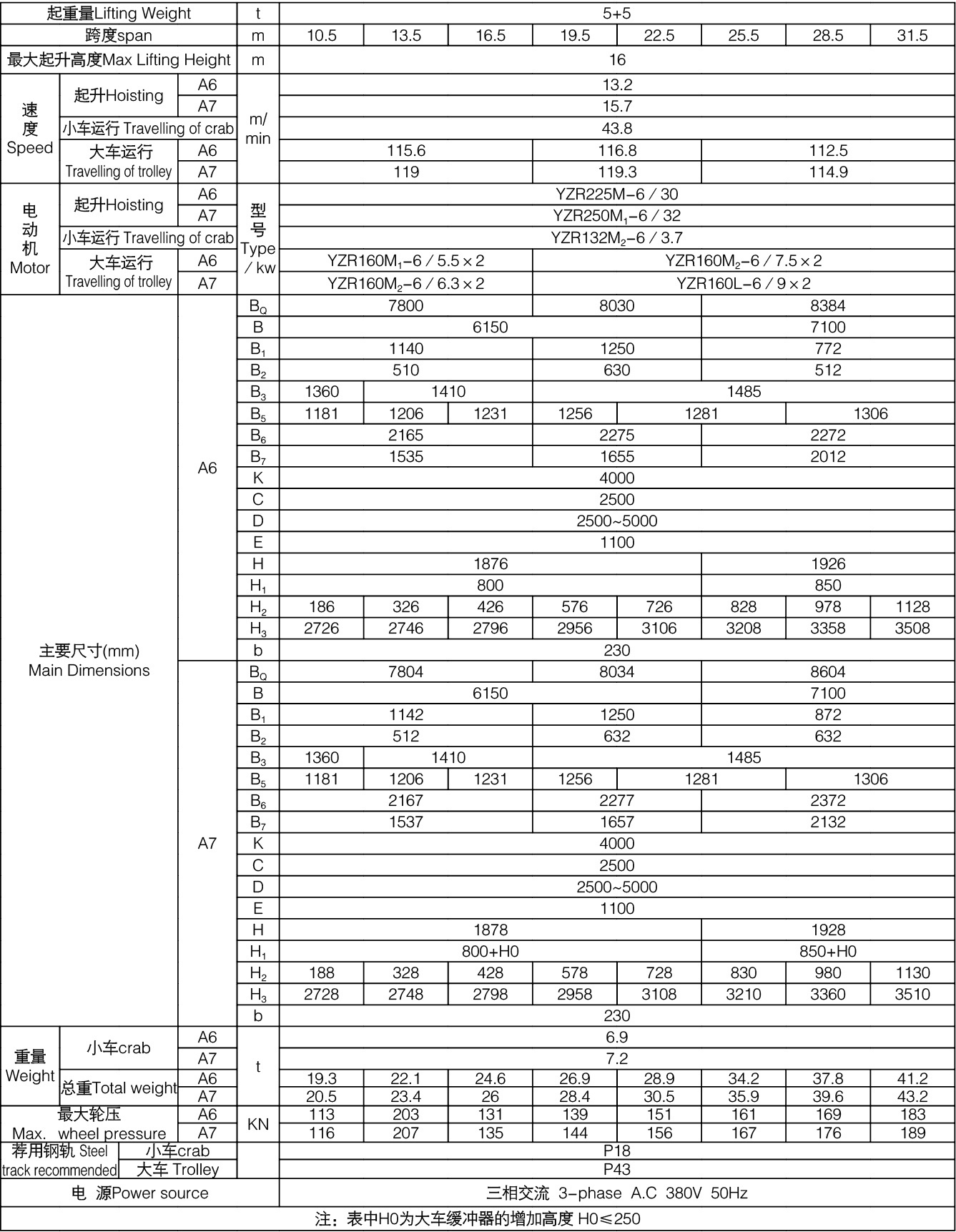

Parameters of Anode Carbon Block Stacking Crane
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 100T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system

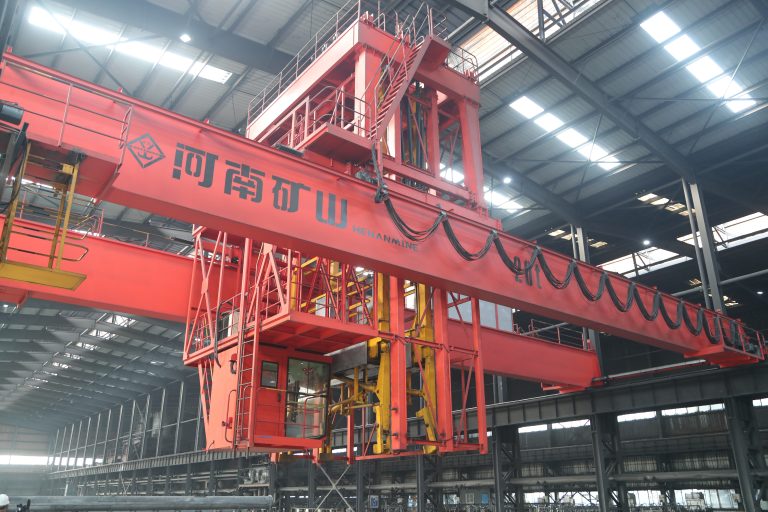

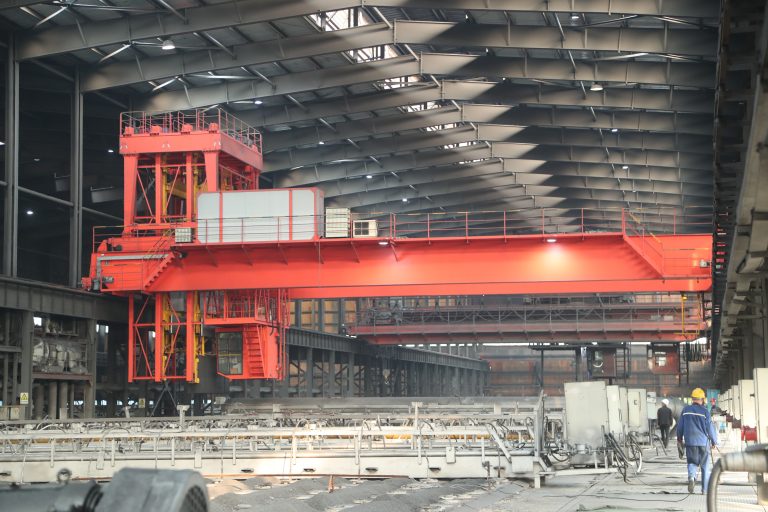

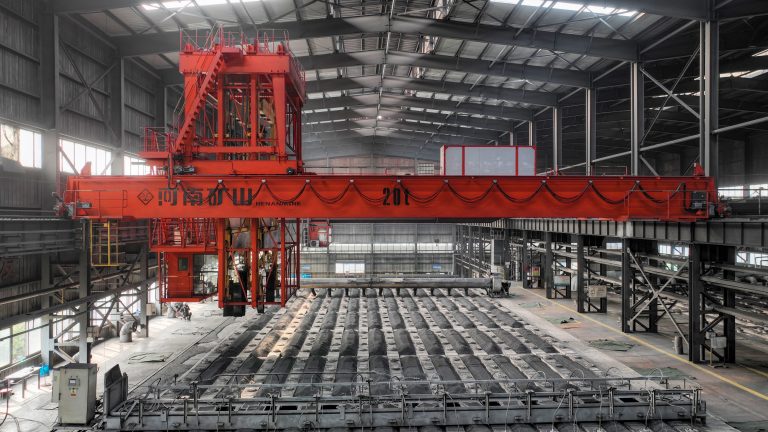

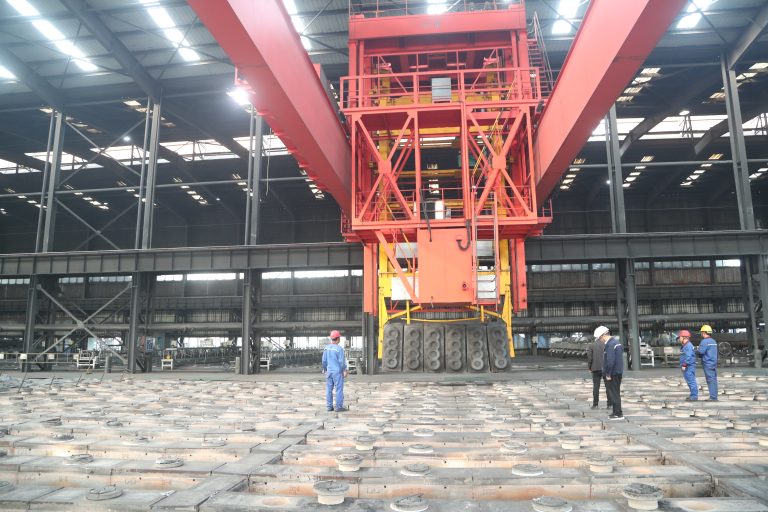

Details of the Anode Carbon Block Stacking Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
What industries are the Anode Carbon Block Stacking Crane suitable for?
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
-
Aluminum Electrolysis Production BaseSpecial cranes for anode lumps are responsible for handling and stacking of anode lumps, which is suitable for the heavy-duty and dusty production environment in the aluminum plant.
-
Prebaked Anode Manufacturing PlantSpecial cranes for anode briquettes are responsible for the transfer of molded briquettes and the stacking of finished products, connecting the whole carbon production process.
-
Anode Briquette Roasting SectionSpecial cranes for anode briquettes are responsible for loading and unloading of briquettes before and after roasting, which can withstand high-temperature working conditions and ensure the stable operation of the workshop process.
-
Carbon material storage yardSpecial cranes for anode lumps stack and store large quantities of anode lumps in layers, optimizing the utilization rate of the site and facilitating the unified scheduling of materials.
-
Aluminum Smelting Supporting Industrial ParkSpecialized cranes for anode carbon blocks continuously supply anode materials to the electrolysis workshop, and accurately lift and transport the materials to meet the continuous material demand of the production line.
-
Residual Electrode Recycling and Treatment PlantSpecial cranes for anode and charcoal lumps transport waste anodes and charcoal lumps, complete centralized stacking and transfer, and are suitable for solid material recycling operations.
-
Large Carbon Processing PlantSpecial cranes for anode and charcoal lumps realize the smooth transfer and fixed-point stacking of heavy charcoal lumps, reduce manual intervention and enhance the safety coefficient of operation.
-
Non-ferrous metal smelting supporting areaSpecialized cranes for anode lumps are suitable for the complex working conditions in heavy smelting plants, and can complete the turnover and storage of anode lumps in a long-term and stable manner.
-
Industrial Carbon Finished Product Storage AreaSpecial cranes for anode lumps are standardized for storing finished anode lumps, which facilitates loading and unloading, and is suitable for large-volume warehousing management mode.
