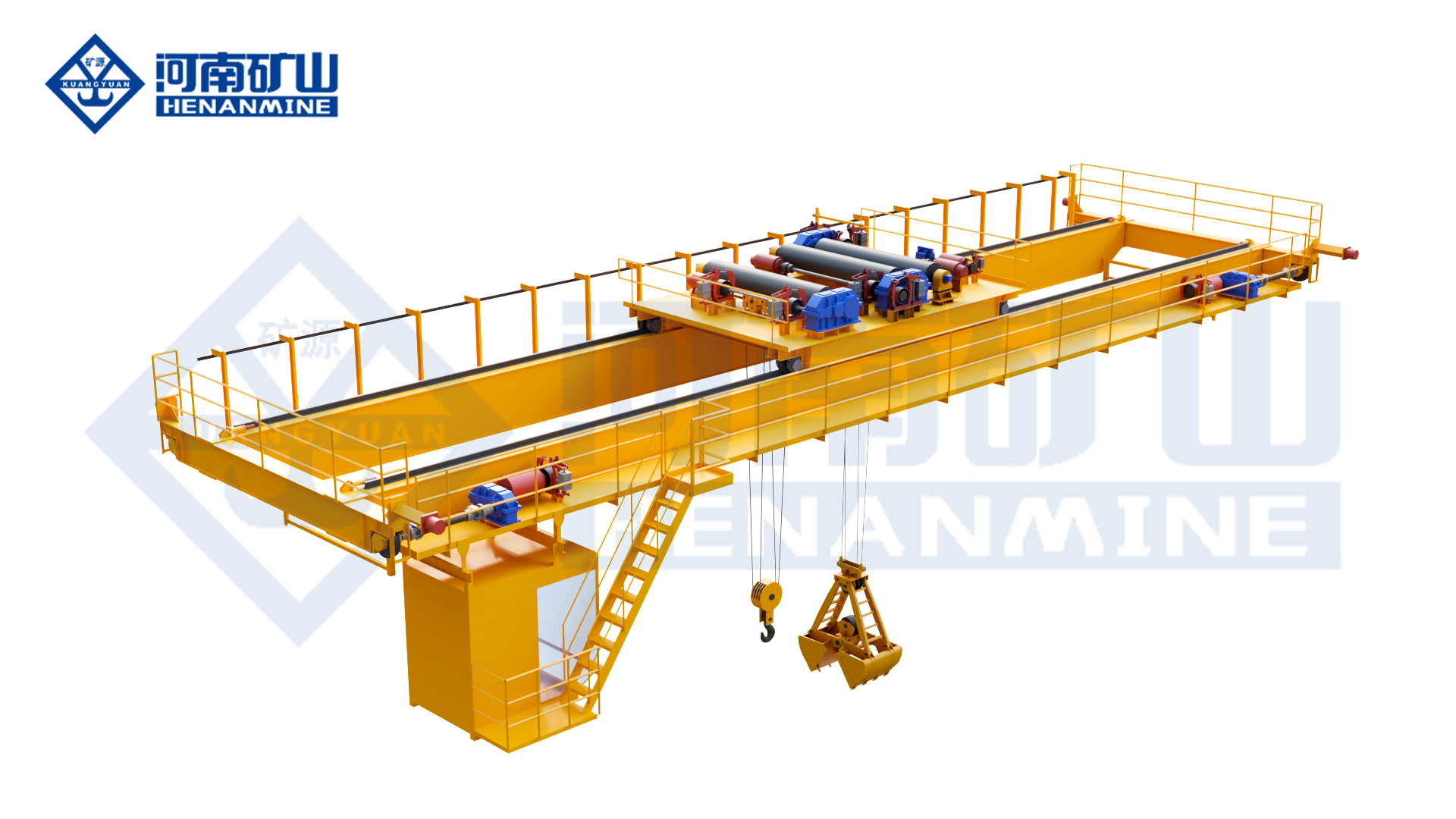

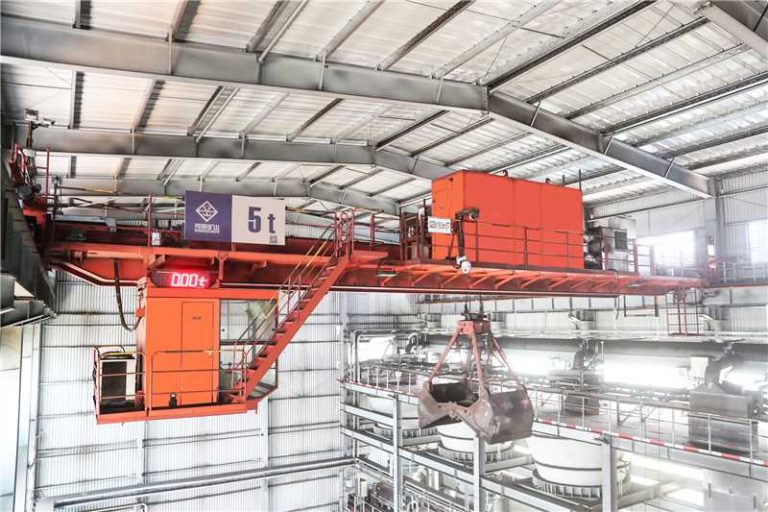

Grab Hook Dual Purpose Overhead Crane
Henan Mine Crane Factory Supply Grab Hook Dual-purpose Overhead Crane is a dual-purpose overhead crane specially designed for factories, yards, workshops, warehouses, wharves and other general-purpose operating environments to complete the vertical lifting and vertical and horizontal movement of the material to intermittent repetitive mode of operation, the pick-up device comes standard with a hook + removable hydraulic grab, which allows you to quickly switch between lifting the piece goods and bulk materials.
Lifting Capacity
5t - 16t or Customized
Crane Span:
10.5m- 31.5m or Customized
Lifting Height
6m-20m or Customized
Working Class
A5 - A6 or Customized
Power Supply
220-690V, 50/60Hz
Crane Travel Speed
10 - 40m/min
Parameters of Intelligent Grab Hook Dual Purpose Overhead Crane Manufactured by Henan Mine Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Rated Lifting Capacity | 5 – 16 | t | Customizable (5/5,10/10,16/16t) |
| Span | 10.5 – 31.5 | m | Adjustable according to yard |
| Lifting Height | 6 – 20 | m | Customizable |
| Working Class | A5 – A6 | – | Medium-heavy duty for general handling |
| Hoisting Speed | 15 – 40 | m/min | Frequency conversion adjustable |
| Trolley Travel Speed | 5 – 20 | m/min | Stepless speed regulation |
| Crane Travel Speed | 10 – 40 | m/min | Frequency control, smooth running |
| Grab Type | Detachable Hydraulic Grab | – | High-strength alloy steel |
| Wheel Process | Forging Rolling Composite | – | Life increased by 20% |
| Protection Level | IP54 | – | Dust-proof & splash-proof |
| Power Supply | 220-690V, 50/60Hz | V | Customizable for global market |
| Material | High-Strength Q355B Steel | – | Ultrasonic welding testing |
| Certification | ISO, CE, FEM | – | Direct export without modification |
| Control Mode | Wireless Remote / Cabin Control | – | Optional dual control |
| Type Test Code | QEN | – | General Overhead Crane |
| Application | Workshop, Yard, Warehouse, Port | – | Unit load & bulk material dual handling |
Product Introduction of Henan Mine Crane Grab Hook Dual Purpose Overhead Crane
1. Product core positioning and design standards
Henan Mine Crane grab hook dual-purpose overhead crane core positioning: for the global general industrial scenarios to provide dual-purpose, low-fault, high-efficiency, long-life one-stop lifting and handling solutions. Suitable for all kinds of global general industrial lifting and transportation scenarios.
2. Core structure and functional design
- Hook and grab dual-purpose pickup system: standard hook + removable hydraulic grab, without complex modifications can be quickly switched, not only lifting profiles, equipment, finished products and other finished goods, but also can grab ore, coal, gravel, coke and other bulk materials, a machine for multiple purposes to significantly reduce the investment in equipment.
- Advanced frequency conversion control system: adopting frequency conversion speed control technology, the whole machine runs smoothly, starts and stops without impact, effectively reduces the failure rate, improves the running speed and lifting efficiency, and is suitable for continuous high-frequency operation conditions.
- High-strength and durable grab structure: the grab is made of high-strength alloy steel, which is wear-resistant and impact-resistant; the modularized design of pins, grab teeth and other wearing parts makes it convenient to disassemble and replace, which greatly reduces the maintenance time and cost.
- Long-life wheel technology: the wheels are made of forged and milled composite technology, which significantly improves the strength and wear resistance, and increases the service life by 20% compared with the traditional forged wheels, and with the high-precision frame processing, the operation is smoother, and the life of the whole machine is longer.
- Full-dimensional safety protection: Equipped with multiple safety devices, such as overload protection, travel limit, emergency brake, anti-derailment, etc., the operation is stable and reliable, in line with global industrial safety standards.
- Modular customization and adaptation: lifting capacity, span, lifting height, grab specifications, control mode (remote control/cabin) can be customized to suit different materials, sites and operational needs.
3. Core product advantages
- One machine for two uses reduces cost: hook/grapple can be quickly switched to meet the needs of piece goods and bulk materials handling at the same time, replacing two special equipment, and reducing the cost of equipment purchasing and site occupancy by 50%.
- Frequency conversion for stable transportation and low failure: Frequency conversion control buffers the impact of starting and stopping, greatly reducing the failure rate, fast running speed, high lifting efficiency, and more stable continuous operation.
- Easy maintenance and cost saving: modularization of grab wearing parts, convenient replacement; forged wheel life is extended by 20%, annual maintenance cost is reduced by 30%.
- Universal adaptable square scene: Adaptable to most of the universal lifting scenes such as factories, yards, warehouses, wharves, etc., no need for special working conditions, practicality is full.
- Global compliance and easy to export: ISO, CE, FEM certified, voltage/frequency customized globally, no need for modification and can be exported directly, with a full set of English technical data provided.
- Simple control and easy to start: support wireless remote control + cab dual control mode, simple operation logic, new employees quickly get started, reduce the cost of manual training.
4. Global Adaptation and Application Scenarios
- Core scenarios: equipment lifting and transportation in machinery processing plants, bulk material loading and unloading in material yards, cargo handling in warehouses, and bulk cargo/component transportation in terminals.
- Common scenarios: metallurgical auxiliary material handling, raw coal/slag transfer in power plants, lime/cement loading/unloading in cement plants, and material turnover in workshops.
- Environment: Stable operation in -25℃~+40℃ environment, IP54 dustproof protection, suitable for all kinds of general industrial workshops and open-air material yards around the world.
5. Global exclusive supporting services
- Provide a full set of technical data, installation drawings, operation and maintenance manuals in English/Spanish/Arabic/Russian to meet global equipment access requirements.
- 7×24 hours global remote video debugging, professional engineers door-to-door installation and training, the cost is transparent and negotiable.
- Global core region spare parts warehouse, 72-hour delivery of grabs, wheels, electronic control modules and other spare parts, multi-language after-sales support.
What Can Henan Mine Crane Grab Hook Dual Purpose Overhead Crane Offer You?
| Value Category | Specific Benefits | Description |
| Dual Function | Grab & Hook Interchangeable | Equipped with hook and detachable hydraulic grab, switch quickly for unit load & bulk material handling |
| Cost Saving | One Crane for Two Uses | Replace two special cranes, reduce equipment investment & site occupation cost by 50% |
| Operation Stability | Frequency Conversion Control | Advanced VFD control, smooth running, low failure rate, high handling efficiency |
| Service Life | Forged Rolling Wheel | Wheel life increased by 20% via forging rolling process, longer service life, lower failure rate |
| Maintenance Convenience | Modular Wear Parts | Grab pins, teeth are modular designed, easy to replace, reduce maintenance time & cost |
| Handling Efficiency | Fast & Stable Operation | High running speed, non-impact starting, suitable for high-frequency continuous operation |
| Safety Performance | Comprehensive Protection | Overload protection, limit switch, emergency brake, anti-derailment, full safety guarantee |
| Global Adaptability | International Certification | ISO/CE/FEM certified, customizable voltage 220-690V 50/60Hz, direct global export |
| Customization | Fully Non-Standard Customizable | Customize capacity, span, height, grab type, control mode for different working conditions |
| Application Scope | Wide Industry Usage | Suitable for workshop, warehouse, yard, port, power plant, cement plant & general handling |
| Operation Simplicity | Multiple Control Modes | Wireless remote + cabin control, easy to operate, reduce training cost for operators |

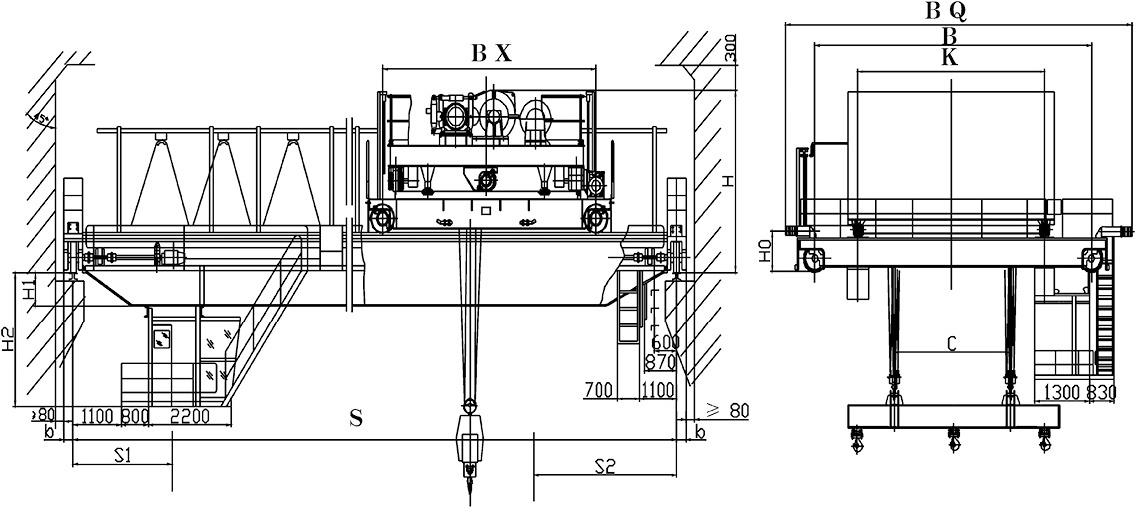

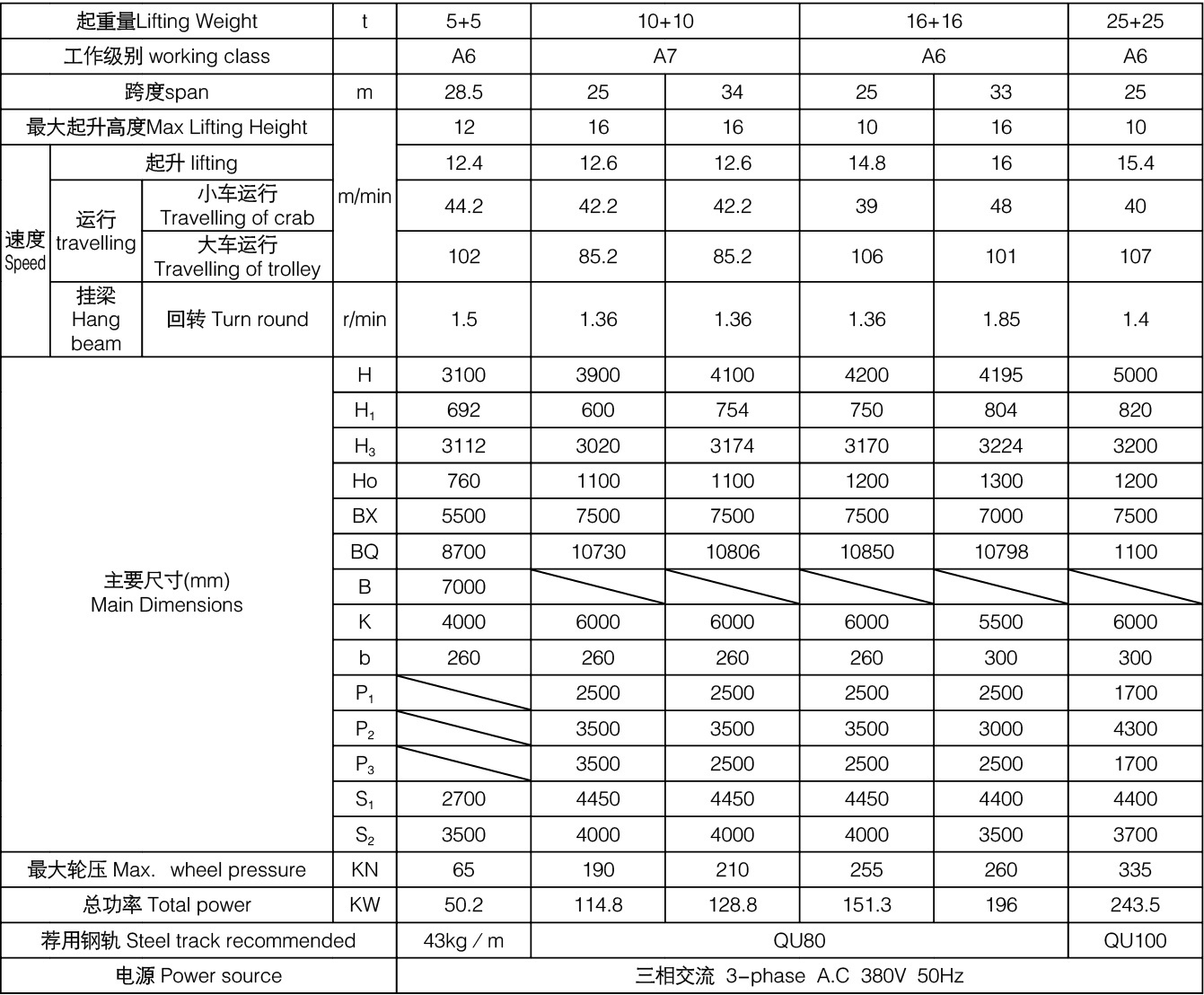

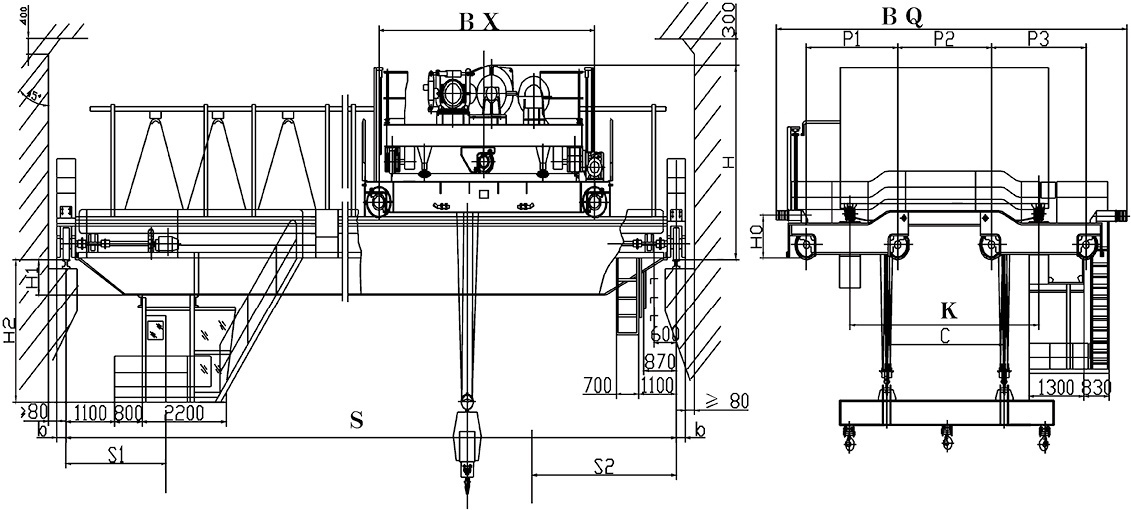

Parameters of Grab Hook Dual Purpose Overhead Crane
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 100T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system

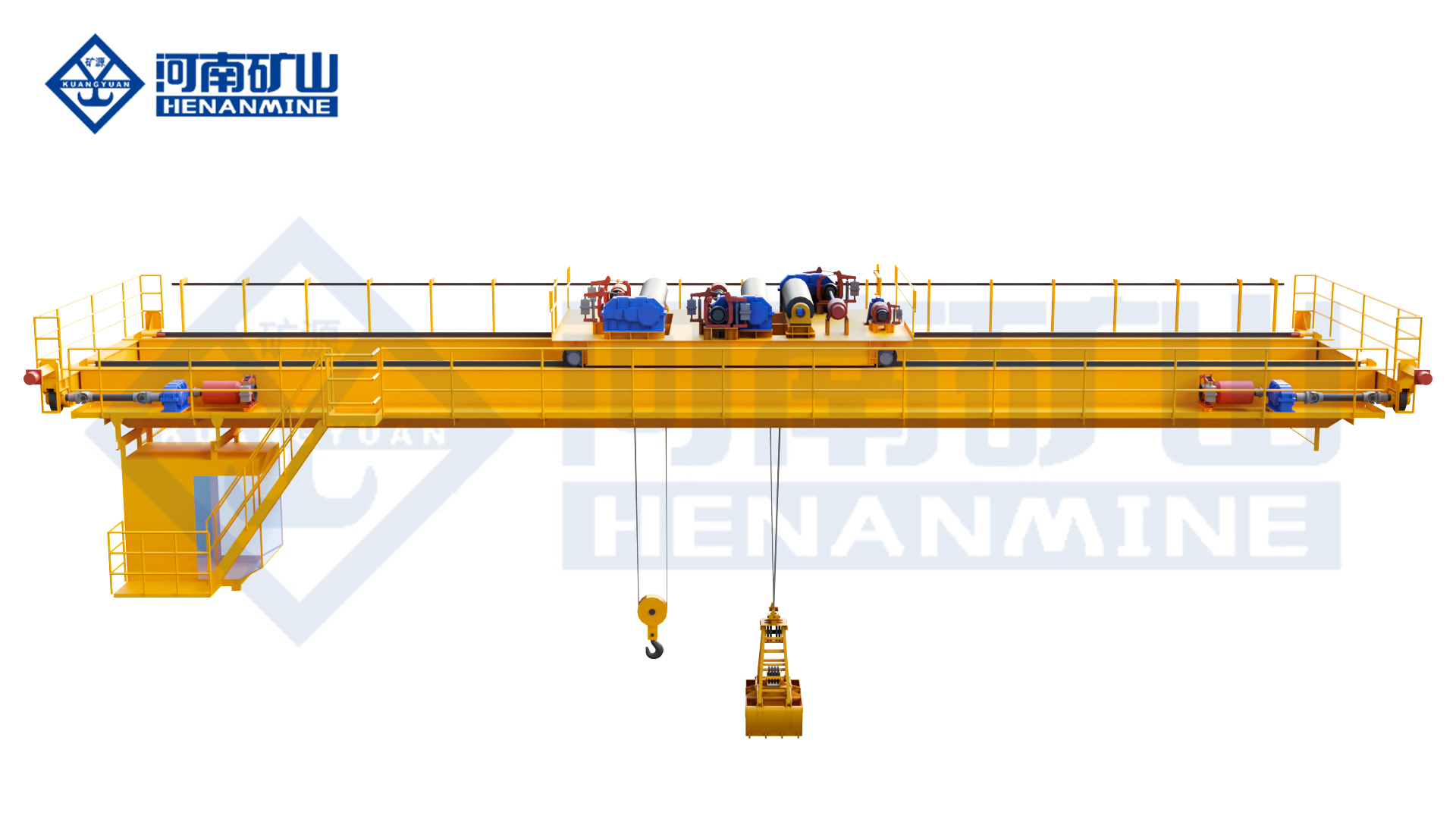

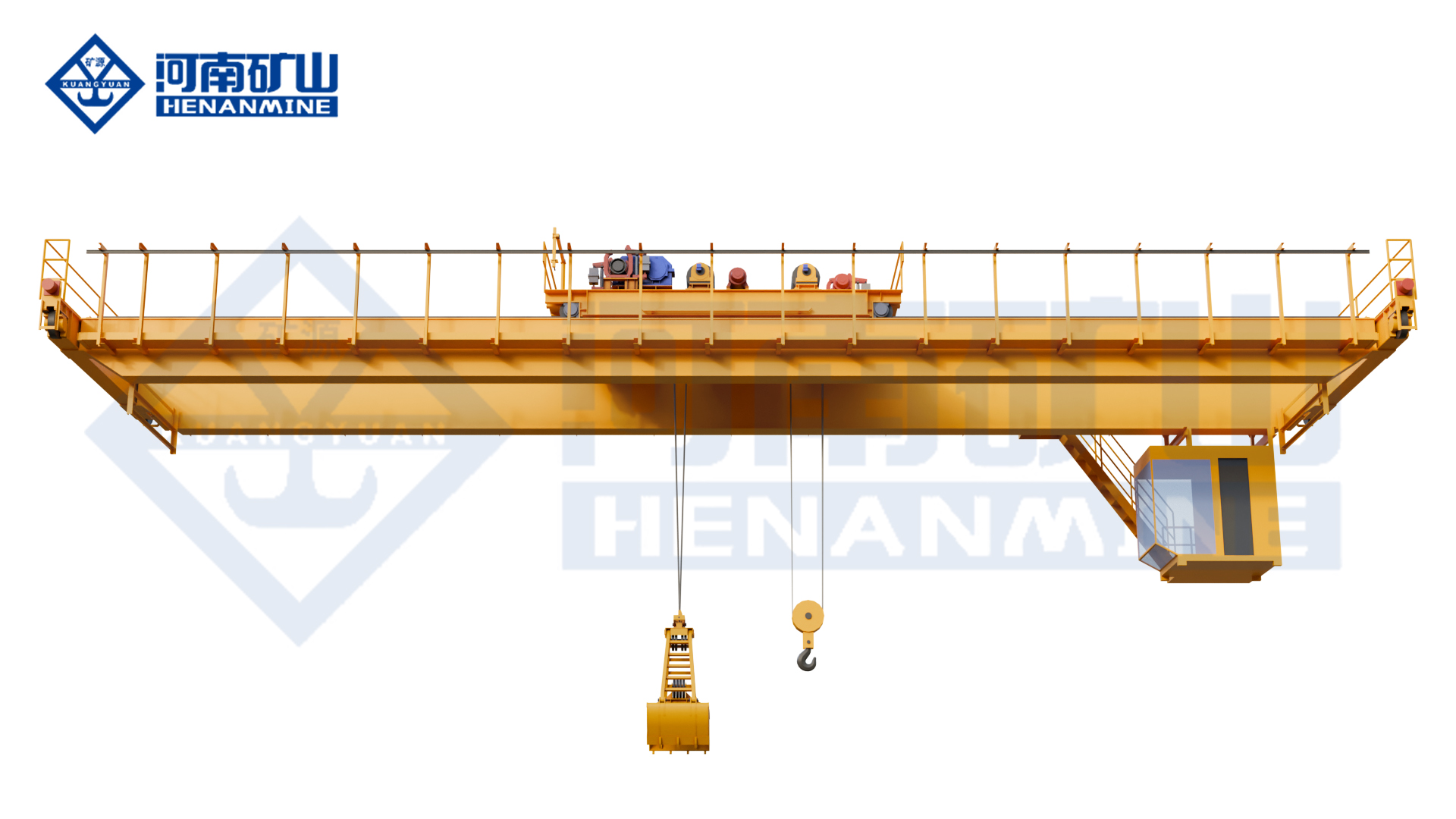

Details of the Grab Hook Dual Purpose Overhead Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years

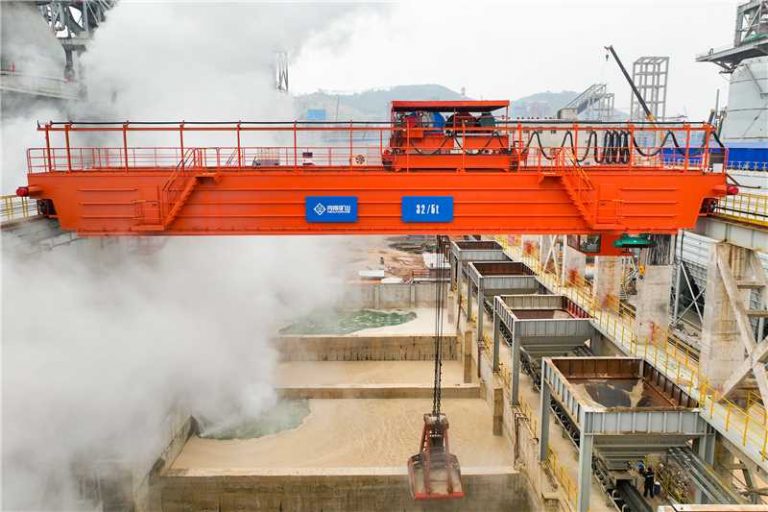

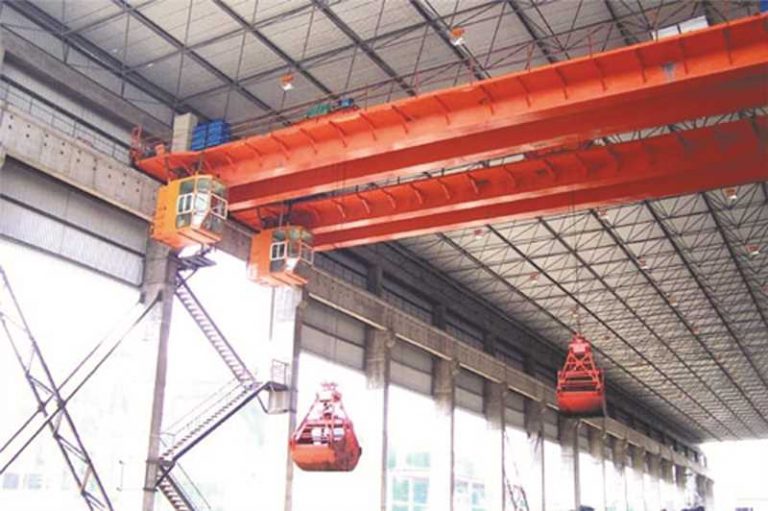

What industries are the Grab Hook Dual Purpose Overhead Crane suitable for?
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
-
Heavy Manufacturing WorkshopGrab hook dual-purpose overhead crane can be freely switched between operation modes, hook lifting heavy components, grab cleaning production waste, suitable for mixed production operations.
-
Comprehensive Material YardGrab hook dual-purpose overhead cranes can be used for both lifting of heavy goods and grabbing of loose materials, which is suitable for stacking, transferring and organizing of multi-category materials.
-
Environmental Treatment PlantGrab hook dual-purpose overhead cranes utilize grabs to clean up silt, debris and slag, and hooks to lift maintenance equipment and supporting components to meet the diversified operation and maintenance needs of environmental protection plants.
-
Cement and Building Materials ParkGrab hook dual-purpose overhead cranes use hooks to transport prefabricated components and heavy equipment, and grabs to load and unload sand, slag and other raw materials, which is suitable for the building materials industry to meet the complex working conditions.
-
Foundry and Smelting PlantGrab hook dual-purpose overhead cranes are suitable for lifting large castings and equipment, and synchronized with the use of grabs to remove slag and waste materials, which is suitable for the complex heavy industrial production environment
-
Harbor short-distance cargo yardGrab hook dual-purpose overhead cranes can flexibly switch between hook and grab modes to meet the lifting of profiles and bulk debris cleaning, suitable for short-distance handling and organizing work in cargo yards.
-
Municipal Engineering YardGrab hook dual-purpose overhead cranes are responsible for lifting and transferring engineering building materials, and at the same time grabbing earth and stone, construction waste, suitable for municipal construction of various types of material handling.
-
Industrial Park Operation and MaintenanceGrab hook dual-purpose overhead crane daily rely on the hook for equipment maintenance, equipment lifting, grab to complete the plant garbage, miscellaneous materials cleaning, more practical.
-
Grain and Feed Storage AreaGrab hook dual-purpose overhead crane grabs to handle granular, powdery raw materials, hook lifting storage equipment and packaging goods, suitable for light warehousing diversified operations.
