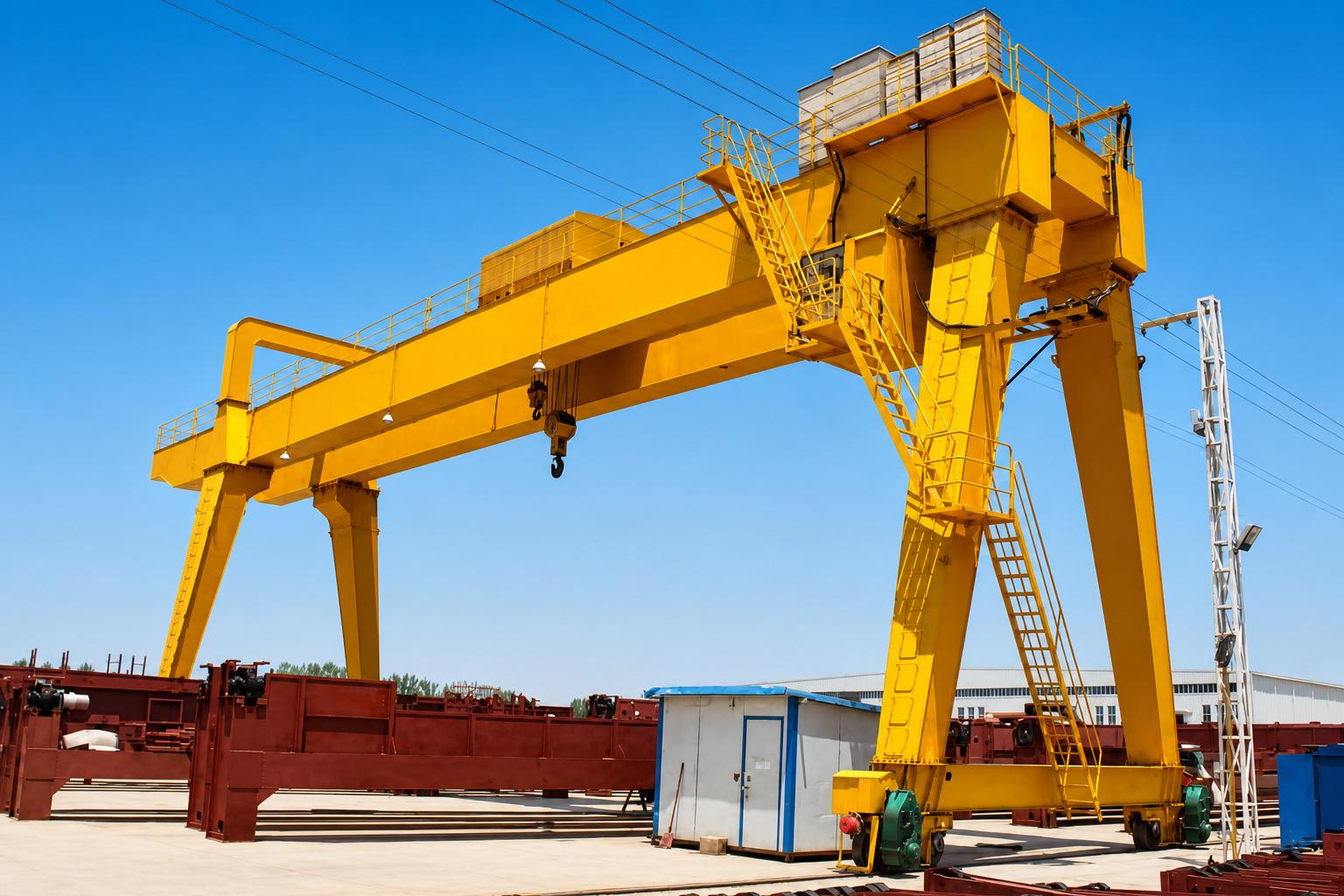

32t Heavy Gantry Cranes: Forced Air Cooling and Solar Heat Shielding
In the outdoor continuous heavy-duty hoisting industrial scene, the 32-ton heavy-duty gantry crane is the core key equipment to ensure production capacity and operation safety.The equipment is subjected to harsh working conditions such as high temperature, strong sunlight, and dust all year round, and heat accumulation is not a slight loss problem.
It is the core engineering pain points that directly affect the operating stability of equipment, the service life of components, the safety of operations, and the cost of operation and maintenance.Therefore, a comprehensive understanding of the heat production principle, high temperature hazards and professional thermal management solutions of 32-ton heavy-duty gantry cranes is the core key to equipment selection, operation and maintenance control, and working condition adaptation.
Why 32t Heavy Gantry Cranes Need Advanced Heat Management
Source of heat production for crane operations
During the normal operation of a 32-ton heavy-duty gantry crane, the core power and control components such as the lifting motor, operating motor, braking system, frequency converter, electric control cabinet and lifting mechanism continue to produce heat due to energy loss, which is the main endogenous heat source of the equipment.
In high-frequency operation scenarios such as mining, heavy industry, and infrastructure, the crane's high-load, short-intermittent work system has insufficient heat dissipation time, and the heat load is significantly increased.The continuous accumulation of heat can easily form a vicious circle, causing motor insulation aging, drive module capacity reduction, control system failure, braking performance degradation and other failures, shortening the service life of the equipment.
Influence of environmental high temperature working conditions
The ambient temperature is an important external factor restricting the heat dissipation efficiency of the crane. The higher the ambient temperature, the smaller the heat dissipation margin of the equipment, and the safe operating temperature difference of the parts is continuously compressed.At room temperature, the equipment can quickly dissipate operating heat through natural convection.
However, in summer high temperature, tropical, desert and other working conditions, the ambient temperature can reach 40℃-45℃, the heat dissipation efficiency of the equipment is greatly reduced, and the core components can easily approach the rated temperature limit.
The impact of the high temperature environment on the core components of the crane covers the whole system：
- Motor equipment: insufficient heat dissipation margin causes the motor to fail to run at full load, forced to reduce capacity, the winding insulation layer accelerates aging, and it is prone to short circuit and burn-out failure.；
- Frequency conversion drive system: power electronic components are highly sensitive to temperature, and high temperature will trigger the drive to protect itself, causing problems such as power drop, shutdown and error reporting, and interrupting the operation process.；
- Electrical control cabinet: the PLC, relays, power supplies, terminal blocks and other components in the cabinet are aging at high temperature, and the failure rate is soaring, which is prone to signal disorders and control failures.；
- Braking system: mechanical brake friction parts and energy-consuming brake resistors slow down the heat dissipation, and the braking heat declines after continuous operation, the braking accuracy decreases and the wear increases, and there are major safety risks.；
- Cables and connecting devices: The high temperature resistance of the cable insulation layer decreases, the oxidation of the joints accelerates, and the contact resistance increases, which can easily cause heat generation, leakage, and line failure.
Solar radiation
The outdoor 32-ton gantry crane needs to withstand the additional heat load caused by solar radiation, which is the difference from the core working conditions of indoor equipment.Under high temperature and sunny exposure, the surface temperature of the steel structure, electrical cabinet and cable tray of the equipment can reach 60℃-80℃, and the heat continues to be transmitted internally, exacerbating the overall temperature rise of the equipment.
The enclosed electrical cabinet is most significantly affected by high temperature exposure.The cabinet has a small volume and high sealing properties, and it is easy to accumulate heat. Only solar radiation can make the temperature in the cabinet 20℃-30℃ higher than the environment, superimposing the heat generated in the operation of the equipment, which can easily exceed the rated operating temperature of the electrical components and cause failure.
What Makes a 32t Heavy Gantry Crane Suitable for Harsh Outdoor Conditions
Adapt to the needs of heavy-duty operations
The rated lifting weight of 32 tons means that the crane can safely lift up to 32 tons of heavy objects including spreaders, wire ropes, and hoisting beams under standard working conditions. The equipment is strictly designed, tested and verified in accordance with ISO, FEM, and national standard lifting equipment standards.It should be emphasized that the rated tonnage is not the only criterion for equipment selection.
The 32-ton gantry crane suitable for outdoor high-temperature and high-frequency operations is different from the indoor light-load model. The equipment will be optimized and designed according to the actual hoisting load, operating frequency, and working system level.
If the type is selected only by tonnage and the working conditions, working system, and heat dissipation design are ignored, the equipment will overheat frequently and fail frequently under outdoor heavy-duty conditions, and it will not be able to meet the needs of long-term stable operation.The high-quality 32-ton heavy-duty gantry crane can realize all-round adaptation of tonnage, structure, heat dissipation, and working conditions.
Heavy duty steel structure
The 32-ton heavy-duty gantry crane adopts a box beam welded steel structure, with the main beam and outriggers as the core load-bearing components. The structure has high structural stiffness and uniform load distribution, which can effectively disperse heavy-duty pressure and control structural deformation to ensure hoisting accuracy and operation safety.
The steel structure of the equipment is specially optimized for outdoor working conditions, with a margin for thermal expansion reserved and equipped with anti-corrosion coating, which can resist temperature difference deformation, wind and rain corrosion and ultraviolet aging, stabilize the equipment structure, and avoid the problems of walking, track and hoisting deviations caused by deformation.
Lifting trolley system
The lifting hoist and trolley operation system are the core actuators of the equipment.The hoist mechanism is equipped with a heavy-duty motor and a high-torque deceleration gearbox, matching a special wire rope and hook set, which can stably complete the lifting and descending operations of 32 tons of heavy-duty loads, with strong power output and sufficient carrying capacity.
The trolley can walk smoothly laterally along the main beam, covering the entire working span.The walking and hoisting system is equipped with frequency conversion and speed regulation, which supports flexible start-stop, smooth acceleration and deceleration, effectively eliminates heavy-duty impact loads, reduces mechanical losses, and greatly improves the stability and safety of heavy-duty hoisting while ensuring operating efficiency.
Stable movement of outdoor global area
The cart walking mechanism consists of an end beam, a heavy-duty walking wheel, a walking motor, and a deceleration mechanism, which can drive the entire crane to move vertically along the track to achieve a wide range of operation coverage.The equipment adopts a walking wheel set adapted to heavy loads, with strong load-bearing capacity and excellent wear resistance, and can withstand the weight of the whole machine and the heavy lifting load for a long time.
The equipment walking system is adapted to outdoor working conditions, and the amount of compensation for temperature deformation is reserved to eliminate track deformation and wheel-rail stagnation caused by temperature difference; the key transmission components are sealed and protected in place, which can be dustproof and waterproof to ensure that the equipment walks stably and does not deviate or get stuck.
Forced Air Cooling for 32t Heavy Gantry Cranes
The working principle of forced air cooling
Forced air cooling is an active heat dissipation technology for the heat generated in the crane, which is different from natural convection heat dissipation.Natural ventilation relies on the passive principle of hot air floating to dissipate heat. The heat dissipation efficiency is low, and it is greatly restricted by the environment and equipment structure, which cannot meet the heat dissipation needs of high-frequency and heavy-duty operations.
Forced air cooling relies on the fan and air duct system, actively directs the air supply, and continuously purges the core heating components such as the motor, control cabinet, and drive module to quickly take away the operating heat.The technology is not limited by the installation angle and ambient temperature, and can accurately regulate the wind speed and air volume, with high heat transfer efficiency and stable and long-lasting heat dissipation.
Core components
Forced air cooling is mainly aimed at the directional heat dissipation of the crane's high-temperature and high-precision core components, and the core protection objects are divided into two categories.：
- Power components: lifting motors, walking motors and brake resistors have high operating loads and large thermal loads. Heat is easy to accumulate and temperature rises during operation. Long-term high temperature conditions will gradually lose equipment performance.
- Electrical precision components: frequency conversion drive devices, electrical control cabinets and various types of enclosed power electronic devices have poor temperature resistance and are extremely sensitive to high temperature environments. They are the core high-frequency parts of crane high-temperature failures.
Temperature control logic
Forced air cooling increases the air flow rate around the core components, breaks the dead angle of heat accumulation, quickly replaces the high-temperature air around the equipment, and continuously takes away the heat generated by the operation.Under long-term heavy-duty continuous operation conditions, the working temperature of the motor, drive, and control cabinet can be stably controlled to avoid continuous heat accumulation.
Through precise temperature control, the equipment can effectively reduce the impact of thermal stress, reduce the fatigue loss caused by the alternation of hot and cold parts, avoid equipment capacity reduction, shutdown, and aging caused by high temperature, ensure the temperature stability under all working conditions, and greatly extend the service life of electrical and power components.
Dust protection design
Dust, sand, and suspended particulate matter are common in outdoor industrial and mining scenes. Simple air-cooled systems can easily inhale impurities, causing air ducts to be clogged, components to accumulate ash, and circuits to be shorted.Therefore, the forced air cooling system adapted to outdoor cranes is integrated with an integrated dust-proof design.
The system is equipped with a high-precision filter air inlet structure, and the air vents are optimized for anti-reverse irrigation, which can be effectively dustproof and waterproof.With regular operation and maintenance cleaning, while ensuring heat dissipation efficiency, precision electrical components can be fully protected, and the dual protection of heat dissipation and dustproof can be realized.
Solar Heat Shielding for Outdoor 32t Gantry Cranes
Core principle
Solar thermal insulation protection is a passive thermal protection technology that does not require electric drive, has no moving parts, and has extremely low operation and maintenance costs.The core principle is to block and reflect solar energy through a protective structure before the heat of solar radiation is transmitted to the core components of the equipment, reduce the external heat input of the equipment from the source, solve the problem of outdoor exposure and heat accumulation, and form a complementary heat dissipation system with active air cooling.
Special thermal insulation protection
The electrical control cabinet is the key part of solar thermal insulation protection.Through the installation of customized awnings and protective tops, the equipment directly blocks the cabinet and isolates the high-intensity direct sunlight at noon; optimizes the installation orientation of the cabinet to avoid the direction of perennial exposure and reduce the area of radiation heating.
At the same time, the cabinet adopts a light-colored reflective coating and a high-thermal insulation sealing plate to reduce the solar energy absorption rate and avoid the cabinet from absorbing heat and heating up.The complete protection plan can effectively prevent abnormal heating in the cabinet caused by direct sunlight, and ensure that the electrical components in the cabinet are always in the standard operating temperature range.
Motor and drive device
The exposed lifting motors, walking motors, and frequency conversion drive modules are all equipped with special thermal insulation shields, which can effectively block the heat of solar radiation.The protective structure adopts hollow ventilation design. While achieving sunshade and heat insulation, it does not block the motor's own heat dissipation air duct, and does not form a closed heat accumulation space, so as to avoid the reverse of the protective structure and cause poor heat dissipation of the equipment, taking into account the dual needs of heat insulation and ventilation.
Operation room and control platform protection
The 32-ton gantry crane equipped with an operation room greatly reduces the solar thermal radiation in the operation room by installing a sunshade roof, heat-insulating glass, and sun-proof enclosures.It can not only protect indoor control equipment and circuits from high temperature aging, but also improve the high temperature operating environment of operators, improve the comfort and safety of long-term operations, and avoid operating errors caused by high temperature fatigue.
Key Design Considerations for a 32t Heavy Gantry Crane
Adaptation of ambient temperature and working conditions
The equipment design needs to accurately match the extreme highest and lowest temperatures of the site, while taking into account the temperature difference between day and night and the temperature changes in the four seasons.Strengthen thermal management configuration in high-temperature areas, optimize lubrication and start-up performance in low-temperature areas, and customize heat dissipation and protection plans according to on-site temperature parameters to ensure the stable operation of equipment throughout the season.
Job level matches work system
According to the frequency of equipment hoisting, the length of daily operation, and the load interval, the corresponding crane work level is matched.For heavy-duty and high-frequency working conditions, high-level working system models need to be selected, with a strengthened cooling system, to avoid long-term overload and super-thermal load operation of the equipment, and to eliminate fatigue loss and high temperature failure.
Electrical box protection
The electrical box of outdoor equipment adopts a high IP protection level design, which takes into account the needs of dustproof, waterproof and sun protection.It is equipped with a dust-proof, ventilated and heat-dissipating structure to avoid heat accumulation in the air while sealing and protecting; the cable is made of temperature-resistant, weather-resistant, and anti-aging materials to optimize the wiring and sealing structure to eliminate line failures caused by high temperature and dust.
Outdoor wind resistance and stability
According to outdoor wind conditions, the equipment optimizes the wind resistance design of the steel structure, and is equipped with rail clamps and windproof anchoring devices.In the non-operating state, the position of the equipment can be fixed to resist the impact of strong winds, avoid equipment slippage and offset, and ensure the safety of the equipment during non-operating hours.
Thermal deformation compensation
Large steel structures will undergo thermal expansion and contraction with temperature changes. Through professional engineering calculations, the equipment reserves the margin for structural deformation, optimizes the fixed structure of the track and the articulated nodes, compensates for the dimensional changes caused by the temperature difference, avoids wheel-rail offset, structural stress accumulation, component stagnation and other problems, and guarantees the long-term operating accuracy of the equipment.
Applications of 32t Heavy Gantry Cranes
Mining and mineral processing industry
In the outdoor operation scene of the mine, the dust is large, the temperature is high, and the hoisting frequency is high. The 32-ton gantry crane is mainly used for heavy equipment handling, replacement of crusher and conveyor accessories, and material transfer in the mining area.Perfect thermal management and dustproof design can be perfectly adapted to the harsh working conditions of the mine to ensure the continuous operation of the equipment.
Oil and gas engineering field
Oil and gas plants and offshore supporting facilities need to be frequently hoisted with pump bodies, heat exchangers, pipeline components, and maintenance equipment, and the operating environment is high temperature, corrosive, and dusty.The 32-ton heavy-duty model is equipped with a professional thermal protection system, which can adapt to complex outdoor working conditions and ensure the safe and stable operation of the equipment.
Photovoltaic power station scene
Photovoltaic power plants are unobstructed in the whole area and have extremely strong solar radiation, which is one of the scenarios with the highest demand for thermal protection.The equipment is mainly used for the installation and operation and maintenance of heavy equipment such as transformers, inverters, and power stations. The exclusive solar thermal insulation + forced air cooling system can completely solve the problem of exposure to high temperature and ensure the long-term stable operation of the equipment.
Heavy manufacturing plant
In steel structure processing, machinery manufacturing, and heavy industry assembly workshops, large steel components, mechanical assemblies, and welding components need to be hoisted. The heavy-duty capacity of the 32-ton gantry crane is sufficient, and the cooling system can be adapted to the continuous operating conditions of the workshop to improve production efficiency.
Infrastructure projects
For bridge construction, municipal infrastructure, and large-scale engineering construction sites, steel structures, prefabricated components, and heavy engineering machinery need to be hoisted. The equipment is operated in the open air and the working conditions are complex. With excellent outdoor protection and thermal management performance, the 32-ton heavy-duty gantry crane can be adapted to various field construction scenarios.
Maintenance of 32t Gantry Cranes in High-Heat Environments
Regular inspection of cooling fan and filter
Regularly check the operating status of the air-cooled fan, detect whether the air volume and speed are normal, and investigate faults such as fan bearing caton and motor heating; according to the dust concentration on the site, regularly clean and replace the dust-proof filter, dredge the air duct, and avoid dust accumulation and blockage affecting the heat dissipation efficiency.
Special inspection of electrical cabinets
Normalize the internal temperature and circuit status of the control cabinet, and investigate the hidden dangers of over-temperature such as cable insulation aging, terminal ablation, cabinet discoloration, odor, etc.; Infrared temperature measuring equipment can be used to accurately locate high temperature points to avoid electrical failures in advance.
System temperature monitoring
Monitor the operating temperature of the motor, brake resistance, and brake mechanism in real time during operation, compare the temperature data of the standard operating conditions, and immediately investigate problems such as poor ventilation, excessive load, and aging of components in the event of abnormal heating.
Overhaul of solar protection structure
Regularly check the integrity and installation firmness of the awning and heat insulation shield, and clean up the surface area of dust and debris in time to ensure full coverage of heat insulation and no blind spots. At the same time, ensure that the ventilation passage is unimpeded and avoid the protective structure hindering the heat dissipation of the equipment.
Maintenance of structure and walking parts
Regularly check the working conditions of wheels, rails, end beams, welds, and fastening accessories, and speed up the frequency of grease replacement in high temperature environments to avoid high temperature grease failure; calibrate the track accuracy to compensate for the position deviation caused by thermal deformation, and ensure the stability of the walking system.
How to Improve the Service Life of a 32t Heavy Gantry Crane
- According to the high-temperature and dusty open-air operating environment of the site, special accessories adapted to the working conditions are selected to ensure that the equipment configuration is highly adapted to the on-site environmental parameters and improve the environmental adaptability of the equipment.
- The integrated thermal management scheme of forced air cooling and solar thermal insulation is adopted to regulate the temperature of the equipment in both directions, so as to realize the precise control of the operating temperature of the equipment around the clock and normalization, and effectively suppress the accumulation of heat.
- Regularly clean up the cooling air ducts and dust and debris inside the equipment, clear the cooling channels, ensure the efficiency of ventilation and heat dissipation, and eliminate the safety hazards caused by heat accumulation in the equipment from the source.
- Install a temperature monitoring and alarm device to monitor and collect operating temperature data of core components in real time, predict abnormal high temperature working conditions in advance, and realize early warning and prediction of high temperature faults and active protection.
- Strictly implement the preventive maintenance system of equipment, encrypt the frequency of special inspections of electrical and cooling systems during the high-temperature operation season, and control the operating conditions of the equipment in real time to ensure the stable operation of the equipment.
- Standardize equipment operating standards, and strictly prohibit long-term continuous operation under overloaded and over-specified working conditions, so as to avoid long-term high thermal stress of the equipment, delay the aging and loss of parts, and extend the service life of the equipment.
- Keep the supporting structures such as heat dissipation, ventilation, heat insulation and protection of the equipment intact, and it is strictly forbidden to block or remove the protective accessories without permission to ensure the stable and normal operation of the entire thermal management system.
Customization Options for 32t Heavy Gantry Cranes
Mechanical structure customization
The equipment span, lifting height, and operating speed can be customized according to the needs of the site, and the single/double beam structure and single/double hook configuration can be adapted, and the trolley structure and walking parameters can be adjusted as needed to accurately match the operating space and hoisting requirements of various sites.
Thermal protection system customization
Support customized forced air cooling system of the whole machine, special ventilation and heat dissipation equipment for the cabinet, solar shading and heat insulation structure, optional motor special protection, high-precision temperature sensing and monitoring system, and special enhanced configuration for high temperature exposure conditions.
Environmental protection customization
It can be upgraded with high-level dust-proof, waterproof, and anticorrosive configurations to adapt to sand and dust, coastal, and corrosion conditions; windproof anchoring and rail clamping devices can be installed to optimize outdoor wind resistance; remote control system and constant temperature operation room can be optional to improve operation convenience and safety.
How to Select the Right 32t Heavy Gantry Crane
When users purchase and select models, they can provide complete working condition parameters according to four categories to facilitate manufacturers to accurately customize the equipment structure and thermal protection plan. The core parameters are classified as follows：
Basic mechanical parameters
The core covers key indicators such as the rated lifting weight of 32 tons, the maximum lifting height, the span of the equipment and the walking stroke of the cart. It is the core basic parameter of the 32-ton heavy-duty gantry crane.
The rated carrying capacity of the equipment, the vertical operating limit, the horizontal coverage range and the walking operating radius of the whole machine directly determine the basic operating specifications, construction coverage area and basic hoisting adaptability of the equipment, and delineate basic standards for equipment structure design, component selection and conventional operating conditions, which are the core prerequisites for ensuring equipment compliance and safe operation.
Operating condition parameters
The operating condition parameters include the operating work system and the working level of the whole machine, which are used to define the operating intensity of the equipment, clarify the frequency of equipment load, operating time and limit operating conditions, and determine the heavy-duty tolerance and continuous operating ability of the equipment.
At the same time, the working condition parameters are the core basis for matching the cooling system, drive system and main structure configuration of the equipment. They can be tailored to different working modes such as high-frequency heavy-duty and intermittent operations, effectively avoiding heat accumulation and component overload loss under high-load operations. Problems.
On-site environmental parameters
It covers on-site environmental indicators such as the temperature change interval of the work site, the installation scene of the equipment (indoor/outdoor), the intensity of sunlight exposure, and the concentration of dust and sand. It is the core basis for the customization of the outdoor protection configuration of the equipment.
Compared with indoor equipment, outdoor gantry cranes have more complex working conditions and are affected by high temperature, temperature difference, dust and sand all year round.Customized protection configurations such as heat dissipation, heat insulation, dustproof, and anticorrosion are matched according to environmental parameters, which can effectively improve the adaptability and stability of outdoor operation of equipment.
Supporting customized parameters
It includes personalized parameters such as on-site power supply voltage, power supply stability, equipment control methods, and exclusive heat dissipation and heat insulation customization requirements, and is adapted to the differentiated operating conditions of different construction sites.
The power supply conditions on the construction site are uneven, relying on exclusive control modes and customized thermal protection schemes, which can be adapted
Conclusion
Complete and accurate working condition parameters are the basis for the customized design of 32-ton heavy-duty gantry cranes, which can help manufacturers reasonably match the equipment structure, thermal management system and protection configuration, and reduce the selection deviation.For harsh environments such as outdoor high temperatures, scientific customization can improve the stability, safety and operating efficiency of the crane's long-term operation, and take into account the return on investment in the whole life cycle of the equipment.
Henan Mine Crane can provide customized design and manufacturing solutions for 32-ton heavy-duty gantry cranes based on on-site temperature, operating intensity, span, lifting height and other working condition parameters.
