20 Ton Overhead Crane Price: China OEM Sourcing Budget Checklist

The 20-ton bridge crane is the core heavy asset equipment of the factory, warehousing, and heavy industry.When overseas buyers connect with Chinese OEMs, they generally face quotation chaos: the quotation of the same equipment varies greatly, and the low price is often accompanied by the shrinking of the configuration, and the high price is prone to budget waste.

This article will comprehensively disassemble the pricing logic of the 20-ton bridge crane, the full-dimensional cost composition, the cost performance of single and double-beam models, and the Chinese OEM procurement rules, with RFQ inquiry, price comparison, and hidden cost control lists that can be directly applied, to provide professional and landing budget procurement reference for overseas procurement.

What Is the Typical Price of a 20-Ton Overhead Crane

20 tons is a common tonnage for large and medium-sized bridge cranes. Single-beam and double-beam models can be adapted, but minor differences in parameters and configuration will directly affect the price of the whole machine. The core influencing factors are divided into six categories.：

• Rated lifting weight: 20 tons is a fixed rated load and the basic threshold for pricing. Compared with 10-ton and 16-ton models, the material and process standards of steel structures, hoist mechanisms, and load-bearing components are more demanding, and the basic cost is higher.
• Span and lifting height: The longer the crane span (track center distance), the higher the amount of steel used for the main beam and the cost of structural reinforcement process; the greater the lifting height, it is necessary to match longer wire ropes, larger reels, and high-power motors, and the overall equipment cost will rise simultaneously.
• Single-beam/double-beam structure: The 20-ton single-beam bridge crane has a simple structure and light weight, which is suitable for light and moderate operations; the double-beam model has stronger rigidity and higher carrying stability, and is suitable for high-frequency and heavy-duty working conditions. The manufacturing cost is 40%-50% higher than that of a single beam.
• Working level and operating frequency: The working level (ISO/FEM/CMAA standard) directly defines the operating intensity of the equipment, and the low-frequency and light-load operating conditions are adapted to ordinary configurations. High-frequency continuous operation requires upgrading the motor, gearbox, and braking system, which greatly increases the cost of the equipment.
• Hoist/trolley configuration: The cost of ordinary electric hoists is lower, and the frequency conversion trolley, two-speed lifting trolley, and intelligent lifting trolley have higher accuracy and better stability. It is the core price increase configuration of high-end 20-ton cranes.
• Control and electrical system: basic handle control, ordinary electronic control, cost-effective, wireless remote control, cab control, PLC automatic frequency conversion control system, can optimize the operation experience and safety, but will increase the cost of electrical supporting.

20-Ton Overhead Crane Cost Breakdown

The total cost of purchasing a 20-ton bridge crane is not only the bare metal price of the equipment, but the whole chain costs from production, packaging, logistics to installation and after-sales need to be included in the budget.The following is a standardized cost checklist, covering all expense categories：

1. The main steel structure of the crane: verify the rationality of the design of the main beam structure, the national standard original steel material, the precision welding process and the quality of the anti-corrosion and anti-rust coating of the whole machine, and strictly verify the dimensional accuracy of the equipment to ensure that it fully complies with industry safety and compliance standards.
2. Crane/operating trolley: Verify the brand qualification of the supporting motor, gearbox specifications, reel process parameters and hook assembly quality to ensure the lifting accuracy, stability and adaptation performance of the equipment with a rated load of 20 tons.
3. End beam walking mechanism: check the wear-resistant walking wheels, standard drive motors, and intelligent brake protection system to ensure that the crane walks smoothly, accurately positioned, and runs durable throughout the process, and is suitable for high-frequency operating conditions.
4. Electrical control system: equipped with a standardized control cabinet and a frequency conversion drive device, it integrates multiple protection functions of overload, short circuit, and voltage regulation to build a safe, stable, and low-failure electrical operation system.
5. Control system: Supports multiple control modes of handle, wireless remote control, and cab, strictly controls the brand quality and service life of the control components, and adapts to the operation needs of different operating scenarios.
6. Track supporting system: it includes a complete set of supporting components such as walking track, fixing bracket, load-bearing column, and special fasteners. The structure is stable and can ensure the long-term, continuous and stable operation of the crane.
7. Safety protection device: standard with a full set of safety accessories such as stroke limit, overload protection, emergency sound and light alarm, buffer, anti-decoupling, etc., to build an all-round protection system to eliminate safety hazards in lifting operations.
8. Installation and commissioning costs: it covers one-stop landing service costs such as on-site construction labor, installation and commissioning of the whole machine, no-load/rated load testing, equipment commissioning and on-site compliance rectification.
9. Packaging cost: The standard packaging for export fumigation is adopted, with multiple protection processes of anti-corrosion, moisture-proof and shock-proof, which is fully adapted to the international ocean-going transportation environment to avoid equipment transportation losses.
10. Logistics and transportation expenses: it includes the whole chain of logistics supporting expenses such as inland transshipment, international shipping, port loading and unloading, and cargo escort in the factory area, covering the whole process of cross-border transportation.
11. Taxes and customs clearance fees: it covers all official fees required for cross-border compliance such as import duties, value-added tax, customs clearance fees, and qualification filing fees in the destination country.
12. Spare parts cost: It includes the cost of stocking core wearing parts such as motors, wire ropes, brake pads, control switches, etc., which effectively reduces the risk of failure and downtime in the later operation and maintenance of the equipment.

Single-Girder vs. Double-Girder: Which Is More Cost-Effective at 20 Tons

20 tons is the critical point for the adaptation of single-girder and double-girder bridge cranes. The adaptation scenarios, procurement costs, and use costs of the two models are very different. When purchasing, it is necessary to combine the working conditions and select the models comprehensively. Don't just look at the initial quotation.

20 ton single-girder bridge crane

The 20-ton single-girder bridge crane adopts a lightweight integrated structure design, with mature technology and streamlined structure. It has high adaptability and cost performance in small and medium-sized lifting conditions. The core advantages are as follows：

• Lower cost: the structure of the whole machine is streamlined, there are fewer steel consumables, the production process is mature and simplified, and the production cost is effectively compressed.Compared with similar equipment, the procurement threshold is lower, which can significantly reduce the initial equipment input cost of the project, and the cost-effective advantage is significant.
• Convenient installation and construction: the equipment is light in weight, compact and regular in structure, and the installation process is simple and easy to operate, without the need for complex construction equipment and professional qualified personnel.Significantly shorten the on-site construction cycle, effectively save labor costs and project landing time, and quickly put into operation.
• Strong site adaptability: the equipment covers a small area and the overall volume is compact, and the adaptation requirements for the height of the plant, the load-bearing on the ground, and the installation space are lower.There is no need to carry out structural transformation of the walls, floors, and floor heights of the original factory buildings, and it is suitable for all kinds of new and old small and medium-sized factories and storage sites, with a wider range of applications.
• Applicable site scenarios: Mainly adapted to indoor standardized operating environments, covering conventional industrial plants, small and medium-sized production workshops, warehousing and logistics warehouses, material turnover warehouse areas and other sites.The equipment occupies a small area and has a low threshold for site adaptation. There is no need to transform the building structure, and it can be quickly put into use.

Suitable for application scenarios: This model is designed for light and moderate lifting conditions. It is mainly suitable for indoor conventional factories, ordinary production workshops, warehousing and logistics scenarios. It is suitable for environments with a span of less than 30 meters, an average daily operating time of less than 6 hours, low operating frequency, and no continuous high-intensity heavy-duty operation requirements.

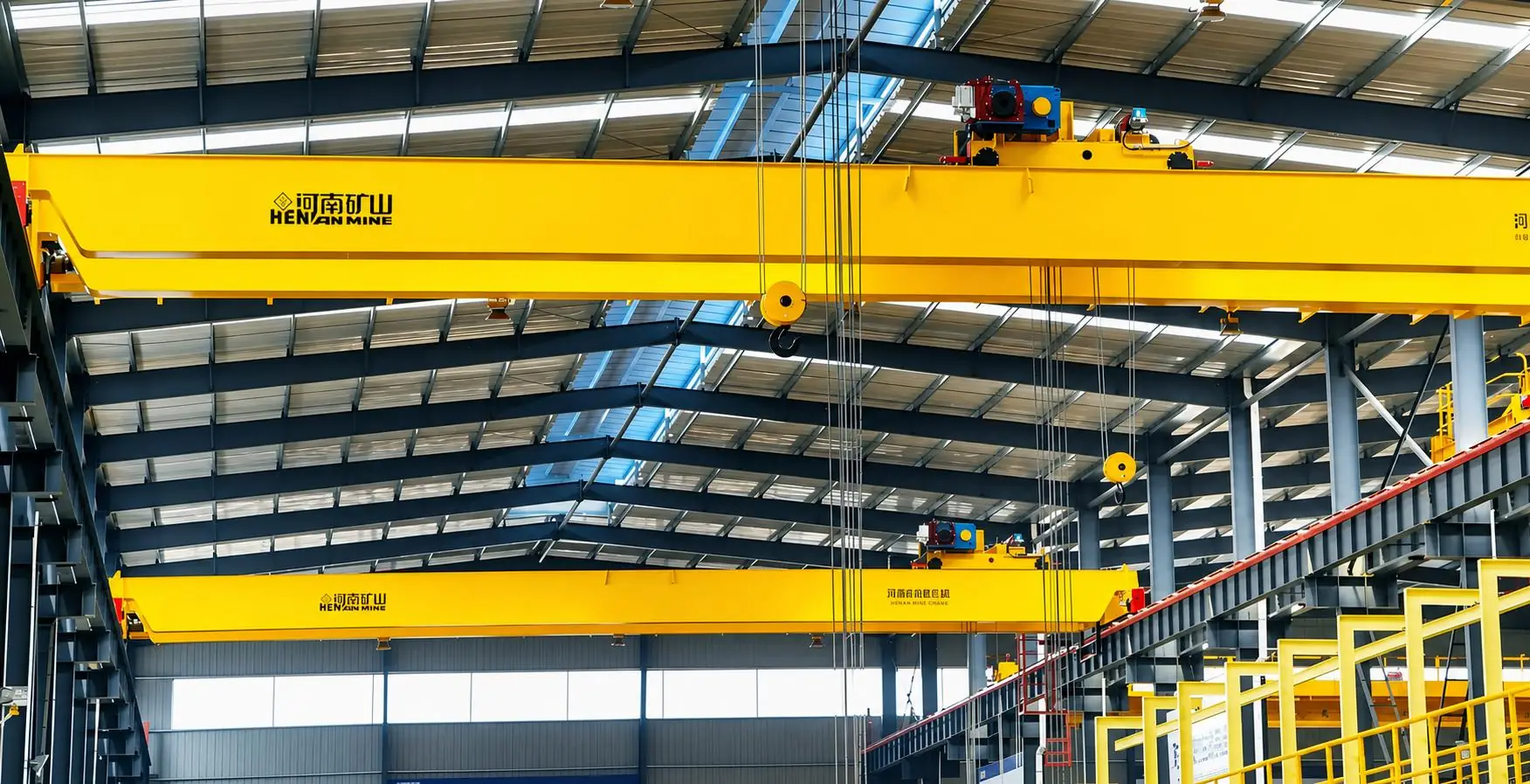

20 ton double girder bridge crane

The 20-ton double-girder bridge crane adopts a symmetrical load-bearing structure with double main beams. The overall structure has high rigidity, strong deformation resistance, and excellent load-bearing stability. The overall performance far exceeds that of single-girder models of the same tonnage. It can be adapted to complex, high-strength, and long-term heavy-duty operating conditions. The core advantages are as follows：

• Stronger structural stability: the symmetrical force structure of the double main beam is adopted, the rigidity of the whole machine is sufficient, the deformation is minimal, and the operation is stable and there is no significant shaking during heavy-duty takeoff and landing and vertical and horizontal movement.Effectively improve the accuracy of operations and ensure the long-term safe and stable operation of equipment from the structural level.
• A wider range of working conditions: it supports long-span and high-lifting operation scenarios, and can stably undertake full-load, high-frequency, and continuous industrial operations under a rated load of 20 tons. The working level of the whole machine is high, and it can be adapted to high-intensity and normalized production conditions.
• Excellent functional expandability: the fuselage reserves sufficient space for modification and upgrade, supports personalized function selection and customization, and can be equipped with anti-swing system, intelligent weighing module, PLC automation control system, dual hoist linkage device and explosion-proof and anti-corrosion protection configuration on demand, suitable for diversified intelligence and special working conditions.
• The service life of the whole machine is longer: the core load-bearing components are evenly stressed and the load is dispersed, which effectively reduces the fatigue loss of long-term operations.The equipment has superior wear resistance, impact resistance and deformation resistance, and low failure rate for long-term heavy-duty operation, which can greatly reduce late operation and maintenance costs and downtime losses.

Suitable for application scenarios: This model focuses on high-strength, high-frequency, high-stability heavy-duty operations, and is widely adapted to various harsh industrial scenarios, including heavy industry manufacturing workshops, metallurgical processing, large-scale mold hoisting, steel structure production, and large-span factories.

Outdoor open-air work sites, as well as special working conditions such as explosion-proof, anti-corrosion, high temperature, and high humidity, are suitable for production lines that operate continuously for a long time and lift at high frequencies.

Selection principle

Procurement and selection must not be based on the lowest quotation as the only criterion. Although the initial investment of low-cost single-girder cranes is small, they are prone to structural deformation, rapid component wear, frequent failures and other problems under high-frequency operations, and later maintenance costs and downtime losses are extremely high.

To compare the cost performance, it is necessary to comprehensively consider the service life of the equipment, the average annual maintenance cost, energy consumption, downtime and failure rate, and operating efficiency.In long-term heavy-duty operation scenarios, the whole life cycle cost of double-girder cranes is lower; in light-load and low-frequency scenarios, single-girder cranes are the most cost-effective.

China OEM Sourcing: What Does the Quotation Usually Include

Regular Chinese bridge crane OEM source manufacturers, standardized quotations are one-stop supporting solutions for the whole machine, which are different from the fragmented quotations of trading companies. The complete quotations contain the following content, which is also the core standard for procurement to verify the completeness of quotations.：

• Customized design and load calculation for exclusive working conditions: according to the site span, lifting height, operating frequency, environment and power supply conditions, a one-to-one customized engineering plan, optimize equipment drawings and operating parameters, and improve safety redundancy through professional load verification to ensure that the equipment is accurately adapted to on-site working conditions.
• Precision machining and anticorrosive treatment of steel structures: core structures such as main beams and end beams are processed from original national standard steel, relying on precision welding and CNC cutting technology to ensure the accuracy of the whole machine; with multiple rust removal and anticorrosive coatings, it effectively resists oxidation and corrosion, and is suitable for complex working conditions and cross-border shipping.
• A full set of core lifting and walking accessories: equipped with 20 tons of special electric hoist, frequency conversion trolley, trolley walking mechanism and other core components, the accessories parameters are adapted and compatible, and the whole machine is debugged and optimized to ensure stable lifting, accurate walking, and smooth start and stop.
• Electrical control and safety protection system: equipped with a standardized frequency conversion electronic control and voltage regulation protection system, which supports dual-mode control of handle and remote control; equipped with multiple safety devices such as limit, overload, alarm, and anti-decoupling to build a perfect protection system to ensure the safe operation of equipment with low failure.
• Certified transmission and braking power components: equipped with national standard and internationally certified special lifting motors, transmission and braking assemblies, stable power, efficient transmission, sensitive braking, wear-resistant and fatigue-resistant, can be adapted to conventional and high-frequency heavy-duty operations, greatly reducing the equipment failure rate.
• Full-dimensional factory quality inspection and acceptance: After the equipment is assembled, complete the full working condition test of no-load, full load, and overload, and conduct all-round testing of the structure, transmission, electrical, and safety systems of the whole machine, and issue a formal quality inspection report to ensure that the equipment complies with the standards and has reliable performance.
• Export standard protective packaging: special packaging for international shipping, with fumigation wooden frame, waterproof, shockproof, anti-rust multiple protection processes, all-round protective equipment, to prevent moisture, corrosion, bump damage and other problems in ocean-going transportation.
• A full set of qualifications and customs clearance information: supporting drawings, instructions, quality inspection reports, certificates of conformity, international certifications and other complete technical qualification documents, equipped with standardized export customs clearance information, to meet overseas customs clearance, equipment acceptance and post-maintenance needs.
• Core procurement recommendations: All manufacturers' quotations must require itemized detailed quotations, and refuse to accept total price quotations.The detailed quotation can clearly check each configuration, brand, and specification, effectively avoiding the problem of configuration shrinkage and invisible allocation reduction.

10 Key Specifications That Can Change Your 20-Ton Crane Price

With the same 20-ton bridge crane, fine-tuning the parameters can bring about price fluctuations of tens of thousands of yuan. The following 10 core parameters are the focus of budget control and the core source of differences in manufacturers' quotations.：

• Span: Span is the first element that affects the cost of steel structures. For every 1 meter increase in span, the amount of steel used for the main beam and the cost of structural reinforcement will increase simultaneously. At the same time, the supporting cost of the track system will be increased. The production process of large-span models is difficult, and the quality inspection standards are higher, and the quotation has risen significantly.
• Lifting height: The higher the lifting height, the longer the length of the wire rope and reel required, and the higher the motor power and lifting torque requirements. At the same time, the frequency conversion control system needs to be upgraded to ensure the stability of lifting, and the structural design adapted to aerial work will also increase production costs.
• Total length of track: The track system is an independent charging project and does not belong to the bare metal configuration of the crane.The longer the total length of the track, the higher the cost of track, brackets, fixed accessories, and civil construction supporting, which is the most easily missed budget item for overseas procurement.
• Work level: The work level corresponds to the operating intensity of the equipment. High-frequency and heavy-duty working conditions require upgrading of high-strength motors, thickened steel structures, and wear-resistant brake components. The material and process costs are greatly increased. Low-level equipment cannot be adapted to high-intensity operations, and forced use can easily cause safety accidents.
• Lifting speed: Ordinary single-speed lifting has the lowest cost, and two-speed lifting takes into account the needs of fast and slow operations. Frequency conversion and speed regulation can achieve accurate and stable lifting and eliminate impact and shaking. The cost of electronic control and motors with different speed configurations increases step by step.
• Operating speed: The faster the operation speed of large vehicles and small cars, the higher the requirements for motor power, braking system, and electronic control stability. High-speed models can improve operating efficiency, but they will increase equipment manufacturing costs and energy consumption costs.
• Power supply parameters: domestic 380V/50Hz three-phase electricity is the standard configuration, and there is no need to increase the price; if the on-site voltage, frequency, and phase number are special, the electrical system and frequency conversion device need to be customized to adapt, resulting in customized transformation costs.
• Operating environment: The conventional indoor dry environment is the basic configuration, and the outdoor open air, high temperature, low temperature, dust, humidity, corrosion, flammable and explosive special environments need to be installed with special anti-corrosion, explosion-proof, temperature control, and dust-proof configurations to greatly increase the cost of equipment.
• Control method: handle control is the most cost-effective, wireless remote control improves operation safety and flexibility, cab control is suitable for large and heavy-duty equipment, PLC automatic control can achieve unmanned operation, the higher the configuration level, the higher the price.
• Special customization requirements: explosion-proof configuration, electromagnetic lifting, grab adaptation, double hoist linkage, anti-swing system, intelligent weighing system, automated operation and other customized functions are all independent price-increasing items, which can be selectively installed according to job requirements.

Core reminder: Do not judge the merits of the quotation based on the single price alone.Local low-cost quotations often delete core safety configurations and reduce supporting services, while Chinese OEMs' one-stop complete quotations, although they need to bear logistics tariffs, are fully configured and highly standardized, which can effectively reduce the hidden costs of late integration, rectification, and maintenance.

Hidden Costs to Include in Your China Crane Sourcing Budget

Most procurement budget overspending stems from ignoring various hidden expenses.The complete Chinese OEM procurement budget must include the following hidden costs of the whole chain of pre-production, logistics, installation, and after-sales：

Before shipment

It mainly includes pre-compliance costs such as customized transformation of working conditions, third-party authoritative quality inspection, factory acceptance testing (FAT), export qualification review, and a full set of customs declaration documents.This part of the cost is used to ensure that the equipment is produced in accordance with local working conditions and meets export specifications, to ensure production compliance, smooth customs declaration, and smooth delivery.

Logistics clearance

It includes freight insurance, ocean shipping, port loading and unloading, warehousing and escrow, destination country import tariffs, professional customs clearance service fees, and landing short-distance transshipment and other full-link expenses, fully covering cross-border logistics and customs clearance compliance costs, which is an indispensable core sector in overseas procurement budgets.

On-site landing

It covers one-stop landing expenses such as on-site assembly and commissioning of equipment, supporting construction of rail civil construction, docking and integration of on-site electrical systems, and professional skills training of operators, and fully guarantees the compliance installation and one-time commissioning of equipment to meet the standards, so as to achieve stable landing and commissioning, long-term stable and compliance operation.

Long-term after-sales

Including long-term operating costs such as stocking procurement of core vulnerable parts, on-site technical services during the warranty period, annual equipment overhaul and maintenance, and daily operation and maintenance consumables procurement, it can effectively avoid additional hidden expenses such as sudden equipment downtime and temporary maintenance premiums, and ensure long-term stable and low-cost operation of equipment.

How to Compare Quotes From Chinese Overhead Crane Manufacturers

When purchasing 20-ton bridge cranes overseas, identifying the source manufacturers of regular OEMs and avoiding middleman premiums and procurement risks are the key to controlling the quality and budget of equipment.Before formally placing an order, buyers must verify the following 10 core issues with the manufacturer to ensure the rights and interests of procurement and the quality of equipment delivery in all directions.：

1. Is your company a self-owned production plant or a trade intermediary?Does it support customers to inspect the factory on site or online video to verify the production workshop?
2. What are the specific cooperative brands of motors, electrical components, and mechanical core accessories included in this quotation?Can you provide brand qualification certificate?
3. What industry operating standards (ISO/FEM /CMAA) does the equipment follow?Please clarify the specific working level of the equipment.
4. Does it support equipment customization and adaptation according to the purchaser's local power supply parameters and special operating environment?
5. What international general certifications can the equipment provide?Can a complete set of certification documents and compliance information be provided with the goods?
6. What is the specific content of the equipment warranty period and the official warranty coverage?Clarify the scenarios and terms that are not part of the warranty payment.
7. What standardized testing items will be performed before the equipment leaves the factory?Can you provide the official load test report and factory quality inspection certificate?
8. Does it provide free remote installation guidance, equipment debugging and operation teaching services?Does the large order support the on-site landing service of engineers?
9. What is the supply method of vulnerable parts and spare parts in the later stage of the equipment?How long is the production cycle and delivery time of conventional accessories?
10. Please clarify the equipment standard production and delivery cycle, export packaging implementation standards, and the complete process of logistics docking and customs declaration and shipment.

Conclusion

The price of a 20-ton bridge crane depends on the span, lifting height, working level, configuration, installation and transportation costs. You can't just look at the bare metal quotation.When choosing a Chinese OEM manufacturer, more attention should be paid to customization capabilities, product quality and life cycle costs.

Henan Mine Crane can provide customized solutions and quotations for 20-ton bridge cranes according to actual working conditions.Purchasing a 20-ton bridge crane?Welcome to contact us for professional selection suggestions.
