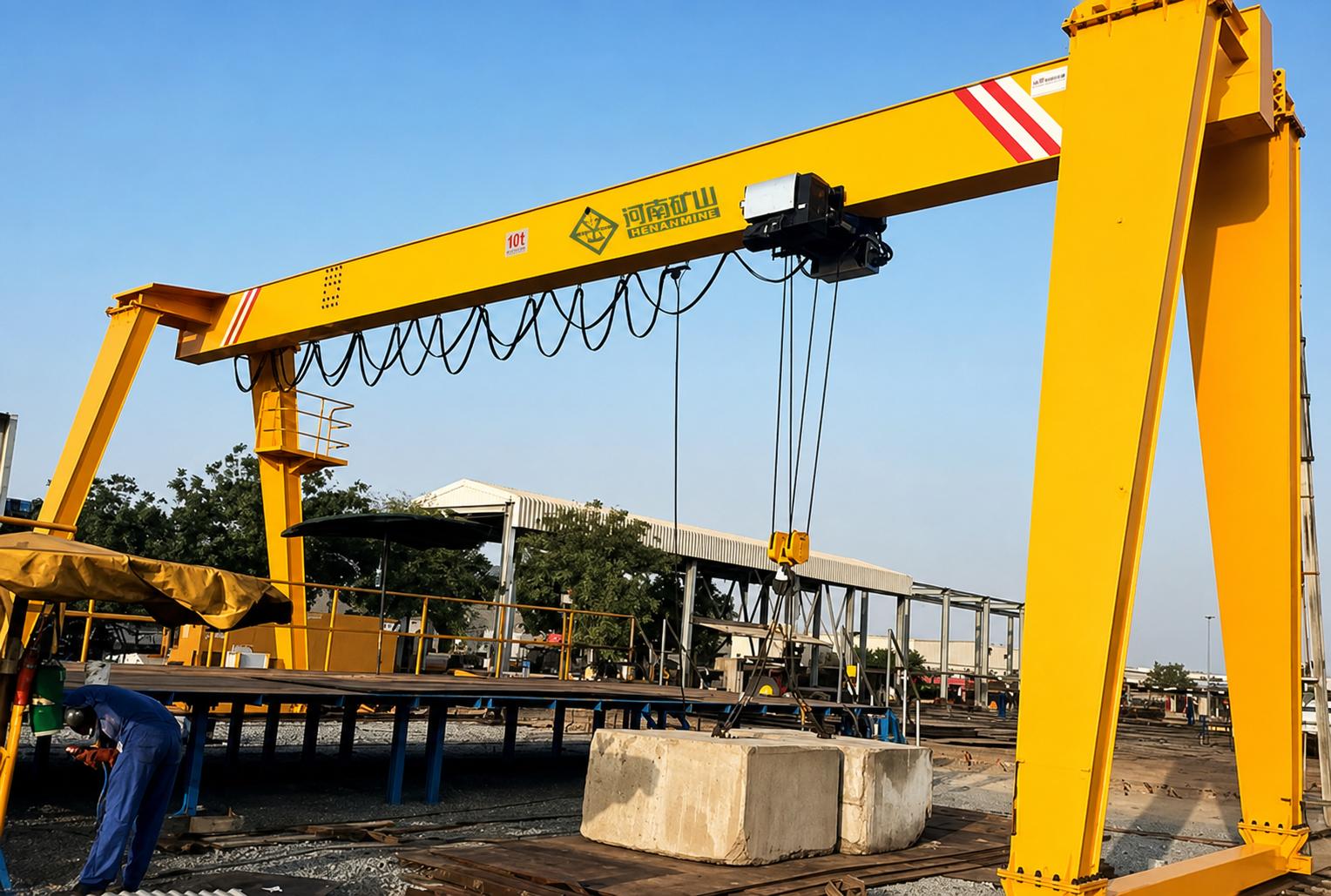

10t Single Girder Outdoor Gantry Cranes: Cost-Effective Stockyard Staging Solutions
In the daily lifting operations of open-air yards, storage yards, and building materials processing sites, most enterprises will face a problem. It is necessary not only to meet the needs of 10-ton normalized hoisting, stacking, and loading and unloading operations, but also to strictly control the comprehensive cost of equipment procurement, installation, and operation and maintenance, and at the same time adapt to complex working conditions such as outdoor wind and rain, exposure, and temperature differences.With its lightweight and stable structure, minimalist operation and maintenance system, high space utilization rate and outdoor adaptability, 10t single girder outdoor gantry cranes has become a standardized lifting solution with the highest neutral price ratio in small and medium-sized depots, steel storage, building materials transportation, and wood stacking scenarios.Unlike double-girder gantry cranes and large-scale bridge cranes, which have high input, high footprint, and high operation and maintenance costs, 10t single girder outdoor gantry cranes are specially tailored for the normalization staging scene of outdoor yard, taking into account the advantages of load stability, outdoor weather resistance and full life cycle cost. It is currently the mainstream choice for upgrading lifting equipment in industrial yards and supporting new sites.
Why Single Girder Gantry Cranes Are Cost-Effective
Cost control is the core consideration in the selection of industrial yard equipment. Enterprises not only pay attention to the initial purchase price of equipment, but also pay more attention to comprehensive investment in installation, operation and maintenance, energy consumption, and site adaptation.The reason why Henan Mine Crane manufactured 10t single girder outdoor gantry cranes has become the first choice for cost-effective yard is that it realizes all-round cost reduction from the four dimensions of structure, system, installation, and space utilization. Compared with the same tonnage double girder gantry crane and fixed lifting equipment, the comprehensive cost of use can be reduced by more than 30%, which is perfectly adapted to the needs of small and medium-tonnage, high-frequency, and outdoor open yard operations.
Lower Structural Cost
The lightweight design of the single-beam core structure is the core advantage of its structural cost reduction.The 10t single girder outdoor gantry cranes adopts an optimized Q235B national standard steel single main beam structure. Compared with double-beam gantry cranes of the same tonnage, the core structural materials such as main beams, end beams, and brackets are greatly streamlined, and the overall weight is lighter. , The structural design is more concise, and the manufacturing cost of equipment is reduced from the source.
The streamlined structure does not sacrifice the carrying stability of the equipment. Through the mechanically optimized box beam structure, it accurately matches the operating requirements of the 10-ton rated load, and eliminates the cost waste caused by structural redundancy.At the same time, the lightweight structure effectively reduces the wheel pressure of the equipment itself, eliminates the need for a heavy high-strength load-bearing foundation, and greatly reduces the supporting cost of civil construction on the site.For yard companies with limited budgets and mainly conventional stacking and transshipment, the structural design can directly reduce the initial equipment procurement cost by 15%-25%, and the cost-effective advantage is extremely outstanding.
Simple Crane System
The 10t single girder outdoor gantry cranes is equipped with a minimalist modular lifting system, the mechanical structure, electrical control, and transmission mechanism of the whole machine are highly simplified, there are no complex redundant accessories, and the failure rate is much lower than that of traditional heavy lifting equipment.The core operating components of the equipment are concentrated in the three modules of electric hoist, walking mechanism, and control system. The accessories are highly versatile and the market penetration rate is high, which greatly reduces the cost of late maintenance and replacement.
At the daily operation and maintenance level, the simple system architecture makes equipment overhaul, maintenance, and troubleshooting more convenient. Without the need for a professional high-end technical team, ordinary operation and maintenance personnel can complete daily inspection, lubrication, and commissioning work, greatly saving labor operation and maintenance costs.At the same time, the energy consumption of the equipment motor is lower, and the lightweight operating structure reduces the energy consumption and consumption of the operation. Under long-term high-frequency yard operations, the energy-saving and cost-reducing effect is significant.The system characteristics of low failure, easy operation and maintenance, and low energy consumption make the whole life cycle cost of the equipment much lower than that of similar double-beam lifting equipment.
Lower Installation Cost
Outdoor depots are mostly open sites with limited civil infrastructure conditions, while 10t single girder outdoor gantry cranes are adapted to simple installation solutions, eliminating the need for complex large-scale civil engineering, aerial work equipment and cumbersome installation processes. The installation cost and cycle have been greatly optimized.Thanks to the lightweight split structure of the equipment, the whole machine can be split into main beams, end beams, walking mechanisms, electrical systems and other modules, which are convenient for transportation and low for hoisting and assembly, without the need for large-scale hoisting equipment to assist in installation.
The installation process is standardized and simplified. The professional construction team can complete the splicing, track calibration, electrical commissioning, and no-load load testing of the whole machine in a short period of time, greatly reducing the construction period and labor construction costs.At the same time, the equipment has extremely low requirements for the installation foundation. Conventional gravel ballast + sleeper foundation or simple concrete foundation can meet the operating needs without high investment in civil engineering transformation, which is perfectly adapted to the needs of rapid landing and rapid commissioning of old and new yards, and further reduces the overall landing cost of the project.
Better Space Efficiency
The site utilization rate of the industrial yard directly determines the storage and transshipment capacity of the enterprise. Henan Mine Crane manufactured 10t single girder outdoor gantry cranes adopts a narrow fuselage, low headroom, and long-span adaptation design, and the space utilization efficiency far exceeds that of traditional lifting equipment.The main beam of the equipment has a compact structure and no redundant footprint on the side. The walking track fits the edge of the site, does not occupy the core material stacking and vehicle passage space of the yard, and maximizes the use area of the site.
At the same time, the effective operation coverage of the equipment is wide, and it can be adapted to the span of a conventional yard of 12-30 meters. A single equipment can cover a large area of the yard operation area, without the need for multiple equipment to be superimposed, which not only saves equipment procurement investment, but also avoids space conflicts in multi-equipment operations.For industrial depots with every inch of soil and every inch of gold, efficient space utilization can directly improve the stacking capacity and transportation efficiency of materials, and increase site production capacity and enterprise economic benefits in disguise, so as to realize the operating advantages of small space, large production capacity, and low investment.
Key Features for Outdoor Stockyard Operation
The operating environment of the outdoor yard is complex and changeable, and it faces harsh working conditions such as sun, rain, wind, frost, snow, dust, sand, and large temperature fluctuations for a long time. Ordinary indoor cranes are prone to electrical failures, corrosion of components, stuck operation, unstable load-bearing and other problems.The 10t single girder outdoor gantry cranes are specially customized for open-air working conditions and are equipped with a full set of outdoor special configurations, from electrical systems, lifting mechanisms, walking systems to orbital operation systems, which are fully adapted to harsh outdoor environments, ensuring stable and continuous operation of equipment for 24 hours, and reducing equipment failure rates and downtime losses under outdoor working conditions.
Weather-Resistant Electricals
The electrical system is the core vulnerable module of outdoor lifting equipment. In view of the environmental characteristics of outdoor humidity, rain, exposure, and dust accumulation, all 10t single girder outdoor gantry cranes are equipped with outdoor weather-resistant electrical accessories.All electrical control cabinets, junction boxes, and limit switches adopt IP54 and above dust-proof and waterproof protection levels, which can effectively block rainwater penetration, dust accumulation, and fog erosion, and eliminate common electrical faults such as short circuits, leakage, and poor contact.
The supporting cables of 10t single girder outdoor gantry cranes are made of special outdoor cables that are resistant to aging and high and low temperature. They are not afraid of high temperature exposure in summer and freezing and cracking at low temperature in winter. They have excellent weathering and corrosion resistance, and are not easy to break and age for long-term outdoor use.At the same time, the electrical system is equipped with multiple safety protection functions such as overload protection, short circuit protection, voltage loss protection, and emergency stop protection. In severe weather and sudden working conditions, it can automatically power off and stop, avoid equipment damage, and the risk of safety accidents, and ensure the safety and stability of outdoor yard operations around the clock.
Outdoor-Rated Hoist
The lifting hoist is the core operating component of the crane. The 10t single girder outdoor gantry cranes are standard with outdoor special electric hoists, which are different from ordinary indoor hoists and have been strengthened and upgraded under special outdoor working conditions.The whole hoist is sprayed with anti-rust and anti-corrosion treatment, and the metal parts are galvanized and anticorrosive, which can resist outdoor rainwater, acid-base dust corrosion, and eliminate corrosion, stagnation, and excessive wear of parts due to long-term open-air use. Problems such as rapid wear and tear of parts.
Outdoor customized gourds have a stronger ability to adapt to temperature differences, can operate stably in a wide temperature range of -20℃ to 45℃, and are suitable for the four seasons of open-air depots in the north and south.At the same time, the hoist has stable lifting operation, controllable start-stop buffer, and is equipped with a precise limit device, which can accurately complete the lifting, landing, alignment, and stacking operations of 10 tons of materials without shaking or offset, greatly improving the accuracy and efficiency of outdoor material organization and loading and unloading operations, and adapting to the normalized hoisting needs of various materials such as steel, building materials, and wood.
Heavy-Duty Travel System
The outdoor stacking site is mostly gravel and hardened ground, with limited flatness, and long-term heavy-duty walking pressure, which requires extremely high load-bearing, wear-resistant and stability of the equipment walking system.The 10t single girder outdoor gantry cranes is equipped with a heavy-duty integrated walking mechanism and adopts a three-in-one geared motor direct drive design. It has high transmission efficiency, sufficient power and low operating noise, which can meet high-frequency and long-distance outdoor round-trip walking operations.
The walking wheels of 10t single girder outdoor gantry cranes are made of high-strength wear-resistant cast steel with high hardness, rolling resistance and wear resistance. They are suitable for outdoor uneven roads and long-term heavy-duty walking conditions, and are not easy to deform and damage.The entire walking system has undergone intensive heavy-duty testing, with excellent impact resistance and fatigue resistance. It can adapt to the complex working conditions of frequent start and stop in the yard, heavy-duty walking, and open-air exposure to rain, so as to eliminate problems such as walking caton, deviation, and excessive wheel wear, and greatly extend the service life of equipment walking parts and reduce the frequency of late maintenance and replacement.
Stable Rail Operation
The stability of the track system is the basis for the safe operation of outdoor gantry cranes. In view of outdoor high winds, ground settlement, temperature difference deformation and other issues, 10t single girder outdoor gantry cranes are equipped with a standardized outdoor dedicated track operation system, which is suitable for 24-38kg/m industrial dedicated track. The load-bearing, flatness and deformation resistance of the track fully match the requirements of 10 tons of heavy-duty operations.
The track installation adopts precise calibration technology, with special track pressure plates and fixed accessories, which can effectively resist the shaking of equipment and track offset caused by outdoor windy weather, and at the same time avoid the thermal expansion and contraction deformation of the track caused by changes in temperature difference.The whole machine has a high degree of fit between walking and track, and runs smoothly without shaking, deviation, and rail gnawing. Even in high winds and heavy-duty operations, it can still maintain the stable operation of the whole machine.A stable track operation system not only guarantees the safety of operations, but also reduces the wear and tear of wheels and tracks, reduces equipment loss and operation and maintenance costs, and improves the overall operating stability and service life of the equipment.
10t Gantry Crane Applications in Stockyards
Henan Mine Crane manufactured 10t single girder outdoor gantry cranes with moderate load, strong adaptability, good weather resistance, and outstanding cost performance. It is perfectly adapted to the material transfer, stacking, loading, unloading and shipping operations of various industrial open-air depots. It is widely used in mainstream scenarios such as steel storage, concrete building materials, wood depots, and truck loading and unloading. It is the core equipment for standardized operations in small and medium-tonnage depots, which can comprehensively improve the level of yard automation and efficient operation.
Steel Storage
Most of the materials in the steel yard are heavy-duty materials such as steel profiles, steel pipes, steel plates, and steel bars. The weight of a single batch is mostly concentrated at 5-10 tons, which just matches the rated load of this model.In the steel storage scenario, 10t single girder outdoor gantry cranes can efficiently complete steel warehousing stacking, regular palletizing, outbound hoisting, material shifting and other operations, replacing traditional manual forklifts and simple hoisting equipment, greatly improving the regularity of stacking and operating efficiency.
The operation of the equipment is stable and the alignment is accurate, which can realize the layered and orderly stacking of steel, maximize the use of storage site space, and increase the storage capacity of the yard.At the same time, the outdoor weather-resistant configuration can be adapted to the needs of open-air storage and all-weather operation of steel depots, without fear of wind, rain and dust, and to ensure the continuity of steel storage and turnover. It is the standard lifting equipment for steel trading, steel processing, warehousing and logistics enterprise depots.
Concrete Materials
The concrete building materials yard contains materials such as cement prefabricated parts, concrete blocks, sand and gravel packages, roadside stones, and prefabricated components. Such materials have uniform weight, concentrated stacking, and high transportation frequency, which require high stability, continuity, and safety of lifting equipment.The 10t single girder outdoor gantry cranes can be perfectly adapted to the hoisting, stacking, and transshipment operations of such materials to meet the normalized production needs of construction sites, depots, and building materials factories.
In view of the characteristics of high hardness and easy collision of concrete materials, Henan Mine Crane manufactured 10t single girder outdoor gantry cranes start-stop buffer design can effectively avoid shaking and collision during material hoisting and reduce material damage and loss.At the same time, the equipment can operate in the open air around the clock, does not rely on closed factories, adapts to the flexible operation needs of temporary depots on construction sites and open-air storage sites for building materials, and helps building materials enterprises and infrastructure construction sites to achieve efficient material turnover and ensure construction and production progress.
Timber Staging
The logs, plates, square wood and other materials in wood yards and wood processing sites are large in size, long in length, and moderate in weight. It is difficult for conventional heavy-duty equipment to adapt to long material hoisting, and the 10t single girder outdoor gantry cranes have the advantages of large span and wide operating field of view. It is perfectly adapted to wood stacking staging operations.The equipment can easily complete the work of incoming hoisting of logs, layered palletizing of plates, regular stacking of finished wood, and material shifting and transportation.
The equipment is lightweight and has a wide operating range. It will not cause rolling damage to the ground of the wood pile. At the same time, the simple fuselage structure will not block the line of sight of the operation, and the operator can accurately control the hoisting position to avoid long wood bumps and scattered.The outdoor weather resistance can be adapted to the open-air operating environment of forest areas and timber factories, resist the erosion of wind, sand and rain, ensure the stable operation of the wood yard all year round, and greatly improve the turnover efficiency of wood storage and processing.
Truck Loading
Truck loading and unloading is the most core high-frequency operation scenario of various depots. The 10t single girder outdoor gantry cranes can cover the loading and unloading needs of various yard materials, and are suitable for the rapid loading and unloading of steel, building materials, wood, and heavy materials.Compared with forklifts and mobile hoisting equipment, this model has a larger operating radius, more stable load, and higher efficiency. It can realize a single batch of material loading and unloading, greatly shorten the truck residence time, and improve the efficiency of yard logistics turnover.
Henan Mine Crane manufactured 10t single girder outdoor gantry cranes can walk along the track throughout the operation, covering the entire loading and unloading area of the yard, without frequent movement of equipment, and are suitable for continuous loading and unloading operations of multiple trucks.The precise lifting and alignment functions can realize smooth loading and orderly placement of materials, and avoid problems such as tilting, damage, and overload of materials.Whether it is the daily shipment of the yard, the unloading of incoming materials, or the temporary logistics transfer, it can be efficiently adapted, comprehensively reduce the cost of manual loading and unloading, and improve the overall operating efficiency of the yard.
10t Single Girder Gantry Crane Cost Factors
When an enterprise purchases 10t single girder outdoor gantry cranes, the equipment quotation is not fixed and unified. It is affected by the four core factors of structure span, core accessories, site matching, installation, operation and maintenance, and the price range varies greatly.A clear understanding of the various cost influencing factors can help companies accurately control their budgets, select models on demand, avoid premiums, and choose equipment solutions that are suitable for their own yard conditions and are cost-effective.
Structure and Span
The structure of the fuselage and the operating span are the core factors that determine the basic cost of the equipment.The conventional span of the standard 10t single girder gantry crane is 12-30 meters. The larger the span, the higher the length of the main beam, the amount of material used, and the cost of structural reinforcement technology, and the overall quotation of single girder outdoor gantry cranes will increase.Conventional 16-22 meter standard span equipment is the most cost-effective and is the mainstream choice for most small and medium-sized depots. The span exceeds the standard range and needs to be customized for production, and the cost will increase significantly.
At the same time, the fuselage structure material and lifting height of the 10t single girder outdoor gantry cranes will also affect the cost. Ordinary Q235B carbon steel material is the standard configuration, and the cost is moderate.If the high-toughness and high-strength Q345B material is required to be adapted to heavy-duty and strong wind conditions, the cost will rise slightly.The higher the lifting height, the higher the demand for reinforcement of the main beam and outriggers, and the simultaneous increase in equipment cost.In addition, the differences in the selection of flower stand and box structures will also bring about fluctuations in basic costs. Enterprises can choose according to the site span and operating height on demand, and strictly control the procurement budget.
Hoist and Electricals
The lifting hoist and electrical system are the core value-added components of the equipment, which directly affect the performance, durability and procurement costs of the equipment.The basic standard is equipped with outdoor electric hoists and ordinary standard electrical accessories, which can meet conventional open-air yard operations with the lowest cost and adapt to basic working conditions with limited budgets.If an enterprise needs a frequency conversion hoist, a low-noise energy-saving hoist, and a high-precision limit hoist, the stability and accuracy of the operation can be improved, but the cost of purchasing accessories will increase accordingly.
In terms of electrical systems, ordinary domestic standard electrical accessories are cost-effective, versatile, and convenient after-sales.If the brand frequency conversion electrical system, intelligent remote control system, automatic limit protection system, and remote monitoring operation and maintenance system are selected, the intelligent operation of the equipment, lower failure rate, and longer service life can be realized. It is suitable for high-frequency, high-load, and high-demand yard operations, but the overall equipment cost will be significantly increased.The brand, function, and protection level of accessories are one of the key factors that open the price gap between equipment.
Foundation and Rails
Site foundation and track matching are important hidden costs for equipment landing, which can easily be ignored by enterprises.In terms of track, the 24-30kg/m light track is adapted to standard conventional working conditions, and the procurement and laying costs are low.32-38kg/m heavy-duty track has stronger load-bearing and more durable, is suitable for high-frequency heavy-duty and windy conditions, and has higher laying costs.The length, material, and laying process of the track directly determine the level of supporting costs.
The site foundation is divided into simple foundation and standard foundation. The conventional pile site has good surface conditions. The simple foundation of gravel ballasts and sleepers can meet the operating needs of the equipment, and the civil construction cost is extremely low.If the ground of the site is soft, the risk of sedimentation is high, or long-term high-load operations require reinforced concrete hardened foundation and load-bearing reinforcement treatment, the cost of civil construction will increase significantly.The adaptation plan of the track and the foundation needs to be combined with the site working conditions and operation frequency planning to avoid excessive investment or non-compliance with the foundation affecting the operation of the equipment.
Installation and Operation
The installation, commissioning, transportation and post-operation and maintenance operating costs of 10t single girder outdoor gantry cranes are an important part of the whole life cycle cost.The installation cost is affected by the site conditions, construction difficulty, and construction period requirements. The site is flat, the transportation is convenient, the installation and construction are simple, and the labor and machinery costs are low.The site is remote, the ground is complex, and the construction needs to be expedited at night, and the installation cost will rise accordingly.At the same time, long-distance equipment transportation, on-site commissioning, and acceptance services will also generate corresponding supporting costs.
At the operational level, the equipment configuration directly determines the later operation and maintenance costs. The standard basic configuration equipment accessories are universal, the maintenance is simple, the energy consumption is moderate, and the long-term operating costs are low.The early investment in intelligent frequency conversion and high-configuration equipment is high, but the energy consumption is lower, the failure rate is lower, the downtime loss is small, and the long-term operation and maintenance are more cost-effective.In addition, the charging standards for manufacturers' after-sales warranty services, on-site repairs, and parts replacement will also affect the long-term cost of equipment. The initial investment and long-term operating costs of equipment need to be considered comprehensively when selecting models.
Henan Mine Crane Factory Custom
With a full range of cost advantages, professional outdoor weather-resistant configuration, and extensive yard scene adaptability, 10t single girder outdoor gantry cranes has become a cost-effective benchmark equipment for industrial yard stacking, transshipment, and loading and unloading operations.Whether it is a small industrial yard or a medium-sized standardized storage site, this model can solve the pain points of outdoor lifting operations with the advantages of low investment, low operation and maintenance, high efficiency and high stability.Accurately controlling the influencing factors of equipment cost and matching the configuration of working conditions on demand can help enterprises maximize the value of equipment, help the yard reduce costs and increase efficiency, and normalize and stabilize production.
As a professional crane manufacturer, Henan Mine Crane Factory supply 10t single girder outdoor gantry cranes are specially tailored for all kinds of open-air yard working conditions, taking into account durability and high cost performance, without high civil construction investment, easy installation, worry-free operation and maintenance.The equipment is suitable for steel, wood, building materials stacking and truck loading and unloading operations, and is weather-resistant and stable in operation.Direct sales from the source factory, no middleman premium, and the span and configuration can be customized on demand to help enterprises easily reduce costs and put into production efficiently.
