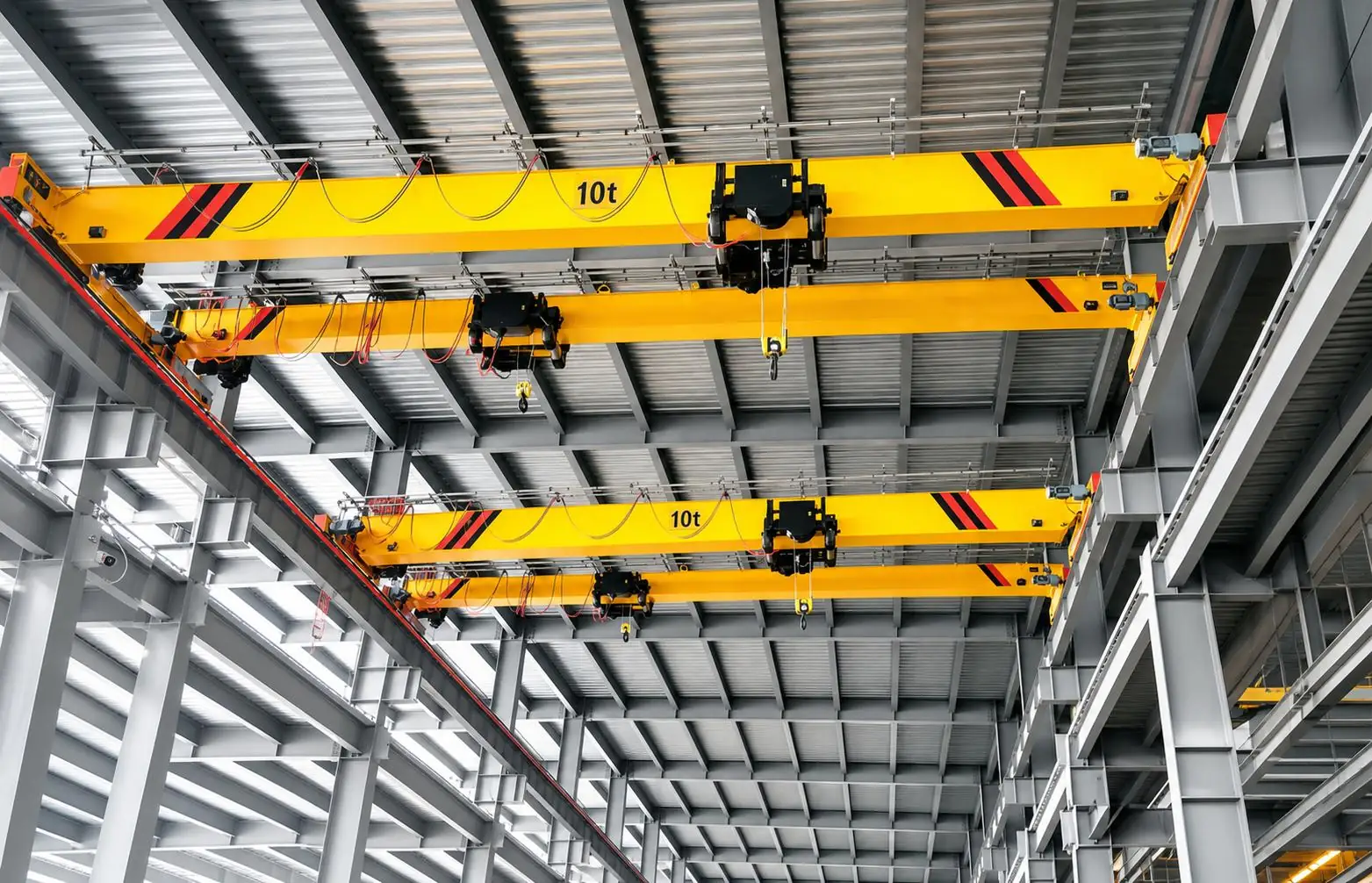

How to Determine the Ideal Wheel Load for Overhead Crane Runway Design

In the track design of bridge cranes, wheel pressure is the core parameter of the load-bearing design of steel beams, rails, brackets and plant buildings, and its calculation accuracy directly affects the safety of equipment operation, service life and project compliance.Common faults such as track wear, structural deformation cracking, brake slippage, etc. are mainly due to inaccurate wheel pressure values, missing dynamic loads and extreme working conditions.

This article will comprehensively disassemble the definition of wheel pressure of bridge cranes, core influencing factors, standard calculation methods, practical cases, common design misunderstandings and data verification schemes to help engineering designers accurately determine the ideal wheel pressure for the project and complete the design of a compliant, safe and economical crane runway system.

What Is Wheel Load in an Overhead Crane

The wheel pressure of the bridge crane wheel refers to the concentrated pressure of the crane wheel acting vertically on the runway track. It is the vertical concentrated load transmitted by the wheel to the track, steel beam, support column and building structure.Regardless of the crane's static standby, no-load driving, heavy-duty take-off and landing, each wheel will continue to exert pressure on the track. This value is the basic raw data for all runway structural mechanics calculations and component selection.

In engineering design, two types of wheel pressure values must be strictly distinguished. The uses of the two are very different and cannot be mixed：

• Static wheel pressure: The wheel pressure calculated only based on the gravity load, including the crane's own weight, the trolley hoist's own weight, and the rated lifting load, does not consider the dynamic impact effect during operation, take-off and landing, and is only used for basic load distribution analysis.
• Dynamic/design wheel pressure: On the basis of static wheel pressure, the values obtained by superimposing the impact coefficient and dynamic load coefficient required by the specification are the only compliance values for crane runway structure design and component selection.

The difference between maximum wheel pressure and minimum wheel pressure

• The operating conditions of the crane change dynamically, and the wheel pressure is not a fixed value. The core is divided into the maximum wheel pressure and the minimum wheel pressure. The two are indispensable to jointly ensure the integrity of the runway design.：
• Maximum wheel pressure: When the crane is fully loaded and the trolley is traveling to the limit near-rail position on one side of the bridge, the limit pressure on the wheels of the near-side end beam.This value is the control condition of the bending resistance, shear resistance, track selection, and column bracket structure design of the runway steel beam, which determines the maximum carrying capacity of the structure.
• Minimum wheel pressure: The minimum pressure of the wheels of the opposite end beam when the crane is no-load and the trolley is in the limit position at the far end of the bridge.This value is mainly used to verify the anti-skid performance of the wheels when the crane's walking mechanism starts, stops and brakes, and at the same time to guide the design of the anti-pull and anti-side force of the track pressure plate and fasteners.

Only accounting for the maximum wheel pressure will ignore the hidden dangers of non-slip operation of the equipment. Only referring to the minimum wheel pressure cannot guarantee the safety of the structure, and two-way verification can cover the operating requirements of all working conditions.

The core influence of wheel pressure on runway design

Wheel pressure is the core basis of the design of the crane runway system, which directly determines the performance indicators of the structure. The specific impact dimensions are as follows：

• Mechanical properties of runway steel beams: the size and position of the wheel pressure directly control the maximum bending moment and shear force of the steel beam, and at the same time limit the deflection deformation range of the steel beam to avoid bending and sagging deformation during long-term operation.
• Track and wheel contact stress: centralized wheel pressure determines the track model and cross-section specifications, which affects the contact wear rate between the wheel and the track, and avoids the problems of track collapse and excessive wheel wear caused by local stress overload.
• The force of the column and the bracket: The wheel pressure is transmitted to the column and the connecting bracket through the runway steel beam, which directly determines the cross-section, weld specifications and connection method of the bracket to ensure the carrying stability of the node.
• The main load of the building: the complete force transmission path from the wheels, rails, steel beams, and columns to the foundation, the source of the core load is wheel pressure, which is the key parameter for the load-bearing verification of the plant structure.
• Structural fatigue durability: The crane runs thousands of times a day, and repeated wheel pressure will produce continuous stress cycles. Accurate wheel pressure values can avoid fatigue damage to runway steel beams, welds, and connectors, and ensure long-term reliable operation of the equipment.

Key Factors That Determine Overhead Crane Wheel Load

Crane wheel pressure is not determined by a single parameter, but the result of the combination of equipment parameters, structural layout, operating conditions, and dynamic effects. A single reference rated lifting weight is prone to design deviations.

Crane rated lifting weight

The rated lifting weight is the most intuitive parameter that affects the wheel pressure. The greater the lifting weight, the greater the vertical load, and the higher the wheel pressure value.However, it is impossible to determine the true wheel pressure by relying only on the rated lifting weight. Parameters such as crane weight, trolley position, and wheel track layout often significantly change the final wheel pressure value. This is the most common cognitive misunderstanding in industry design.

Crane self-weight load

Crane self-weight is the core component of wheel pressure. In small and medium-tonnage cranes, the self-weight load is even close to or exceeds the rated lifting load. The core contains four major modules：

• The weight of the main beam of the bridge frame: The core load-bearing steel structure connecting the end beams at both ends is the main force-bearing body of the crane.；
• End beam assembly self-weight: the support structure assembly at both ends of the crane integrates core operating components such as walking wheels and driving mechanisms.；
• The weight of the trolley and the hoist: the weight of the movable operation assembly of the whole machine, including the trolley frame, lifting mechanism, reel, drive motor, wire rope and other complete set of moving components；
• Electrical and ancillary accessories: the weight of the attached equipment supporting the whole machine, covering cable carts, electric control cabinets, maintenance walkways, safety protection components and other ancillary devices.

The operating position of the trolley and the hoist

The position of the trolley along the bridge is the key dynamic factor that changes the wheel pressure distribution.When the trolley is in the middle of the bridge span, the load is evenly distributed to the wheels at both ends, the wheel pressure value is the smallest and the distribution is balanced；

When the trolley travels to the minimum near-rail distance on one side (the limit is close to the runway position), most of the load is concentrated on the wheels of the near-side end beam, resulting in the maximum wheel pressure in the whole field. This is also the limit working condition that must be used in runway design.

Crane span and end beam wheel track

The span of the crane and the wheel track of the end beam directly affect the load distribution ratio.The larger the span and the smaller the distance between the near-track of the trolley, the more obvious the load concentration effect of the near-side wheels; the wheel track of the end beam determines the load distribution ratio of each wheel inside the single-end beam.The design calculation must use the accurate measured size provided by the manufacturer, and the estimated value will cause a significant deviation in the wheel pressure calculation.

Number and arrangement of wheels

The wheel configuration of different tonnage cranes varies significantly, and the load is not simply evenly distributed：

• Small and medium-sized cranes: generally adopt two-wheeled end beams and four-wheeled layout of the whole machine, with simple and stable structure, uniform load distribution, and suitable for conventional light and intermediate frequency operating conditions.；
• Large-tonnage crane: equipped with four-wheeled and above multi-wheeled end beams, with balanced beam balanced structure, it can effectively disperse and concentrate wheel pressure, reduce single-point track and structural load, and meet the needs of heavy-duty operations.

It should be emphasized that the balanced beam structure is only an optimization scheme for load sharing. It is affected by processing tolerances, track flatness, and structural deformation. The loads of each wheel cannot be completely equal. It is strictly prohibited to directly divide the total load by the number of wheels to calculate the wheel pressure of a single wheel. The real load distribution must be verified in combination with the actual layout.

Dynamic impact and operating conditions

Crane start-stop, rapid take-off and landing, load swing and other working conditions will produce dynamic impact, far exceeding static gravity load, which is the core variable that must be considered in the design of wheel pressure：

• The horizontal impact load generated by the start-stop and braking process of the crane's walking mechanism；
• Vertical dynamic amplification load caused by rapid lifting of heavy objects；
• The instantaneous impact load generated by the load swing and sudden lifting during the operation.
• According to industry specifications, the impact coefficient is usually between 10% and 25%. The high value (25%) is taken for cab and hand-operated cranes, and the low value (10%) is taken for ground-operated cranes. The specific value must strictly follow the corresponding design standards and project specifications.

Basic Formula for Calculating Maximum Wheel Load

Total vertical load accounting

The total vertical load is the basis for the calculation of wheel pressure. The complete calculation formula is as follows：

Total vertical load = crane weight + trolley hoist weight + rated lifting load

Calculation priority: Priority is given to the use of certified measured data provided by the equipment manufacturer, and it is strictly prohibited to use samples to estimate the weight to avoid excessive deviation from the actual completion parameters of the equipment, resulting in design failure.

Principle of calculation of reaction force of wheel support

In the engineering calculation, the crane bridge frame is simplified to a simple support beam structure, with the end beams at both ends as support supports.Through the principle of torque balance, according to the limit position of the trolley, the total reaction force of the support at both ends of the end beam is calculated, and then combined with the wheel arrangement of the end beam, the total reaction force of the end beam is apportioned to a single wheel, and the static wheel pressure of a single wheel is obtained.

Standard calculation steps for maximum wheel pressure

The following is the general standardized wheel pressure calculation process for bridge crane runway engineering, which is suitable for most project design scenarios, the process is rigorous and standardized, and it fully meets the requirements of industry design standards.：

1. Calculate the fixed weight of the crane, count the load of the fixed structure such as the main beam, end beam, electrical system, and operation room, exclude the weight of the moving components, and consolidate the basic data for wheel pressure calculation.
2. Counting the mobile load of equipment, including the weight of moving parts such as trolleys, electric hoists, hooks, wire ropes, pulley blocks, etc., fully covers the variable load unit to ensure that the load statistics are complete and correct.
3. Superimpose the rated maximum lifting load, integrate the fixed weight, mobile weight and rated lifting weight, determine the reference for the total vertical load of the whole machine, and match the rated operating conditions of the equipment.
4. In accordance with the safety design principle, select the most unfavorable limit working conditions, park the trolley in the one-sided limit near-rail position, simulate the maximum eccentric force state, and meet the structural safety verification standards.
5. According to the principle of torque balance, combined with the load distribution and eccentricity parameters, the reaction force of the end beam support is accurately calculated, which provides the core calculation basis for the pressure distribution of a single wheel.
6. According to the number and arrangement of the end beam wheels, the total reaction force of the support is apportioned, and the maximum static wheel pressure of a single wheel for equipment operation is calculated.
7. According to current industry specifications, combined with dynamic working conditions such as equipment start-stop and brake impact, the impact coefficient is introduced to correct the static wheel pressure, and the design wheel pressure value available for compliance is obtained, which is used for the selection of tracks, steel beams, brackets and load-bearing structures of factories.

Worked Example: Calculating Maximum Wheel Load

In order to facilitate the landing of the project, taking a common 20-ton bridge crane as an example, the whole process of wheel pressure calculation is fully demonstrated, and the influence of the position of the trolley on the wheel pressure is intuitively reflected.

Basic equipment parameters

Step-by-step calculation process

Step 1: Split fixed load and mobile load

Fixed weight of bridge frame and end beam = 32500kg-8000kg = 25000kg

Total ultimate mobile load (trolley + full load) = 8000kg + 20000kg = 28000kg

Step 2: Calculation of static maximum wheel pressure under extreme working conditions

Fixed load single wheel equal weight = 25000kg ÷ 4 = 6250kg

Moving load, distribution weight of the wheels on the near side of the load = 28000×(22.5-1.5)÷(2×22.5) = 13067kg

Static maximum wheel pressure = 6250kg + 13067kg = 19317kg

Step 3: Static minimum wheel pressure calculation

Moving load, the weight of the far wheel is distributed = 28000×1.5÷(2×22.5) = 933kg

Static minimum wheel pressure = 6250kg + 933kg = 7183kg

Step 4: Superimpose the dynamic impact coefficient to obtain the design wheel pressure

Design maximum wheel pressure = 19317kg × 1.25 ≈ 24146kg (about 237kN)

Comparison of the influence of trolley position on wheel pressure

When the trolley is in the straddle position, the load is evenly distributed, and the static wheel pressure of a single wheel is only 13250kg; when the trolley is in the extreme near-rail position, the maximum wheel pressure is increased by 46%.It can be seen that ignoring the limit working conditions and calculating the wheel pressure only according to the centered position will directly lead to the runway structure design is seriously too small, laying safety risks.

Static Wheel Load vs. Design Wheel Load

Static wheel pressure

Static wheel pressure is the pure gravity pressure generated by the equipment only by its own weight and rated load under ideal static working conditions, and does not include any dynamic additional effects such as start-stop, take-off and landing, and load swing.This value is only used to assist in the analysis of the basic load distribution law, and is only used as a reference for design accounting. It cannot be directly used for engineering structure bearing design.

Dynamic design wheel pressure

The dynamic design wheel pressure is based on the static wheel pressure and is calculated by superimposing the dynamic impact coefficient generated by the real working conditions such as crane start-stop braking, heavy lifting, and load swing. It is the core control parameter of runway structure design.

The crane runway belongs to a special industrial load-bearing structure. The force conditions are complex and the cyclic loads are frequent. The engineering design must be checked by the dynamically corrected design wheel pressure. It is strictly prohibited to directly apply the static wheel pressure value to avoid the structural design is biased towards unsafe.

Complete design load combination

The complete design of the crane runway system does not only account for the vertical wheel pressure, but also needs to be combined with the multi-dimensional load conditions for a combination check to fully cover the real operating force state of the equipment. The core load types are as follows：

• Vertical load: The design wheel pressure obtained based on the correction of the impact coefficient of the static wheel pressure superposition specification is the core design load that controls the vertical bearing of the runway structure and the selection of components.；
• Horizontal horizontal load: the lateral thrust generated during the partial load operation of the crane trolley and the takeoff and landing of heavy objects, according to the CMAA industry specification, the value is 20% of the total moving load%；
• Longitudinal horizontal load: the longitudinal traction resistance generated by the crane's walking start-stop and braking conditions shall follow the AISC design specifications, and the value shall be 10% of the maximum design wheel pressure.%；
• Additional environmental loads: For cranes under outdoor working conditions, additional loads caused by environmental factors such as wind load and temperature deformation stress need to be included to ensure the operating stability of open-air equipment.
• Design key reminder: All kinds of load coefficients need to strictly match the corresponding industry specifications and working conditions of the project, and it is strictly forbidden to directly apply general fixed coefficients to eliminate load accounting deviations and ensure accurate compliance with runway structure design.

How Wheel Load Affects Overhead Crane Runway Design

Runway steel beam selection

Wheel pressure is the core basis for the cross-section selection of steel beams. Four key indicators need to be verified in all directions: maximum bending moment, ultimate shear bearing capacity, specification-defined deflection deformation, and local compressive stress on the flange and web to ensure that the steel beam has no deformation, no cracking, and no risk of failure under extreme wheel pressure conditions.

Track specification selection

The size of the wheel pressure directly determines the track model (43kg/m, 60kg/m and other commonly used specifications), and at the same time affects the contact stress and wear rate of the wheel and the track.In addition, the wheel pressure distribution law can guide track leveling, alignment and fastener selection to avoid track offset and local pressure loss caused by partial load.

Column and bracket design

The runway bracket and column need to withstand vertical wheel pressure and horizontal lateral and longitudinal forces at the same time.The hidden dangers of most old projects stem from the fact that only the vertical load is calculated and the horizontal force is ignored, which leads to cracking of the bracket welds, loosening of bolts, and structural offset. The accuracy of the wheel pressure value directly determines the reliability of the node connection.

Structural fatigue design

Cranes are high-frequency circulating operating equipment, and tens of thousands of wheel pressure cycles occur every day, which will continue to produce alternating stress.Combined with the working level of the equipment (CMAA A-F level, FEM/ISO level), according to the wheel pressure extreme value and stress interval, the fatigue life of steel beams, rails, and welds can be accurately calculated to ensure the long-term stable operation of the equipment.

Common Mistakes When Determining Crane Wheel Load

Combining a large number of construction sites and structural verification cases, the following are the most common and typical misunderstandings in crane wheel pressure calculation and runway design that are most likely to cause safety hazards. The design stage needs to focus on avoiding：

1. The wheel pressure is determined only by the rated lifting weight: the tonnage of the equipment is used as the basis for the wheel pressure value on one side, ignoring the key influencing factors such as the weight of the whole machine and the eccentric position of the trolley, resulting in the calculated value of the wheel pressure is too small, and the structural design reserves are insufficient.；
2. By default, the load of each wheel is evenly distributed: ignoring the ultra-static characteristics of the crane structure, equipment processing tolerances and track installation deviations, the total load is simply evenly divided, resulting in distortion in the calculation of wheel pressure distribution.；
3. Ignore the weight load of the trolley and the hoist: the trolley, hoist and hook assembly are key mobile loads, which account for a higher proportion of the weight. If the statistics are missed, the design load value will be greatly reduced, and the hidden dangers of structural carrying will be buried.；
4. Omit the correction of dynamic impact effect: pure static load is directly used for structural design, and the dynamic impact effects of equipment start and stop, heavy object take-off and landing, and load swing are not considered, which is seriously inconsistent with the actual operating conditions.；
5. The most unfavorable working conditions of the near-rail limit of the trolley are not checked: the wheel pressure is calculated only according to the center-centered working conditions of the trolley, ignoring the increase in wheel pressure of more than 40% under the eccentric limit working conditions, which cannot meet the design requirements of the limit bearing.；
6. Only calculate the vertical wheel pressure and ignore the horizontal load: Only the vertical load is considered in the design, and the horizontal load such as the lateral force and the longitudinal braking force is missed, resulting in insufficient node connection and track fastener selection, which is prone to loosening, cracking and failure.；
7. Apply old parameters and general empirical coefficients: directly follow the old sample parameters and general fixed coefficients. The measured data of the completion of the equipment has not been checked, and the corresponding design specifications of the project have not been matched, and the calculation accuracy cannot be guaranteed.；
8. Focus on ultimate strength, ignore fatigue and deformation control: only check the ultimate bearing capacity of the structure, ignore the high-frequency cycle operation characteristics of the crane, and do not verify the fatigue life of the structure and the standard deflection limit, long-term operation is prone to fatigue damage, structural deformation exceeds the standard problem.

How to Verify Manufacturer Wheel Load Data

The wheel pressure parameters issued by the crane manufacturer cannot be directly copied for design. They must be independently reviewed and verified in accordance with the actual working conditions of the project to avoid design problems such as parameter deviation and mismatch of working conditions. The standardized verification process is as follows：

1. Clarify the type of parameters: request the formal parameter documents of the maximum and minimum wheel pressure of the equipment from the manufacturer in writing, and clearly identify whether the data is pure static wheel pressure or a compliance design wheel pressure with superimposed impact coefficients to prevent parameter mixing.；
2. Independent accounting comparison: Relying on the standardized wheel pressure calculation method of this paper, combined with the independent calculation of project equipment parameters, the self-developed calculation results are cross-compared with the nominal data of the manufacturer to check the rationality of the value；
3. Verification and calculation prerequisites: Verify the core assumptions calculated by the manufacturer one by one, including key parameters such as the limit eccentric position of the trolley, the rated operating load, and the value of the equipment's own weight, to ensure that the calculated working conditions are in line with the actual situation on the site.；
4. Matching equipment working conditions: confirm that the wheel pressure parameters issued are adapted to the actual configuration and working level of the equipment, exclude the data of the general model model, and avoid mismatches between the parameters and the on-site equipment.；
5. Perfect technical archiving: complete retention of technical data such as wheel pressure calculation book, equipment general drawing, parameter verification records, etc., to form a complete design ledger for project completion acceptance and later equipment operation and maintenance, transformation and verification.

Conclusion

Wheel pressure is the core parameter of the runway and structure verification of bridge cranes, which directly determines the safety of equipment and plant operation.Accurate wheel pressure calculation needs to integrate self-weight, lifting, partial load, dynamic impact and working level, and check according to specifications, not only with reference to the rated lifting weight.

During the procurement phase of the new plant and equipment, the maximum wheel pressure and distribution parameters are accurately approved, which can optimize the load-bearing design of the runway beam, track and plant, effectively avoid hidden dangers such as track wear, structural deformation, fatigue cracking, etc., and reduce the cost of late-stage transformation and reinforcement. Heavy-duty, high-frequency and multi-machine operating conditions are particularly critical.
