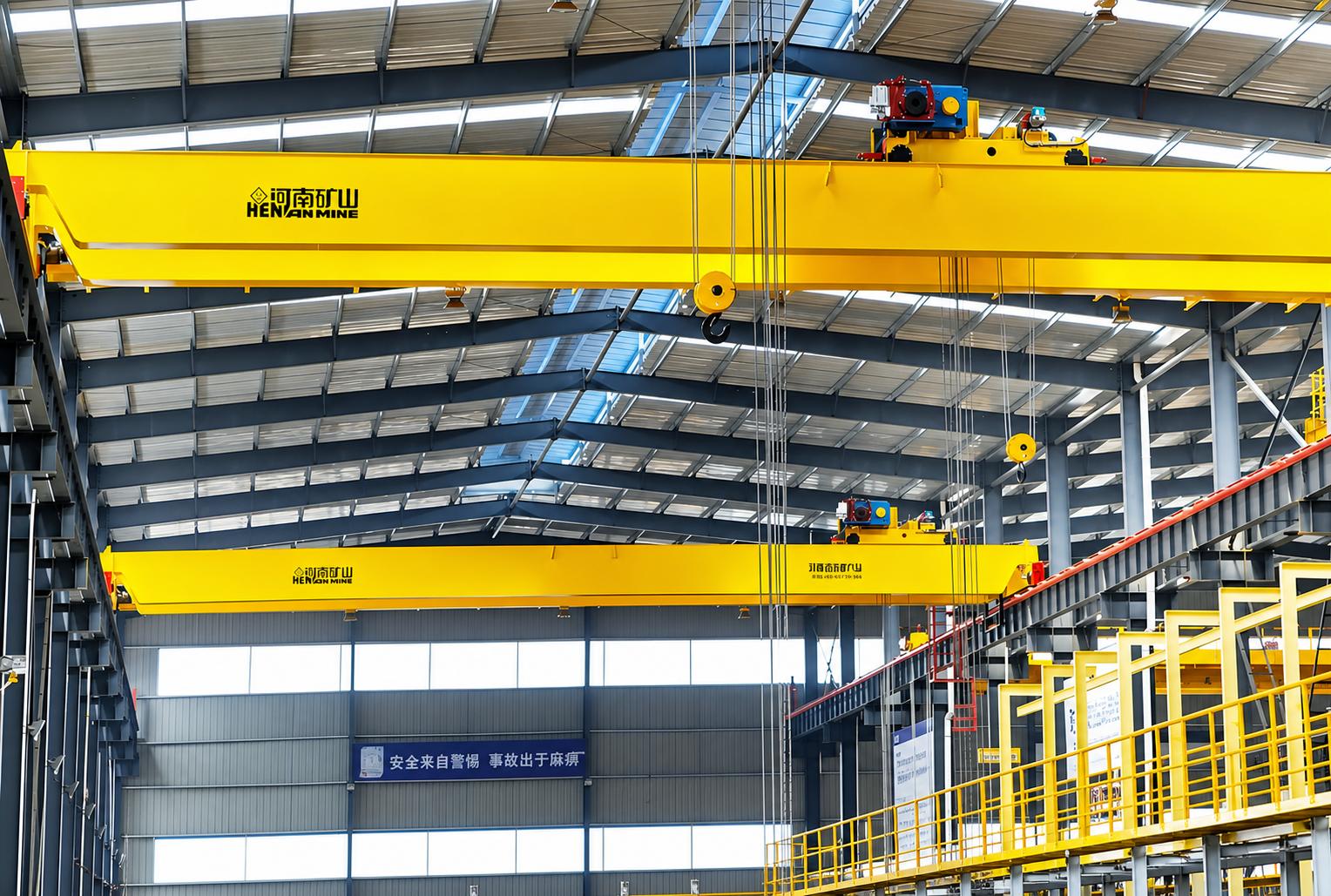

200t Ultra-Heavy Overhead Cranes Megaproject Crane Systems with Custom Spreader Beams
The 100-ton high-precision heavy-duty hoisting scenarios in heavy industries such as large-scale infrastructure, shipbuilding, iron and steel metallurgy, electric power and energy have put forward strict requirements for the performance of lifting bridge cranes, and conventional lifting bridge cranes are no longer able to adapt to the needs of complex working conditions.The 200-ton super-heavy bridge crane is suitable for high-frequency, high-load, and high-stability hoisting operations. It relies on a reinforced load-bearing structure and an exclusive customized beam system to effectively solve industry problems such as uneven lifting force, load offset, and poor stability. It is the core main equipment for the transfer of heavy-duty components and the installation of bridge cranes for various large-scale heavy-industry projects.
200t Overhead Crane Specifications for Ultra-Heavy Lifting
Lifting capacity and load control
The 200-ton super-heavy bridge crane adopts the industry standard rated load design, and the rated lifting weight of the main hook can reach 200t. It can be equipped with 32t and 50t auxiliary hooks as needed, taking into account the main lifting of overweight and large parts and the auxiliary lifting of small and medium-sized components, and is suitable for multi-scene composite operation needs.The bridge crane strictly follows the GB/T 3811-2025 lifting machinery design specifications and is equipped with an intelligent load control system that supports real-time load acquisition, precise counterweight adjustment and dynamic load limit.The system can automatically identify the load fluctuations in the hoisting process, and make intelligent corrections for eccentric force and dynamic impact loads to eliminate the risk of overload and partial load operations.Compared with traditional lifting bridge cranes, its load control accuracy is increased by more than 90%, and it can achieve smooth start and stop of heavy objects of 100 tons without impact displacement, which is perfectly adapted to the lifting protection needs of large precision heavy-duty components.
Span and lifting height
In order to adapt to the large-space operation scenarios of large-scale factories, shipyards, and steel mills, the span of the 200t super-heavy bridge crane supports customized design from 10m to 35m. The commonly used spans for mainstream projects are 24m, 28m, 32m, and 36m, which can fully cover the space layout requirements of various heavy industry workshops and open-air work areas.The effective lifting height range of the bridge crane is 6m-30m. The main trolley and the auxiliary trolley can realize differentiated lifting height configuration, and the maximum lifting operation can be achieved at 24m ultra-high, which meets the requirements of high-level installation of large bridge cranes and stacking and transporting of heavy components.All spans and lifting heights can be non-standard customized according to the size of the customer's site, the installation height of the bridge crane, and the operating process to maximize the use of operating space, avoid the operating blind spots caused by the height and span restrictions of the site, and adapt to the site working conditions of various large and medium-sized super projects.
Hoisting and travel speed
The core pain point of heavy-duty operations lies in the balance between speed and stability. The 200t super-heavy bridge crane adopts a graded adjustable operating speed design to completely solve the problem of heavy-duty start-stop shaking and large displacement deviation.The lifting speed range of the bridge crane is 0.5-10m/min, which automatically rises steadily at low speed under heavy load, and can run at high speed under no load, taking into account operation safety and construction efficiency.The operating speed of the cart is 10-40m/min, and the operating speed of the trolley is 5-30m/min. It supports stepless speed regulation and smooth variable speed throughout the process, without frustration.At the same time, it is equipped with a synchronous operation control system, and the error of multi-agency collaborative operation is ≤0.1mm, which can achieve ultra-long-distance and long-span accurate displacement, effectively improve the accuracy of alignment and installation of large components, and greatly reduce the rework rate of heavy lifting. , Suitable for high-frequency, high-precision, and heavy-duty continuous operation scenarios.
Duty class
In view of the characteristics of the high-frequency, high-intensity and long-term working conditions of super engineering, Henan Mine Crane manufactured 200t ultra heavy bridge crane is equipped with A6-A7 advanced working level as standard, which far exceeds the A3-A5 working condition level of ordinary industrial cranes. It is an exclusive configuration for harsh working conditions such as metallurgy, shipbuilding, and electric power.The A6-A7 heavy-duty working condition level means that the bridge crane can achieve 24-hour uninterrupted continuous operation, withstand harsh working conditions such as high temperature, dust, heavy-duty impact, frequent start and stop, and greatly improve the fatigue strength, wear resistance, and stability of the bridge crane.Compared with ordinary cranes, the service life of the bridge crane is extended by more than 30%, and the failure and shutdown rate is reduced by 60%. It is perfectly adapted to high-intensity operation scenarios such as molten metal transfer in steel workshops, segmented hoisting of large parts in shipyards, and maintenance of heavy-duty bridge cranes in power plants all year round to meet the continuous construction needs of super projects.
200t Overhead Crane Design for Megaprojects
Double-girder structure
The 200-ton super-heavy bridge crane adopts a heavy-duty double-main beam core structure, and some high-end engineering models adopt a four-beam and four-rail double-trolley reinforced structure, which completely subverts the carrying limit of ordinary double-girder cranes.The main beam adopts an integral welded box structure and uses Q420B high-strength alloy steel, which has the core advantages of high strength, high toughness, fatigue resistance and deformation resistance.The symmetrical layout design of the double main beam can evenly disperse the heavy-duty pressure of the 100-ton class, eliminating the problem of uneven force on the single beam and bending and deformation of the main beam.The structure has been optimized by finite element stress analysis, and the bending moment, shear force, and impact force during heavy-duty hoisting are strengthened in all directions. The rigidity of the whole machine is stronger, and the deflection deformation under no-load and heavy-load conditions is controlled within the minimum range of industry standards to ensure the structural stability of long-term high-intensity operations. It is the core structural guarantee of super heavy-duty engineering projects.
Heavy-duty hoisting system
The bridge crane is equipped with a customized heavy-duty lifting system, equipped with a large-diameter high-strength reel, thickened wear-resistant steel wire rope, a heavy-duty reducer and a special brake motor. The complete lifting mechanism has been designed with heavy-duty reinforcement and can withstand long-term impact operations with a rated load of 200t.The wire rope adopts a multi-layer winding and wear-resistant configuration, with anti-slotting and anti-wear protection devices, which greatly improves the service life of lifting accessories.The lifting system adopts hydraulic synchronous lifting technology, multiple lifting points work together, and the synchronization error is strictly controlled within 0.1mm, which can realize the overall smooth lifting of ultra-large components, and avoid the deformation of components and the tilt of hoisting caused by excessive single-point force.At the same time, the mechanism has overload self-locking and power-off protection functions, which can be locked instantly under sudden working conditions to eliminate the risk of heavy objects falling, and is suitable for all kinds of ultra-high-risk heavy-duty hoisting operations.
Load distribution design
In view of the problems of load concentration and local force exceeding that are prone to 100-ton heavy-duty hoisting, the 200t super heavy-duty bridge crane is equipped with a scientific load distribution design.Through the structural logic of symmetrical force on the double main beam, balanced load-bearing at multiple lifting points, and multi-point force transmission of the trolley, the concentrated load is evenly dispersed to the structure of the whole machine and the track foundation to avoid overload damage to the local structure.Cooperating with customized spreader beam, it can convert single-point hoisting loads into multi-point uniform forces, completely solving the problems of uneven force, local deformation, and tilt offset of large planar components and ultra-long and overweight bridge cranes during hoisting, and greatly improving the safety and component integrity of heavy-duty hoisting, especially suitable for precision heavy-duty components, large hull segments, and large steel structure modules. Lifting protection needs.
Structural reinforcement
In order to adapt to the extremely harsh working conditions of the super project, the bridge crane has undergone all-round structural strengthening treatment.The core force components such as the main beam, end beam, and trolley frame are welded with thickened steel plates, and the key welds are tested with non-destructive flaw detection to eliminate welding defects.Heavy-duty special accessories are selected for transmission load-bearing accessories such as walking wheels, bearings, pins, etc. to withstand high-frequency impact loads.At the same time, for special working conditions such as high temperature, dust, humidity, corrosion, etc., the surface of the bridge crane is sandblasted and rust-proof, anti-corrosion spraying treatment, and the core electrical components are equipped with dust-proof, waterproof, and high-temperature protective housings.The deformation, corrosion and fatigue resistance of the whole machine are fully upgraded, and it can adapt to harsh operating environments such as steel mills, shipyards, and outdoor infrastructure for a long time, greatly reducing the operation and maintenance costs of bridge cranes and improving the continuity of engineering construction.
Custom Spreader Beams for 200t Overhead Cranes
Spreader beam capacity
The customized distribution beam is the core supporting system of the 200t super heavy-duty bridge crane. It is specially developed for extreme heavy-duty hoisting of 200 tons. The rated carrying capacity exactly matches the host load, and can stably withstand 200t static load and dynamic impact load. Sufficient safety redundancy coefficient is reserved, which far exceeds the industry's general safety standards.The beam has undergone professional load verification and can be adapted to various complex hoisting conditions such as full load, partial load, dynamic load, etc., to eliminate the risk of deformation, fracture, and instability of the beam.In view of the special lifting needs of oversized parts, the reinforced beam can be upgraded to improve the impact resistance and deformation resistance, and meet the lifting and carrying requirements of ultra-long, ultra-wide, and overweight special-shaped components. It is an indispensable core supporting bridge crane for large-scale heavy-duty precision hoisting.
Beam dimensions
The size of the distribution beam supports 100% non-standard customization, and can be accurately matched according to the length, width, weight, shape and structure of the hoisting components.The beam length interval of the conventional 200t crane is 6m-20m, and the cross-section height and width are optimized according to the carrying stress, taking into account the structural strength and lightweight characteristics, so as to avoid excessive beam weight and increase the load of the bridge crane.All beam sizes are optimized based on finite element simulation calculations, and customized for hoisting scenarios with different spans and different hoisting point spacing, which not only ensures the overall structural rigidity and carrying stability, but also avoids the waste of working space caused by dimensional redundancy, and is perfectly adapted to the exclusive hoisting needs of various large bridge cranes, steel structure modules, and hull segments.
Lifting point design
The customized distribution beam adopts a multi-hanging point modular design, and comes standard with 4 hanging points, 6 hanging points, and 8 hanging point layout. The spacing and force angle of the hanging points can be flexibly adjusted according to the structure of the workpiece, completely solving the disadvantages of single-point and double-point hoisting force concentration.The hanging point adopts high-strength forged lugs, one-piece molding without welded joints, stable load-bearing performance, and strong tensile and fracture resistance.The spacing of the hoisting points can be freely adjusted, supporting a variety of symmetrical and asymmetric hoisting layouts, and adapting to the hoisting needs of rectangular, special-shaped, ultra-long and overweight workpieces, effectively avoiding the tilt, distortion and deformation of the workpieces during the hoisting process, and ensuring the hoisting accuracy and integrity of precision heavy-duty components.
Load stability
The core value of customized beams is to greatly improve the load stability of heavy-duty hoisting. Through multi-point balanced force, lateral limit, and torque balance design, they can effectively offset the interference factors such as inertial shaking, wind offset, and load deviation during hoisting.Compared with the traditional direct hoisting method, with a customized beam hoisting system, the shaking amplitude of the workpiece is reduced by more than 85%, and the horizontal offset is controlled at the millimeter level.In high-altitude, long-span, and long-distance transportation operations, the horizontal stability of the workpiece can always be maintained, the problem of swing collision and position offset can be eliminated, and the accuracy of alignment and installation of large components can be greatly improved. At the same time, the safety risks of high-altitude heavy-duty operations can be reduced, and it is perfectly adapted to the high-precision and high-safety hoisting standards of super engineering.
Safety Systems for 200t Overhead Crane Operations
Overload protection
Henan Mine Crane manufactured 200t ultra-heavy bridge crane is equipped with multiple intelligent overload protection systems, which is the basic safety guarantee for heavy-duty operations.The bridge crane is equipped with high-precision load sensors to collect lifting weight data in real time. When the load is close to the rated load and there is a trend of overload, the system automatically warns with sound and light.Once the rated load is exceeded, mandatory shutdown and lifting instructions will be triggered immediately to eliminate the risk of overloading operations from the source.At the same time, it is equipped with a partial load protection function, which can monitor the deviation of the left and right, front and rear loads in real time, and automatically limit and correct the partial load hoisting, so as to avoid structural damage caused by eccentric force, tilt and fall of workpieces, and ensure the safety of bridge cranes and operations in all directions.
Emergency braking
The whole machine is equipped with multiple emergency braking systems, the lifting mechanism, the cart operating mechanism, and the trolley operating mechanism are all equipped with independent electromagnetic braking and mechanical braking dual protection devices, and the braking response speed is millisecond.During normal operation, the braking is stable and impact-free. In emergency situations such as sudden power failure, bridge crane failure, and personnel misoperation, all operating mechanisms can be locked instantly, and the position of heavy objects can be firmly fixed to prevent heavy objects from falling, bridge cranes from sliding, and collision accidents.The braking system has undergone millions of heavy-duty fatigue tests and is adapted to 200t heavy-duty impact conditions. The braking is stable without slippage and failure. It can cope with various emergency scenarios and provide ultimate safety protection for heavy-duty operations of super projects.
Load monitoring
The bridge crane is equipped with an intelligent real-time load monitoring system and a high-definition data display screen, which can visually display core data such as lifting weight, lifting height, operating speed, load distribution, and working conditions of the bridge crane in real time.The system supports full data recording, storage and traceability, can identify problems such as abnormal load, abnormal structural stress, and operating failures in real time, and simultaneously push early warning information.The operator can grasp the operation status of the whole machine in real time, and the background management system can remotely monitor the operation data of the bridge crane to realize visual control of the whole process of the operation, facilitate the operation and maintenance of the bridge crane, working condition analysis and safety traceability, and adapt to the standardized and intelligent safety management needs of large-scale engineering projects.
Safety testing
All 200t ultra-heavy bridge cranes have undergone rigorous all-round safety testing before leaving the factory, including rated load testing, 1.25 times overload static load testing, 1.1 times dynamic load testing, structural stress testing, braking performance testing, electrical system testing, safety device linkage testing and other complete processes.The core steel structure adopts non-destructive flaw detection to eliminate internal cracks and welding defects.All safety devices, transmission mechanisms, and electrical systems are checked one by one to ensure that the performance of the whole machine is up to standard.Henan Mine Crane manufactured bridge crane is shipped with a full set of inspection reports and qualification certificates. After the on-site installation and commissioning is completed, the heavy-duty trial operation of the whole machine will be tested again, and it can be put into use after passing the acceptance to ensure the safety, stability and compliance of each bridge crane.
200t Overhead Crane Applications in Heavy Industry
Shipbuilding projects
Shipbuilding is the core application scenario of 200t ultra-heavy bridge cranes. The weight of components such as large hull segments, bow, stern, cabin heavy bridge cranes, deck modules, etc. in shipyards generally reaches 100 tons, and conventional lifting bridge cranes cannot meet the lifting needs.The bridge crane is equipped with customized multi-lifting point distribution beams, which can realize smooth lifting of oversized hull segments and precise alignment splicing, effectively avoiding hull structure deformation and splicing deviation problems.The characteristics of bridge cranes with large span, high lifting and high stability are perfectly adapted to the large workshop working space of the shipyard. They can complete the whole process of hull assembly, bridge crane installation, component transfer, and finished product displacement. It is the core main equipment of large shipyards and ship-building super projects.
Steel manufacturing
The working conditions of the iron and steel metallurgical workshop are harsh, and the high temperature, dust, heavy-duty, and high-frequency operations are normalized. The 200t A6-A7 heavy-duty bridge crane is specially adapted for metallurgical scenarios and can complete the steel ladle, iron ladle transfer, large steel billet, steel plate, rolling bridge crane hoisting, steelmaking workshop heavy-duty bridge crane maintenance and other operations.Henan Mine Crane manufactured bridge crane has high temperature resistance, fatigue resistance, and strong continuous operation ability. With a load balancing system, it can eliminate the deformation and load offset of the bridge crane under high temperature and heavy load conditions, and ensure the continuous and stable operation of the steel production line. It is widely used in the core sections of large steel mills, rolling mills, and metallurgical foundries.
Power plants
For thermal power, hydropower, nuclear power, wind power and other power engineering projects, there are a large number of 100-ton heavy-duty bridge cranes hoisting operations, including the installation and maintenance of bridge cranes such as generator sets, steam turbines, transformers, large towers, and steel structures in computer rooms.Relying on the advantages of high precision, high safety and high stability, the 200t ultra-heavy bridge crane can complete the precise hoisting and alignment of the power core bridge crane to prevent collision damage to the precision bridge crane.Bridge cranes can be adapted to multi-scene working conditions such as indoor computer rooms and outdoor operating platforms of power plants, and can meet the heavy-duty hoisting needs of power engineering construction and bridge crane operation and maintenance around the clock. They are the key lifting equipment for power and energy super projects.
Infrastructure projects
Super projects such as large-scale bridges, rail transit, municipal hubs, and large-scale plant infrastructure need to complete heavy-duty hoisting operations such as large-scale steel structure beams and columns, prefabricated components, construction machinery, and formwork brackets.The 200t ultra-heavy bridge crane can be adapted to the operation needs of temporary construction sites, prefabricated component workshops, and large-scale infrastructure construction sites. It covers the construction area with a long span and efficiently completes the transfer, installation, and stacking of heavy components.The bridge crane can be customized according to the non-standard parameters of the infrastructure site and adapted to the working conditions of the complex site, greatly improving the construction efficiency of large-scale infrastructure projects, shortening the project construction cycle and reducing construction costs.
200t Overhead Crane Customization Options
Crane configuration
Support the modular and non-standard customization of the whole machine, and the core configurations such as single and double hook configuration, working level, operating mode, and protection level can be selected according to the operating conditions.Users can choose A6/A7 heavy-duty working condition level, ordinary/metallurgical special/shipbuilding special models as needed, with different power drive systems, suitable for conventional, high temperature, dust, corrosion, outdoor and other working conditions.At the same time, the cart track model and walking mechanism form can be customized to meet the needs of different ground foundations and operating spans.
Spreader beam customization
The distribution beam supports full-dimensional customization, including beam length, cross-section specifications, number of hanging points, hanging point spacing, load-bearing grade, material technology, etc.Symmetrical/asymmetric hanging point layout and fixed/adjustable hanging point structure can be customized according to the weight, size, shape, and accuracy requirements of the hoisting workpiece, and exclusive beam solutions can be created for ultra-long, ultra-wide, special-shaped, and precision heavy-duty workpieces to maximize hoisting stability and workpiece safety.
Control system
Provide customized options for multiple types of control systems, including three control modes of cab operation, wireless remote control, and ground operation linkage, which can be used alone or in combination.The standard intelligent frequency conversion control system supports stepless speed regulation, smooth start and stop, and precise alignment.High-end models can be upgraded with intelligent PLC automatic control system, equipped with remote monitoring, data traceability, fault self-diagnosis, and intelligent early warning functions, to realize intelligent, unmanned and efficient operation of bridge cranes, and adapt to the needs of modern heavy industry intelligent factories.
Site-specific design
Provide exclusive site-specific customized designs for the site restrictions, operating processes, and working conditions of different projects.The parameters and structural layout of the bridge crane can be optimized according to the floor height of the plant, the track foundation, the span of the workshop, and the blind area of the operation.For special environments such as high temperature, low temperature, high corrosion, and high dust, anti-corrosion, high temperature resistance, dust-proof, and explosion-proof enhancement programs are customized.Combined with the project construction process, optimize the operating trajectory and operating radius of the bridge crane to maximize the utilization rate of site space and fully meet the personalized construction needs of the project.
How to Choose a 200t Overhead Crane Manufacturer
Heavy-load experience
Henan Mine Crane manufactured 200t super heavy-duty bridge crane belongs to a high-end heavy-duty special bridge crane, and the manufacturing threshold is extremely high. The manufacturer's heavy-duty project experience is the core guarantee of the quality of the bridge crane.When selecting models, priority should be given to professional manufacturers with more than ten years of experience in R&D and manufacturing of 100-ton heavy-duty cranes, and who have served super projects such as shipbuilding, metallurgy, electric power, and large-scale infrastructure.Mature manufacturers have a wealth of experience in landing projects under complex working conditions, which can accurately match various non-standard customization requirements, avoid loopholes in working conditions adaptation, and ensure the long-term stable operation of bridge cranes.
Engineering capabilities
The core engineering R&D capabilities determine the safety and adaptability of bridge cranes.High-quality manufacturers need to have independent structural design, mechanical verification, program customization, and drawing optimization capabilities. They can complete the structural optimization and safety redundancy design of bridge cranes through finite element analysis and working condition simulation, and independently complete the non-standard customization of the whole machine, exclusive beam system research and development, and intelligent system adaptation.At the same time, it can provide full-process services for preliminary working condition survey, program design, and technical docking, and provide exclusive solutions for complex super projects.
Quality and testing
The quality and testing of heavy-duty lifting bridge cranes are the bottom line of safety. Regular manufacturers need to strictly follow the national lifting machinery industry standards, choose high-strength original steel and brand core accessories, and standardize the welding, processing, and assembly processes of the whole machine.At the same time, it has a full set of factory inspection bridge cranes and rigorous testing processes, and can complete full-dimensional testing such as load testing, non-destructive flaw detection, performance verification, and safety linkage testing, and provide complete qualification certificates, inspection reports, and compliance information to ensure that bridge cranes meet the standards, comply with regulations, and are safe and durable.
Installation and service
The installation and commissioning of large 200t bridge cranes, after-sales operation and maintenance directly affect the project construction progress and the service life of bridge cranes.Preferred manufacturers need to provide one-stop services, including pre-survey, program design, manufacturing, on-site installation, commissioning and acceptance, operator training, and after-sales maintenance process services.With a professional installation team and national after-sales outlets, it can quickly respond to bridge crane failure repair, regular maintenance, and parts replacement needs, and provide all-weather technical support for super engineering projects to prevent bridge crane downtime from affecting construction progress.
Henan Mine Crane Factory Custom
The 200t super-heavy bridge crane with a customized distribution beam system is the core just-needed equipment of the modern heavy industry super project. With its large carrying capacity, high-strength structural design, precise and intelligent control, all-round safety protection, and full-scene adaptation capabilities, it completely solves the hoisting problems of large and heavy-duty components, and widely empowers core heavy industries such as shipbuilding, steel, electric power, and infrastructure.For large-scale engineering projects, the choice of Henan Mine Crane manufactured 200t heavy-duty crane with suitable parameters, reliable structure, high degree of customization, and excellent safety performance, combined with professional Henan Mine Crane Factory technology and after-sales guarantee, can greatly improve construction efficiency, reduce safety risks, save long-term operation and maintenance costs, and build a solid equipment foundation for the high-quality landing of super projects.
