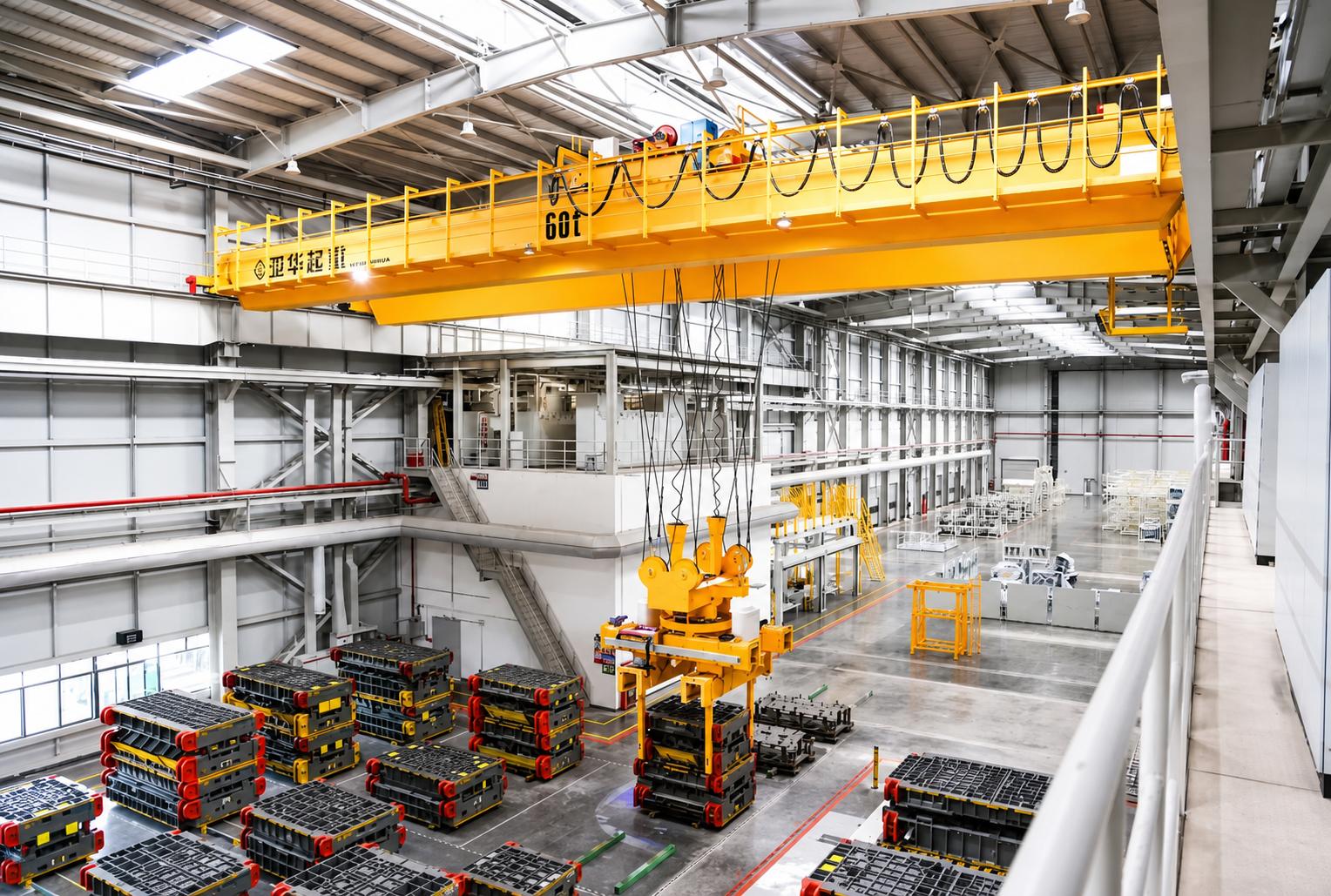

32t Heavy-Duty Overhead Cranes High-Capacity Performance for Heavy Machinery Assembly
Heavy industry scenarios such as heavy machinery manufacturing, steel structure processing, and engineering equipment assembly have strict requirements for large-tonnage and high-stability lifting equipment.The 32-ton heavy-duty bridge crane is specially built for high-intensity, high-precision heavy-duty operations. It has outstanding carrying capacity, accurate control, and perfect protection system. It can efficiently complete the hoisting, precision alignment, and cross-station transfer of large components.The equipment effectively solves the industry problems of large offset, low efficiency, and many safety hazards in traditional hoisting operations, and is adapted to the normalized continuous operation of various heavy industry plants. It is the core heavy-duty equipment for heavy industry assembly production lines to improve quality and efficiency.
Key Specifications of a 32t Overhead Crane
Lifting height and span
Henan Mine Crane manufactured 32t heavy-duty bridge crane adopts a standardized heavy-duty design and supports personalized customization of parameters to fully adapt to the working space requirements of heavy industry workshops of different specifications.The standard lifting height of the equipment covers 10-15 meters, which can meet complex scenarios such as multi-layer tooling, vertical assembly of large-scale equipment, and hoisting of ultra-high stations, and effectively avoid the operating limitations caused by insufficient lifting height.The conventional operation span can reach 7.5-35 meters, and the customized span can be extended to more than 50 meters, which can be adapted to the full-coverage operation needs of large and medium-sized standardized heavy industry plants.The large-span operation design without dead ends does not require frequent adjustment of equipment positions, and can realize the lifting of heavy objects in the workshop, which perfectly matches the large-size and large-space assembly operation scenarios of heavy machinery.
Hoist speed and travel speed
In order to take into account the stability of heavy-duty operations and the accuracy of assembly operations, the 32t bridge crane is equipped with a graded speed-regulating crane system, which adopts a fast and slow two-speed control mode.The low-speed gear for heavy-duty lifting can achieve smooth alignment, eliminating the problem of shaking and offset of large hoisting. The high-speed gear can improve the efficiency of no-load and light-load transportation. The standard lifting speed range is 0.67-5m/min, which is suitable for the speed requirements of different assembly processes.The operating speed of the equipment cart and the operating speed of the trolley have been industrially optimized. They walk at a uniform speed without setbacks, start and stop without impact, effectively avoiding equipment shaking and workpiece bumps caused by speed mutations during heavy-duty movement, which not only guarantees the assembly accuracy of heavy-duty precision components, but also greatly improves the overall operation beat and adapts to the assembly-line heavy industry production model.
Duty class and working frequency
As a special equipment for heavy-duty industry, the core working level of the 32t heavy-duty bridge crane covers A5-A7 and is suitable for industrial operation scenarios of different intensities.Among them, the A5 level is suitable for conventional machinery manufacturing and intermittent assembly operations to meet the daily production needs of small and medium-sized production enterprises.The A6 and A7 high-level work systems are designed for high-intensity, high-frequency, and long-term continuous operation scenarios, and can be adapted to full-load production conditions such as steel processing, mass production and assembly of large-scale construction machinery, and metallurgical equipment manufacturing.The fatigue-resistant structure design of the equipment can withstand daily high-frequency start-stop, heavy-duty lifting and reciprocating walking, long-term continuous operation without trouble and no deformation, completely solving the problems of high-frequency heavy-duty operation of ordinary cranes, easy to lose, short life, and frequent failures, and perfectly adapts to the high-intensity production rhythm of the heavy industry.
Power supply and control system
The equipment adopts industrial general 380V/50Hz three-phase AC power supply mode, which has stable power supply and strong adaptability. It can be directly connected to the power supply system of mainstream domestic industrial plants. At the same time, it supports the customization of localized power supply parameters according to overseas working conditions and adapts to industrial production scenarios in many regions of the world.The control system is equipped with a PLC intelligent integrated module, which integrates three modes of remote control, ground operation handle, and cab control, which can be flexibly adapted to different operating environments and operating habits.The system has one-key start-stop, precise speed regulation, point memory, and fault self-test functions. It is simple to operate and responsive, greatly reducing the threshold for manual operation.At the same time, it is equipped with complete circuit protection, overload and power failure, and emergency braking circuits to ensure the stable and safe operation of the equipment in all directions from the power supply and control levels.
How 32t Overhead Cranes Support Heavy Machinery Assembly
Handling engines and large components
The core difficulty of heavy machinery assembly lies in the hoisting and transportation of overweight components such as large mainframes, engines, racks, counterweights, and large housings. Such components have large weight, large size, and precise structure, which require extremely high load capacity and stability of lifting equipment.The 32t heavy-duty bridge crane has sufficient rated load and can easily undertake the overall hoisting of the core large parts of various heavy machinery without splitting the components, effectively avoiding the accuracy deviation and working time loss caused by splitting and secondary assembly.The stable lifting and walking performance of the equipment can eliminate shaking and collision during the hoisting of precision parts, protect the surface accuracy and internal structural integrity of the components, and perfectly adapt to the hoisting process of core components of heavy equipment such as excavators, cranes, large fans, and industrial machine tools.
Positioning heavy assemblies
Heavy machinery assembly has strict requirements for alignment accuracy, and millimeter-level alignment deviations will lead to problems such as unqualified assembly of the whole machine and equipment operation failure.Relying on a precise speed control system and a stable mechanical structure, Henan Mine Crane manufactured 32t bridge crane can realize fretting alignment and precise positioning under heavy load.By fine-tuning the speed and accurately controlling the walking stroke, the operator can accurately place several tons or even dozens of tons of heavy-duty components in the assembly station and tooling card slot, and accurately complete the docking, installation, fixing and other processes.Compared with traditional cranes, its micro-motion control performance greatly reduces the alignment error of heavy-duty assembly, effectively improves the assembly accuracy of heavy-duty cranes, reduces the rework rate, and guarantees the quality of products leaving the factory.
Moving equipment between workstations
The heavy industry production line is an assembly-line operation mode, and the workpieces need to be frequently transferred between different stations such as the assembly area, welding area, grinding area, testing area, and finished product area.Relying on the advantages of long-span global operation, the 32t heavy-duty bridge crane can cover the transfer range of the entire production line, and realize the rapid transfer of heavy semi-finished products and finished equipment across stations.The equipment walks smoothly and has a stable load, and can move at a uniform speed throughout the load, without the need for midway unloading and secondary hoisting, greatly simplifying the material flow process of heavy industry production.At the same time, it can adapt to the needs of long-distance and high-frequency transportation in the workshop, break down the operating barriers between stations, ensure the continuous and smooth operation of the production line, and eliminate material accumulation and process stagnation.
Improving assembly efficiency and safety
At the efficiency level, the 32t heavy-duty and large-load design can realize the overall hoisting and transshipment of a single large piece, replacing the traditional small-tonnage crane operation mode of multiple split hoisting, greatly shortening the assembly working hours of a single heavy-duty equipment and increasing the overall production capacity of the production line.Intelligent speed regulation, precise positioning, global operation and other performance, to further optimize the operation process, reduce invalid operation time, and help enterprises reduce costs and increase efficiency.At the safety level, the equipment is equipped with multiple protection mechanisms to avoid safety risks such as overturning, shaking, falling, and overload damage of heavy-duty hoisting throughout the process. At the same time, the standardized airborne operation mode does not require ground-assisted hoisting equipment, reducing the hidden dangers of cross-operation by on-site operators, and improving the operation safety of heavy machinery assembly workshops in all directions, and reducing the probability of safe production accidents in enterprises.
Heavy-Duty Design Features for 32t Cranes
Reinforced bridge structure
The main body of the 32t heavy-duty bridge crane is made of Q345B high-strength alloy steel, which has higher strength, toughness, fatigue resistance and deformation resistance than ordinary carbon steel.The whole machine adopts a double-beam bridge-type reinforced structure, and the main beam, end beam, and beam are treated by integrated welding, annealing, and stress reduction processes to eliminate structural deformation and weld cracking caused by long-term heavy-duty operations.The bridge structure has been mechanically optimized and designed with uniform force and strong carrying capacity. It can withstand a rated load of 32 tons and a short-term impact load for a long time, and is suitable for high-intensity continuous operation conditions.The overall structure is strong and durable, with strong seismic resistance, and can adapt to the harsh working conditions of dust, heavy-duty, and high-frequency operations in heavy industry workshops, and the service life of the equipment is greatly improved.
High-capacity hoist and trolley
The equipment is equipped with industrial-grade large-tonnage hoists and reinforced walking trolleys to provide strong support for core heavy-duty operating components.The hoist has been strengthened and upgraded with heavy loads. The internal gears, bearings, wire ropes and other core accessories are all made of wear-resistant and high-strength materials, which can be adapted to 32-ton heavy-duty lifting operations for a long time. It is not easy to wear and break, and its carrying performance is stable and reliable.The walking trolley adopts a four-wheel balanced load-bearing design, the walking wheels are wear-resistant and compression-resistant, and the operation is stable without caton and deviation.At the same time, the hoist has a high degree of integration with the trolley, a compact structure, and a high space utilization rate. It can be adapted to heavy-duty hoisting operations in small stations, taking into account large loads and flexibility, and meeting the operational needs of various complex assembly scenarios.
Stable load handling
In view of the pain points of the industry where heavy-duty hoisting is easy to shake and offset, Henan Mine Crane manufactured 32t heavy-duty bridge crane is equipped with multiple stable load designs.The equipment adopts flexible start-stop and stepless speed regulation technology to completely solve the problems of large start-stop impact and obvious operation shaking of traditional cranes, and realize smooth and no jitter in the whole process of heavy-duty lifting, walking and braking.At the same time, with the precise alignment of the trolley and the synchronous operation technology of the trolley, the swing of heavy objects can be effectively suppressed, and the heavy objects can still be kept stably floating in the air even under the conditions of large span and high lifting height.The excellent stable load performance not only guarantees the safety of hoisting precision heavy-duty components, but also meets the needs of high-precision assembly, docking, debugging and other fine operations, greatly improving the stability and normality of heavy-duty assembly operations.
Safety and overload protection
Safety protection is the core design highlight of the 32t heavy-duty bridge crane. The equipment is equipped with a full range of multiple safety protection systems to build a safety barrier for the whole process of operation.The core configuration includes overload limiter, lifting height limiter, walking stroke limiter, emergency stop button, buffer anti-collision device, power-off protection device, etc.When the hoisting load exceeds the rated 32 tons, the overload protection system will automatically power off and stop, eliminating the risk of equipment damage and heavy objects falling due to overload operations.The limit device can accurately limit the lifting height and walking stroke to avoid over-range collisions and equipment damage.The buffer device can weaken the impact of walking and protect the safety of equipment and workpieces.At the same time, the equipment is equipped with sound and light alarm devices, which provide real-time early warning during operation, and ensure the safety of personnel, equipment, and workpieces in all directions.
Why Choose a Custom 32t Overhead Crane?
Adaptation to factory layout
Standardized lifting equipment is often difficult to adapt to the layout of special-shaped factories and non-standard production lines, and it is prone to problems such as dead ends, waste of space, and equipment interference.The customized 32t heavy-duty bridge crane can be tailored according to the length and width of the enterprise's plant, the position of the column, the layout of the tooling, and the direction of the production line, accurately matching the spatial structure of the factory area.Through personalized adjustment of equipment span, wheel track, machine size, and installation method, blind spots in operation can be completely eliminated, and special scenarios such as narrow workstations, special-shaped workshops, and multi-layer work areas can be adapted to make the equipment perfectly integrated into the existing factory layout, maximize the use of plant space, and improve the utilization rate of site operations.
Customized lifting and travel speeds
The requirements for hoisting and walking speed in different heavy industry assembly processes vary greatly. Large-scale transportation pursues high efficiency, and precision assembly pursues low-speed precision.Customized models can be customized according to the process needs of the enterprise, the lifting speed, the walking speed of the cart, and the walking speed of the trolley can be individually set to achieve accurate adaptation of speed and speed.For the batch transfer process, the operating speed can be adjusted to improve the operating efficiency.For precision alignment and fine assembly processes, heavy-duty bridge cranes can adjust and lower the micro-movement speed to improve the alignment accuracy.Speed customization can be perfectly adapted to the differentiated production technology of enterprises, taking into account production efficiency and assembly quality, and adapting to diversified operating scenarios.
Integration with existing equipment
The customized 32t bridge crane can be deeply connected to the company's existing production equipment, tooling systems, and intelligent production lines to achieve seamless adaptation.Customized transformation can be carried out according to existing track specifications, power supply systems, control systems, and automation equipment interfaces, without the need for large-scale transformation of existing facilities in the plant, greatly reducing the cost of production line upgrading and transformation.At the same time, it can be equipped with auxiliary systems such as intelligent positioning, remote monitoring, automatic inspection, and material docking to adapt to the needs of intelligent and automated production, and help enterprises quickly upgrade their traditional production lines, realize equipment collaboration, and improve the overall level of automated production.
Long-term operating value
Compared with standardized equipment, customized equipment has stronger adaptability to working conditions and longer service life, and has outstanding long-term operating value.The tailor-made structure, parameters, and configuration are fully in line with the production conditions of the enterprise, the equipment does not need to be overloaded, there is no adaptability loss, the incidence of failure is greatly reduced, and the late operation and maintenance costs and downtime losses are significantly reduced.At the same time, customized bridge cranes can be adapted to the future production capacity upgrading and process iteration needs of enterprises, and have stronger working condition compatibility. There is no need to replace equipment in a short period of time, effectively extend the service cycle of equipment, and save equipment procurement, operation and maintenance, and upgrade costs for long-term production and operation of enterprises, and improve asset utilization.
32t Overhead Crane Applications in Heavy Industry
- Heavy machinery manufacturing: In the heavy machinery manufacturing industry, 32t heavy-duty bridge cranes are the core production equipment, which are widely used in the assembly, transportation and commissioning processes of large machine tools, industrial pumps, fan equipment, mining machinery, large reducers, etc.It can easily complete the hoisting and precise alignment of overweight core components such as equipment racks, mainframes, counterweights, and large housings, ensure the assembly accuracy of heavy machinery, and support mass production and standardized production operations. It is an indispensable core lifting equipment for heavy machinery manufacturers.
- Construction equipment assembly: The construction machinery assembly scene has large loads, heavy components, and high accuracy requirements. The 32t bridge crane is perfectly adapted to the production and assembly of excavators, loaders, cranes, road rollers, shield machines, etc. Engineering equipment.It can efficiently complete the hoisting, docking and installation of oversized and overweight components such as construction machinery engines, boom arms, frames, track assemblies, counterweights, etc., to ensure the stability and accuracy of the structural assembly of large-scale engineering equipment, and greatly improve the production efficiency and factory quality of construction machinery.
- Industrial equipment production: In the field of large-scale industrial equipment production, this equipment is suitable for the production and processing of electric power equipment, metallurgical equipment, chemical equipment, new energy equipment and other products.It can complete the workshop transfer, assembly, hoisting and placement of heavy workpieces such as large tanks, towers, unit assemblies, heat transfer equipment, industrial kiln components, etc., adapt to the multi-process and multi-station production process of complete sets of equipment, and help the large-scale and standardized production of complete sets of industrial equipment.
- Steel and metal fabrication: The steel and metal structure processing industry has harsh working conditions and high operating intensity. With the advantages of high strength and heavy load, loss resistance and high stability, the 32t heavy-duty bridge crane is widely used in the hoisting, transshipment, stacking and processing of steel billets, steel plates, large steel structural parts, bridge components, and metal profiles. Alignment.The high-work-level model can be adapted to the high-temperature, high-dust, high-frequency and heavy-duty operating environment of steel workshops to meet the needs of continuous steel structure processing and production. It is the core heavy-duty equipment of steel structure factories and metallurgical workshops.
32t Overhead Crane vs. Other Heavy-Lifting Solutions
Overhead crane vs. gantry crane
Both 32t bridge cranes and gantry cranes are large-tonnage heavy-duty equipment, and the core differences are reflected in the installation scenario and operating scope.The bridge crane is installed on the pillars and roof rails of the workshop. The whole machine is suspended on the top of the workshop, which does not take up ground space, and the workshop space utilization rate is higher. It is suitable for the normal assembly operations of indoor fixed factories, with high operating accuracy and strong stability.The gantry crane relies on the support of the ground gantry column and is suitable for outdoor open-air sites and operation scenarios without plant coverage. The site is more adaptable but the space utilization rate and alignment accuracy are slightly lower.In indoor heavy industry assembly and refined production scenarios, the advantages of bridge cranes are more prominent.
Overhead crane vs. mobile crane
Mobile car cranes and crawler cranes are equipped with the advantages of strong mobility and off-site operation, and are suitable for temporary operations such as field construction, temporary hoisting, and installation of off-site equipment.However, the low operating accuracy and poor stability of mobile lifting equipment cannot meet the needs of precision assembly and precise alignment of heavy machinery, and the high cost of equipment leasing and operation and maintenance cannot be adapted to the normalization, high frequency, and assembly line operations of the workshop.The 32t bridge crane is a special equipment for fixed workshops. It has high operating accuracy, strong stability, and continuous high-frequency operation. It is suitable for long-term, standardized and refined production in factories. It is the best choice for fixed assembly scenarios in heavy industry workshops.
When a 32t overhead crane is the better choice
In the scenario of normalized production of fixed factories, precision assembly of heavy machinery, high-frequency assembly line transportation, long-term continuous heavy-duty operations, and limited workshop space to maximize the use of space, Henan Mine Crane manufactured 32t heavy-duty bridge crane has absolute advantages.Compared with gantry cranes, its indoor operation accuracy is higher, the space occupied is smaller, and the operation is more stable.Compared with mobile cranes, their operating efficiency is higher, their accuracy is stronger, their operation and maintenance costs are lower, and they are suitable for continuous production.For companies with heavy machinery assembly, steel structure processing, and industrial equipment mass production as their core businesses, 32t bridge cranes are the most cost-effective and adaptable heavy-duty hoisting solution with stable, accurate, efficient, and durable characteristics.
Henan Mine Crane Factory Custom
With its powerful heavy-duty load-bearing, stable structural design, accurate handling performance and complete safety protection, the 32t heavy-duty bridge crane is perfectly adapted to the assembly, precision alignment and high-frequency transfer operations of various large-scale components in the heavy industry.Henan Mine Crane Factory can flexibly adapt to various plant working conditions, support personalized customization, and fully match various production scenarios such as machinery manufacturing, steel structure processing, and engineering equipment assembly.Henan Mine Crane Factory Crane has strong durability, low operation and maintenance costs, and high operational safety. It can continuously optimize production line efficiency and reduce production losses. It is a high-quality choice for heavy industry enterprises to upgrade heavy-duty hoisting equipment and improve production capacity and operation quality.
