75t Heavy Industrial Bridge Cranes: Precision Lifting for Large Transformer & Stator Plants

In UHV and large-scale power equipment manufacturing scenarios, the hoisting and assembly of heavy-duty precision components such as transformers and motor stators requires extremely high bearing capacity, stability and accuracy of lifting equipment.The performance of traditional cranes is insufficient and cannot be adapted to the needs of precision production.

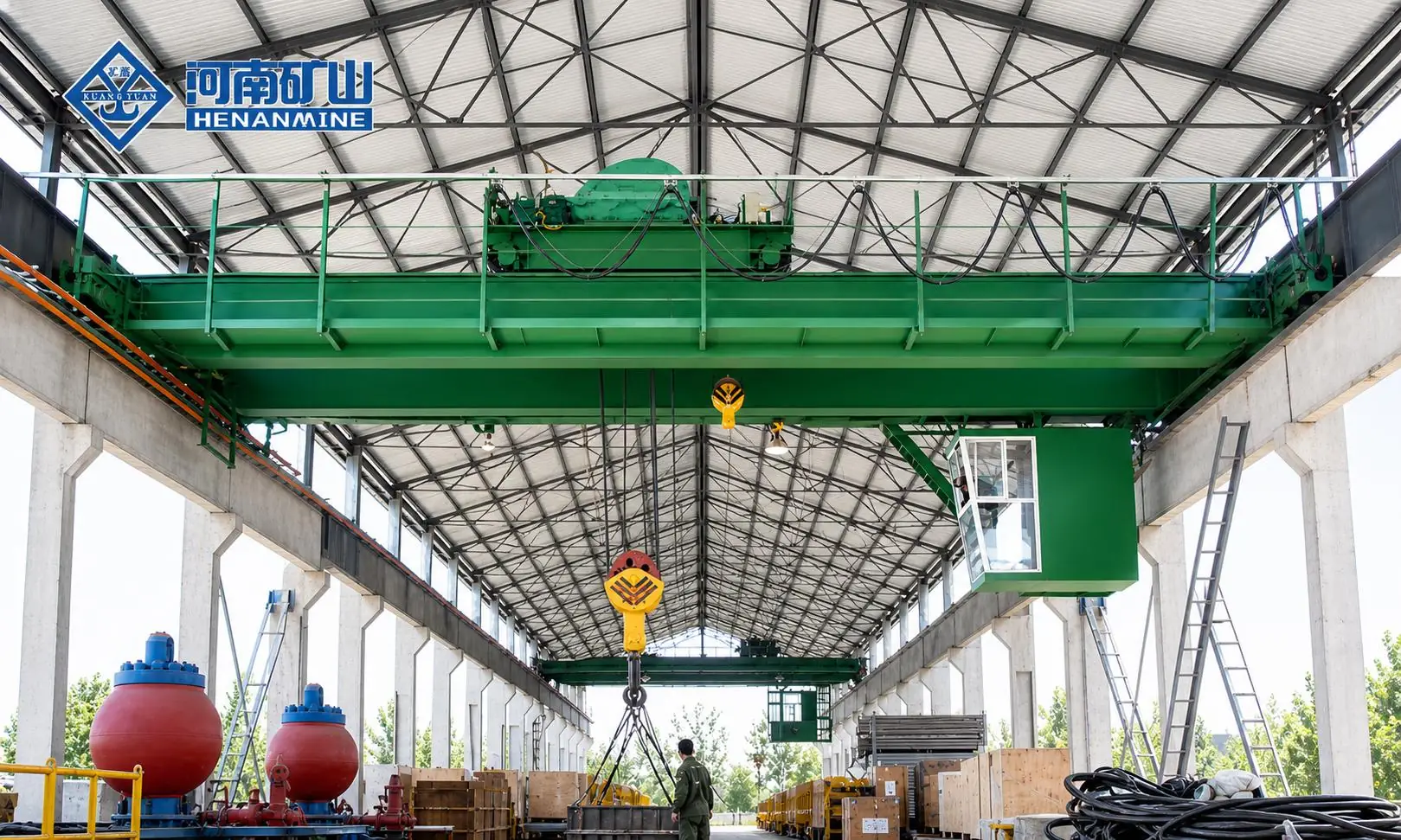

The 75-ton heavy-duty industrial bridge crane is specially built for the electric power heavy industry scene. It has the advantages of heavy-duty stability, precise alignment, safety and reliability. It can be adapted to the whole process of the production line of related components, and provides high-quality hoisting solutions for intelligent power manufacturing.

What Is a 75t Heavy Industrial Bridge Crane?

75-ton heavy-duty bridge crane, focusing on the power heavy industry scene, can complete the transfer, assembly and maintenance of precision heavy-duty components such as transformers and motor stators.Relying on high-strength structure, intelligent frequency conversion control and multiple safety protections, it solves the problems of heavy-duty hoisting shaking, difficult alignment, and poor safety. It is the core lifting equipment for stable production and quality improvement in electric power intelligent manufacturing workshops.

The equipment takes the double-beam bridge as the main body, integrates the lifting trolley, end beam, track system, electronic control and lifting mechanism, and can safely complete the vertical lifting of 75-ton heavy loads and the global horizontal movement of the workshop. It has strong bearing capacity, stable operation and high positioning accuracy.

Core structure composition

1. The main body of the bridge frame: it adopts an integral welded double-beam box-type load-bearing structure, with high structural rigidity, minimal deformation at full load, stable and reliable carrying performance, and can be perfectly adapted to long-span working conditions and 75-ton heavy-duty continuous cycle operation, laying a solid structural foundation for the operation of the whole machine.
2. Lifting trolley and hoist mechanism: The top-mounted type is installed above the main beam of the bridge frame, integrating heavy-duty lifting and horizontal fine-tuning functions, responsive and accurate positioning. It is the core actuator for completing high-precision alignment and assembly of transformers and stators.
3. Operation and electronic control system: integrate the end beam walking mechanism, a dedicated track base, a stable power supply system and an intelligent electronic control unit to achieve stepless speed regulation, smooth start and stop, and precise positioning of the whole machine to ensure the automation, refinement and stable operation of the equipment throughout the process.

Core technical parameters

1. Lifting configuration: Adopt the industry's mature 75/20t main and auxiliary hook combination.The 75-ton main hook is responsible for heavy-duty hoisting of the main body such as the transformer box and the stator core; the 20-ton auxiliary hook is used for small-piece assembly and fine-tuning of the point position, taking into account the heavy-duty capacity and operational flexibility.
2. Spatial parameters: The standard span is 10.5m–5m, which supports non-standard customization; the maximum lifting height can reach more than 30m, which meets the space requirements of ultra-high assembly, internal decentralization, and top installation of large power components, and avoids structural interference.
3. Working condition level: The whole machine is A5/A6 medium and heavy-duty working system, which is suitable for high-frequency, continuous and high-strength assembly line hoisting in electric power plants, fatigue-resistant and wear-resistant, and suitable for mass-produced production scenarios.
4. Frequency conversion operation performance: equipped with VFD stepless frequency conversion system, it can speed control in all dimensions of lifting, cart, and trolley.No-load high-speed transfer improves efficiency, the station is accurately aligned at low speed, the start and stop are soft and impact-free, and it has the advantages of energy saving, noise reduction and wear reduction.
5. Environment and power supply adaptation: standard models are adapted to indoor clean workshops; dust-proof, anti-corrosion, and waterproof models can be customized to adapt to complex working conditions.The power supply system is compatible with the conventional infrastructure of the plant, with a small amount of transformation and stable operation.

Why Transformer Plants Need Precision 75t Crane Systems

Suitable for hoisting large heavy-duty components

With the iterative upgrading of high-voltage and UHV transmission equipment, the overall volume of large transformers is larger and the weight of the monomer is higher. The core components such as the box, iron core, winding, and sealed end cap are all heavy-duty hoisting units. Conventional lifting equipment has limited bearing capacity and insufficient positioning accuracy, which cannot meet production standards.

The 75-ton heavy-duty bridge crane is specially customized for power heavy industry scenarios, and can fully cover the precise transfer, alignment assembly and floor installation of various heavy-duty components of transformers.

Smooth hoisting

The internal windings, insulation layers and precision electrical structures of the transformer are extremely fragile. Inertial shaking, sudden start-stop shocks, and displacement deviations during hoisting can easily cause irreversible quality defects such as component deformation and insulation damage.

The 75t bridge crane is equipped with a VFD frequency conversion steady speed system and intelligent anti-shake technology to achieve flexible start-stop, uniform displacement, and stable hovering, avoiding load jitter and offset from the source, protecting high-value precision components in all directions, and greatly reducing product scrap and rework costs.

The whole process is adapted to the production process

The equipment can be deeply integrated into the complete transformer production link, and can be fully adapted to the whole process of parts assembly, precise installation of iron core coils, overall box assembly, finished product withstand voltage testing, equipment maintenance and displacement. It is the core supporting equipment to ensure the continuous, standardized and efficient production of transformer workshop assembly lines.

Ultra-high lifting stroke

The equipment has a large vertical lifting stroke, which can be perfectly adapted to high-altitude work scenarios such as vertical assembly of large transformers, decentralization of internal components, and installation of top accessories.While meeting the assembly process of large-scale components, efficiently use the vertical space of the plant, completely avoid the structural interference of equipment, loads, beams, columns, and tooling equipment during the hoisting process, and ensure operation safety and construction efficiency.

75t Bridge Cranes for Large Stator Manufacturing Plants

Heavy-duty precision hoisting is just needed

The generator, motor stator frame and iron core components have huge self-weight, large diameter and span, and complex curved surface structure. The difficulty of hoisting and alignment is high, and the fault tolerance space is very small. There are strict requirements for the stability and positioning accuracy of lifting equipment.

The 75-ton heavy-duty bridge crane has super heavy-duty stability and micron-level positioning capabilities, and can be perfectly adapted to the intensive lifting conditions of the stator. It is the standard core lifting equipment for large-scale stator intelligent manufacturing production lines.

Core job scenarios

• Core assembly operations: core processes such as stator core placement, main frame positioning, and coil assembly can be accurately completed to ensure the assembly accuracy of stator core components and build a solid foundation for the quality of finished equipment.
• Component transfer operations: it can efficiently complete the cross-regional transfer of various heavy parts of generators and motors and the precise scheduling of stations, smoothly connect various production processes, open up material flow bottlenecks, and ensure the efficient and consistent operation of the production line.
• Operation and maintenance shift operation: it can complete the maintenance, displacement and alignment adjustment of finished equipment and tooling components, taking into account the needs of the whole scene of manufacturing and post-operation and maintenance, and ensure the continuous and efficient operation of the production line.

Millimeter precision assembly capability

The machine is equipped with frequency conversion low-speed micro-control technology and flexible start-stop braking system, which can achieve high-precision micro-alignment in the assembly station area, and correct the hoisting offset error of heavy-duty components in real time.There is no hard impact and no inertial shaking throughout the process, which effectively guarantees the assembly accuracy of the core components of the stator, stabilizes the assembly quality of the finished product, and improves the stability and reliability of the long-term operation of the unit.

Key Design Features of a 75t Heavy Industrial Bridge Crane

Graded variable speed operation

The equipment is equipped with intelligent hierarchical speed regulation logic to realize differentiated operation under working conditions.No-load cross-zone operations can be transferred at high speed, greatly improving the efficiency of material turnover; switch to a low-speed micro-control mode near the assembly station to accurately complete the alignment and calibration of components, and efficiently balance the production capacity of the production line with the quality of precision assembly.

Intelligent anti-shake control

Relying on high-end PLC intelligent computing algorithms, it dynamically monitors and compensates for the inertial swing of the load in real time, and accurately cancels the shaking offset generated during the hoisting process.Without manual correction, heavy objects can hover and shift smoothly throughout the process, effectively eliminating collision damage to high-value components and reducing the risk of precision assembly operations.

Precise positioning of multiple limits

The equipment is equipped with multiple protective devices for lifting upper and lower limits and operating limits of large and small vehicles as standard, which accurately locks the safe operating interval and eliminates the hidden dangers of over-range operations.Laser positioning and encoder precision measurement and control modules can be selected as needed to achieve millimeter-level positioning accuracy, and are fully adapted to the high-end precision assembly process standards of transformers and stators.

Synchronous hoisting technology

For ultra-long, special-shaped, large-span and large-scale power components, it supports double-hook linkage and dual-machine synchronous hoisting modes.The system can accurately distribute the load and control the operating displacement synchronously to ensure uniform force and stable attitude of the components, completely eliminate the tilt, distortion and deformation of the components during the hoisting process, and adapt to the high-standard hoisting requirements of special non-standard components.

Safety Considerations for 75t Transformer & Stator Cranes

Overload protection

The equipment is equipped with a real-time intelligent load monitoring module, which can dynamically collect lifting weight data throughout the process.Once the load exceeds the rated working condition of 75 tons, the system will immediately automatically lock the lifting action and trigger a sound and light alarm to eliminate major safety hazards such as structural deformation and component fall caused by overload operations from the source, and fully guarantee the safety of equipment, components and factory operations.

Emergency stop and limit protection

The equipment is equipped with a one-button emergency stop function and a full range of stroke limit protection mechanism. In the event of sudden abnormal working conditions, the power can be cut off instantly and the emergency shutdown can be carried out. It cooperates with the full stroke limit control to effectively eliminate safety accidents such as over-range operation, equipment collisions and structural interference, and ensure the safety of equipment and production lines in all directions.

Dual redundant braking

The whole machine adopts the dual redundant safety architecture of electrical flexible braking and mechanical emergency braking, which takes into account the dual performance of smooth buffer shutdown and instantaneous emergency locking.Under normal operating conditions, soft braking and no impact alignment are achieved.

In the event of a sudden failure, the load can be locked instantly, ensuring the absolute stability of heavy-duty hovering throughout the process, completely avoiding major safety risks such as sliding hooks and carts, and providing a comprehensive and highly reliable safety guarantee for the hoisting of high-value heavy-duty precision components.

Sound and light early warning and visualization operations

The equipment is equipped with an integrated sound and light early warning system, which actively issues warning signals during operation, start and stop, cooperates with a broad and clear operating vision, effectively regulates the operation line of the factory area, reminds on-site personnel to avoid in time, avoids the risk of collision from the level of human-made control, and builds a three-dimensional safe operating environment.

Path control and anti-shaking and risk avoidance

The equipment is equipped with controllable acceleration and deceleration operation logic and intelligent anti-shake system, combined with refined regional limit control, which can effectively avoid the collision of the equipment body, tooling components and plant walls, avoid the risk of interference in the operation in all directions, and ensure the safety and order of the hoisting operation.

Choosing the Right 75t Crane Configuration for Your Plant

The 75-ton heavy-duty bridge crane supports personalized customization in all dimensions. The selection needs to be considered in combination with the working conditions of the plant, production requirements, and assembly technology. The core selection dimensions are classified as follows to accurately match the production scenario and eliminate the problem of excess equipment performance or insufficient operating capacity.

1. Load and working condition selection: Determine the rated bearing capacity of the equipment based on the maximum hoisting load of the workshop, combine the hoisting frequency of the production line and the intensity of continuous operation, and match the adapted A5/A6 working level to ensure the stability of the equipment's long-term heavy-duty cycle operation, taking into account durability and production efficiency.
2. Space size selection: Determine the operating span of the equipment according to the opening of the plant and the spacing of beams and columns, and customize the lifting height based on the assembly height of the components and the vertical operation requirements to avoid spatial interference in the hoisting process and adapt to the inherent infrastructure conditions of the workshop.
3. Equipment configuration selection: match the combination configuration of the main and auxiliary hooks as needed to adapt to the dual scenarios of heavy-duty hoisting and precision fine-tuning; optional frequency conversion speed control system, customized equipment operating speed, balance material transfer efficiency and component alignment accuracy, adapt to precision assembly technology.
4. Adaptation of environment and infrastructure: the corresponding protection level is selected according to the operating environment of the workshop, and special configurations such as dustproof, anticorrosive, and waterproof are selected; combined with the power supply parameters of the factory area and the size of the existing rail infrastructure to adapt to the equipment parameters, there is no need to transform the plant on a large scale to reduce the cost of landing.

Customization Requirements for Large Transformer & Stator Plants

• Customization of plant working conditions: According to the actual opening size, floor height conditions, and operating environment of the workshop, the operating span of the equipment, the maximum lifting height, and the protection level of the whole machine can be customized, which is perfectly adapted to the needs of old and new factories, non-standard workshops, and complex working conditions, without the need to significantly transform the infrastructure.
• Operation level adaptation: According to the frequency of production hoisting and continuous operation intensity in the factory area, it can accurately match the A5/A6 medium and heavy-duty work level, and adjust the fatigue performance and operating parameters of the equipment as needed, taking into account the service life of the equipment and the efficiency of production operations.
• Special customization of special-shaped components: For ultra-long, large-span, and special-shaped irregular power components, the double-hook linkage and dual-machine synchronous hoisting configuration can be upgraded to ensure uniform force and stable attitude of the components, prevent deformation of the hoisting, and meet the non-standard high-end assembly process.
• Intelligent operation and maintenance upgrade: Support the installation of intelligent monitoring modules for the Internet of Things to collect equipment operation data in real time, realize active fault early warning, real-time status monitoring and refined preventive maintenance, effectively reduce equipment failure rate and reduce downtime losses.
• Automation system docking: The equipment reserves a PLC intelligent interface, which can be seamlessly connected to the intelligent factory production line system to realize the linkage control of equipment and the collaborative scheduling of processes, and adapt to the modern unmanned and intelligent production mode.

Conclusion

With its high-strength structure, precise frequency conversion control and all-round safety protection, the 75-ton heavy-duty industrial bridge crane is perfectly adapted to the heavy-duty precision hoisting conditions of heavy-duty power components such as transformers and stators.

Scientific customized selection and standardized operation and maintenance can effectively improve the safety, stability and production efficiency of workshop operations, and reduce operation and maintenance costs.Henan Mine Crane can provide customized design, manufacturing and supporting solutions for suitable 75-ton bridge cranes according to plant conditions and production needs.
