32t Heavy-Duty Gantry Cranes: High-Capacity Material Transfer for Fabrication Yards
In factories such as steel structure processing, heavy industry equipment manufacturing, and assembled component production, the efficiency of material hoisting and transportation directly determines the production capacity, construction cycle, and operation safety of the production line.As the core equipment for medium and large heavy-duty hoisting, the 32t heavy-duty gantry crane has become the main equipment for the transportation of large-tonnage steel, prefabricated components, and heavy equipment in various processing plants with the core advantages of large load, high stability, strong adaptability, and wide operating range.Compared with traditional automobile cranes and single-girder cranes, the 32t heavy-duty gantry crane can be accurately adapted to the fixed operating area of the factory area, solving industry pain points such as heavy-duty handling, space constraints, and precise alignment, and comprehensively improving the efficiency of material flow in the factory area. It is the core lifting equipment for cost reduction and efficiency enhancement in large-scale processing plants.
What Makes Material Handling Challenging in Fabrication Yards?
Material handling operations in steel structure and heavy industry processing plant areas are different from ordinary light material handling, and the whole process is accompanied by large weight, large volume, high precision, and high-risk operation characteristics.Most factories have problems such as poor layout, poor adaptability of heavy-duty equipment, high labor-assisted costs, and large hoisting errors, which have long led to low operating efficiency, delays in construction, and frequent safety hazards.The following are the three core problems of material handling in the processing plant area, and they are also the main bottlenecks in the improvement of production capacity of most enterprises.
Heavy steel component transfer
The core processing materials in the processing plant area are mainly heavy-duty steel structural parts, large steel plates, prefabricated racks, and heavy-duty accessories. The weight of a single group of components generally reaches more than ten tons to more than 30 tons, which is a typical heavy-duty material.Such heavy-duty steel components are not only heavy in weight, but also bulky, irregular in shape, and have a high probability of center of gravity offset. Traditional light-duty lifting equipment has insufficient load and unstable force, and cannot complete the overall lifting and transportation. The components can only be split and transported in segments, which greatly increases the operating process and labor costs.At the same time, splitting and handling can easily cause paint wear and structural deformation of steel components, resulting in material loss and rework costs.In addition, the inertia of heavy-duty steel components is large during the transportation process, and the braking performance of ordinary lifting equipment is insufficient. It is prone to material shaking and offset problems, which not only slows down the transportation rhythm, but also causes safety risks such as collisions and falls, which seriously restricts the continuity of assembly line operations in the factory area.
Limited yard handling space
After long-term operation in most mature processing plant areas, equipment placement, material stacking, and production line layout have been basically cured, and the reserved space available for lifting operations is very limited.Traditional automobile hoisting operations require a wide range of rotation space, docking sites and avoidance areas. The fuselage occupies a large area and has a high degree of redundancy in the operating radius. It is impossible to operate flexibly in a narrow factory area. Problems such as difficult equipment entry, difficult hoisting and positioning, and narrow material transfer channels frequently occur.However, ordinary single-girder cranes have a small span and limited coverage, which cannot take into account the transportation needs of large-area material stacking areas and processing areas in the factory.Under working conditions with limited space, enterprises can often only adopt small-batch and multi-frequency handling modes. Problems such as material accumulation, waiting for materials at stations, and channel congestion occur frequently, which directly reduces the overall production flow efficiency and cannot achieve large-scale continuous production.
Heavy load positioning requirements
Steel structure processing, component assembly, equipment assembly and other processes require extremely high positioning accuracy for heavy-duty materials.For operations such as splicing, alignment installation, and precise placement of steel components, the deviation needs to be controlled at the millimeter level. Once the positioning is offset, it will directly lead to component assembly failure, weld misalignment, and equipment installation failure, resulting in high rework costs.Due to insufficient structural rigidity, jitter in operation, and low speed regulation accuracy of ordinary lifting equipment, the material shaking amplitude is large during heavy-duty take-off, landing and translation, and precise alignment cannot be achieved.At the same time, manual-assisted alignment is not only time-consuming and laborious, but also increases the safety risk of personnel working at close range, greatly reduces the fault tolerance rate and operating efficiency of hoisting operations, and has become the core obstacle to high-precision heavy industry processing and production.
How Is a 32t Gantry Crane Designed for Heavy-Duty Operations?

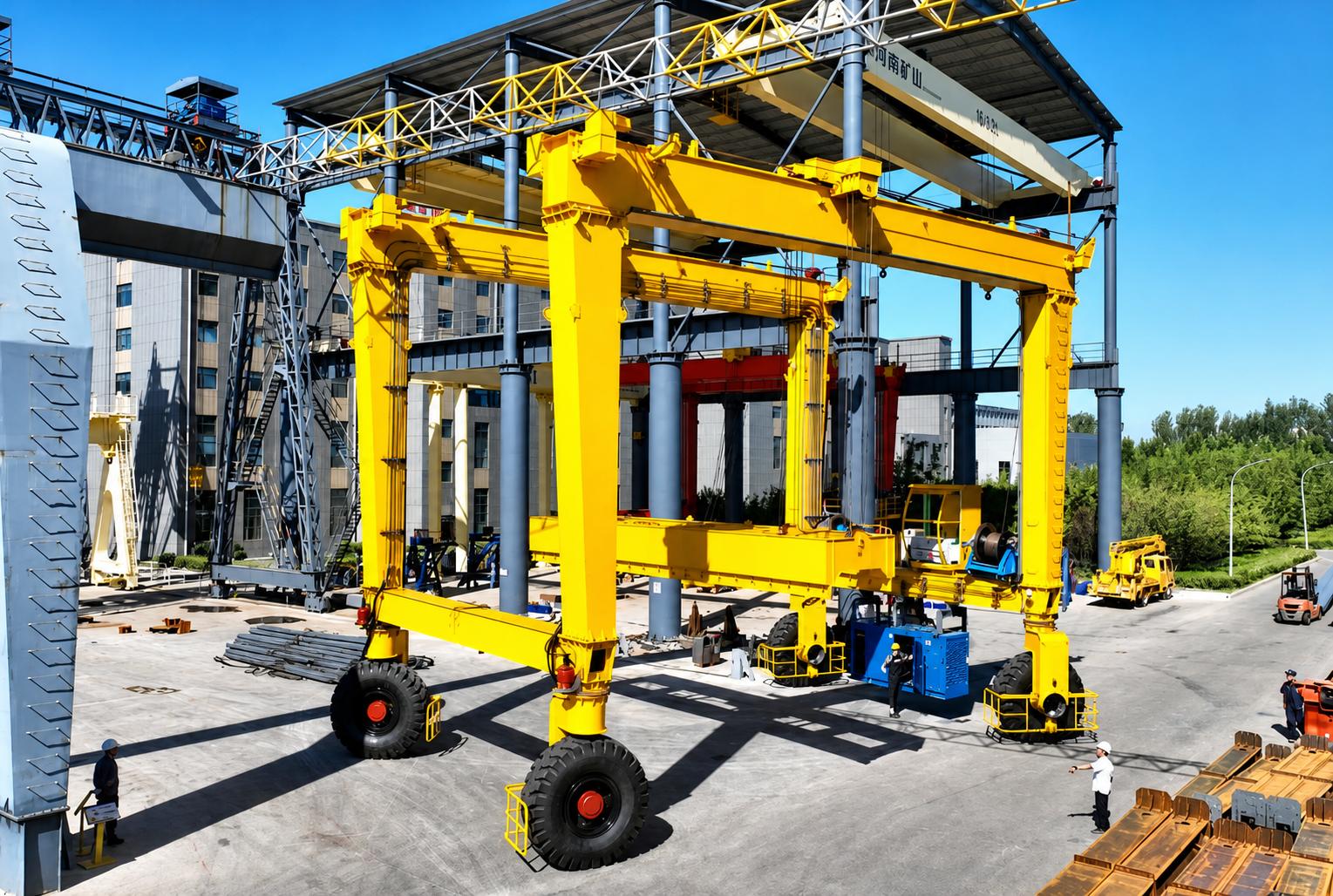

Henan Mine Crane Factory supply 32t heavy-duty gantry crane is a heavy-duty lifting equipment specially developed for heavy-duty, high-frequency, high-precision, and narrow-space operating conditions in the processing plant area. The structure, force system, and lifting configuration of the whole machine are optimized and designed around the needs of heavy-duty operations, completely solving the pain points of insufficient load, poor stability, inaccurate positioning, and weak adaptability of traditional lifting equipment.From the main beam structure, load distribution to lifting configuration, all dimensions are adapted to high-frequency heavy-duty handling scenarios in the factory area to ensure long-term continuous and stable operation.
Double girder structure
The core of the 32t heavy-duty gantry crane adopts a double-beam box-type main beam structure, which is different from the simple structure of a single-beam gantry crane. The symmetrical force design of the double beam is matched with high-strength Q345B load-bearing steel, and the whole machine has stronger rigidity, anti-distortion and anti-deformation capabilities. Outstanding.Under the condition of hoisting at full load of 32 tons, the deflection of the main beam is very small, and there will be no problems such as fuselage shaking and structural deformation, which is perfectly adapted to long-term high-frequency heavy-duty operations.The double-beam structure can effectively distribute the heavy-duty pressure, make the force of the whole machine more uniform, greatly improve the service life of the equipment, and reduce the structural loss caused by long-term heavy-duty operations.At the same time, the double-beam structure provides a stable operating track for the electric hoist and the walking mechanism, which can realize the smooth operation of the cart and trolley in both directions, and the operation coverage is more balanced. It is suitable for the large-scale and multi-point heavy-duty hoisting needs of the factory area, taking into account the indoor workshop and outdoor yard operation scenarios.
Load distribution and stability
The core safety guarantee of heavy-duty operations lies in the balanced distribution of load and the stability of the whole machine. The 32t heavy-duty gantry crane has been optimized by professional mechanical simulation and adopts a combination of rigid legs + flexible legs to support the structure. With a widened walking base and a non-slip track design, the grounding stability of the whole machine is greatly improved.The equipment evenly distributes the heavy load to the main beam, end beam, outriggers and track foundation to avoid structural damage and fuselage tilt caused by local force overload.At the same time, the equipment is equipped with a frequency conversion speed control system to achieve smooth start-stop and stepless speed change, completely solve the problem of inertial shaking at the moment of heavy-duty start-stop, and make the material take-off, landing and translation smooth and controllable throughout the process.In addition, multiple safety protection devices such as overload limiter, travel limit, and emergency braking are standard. In the event of abnormal conditions such as overload and over-travel, the equipment will automatically stop and lock, ensuring the safety of heavy-duty operations from the dual levels of structure and electronic control, and eliminating safety accidents.
Hoist capacity and duty class
Henan Mine Crane Factory supply32t heavy-duty gantry crane is equipped with industrial-grade heavy-duty electric hoist, the rated lifting capacity accurately matches the 32-ton heavy-duty working conditions, and sufficient safety redundancy is reserved, which can stably carry all kinds of heavy-duty steel components and equipment loads.The working level of the whole equipment reaches the A5-A6 industrial heavy-duty level, which is specially adapted to the 24-hour high-frequency continuous operation conditions in the processing plant area, which is different from the intermittent working mode of ordinary light cranes, and can meet the needs of high-intensity operations such as uninterrupted hoisting of assembly lines, batch material transfer, and repeated alignment assembly.The lifting and lifting speed, the operating speed of the trolley, and the walking speed of the trolley can be adjusted as needed, taking into account the stability of heavy loads and operating efficiency.At the same time, the lifting height of the hoist can be customized according to the height of the plant and the operation requirements of the factory area, and it can be adapted to complex operation scenarios such as high and low hoisting, stacking, and assembly, covering the heavy-duty operation requirements of the processing plant area in all directions.
How Can a 32t Gantry Crane Improve Fabrication Yard Productivity?
For the processing plant area, the lifting and handling efficiency directly determines the overall production capacity. Henan Mine Crane Factory Supply 32t heavy gantry crane is not a simple hoisting equipment, but the core hub of material flow in the plant area.By optimizing the operation layout, shortening the handling time, and standardizing the hoisting process, it can open up the production flow blocking points in all directions, help enterprises realize the multiple values of cost reduction, efficiency, quality, and safety, and help the large-scale and standardized production of the factory area.
Optimizing yard layout
The 32t heavy-duty gantry crane can customize the span and lifting height according to the size of the plant site and the distribution of the working area. The equipment runs along a fixed track without occupying the core working space of the plant, which is perfectly adapted to the narrow and rugged layout of the plant.The equipment spans the processing area, material stacking area, and assembly area, which can realize cross-regional and full coverage hoisting operations, completely changing the disadvantages of single-point operation and limited coverage of traditional equipment.Enterprises can rely on gantry cranes to fix the operation trajectory, re-plan the material stacking, workpiece processing, and finished product transfer areas, sort out clear material flow channels, and eliminate problems such as material stacking, channel congestion, and equipment position conflicts, so that the layout of the factory area is more regular, the production movement line is more reasonable, and the site utilization rate is greatly improved, laying the foundation for continuous and large-scale production.
Reducing material handling time
Traditional light-duty lifting equipment needs to split heavy-duty components and carry them back and forth multiple times. A single hoisting takes a long time and the process is cumbersome, which seriously slows down the pace of production.The 32t heavy-duty gantry crane supports one-time hoisting and transshipment of 32 tons of heavy-duty whole, without splitting components, greatly simplifying the operation process, and the time of a single material handling can be shortened by more than 60%.At the same time, the characteristics of frequency conversion, precise speed regulation and smooth start and stop reduce the redundant time for material alignment and stable material waiting, and the equipment failure rate is low and the standby time is short, which can achieve uninterrupted and continuous operation.The high-frequency and efficient hoisting mode completely solves the problems of waiting for materials, material accumulation, and lagging construction period at the station, greatly improves the overall production turnover rate of the factory, and helps enterprises shorten the project delivery cycle and improve the ability to accept orders.
Coordinating lifting operations
Large-scale processing plant areas often have multi-station and multi-process synchronous operation scenarios, and lifting operations are messy and chaotic, and chaotic scheduling can easily lead to job conflicts and efficiency losses.Henan Mine Crane Factory supply 32t heavy-duty gantry crane has a standardized operating trajectory and a clear operating range. It can realize single-person standardized operation and is equipped with precise positioning functions. It can efficiently cooperate with all processes such as cutting, welding, assembly, and finished product transportation.The equipment can be flexibly scheduled according to the production rhythm, accurately matching the material supply and component assembly needs of each station, realizing the seamless connection of each process, and avoiding inefficient problems such as process disconnection and job waiting.At the same time, standardized heavy-duty hoisting operations have reduced the cost of labor assistance, reduced the rate of operation errors, made the hoisting operations in the factory more standardized and orderly, and comprehensively improved the overall production efficiency.
32t Gantry Crane Price and Customization
There is no fixed and unified selling price for 32t heavy-duty gantry cranes. The price of equipment is mainly affected by multiple factors such as customized parameters, working condition configuration, installation and transportation, and after-sales support.Most regular manufacturers support personalized customization services, which can be fully adapted to the site conditions, operating conditions and production needs of different factories.When purchasing, enterprises do not need to blindly pursue low prices. They need to combine their own working conditions and matching parameters to take into account equipment quality, adaptability and long-term use costs to maximize cost performance.
Lifting capacity and span
Lifting tonnage and track span are the core parameters that affect the price of 32t gantry cranes.On the basis of the standard 32-ton load, manufacturers can fine-tune the load redundancy according to user needs to adapt to special heavy-duty working conditions.The span of the equipment can be customized with different specifications of 10m-50m. The larger the span, the more materials are used for the main beam and the higher the structural process requirements, and the overall cost of the equipment will increase accordingly.At the same time, the lifting height is also a key customization parameter. The conventional lifting height is 4-12 meters, and the ultra-high lifting requirements need to be customized to lengthen the main beam and the special hoist, and the price will be adjusted simultaneously.The basic equipment with small span and standard lifting height is more cost-effective and suitable for conventional factory operations.Customized models with large spans and ultra-high lifting are suitable for large-scale factories and high-station operation scenarios, and the overall cost is higher.
Working environment and configurations
The operating environment of different factories has greatly different requirements for equipment configuration, which directly affects the customized plan and purchase price.The 32t gantry crane operating at room temperature indoors can be configured with conventional anti-rust and electronic control, and the price is relatively close to the people.In outdoor open-air factories, coastal areas with high corrosion, windy sand, low temperature and cold working conditions, additional anti-corrosion coatings, waterproof electronic control systems, wind-resistant braking devices, low-temperature and cold-resistant accessories, etc. are required to improve the environmental adaptability of the equipment, and the cost of customization will increase.In addition, high-frequency heavy-duty operations can upgrade heavy-duty hoist, dual-brake system, and intelligent frequency conversion control system.For high-precision operations, precise positioning devices and intelligent remote control systems can be installed. The combination of different functional configurations will form differentiated equipment quotations. Enterprises can choose according to their own working conditions to avoid functional redundancy and waste.
Installation and delivery costs
The overall landing cost of the 32t heavy gantry crane not only includes the cost of the equipment body, but also covers supporting costs such as transportation, on-site installation, track laying, commissioning and acceptance, and qualification reporting.The equipment has a large weight and a large volume. Special freight transportation is required for long-distance transportation. The transportation distance and mode of transportation directly affect the logistics cost.At the same time, complex factory sites require professional teams for basic construction, track calibration, equipment assembly and commissioning, and there are differences in installation difficulty, construction cycle, and labor costs.Regular manufacturers will provide one-stop installation and commissioning services to ensure the compliance and smooth acceptance of equipment. Although supporting services will cost a certain amount, they can avoid equipment failures, safety hazards and substandard acceptance caused by self-installation, and greatly reduce later operation and maintenance costs.
How to Choose a Gantry Crane Manufacturer?
32t heavy-duty gantry cranes are industrial heavy-duty special equipment. Equipment quality, process accuracy, adaptability and after-sales service are directly related to the safety of factory operations and long-term production efficiency.The qualifications, craftsmanship and services of gantry crane manufacturers on the market are uneven. When selecting models, enterprises should not only pay attention to the price. They need to focus on the manufacturer's production strength, quality control system, customization ability and after-sales guarantee, and choose a reliable source manufacturer to avoid equipment failure, poor adaptability, and after-sales insecurity from the root cause.
Manufacturing and quality control
High-quality production technology and strict quality control are the basis for the stable heavy-duty operation of the 32t gantry crane.Regular source manufacturers have complete special equipment production qualifications, standardized production workshops and a full set of processing equipment, from steel material selection, main beam welding, structural processing, machine assembly to factory inspection, the whole process follows the production standards of industrial heavy-duty equipment.High-quality manufacturers adopt fully automatic submerged arc welding technology, the main beam welds are uniform and full, and the structural strength is higher. At the same time, each equipment will be tested at full load, deformation detection, electronic control debugging, and safety device verification to ensure that the load of the factory equipment is up to standard, the performance is stable, and the safety is in compliance.When selecting models, enterprises need to focus on verifying manufacturers' production qualifications, test reports, and product process details, so as to eliminate OEM and inferior equipment in small workshops, and avoid problems such as heavy-duty deformation of equipment, frequent failures, and non-compliance with safety standards.
Customized engineering support
The site size, operating conditions, and production requirements of different processing plant areas are different, and standardized equipment is often not fully adapted. Professional customized engineering services are essential.High-quality gantry crane manufacturers have a professional engineering design team, which can survey the site free of charge, and combine the layout of the factory area, operating procedures, and environmental conditions to tailor span, lifting height, functional configuration, and protection solutions for users, and provide one-to-one exclusive solutions.At the same time, the structural design can be optimized according to special working conditions, and it can be adapted to complex scenarios such as narrow spaces, high-frequency operations, and corrosive environments to ensure that the equipment meets the production needs after landing and maximizes the operating efficiency.Small manufacturers usually only provide standardized products and have no customized design capabilities, which are prone to problems such as poor equipment adaptability, limited operations, and inability to increase production capacity.
Installation and after-sales service
The installation, commissioning and after-sales service of special equipment are the core guarantees for the long-term stable operation of the equipment.Reliable source manufacturers are equipped with professional installation and construction teams, with formal installation qualifications, and can be responsible for equipment transportation, basic construction, assembly and commissioning, and acceptance and preparation throughout the process to ensure that the equipment is in compliance with the landing and rapid production.At the same time, a perfect after-sales service system is indispensable. Regular manufacturers provide long-term quality assurance, lifetime operation and maintenance, rapid fault response, parts supply, regular maintenance and other services. Equipment failures can be dealt with quickly on-site to minimize downtime losses.For manufacturers without after-sales guarantee, the response after equipment failure is lagging, accessories are difficult to find, and maintenance costs are high, which can easily lead to long-term downtime in the factory, which seriously affects the production schedule.The selection of enterprises needs to give priority to brand manufacturers with perfect after-sales system, good reputation and rich experience in the industry.
Henan Mine Crane Factory Custom
With its mature double-beam heavy-duty structure, stable load performance, accurate control experience and strong adaptability to working conditions, the 32t heavy-duty gantry crane perfectly solves the industry problems of heavy-duty steel component transportation, narrow space operation, high-precision alignment, and low-efficiency circulation in the processing plant area.It can not only optimize the layout of the factory area, shorten the length of material handling, and improve the efficiency of production collaboration, but also adapt to various complex working conditions through personalized customization, taking into account operational safety and long-term cost reduction and efficiency.For steel structure processing and heavy industry manufacturing enterprises, choosing a 32t heavy-duty gantry crane adapted to working conditions, with reliable Henan Mine Crane Factory customization and after-sales guarantee, is the core measure to enhance the production capacity of the factory and strengthen market competitiveness.
