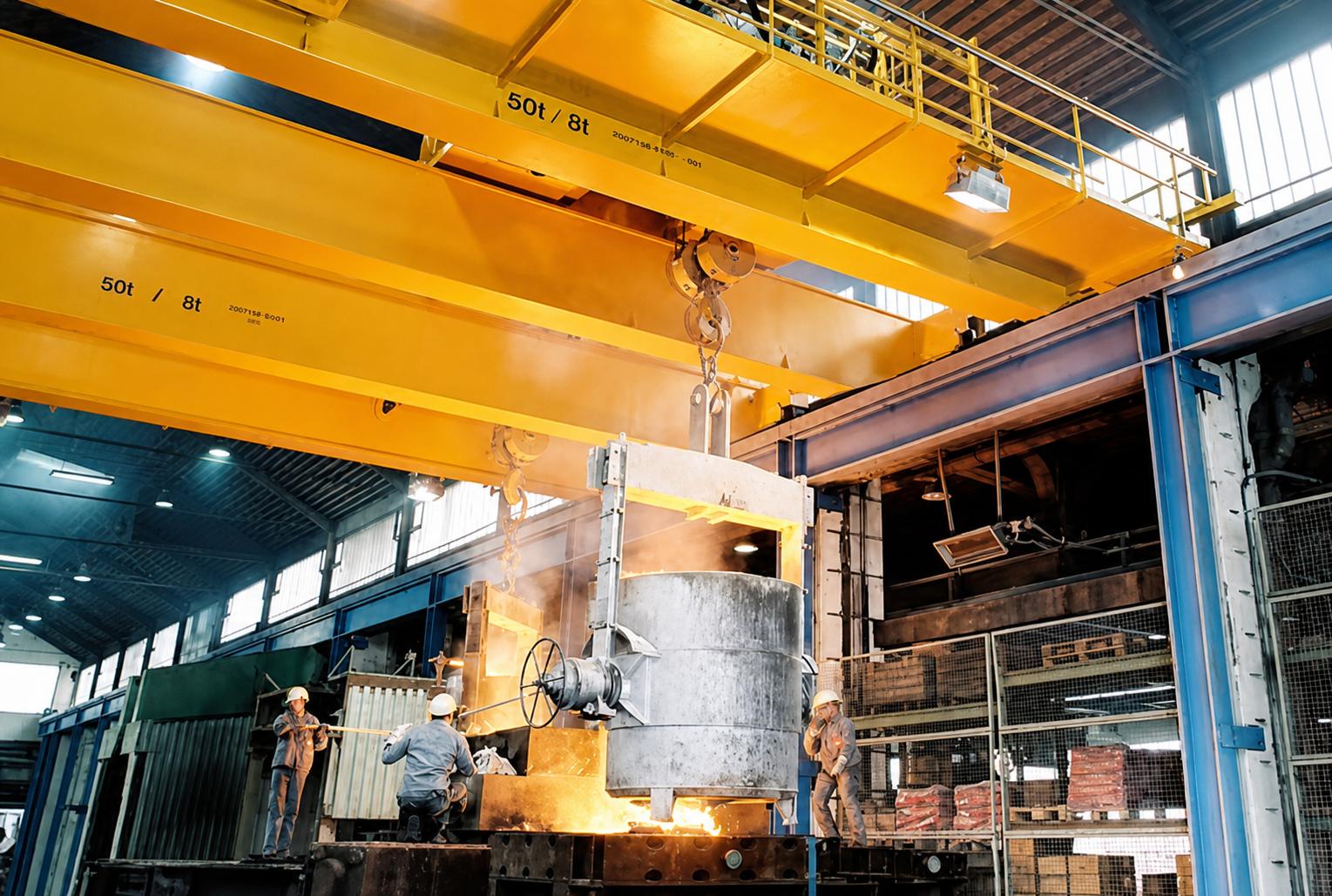

32t Foundry Ladle Cranes 800°C Radiant Heat Engineering with Dual Emergency Brakes
Metallurgical casting steel water-clad hoisting conditions are harsh and extremely risky. High temperature radiation at 800℃ and frequent heavy-duty operations can easily cause safety hazards such as aging and failure of ordinary cranes, braking failures, and load slippage.32t foundry ladle cranes is specially developed for molten metal hoisting scenarios. It is a special metallurgical casting crane adapted to high-temperature metallurgical casting conditions. High-temperature resistant 32t foundry ladle cranes are heavy-duty high-temperature cranes that have passed the A7-level heavy-duty work system certification. Relying on professional high-temperature thermal insulation engineering and dual emergency braking redundant protection design, it can withstand high-temperature thermal shock for a long time, stably lock heavy-duty loads, and effectively adapt to the high-strength casting production environment to ensure the safe, efficient and long-term operation of the production line. It is a special crane for the core of the foundry workshop.
Engineering for 800°C Radiant Heat
During the pouring and transportation of molten steel in the foundry, the high-temperature molten steel continuously releases high-intensity radiant heat at 800℃, which will quickly cause deformation of metal components of ordinary cranes, aging of rubber cables, failure of electrical components, and failure of lubricating oil carbonization. Major safety accidents such as leakage of molten steel and falling loads will be caused.Henan Mine Crane Factory supply 32t foundry ladle cranes has targeted a full set of 800℃ radiant heat protection projects. As a high-temperature-resistant explosion-proof crane, the heavy-duty and high-temperature-resistant 32t foundry ladle cranes has built a comprehensive high-temperature-resistant operation system from the three dimensions of component protection, material selection, and heat insulation of the electronic control system to ensure that this heavy-duty casting crane can operate stably under high temperature conditions for a long time.
Thermal protection of crane components
The core load-bearing and moving components of the whole machine adopt a layered thermal insulation and protection structure to completely isolate the penetrating damage of 800℃ radiant heat.The main beam, end beam, reel, pulley block and other core metal components of this special casting crane are sprayed with a special high-temperature thermal insulation coating on the surface. The coating can effectively block high-temperature radiation and avoid thermal fatigue deformation and strength degradation of the metal substrate due to long-term high-temperature baking. Problems.For the lifting operation area directly above the ladle, this high-temperature crane is equipped with detachable high-temperature thermal insulation panels to form a physical thermal insulation barrier to block direct high-temperature heat sources.
At the same time, the equipment optimizes the heat dissipation structure of the components, and reserves ventilation and heat dissipation channels in the heavy-duty parts to achieve passive air-cooled heat dissipation and avoid heat accumulation.For precision moving parts such as bearings, gears, pins, etc., a special lubricating medium for high temperature resistance is used, which can withstand high temperature conditions in a radiant heat environment of 800℃, eliminate grease carbonization, dry wear and wear of components and other failures, ensure the stability and flexibility of the mechanical transmission structure of this metallurgical crane, and greatly reduce the equipment failure rate of the crane in a high temperature environment.
Heat-resistant materials and insulation
The materials of the whole mechanism have been adapted and selected for high-temperature working conditions, abandoning ordinary carbon steel and general-purpose accessories, and adopting a full set of industrial-grade high-temperature-resistant special materials, which are suitable for long-term operation needs of 800℃ radiant heat.The main load-bearing structure is made of high-strength heat-resistant alloy steel, which has excellent high-temperature strength, thermal deformation resistance and fatigue resistance. Under continuous high-temperature radiation environment, there will be no deformation, cracking and other problems, and it professionally guarantees the structural stability and operational safety of this 32-ton casting crane for heavy-duty lifting.
The thermal insulation filling material adopts multi-layer composite high-temperature-resistant thermal insulation cotton, with a flame-retardant thermal insulation sealing structure, stable thermal insulation performance, high flame-retardant grade, and sustainable blocking of high temperature conduction.The steel wire rope adopts high-temperature-resistant steel core steel wire rope, abandoning ordinary fiber core material, avoiding high-temperature burning and aging, greatly improving tensile strength and high-temperature resistance, and adapting to the high-risk working conditions of molten metal hoisting.All sealing and cushioning accessories are made of high-temperature and flame-retardant rubber materials to prevent high-temperature softening, aging and cracking, and improve the overall heat resistance level and service life of the equipment in all directions.
Protection of electrical and control systems
The electrical and control system is the core brain of the crane, and it is also the most vulnerable component in a high temperature environment.For 800℃ radiant heat conditions, this 32t foundry ladle cranes, as a special metallurgical crane for industry, adopts an independent closed electronic control cabin design. The core electrical components such as electronic control cabinets, frequency converters, and PLC controllers are centrally arranged in a sealed electronic control room. The electronic control room is equipped with a special pressurized cooling system and industrial air conditioning to achieve constant temperature and heat insulation protection, isolate the intrusion of external high-temperature heat sources, and ensure the stable operation of the crane's electronic control system.
The complete set of cables of the equipment adopts high-temperature and flame-retardant special cables, which can withstand high-temperature radiation for a long time without aging, short-circuiting, and leakage. The circuit joints are treated with high-temperature insulation and sealing to prevent poor contact with high-temperature oxidation.At the same time, the control system is equipped with a high-temperature real-time monitoring module, which can dynamically collect the operating temperature of the electronic control system, cables, and components. Once the temperature exceeds the safety threshold, the system automatically triggers an early warning and initiates a heat dissipation protection program to avoid the root cause of high temperature caused by electronic control failure, equipment out of control problems, to ensure accurate control and stable operation of the whole machine.
Dual Emergency Brakes for Critical Load Safety
Molten molten steel is a high-risk heavy load. Once the 32-ton molten steel drum fails to brake and the load slips, it will cause devastating equipment damage, casualties and production losses.To this end, Henan Mine Crane Factory supply32t foundry ladle cranes is equipped with a dual emergency brake redundant safety system, using the main and auxiliary independent braking architecture to achieve multiple lock-in protection, which can cope with various abnormal working conditions such as power failure, mechanical failure, and electronic control failure. It is the core safety guarantee under high-risk working conditions of casting.The complete braking system has passed the three-level safety certification, and has the advantages of automatic fault locking, zero slippage, and extremely fast response, completely eliminating the safety hazards of heavy-duty lifting.
Primary and secondary braking systems
The dual emergency braking system consists of two independent mechanisms, the main braking system and the backup auxiliary braking system. The two systems have no linkage dependence, independent power supply, independent control, and do not interfere with each other and are backed up by each other.The main braking system is a conventional operating braking mechanism, which adopts a hydraulic disc braking structure, with fast response speed and stable braking. It is responsible for the normal lifting, landing, start-stop, limit braking and other conventional working conditions of the crane. The braking accuracy is high, and it can achieve a smooth start and stop of 32 tons of heavy loads to prevent the steel ladle from shaking and shifting.The auxiliary emergency braking system is a purely mechanical spring braking structure, which is a passive safety protection device, does not require electric drive, and relies on mechanical elasticity to achieve locking braking.Under normal operating conditions, the auxiliary braking system is in a standby state and does not participate in conventional braking.When the main brake system fails, fails or is powered off, the auxiliary brake system will automatically activate instantly, without manual intervention throughout the process.The dual protection of the two sets of brake systems completely solves the industry shortcoming of insufficient reliability of the single brake structure, and greatly improves the safety factor of high-risk lifting conditions.
Emergency braking under abnormal conditions
In view of various sudden and abnormal working conditions in the foundry workshop, the dual emergency braking system can realize rapid response and intelligent locking in the whole scene.In emergency situations such as sudden power failure, electronic control system failure, main brake hydraulic failure, abnormal transmission mechanism, etc., the system recognizes danger signals at the millisecond level, immediately triggers the emergency braking program, and instantly locks the lifting reel and operating mechanism to prevent the molten steel from falling out of control and slipping.At the same time, the equipment is equipped with an intelligent discrimination system for abnormal working conditions, which can accurately identify dangerous states such as overload, overspeed, slip hook, tilt offset, etc., predict risks in advance and take the initiative to activate emergency braking.Compared with the single passive braking of ordinary cranes, the dual emergency braking system of this equipment can realize the dual protection of active early warning and passive locking. Regardless of electrical failure or mechanical failure, it can ensure that the equipment is stopped immediately under abnormal working conditions, the load is stably locked, and the high-risk operation risks are avoided in all directions.
Redundant load-holding protection
In order to completely eliminate the hidden dangers of heavy-duty slippage, the equipment has added multiple redundant load protection mechanisms on the basis of a dual braking system to build a multi-layer safety defense line.In addition to the main and auxiliary dual brakes, the lifting mechanism is equipped with a special load locking device, which can lock the rotation of the reel twice after the brake is locked to achieve double locking and eliminate micro-slippage caused by brake relaxation.At the same time, the wire rope anti-slotting device, the limit protection device, and the overload protection device are synergistically linked to form a complete closed loop of safety protection.The complete set of redundant protection system does not require manual operation, and the whole process is automated. Even if a single protective component fails, the remaining protective mechanisms can still independently complete the safety locking operation, ensuring that the 32-ton molten steel package has zero slippage and zero offset during the whole process of floating and standing, transportation, start and stop. It is perfectly adapted to the uninterrupted, high-load and high-risk production conditions of the foundry industry, and meets the stringent safety specifications of the metallurgical industry.
Key Design Features of a 32t Foundry Ladle Crane
Henan Mine Crane Factory supply 32t foundry ladle cranes are tailored based on special working conditions for metallurgical casting. Metallurgical-specific 32t foundry ladle cranes are customized industrial cranes, abandoning the standardized design of general cranes, focusing on the four core requirements of heavy-duty stability, high temperature tolerance, accurate control, safety and reliability, and integrating heavy-duty lifting structures, smooth lifting systems, all-round high temperature protection, intelligent monitoring systems and other core designs, suitable for small and medium-sized foundry workshops, full-process operations such as ladle transfer, pouring, and steel exchange, taking into account production efficiency and the long-term operating stability of the crane.
Heavy-duty lifting mechanism
The lifting mechanism of the whole machine adopts a heavy-duty double-beam bridge structure, and the main beam has been optimized by precision mechanics. It has strong rigidity and uniform bearing capacity, and can withstand 32 tons of rated heavy loads and alternating impact loads for a long time without deformation and jitter.The lifting reel is refined from thickened seamless steel pipe and equipped with a large-diameter pulley block, which effectively reduces the wear of the wire rope and improves the stability of heavy-duty lifting.The reducer adopts metallurgical special heavy-duty hard-tooth surface reducer, which has high transmission torque, wear-resistant and wear-resistant, and can be adapted to A7-level high-frequency and long-term continuous operation conditions. The failure rate is extremely low and the service life is longer.At the same time, the lifting mechanism is equipped with a frequency conversion speed control system, which can realize smooth switching between fast and slow speeds, precise alignment at low speeds, and high-speed and efficient transfer, which not only guarantees the accuracy of pouring operations, but also improves the overall production efficiency.The entire lifting mechanism has been tested for overload strength, and the safety factor far exceeds the industry standard, which can easily cope with the high-frequency and heavy-duty operation needs of the foundry workshop.
Stable ladle handling
The lifting of molten steel ladles requires extremely high stability, and a slight shaking can lead to splashing of molten steel and production accidents.This 32t casting crane is equipped with an exclusive smooth lifting control system, and adopts frequency conversion vector speed regulation technology to achieve three-stage flexible start and stop for lifting, operation, and cart walking, completely eliminating the problem of starting impact and braking shaking.The equipment optimizes the adaptation structure of the walking wheel set and the track, there is no caton and no offset during operation, and the whole process is smooth and uniform.For the floating transfer of steel ladles and fixed-point pouring scenarios, the equipment is equipped with an anti-swing intelligent control system, which can correct the lifting trajectory in real time, minimize the swing amplitude of steel ladles, and achieve accurate alignment pouring.Whether it is a short-distance fixed-point transfer or a long-distance workshop operation, the load can be maintained stably, the loss of molten steel splashing can be effectively avoided, the pouring accuracy and production safety can be improved, and it can be adapted to the needs of various precision casting processes.
High-temperature protection
Continuing the core design of the 800℃ radiant heat engineering, the whole machine realizes full-dimensional high temperature protection, covering the whole mechanical, electrical, lubrication, and control system.In addition to the selection of heat insulation and high-temperature resistant materials for core components, the equipment is optimized for high-temperature vulnerable components. The brake system, bearings, couplings and other key moving parts are all customized with high temperature resistance, which can withstand high temperature radiation for a long time without failure.The constant temperature, dust-proof and heat-insulating design of the electrical system can prevent the double erosion of high temperature and dust, and ensure the stable operation of the electronic control components.At the same time, the equipment is equipped with a global high temperature monitoring and early warning system to monitor the temperature of key parts of the whole machine in real time. Once a local high temperature abnormality occurs, the early warning is triggered immediately and the heat dissipation and heat insulation protection procedures are activated to avoid high temperature failures in advance.The complete set of high temperature protection system can ensure continuous operation of the equipment under high temperature conditions throughout the year, no high temperature downtime, no aging and failure of components, and greatly improve the attendance rate of the equipment.
Reliable control and monitoring
The equipment is equipped with an industrial-grade intelligent centralized control system, which integrates operation monitoring, fault diagnosis, safety early warning, and data recording functions, making it easy to control and accurate to monitor.The system supports manual control, semi-automatic and precise control, dual-mode switching, and adapts to the needs of different operating scenarios. Operators can easily complete heavy-duty lifting, precise alignment, and smooth package drop operations.The whole machine is equipped with a full range of safety monitoring modules, which can monitor core parameters such as load weight, lifting height, operating stroke, equipment temperature, braking status, and wire rope wear status in real time, and all data are visualized in real time.In the event of hidden dangers such as overload, over-temperature, limit crossing, abnormal braking, etc., the system immediately warns of sound and light and automatically shuts down, while automatically recording fault data to facilitate later maintenance and maintenance.The intelligent monitoring system realizes that the whole process of equipment operation is controllable, verifiable, and traceable, and provides data support for safe production and equipment operation and maintenance.
Safety and Reliability in Foundry Crane Operation
Cast steel-clad cranes are special metallurgical high-risk cranes, and their operating safety and long-term reliability are directly related to the production safety and economic benefits of enterprises.32t foundry ladle cranes builds a full-cycle safe operation system of the crane from the four dimensions of load stability, high temperature protection, fault tolerance, and convenient operation and maintenance. The working condition-adapted 32t foundry ladle cranes relies on fail-safe design, comprehensive protection mechanism, and long-term reliable structure to achieve long-term stable, low-failure, and high-safety operation of the crane, which fully complies with the safety standards of special cranes in the metallurgical industry.
Load stability during lifting and transportation
Load stability is the core safety prerequisite for the lifting of molten steel.Through the dual guarantee of structure optimization and intelligent control, this equipment realizes zero shaking and zero offset of the load in the whole process of lifting.The heavy-duty rigid main beam structure eliminates heavy-duty deformation and jitter, frequency conversion flexible start-stop technology eliminates start-stop impact, and the intelligent anti-swing system accurately corrects the lifting trajectory to ensure that the molten steel package remains absolutely stable during the whole process of lifting, walking, landing, and standing.At the same time, the equipment is equipped with high-precision overload limiters and partial load protection devices, which can monitor the load status in real time to eliminate the load tilt and equipment overload damage caused by overload and partial load lifting.In the complex working conditions of the workshop, frequent start-stop, and cross-zone transfer scenarios, the load is always kept stable, and safety risks such as molten steel splashing and falling are completely avoided, so as to ensure the safety and controllability of the whole production process.
Protection against overheating
In view of the continuous 800℃ radiant heat environment of the foundry workshop, the equipment has built a dual anti-overheating system of active heat dissipation and passive heat insulation to eliminate the overheating failure of the equipment from the root cause.At the passive thermal insulation level, the multi-layer thermal insulation structure of the whole machine, high-temperature-resistant materials, and a closed electric control cabin effectively block external high-temperature heat sources.At the active cooling level, the dedicated cooling system of the electronic control system, the ventilation and cooling channels of mechanical components, and the cooling structure of moving parts work together to quickly dissipate the heat generated by the operation of the equipment and the heat transmitted by the environment.The global temperature monitoring system is on duty in real time 24 hours a day, accurately captures the hidden dangers of local overheating, and initiates the protection mechanism in advance to avoid high-temperature aging, carbonization, and failure of components.Under long-term high-temperature continuous operation, Henan Mine Crane Factory supply cranes can always maintain the rated operating temperature, without overheating and shutdown, and without thermal damage to components, greatly improving the continuous operation capacity and service life of the equipment.
Fail-safe system design
The whole machine adopts the industry's top fail-safe design concept, and all safety agencies follow the principle of failure as safety locking to eliminate the risk of failure out of control.All safety components such as dual emergency braking system, load locking device, limit protection, power failure protection, overheating protection, etc., In the event of failure, failure or abnormal working conditions, the equipment will immediately automatically stop, lock the load, and enter a safe sleep state. There will be no dangerous situations such as loss of control, slippage, and malfunction.At the same time, the equipment is equipped with multiple fault tolerance mechanisms, a single component failure will not affect the core safety functions of the whole machine, and the redundant design guarantees absolute safety under high-risk working conditions.The complete set of fail-safe system covers the entire scene and working conditions of equipment operation, completely solves the safety shortcomings of traditional crane failures and out-of-control, and builds a strong safety line of defense for casting production.
Maintenance for long-term reliability
In order to meet the needs of continuous industrial production, the equipment adopts a modular and easy-to-maintain structure design, which greatly reduces the cost of late operation and maintenance and downtime.The standardized and modular layout of the core components makes it easy to disassemble, assemble and overhaul, without the need for large-scale disassembly of equipment.The high-temperature and vulnerable parts are designed independently and can be replaced separately to reduce maintenance costs.The intelligent equipment system has its own fault self-diagnosis function, which can accurately locate the fault point and prompt the operation and maintenance plan, greatly improving the maintenance efficiency.At the same time, the selection of materials with high temperature resistance, wear resistance and anti-aging greatly reduces the speed of component loss and extends the crane maintenance cycle.Manufacturers are equipped with a complete operation and maintenance guidance system, combined with equipment operation data, preventive maintenance can be achieved, potential failures can be investigated in advance, and sudden downtime can be avoided.Through scientific structural design and intelligent operation and maintenance system, the equipment can achieve long-term low-failure and high-reliability operation, greatly improving the service life of the equipment and the continuity of enterprise production.
Henan Mine Crane Factory Custom
Relying on mature 800℃ radiant heat engineering protection technology and dual emergency redundant braking safety system, 32t foundry ladle cranes accurately solves the core pain points of metallurgical casting high-temperature, heavy-duty, and high-risk operations. Each technology upgrade focuses on the actual needs of casting conditions, taking into account safety, stability, high efficiency and durability.Henan Mine Crane manufactured 32t foundry ladle cranes, equipped with mature 800℃ high temperature protection technology and dual emergency redundant braking system, accurately overcome the problems of high temperature, high risk and heavy load in casting conditions.The whole machine is in compliance with standards, has strong stability and low failure rate, and can be adapted to continuous high-intensity operations in the workshop, effectively helping enterprises avoid security risks, save operation and maintenance expenses, and increase production capacity.As a professional crane manufacturer, Henan Mine Crane Factory supports customization of working conditions and is a reliable choice for ladle-in-steel lifting equipment of major foundry companies.
