How to Improve Overhead Crane Positioning Accuracy in Production

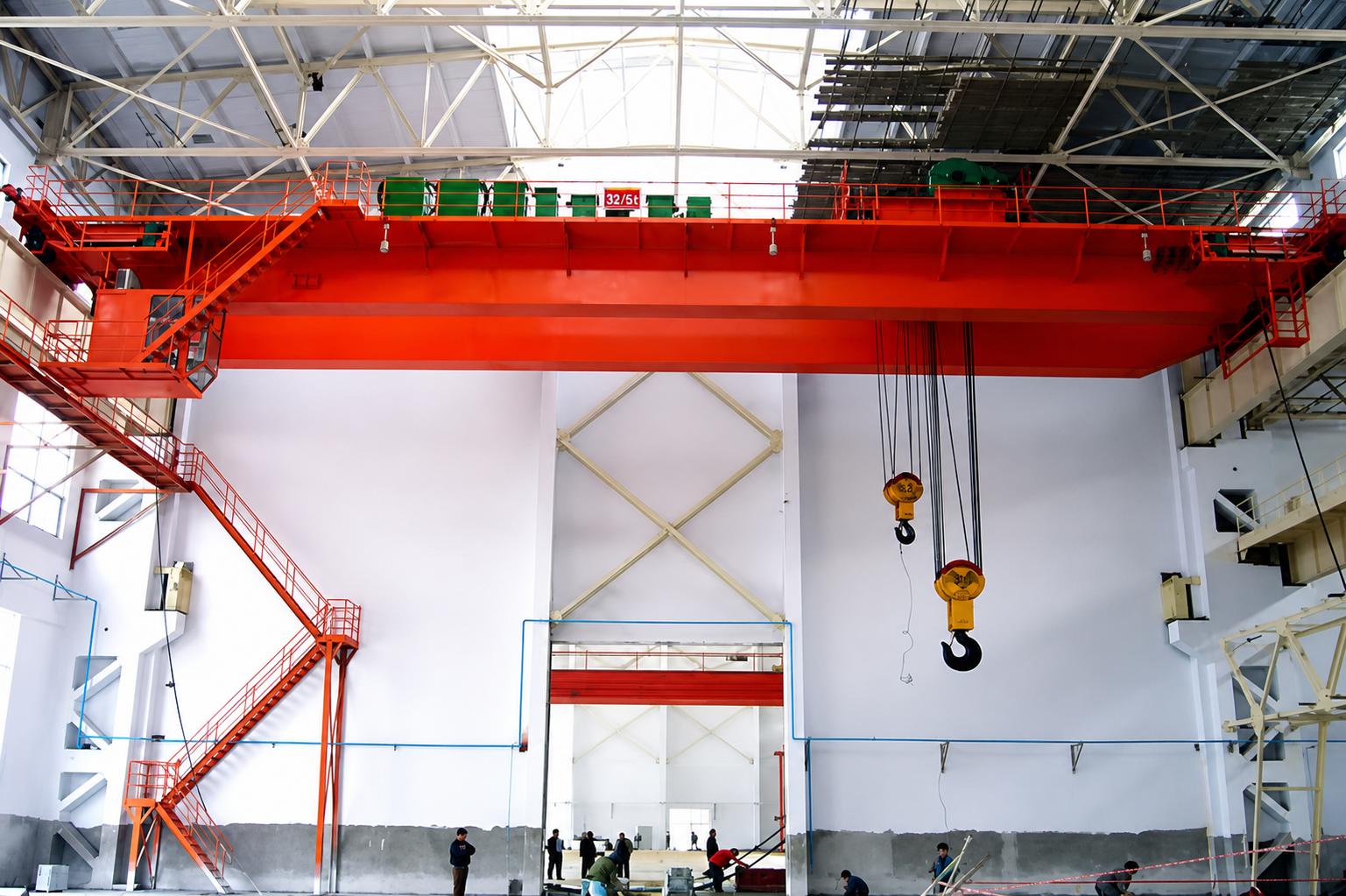

The positioning accuracy of bridge cranes directly affects the efficiency, safety and yield of industrial production.Problems such as positioning offset, load swing, and poor parking can easily cause misalignment of workpieces and chaotic stacking of materials, causing beat lag, equipment wear and even safety hazards.

Most companies only guarantee the basic operation of cranes, ignoring the systematic optimization of positioning accuracy.The positioning error of the crane stems from the superposition of mechanical, driving, sensing, environmental, and human factors.This paper analyzes the positioning accuracy standards and the causes of errors in a concise manner, and provides a complete set of high-precision optimization solutions.

What Is Overhead Crane Positioning Accuracy

Positioning accuracy

Positioning accuracy, also known as absolute positioning accuracy, refers to the degree of matching between the actual docking position of the hook, load, and trolley and the preset target position. It is measured by millimeter-level tolerances, which intuitively reflects the precise operation level of a single operation of the equipment. It is the core index of the basic positioning ability of the equipment.

Repeat positioning accuracy

Repeated positioning accuracy refers to the coincidence and consistency of the actual docking position of the hook, load and trolley in multiple cycles of operation. It is used to measure the position and stability of the continuous operation of the equipment. It is a key indicator to ensure the standardization and stability of operating conditions.

Key points of the relationship between the two

Positioning accuracy and repeated positioning accuracy are independent of each other and complement each other. They are the two core dimensions for measuring the positioning ability of equipment.Equipment often has a typical state of stability but not accuracy: the position of multiple stops is highly consistent and the stability is excellent, but there is a fixed deviation from the preset target as a whole.

• Manual operation scenario: the core depends on the accuracy of repeated positioning.Manual can identify and compensate for fixed absolute deviations in real time, and rely on the stable repetitive operation ability of the equipment to complete precise operations.
• Automated unmanned production line scenario: absolute positioning accuracy is the core requirement.Accurate absolute positioning is a prerequisite for the coordinated linkage of multiple equipment and the stable operation of unmanned automation, which directly determines the accuracy and operating reliability of the production line.

Positioning accuracy evaluation dimension

The positioning accuracy of bridge cranes is not a single parameter. It needs to be comprehensively evaluated by the five core dimensions to comprehensively measure the accuracy, stability and reliability of equipment operations. It is an important basis for the accuracy acceptance of industrial scenarios.：

• Horizontal positioning error: Refers to the actual walking offset deviation of the main beam of the crane and the operating trolley in the XY working plane. It is the core technical index to determine the positioning accuracy of the whole machine, which directly determines the accuracy of the horizontal alignment of the material and the docking of the station.；
• Residual load swing: After the crane completes the walking braking and shutdown, the continuous swing phenomenon of the crane due to inertia is the main hidden factor that causes the material drop point to shift, alignment failure, and rework rate to increase.；
• Lifting height accuracy: Measure the deviation range between the actual lifting height of the hook and the preset standard height, which directly affects the accuracy of workpiece assembly and bonding and the regularity of multi-layer material stacking, which is the key assessment index of vertical operation accuracy；
• Multi-cycle repeatability: It reflects the consistency and operating stability of the crane's multiple start and stop positioning positions in long-term batch cycle operations, which is an important guarantee for standardized and automated continuous production.
• Braking and parking distance: After the control system issues a parking instruction, the crane relies on the actual distance of the mechanical inertia to glide, and the stability of the braking response directly determines the final alignment accuracy and parking reliability.；

Accuracy requirements of various industries

The requirements for crane positioning accuracy under different production conditions vary significantly, and the corresponding accuracy standards are matched as needed, which can not only meet the needs of the production process, but also maximize the cost-effectiveness of equipment investment. The accuracy tolerance specifications for each scene are as follows：

• Ordinary material handling scenarios: accuracy tolerance is ±100~300mm to meet the needs of basic material handling, transshipment, and stacking operations；
• Precision assembly manufacturing scenario: accuracy tolerance ±10~50mm, suitable for parts docking, equipment assembly and other refined operations；
• Heavy-duty scenarios of iron and steel heavy industry: accuracy tolerance ±20~100mm, suitable for heavy-duty handling conditions such as billet, steel coil, heavy forging, etc.；
• Automated warehousing scenario: accuracy tolerance is ±5~20mm to ensure accurate warehousing, outbound and alignment stacking of materials；
• Intelligent automated lifting system: accuracy tolerance is ±1~5mm, suitable for high-precision intelligent operations such as unmanned production lines and intelligent tooling docking.

Common Causes of Overhead Crane Positioning Errors

The inherent mechanical clearance and deformation are the root causes of long-term accuracy attenuation: the gear box backlash causes power idling and positioning dead zones; the lateral clearance of the wheel track causes lateral offset; the elastic deflection of the main beam under heavy load changes the position of the hook; long-term load and temperature difference cause cumulative deformation of the fuselage.

Speed control defect

Traditional fixed-speed cranes start and stop quickly and are easy to overtake; there is no close-range deceleration function, which is predicted by manual experience; the braking performance is unstable and the taxiing distance is not uniform; the low-speed control is poor, and frequent jog fine-tuning exacerbates wear and positioning deviation.

Load swing effect

The suspension load of the wire rope naturally forms a single pendulum structure.Start-stop mutation, commutation, heavy load, and high lift will all intensify the swing. After parking, the residual swing cannot be dropped immediately, and the drop point is offset and the production beat is stretched, which is the main obstacle to high-precision operations.

Interference with environmental conditions

Dirt, oil, wear and deformation on the surface of the track will change the coefficient of friction, causing fluctuations in braking distance and offset of walking position; wind in the semi-outdoor operating environment will form a lateral thrust on the fuselage and the crane, disrupting the trajectory; irregular loads with special-shaped workpieces and offset center of gravity are prone to irregular swing, which greatly weakens the positioning stability and alignment accuracy of the crane.

Manual operation deviation

There are differences in the parking prediction and jog operation habits of different operators. Frequent repeated fine-tuning not only exacerbates the loss of mechanical structure, but also causes the positioning effect to be unstable; at the same time, the operating methods of each shift are not uniform, which further leads to fluctuations in the accuracy of batch operations, making it difficult to form a standardized and consistent operating effect.。

Improve Positioning Accuracy Through Better Motion Control

Equipped with VFD frequency conversion speed regulation

Variable frequency drive (VFD) is the core supporting device for high-precision crane operation. It can output a linear and smooth acceleration and deceleration curve, support wide-speed ratio multi-stage speed regulation and precise low-speed micro-motion operation, effectively avoid the mechanical impact and lifting swing problems caused by extremely fast start and stop, greatly reduce equipment loss, and maintain stable positioning accuracy for a long time.

Optimize the acceleration and deceleration curve

The acceleration and deceleration time can be dynamically matched according to the actual load weight and lifting height, effectively suppressing the lifting swing under heavy-duty conditions; at the same time, a low-speed creep interval is set at the front end of the target station to allow the crane to approach the stop smoothly and accurately, completely avoiding the problem of inertial over-range.

Soft start-stop control strategy

Completely avoid the start-stop power mutation, effectively suppress the residual swing of the crane, ensure that the positioning of each stop is highly consistent, buffer the mechanical impact of the transmission system, greatly delay the aging speed of the equipment and the attenuation of positioning accuracy, and achieve long-term stable and accurate operation results.

Dual-axis independent speed control

The dual-axis independent frequency conversion and speed regulation scheme of the main beam and the trolley is adopted, which can realize synchronous deceleration in both directions, linkage and oblique precision positioning, and is perfectly adapted to the layout of complex stations and multi-process cross-operation, significantly improving the alignment accuracy and overall operating efficiency.

Use Positioning Sensors for More Accurate Crane Movement

Laser positioning system

The positioning system can achieve 1mm absolute positioning accuracy and 0.3mm ultra-high repeated positioning accuracy, can effectively avoid the positioning deviation caused by wheel slippage and wheel diameter wear, has wide temperature adaptability, can be stably adapted to all kinds of harsh industrial and mining environments, and does not require frequent zero-return calibration, and has strong operating stability. It is an excellent positioning solution for high-end automated cranes.

Encoder position detection

The absolute encoder can be powered off to remember the position data, no need to repeat the zero-return calibration, no cumulative positioning error throughout the process, and higher stability; the incremental encoder has a simple structure and outstanding cost performance. It is suitable for motor and wheel end installation under conventional working conditions, and can stably meet the needs of high-precision positioning operations in the equipment.

RFID magnetic positioning system

By embedding RFID identification tags in fixed workstations, the crane can automatically calibrate the coordinate data when it runs to the specified location, effectively eliminating the positioning drift caused by long-term operation of the equipment, stably achieving 10mm positioning accuracy, highly adaptable to repetitive cycle operation conditions, and can be seamlessly linked with the PLC control system to achieve automatic and accurate alignment.

Machine vision positioning

The system relies on industrial cameras to collect characteristic images of stations and workpieces in real time, accurately calculate the alignment offset and automatically complete dynamic correction, and realize fully autonomous intelligent alignment. It is the core key technology for intelligent factories to realize unmanned lifting, precision assembly, and automated palletizing operations.

Add Anti-Sway Control to Improve Load Placement

The swing of the crane is the core problem that causes the crane's blanking offset and misalignment of positioning, which directly restricts the landing of high-precision automated operations.At present, the mainstream anti-swing technology in the industry can be divided into two categories: passive anti-swing and active closed-loop anti-swing, which are adapted to different working conditions and scenarios to accurately solve the problem of swing deviation.：

• Passive anti-swing technology: relying on the mechanical buffer structure to suppress the swing of the crane, the structure is simple, the operation and maintenance cost is low, and it is suitable for ordinary indoor operation scenarios with stable working conditions and no external interference. It can only meet the basic anti-swing needs and cannot cope with wind and heavy-duty offset interference under complex working conditions.
• Active closed-loop anti-swing technology: through real-time monitoring of pendulum angle and closed-loop control of dynamic speed regulation, it adaptively cancels various types of operation interference, realizes near-zero swing of the crane, stops and stabilizes, greatly improves the efficiency of lifting operations, the accuracy and safety of landing points, and adapts to high-precision and unmanned operation scenarios.

Integrate PLC and Automation Systems

PLC core control logic

As the core of the automation control of the whole machine, the PLC system can collect the position data of high-precision sensors in real time, dynamically compare the deviation value of the target station and the actual position, and simultaneously output speed control correction instructions to the frequency conversion drive system to achieve real-time correction throughout the process and continuously stabilize the positioning accuracy of the equipment.

Preset station automatic positioning

The system supports pre-entry and curing of commonly used station coordinate parameters. During the operation process, the equipment can independently plan the operating path and accurately complete the alignment and docking, completely avoiding the random deviation caused by manual operation, and effectively ensuring the consistency and stability of positioning accuracy under mass production conditions.

Closed loop feedback control system

The system builds a high-frequency closed-loop control system of "sensing and detection-PLC operation-drive speed regulation-position correction", which can dynamically converge positioning deviations in real time, has strong anti-interference ability and operating stability, and the overall control effect is significantly better than traditional open-loop control, fully meeting the requirements of millimeter-level high-precision operations.

Factory automation system docking

The crane control system can be connected to MES, SCADA, and warehouse management systems, automatically receive operation tasks, realize unmanned transfer and station linkage, adapt to Industry 4.0 intelligent production, and upload data synchronously for equipment monitoring and optimization.

Mechanical Maintenance Is Essential for Positioning Accuracy

A precise electronic control system can only optimize the operation control deviation, and cannot offset the inherent positioning errors caused by mechanical structure wear and assembly deformation. Standardized and normalized mechanical operation and maintenance is the core bottom line to ensure the long-term positioning accuracy of the crane.Targeted and refined operation and maintenance content can be divided into four modules to avoid mechanical accuracy loss in all directions：

• Operation and maintenance of walking mechanism: regularly calibrate the wheel parallelism, track flatness, and spacing parameters, deal with track wear, fouling, and deformation problems in a timely manner, eliminate wheel deviation and rail gnawing, and avoid horizontal walking positioning offset from the source.
• Operation and maintenance of transmission mechanism: Normalize the detection of gearbox backlash, coupling coaxiality and fastening status, and carry out lubrication and maintenance work as needed to reduce transmission air range and power transmission deviation, ensure stable power output, and avoid positioning dead zone problems.
• Operation and maintenance of the braking system: regularly verify the sensitivity and braking torque of the braking system, unify the braking and taxiing distance of the equipment, solve problems such as unstable braking, over-range parking, and inconsistent points, and ensure the stability of each parking positioning.
• Operation and maintenance of lifting mechanism: regularly check the wear, tightness, reel working conditions, pulley smoothness and hook status of the wire rope, and replace aging and worn accessories in time to eliminate the positioning deviation of vertical lifting operations.

Calibrate the Crane Positioning System

The long-term continuous operation of the crane will cause problems such as system parameter drift and mechanical structure loss, and the positioning deviation will continue to accumulate, reducing the operating accuracy.In order to ensure the stability of equipment positioning for a long time, a standardized and normalized system calibration mechanism needs to be established. The core control measures are divided into the following five categories：

• Set up a reference zero point: fix the reference zero point of equipment operation, unify the calibration reference standard of all positioning parameters, and avoid the systematic positioning error caused by the reference offset from the root cause.
• Regular sensor calibration: Perform accuracy verification and parameter correction of various sensor equipment such as laser positioning, encoders, RFID, etc. in accordance with standard cycles to ensure accurate and reliable sensor detection data.
• Postoperative zero-return calibration: After the equipment overhaul, replacement of core accessories, and structural debugging are completed, the zero-return calibration must be re-calibrated to eliminate the assembly and positioning deviations caused by disassembly and assembly changes.
• Deviation data control: Normalize the deviation of the alignment accuracy of the measured equipment, completely record the operating data, form an accuracy ledger, and provide data support for parameter optimization and equipment rectification.
• Customized calibration cycle: Formulate differentiated calibration cycles based on equipment load conditions, operating frequency, and operating environment, predict equipment aging and accuracy attenuation problems in advance, and realize preventive maintenance.

How to Choose an Overhead Crane for High-Precision Production

Clarify the requirements of accuracy and working conditions

The selection of equipment needs to be combined with the tolerance requirements of the production process, the frequency of daily operations, and the comprehensive matching configuration scheme of manual and automatic operating modes to accurately fit the actual working conditions, avoid the problem of excess or insufficient accuracy, and ensure the accuracy and practicality of the operation while taking into account the economy of equipment investment.

On-demand matching control system

Optional VFD+ mechanical limit for conventional working conditions; optional VFD+ incremental encoder for general manufacturing; optional VFD+ laser/absolute encoder + PLC for precision warehousing; optional LASER + anti-swing + closed-loop PLC for high-end automation; super-precision intelligent production line superimposed machine vision and MES integration.

Selection based on working conditions and environment

Equipment selection needs to comprehensively consider equipment parameters such as rated load, operating span, lifting height, and working level, combined with complex working conditions such as on-site temperature, humidity, and dust, and scientifically match the adapted equipment protection level and high stability control system to ensure the stable operation of the equipment around the clock and long-term reliable operation.

Reserve space for automation upgrade

When selecting equipment, expansion interfaces such as remote control, data interaction, and intelligent monitoring should be reserved in advance. They are compatible with cutting-edge intelligent technologies such as digital twins and predictive maintenance, which can meet the needs of subsequent intelligent iterative upgrades of equipment, and reserve sufficient expansion space for the overall transformation and digital upgrading of smart factories.

Conclusion

The positioning accuracy of bridge cranes is affected by many factors such as mechanical structure, drive, sensing, control, and operation and maintenance.Load swing, abnormal parameters, component wear, sensing and operating deviations will all cause alignment offset, affecting operating efficiency and equipment life.

In view of the above problems, Henan Mine Crane can improve the positioning accuracy and stability of cranes through mechanical repair, parameter optimization, sensor upgrade, anti-swing, PLC closed-loop control, and regular calibration of the whole process optimization plan, reduce alignment errors and mechanical losses, adapt to precision manufacturing, intelligent warehousing and other scenarios, and help efficient and intelligent operation of lifting operations.
