Henan Mine-Manufactured Bridge Construction Specialized Crane
Henan Mine Crane for bridge construction is designed for global highway bridges, railroad bridges, cross-sea bridges, urban bridges, abutment construction and other scenarios to create a special heavy lifting equipment, working level A6-A8, can be efficiently completed prefabricated girder lifting, steel truss girder lifting, abutment material transfer, bridge decking equipment lifting, large bridge component installation and other full-process operations, the perfect solution to the global bridge construction enterprises The core pain points of the global bridge construction enterprises.
Advantages of Specialized Bridge Construction Cranes
Product core positioning and design standard
Core positioning: provide exclusive lifting solutions for global bridge construction enterprises, covering the whole process of bridge construction, suitable for lifting prefabricated girders, steel truss girders, piers and other components, taking into account the construction efficiency and operational safety, helping enterprises to shorten the construction period, reduce the risk of working at height and control operational costs, and suitable for bridge construction standards and scenarios in different countries and regions.
Core Product Advantages
Heavy load precision, adaptable to all processes
16-200t load, laser positioning ±0.3mm, can stably complete prefabricated beams, steel joist girders and other components lifting.
Wind-resistant and durable, suitable for outdoor
Strong wind-resistant truss gantry, wind speed warning and risk avoidance, stable operation in outdoor, coastal, plateau and other harsh environments.
Safe and Reliable, Reducing Risks at Height
Multiple protection + closed-loop control, eliminating overloading, tilting and other accidents, complying with the global bridge construction safety norms.
Flexible customization, adaptable to multiple scenarios
modular design can be customized parameters, rapid disassembly and transfer, adaptable to high-speed, cross-sea bridge and other scenarios, adaptable to global bridge construction standards.
Energy saving and high efficiency, green construction
electro-hydraulic energy saving technology, support hybrid/plug-in/pure electric switching, fuel saving (energy) over 40%, full of oil and full of electricity can work continuously for 15+ shifts.
Specifications of Bridge Construction Cranes
China's Premier Crane Supplier, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Rated Lifting Capacity | 16 – 200 | t | Customizable, suitable for precast beam, steel truss hoisting |
| Span | 18 – 40 | m | Adjustable, truss/box girder design, suitable for different bridge widths |
| Lifting Height | 8月30日 | m | Customizable according to bridge height and hoisting needs |
| Working Class | A6 – A8 | – | Suitable for heavy-duty continuous operation in bridge construction |
| Control Mode | PLC + Wireless Remote / Cab Dual Mode | – | Remote control distance up to 50m, positioning accuracy ±0.3mm |
| Lifting Speed | 0.5 – 8 | m/min | Frequency conversion stepless speed regulation, stable operation |
| Travel Speed (Trolley) | 4月20日 | m/min | Adapt to short-distance component transport |
| Travel Speed (Bridge) | 8月25日 | m/min | Stable operation, low noise |
| Working Temperature | -35℃ ~ +50℃ | ℃ | Customizable for extreme temperature and plateau environments |
| Power Supply | Customizable 220V-690V, 50/60Hz | V | Three-phase AC, adapt to global power grid standards |
| Material | Q355B High-Strength Steel | – | Shot blasting, ultrasonic welding flaw detection, truss/box girder |
| Protection Level | IP54 – IP65 | – | Dust-proof, waterproof, moisture-proof, suitable for outdoor operation |
| Certification | ISO, CE, FEM | – | Meet global industrial standards, direct export |
| Packaging | Wooden Box / Plywood Packaging | – | Suitable for ocean transportation |
| Hoisting Mechanism | Dual Hoisting Mechanism (Main Hook + Auxiliary Hook) | – | Main hook for heavy load, auxiliary hook for light load |
| Wind Resistance | ≤ Level 12 | – | Wind speed monitoring and early warning system |
| Energy-Saving Mode | Hybrid / Plug-in / Pure Electric | – | Over 40% energy saving, zero emission |
What Can Specialized Bridge Construction Cranes Offer You?
| Value Category | Specific Benefits | Description |
| Lifting Precision | High-Precision Positioning | Laser positioning technology, positioning accuracy ±0.3mm, closed-loop control system, ensure precise hoisting and placement of bridge components |
| Load Capacity | Heavy-Duty Bearing Performance | 16-200t lifting capacity, Q355B high-strength steel truss/box girder, stable load-bearing, suitable for precast beam and steel truss hoisting |
| Wind Resistance | Wind-Resistant Design | Truss gantry structure, wind speed monitoring and early warning system, resistant to level 12 winds, avoid component shaking and falling |
| Efficiency | High-Efficiency Operation | 15-30 precast beam hoists per hour, load-carrying telescoping and dual-cylinder synchronous retraction technology, 30%-50% efficiency improvement |
| Durability & Maintenance | Low Lifecycle Cost | 18+ years design service life, international standard parts, annual maintenance cost only 2%-3% of total equipment price, modular design for easy maintenance |
| Global Compliance | Direct Export & Certification | ISO, CE, FEM certified, customizable power supply, direct export to 80+ countries, complete international technical documents and customs clearance support |
| Customization | Scenario-Adaptable Solutions | Customizable lifting capacity, span, lifting height and spreader type, quick disassembly and transfer, adapt to various bridge construction scenarios |
| After-Sales Support | Global Professional Service | 24/7 multilingual technical support, 72h global spare parts delivery, on-site service for complex faults, ensure smooth bridge construction |
| Environmental Adaptability | All-Condition Stable Work | IP54-IP65 protection grade, -35℃~+50℃ working temperature, anti-corrosion upgrade available, 5000m altitude no power loss |
| Energy Saving | Green & Energy-Efficient | Hybrid, plug-in and pure electric operation modes, over 40% energy saving, zero emission during operation, 15+ consecutive working shifts |
| Operational Flexibility | Dual Control Mode | Wireless remote control (50m range) + cab control, frequency conversion speed regulation, easy and flexible operation |
Application Scenarios for Bridge Construction Cranes Manufactured by Henan Mine

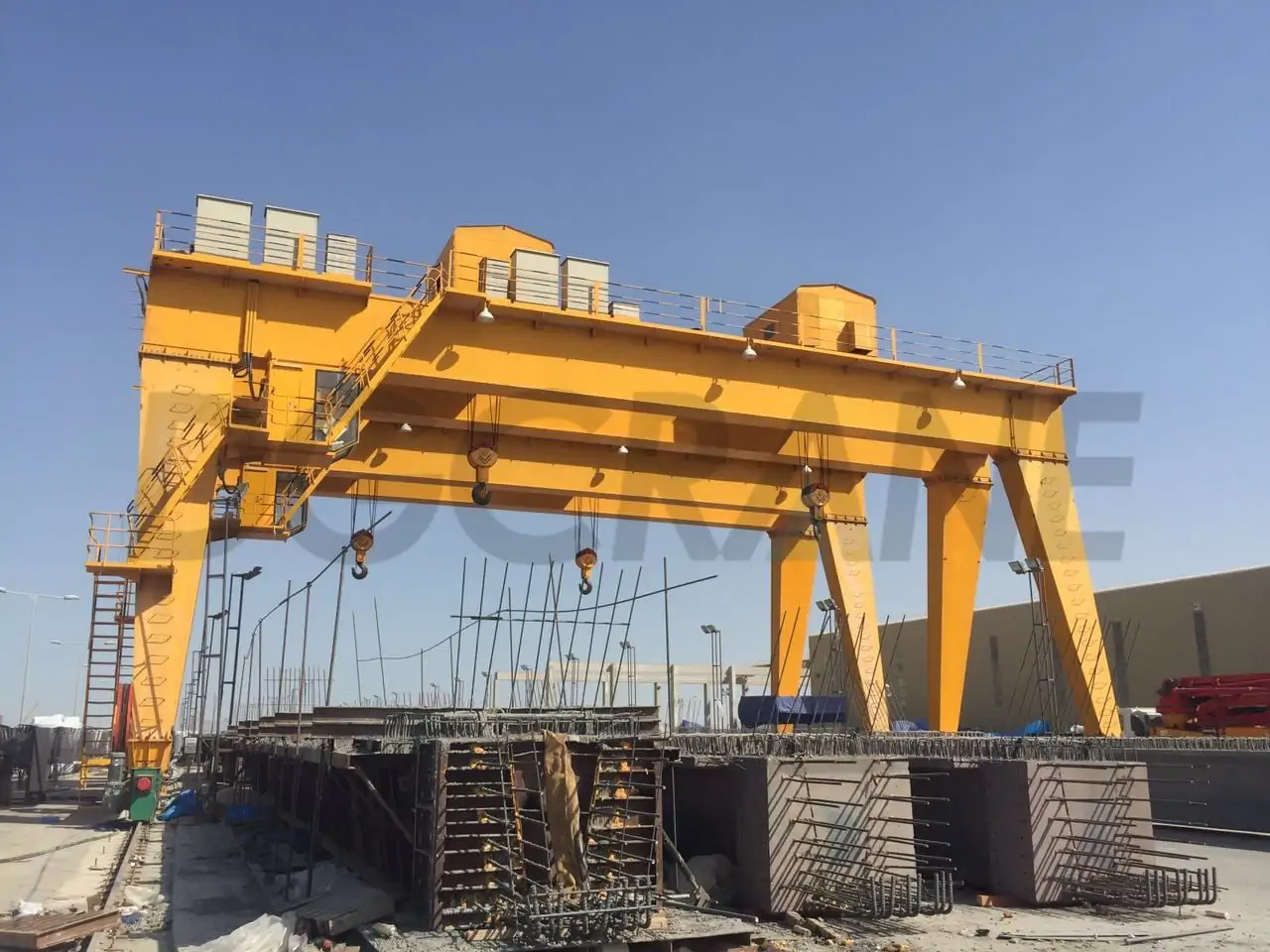

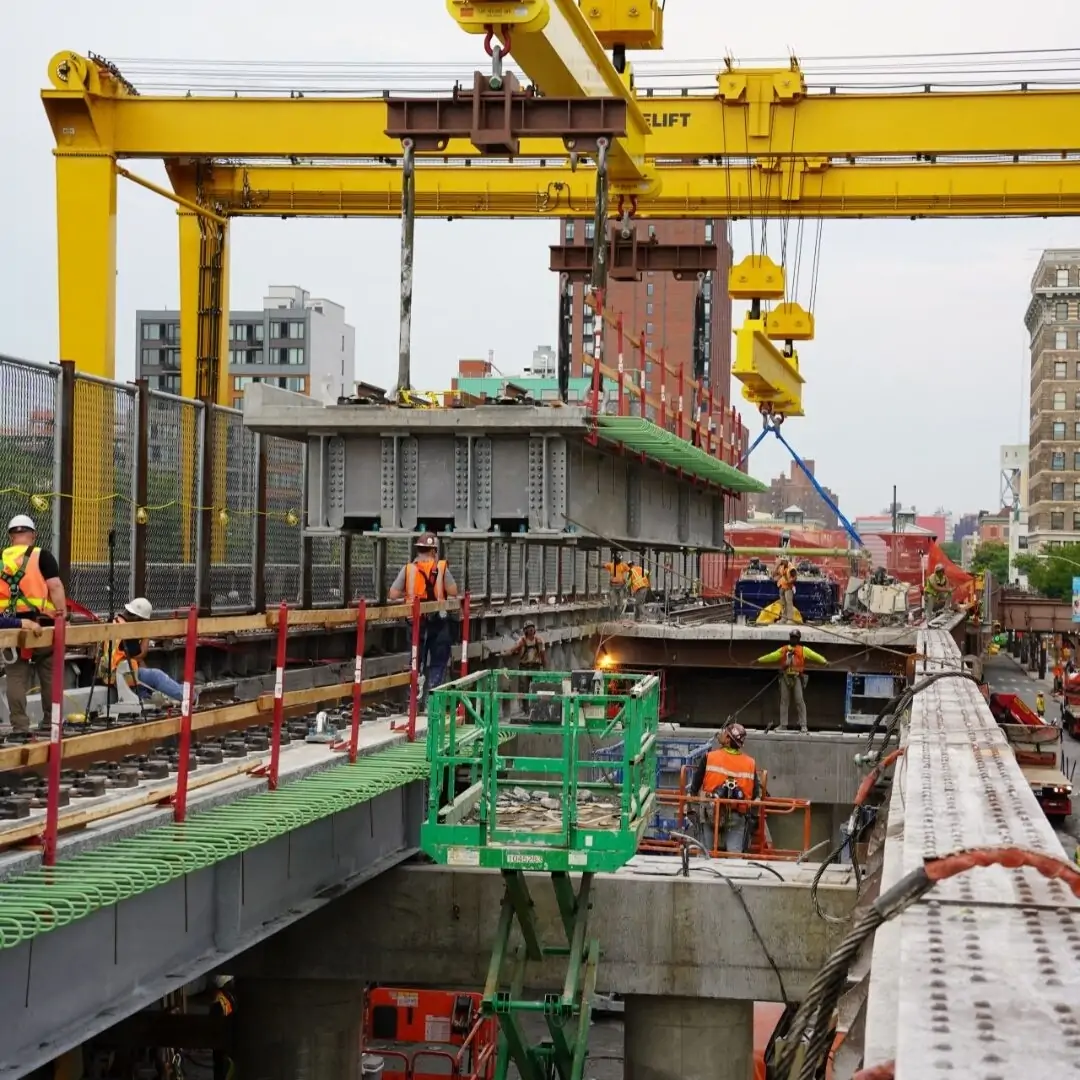

Precast component hoisting
Production, transportation, and on-site installation of precast components such as box girders, T-beams, and steel truss girders;

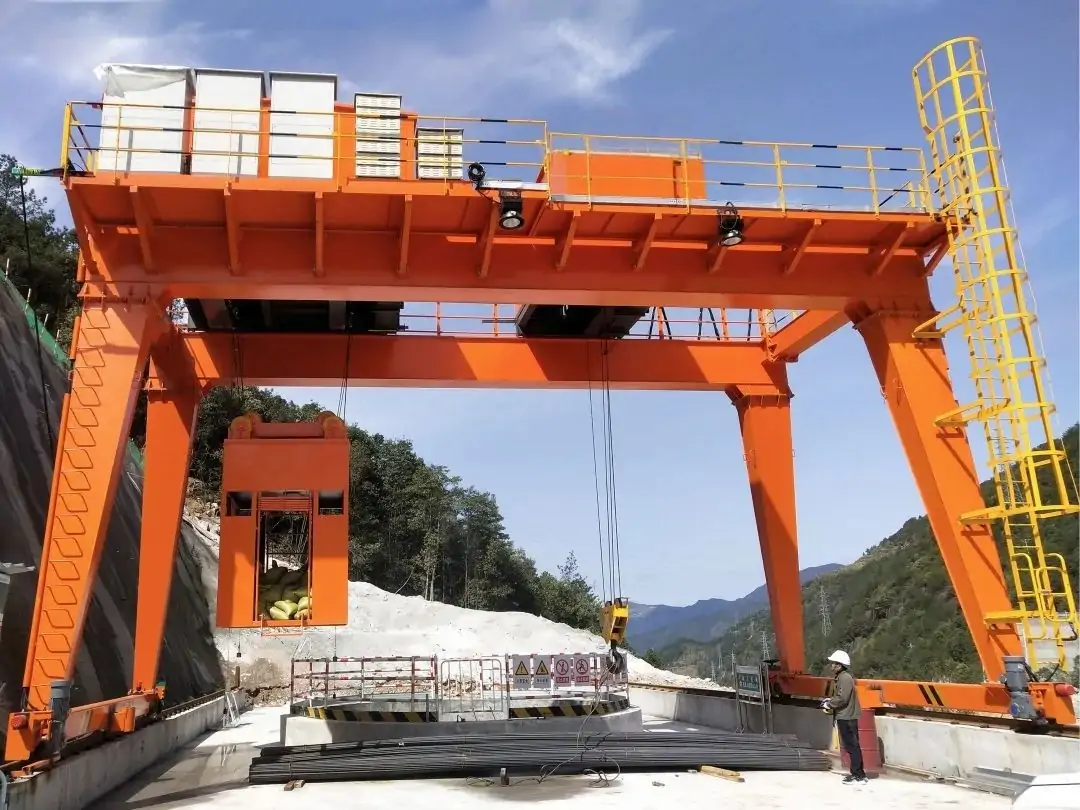

Piers construction phase
Hoisting and installation of pier formwork; transportation of construction materials including rebar, cement, and embedded parts;
Bridge Deck Construction
Lifting of bridge deck paving equipment (pavers, rollers); installation and lifting of bridge deck guardrails, expansion joints, and other components;
Other Applications
Auxiliary lifting for bridge erection equipment (gantry cranes); removal of old components and installation of new components during bridge maintenance and renovation.
Your Top Concerns Regarding Bridge Construction Cranes and Professional
China's Premier Crane Supplier, Driving High-Quality Development in the Crane Industry for 24 Years
-
Is there any flexible payment method and financing program for overseas customers?There are flexible business solutions, supporting installment, financial leasing, etc., and customized payment plans are available. We provide full assistance in customs clearance, letter of credit and other procedures, provide a full set of information, and support trade terms such as FOB, CFR, CIF, and so on.
-
Henan Mine Crane for bridge construction can be adapted to cross-sea bridge lifting needs?Yes, the rated lifting capacity of QLB/QLM type is 16-200t, which is suitable for steel truss girder lifting of cross-sea bridges. The high-strength box main girder + laser positioning can realize the whole lifting of large sections and shorten the erection cycle by 40%, and the wind-resistant system can withstand strong winds of class 12, which is suitable for salt spray and windy environment.
-
Can the lifting precision of the equipment meet the demand for precise laying of prefabricated girders?Completely satisfied. Equipped with PLC+laser positioning, accuracy of ±0.3mm, smooth operation, double lifting mechanism working together, can accurately complete the precast beam lifting and positioning, support loaded expansion and contraction, enhance the flexibility of construction.
-
Can the equipment be directly exported to EU countries?It can be exported directly. The equipment has passed ISO, CE and FEM certifications, which is in line with EU standards without modification. We assist in customs clearance, provide English technical data and shipping packaging, and the cost is lower than similar foreign countries.
-
Can the equipment run stably?Stable operation is possible. Strong wind resistance of truss gantry, wind speed warning and risk avoidance, IP54-IP65 protection, coastal can be upgraded anticorrosive coating, motor resistance -35 ℃ ~ +50 ℃, 5000m altitude without power loss, suitable for all kinds of harsh environments.
-
How do overseas customers enjoy maintenance service?Designed for 18 years +, frame warranty 5 years, electrical 2 years, core mechanical 3 years. Overseas customers can enjoy 7×24 hours multi-language after-sales service, core spare parts can be shipped within 24 hours, 48 hours for complex faults, and English maintenance manuals are provided.
-
Can it be customized according to our bridge construction scenario?Absolutely. The modular design can be customized with lifting capacity, span and other parameters, suitable for high-speed, sea-crossing bridges and other scenarios, and can be equipped with automation functions for quick dismantling and transferring without the need to modify the site.
-
What is the energy-saving effect of the equipment?Energy saving is significant and can reduce cost. It supports hybrid/plug-in/pure electric switching, saves fuel (energy) by over 40%, and can work continuously for 15+ shifts with full fuel and full power, and the annual maintenance cost is only 2%-3% of the total price of the equipment.
-
How much noise is there when the equipment is running?Running noise ≤ 60dB, does not affect the surrounding and construction workers. Adopting frequency conversion speed control and noise reduction design, the noise is lower than the industry standard, suitable for outdoor construction.
-
Is it difficult to maintain the equipment?The maintenance difficulty is low, overseas can complete the basic maintenance by themselves. The modular design is easy to disassemble, the core components are international common parts, English maintenance manuals are provided, and remote guidance is available for complex faults.
-
Can the equipment work with the bridge construction scheduling system?Seamless cooperation is possible. The control system reserves standard interfaces to support docking with mainstream bridge construction scheduling and BIM systems to realize intelligent scheduling and automatic lifting without system modification.
