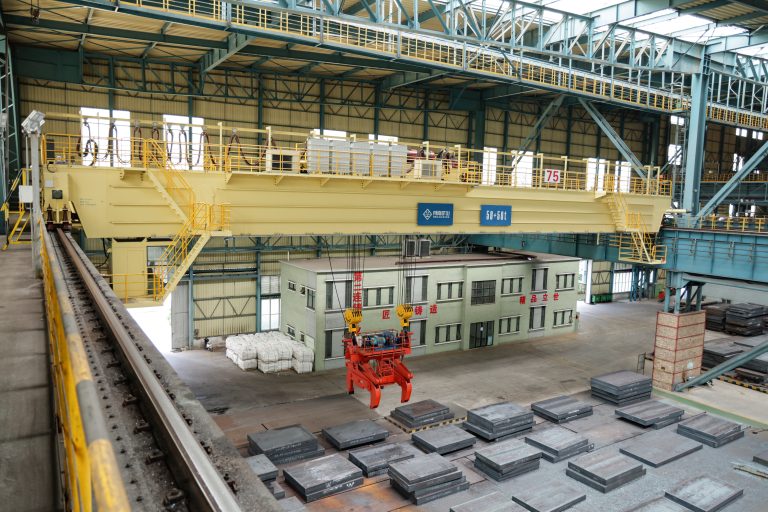

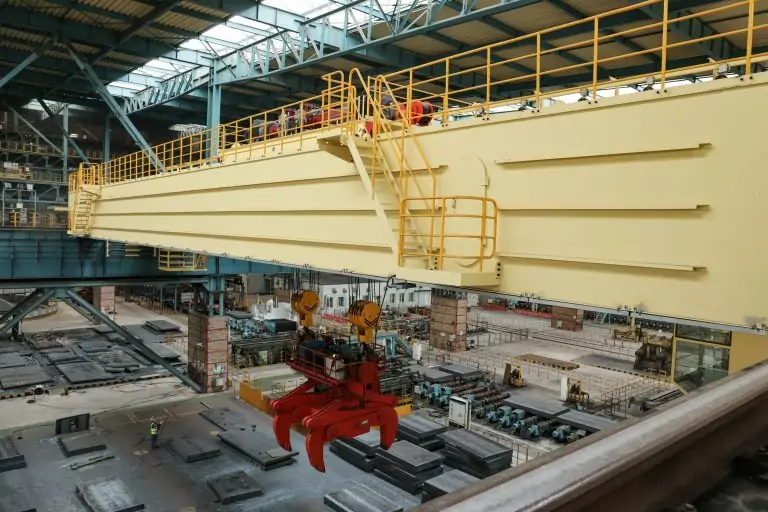

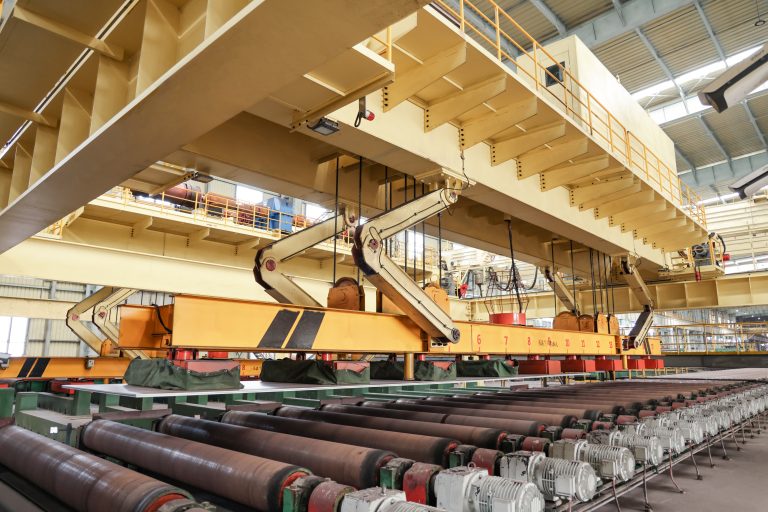

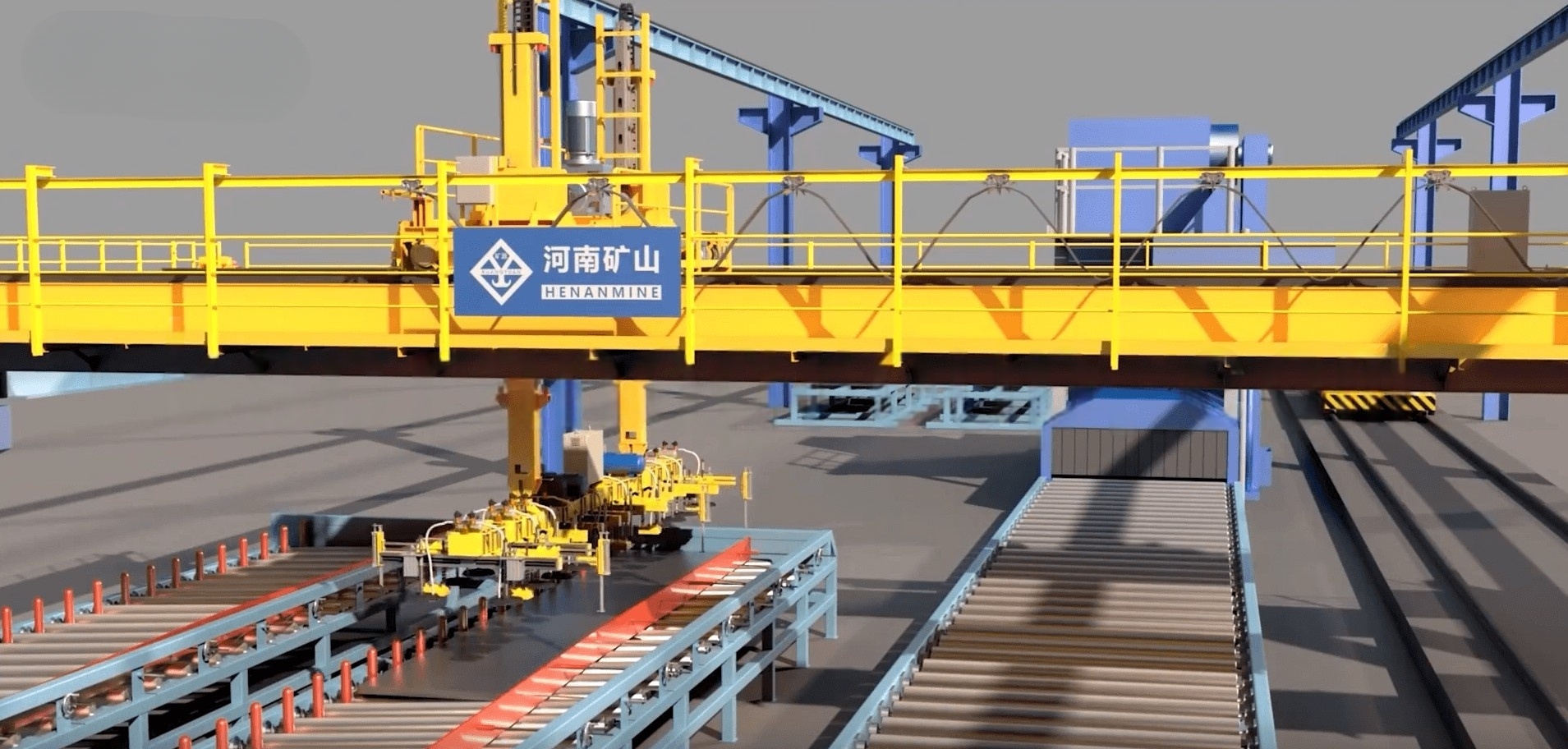

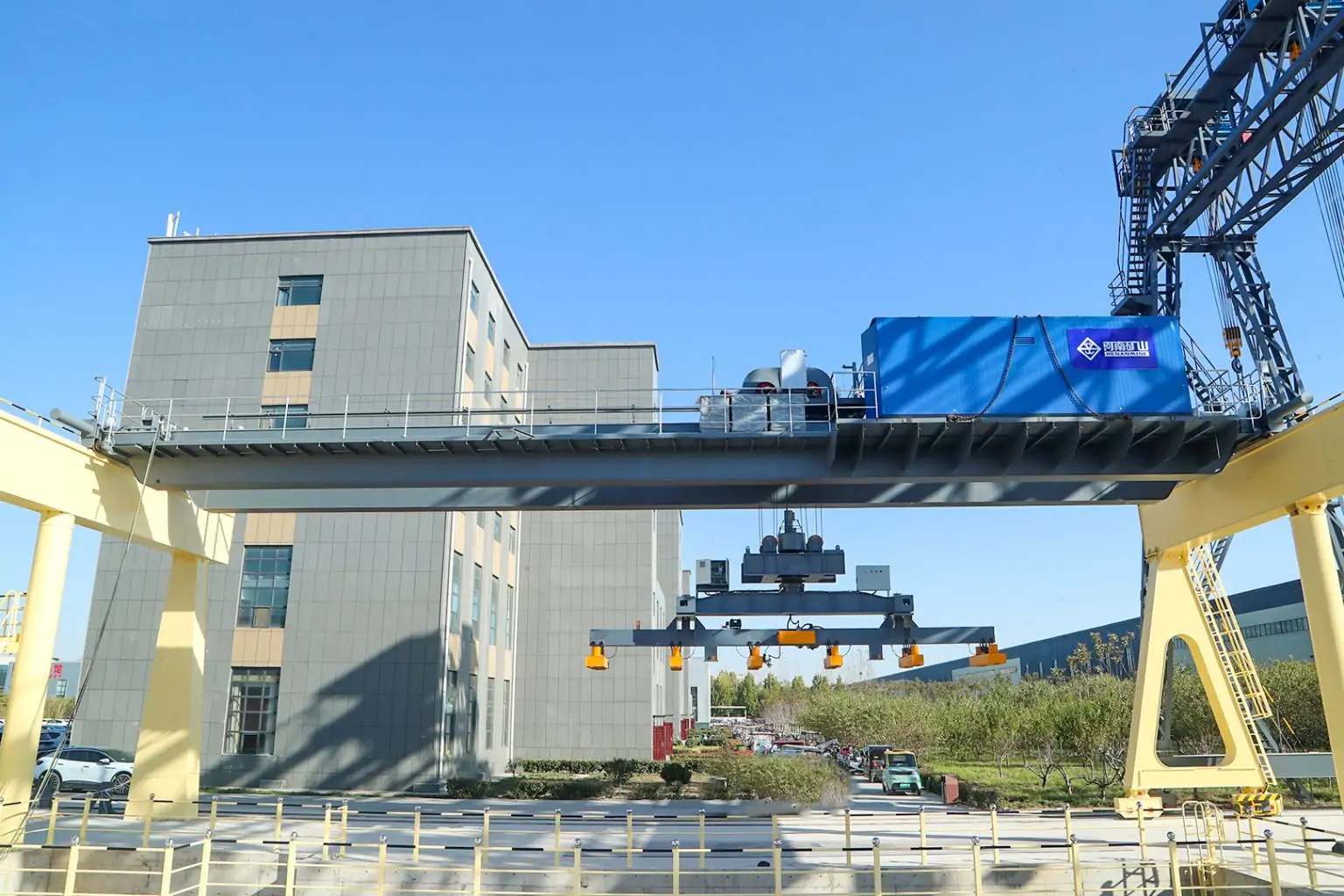

Automatic Steel Plate Handling Crane Manufactured by Henan Mine
Henan Mine Crane steel plate handling cranes are special heavy material handling equipment for global steel mills, shipyards, steel plate warehouses, steel processing plants, port terminals and other industries, working level A5-A7, can efficiently complete all kinds of thickness, specifications of the steel plate gripping, transfer, stacking, loading and unloading of the whole process of operation, the perfect solution to the core pain points of the steel plate handling of the global industrial enterprises.
Advantages of the Automatic Steel Plate Handling Crane Manufactured by Henan Mine
Product core positioning and design standards
Core positioning: to provide global industrial enterprises with “efficient, safe, accurate, wear-resistant” steel plate handling solutions, adapted to various specifications of steel plate, covering indoor and outdoor multi-scenario operations, taking into account the operational efficiency and protection of the plate, to help enterprises to reduce labor costs, improve the handling efficiency, reduce the loss of plate, to achieve the scale of standardized steel plate handling operations. Steel plate handling operations.
Advantages of the Automatic Steel Plate Handling Crane Manufactured by Henan Mine
Heavy-duty and high efficiency, improve operation efficiency
High-strength structure can carry 0.5-100t steel plate, 30-50 times handling per hour, significantly reduce cost and increase efficiency.
Safe and reliable, eliminating plate loss
multiple safety protection + non-slip gripping design, in line with global industrial safety norms, reducing material loss.
Multi-scene adaptation, flexible customization
adapt to indoor and outdoor scenes, high and low temperature resistance, dust resistance, coastal corrosion can be upgraded.
Durable and easy to maintain, reduce operating costs
the core components of the international common, the design life of more than 18 years, the annual maintenance cost of 2% -3%.
Global compliance, direct export
hrough ISO, CE, FEM certification, can be directly exported to 60+ countries, the whole process to assist customs clearance, for letters of credit, to provide a full set of English technical information, to solve overseas compliance concerns.
Parameters of the Automatic Steel Plate Handling Crane
China's Premier Crane Supplier, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Rated Lifting Capacity | 0.5 – 100 | t | Customizable, suitable for various steel plate weights |
| Span | 5 – 35 | m | Extended for large workshops and ports |
| Lifting Height | 4月25日 | m | Customizable according to operation space |
| Working Class | A5 – A7 | – | Suitable for medium and heavy-duty continuous operation |
| Grabbing Method | Electromagnetic Chuck / Hydraulic Clamp | – | Customizable, anti-slip and anti-damage |
| Control Mode | PLC + Wireless Remote / Cab Dual Mode | – | Remote control distance up to 50m, easy operation |
| Lifting Speed | 0.8 – 12 | m/min | Frequency conversion stepless speed regulation |
| Travel Speed (Trolley) | 5月20日 | m/min | Stable operation, low noise |
| Travel Speed (Bridge) | 10月30日 | m/min | Adapt to long-distance handling |
| Working Temperature | -20℃ ~ +50℃ | ℃ | Customizable for extreme temperature environments |
| Power Supply | Customizable 220V-690V, 50/60Hz | V | Three-phase AC, adapt to global power grid standards |
| Material | Q355B High-Strength Steel | – | Shot blasting, welding flaw detection, high rigidity |
| Protection Level | IP54 – IP65 | – | Dust-proof, waterproof, suitable for indoor and outdoor operation |
| Certification | ISO, CE, FEM | – | Meet global industrial standards, direct export |
| Packaging | Wooden Box / Plywood Packaging | – | Suitable for ocean transportation |
What Can Automatic Steel Plate Handling Crane Offer You?
| Value Category | Specific Benefits | Description |
| Handling Efficiency | High-Speed Steel Plate Handling | 30-50 moves per hour, 80% higher efficiency than manual handling, reduce labor cost significantly, suitable for large-scale steel plate handling scenarios |
| Loading Capacity | Heavy-Duty Bearing Performance | Q355B high-strength steel structure, 0.5-100t lifting capacity, stable load-bearing, no deformation under long-term heavy load operation |
| Safety & Protection | Secure & Damage-Free Handling | Multiple safety devices, anti-slip hydraulic clamp, electromagnetic emergency power-off protection, avoid steel plate slipping and damage |
| Versatility | Multi-Scene & Multi-Spec Adaptation | Suitable for hot-rolled/cold-rolled/thick/thin steel plates, indoor/outdoor/port scenarios, customizable for different needs |
| Durability & Maintenance | Low Lifecycle Cost | 18+ years design service life, modular design for easy maintenance, annual maintenance cost only 2%-3% of total equipment price |
| Global Compliance | Direct Export & Certification | ISO, CE, FEM certified, customizable power supply, direct export to 60+ countries, complete international technical documents |
| Customization | Scenario-Adaptable Solutions | Customizable lifting capacity, span, lifting height, grabbing method (electromagnetic/hydraulic) for global industrial needs |
| After-Sales Support | Global Professional Service | 24/7 multilingual technical support, 72h global spare parts delivery, on-site service for complex faults |
| Plate Protection | No Damage to Steel Plates | Anti-slip, anti-collision design, avoid scratches and deformation of steel plates, ensure material integrity |
| Operation Flexibility | Dual Control Mode | Wireless remote control (50m range) + cab control, frequency conversion speed regulation, easy and flexible operation |
| Environmental Adaptability | All-Condition Stable Work | High/low temperature resistance, dust proof, anti-corrosion upgrade available for coastal areas, adapt to harsh industrial environments |
Application Scenarios of Automatic Steel Plate Handling Cranes
Steel Storage Industry
Steel plate stacking upon entry, transfer during outbound operations, inventory counting;
Steel Plate Processing Industry
Pre-treatment transfer (rust removal, painting), integration with cutting/stamping/bending processes;
Automotive Manufacturing Industry
Automatic feeding of steel plates in stamping workshops, transfer of stamped parts;
Other Applications
Specialized hoisting of stainless steel/aluminum plates (magnetic/non-magnetic), customized hoisting of irregularly shaped steel plates.
Your Top Concerns and Professional Answers Regarding Automatic Steel Plate Handling Cranes
China's Premier Crane Supplier, Driving High-Quality Development in the Crane Industry for 24 Years
-
For overseas customers, are there any flexible payment methods and financing programs, and can you assist in export procedures?There are flexible programs. We support installment payment, financial leasing, etc., and can customize the payment plan; we assist in the whole process of customs clearance, letter of credit and other formalities, provide complete technical information and packaging solutions, and support trade terms such as FOB, CFR and CIF.
-
Henan Mine Crane can be adapted to our steel mill 100t thick steel plate handling needs?Yes, GB type rated lifting capacity of 0.5-100t, the use of Q355B high-strength steel to create a box-shaped main beam, welded seams up to standard, strong rigidity, with adjustable force hydraulic clamp, can be stabilized gripping 100t thick steel plate, in line with the metallurgical crane standards, to meet the needs of the steel mills heavy-duty handling.
-
Will the gripping method of the equipment cause scratches to the plates?It will not scratch the plate. Cold rolled thin steel plate can choose electromagnetic suction cups, non-contact gripping; thin steel plate can be customized flexible suction cups to protect; thick steel plate with hydraulic clamps, flexible non-slip material to hold, the two ways can be chosen according to the needs of the two ways to eliminate plate damage.
-
Can the equipment be exported to EU countries?It can be exported to EU directly. The equipment has passed ISO, CE and FEM certifications and meets the EU standards without modification. We assist in customs clearance, provide English technical information and shipping packaging to ensure compliance with customs clearance and safe delivery.
-
Can the equipment withstand high temperature when working in outdoor open yard?It can operate stably with IP54-IP65 protection level, dustproof and waterproof; the motor can withstand high temperature (+50℃), the anti-corrosion coating can be upgraded along the coast, and the rainproof and dustproof cover can be installed in the open air, so it is suitable for all kinds of harsh outdoor environments.
-
How do overseas customers enjoy maintenance service?The design life is more than 18 years, frame warranty is 5 years, electrical system is 2 years and core mechanical parts are 3 years. Overseas customers can enjoy 7×24 hours multi-language after-sales service, 24 hours delivery of spare parts in core area, 72 hours delivery of emergency spare parts, 48 hours door-to-door service for complex faults.
-
Is it possible to customize the equipment according to our working space and steel plate specifications?Absolutely. Modular design can be customized according to the operating space, steel plate specifications, scene, lifting capacity, span, gripping mode and other parameters, can be added with automation functions, without the need to transform the existing site, suitable for all types of industrial scenarios.
-
How much noise is there when the equipment is running?The running noise is ≤60dB, which does not affect the workshop operation. Adopting frequency conversion speed control and noise reduction design, the noise is lower than the industry standard, and it can run stably in the workshop and factory area without interfering with the work of the personnel and the surrounding environment.
-
What protection measures are there after the electromagnetic suction cup is powered off?It won't fall down and has double protection. Electromagnetic suction cup is equipped with emergency power supply, which can keep the magnetic force for more than 30 minutes after power failure; meanwhile, it is equipped with overload protection and lifting limit device, which can guarantee the safety of operation and personnel.
-
Do I need professional maintenance?Low maintenance difficulty, no need for professional personnel. The modularized design can be disassembled individually, and with the English maintenance manual, the operator can complete the basic maintenance with simple training, and can enjoy the remote guidance for complex faults.
-
Can the equipment be connected to our workshop's existing MES system to realize automated steel plate handling?Seamless connection is possible. The intelligent control system has reserved standardized interfaces to support docking with mainstream MES and workshop scheduling systems to realize automated scheduling, stacking and other functions, without the need to modify the system, and quickly integrate into the intelligent workshop.
Recommended similar solutions
China's Premier Crane Supplier, Driving High-Quality Development in the Crane Industry for 24 Years

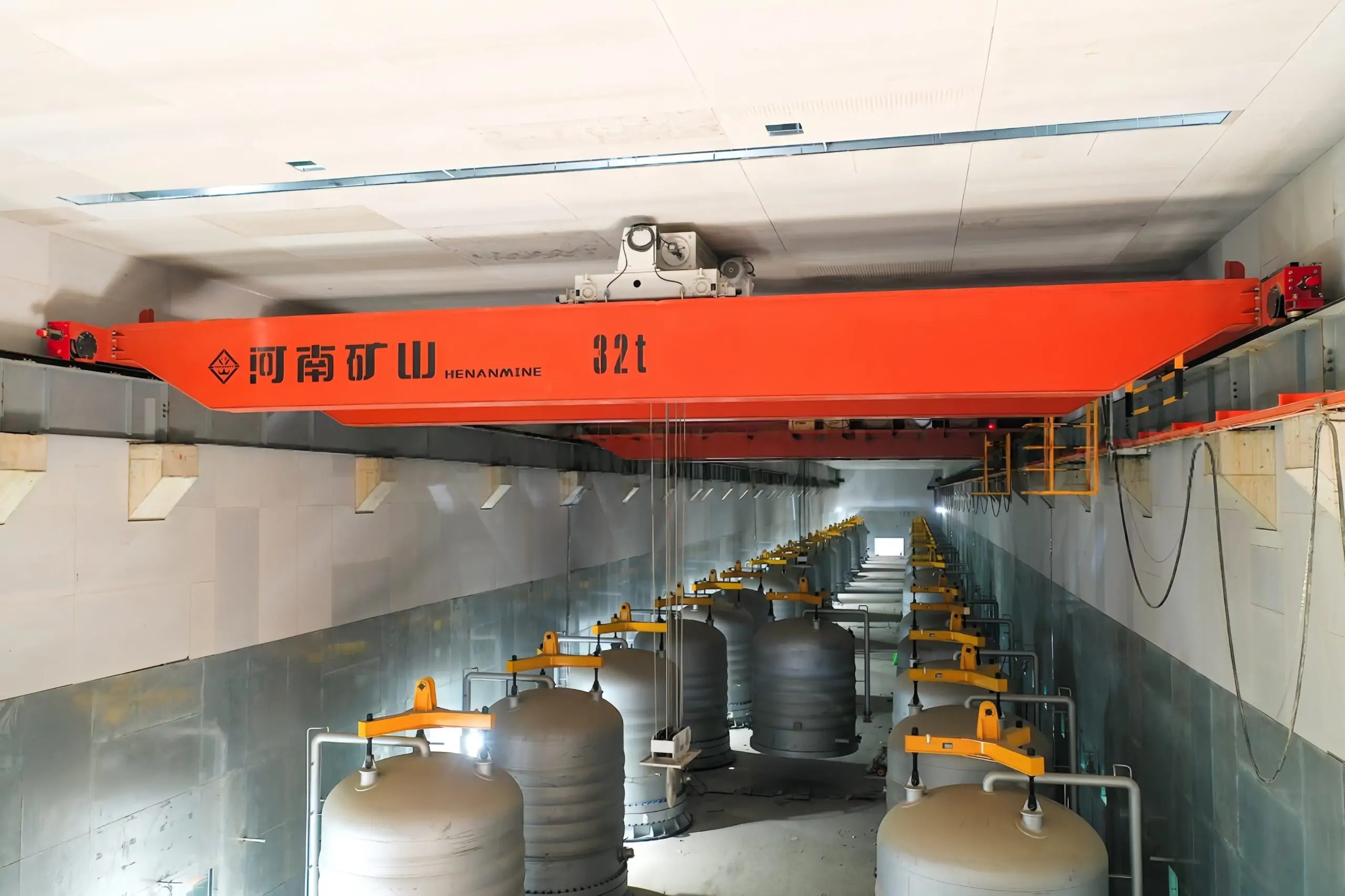

Henan Mine Manufacturing ZJJB Cleanroom Explosion-Proof Crane
Henan Mine Crane Cleanroom Explosion-Proof Crane Relying on the integrated intelligent scheduling and control system, the material hoisting and transportation can be planned autonomously, positioned precisely, and connected efficiently. Under special working conditions, operators can flexibly control the equipment remotely, which reduces labor intensity and ensures uninterrupted operation.

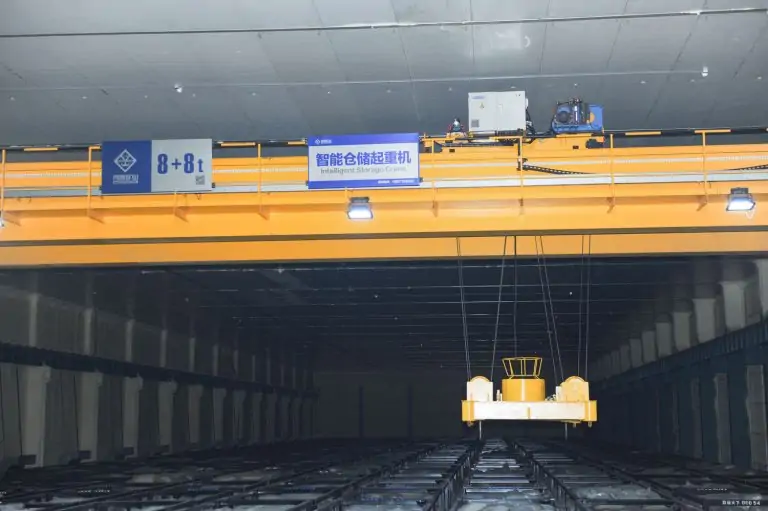

Smart Warehouse Crane Manufactured by Henan Mine
Henan Mine Crane Intelligent Warehouse Crane is designed for the global intelligent three-dimensional warehouse, logistics distribution centers, manufacturing warehouses, high level warehouses, pharmaceutical cold chain warehouses and other scenarios to create the core equipment for automated warehousing, the working level of A5-A7, can be efficiently completed automated access to the goods, intelligent sorting, inventory, material transfer and other full-process operations, a perfect solution to the core of the global warehousing business pain points.

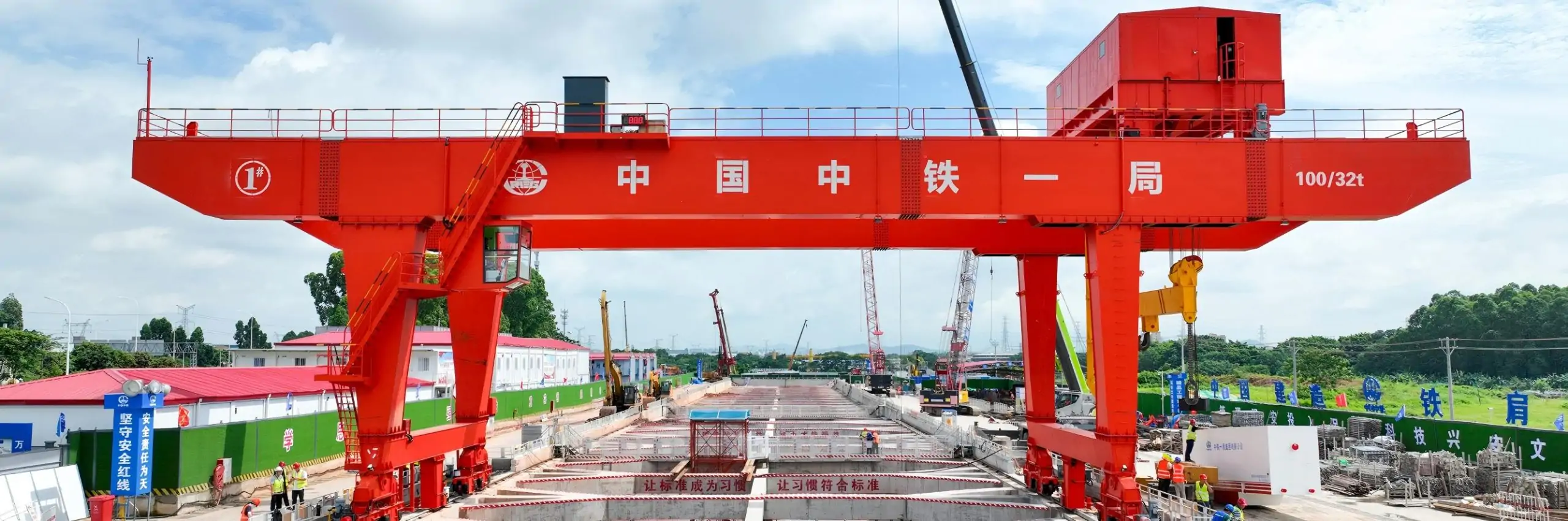

Henan Mine manufactures specialized cranes for subway construction
Henan Mine Crane for metro construction is a special material handling equipment designed for global metro construction, tunnel construction, underground corridors, metro shafts and other scenarios, the working level of A6-A8, can efficiently complete the metro dirt transfer, steel cage lifting, track laying, construction equipment lifting and other full-process operations, a perfect solution to the core of the global metro construction enterprises pain points.

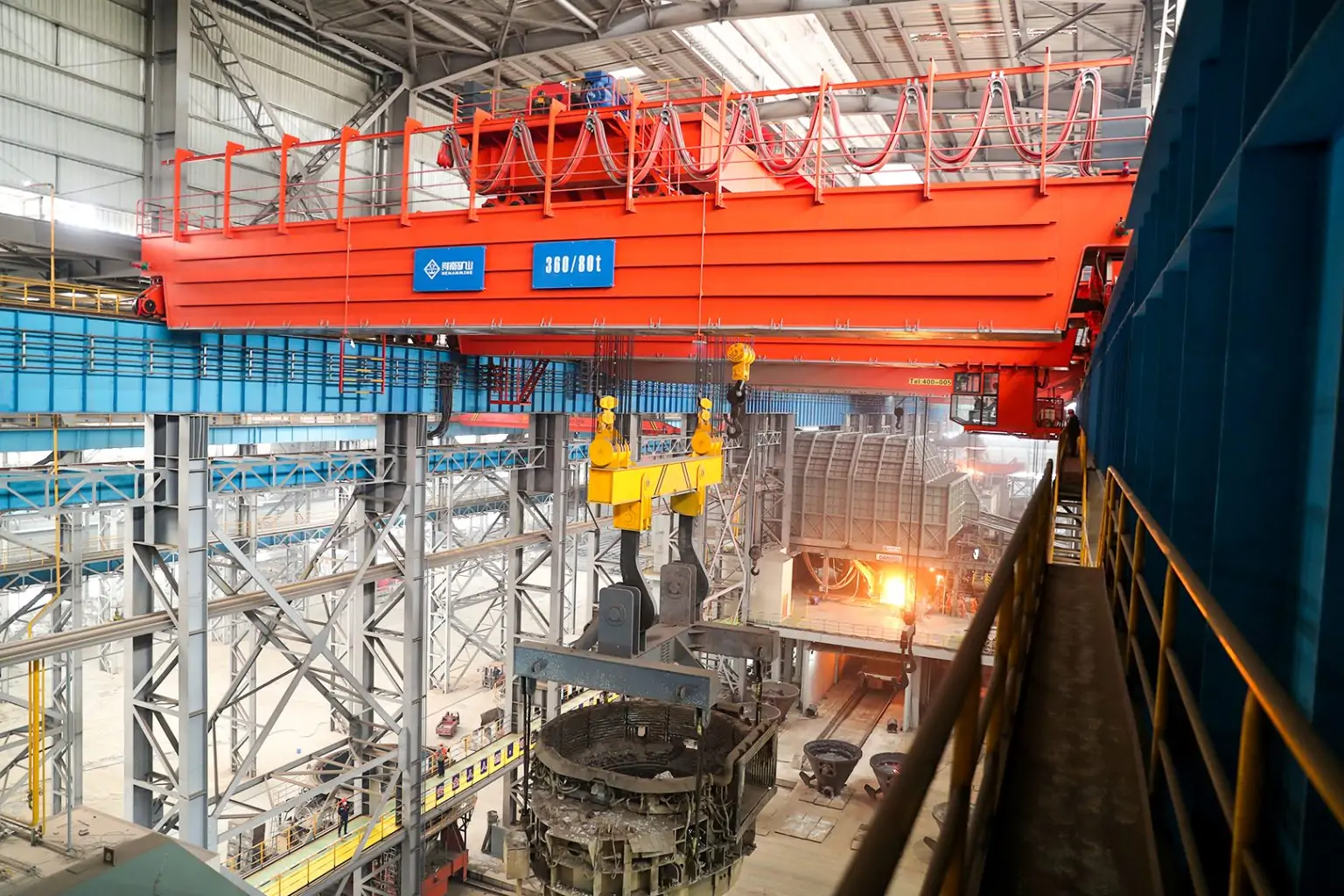

Steel Mill Casting Specialized Crane Manufactured by Henan Mine
Henan Mine Crane for steel mills is a special metallurgical lifting equipment specially designed for global steel mills converter shop, continuous casting shop, ingot casting shop, steelmaking shop and other scenes, working level A7-A8, can efficiently complete the ladle lifting, iron transfer, ingot lifting, furnace charge, steel slag cleaning and other steel casting the whole process of operation, a perfect solution to the core pain points of the global steel mills.
Henan Mine-Manufactured Bridge Construction Specialized Crane
Henan Mine Crane for bridge construction is designed for global highway bridges, railroad bridges, cross-sea bridges, urban bridges, abutment construction and other scenarios to create a special heavy lifting equipment, working level A6-A8, can be efficiently completed prefabricated girder lifting, steel truss girder lifting, abutment material transfer, bridge decking equipment lifting, large bridge component installation and other full-process operations, the perfect solution to the global bridge construction enterprises The core pain points of the global bridge construction enterprises.
Automatic Steel Plate Handling Crane Manufactured by Henan Mine
Henan Mine Crane steel plate handling cranes are special heavy material handling equipment for global steel mills, shipyards, steel plate warehouses, steel processing plants, port terminals and other industries, working level A5-A7, can efficiently complete all kinds of thickness, specifications of the steel plate gripping, transfer, stacking, loading and unloading of the whole process of operation, the perfect solution to the core pain points of the steel plate handling of the global industrial enterprises.

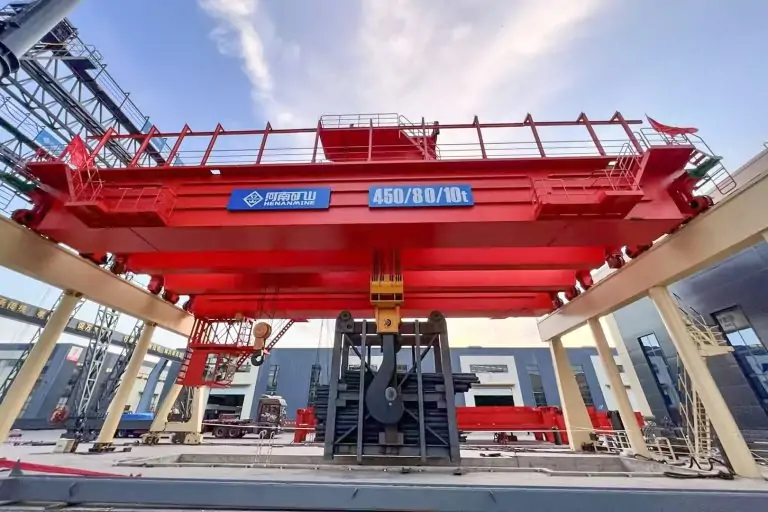

Four-Girder Casting Crane for Steel Mills Manufactured by Henan Mine
Henan Mine Crane four girder casting crane is designed for the global iron and steel mills, metallurgical foundries, non-ferrous metal smelting enterprises to create a heavy-duty molten metal lifting equipment, working level A7-A8, can complete the ladle / ladle hanging, transfer, pouring, iron to the whole process of operation.

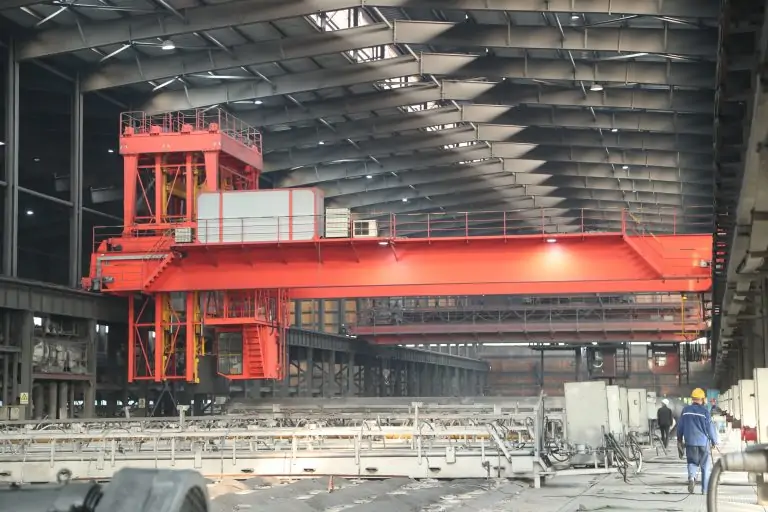

Henan Mine-Manufactured Crane for Electrolytic Aluminum Production
