Gantry Crane Type, Parameters and Supplier Selection Full Analysis
Many industrial project managers focus on the model and parameters of the gantry crane when purchasing equipment, but ignore the screening of suppliers. In fact, choosing the right manufacturer is far more critical than simply choosing the right equipment model. Most of the gantry cranes are used in outdoor open-air scenes, the operating environment is complex, the durability of the equipment, adaptability has very high requirements.
Different suppliers of gantry cranes deliver equipment quality, production process, material standards are extremely different.
Combined with years of experience in serving industrial projects at home and abroad, we have put together a set of strong logic of purchase. From the applicable scenarios of portal cranes, project core requirements, adaptable models, key parameters, to supplier screening criteria, common procurement misunderstandings and high-frequency problems, to help industrial buyers avoid procurement pitfalls, matching the project with reliable portal crane manufacturers.
The main application scenarios of gantry cranes
The biggest advantage of gantry cranes is that they do not need to rely on the steel structure of the plant, relying on their own gantry structure to work independently, with a wide range of outdoor coverage, adaptable to a variety of scenarios, is the core lifting equipment for all types of open yard, outdoor projects. Different scenes of operational intensity, environmental differences, corresponding to completely different equipment selection criteria.

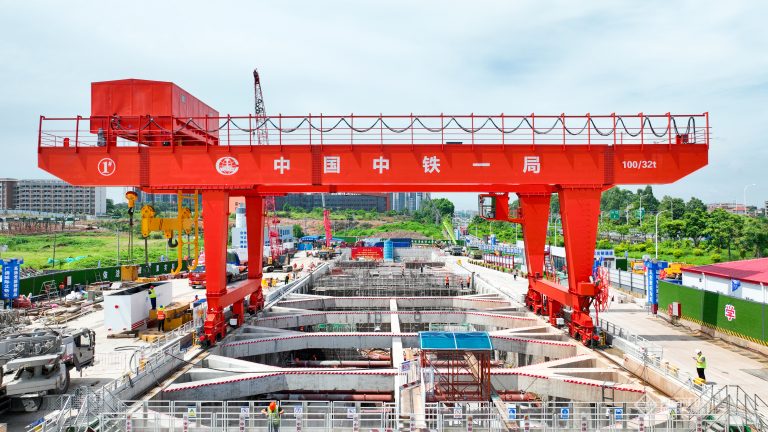

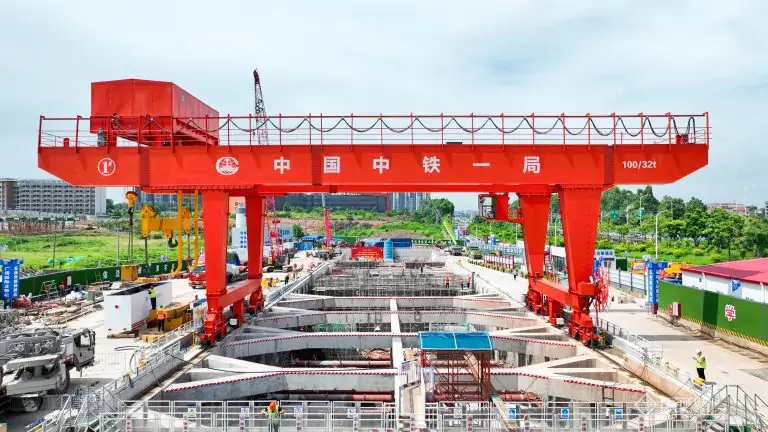

Outdoor Material Yard
Steel yards, pipe yards, prefabricated components yards, containerized open-air sites are the most commonly used scenarios for gantry cranes. This type of site is open and unobstructed, requiring a wide range of equipment to cover the operating area.
It is mainly used for stacking, transferring, loading and unloading of steel, pipes, cement prefabricated parts and heavy materials. The frequency of operation is stable, the load span is large, and there are basic requirements for equipment structural stability and outdoor weather resistance.
Mining and quarrying projects
Mines and quarries have dusty operating environments and complex road conditions, and are mostly used for heavy material lifting and large equipment overhaul operations. The gantry cranes here need to adapt to the harsh outdoor working conditions for a long time, and withstand dust, temperature difference and open-air wind and rain erosion.
The equipment is mainly used for dismantling and assembling mining equipment, transferring heavy parts and lifting mining materials, the overall operating load is large, and the structural strength and wear resistance of the machine body are more demanding.
Precast Concrete Plant
The precast concrete production site requires frequent lifting of materials such as molds, finished precast units, sand and gravel raw materials. The lifting load is fixed but the single weight is large, the operation point is relatively centralized, and the equipment starts and stops frequently.
Most prefabrication plants are semi-open-air or full-open-air layout, and the equipment needs to be adapted to the humid and dusty environment for a long time, and at the same time to ensure the lifting is smooth and avoid the damage of prefabricated components by bumping.
Shipyard and steel structure processing site

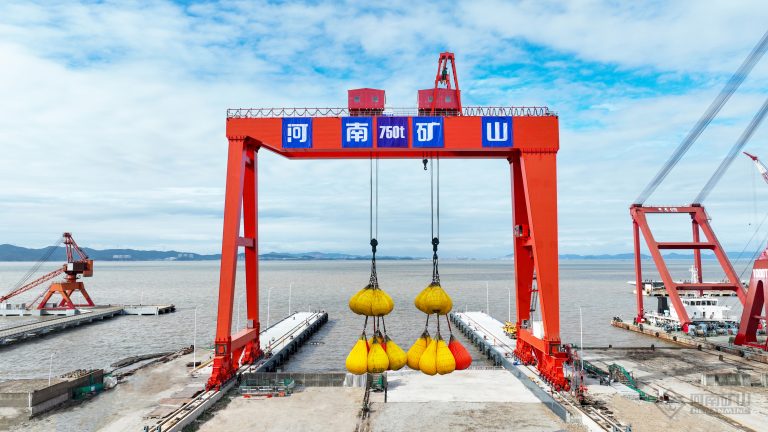

Shipyards and large steel processing plants have wide outdoor working space, which requires gantry cranes to complete the transfer of large steel components, hull segment assembly, outdoor equipment lifting and splicing work.
This type of project has higher requirements for equipment span and lifting height, and some scenes require long-time fixed-point heavy-duty operation, so large-tonnage, wide-span double girder gantry cranes are generally used.
Ports, logistics bases and industrial plants
Port cargo, large logistics parks, industrial parks in the open area, often using gantry cranes to deal with large equipment, engineering materials, heavy-duty goods on-site transfer.
Flexible lines of operation and a variety of cargo types require the equipment to be adapted to different tonnages and different types of lifting needs, taking into account the versatility and stability.
Factory extension and semi-outdoor scene
Many old factories and factory extensions do not have supporting Overhead Crane track infrastructure, and cannot install indoor traveling crane. Gantry Cranes do not need to rely on the structure of the plant, and can run directly on the ground track or hardened site.
Able to perfectly cover the plant outside the door, semi-open-air work area, low-cost to make up for the shortcomings of outdoor lifting in the plant, is the preferred equipment for plant expansion and renovation.
Core Procurement Requirements for Gantry Crane Projects
Unlike indoor lifting equipment, the core procurement of outdoor gantry cranes never just look at the tonnage and price. The complex and changeable working conditions outdoors determine that the equipment must have a stronger ability to adapt to the environment and long-term stability.
Stable outdoor operating performance
Open-air work to face the wind, rainfall, sun, dust, day and night temperature changes and other natural environmental impacts. The electric control, cable and braking system of ordinary Cranes are prone to aging, malfunctioning, jamming and other problems in the outdoors.
Qualified outdoor gantry cranes will do special protective treatment, rust-proof body, electronic control dustproof and waterproof, accessories resistant to high and low temperatures, can continue to operate stably in complex weather, will not be subject to minor changes in the environment on the downtime failure.
Sturdy structure suitable for heavy-duty operation
Gantry Crane is mostly used for heavy material lifting, and the operation covers a large span, the main beam of the body, outriggers, traveling structure needs sufficient structural strength. Inferior manufacturers will simplify the thickness of the main girder plate, reduce the reinforcement structure, short-term problems can not be seen, long-term heavy-duty operations will appear body deformation, shaking and other hidden dangers.
High-quality industrial gantry crane suppliers will match the corresponding structural process according to the tonnage and span of the equipment, to ensure that the fuselage will not be deformed under heavy load for a long period of time, and will run smoothly.
Flexible Adaptation to Site Layout
The width, operating length, ground conditions and operating line of each yard and factory are different. General standard models may not be able to adapt to the site layout, which may lead to blind spots, track interference, lack of space and other problems.
Reliable manufacturers will adjust the equipment span, travel length, leg height and structural layout according to the actual measurement data of the site, so that the equipment is completely adapted to the site workflow, and improve the utilization rate of the site.
Convenient installation and routine maintenance
The installation conditions of outdoor equipment are more complicated than indoor ones, as the site is open and the infrastructure conditions are different, which requires higher requirements for the installation process. At the same time, the equipment is used in the open air for a long time, and the frequency of daily maintenance and parts replacement will be higher.
High-quality models with reasonable structural design, easy disassembly and installation, clear fault location, ordinary maintenance personnel can complete the daily maintenance, there will be no maintenance difficulties, accessories difficult to replace the situation.
Complete technical information and technical support
Overseas projects and large-scale industrial projects have high requirements for the completeness of equipment technical data. Equipment acceptance, project record, overseas customs clearance, all need a full set of formal information support.
Regular gantry crane manufacturers can provide assembly drawings, technical parameter tables, wheel pressure data, electrical schematic diagrams, factory inspection reports, operation manuals and other complete sets of information, the whole project with acceptance and filing.
Long-term parts supply and after-sales response
The service life of gantry Crane can be more than ten years, during which parts loss and failure are inevitable. Trade intermediaries in the supply, it is difficult to guarantee long-term parts supply and rapid after-sales.
Entity manufacturers have a complete inventory of spare parts and technical team, can quickly respond to failure problems, timely replacement parts, minimize equipment downtime, reduce project losses.
Recommended Gantry Crane Models for Various Projects
There are many subdivided models of gantry cranes, and the load capacity, adaptability scenarios and cost of different models vary greatly. Choosing the right model in combination with the project conditions can not only avoid the waste of performance, but also put an end to the safety hazards of insufficient load capacity of the equipment.
Single Girder Gantry Crane
Single girder gantry crane are simple in structure, light in weight and friendly in cost, which are suitable for outdoor work with light and medium loads. Conventional small tonnage, low-frequency material transfer, equipment maintenance scenarios, the choice of single girder models with the highest cost-effective.
Mostly used in small yards, plant maintenance, light material handling, to meet the basic outdoor lifting needs, low cost of later operation and maintenance, suitable for small and medium-sized industrial projects.
Double Girder Gantry Crane

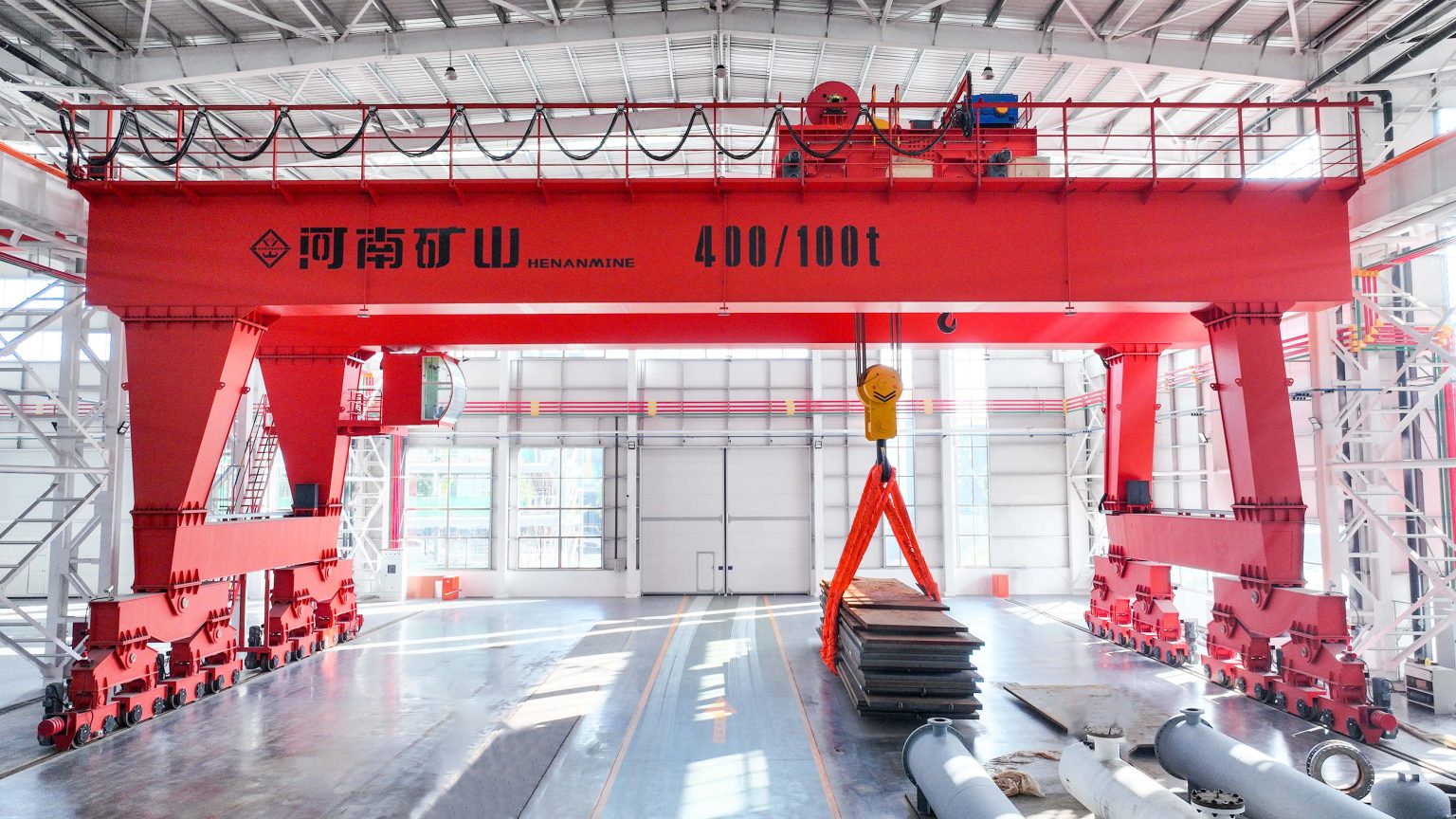

Double girder gantry crane are the preferred model for heavy-duty and large-span scenarios. The double main girder structure has stronger load bearing capacity and better stability of the body, which can be adapted to large tonnage of heavy loads, wide site coverage, and high-frequency continuous operation.
Widely used in large steel yards, shipyards, prefabricated component bases, harbor heavy-duty operation scenarios, but also the mainstream selection of all kinds of heavy industrial projects.
Semi-portal Crane
Semi-portal Crane adopts the structure of single-side outrigger, single-side relying on the existing plant wall or steel structure support, without the need for a complete double-side track site. It is suitable for semi-outdoor operation area at the edge of the factory and the side of the plant.
It can make full use of the existing building structure, reduce the site infrastructure costs, space adaptability is very strong, is the factory renovation, the corner of the regional operation of the appropriate model.
Tire Gantry Crane
Crane does not need to lay a fixed track, relying on rubber tires to walk freely, the operating range is flexible and unrestricted. It is suitable for projects that require frequent adjustments to the working area and temporary construction.
Many temporary yards, phased construction projects, and logistics sites with changing business patterns will give priority to tire gantry cranes, eliminating the infrastructure costs of track laying.
Rail-mounted Gantry Crane
Rail-type gantry crane rely on fixed track operation, precise alignment, stable operation, and orderly operation. It is suitable for standardized yards and port projects with fixed layout, uniform operation routes and large-scale operation.
The equipment has small deviation and low failure rate in long-term operation, which is suitable for high-frequency and standardized batch lifting operations, and is more suitable for large-scale normalized operation projects.
Customized Gantry Cranes
Crane can be customized for special working conditions, with special spreaders, anti-sway systems, and special protective structures. For example, with grabs, electromagnetic suction cups, special fixtures, suitable for bulk materials, steel, shaped components lifting.
At the same time, according to the extreme high and low temperatures, strong corrosion, high dust and other special environments, do the targeted equipment modification, fully matching the niche, special industrial operating scenarios.
Procurement must verify the core technical parameters
A lot of procurement deviations and equipment adaptation problems, all stem from the parameters of the verification is not meticulous. Parameters are not simple tonnage matching, but a combination of site, working conditions, the environment of the full range of adaptation, each parameter has a direct impact on the use of equipment and service life.
Rated lifting capacity
Lifting capacity selection can not only account for the weight of conventional cargo, need to be superimposed on the self-weight of the spreader, the operation of the dynamic load, while reserving sufficient safety margin. Outdoor heavy-duty working conditions fluctuate greatly, it is strictly forbidden to operate the equipment for a long time with full load or overload.
If the cargo category is complicated and the maximum load is not fixed, it is recommended to select the model according to the maximum heavy load standard on the site to avoid insufficient carrying capacity of the equipment at a later stage.
Equipment span
Span refers to the distance between the two sides of the track center of the equipment, which directly determines the operating width of the equipment. It needs to be strictly matched with the effective working width of the yard, the spacing of cargo stacking, and the space for vehicle traffic.
Too small a span will exist in the blind spot, too large a span will cause a waste of equipment performance, but also affect the overall stability of the body, must be accurately adapted to the size of the site.
Lifting height
The lifting height should be combined with the height of cargo storage, equipment maintenance space, site clearance size comprehensive judgment. It is necessary to reserve a safe distance for lifting to avoid collision with the top of the gantry or the surrounding facilities after the heavy load is lifted.
For multi-storey cargo stacking and high-altitude maintenance scenarios, it is necessary to raise the lifting height appropriately to meet all operational requirements.
Running length
The running length of the equipment truck determines the longitudinal operation coverage of the equipment. It needs to match the overall length of the yard, the cargo distribution area and the operation line to ensure that there is no lifting dead corner in the whole yard.
Insufficient running length will lead to part of the area can not be covered, need to manually transfer the second time, greatly reducing operational efficiency.
Working level
The working level is the core index distinguishing the adaptability of the equipment for light and heavy loads, and it is also the key parameter that is most easily ignored. Light-grade equipment is only suitable for low-frequency overhaul operations, while medium-heavy and heavy-grade equipment can only be adapted to outdoor high-frequency heavy-duty continuous operation.
Many low-priced equipment will falsely label the tonnage, reduce the level of work, short-term use, long-term high-frequency operation is very easy to structural fatigue, damage to accessories and other issues.
Operating environmental conditions
Before purchasing, we must clarify the temperature range, wind level, dust concentration, humidity, and the presence of corrosive media. Seaside sites need to do anti-corrosion and anti-rust treatment, high dust sites need to strengthen the electronic control sealing protection.
Customized protection configuration according to the environment, in order to protect the equipment in the outdoor long-term stable operation, slow down the aging of the equipment.
Maneuvering mode
Conventional small gantry cranes can choose hand-held handle or wireless remote control, flexible, convenient and efficient operation. Large tonnage, large span, high-risk operation scenarios, it is recommended to use the cab control, to protect the operator's field of vision and operational safety.
The control mode can be freely matched according to the operating habits and site safety requirements.
Power supply mode
Different countries and regions have different voltage and frequency standards, so the power supply parameters must be verified in advance. The manufacturer will match the motor and electric control system according to the local electric power standard, so as to avoid the mismatch of power supply, which may cause the equipment can't be started and the circuit burned out.
Rail and foundation conditions
Rail-mounted gantry cranes have clear requirements for ground foundation bearing capacity and track laying accuracy. The procurement stage needs to confirm the site foundation conditions, and the manufacturer will provide track construction standards and wheel pressure data to guide the site infrastructure construction.
If the foundation and track are not up to standard, problems such as equipment walking jams, body tilting, running shaking and so on will occur in the later stage.
Reliable gantry crane supplier screening methods
Gantry Crane suppliers on the market are divided into physical manufacturers and trade intermediaries, both of which have a huge gap in equipment quality, customization capabilities, and after-sales protection. If you want to avoid procurement traps, you can verify the following dimensions one by one.
Verify the manufacturer’s entity production qualification
Many intermediaries only have sales qualifications, no production workshop, processing equipment and quality inspection system, can only sell standardized finished products, can not be customized according to the site conditions of the transformation, and there is no perfect quality control process.
High-quality gantry crane manufacturers have their own production workshop, CNC machining equipment, a full set of quality inspection equipment, can independently complete the production of equipment, welding, assembly, commissioning, quality control, delivery and stability.
Verification of similar projects landing cases
General-purpose Crane manufacturers, may not be familiar with outdoor yards, mines, shipyards and other special conditions. Manufacturers without experience in similar projects, the design of the equipment is difficult to adapt to complex outdoor scenes.
Manufacturers can be asked to provide the corresponding scene of the project case, on-site photos, customer feedback, and prioritize suppliers with a large number of domestic and overseas outdoor gantry crane project experience.
Evaluation of the manufacturer’s engineering customization capabilities
High-quality suppliers are not just simple supply, with professional engineering design team. According to the site drawings provided by the customer, operating conditions, production requirements, optimize equipment parameters, adjust the structural layout, recommend the appropriate model.
Can be targeted to solve site constraints, special working conditions, non-standard operations and other issues, to provide exclusive customized solutions, rather than applying common standard models.
Check a full set of technical documents
Regular manufacturers can provide a complete set of compliant technical documents, including equipment assembly drawings, data sheets of technical parameters, wheel load data, electrical schematic diagrams, list of core accessories, factory inspection reports and so on.
Overseas projects and large-scale projects are strictly audited, and the complete English technical documents can meet all the requirements for overseas customs clearance, project acceptance, and later operation and maintenance record.
Confirmation of core parts brand configuration
The operational stability of the Crane depends entirely on the quality of the core components. Focus on verifying the brand and configuration standard of core parts such as motor, reducer, brake, electronic control system, wire rope, hook, traveling wheels and so on.
Dependable manufacturers will choose the industry's well-known brands of parts, to eliminate refurbished parts, low parts, from the source to reduce the probability of equipment failure.
Verification of quality control and factory testing process
The formal production process will include non-destructive testing of welds, body size calibration, no-load test run, full load test, safety function debugging and a full set of quality control procedures, each device will be completed before leaving the factory full-featured testing.
At the same time, complete testing records are kept to ensure that the equipment can be put into production directly after landing, without quality hazards.
Clear installation and commissioning service scope
Different manufacturers have different service modes, which are divided into three modes: pure equipment supply, on-site installation guidance, and all-inclusive installation and commissioning. Outdoor Gantry Crane installation precision requirements are high, the installation quality directly affects the service life of the equipment.
Procurement needs to be clear in advance of the service content, to confirm whether it includes on-site commissioning, technical guidance, equipment acceptance assistance and other services, to avoid the arrival of no one docking installation.
Verify the warranty and parts supply system
Priority is given to manufacturers with clear warranty cycles and fast after-sales response. Sudden failure of outdoor equipment can directly lead to project downtime, and the manufacturer's ability to quickly repair and replenish parts is crucial.
High-quality manufacturers can provide long-term parts inventory, lifelong technical advice, regular equipment return visit service, to protect the long-term stable operation of the equipment.
Comprehensive assessment of the overall value, not a single price comparison
Low-priced offers are often accompanied by hidden shrinkage, such as thinning of the plate, low accessories, lower working level, protection configuration deletion. Short-term procurement cost is low, but the late failure frequency, operation and maintenance costs are high.
Selection should be comprehensive equipment materials, configuration standards, process quality, after-sales support, service life, to assess the value of the full cycle of the use of equipment, rather than just look at the single purchase price.
Procurement of the most easy to step on the misunderstanding
Most of the problems in the use of gantry cranes stem from poor decision-making at the procurement stage. These common misunderstandings may seem small, but will directly affect the use of equipment for more than ten years of experience.
Simply finalizing the supplier by price is the most common procurement problem. Low-priced equipment is generally characterized by reduced configuration, simplified process, inadequate protection and other issues, completely unable to adapt to the harsh outdoor working conditions.
Blindly choose the model without combining the site conditions, such as heavy-duty high-frequency scene selection of light single-beam equipment, temporary site selection of rail-type equipment, there will be insufficient performance or poor adaptability of the equipment.
Neglect the outdoor wind and rain, dust, corrosion and other environmental factors, do not do special protection configuration, the equipment will be rapidly aging corrosion, failure frequency increases dramatically.
Neglect the working level parameters, only look at the size of the tonnage, equipment long-term overload fatigue operation, there is a great safety hazard.
Do not verify the manufacturers of similar projects, gullible general equipment to match all the scenes, resulting in equipment and field operation needs do not match.
No clear offer contains items, later installation fees, commissioning fees, accessories, information fees and other invisible charges.
Fuzzy installation, testing, after-sales division of authority and responsibility, equipment problems manufacturers and intermediaries to blame each other, no one to solve the problem.
Incomplete site dimensions, working conditions, and operational requirements provided during the inquiry stage, the manufacturer's customized solutions do not match the site, requiring repeated rectification and rework.
Frequently Asked Questions
What is the difference between suppliers and manufacturers of gantry cranes?
Suppliers include trade intermediaries and physical manufacturers, while manufacturers have independent production, customization, quality inspection, after-sales full process capabilities. Intermediaries are only responsible for selling equipment, can not be customized, no quality control capabilities, slow after-sales response. Entity manufacturers can be exclusively customized according to the working conditions, quality control, after-sales service is guaranteed, more suitable for long-term industrial projects.
What scenarios are suitable for the selection of single girder gantry cranes?
Light and medium tonnage, low-frequency operations, limited budget scenarios are suitable for single girder models. For example, small material yards, factory daily maintenance, light cargo loading and unloading, temporary construction sites, equipment cost-effective, simple operation and maintenance, can fully meet the basic lifting needs.
What scenarios prioritize double girder portal cranes?
Double girder gantry cranes must be used for large tonnage and heavy load, large span coverage, high-frequency continuous operation, and harsh outdoor working conditions. Large steel yard, shipyards, ports, prefabricated component base of heavy-duty operation scenes, double girder equipment stability and load capacity advantage is more obvious.
Procurement of gantry cranes, in addition to price but also focus on what?
In addition to price, the core verification work level, environmental protection configuration, core parts brand, body structure process, factory quality inspection report, similar project cases, installation and commissioning services and long-term after-sales protection, these factors determine the long-term use of equipment costs and safety.
What technical information do I need to request from the manufacturer before placing an order?
Manufacturers can be asked to provide equipment assembly drawings, detailed technical parameter tables, wheel pressure load data, electrical schematic diagrams, core parts list, factory quality inspection reports, operation and maintenance manuals and other complete sets of information, overseas projects can also provide English compliance information.
How important is after-sales service for gantry cranes?
Gantry Cranes operate in the open all year round, and the rate of wear and tear is much higher than that of indoor equipment, so late maintenance and parts replacement are the norm. A perfect after-sales service can quickly deal with equipment failure, replenish matching parts and reduce downtime. There is no after-sales protection of the equipment, once the failure will cause the project downtime loss.
Can a manufacturer provide a full-scene gantry crane program?
Professional entity factory can provide one-stop single girder, double girder, semi-gantry, tire, rail, customized gantry cranes full range of models, suitable for yards, mines, shipyards, ports, factory renovation and other scenarios, the quality of the equipment is unified, the after-sales system is unified, the procurement is more worrying.
Henan Mine's MG double girder gantry crane
Summarize
The core of selecting a supplier of gantry cranes is never to look for the lowest price, but to find a reliable partner that is suitable for their own project conditions. The quality, suitability and service ability of outdoor lifting equipment directly determine the project construction efficiency and long-term operating costs.
Whether it is a yard, mine, shipyard or port project, we need to combine the site layout, operating load, environmental conditions, long-term operational planning, matching the corresponding models and parameters. At the same time, we should focus on verifying the production strength, project experience, quality inspection system and after-sales capability of the manufacturers, so as to avoid purchasing mistakes from the source.
Henan Mine Crane, as a professional gantry crane manufacturer, has been deeply engaged in overseas industrial lifting equipment supporting for many years, and has a wealth of outdoor gantry crane project landing experience. We can provide exclusive customized solutions for different working conditions, a full set of compliant technical information, on-site installation and commissioning guidance and full-cycle after-sales support.
If you need to adapt to the project gantry crane solutions, you can provide site drawings, lifting capacity, span, lifting height, running length and site conditions, our engineering team will accurately match the optimal equipment program for you.
