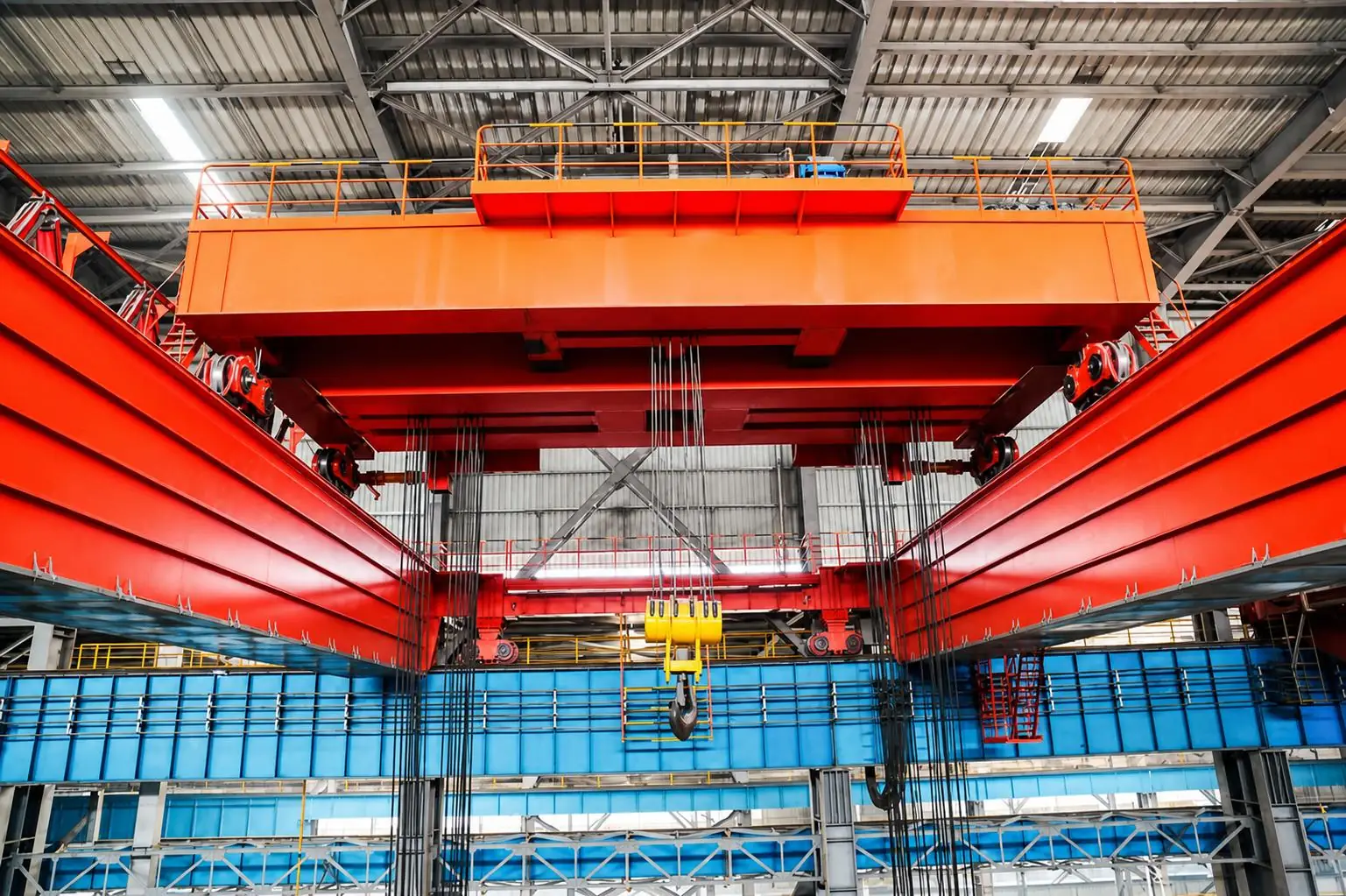

Foundry Overhead Crane Selection: Heat Insulation & Double Safety Brakes
The foundry workshop has strong high temperature radiation, heavy-duty and high-frequency operations, and high risk of molten metal hoisting, which have strict requirements for the safety, stability, high temperature resistance and durability of the crane.Most companies only pay attention to the load in the selection of models, ignoring high temperature protection and braking redundancy, which leads to easy aging of equipment, frequent failures, and major safety risks.
The core advantages of special cranes for casting are the redundant design of thermal insulation protection system and dual safety brakes.This article briefly explains the design points, selection parameters, pit avoidance misunderstandings and landing lists of casting cranes to help enterprises take into account safety, efficiency and equipment life cycle costs.
Why Foundry Overhead Cranes Require Special Design
Ordinary general purpose cranes are only suitable for normal temperature, intermittent, and light load conditions, and cannot be adapted to the extreme production environment of casting. The core reasons are divided into three points.
Severe erosion by high temperature thermal radiation
Furnaces and molten metals will continue to produce high-intensity thermal radiation. Long-term high-temperature conditions will accelerate the aging and attenuation of motors, cables, electronic control components and gearboxes, which can easily cause equipment to stall, malfunction and shutdown. In severe cases, it will also cause safety accidents such as failure of core components and falling loads. It is the core cause of excessive loss and high failure of casting cranes.
High-risk load
The casting crane is responsible for hoisting high-risk heavy loads such as steel ladles, iron ladles, and heavy castings. The load stability is poor and the operation risk is extremely high.Once the brake fails and the load is offset, it can easily cause material damage, equipment damage, and even major safety accidents such as high-temperature metal leakage, casualties, etc., which require extremely high positioning accuracy and braking reliability.
High frequency continuous working system
The casting production line runs continuously for 24 hours, and the crane needs to be lifted, walked, and positioned at high frequencies, and the fatigue loss is great.Ordinary intermittent crane components cannot be adapted to high-frequency working conditions, and they are prone to premature aging problems such as wire rope deformation, gear wear, and brake failure.
Heat Insulation: A Critical Foundry Crane Requirement
High temperature is the primary cause of failure of casting cranes. Thermal insulation and protection are not optional, but the core standard to ensure the stable operation of equipment and extend the service life.
Core hazards
Continuous high-temperature thermal radiation can easily cause motor overheating and damage, gearbox lubrication failure, brake caton failure, cable insulation aging leakage, electronic control system parameter offset and other equipment failures, not only greatly increases the probability of equipment failure and daily operation and maintenance expenses, but also accelerates the aging of core components and significantly shortens the service life of the crane.
Core thermal insulation protection measures
The professional casting crane is equipped with a complete set of systematic high-temperature thermal insulation protection scheme. Through special thermal insulation baffles and high-efficiency thermal shielding structures, it effectively blocks the direct thermal radiation generated by the furnace and the molten metal, and reduces the thermal erosion of the whole machine and equipment by the high-temperature heat source from the source.；
Adopt H-class high-temperature-resistant electrical components and IP54 high-protection configuration; do closed thermal insulation and heat dissipation treatment for motors and electric control cabinets; optimize the thermal insulation design of the operation and maintenance area, taking into account equipment protection and operation safety.
Thermal insulation configuration selection principle
When actually selecting the type, it is necessary to combine the intensity of on-site thermal radiation, the safe distance between the equipment and the high-temperature heat source, the frequency of daily operations and the length of continuous high-temperature exposure to accurately match the heat insulation and heat dissipation system of the appropriate level, relying on the customized design of working conditions, to eliminate the problem of equipment failure caused by insufficient protection configuration, while avoiding the waste of costs caused by redundant configuration.
Why Double Safety Brakes Matter on Foundry Cranes
The single brake system of ordinary cranes has no safety redundancy, and once it fails, it will directly cause slip hook and drop accidents.The dual-safety redundant braking system is the core safety guarantee for high-risk hoisting of casting cranes.
The core role of the braking system
The braking system is the core safety barrier for the lifting of molten metal. It can firmly lock the operating load and effectively suppress the swing and offset of high-temperature steel ladles and iron ladles; accurately regulate the lifting and operating speed of the equipment to achieve smooth start and stop throughout the process, flexible alignment, and eliminate impact loads.；
In the face of emergency working conditions such as sudden power failure, component failure, and power failure, the system can instantly trigger lock-in protection, firmly stabilize the high-temperature melting load, fundamentally prevent falling accidents, and build a strong core safety line of defense for casting operations.
Working principle of dual brake system
Using a dual-channel independent redundant architecture of main brake and emergency backup brake, the two systems are completely isolated, do not interfere with each other, and can work independently.The main brake bears the start and stop of the equipment and the load lock and hold under normal operating conditions；
In the event of abnormal conditions such as failure of the main brake, power failure, failure, etc., the emergency backup brake can be automatically activated instantly, quickly locking the load, effectively eliminating the hidden dangers of falling loads, and ensuring the safety of equipment operations in all directions.
Core advantages of dual braking
The dual-redundant brake architecture can avoid the risk of single brake failure from the root cause, effectively offset the safety risks caused by thermal deformation, wear and aging of brake components under high temperature conditions, and greatly improve the locking stability of heavy-duty molten loads.
The complete braking system responds smoothly and the braking is reliable, which significantly increases the safe fault-tolerant space for high-risk lifting operations, and builds a solid safety guarantee for continuous casting and high-intensity production.
Key Factors When Selecting a Foundry Overhead Crane
The selection of casting bridge cranes is a set of systematic working condition matching logic. The rated load cannot be used as the selection standard alone. It needs to be combined with the load working conditions, operating accuracy, high temperature resistance, safety configuration and working level. Multi-dimensional comprehensive determination.
Rated lifting weight
When selecting and approving the rated lifting weight, the comprehensive load needs to be fully accounted for, covering all lifting weights such as molten metal self-weight, ladle/iron ladle tank, spreader and lifting aids.The industry's optimal specifications are: control the daily work load at 60%-80% of the rated load of the equipment, reserve 20%-40% safety redundancy, and strictly prohibit long-term full load and overload operation of the equipment to avoid structural fatigue and premature aging of components.
Operating accuracy
Molten metal casting operations have strict requirements for positioning accuracy, and it is recommended to standardize a frequency conversion speed control system.The equipment can realize dual-mode switching of high-speed operation of long-distance hoisting and low-speed creep of station alignment, smooth start and stop without impact, no shaking of load, and accurate completion of ladle alignment operations, effectively taking into account the operating efficiency of the production line and the safety of high-risk hoisting.
Working condition level
In view of the characteristics of 24–hour continuous high-frequency operation in the foundry workshop, A6-A7 high-level cranes need to be selected in strict accordance with industry specifications.The core components of the whole machine, such as the motor, brake system, steel structure, and hoist mechanism, need to be uniformly matched to the high working condition level, so as to eliminate the performance shortcomings and early failures caused by the mismatch of component levels, and adapt to the needs of high-intensity cycle operations.
High temperature protection level
In order to resist the continuous thermal radiation erosion of the foundry workshop for a long time, the core electrical components need to be equipped with H-class high-temperature insulation, and the protection level of the whole machine reaches IP54 and above standards.With an exclusive thermal shielding and heat insulation structure and an independent heat dissipation system, it protects precision electrical and power components in all directions, greatly improving the adaptability and operating stability of the equipment in the high temperature environment.
Dual redundant brake configuration
The equipment is equipped with a power-off self-locking dual-redundant braking system as standard, relying on an independent dual-circuit safety architecture to ensure reliable locking under extreme operating conditions.
At the same time, it is equipped with real-time monitoring of brake status and wear early warning functions, which can predict component loss in advance, not only improving the safety bottom line of high-risk lifting, but also reducing the difficulty of equipment operation and maintenance and the risk of downtime.
Other Safety Features Worth Considering
In order to further adapt to the high-risk operating conditions of casting, professional casting cranes can be equipped with multiple advanced safety configurations to build a three-dimensional and full-dimensional safety protection system, effectively avoid all kinds of hidden operating risks, and improve the operating stability of equipment and the level of intelligent operation and maintenance. The core configurations are mainly divided into four categories：
Limit and emergency shutdown protection
Equipped with hook upper and lower limits, cart/trolley operation limit devices, it can accurately limit the operating stroke of the equipment, and prevent mechanical failures such as hook rushing to the top, falling to the bottom, and equipment crossing the boundary collision.With the emergency shutdown system of the whole machine, all power can be cut off with one key in the event of a sudden danger, and the operation of the equipment can be locked instantly to quickly avoid the expansion of accidents.
Real-time overload monitoring and protection
Equipped with a high-precision intelligent overload monitoring device, it can dynamically monitor the load status of the hook in real time.In the event of abnormal working conditions such as overload and partial load, the system will automatically trigger sound and light alarms and lock the lifting action to eliminate major safety hazards such as falling loads, equipment deformation, and structural damage caused by overloaded lifting from the source.
Intelligent anti-collision walking protection
For the working conditions of dense equipment and compact working space in the foundry workshop, it is equipped with an exclusive intelligent anti-collision system.Relying on the high-precision induction detection module, it can identify peripheral equipment and obstacles in real time, automatically control deceleration and shutdown, effectively avoid collision accidents when multiple machines are operating on the same track and running in a small space, and ensure the safety of equipment walking.
Intelligent monitoring, early warning and protection
Integrated intelligent monitoring of equipment status and fault early warning system, real-time collection of equipment operation data and working conditions of core components.It can predict potential failures such as wear and tear of parts and abnormal parameters in advance, realize intelligent preventive operation and maintenance, completely change the traditional passive maintenance mode, greatly reduce equipment downtime and failures, and ensure the continuous and stable operation of the production line.
Common Mistakes When Buying a Foundry Overhead Crane
Most casting crane failures, safety hazards and additional operation and maintenance costs are due to cognitive deviations and configuration omissions in the selection stage.Combined with the special working conditions of high temperature, high risk and high frequency of casting, the industry's high-frequency selection misunderstandings are now classified and sorted out to help enterprises accurately avoid pits.：
Misunderstanding of working condition adaptation
In order to control the initial cost, many enterprises directly choose ordinary room temperature general cranes to replace special casting equipment.Ordinary models have no professional high-temperature thermal insulation structure, the working condition level of the whole machine is low, and they cannot withstand the continuous thermal radiation and high-frequency fatigue loss of the foundry workshop. The equipment aging speed is fast and failures occur frequently. It is completely unable to adapt to the harsh production conditions of molten metal hoisting.
Cognitive misunderstanding of selection
This is the most common selection misunderstanding in the industry. Only the tonnage of the crane is used as the core selection standard, and the core configurations such as working condition level, high temperature thermal insulation protection, and brake safety redundancy are ignored.Equipment with standard tonnage but insufficient protection and adaptability cannot avoid the risk of high temperature failure and falling load from the root cause, and it is difficult to ensure long-term safe and stable operation.
Misunderstanding of core components
On the one hand, electrical components have not been specially adapted for high temperature resistance, and ordinary cables and electronic control components are prone to insulation aging, short circuit leakage, parameter drift and other failures in high temperature environments; on the other hand, the traditional single brake system is used, there is no independent emergency redundant structure, and there is no safe fault-tolerant space for high-risk molten metal lifting operations. Once the brake fails, it will cause a major safety accident.
Long-term planning misunderstanding
The blind selection of low-working-condition cranes cannot match the 24-hour high-frequency cycle operation mode of the casting production line. It is prone to gear wear, wire rope deformation, premature aging of the mechanism, etc., and the equipment failure rate has been greatly increased；
At the same time, ignoring the design of the late operation and maintenance of the equipment, the equipment installation structure is compact and there is no maintenance space, which makes the late maintenance difficult, the maintenance cost is high, and the downtime loss is serious.
Foundry Crane Selection Checklist
- Accurately calculate the fully loaded operating load of the equipment, combine extreme working conditions, dynamic shocks and other scenarios to scientifically reserve sufficient safety redundancy, avoid the risk of overload operation from the source, and ensure the stability and safety of equipment load operations in all directions.
- In-depth combination of on-site high-frequency, intermittent, heavy-duty and other different operating frequencies and operating conditions characteristics, accurately match the operating condition level and operating parameters of the equipment, eliminate insufficient redundancy or waste of equipment performance, and highly adapt to the actual operating needs of various on-site.
- According to the special operating conditions of high temperature and high heat in the workshop, the exclusive thermal insulation protection structure and protection plan are tailored to effectively isolate external high temperature radiation, reduce the temperature rise of the core components of the equipment, and significantly improve the high temperature resistance and anti-aging properties of the whole machine.
- Strictly verify the performance of the dual-redundant system of the main brake and the emergency brake to ensure that the two systems are completely independent, do not interfere with each other, and stand by synchronously, to ensure that the emergency brake responds instantly and reliably in emergencies such as the failure of the main system, power failure, and failure, so as to eliminate the safety risks of falling on the load.
- Comprehensively verify the core hardware configuration of the equipment, such as high-temperature-resistant motors and electronic control, and strictly standardize the operating parameters of the high-temperature operating conditions to ensure that the core components meet the standards for high-temperature resistance and attenuation resistance, and can be stably adapted to high-temperature and harsh operating environments for a long time.
- The whole machine is equipped with a full set of multiple safety protection devices such as overload protection, travel limit, anti-collision buffer, and emergency shutdown as standard, and an all-round and three-dimensional safety protection system is built to effectively avoid safety accidents caused by operating errors and abnormal equipment.
- It can be equipped with an intelligent monitoring operation and maintenance system on demand according to on-site operation and maintenance needs, and collect and analyze core data such as equipment operating temperature, load, and braking status in real time, so as to realize all-weather monitoring of equipment operating status, early warning of faults, and intelligent operation and maintenance management.
- The overall design, configuration and performance indicators of the equipment strictly follow national and industry safety standards, are extremely versatile and adaptable, and can be stably adapted to the complex and changeable production conditions of various workshops.
- Establish a standardized and normalized equipment inspection, regular maintenance and daily maintenance management system, standardize the operation and maintenance process of the whole life cycle of the equipment, investigate and eliminate potential equipment failures in a timely manner, and ensure the long-term stable, efficient and safe operation of the equipment.
Conclusion
When purchasing, enterprises should avoid the misunderstanding of ”only tonnage, only low price" selection, and make targeted configurations according to lifting weight, operating frequency, ambient temperature, span and working level to ensure long-term stable and efficient operation of equipment.The key to the selection of casting bridge cranes lies not in the blind pursuit of large tonnage, but in the realization of high temperature adaptation, safety redundancy and accurate matching of on-site working conditions.Professional thermal insulation protection can effectively resist high temperature erosion and delay the aging of components. The dual safety brake redundancy system with a full set of safety devices is the core safety guarantee for molten metal lifting.
Henan Mine Crane focuses on customized lifting solutions for high-temperature casting conditions, and can match professional thermal insulation systems, dual safety brakes and a full set of safety protection configurations as needed.If you have any requirements for the selection and customization of casting cranes, you can consult at any time to obtain professional solutions and accurate quotations.
