45t Paper Mill Overhead Cranes: High-Humidity Wet-End Protection and Precise Roll Handling

The working conditions of paper mills have strict requirements for material handling equipment: continuous production, heavy-duty hoisting of press rollers and large paper rolls, and high-precision positioning.The high humidity in the wet zone of the paper machine, the corrosion of the medium, and the short maintenance window are the biggest tests of the crane.

The customized 45-ton paper-making bridge crane relies on a special structure, moisture-proof and anticorrosive scheme and intelligent control system to adapt to complex working conditions.This article analyzes the difficulties of wet zone operation, equipment design, precise hoisting of paper rolls, partition configuration, safety specifications, operation and maintenance, and selection points to help paper mills improve efficiency and reduce failure and operation and maintenance costs.

What Makes the Wet End of a Paper Mill Challenging for Overhead Cranes

The wet zone of the paper machine includes core processes such as forming, pressing, and washing. It is the area with the harshest working conditions in the entire paper workshop. The three core problems of high humidity, corrosion, and limited operation and maintenance can easily lead to frequent failures of ordinary industrial cranes and a sudden decrease in life span, which cannot meet the needs of continuous production.

Continuous erosion of high humidity

Water vapor condensation continues to occur in the wet area of papermaking, the humidity is often >90%, the temperature is 40-45℃, and the condensation is obvious after shutdown.High humidity can damage electrical components such as motors, electric control cabinets, connectors, etc., causing insulation failure, short circuit, and corrosion. Ordinary cranes are prone to frequent failures and shortened life.

Medium composite corrosion

Pulping, bleaching, and gluing chemicals are combined with fiber dust and water vapor to form a corrosive environment.It will erode steel structures, wire ropes, fasteners and electrical systems, cause pitting and microbial corrosion, weaken the bearing capacity of the main beam, cause stagnation and electrical failures, and bring high maintenance costs and safety risks.

Maintenance window is scarce

The paper machine is continuously produced for 24 hours, and the maintenance window is very short.Crane failure will interrupt the replacement of paper rolls and equipment overhaul, causing the entire line to be discontinued.Wet zone cranes require high reliability, modular structure and easy access points to reduce unplanned downtime.

Therefore, the crane in the wet zone of papermaking must have ultra-high stability, and at the same time be equipped with a modular structure and convenient maintenance points to minimize the operation and maintenance time, reduce the probability of unplanned downtime, and ensure the continuous and stable operation of the production line.

Key Design Features of a 45t Paper Mill Overhead Crane

In view of the harsh working conditions in the wet area of the paper mill, the 45-ton special bridge crane for papermaking abandons the conventional design of ordinary industrial cranes, and is specially optimized from the four dimensions of load adaptation, structural strength, moisture-proof and anticorrosive, and electrical protection, which is perfectly adapted to the heavy-duty, high-humidity, corrosion, and high-precision operation requirements of the paper workshop.

Heavy-duty adaptation

The 45-ton rated load is suitable for hoisting and overhauling heavy-duty components such as press rollers and mother rolls in wet areas.The design takes into account the dynamic load and the weight of the spreader, and reserves sufficient safety margin.

The equipment working condition level can be adapted to FEM 2m/3m/4m, CMAA A6-A8 high-level industrial standards, and can adapt to high-frequency and continuous heavy-duty hoisting operations in papermaking workshops for a long time, eliminating problems such as overload deformation and fuselage shaking.

High-strength main beam end beam

The main beam and end beam of the crane are integrated with a thickened box-shaped steel structure, which has been optimized and designed by specialized mechanics, and has strong torsional, fatigue and deformation resistance.

In view of the working conditions of the large-span plant in the paper-making workshop, the equipment can always maintain the rigidity and stability of the fuselage during long-term high-frequency lifting and vertical and horizontal movement operations, effectively avoiding the structural fatigue and deflection deformation problems caused by long-term heavy-duty operations, and laying the structural foundation for the precise positioning of the paper roll.

Electrical moisture-proof protection

In view of the problem of high humidity and condensation in wet areas, the equipment is equipped with a full set of moisture-proof electrical protection system to completely eliminate water vapor erosion failures.：

• The electrical cabinet is made of fully enclosed stainless steel, with a basic protection level of IP55, and the core area of the wet zone can be upgraded to IP65/IP66 dustproof and waterproof level, with sealed hardware accessories to prevent water vapor and dust from entering.；
• The full set of lines adopts sealed cables, waterproof connectors and protective wiring tubes to prevent the line interface from being short-circuited by moisture.；
• The motor adopts H-class insulation configuration, with IP55 and above protection level, suitable for high temperature and humidity environments；
• Equipped with a cabinet anti-condensation heater, a circuit board three-proof coating, and an independent cooling fan for the inverter to ensure the stable operation of the electrical system in a humid environment in all directions.

Multiple anticorrosive processes

In order to cope with the corrosive atmosphere of the papermaking workshop, the equipment is treated with multiple anticorrosive processes: the main body of the steel structure is sprayed with C5-grade high anticorrosive multi-layer epoxy industrial coating, key fasteners and accessories are hot-dip galvanized anticorrosive technology, and exposed parts that are easy to corrode are made of stainless steel corrosion-resistant alloy materials.

For long-term condensation areas, the accumulation of corrosive media is eliminated by sealing welds and strengthening surface pretreatment.At the same time, the steel wire rope adopts galvanized anti-corrosion customized models, which greatly improves the overall corrosion resistance of the equipment and extends the service life of the equipment.

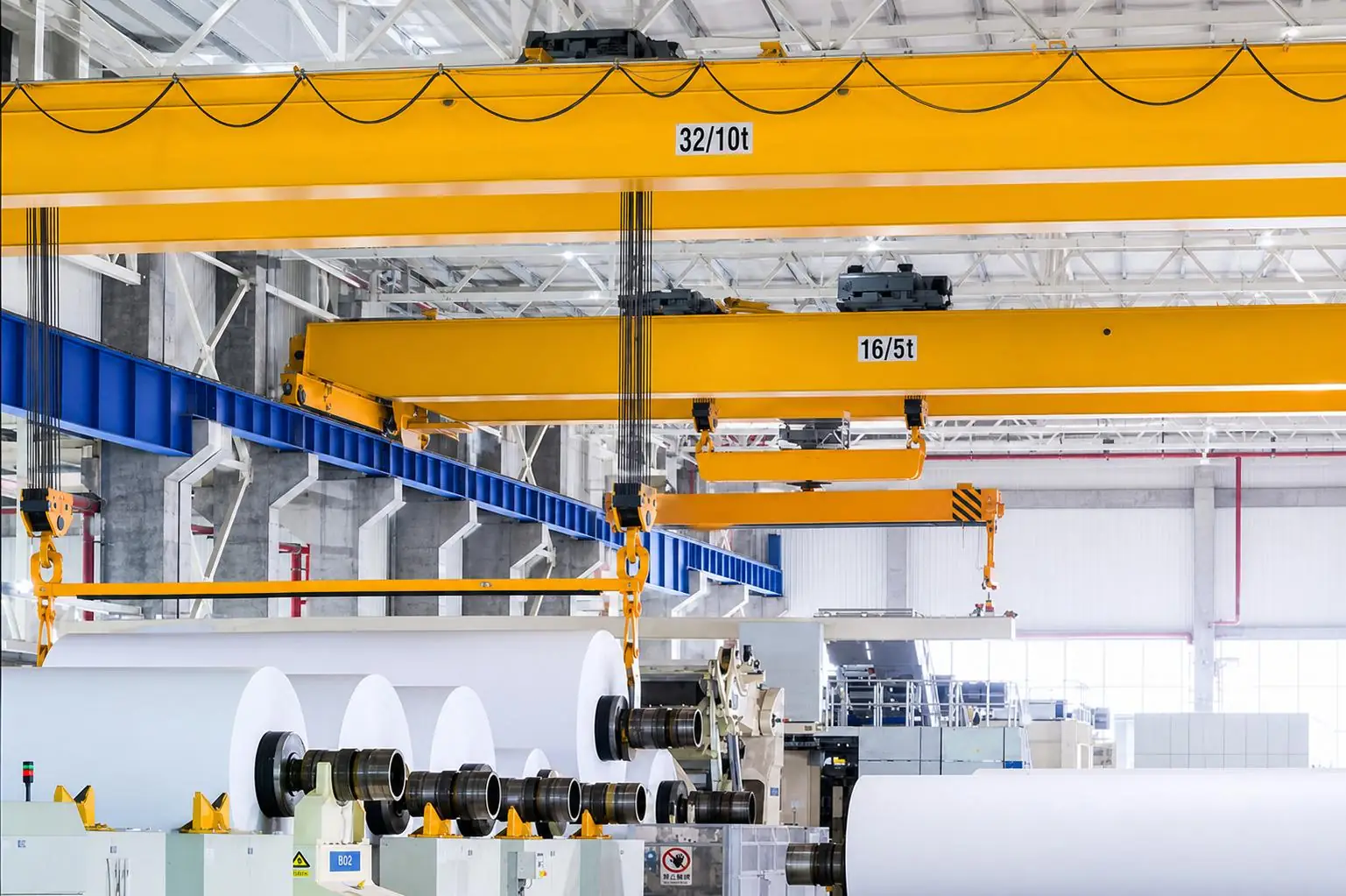

How to Achieve Precise Paper Roll Handling

Large paper rolls and master rolls of papermaking are high-value and vulnerable loads. Edge extrusion, roll deformation, mandrel damage, and roll scratches will all cause the paper to be scrapped, resulting in direct economic losses.The 45-ton paper crane adopts exclusive power, control and auxiliary design to achieve smooth, accurate and non-destructive hoisting of paper rolls.

Smooth load control and anti-shaking

Ordinary cranes start and stop urgently and run with great shaking, which can easily cause paper rolls to collide and damage.The special crane for papermaking abandons the traditional fixed-speed operation mode and adopts a controllable smooth motion logic throughout the process, completely eliminating the load shaking and impact caused by sudden acceleration, deceleration, and braking, and ensuring the stability of the paper roll throughout the process.

VFD frequency conversion soft start precise positioning

The equipment is equipped with VFD frequency conversion drive and soft start/soft stop technology, and the three operating axes of lifting and lifting, vertical walking of the cart, and horizontal movement of the trolley can achieve stepless speed regulation.There is no mechanical impact during the start-stop process. It not only effectively protects the main beam, wire rope, brake and other mechanical components of the crane, and extends the life of the equipment. It can also realize the precise positioning of the paper roll at the millimeter level through the micro-speed and jog functions, which are perfectly adapted to the refined alignment operation next to the paper machine.

Customized spreader non-destructive clamping

For different specifications of paper rolls, with professional customized hoisting aids, suitable for non-destructive operations under all working conditions：

• Special clamps for paper rolls: fixed and rotary structures are available, and they are equipped with a controllable clamping force system, which can adjust the clamping force according to the specifications of the paper roll, effectively preventing excessive clamping pressure from squeezing and damaging the edges of the paper roll, and achieving non-destructive clamping.
• C-type/J-type hook: it is specially used for hoisting the mandrel of the paper roll, which can meet the needs of multi-posture handling such as horizontal placement and vertical placement of the paper roll, and is suitable for the diverse transportation conditions of the workshop.
• Customized hanging beams and extenders: designed for wide-format, large-gram, and large-diameter master paper rolls, it disperses the lifting force points to ensure the stability of the whole process of large-size heavy-duty paper roll-up and hoisting, and prevents deformation of the paper roll.

Enterprises can choose matching aids according to the diameter, width, weight, mandrel specifications and handling process of the paper roll to avoid damage to the paper roll from the source.

Crane Control Systems for Accurate Roll Positioning

The 45-ton paper mill bridge crane is equipped with a diversified intelligent control system, which takes into account the convenience of operation, operation accuracy and operation safety, and is suitable for high-frequency and high-precision repeated hoisting operations in the paper workshop.

The equipment supports three modes of handle control, wireless remote control, and cab control. Among them, wireless remote control has a wider field of view and safer operation. It is the preferred control method for paper workshops.The full set of operating shafts supports frequency conversion and speed regulation, with multiple intelligent protection and precise positioning configurations: upper and lower lifting limit switch, walking limit device, overload protection device, intelligent anti-swing system, encoder positioning monitoring, PLC intelligent control system.

The intelligent anti-sway system can effectively suppress the shaking of paper rolls during the operation of carts and trolleys, the positioning and monitoring module can realize the precise alignment of repeated operations, and the multi-lifting mechanism can operate synchronously and cooperatively, which not only ensures the safety of operations, but also greatly improves the efficiency of paper roll handling and equipment maintenance.

Selecting the Right 45t Crane Configuration for Different Paper Mill Areas

The working conditions of the wet area, pressing area, dry area, finished product area, and maintenance workshop of the papermaking workshop are very different, and the protection, accuracy, and functional requirements of the crane are different. The 45-ton crane can be customized and configured to meet the operating needs of different regions.：

Safety Considerations for 45t Paper Mill Crane Operations

The heavy-duty, high-precision, and continuous operation scenarios of the papermaking workshop have strict requirements for the safety performance of the equipment. The 45-ton special crane for papermaking is equipped with a full set of safety protection configurations to avoid operating risks in all directions.：

• Overload protection system: it has real-time dynamic load monitoring function, which can track the lifting weight throughout the process. In the event of overload conditions, the system will automatically issue sound and light warnings and perform power failure and shutdown protection, effectively eliminating structural deformation, equipment damage and safety hazards caused by overload operation.
• Emergency stop device: When the equipment encounters a sudden failure, abnormal shaking or dangerous working conditions, it can trigger an emergency shutdown with one key, instantly cut off the power circuit of the whole machine, quickly terminate the operation of all institutions, and avoid sudden safety accidents to the maximum extent possible.
• Dual limit protection: configure multiple protective devices for lifting the upper and lower limits and the front and rear limits of carts and trolleys to accurately limit the operating stroke of the equipment and completely avoid over-range displacement, structural impact and equipment wear.
• High-performance braking system: equipped with a combination of high-reliability mechanical braking and regenerative braking system, the braking response is rapid and the braking torque is stable, ensuring stable start and stop of the crane, accurate positioning, and avoiding the risk of load impact and slippage.
• Anti-collision system: For multiple cranes sharing track operation scenarios, intelligent real-time monitoring of equipment spacing, automatic distance warning, deceleration buffer and limit protection, effectively prevent collision interference between adjacent cranes.
• Normalized inspection mechanism: Establish a standardized regular inspection and maintenance process, and carry out normalized inspection and maintenance of all safety protection components, electrical systems, and mechanical structures to ensure that the safety protection system is sensitive, reliable, stable and effective for a long time.

Maintenance Strategy for Overhead Cranes in High-Humidity Paper Mills

Under high humidity and corrosion conditions, the loss rate of paper cranes is much higher than that of ordinary industrial cranes. The conventional operation and maintenance cycle cannot be adapted to the operating conditions of the equipment. Special preventive operation and maintenance plans need to be formulated to extend the life of the equipment and reduce the probability of failure.

Electrical system

Regularly check the sealing performance of the electrical cabinet, the operating status of the anti-condensation heater, and the sealing of the waterproof joints of the circuit, clean up the dust and moisture in the cabinet, and detect the integrity of the three-proof coating of the circuit board to prevent the circuit from being damp, oxidized, and short-circuited.

Power and transmission components

Regularly check the insulation resistance of the motor and the smoothness of the cooling system, clean up the dust of the fan and heat sink fibers; check the braking performance of the brake and the oil status of the gearbox, and replace the special grease for waterproof to avoid moisture, corrosion and caton of the bearings and gears.

Anticorrosive monitoring of steel structure

Normalize the inspection of the coating integrity of the main beam, end beam, welds, and fasteners, check the corrosion points, and do timely paint and anticorrosive treatment; regularly check the track flatness and structural deformation to ensure the structural stability of the equipment.

Loss of hoisting aids

Regularly and comprehensively inspect core hoisting aids such as wire ropes, lifting hooks, paper roll clamps, and C-hooks, carefully investigate various hidden dangers such as surface wear, corrosion, oxidation, and deformation damage of components, and replace aging, failure, and excessive loss of spare parts in time to continuously ensure the safety, stability and normality of hoisting operations.。

Optimize preventive operation and maintenance cycles

Compared with ordinary cranes, papermaking wet zone equipment needs to shorten the inspection cycle, and implement quarterly comprehensive visual inspections and annual in-depth inspections of the whole machine.At the same time, it is equipped with an online vibration and temperature condition monitoring system to predict potential faults in advance through remote diagnosis, realize predictive operation and maintenance, and avoid sudden downtime.

How to Specify a 45t Paper Mill Overhead Crane

When an enterprise custom purchases a 45-ton special crane for papermaking, it needs to clarify the core parameters in combination with the workshop working conditions and production technology to ensure that the equipment is accurately adapted to production needs. The core selection parameters are as follows：

• Rated load: The rated lifting weight is 45 tons, the load capacity has been included in the weight of the hoisting aids, and sufficient dynamic load safety redundancy is reserved, which can cope with the impact load during the hoisting process and ensure the stability and reliability of heavy-duty operations.
• Lifting height, plant span, track running length: customized design according to the site space layout, plant structure and operating scope of the paper workshop, the size parameters are fully adapted to the site conditions, to meet the needs of equipment maintenance and paper roll transfer space.
• Equipment working condition level: Based on the actual hoisting frequency, load continuity rate and annual operating time on the site, select the matching FEM/CMAA working condition level to adapt to the long-term, high-frequency continuous heavy-duty operation of the paper workshop.
• Operating speed: equipped with dual modes of conventional operating speed and micro-speed jog, the conventional speed guarantees the efficient transfer of paper rolls and heavy-duty components; the micro-speed jog mode is used for equipment maintenance alignment and paper roll placement, taking into account operational efficiency and precise positioning.
• Environmental protection parameters: combined with workshop humidity, condensation conditions and chemical corrosion media types, the IP protection level of the electrical system and the anticorrosive coating level of the steel structure are reasonably selected to resist equipment losses caused by high humidity and corrosive media.
• Supporting aids: according to the diameter, width, weight, mandrel specifications of the paper roll and the on-site handling process, suitable special lifting fixtures and tooling are selected to achieve non-destructive clamping and smooth lifting of the paper roll to avoid damage to the roll surface.
• Control method: Priority is given to the wireless remote control mode with a wide field of vision and flexible operation. At the same time, it is equipped with two alternative options, handle control and cab control, to adapt to different operating environments and operator habits.
• Accuracy requirements: Specify the repeat positioning accuracy of the equipment and the performance indicators of the intelligent anti-swing system in advance to meet the requirements of refined operations such as the regular stacking of paper rolls, the installation and maintenance of press rollers, etc.
• Supporting safety configuration: according to on-site working conditions, safety modules such as anti-collision system, overload protection device, travel limit protection, and equipment online status monitoring can be installed on demand to build a multi-layer safety protection system.

Conclusion

The wet area of the paper mill is high in humidity, the medium is corroded, and the operation and maintenance space is limited, which requires strict protection, accuracy and stability of the bridge crane.The 45-ton special bridge crane for papermaking relies on heavy-duty structure, moisture-proof and anti-corrosion, frequency conversion control, special spreader for paper rolls and safe configuration to meet the needs of paper roll handling and equipment maintenance operations.

The actual project needs to be customized according to the workshop area, paper roll specifications, operation frequency, corrosive environment and maintenance conditions, and formulate preventive maintenance plans to reduce failures and unplanned downtime.Henan Mine Crane can customize a 45-ton bridge crane according to the working conditions of the paper mill, with protection, spreader and control system to improve the stability and operating efficiency of paper roll hoisting.
