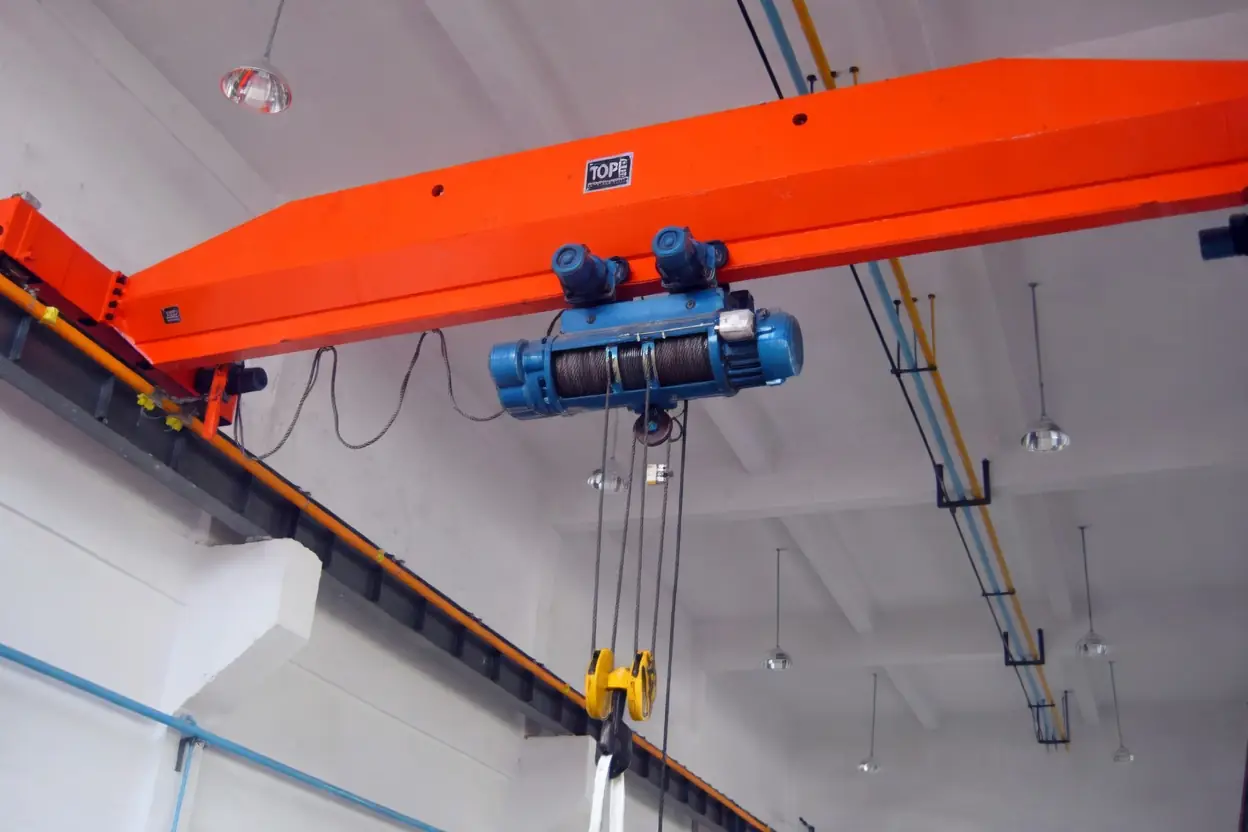

10t European Single Girder Overhead Crane for Low-Headroom Industrial Plants
At present, small and medium-sized precision assembly and processing workshops generally face the space problems of insufficient floor height, compact site, and intensive production equipment. Traditional bridge cranes have a large headroom, limited effective lifting height, and low space utilization, making it difficult to adapt to refined production needs.Relying on a lightweight and compact structure and professionally optimized low-clearance design, this 10t European-style low-clearance single-beam bridge crane has stable operation and accurate positioning, and can be perfectly adapted to various compact workshop working conditions. It is currently the mainstream lifting equipment dedicated to compact workshops. It is widely used in many industrial scenarios such as mechanical assembly, hardware manufacturing, and parts processing. It effectively solves the pain points of hoisting operations in small workshops, helps factories revitalize limited production space, and greatly improves the overall operating efficiency of the workshop.
Why 10t Single Girder Overhead Cranes Are Ideal for Compact Assembly Plants
10t capacity for assembly handling
The 10-ton rated load is the golden tonnage range for industrial assembly scenarios. This 10t single-beam bridge crane is accurately adapted to the heavy-duty hoisting needs of most small and medium-sized factories.Compared with 5-ton and 8-ton small-tonnage cranes, its carrying capacity is stronger, and it can easily handle the handling, assembly, alignment, and loading and unloading of heavy machinery parts, complete assembly modules, metal forming workpieces, and large molds.Compared with large-tonnage equipment of 16 tons and above, 10-ton models have lighter weight, lower energy consumption, more controllable procurement and operation and maintenance costs, and there is no problem of excess equipment performance.In high-frequency working conditions such as equipment assembly, finished product transfer, mold replacement, and station replenishment, the 10-ton load of European-style low-clearance cranes can not only cover most standard operating requirements, but also adapt to short-term heavy-duty hoisting tasks, taking into account practicality and economy, and perfectly match the diversified operating scenarios of compact assembly workshops.
Space-saving single girder design
The single-beam main structure is the core design advantage of adapting to a compact factory building, and it is also the core highlight of the 10t European-style low-clearance single-girder crane. It is different from the heavy and cumbersome structure of traditional double-girder cranes. The European-style 10-ton single-girder crane adopts an optimized lightweight main beam structure. The overall body is slender and compact, with strong structural stiffness and high load-bearing stability.The equipment abandons the redundant structural design, and under the premise of ensuring the rated lifting performance, structural strength, and operating safety of 10 tons, the horizontal and vertical space occupied by the fuselage is greatly reduced.At the same time, the weight of the whole machine is more than 30% lower than that of traditional cranes of the same level, which effectively reduces the load-bearing pressure on the steel beams and roofing of the plant. There is no need to carry out structural reinforcement and transformation of old factories and light steel structure factories, which greatly reduces the equipment installation cost of plant transformation and low-clearance bridge cranes.The simple single-beam structure also allows the equipment to run with fewer blind spots, and can be adapted to the narrow working space between narrow stations and dense production lines.
Better use of limited factory space
Compact assembly plants generally have pain points such as insufficient floor height, narrow passages, dense equipment arrangement, and limited reserved hoisting space. Traditional cranes are prone to problems such as installation, difficult operation, touching equipment, and height restrictions.The 10t European-style low-clearance single-beam bridge crane fully frees up workshop space from the horizontal, vertical and vertical three-dimensional dimensions through exclusive structural optimization.It is installed laterally on the column track of the plant and does not occupy the ground production channel.The longitudinal fuselage is compact, and there is no extra offset space for operation.With the core structure of a dedicated low-headroom hoist, the problem of vertical space waste of traditional equipment is completely solved.So that the originally unusable low-rise plant space and corner work space can be fully reused, without expanding the plant or adjusting the layout of the production line, the effective working area and hoisting coverage of the workshop can be directly increased, and enterprises can rely on special cranes for compact plants to achieve production capacity upgrades.
What Makes European Low-Headroom Crane Design Different?
Compact hoist structure
The core differentiated advantages of Henan Mine Crane manufactured European-style low-clearance cranes are derived from the newly upgraded compact electric hoist structure, which is also the core technical highlight of the 10t European-style low-clearance bridge crane that distinguishes it from traditional equipment, completely subverting the design shortcomings of traditional hoists that are bulky and require high clearance.The equipment adopts a modular and integrated design, which highly integrates the core components such as the motor, reducer, reel, and walking wheel set, with a precise and compact structure, and abandons the redundant layout of the traditional equipment split type.With the optimized design of large-diameter reels, it not only reduces the overall volume of the hoist, but also effectively reduces the blind spots of the left and right operating limits, so that the hoist can be as close to the two ends of the main beam as possible and close to the wall of the plant.At the same time, the high-precision hard tooth surface reducer is equipped with a sealed integrated structure, which does not require frequent maintenance. The whole machine has low operating noise and low failure rate. It is suitable for long-term continuous operation conditions. It is a high-performance European-style single-girder crane suitable for industrial workshops.
Reduced headroom requirements
The headroom height is the core index to measure the adaptability of compact plant cranes. The 10t European-style low-headroom single-girder crane has greatly reduced the roof headroom height required for equipment installation through its exclusive structural design.Traditional 10-ton single-girder cranes need to reserve a large top clearance distance, while European-style low clearance models use the eccentric layout of the hoist and the optimized structure installed at the bottom of the main beam. Compared with traditional equipment of the same tonnage, the clearance height can be reduced by 20%-35%, which perfectly solves the installation problem of low-rise plant equipment.For many old assembly workshops, low steel structure factories, and customized factories with limited floor height, there is no need to remove the ceiling, raise the roof, and transform the plant structure. The equipment installation and commissioning of low-clearance single-girder cranes can be successfully completed, greatly reducing the threshold for equipment landing and transformation costs.
Increased effective lifting height
Under the premise that the roof height of the plant is fixed, lower equipment headroom loss means higher effective lifting height, which is also one of the core advantages of the 10t European-style low-headroom bridge crane.The measured data show that under the same plant floor height, the same span, and the same tonnage conditions, the effective hook lifting height of a 10-ton European-style low-clearance crane is 0.6-1.5 meters higher than that of a traditional ordinary crane.This part of the additional vertical working space is essential for compact assembly workshops. It can meet the needs of fine-grained operations such as vertical assembly of large workpieces, installation of high-level equipment, stacking of multi-layer shelves, and alignment of high-station parts, and completely solve the operation limitations of traditional cranes that are not high and out of reach, and greatly improve the vertical space utilization rate of low-rise factories.
Smooth and precise operation
The 10t European-style low-headroom single-beam bridge crane is equipped with a fully frequency conversion speed control system. The three major mechanisms of lifting, cart walking, and trolley walking are all designed with S-curve smooth acceleration and deceleration, which completely eliminates the problems of large start-stop impact, severe shaking, and inaccurate positioning of traditional cranes.This high-precision European-style low-clearance crane runs smoothly, brakes accurately, and has no inertial swing. It can meet the needs of harsh working conditions such as precision mechanical assembly, high-precision workpiece alignment, and hoisting of fragile parts.At the same time, it is equipped with an IP65-level protective electrical system as standard, which is suitable for the dust and slightly humid industrial environment of the workshop. It is equipped with a wireless remote control + flashlight dual control mode, which is convenient to operate and responsive. The operator can accurately control the hoisting position and speed, effectively reducing the risks of workpiece bumps, positioning deviations, etc., and improving assembly accuracy and operation pass rate.
How Low-Headroom Design Improves Compact Plant Layouts
Working with limited roof height
Most small and medium-sized assembly plants did not reserve space for the installation of large-scale lifting equipment in the early stages of the construction of the plant. The height of the roof is generally low, and the roof is covered with pipelines, bridges, and ventilation equipment. Traditional cranes cannot be adapted at all.The 10t European-style low-clearance single-girder crane is specially tailored for low-rise and high-compact factories. It has very small top installation space requirements, which can perfectly avoid interference from roof pipelines and ancillary equipment, and is directly suitable for mainstream compact factories with a height of 6-12 meters.Whether it is a newly built low-profile steel structure workshop or an old retrofit workshop, it can be directly installed and used without changing the top structure of the workshop. It is a special industrial lifting equipment with strong adaptability to low-profile workshops.
Maximizing vertical lifting space
The core of the space value of industrial plants lies in the vertical utilization rate. Traditional cranes consume a lot of top clearance, resulting in valuable vertical space occupied by the equipment itself and cannot be used for production operations.The core value of the low headroom design of Henan Mine Crane manufactured bridge crane is to maximize the idle space on the top of the plant into effective hoisting space.The equipment compresses its own height through precise structure optimization, leaving more layers of height for hoisting operations, so that 10-ton heavy-duty hoisting can cover all vertical working areas of the workshop, and is suitable for large-scale workpiece stacking, high-level assembly, vertical installation of equipment and other working conditions.Under the premise of not increasing the floor height of the plant and not expanding the floor area, the vertical operating capacity of the workshop can be directly doubled to maximize the space value of the compact plant.
Reducing interference with production lines
The core characteristics of a compact assembly workshop are dense production lines, small spacing between stations, and many auxiliary equipment. The traditional crane has a wide body and limited operating stroke, which can easily collide and interfere with production lines, tooling equipment, and station equipment.The 10t European-style low-clearance single-beam bridge crane has a compact body and very small blind spots in operation. The trolley can run close to both ends of the main beam, and the hook can be as close to the wall as possible and the edge of the production line.The trajectory of the equipment is accurate and controllable, and will not interfere with the flow of the ground production line, material transportation, and manual operation. It is perfectly adapted to the layout of the workshop with intensive multi-station arrangement, ensuring that the hoisting operation and the assembly line production are carried out simultaneously and efficiently, without conflict with each other, and effectively improve the overall production and circulation efficiency of the compact workshop.
Key Specifications to Consider for a 10t Single Girder Overhead Crane
Span and lifting height
Span and lifting height are the basic core parameters of the 10t single-beam bridge crane adapted to the plant, which directly determine the coverage and operating capacity of the equipment.The conventional applicable span of a 10-ton European-style low-clearance crane is 7.5m-22.5m, which can cover the width of most small and medium-sized assembly workshops, and the span can be customized to widen under non-standard working conditions.The lifting height is generally standard with 6m, 9m, and 12m, and can be customized up to 30m, which can be accurately matched according to the actual floor height and operating height requirements of the plant.When selecting the type, it is necessary to accurately measure the center distance of the track of the plant, the effective clearance height of the roof, and the actual maximum hoisting height to avoid inconsistent parameters that cause the European-style low-clearance crane to be unable to install or insufficient working space, and ensure that the equipment is fully adapted to the layout of the workshop.
Crane duty and working frequency
The working level and frequency of use directly determine the service life and operating stability of Henan Mine Crane manufactured10t European-style low-clearance single-girder crane, which is also the key basis for equipment selection.The mainstream working levels of 10-ton European-style low-clearance cranes are A4 and A5, which are suitable for industrial normalization operation scenarios.Among them, the A4 level is suitable for intermittent operations of 4-6 hours a day, and is suitable for low-frequency assembly, mold hoisting, and occasional heavy-duty transfer conditions.The A5 level is suitable for continuous operation for 8-12 hours a day to meet the needs of high-frequency material transfer in assembly lines, batch workpiece assembly, and continuous heavy-duty operations.In view of the high-intensity working conditions of 24-hour uninterrupted operation and frequent full-load hoisting, high-level models can be upgraded and customized to avoid long-term overload operation of low-clearance bridge cranes, which leads to equipment aging, deformation, and frequent failures.
Hoist and travelling speed
Lifting speed and walking speed directly affect production efficiency and operating stability. The 10t European-style low-clearance bridge crane adopts frequency conversion and speed regulation design, and the speed can be accurately regulated.The lifting speed is divided into two modes: high-speed and low-speed. The low-speed adapts to precision alignment and fine assembly, and the high-speed adapts to the rapid transfer of materials, taking into account efficiency and accuracy.The walking speed of carts and trolleys is stable and adjustable, with infinite speed start and stop, and no inertial shaking, which effectively avoids the offset and collision of workpieces during heavy-duty hoisting.Compared with the disadvantages of fixed-speed operation of traditional cranes, the adjustable speed parameters of European-style single-girder cranes can be flexibly switched according to different operating scenarios, which is perfectly adapted to the dual needs of refined assembly and efficient transportation.
Control and power options
Henan Mine Crane manufactured low-clearance single-girder cranes are equipped with diversified intelligent control and power supply solutions to meet the needs of different workshop operations.The control method comes standard with a dual mode of wired control of the flashlight door + industrial wireless remote control. The remote control operation has a long distance and strong anti-interference ability, which can achieve precise control from a long distance and avoid the safety risks of close-range operations.It can be equipped with intelligent systems such as PLC intelligent control, frequency conversion, precise positioning, limit protection, and overload protection to improve the level of equipment automation and safety.The power supply method adopts safe sliding contact wire for power supply, stable conductivity, no caton, low loss, and is suitable for long-term continuous operation. The power supply scheme can be customized according to the circuit layout of the workshop and the operating environment to ensure the stable operation of low-clearance lifting equipment.
Typical Applications of 10t Low-Headroom Overhead Cranes
Machinery assembly plants
The general machinery assembly workshop is the core application scenario of the 10t low-clearance European-style single-girder crane, which is suitable for the assembly of small and medium-sized machine tools, automation equipment, construction machinery parts, and transmission equipment, component hoisting, mold replacement, and offline transfer of finished products.With precise and stable control performance, it can complete high-precision workpiece alignment and precision parts assembly, effectively improve equipment assembly accuracy and production efficiency, and adapt to the high-frequency and refined operation needs of compact mechanical assembly workshops. It is a professional lifting equipment commonly used in the machining industry.
Equipment manufacturing workshops
In non-standard equipment, industrial supporting equipment, and mechanical and electrical equipment manufacturing workshops, the 10t European-style low-clearance bridge crane can easily handle the hoisting, splicing, installation and transfer of heavy equipment housings, racks, and core components.The equipment takes up little space and does not interfere with the layout of the production line. It can be adapted to the cross-hoisting operations of multiple stations and multiple processes in the equipment manufacturing process, greatly improving the flow efficiency of equipment manufacturing, and adapting to the normal production conditions of small and medium-sized equipment manufacturers. It is a highly adaptable special hoisting equipment for equipment manufacturing workshops.
Metal fabrication facilities
Metal processing, steel structure sheet metal, hardware forging and other processing workshops generally have the characteristics of large workpiece weight, large size, frequent transportation, and intensive workshop equipment.The 10-ton stable load capacity of the 10t European-style low-clearance single-girder crane can meet the hoisting, shifting, and stacking operations of steel plates, sections, steel structural parts, and forged finished products. The low-clearance structure is suitable for the low-floor, high-density and pipeline-intensive working conditions of the metal workshop. The smooth operation characteristics can avoid the collision and deformation of metal workpieces and ensure the processing quality of finished products. It is widely used in various metal fabrication industrial scenarios.
Industrial component handling
For the handling, stacking, loading and unloading, warehousing and outbound operations of large-scale industrial parts, molds, auto parts, heavy industry parts, and warehousing heavy materials, the 10t low-clearance European-style bridge crane has strong adaptability.Whether it is material transfer in the workshop, loading and unloading of finished products in the factory, or high-level stacking, the operation can be completed efficiently, and the precise positioning ability can meet the gentle hoisting needs of precision industrial accessories, and it is suitable for most industrial parts heavy-duty handling scenarios. It is an essential high-efficiency lifting equipment for industrial production.
Henan Mine Crane Factory Custom
Suitable for all kinds of low-profile and compact modern production workshops, the 10t European-style low-clearance single-beam bridge crane relies on mature European-style technology and optimized structure to completely solve the problems of waste of space, unstable operation, and poor adaptability of traditional equipment.Henan Mine Crane Factory bridge crane operates accurately and smoothly, has reliable load-bearing performance, can fully excavate the vertical space of the plant, does not interfere with the normal operation of the production line, and is fully adapted to mainstream working conditions such as mechanical assembly, metal processing, and equipment manufacturing.This high-performance European-style low-clearance single-girder crane has excellent quality, wide range of adaptations, and outstanding cost performance. It is a high-quality upgrade choice for factories to upgrade lifting equipment, optimize workshop layout, and achieve efficient and stable production.
