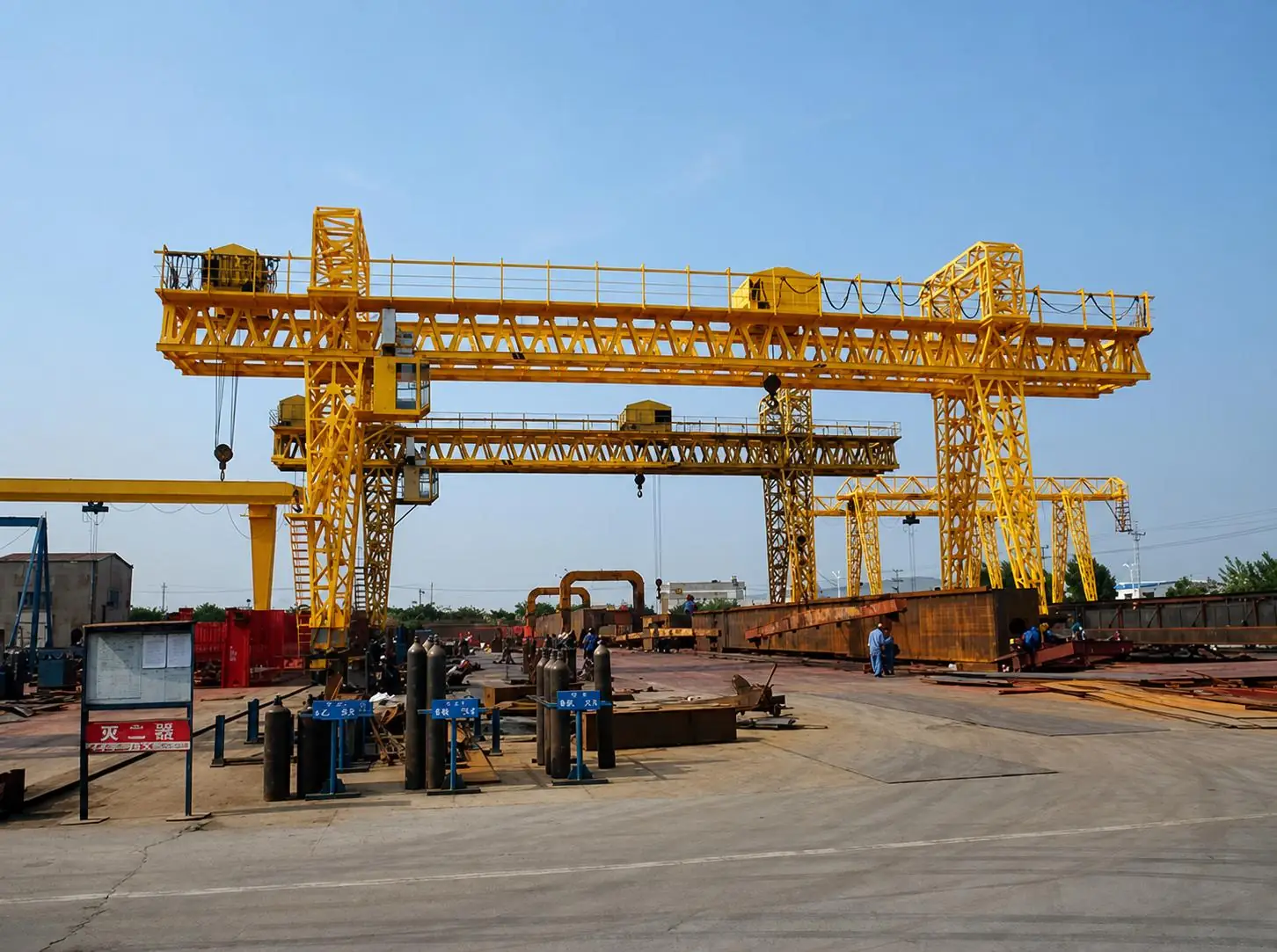

Shipyard Gantry Crane Buying Guide For Large Vessel Construction
In the field of modern shipbuilding, shipyard gantry cranes are the core equipment of large-scale ship construction, which directly determines the production efficiency, operation safety and project cost control level of shipping companies.As the demand for large-scale ship construction continues to grow, the selection of gantry cranes is no longer a simple equipment procurement, but a strategic decision related to the long-term competitiveness of shipping companies.Suitable marine gantry cranes can realize efficient hoisting of hull segments and precise assembly of heavy-duty modules, greatly shortening the construction cycle.Conversely, improper selection may lead to low operational efficiency, frequent safety hazards, and even cause project delays and cost overruns.This article will focus on large-scale ship construction scenarios and introduce in detail the core knowledge, selection points, design plans, key components and supporting services of shipyard gantry cranes, so as to provide a comprehensive and professional reference for shipping companies to purchase large-scale ship construction cranes, and help shipping companies choose heavy-duty marine gantry cranes that meet their own needs.
Understanding Shipyard Gantry Cranes and Their Applications
What is a shipyard gantry crane?
Henan Mine Crane manufactured shipyard gantry cranes working principle is to drive the lifting system through an electrical control system to complete the vertical lifting of heavy objects. The lifting system includes hooks, wire ropes, hoisting mechanisms and other components. At the same time, it cooperates with the horizontal movement of carts and trolleys to achieve precise positioning and handling of heavy objects such as hull segments and heavy equipment. The cart is the overall frame, and the trolley is a lifting device that moves along the main beam.The core components work together to ensure the stability and reliability of the equipment under high-load and high-frequency operations. It is an indispensable marine lifting system in the process of ship construction.
Applications in vessel construction
Shipyard gantry cranes are the core equipment of large-scale ship construction and run through the whole process of hull construction. The main application scenarios include the following aspects. They are indispensable ship construction equipment in the ship construction process.：
- Hull segmented hoisting and assembly: Accurately hoisting the prefabricated hull segments to the ship platform or dock, and completing the segmented docking and welding is the core process of hull forming. Hull segments include bottom segments, side segments, deck segments, etc.
- Segmented hull transportation: Realize the efficient transfer of hull segments between workshops, depots and ship platforms, reduce the workload of manual handling, and improve operational efficiency.
- Marine equipment installation: responsible for the hoisting and installation of heavy marine equipment such as main engine, steering gear, anchor gear, etc., to ensure that the installation location of the equipment is accurate and meets the performance requirements of the ship's operation.
- Handling of heavy-duty components: handle the handling and positioning of heavy-duty steel, modules, outfitting parts and other heavy objects in the process of ship construction, and adapt to the high-load operation requirements of large-scale ship construction.
Why shipyards need heavy duty gantry cranes
The particularity of large-scale ship construction determines that shipping companies must be equipped with heavy-duty shipyard gantry cranes. Its core advantages and necessity are mainly reflected in the following points：
- Carrying extreme loads: the hull segments and heavy equipment of large ships can weigh hundreds or even thousands of tons. Ordinary lifting equipment cannot meet the load requirements. Heavy gantry cranes can easily handle the lifting of heavy objects of extreme weight.
- Improve construction efficiency: heavy-duty gantry cranes can realize one-time hoisting and assembly of large components, reduce operating processes and time, significantly shorten the ship construction cycle, and improve the production capacity and delivery capacity of shipping companies.
- Reduce labor risks: reduce the participation in manual handling, avoid safety risks caused by manual operation, and reduce the risk of collision and damage to components through precise control to ensure operation safety.
- Adapt to the needs of large-scale shipbuilding: With the intensification of the trend of large-scale and modular construction of ships, Henan Mine Crane manufacturedheavy gantry cranes can support the construction needs of large-scale ships, offshore platforms and other equipment, and help shipping companies expand their business scope and enhance their market competitiveness.
Key Factors When Buying a Shipyard Gantry Crane
The procurement of gantry cranes for shipyards is a systematic project that needs to be comprehensively considered in combination with the actual production needs of shipping companies, site conditions, future development plans and other factors.The following core selection points can help shipping companies accurately select suitable equipment. This shipyard crane selection guide will provide you with clear decision-making ideas.
Lifting capacity
The lifting load is the core parameter of the gantry crane selection, which directly determines whether the equipment can meet the operational needs of ship construction.When selecting the type, it must be comprehensively determined in combination with the size of the ship, the construction process and the future development plan.First of all, according to the type of ship currently under construction, the maximum hull segment and the weight of heavy equipment need to be determined, and the minimum lifting load required must be determined on this basis, and a safety margin of 10%-25% must be reserved to avoid equipment unavailability or safety hazards due to insufficient load. Ship types include bulk carriers, tankers, LNG ships, etc.Secondly, the common load range of gantry cranes in shipyards is 100 tons-1000 tons or more. Heavy equipment of more than 300 tons is usually required for the construction of large ships, and super heavy gantry cranes of more than 500 tons are required for the construction of ultra-large ships or offshore platforms.Finally, it is necessary to consider the future production expansion needs of shipping companies. If they plan to build larger-tonnage ships, the lifting load of the equipment should be appropriately increased to avoid cost waste caused by subsequent repeated purchases.
Span and lifting height
The span and lifting height are the key dimensional parameters of the gantry crane, which need to be accurately matched with the layout, operating scope and ship construction requirements of the shipyard, and are also the core content of the specifications of the gantry crane of the shipyard.Span refers to the distance between the operating tracks on both sides of the gantry crane. It needs to be determined according to the width of the platform or dock and the maximum size of the hull segment to ensure that the equipment can cover the entire working area and realize the all-round hoisting and assembly of the hull segment.The lifting height needs to be determined according to the draft depth of the ship, the height of the hull and the operating scene. It is necessary to ensure that the hook can lift heavy objects to the designated location, while avoiding collisions with the hull, platform, etc. The lifting height of large-scale ship construction usually needs to reach 20 meters-35 meters, and higher specifications can be customized for special scenarios.In addition, it is necessary to evaluate the operating coverage of the equipment to ensure that the operating range of carts and trolleys can meet all operating needs and improve the utilization rate of the equipment.
Working class and duty cycle
The working level and operating cycle determine the design standard and service life of the gantry crane. It needs to be selected in combination with the operating frequency and load characteristics of the shipping company to adapt to the high load requirements of continuous ship construction.The working level is divided according to the frequency of use of the equipment and the load state. Henan Mine Crane manufactured Shipyard gantry cranes usually need to choose a high working level of A6-A8 to adapt to high-frequency and high-load continuous operation scenarios.The operation cycle needs to consider the daily number of hoisting, the length of a single operation, load changes and other factors. High-frequency operation scenarios need to choose equipment with efficient lifting and operating speed, while optimizing the structural design of the equipment and the selection of components to ensure that the equipment can operate stably for a long time and reduce downtime.In addition, it is necessary to follow relevant industry design standards to ensure that the structural strength and component performance of the equipment can meet the requirements of continuous operation and extend the service life of the equipment.
Operating environment
Long-term operation of gantry cranes in shipyards in outdoor environments requires full consideration of the impact of environmental factors on equipment performance and service life, focusing on the following points.First, the particularity of the outdoor operating environment requires consideration of factors such as temperature changes and rainwater erosion. The electrical components and metal structures of the equipment need to have good protective properties to avoid equipment failures due to environmental factors.The second is the problem of salt spray corrosion. The air humidity and high salt content in coastal shipyards can easily cause corrosion to the metal structure and electrical components of the equipment. It is necessary to choose equipment with salt spray protection and corrosion-resistant treatment, such as the use of galvanized, anticorrosive coating and other processes to enhance the corrosion resistance of the equipment.The third is the wind resistance. The outdoor operation of the shipyard is susceptible to windy weather. The equipment needs to have a good wind resistance design and be equipped with windproof devices to ensure the stability of the equipment in extreme weather and avoid safety accidents. Windproof devices include rail clamps, anchoring devices, etc.
How to Choose the Right Gantry Crane Design for Shipbuilding
The design type of gantry crane in a shipyard directly affects the performance, applicable scenarios and procurement costs of the equipment. It is necessary to select the appropriate design plan based on the actual needs of the shipping company, site conditions and operating scenarios to ensure that the equipment can be efficiently adapted to the needs of ship construction.
Single girder vs double girder design
The single-beam gantry crane has a simple structure, light weight and low procurement cost. It is suitable for small and medium-sized loads and small-span operation scenarios, but its carrying capacity and stability are relatively poor, and it cannot meet the high-load requirements of large-scale ship construction.The double-beam gantry crane adopts two main beams as load-bearing components. It has high structural stiffness, strong carrying capacity and good stability. It can withstand the impact of heavy loads and long-term fatigue operations. At the same time, it has better wind resistance and positioning accuracy, and is suitable for the high-load and high-precision operation requirements of large-scale ship construction.In addition, the double-beam gantry crane has a longer service life, relatively low maintenance costs, and higher cost performance for long-term use, so it has become the mainstream choice for large-scale ship construction.
Rail mounted vs rubber tyred gantry crane
Henan Mine Crane manufactured Rail mounted gantry cranes need to lay special tracks on both sides of the ship platform or dock, and the equipment runs vertically along the track. It has the advantages of good operating stability, strong carrying capacity, and high positioning accuracy. It is suitable for large-scale ship construction scenarios with fixed operating areas and high-frequency operations. It is the mainstream choice for shipyards.Tire-type gantry cranes use rubber tires as operating components without laying tracks. They have the advantages of flexible movement and adjustable operating range. They are suitable for scenarios where the site is limited and the operating area is not fixed, but the carrying capacity is relatively low, and the positioning accuracy is slightly inferior to that of rail-type equipment. It is usually used for the construction of small and medium-sized ships or auxiliary operations.Shipping companies need to choose a suitable operating system based on their own site planning, operating scope and load requirements.
Customized crane configuration
Customized configuration mainly includes the following aspects: first, customized lifting mechanism, according to the type, weight and lifting needs of heavy objects, design special lifting mechanisms, such as double hook lifting, multi-lifting point lifting, etc., to improve the stability and accuracy of lifting.The second is the configuration of a multi-lifting system. For the lifting needs of large components, multiple lifting devices can be configured to achieve synchronous lifting and collaborative operation, and improve operating efficiency.The third is the intelligent control option, which is equipped with intelligent technologies such as automatic control, remote monitoring, and precise positioning to realize intelligent control of equipment, reduce manual intervention, and improve operational safety and efficiency.Fourth, the remote operating system supports remote control of equipment, reduces the labor intensity of operators, and avoids operators from being in a dangerous operating environment.
Manufacturing and Quality Standards of Shipyard Gantry Cranes
The manufacturing quality of the Henan Mine Crane manufactured shipyard gantry crane directly determines the performance, safety and service life of the equipment. When purchasing, it is necessary to choose a shipyard gantry crane manufacturer with professional manufacturing capabilities and strict quality control system to ensure that the equipment meets industry standards and actual needs.
Engineering design process
Professional engineering design is the basis for ensuring the performance of gantry cranes. Manufacturers need to have a sound design process and provide personalized design solutions based on customer needs.First of all, in-depth analysis of the actual needs of customers, including ship types, operating scenarios, site conditions, future development plans, etc., to clarify the core parameters and performance requirements of the equipment.Secondly, conduct detailed structural calculations and simulation analysis to verify the structural strength, stability, and wind resistance of the equipment to ensure the rationality and safety of the design plan.Finally, optimize the structural design and component selection of the equipment, balance the performance, cost and service life of the equipment, and provide customers with the best design plan.
Manufacturing process
Strict manufacturing technology is the key to ensuring the quality of equipment. Manufacturers need to follow standardized manufacturing processes to ensure that every link meets the quality requirements. The crane manufacturing process mainly includes the following links.First, steel processing, the selection of high-strength steel that meets the standards, cutting, welding, machining and other processing to ensure the dimensional accuracy and structural properties of steel.The second is the welding process. Professional welding equipment and technology are used to ensure the welding quality and avoid damage to the equipment structure caused by welding defects. At the same time, the welding parts are tested for defects to ensure that the welding quality is qualified.
Third, surface treatment, anti-corrosion treatment of the metal structure of the equipment, such as galvanized, spraying anti-corrosion coating, etc., to enhance the corrosion resistance of the equipment and extend the service life of the equipment.The fourth is the assembly of components. The processed components are accurately assembled to ensure the matching accuracy of each component. At the same time, the assembled equipment is preliminarily debugged to ensure the normal operation of the equipment.
Testing before delivery
Testing of equipment before leaving the factory is the last line of defense to ensure the quality of equipment. Manufacturers need to conduct comprehensive testing and verification to ensure that the equipment meets industry standards and customer needs. The core links of industrial crane quality control include.First, load testing, which performs rated load and overload tests on the equipment, verifies the carrying capacity and operating stability of the equipment, and ensures that the equipment can meet the actual operating needs.The second is electrical inspection, which comprehensively inspects the electrical control system, circuits, and components to ensure that the electrical system is operating normally and there are no hidden dangers of failure.The third is the verification of the safety system, and the safety devices such as overload protection, anti-collision system, and emergency stop system are tested one by one to ensure that the safety devices can work normally and ensure the safety of operations.Fourth, the factory acceptance test invites customers to participate in the factory acceptance of the equipment, conduct a comprehensive verification of the performance and quality of the equipment, and can be delivered from the factory after passing the acceptance.
Henan Mine Crane Factory Custom
Shipyard gantry cranes are the core equipment of large-scale ship construction. Every aspect of their selection, design, manufacturing, installation and commissioning directly affects the production efficiency, operational safety and long-term development of shipping companies.Choosing the right shipyard gantry crane can not only improve the efficiency and quality of ship construction, reduce operating costs and safety risks, but also help shipping companies expand their business scope and enhance their market competitiveness.
I would like to remind all shipping companies that when purchasing gantry cranes for shipyards, they need to take into account their actual needs, pay attention to the performance, quality and professional services of the equipment, and choose a reliable Henan Mine Crane Factory. Through reasonable selection, high-quality equipment and professional services, we will create an efficient, safe and reliable ship construction system to promote shipping companies to achieve long-term stable development and build a more competitive modern shipyard.
