The Benefits of Using Gantry Cranes for Heavy Lifting

In heavy industrial scenarios such as harbours, shipyards, construction sites, etc., the safety and efficiency of heavy lifting directly determines project progress and operating costs. As the core of industrial lifting equipment, gantry cranes are replacing traditional lifting systems due to their unique structure and excellent performance. They can move large materials safely and efficiently to meet the needs of modern heavy lifting in terms of stability, efficiency, economy and flexibility, and they are the key equipment for the efficient operation of heavy industry.

What Is a Gantry Crane?

Gantry Crane, also known as Gantry Crane, belongs to the bridge type crane. Its bridge through the two sides of the legs, lower beams and running gear, directly supported on the ground track or foundation, the core structure includes the gantry, lifting mechanism, trolley running mechanism and rail wheels. Some of the large equipment is also equipped with windproof devices such as rail clamps, which can withstand high winds and ensure the safety of outdoor operations.

The working principle of gantry crane is simple and efficient. Through the lifting mechanism to achieve vertical lifting of heavy loads, trolley operating mechanism to drive the lifting device along the horizontal movement of the beam, with the trolley operating mechanism to drive the longitudinal movement of the gantry, the three together constitute a three-dimensional operating space, can accurately handle heavy loads without relying on the support of the building, high flexibility, suitable for a variety of venues and large-scale handling of large and heavy materials over long distances with high precision.

Key Benefits of Using Gantry Cranes for Heavy Lifting

Exceptional heavy load capacity

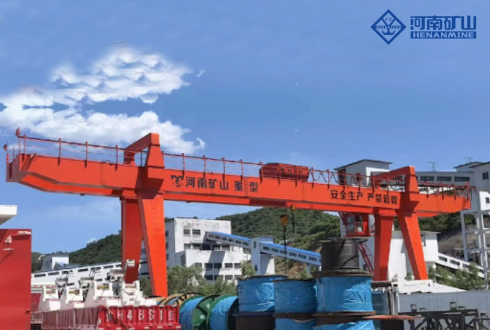

Heavy Gantry Cranes are specially designed for heavy lifting, with professional mechanical design and high-strength steel, they can lift from several tonnes to hundreds of tonnes, and the customised models can reach thousands of tonnes, and are suitable for all kinds of heavy materials. Compared with traditional lifting equipment, it is not easy to be deformed under heavy load, and can work stably for a long time. It is suitable for heavy load scenarios such as shipyards and steel mills, and provides reliable heavy load solutions for heavy industries.

Superior stability and safety

Safety is of paramount importance in heavy lifting operations, and the structural design of the gantry crane guarantees safety from the root. It adopts A-shaped outriggers, double main beams and other enhanced designs to optimise load distribution, and is highly stable under heavy loads, avoiding heavy loads from swaying and tilting. Meanwhile, it is equipped with perfect safety devices such as overload protection, and its structure has undergone strict non-destructive testing, which can significantly reduce the incidence of safety accidents and escort the safe production of enterprises.

High operational efficiency

Traditional manual, forklift and other lifting methods are inefficient and limited by the weight of the material and the handling distance, can not meet the needs of modern industry efficient continuous operation. Gantry cranes run smoothly, can quickly and accurately handle heavy loads, the efficiency of port use is 3-5 times that of traditional methods, but also reduces labour input, shortens the project cycle, and indirectly reduces operating costs.

Excellent mobility and flexibility

Gantry cranes are extremely flexible and can be selected from rail, rubber tyre (RTG) and portable types according to the operating scenarios, which are suitable for long-term fixed sites, complex outdoor sites and temporary operation needs respectively. It does not require large-scale modification of the site, can be flexibly adapted to indoor and outdoor scenarios, to achieve one equipment to meet a variety of operational needs, can avoid repeated procurement of equipment, improve equipment utilisation and reduce investment costs.

Cost-effective solution

Compared with bridge cranes, gantry cranes have more cost-effective advantages, which are centred on saving investment, maintenance and space. It does not need to rely on the building structure, installation and infrastructure costs are lower, the structure is simple and easy to maintain, and can make full use of outdoor space. Data show that under the same conditions, its installation and maintenance costs can be reduced by 20%-30% and 15%-25% respectively, which can significantly reduce the operating costs of enterprises and improve the return on investment.

Wide application range

Gantry cranes have a wide application range, covering all kinds of industrial fields requiring heavy lifting, with core applications in harbours, shipyards, construction sites, steel mills, wind farms, etc., and can be adapted to indoor and outdoor, long-term or temporary lifting needs. Different types of gantry cranes have their own focus, RTG cranes are suitable for harbours, portable cranes are suitable for small and medium-sized enterprises, and full gantry cranes are suitable for large-scale heavy industries, and they have become the core equipment for heavy lifting in various industries due to their advantages of heavy load, flexibility and safety.

Space optimisation and outdoor suitability

Gantry cranes do not need to rely on the building structure, do not occupy the workshop column space, can make full use of indoor and outdoor unused space, to enhance the site utilisation, especially suitable for open yards, port terminals, can be achieved in the air lifting, ground access, to avoid site congestion. It also has strong outdoor adaptability, can work stably in high temperature, cold and other harsh environments, and the structure is treated with anti-corrosion and rust prevention, which can effectively resist environmental erosion and reduce equipment failure.

Gantry Crane vs Other Lifting Crane

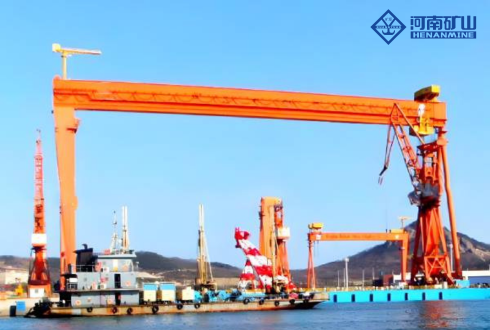

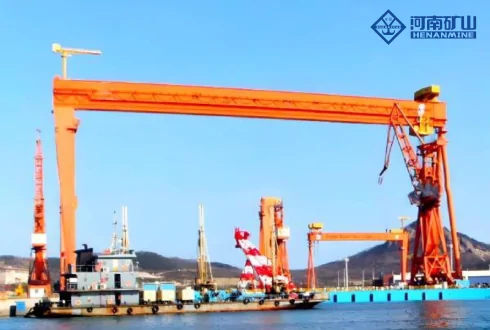

Gantry crane vs Overhead crane

Both are heavy lifting equipment, but the core differences are in infrastructure requirements and flexibility, as shown below:

• Infrastructure requirements: Gantry cranes rely on building structures such as workshop columns and roofs for support, requiring reinforcement and modification of the building, with high infrastructure investment. Gantry cranes are supported by independent outriggers, do not need to rely on building structures, easy to install, and low infrastructure investment.
• Flexibility: Bridge cranes are fixed inside the building, the operating range is limited, and outdoor operation cannot be realised. Gantry cranes can be divided into rail-type, tyre-type, portable and other types, can be flexibly moved to adapt to indoor and outdoor multi-scene operations, a wider range of operations.
• Applicable scenes: Bidge cranes are more suitable for small and medium-sized lifting operations in indoor fixed workshops. Gantry cranes are more suitable for large outdoor sites, heavy load lifting operations, more adaptable.

Overall, gantry crane vs bridge crane, gantry crane in flexibility, infrastructure costs, outdoor adaptability is more advantageous, more suitable for modern industrial multi-scene, heavy lifting needs.

Gantry crane vs Jib crane / Mobile crane

Jib cranes and mobile cranes are common small and medium-sized lifting equipment, compared with gantry cranes, the core difference is reflected in the load capacity, cost and performance:

Load capacity: Jib cranes and mobile cranes have limited load capacity and can only undertake lifting tasks of several tonnes to tens of tonnes, which cannot meet the demand for heavy lifting. Gantry cranes can bear several tonnes to hundreds of tonnes of heavy loads, suitable for all kinds of heavy materials lifting.

Cost and performance: Truck cranes are highly mobile, but the cost of a single lifting is high, suitable for temporary emergency lifting, unable to achieve continuous operation. Jib cranes have simple structure and low cost, but the operating range is narrow and low efficiency. Gantry cranes can achieve continuous, efficient heavy lifting, low long-term operating costs, wide operating range, more cost-effective.

Applicable scenarios: Jib cranes are suitable for small material lifting in the workshop, and truck cranes are suitable for temporary emergencies and outdoor dispersed point lifting. Gantry cranes are suitable for long-term, continuous, heavy lifting operations, is the core choice for industrial heavy lifting.

Key Industries That Benefit Most from Gantry Cranes

Gantry cranes play an irreplaceable role in many industries due to their heavy-duty capacity, flexibility, safety and other advantages, of which the following five industries can best reflect their core value, and are also the main application areas of gantry cranes.

1. Ports and container terminals: As the core equipment for container loading and unloading, transfer, RTG cranes and full gantry cranes can achieve rapid loading and unloading of containers, stacking and transfer, and significantly improve the efficiency of port operations, is the key equipment for the efficient operation of port logistics, and is suitable for all types of containers with heavy lifting requirements.
2. Steel and metal fabrication plants: Used for billets, steel, heavy duty moulds and other materials handling and lifting, gantry cranes heavy-duty capacity and stability to meet the needs of the steel industry high-intensity, continuous operation, to avoid damage to the material handling process, to enhance production efficiency.
3. Precast concrete production: Used for lifting, transferring and stacking of precast concrete components, gantry cranes can accurately locate the components to avoid collision and damage to the components, and at the same time improve the handling efficiency, promote the scale and efficiency of precast concrete production.
4. Wind energy projects: Used for the lifting and loading of heavy components such as wind turbine blades, nacelles and towers, gantry cranes can realise lifting and loading operations with large loads and high lifting heights, which is suitable for the needs of complex outdoor sites of wind power projects, and ensures the safety and efficiency of wind power equipment installation.
5. Railway and logistics hubs: For the loading and unloading of heavy goods, containers and railway equipment, the flexibility and efficiency of gantry cranes can improve the logistics turnover efficiency and meet the needs of railways and logistics hubs for ‘fast in, fast out’ operations, reducing logistics operating costs.

How to Choose the Right Gantry Crane for Heavy Lifting

When choosing the right gantry crane for heavy lifting, you need to combine your own operational needs, focusing on the following four core factors, to avoid safety risks, equipment damage or cost waste due to improper selection. Choosing the right load capacity is the key to avoid safety risks and equipment damage.

Load capacity and span: Determine the load capacity of the gantry crane according to the maximum weight of materials to be lifted on a daily basis, and it is recommended to reserve 10%-20% redundancy to avoid overloading operations. At the same time, according to the size of the site, determine the span of the crane, to ensure that the operating range covers the entire lifting area, large-span scenarios can choose rigid-flexible outrigger design equipment, to reduce structural deformation.

Operation level and frequency: According to the frequency of lifting operations, select the corresponding operation level, high-frequency, continuous operations need to choose high-strength, high-stability double girder gantry cranes, low-frequency, temporary operations can choose portable or single girder gantry cranes to reduce investment costs.

Indoor vs. outdoor use: Indoor work can choose rail-type single girder gantry cranes to save space. For outdoor work, you need to choose gantry cranes with windproof and corrosion-resistant features. If you need to move flexibly, you can choose RTG tyre gantry cranes, which are suitable for outdoor complex sites and harsh environments.

Mobility needs: For long-term operation at fixed sites, you can choose rail-type gantry cranes, which are more stable. For temporary operation and multi-site switching operation, you can choose portable or tyre-type gantry cranes, which are more flexible and can be put into use quickly without laying fixed tracks.

As China's top gantry crane manufacturer, Henan Mine Crane Factory can provide professional selection guidance, combined with the enterprise's operating scenarios, load requirements, site conditions, for the enterprise to recommend the most suitable type of gantry cranes and specifications, to avoid the selection of misunderstanding, to protect the safety and efficiency of lifting operations.

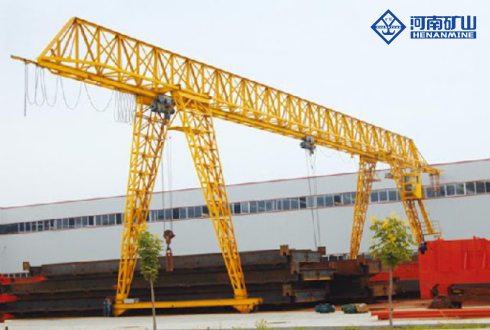

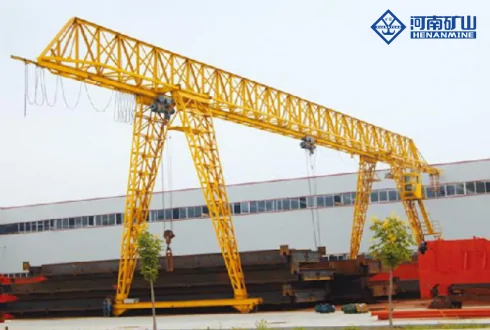

Why Choose Our Gantry Cranes

Henan Mine Crane Factory, as the top gantry crane manufacturer in China, has become the preferred partner of many enterprises around the world with its strong manufacturing strength, professional technical team and perfect service system.

• Powerful load-bearing: Henan Mine Crane Factory supports heavy-duty customised gantry cranes from 5T-500T and adopts high-strength steel structure design to ensure that the equipment is still stable and reliable in long-term high-load operation, meeting the needs of ports, shipyards and large-scale engineering lifting.
• Intelligent and efficient: our gantry cranes are equipped with PLC intelligent control and frequency conversion speed control system to achieve accurate positioning and smooth operation, effectively reduce the swing and error, significantly improve operational efficiency and overall production rhythm.
• Safety and reliability: Gantry cranes have integrated overload protection, limit protection and emergency braking system, multiple safety mechanisms work together to significantly reduce equipment failure and operational risk, to protect personnel and equipment safety.
• Flexible customisation: Henan Mine Crane Factory gantry cranes can be customised according to project requirements in terms of span, lifting height and functional configurations, flexibly adapting to different industries and working conditions, and providing more targeted lifting solutions.
• Energy saving and durability: Our gantry cranes adopt high-efficiency motors and optimised structural design, which reduces energy consumption and maintenance costs, and improves the service life of the equipment, helping enterprises to achieve long-term and stable economic returns.

Conclusion

Whether it is ports, shipyards, construction sites, or manufacturing, steel mills, wind farms, gantry cranes are able to solve the traditional lifting pain points by virtue of their own advantages, to promote efficient, safe and cost-effective operation of enterprises. With the development of automation and intelligent technology, gantry cranes will continue to be upgraded and become an indispensable core equipment for modern heavy industry, providing strong support for enterprise development.

If you are looking for efficient, safe and reliable gantry cranes for heavy lifting, or need a professional customised solution, welcome to contact us. henan Mine Crane Factory, with China's top manufacturing strength, a professional technical team and a perfect service system, provides you with the right products and services to help enterprises to improve efficiency, reduce costs, and achieve high-quality development, you can contact us now to get a quote and selection guide.
