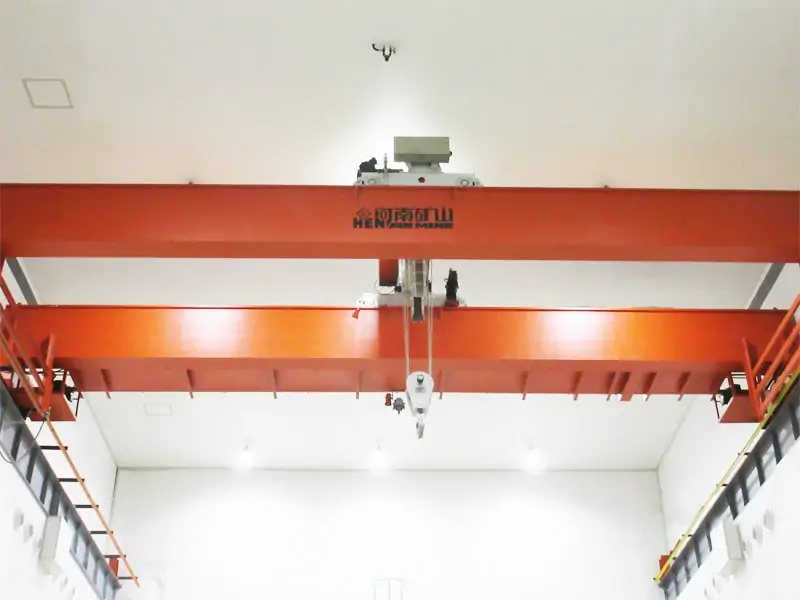

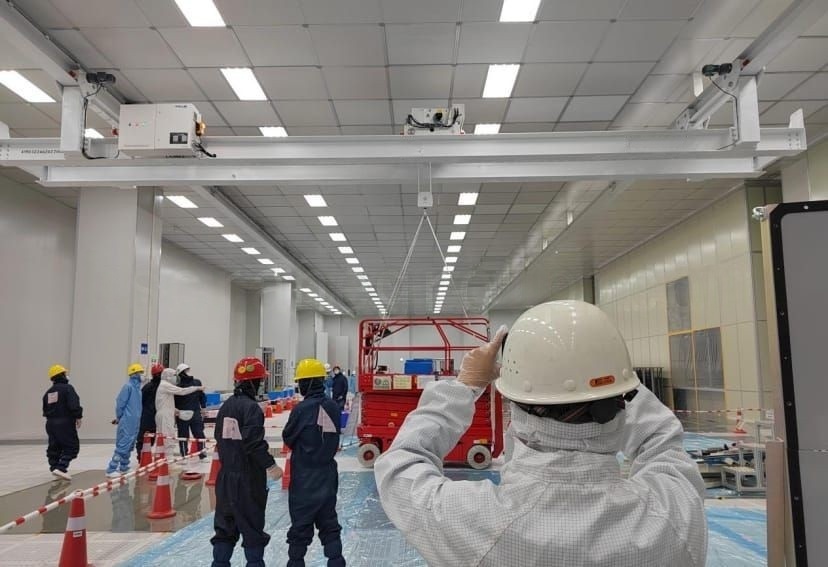

Henan Mine Manufacturing ZJJB Cleanroom Explosion-Proof Crane

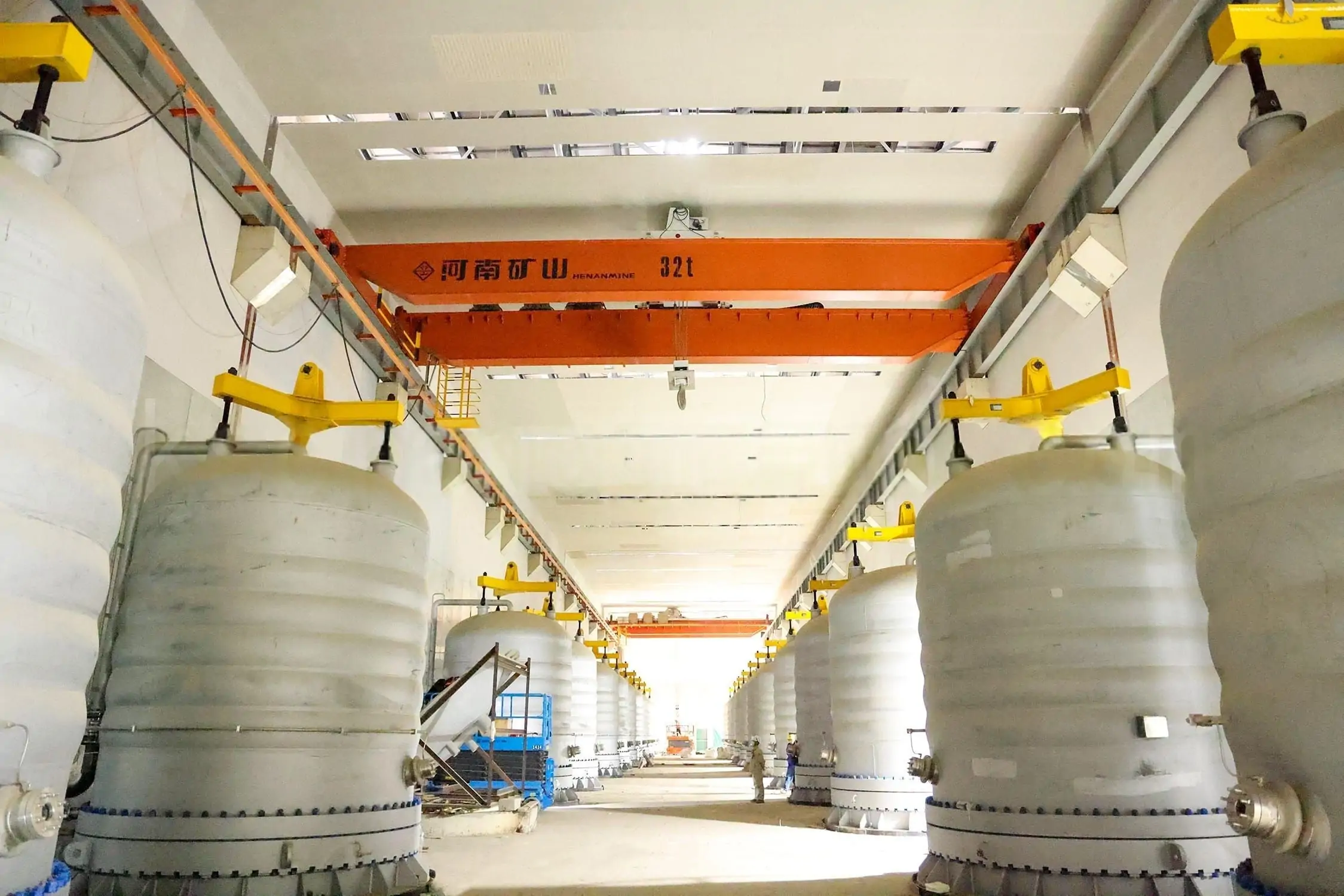

Henan Mine's clean explosion-proof crane meets the requirements of new production processes by offering automated, clean, and explosion-proof functionality. Designed for semiconductor material workshops, it features a dust-free environment with Class 4 air cleanliness (equivalent to Class 7 per national standards), meaning no more than 10,000 particles of 0.1μm in size per cubic meter. Additionally, the workshop contains flammable and explosive gases, necessitating the crane's explosion-proof rating of dIICT4.
Advantages of the ZJJB Clean Explosion-Proof Crane Manufactured by Henan Mine
The crane employs computerized automatic control from a central control room, enabling it to automatically navigate pre-set work routes between locations such as the reduction furnace platform, cleaning platform, transfer platform, and silicon rod removal tools.
The travel mechanisms for both the main and trolley cars employ laser barcode positioning. The trolley's laser barcode reader is mounted on the trolley itself, while the barcode strip is installed on the web of the main car's main beam. The main car's positioning laser reader is mounted on the end beam, with the barcode strip installed on the U-shaped trough that collects powder residue.

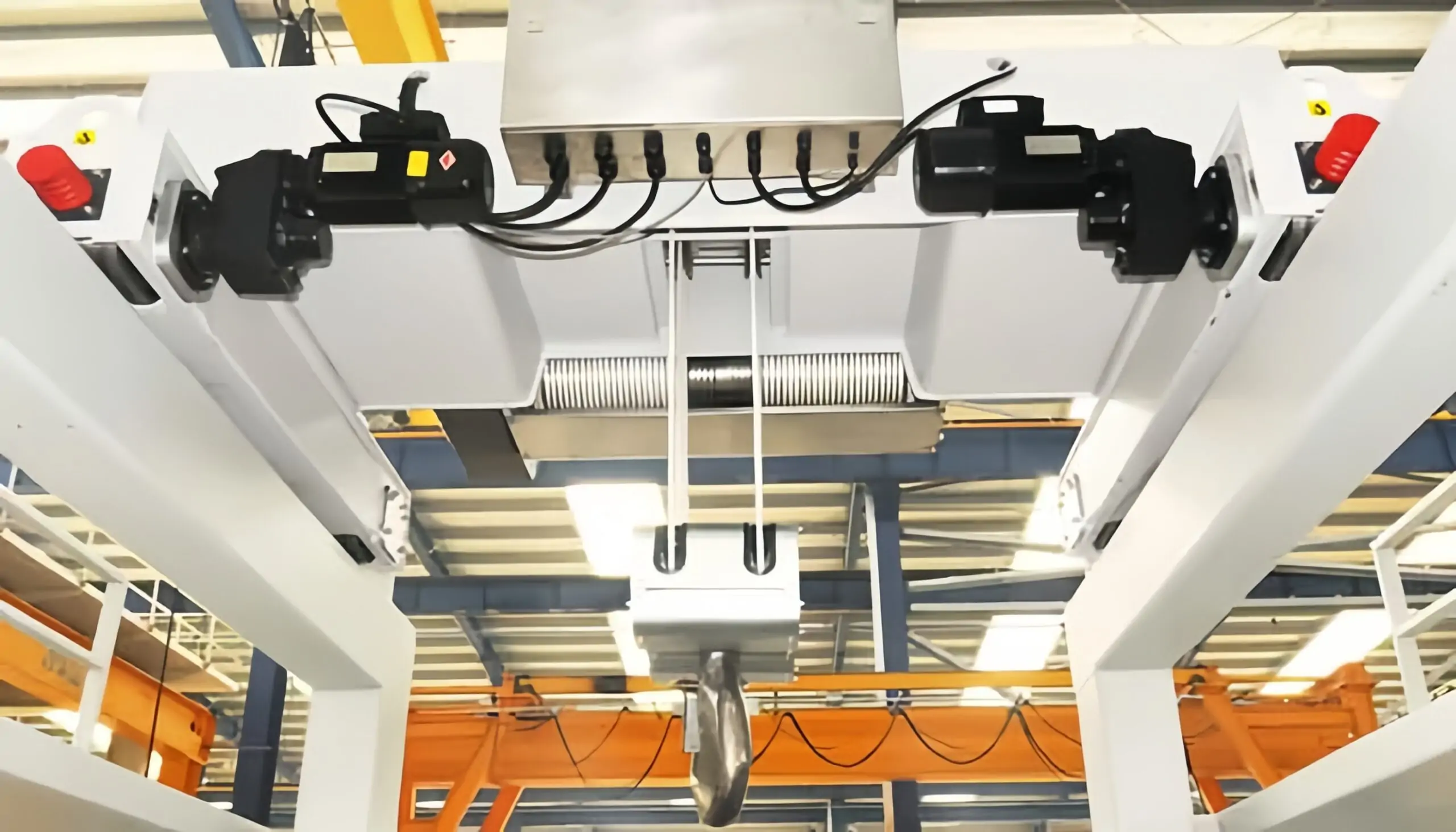

The crane features lightweight, maintenance-free design with extensive use of anti-static, wear-resistant, and corrosion-resistant materials. Wheels are constructed from stainless steel, with stainless steel channels installed on both sides of the track. The reducer employs a fully enclosed, high-seal design ensuring zero oil leakage contamination. It utilizes a high-protection-rated, fanless explosion-proof m.otor, and the double-sealed brake effectively prevents the leakage of contamination particles generated by transmission wear within the motor
The main crane wheel sets feature fully enclosed designs with stainless steel wheels. Other components undergo high-grade rustproof surface treatment to prevent metal corrosion contamination, while self-lubricating, fully sealed bearings eliminate lubrication pollution.
The travel mechanisms for both the main and trolley cars employ laser barcode positioning. The trolley's laser barcode reader is mounted on the trolley itself, while the barcode strip is installed on the web of the main car's main beam. The main car's positioning laser reader is mounted on the end beam, with the barcode strip installed on the U-shaped trough that collects powder residue.
Features of the ZJJB Clean Explosion-Proof Crane Manufactured by Henan Mine
Automatic Operation Mode:
When on-site personnel require lifting operations, they manually hook the lifting device using an explosion-proof remote controller. After completion, they select the corresponding function via the explosion-proof remote controller. Upon confirmation of operational key points by on-site operators using explosion-proof remote controllers, the crane automatically travels to the exact position directly above the target location along a pre-set path. It then lifts the restoration furnace or unloading tool. After completing the action, an audible and visual alarm signals the start of operation. After the operator confirms critical movement points via the explosion-proof remote, the crane automatically navigates its pre-programmed path to position directly above the target location. It then lifts the regenerator or unloads the rod tool. Upon completion, an alarm signals the task's finish.
During operation, pausing can be initiated if issues arise. Once resolved, pressing the “Continue” button resumes the process. In case of an emergency fault, press the emergency stop button on the remote control to halt the equipment immediately and prevent further issues.
Manual Operation Mode
Rotate the selector switch on the explosion-proof control cabinet to the “Manual” control mode. On-site personnel can then operate the crane manually using explosion-proof buttons, controlling each mechanism individually. Remote control and handle control are mutually exclusive; only one control method can be active at a time.
Parameters of the ZJJB Clean Explosion-Proof Crane Manufactured by Henan Mine
30 Years of Lifting R&D, Following Strict European Standards, Intelligent
Empowerment
for
Heavy Loads, Providing Global Safe & Excellent Solutions
| Parameter | Specification |
| Cleanroom Grade | ISO Class 4 (GB Class 7) |
| Explosion-Proof Rating | dIICT4 |
| Control System | Centralized automated computer system |
| Positioning System | Laser barcode positioning (trolley & bridge) |
| Operational Modes | Manual / Automatic (switchable & interlocked) |
| Motor Type | Fanless, explosion-proof, high-protection motor |
| Materials | Stainless steel, anti-static, sealed corrosion-resistant |
| Bearings & Brakes | Self-lubricating, sealed bearings; double-sealed brakes |
| Emergency Safety | Remote E-stop, power-fault hold |

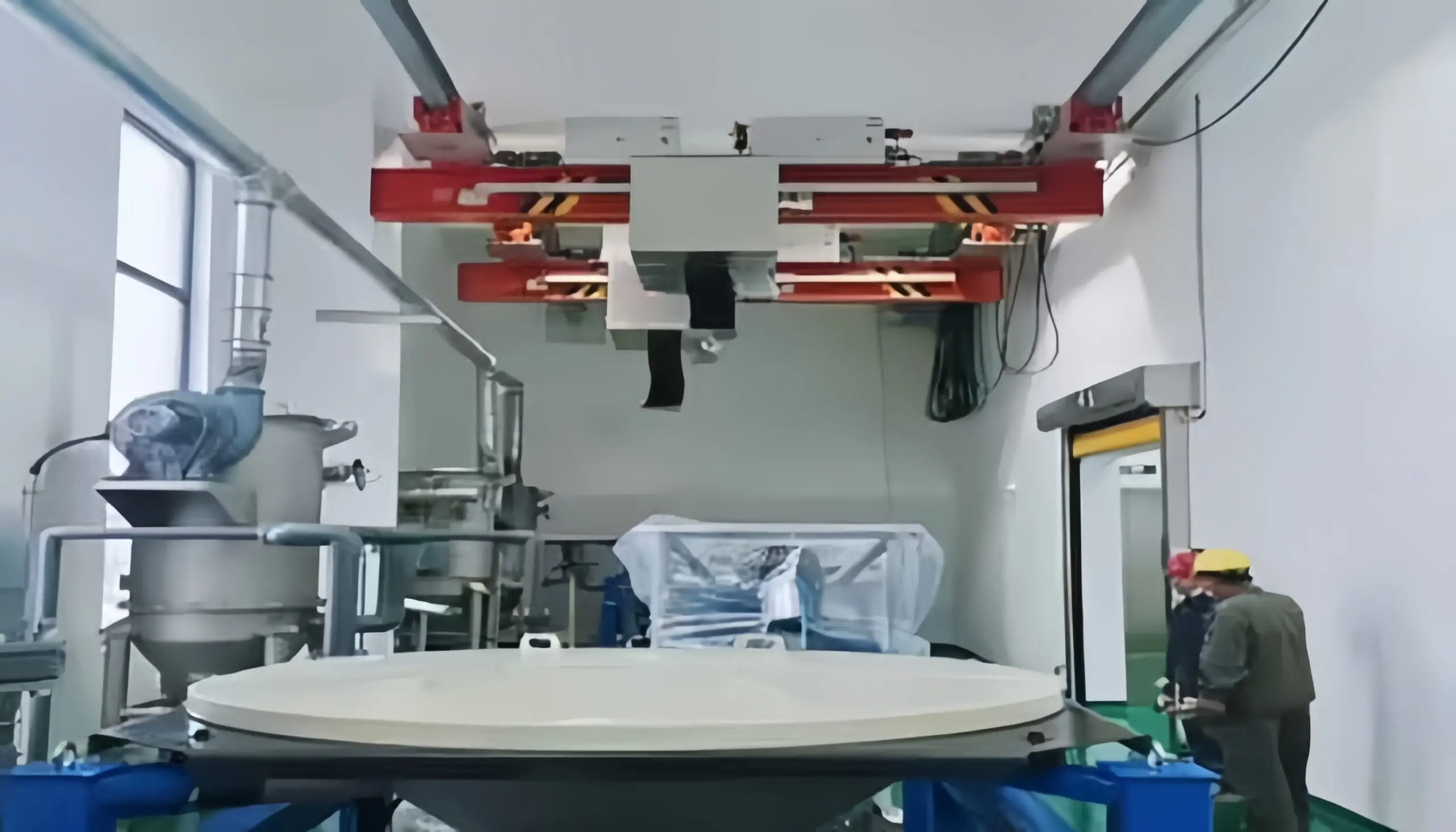

Application of ZJJB Cleanroom Explosion-Proof Crane Manufactured by Henan Mine
Pharmaceutical Industry
Biopharmaceutical production facilities, vaccine manufacturing areas, sterile preparation workshops (handling pharmaceutical raw materials, precision instruments, biological samples)

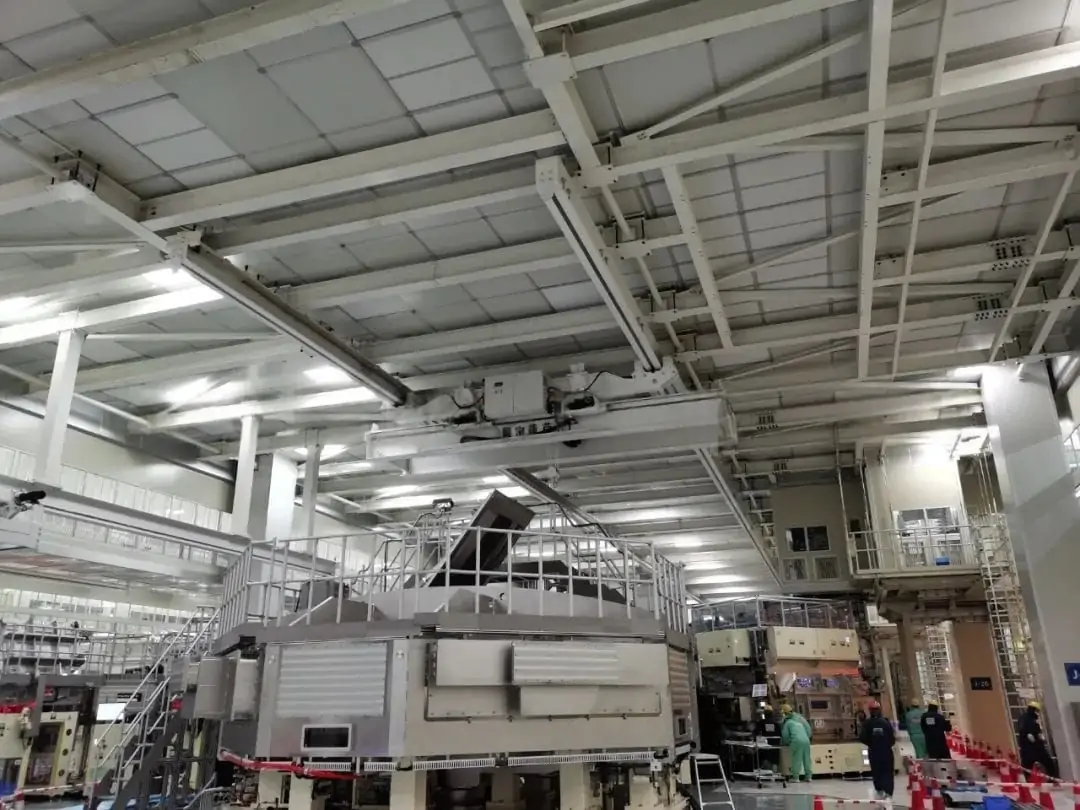

Electronics & Semiconductor Industry
Chip fabrication plants, wafer processing facilities, cleanroom assembly areas (handling wafers, semiconductor equipment, electronic components
Fine Chemical Industry
: Paint production workshops, solvent storage areas, chemical reagent workshops (handling flammable liquids, corrosive materials, chemical raw materials)
Food Industry
Premium dairy production workshops, baking workshops, alcoholic beverage brewing workshops (handling food ingredients, finished product packaging boxes, fermentation tanks)
Other
New energy battery production workshops, laboratories, military precision manufacturing workshops, etc.
Addressing Your Top Concerns About Cleanroom Explosion-Proof Cranes
Stable operation in high and low temperature extreme environment, continuous construction of
crane assisted project without interruption
-
Can your cleanroom explosion-proof cranes meet the ISO Class 7 cleanliness requirements of our workshop? Will they generate dust that could contaminate products?Professional Answer: Absolutely! Our clean explosion-proof cranes are designed to ISO 5-8 cleanliness standards. For ISO 7 workshops, we implement targeted optimizations: First, all air-contacting components use 304 stainless steel with electropolished surfaces, eliminating any uneven surfaces or dead corners where dust or bacteria could accumulate. Second, the entire unit features a fully sealed structure. Lubricants in the motor and reducer will not leak, and dust covers are installed on the operating mechanisms to prevent dust generation. Third, wheels utilize silent self-lubricating bearings, ensuring low operational noise (≤65dB) and preventing metal dust generation from friction.
-
What is the explosion-proof rating of your cranes? Can they adapt to our workshop's combustible dust environment?Professional Answer: Our cleanroom explosion-proof cranes can be customized to your environment's explosion-proof rating. Common options include ExdⅡBT4 (suitable for most combustible gas/vapor environments) and ExdⅡCT4 (suitable for high-risk environments like hydrogen or acetylene). For combustible dust environments, we also offer custom dust explosion-proof models (DIPA21 T135℃), fully meeting your requirements.
-
Does equipment maintenance compromise the clean environment? Is maintenance difficult?Expert Answer: We've anticipated this concern for our customers. Maintenance does not compromise the clean environment and is straightforward. First, our equipment is designed with “maintenance-free” functionality in mind. Core components (motors, reducers) feature sealed, self-lubricating designs. Under normal operation, only two routine inspections per year are required without disassembling the equipment. Second, maintenance employs dedicated clean tools and protective measures—such as dust-proof tool kits and disposable protective mats—to prevent dust generation during servicing. Finally, our field engineers undergo cleanroom operation training and strictly adhere to your workshop's cleanliness protocols during on-site maintenance, ensuring thorough cleanup afterward.
-
Our workshop has low ceilings. Will your lifting equipment fit?Professional Answer: Absolutely! For low-clearance workshops, we offer specialized cleanroom explosion-proof low-clearance models. Featuring a flat main beam design with the electric hoist arranged parallel to the beam, this model significantly reduces overall equipment height. With a minimum clearance requirement of just 2.8 meters, your 4-meter ceiling height is more than sufficient. It still provides 3-4 meters of lifting height, ensuring unimpeded normal lifting operations.We previously completed a similar project for an electronics workshop in Shanghai with a 4-meter ceiling height. The customized low-headroom cleanroom explosion-proof crane operated smoothly after installation, with the hook easily covering the entire work area. If convenient, we can dispatch technicians for an on-site survey and provide a detailed installation plan free of charge to ensure the equipment fits your workshop environment
-
If the equipment malfunctions during production, how responsive is your after-sales service? Can you provide timely on-site support in remote areas?Professional Answer: After-sales service is our core strength—you need never worry about equipment failures going unaddressed. First, we maintain over 480 service centers globally. Whether in urban centers or county towns, our 24/7 hotline is always accessible. Service engineers typically arrive within 24 hours, with guaranteed response within 48 hours even in remote areas.
-
Compared to standard cleanroom cranes or explosion-proof cranes, what advantages does your integrated cleanroom explosion-proof crane offer?Professional Answer: Regarding advantages, standard clean cranes lack explosion-proof capabilities and cannot operate in hazardous environments. Our integrated clean-explosion-proof crane features a “two-in-one” design that meets both cleanliness requirements and explosion-proof standards. This eliminates the need for two separate installations in your workshop, saving space and costs. Furthermore, the integrated unit offers superior compatibility, preventing conflicts between clean and explosion-proof systems for more stable operation.Regarding pricing, while slightly higher than single-function equipment, the total cost is lower: First, eliminating duplicate procurement and installation saves upfront investment. Second, maintenance requires servicing only one unit, reducing ongoing costs by 30%. Third, we independently manufacture core components without intermediary markups, offering prices 5%-10% lower than unit proves more economical .comparable industry products. Long-term, the integrated
-
Can the equipment integrate with our existing intelligent warehousing system?Professional Answer: Absolutely! Our clean explosion-proof cranes support seamless integration with WMS, MES, and other intelligent warehousing/production systems to achieve automated material handling. Our clean explosion-proof crane project for JD.com's Asia No.1 Wuhan Smart Warehouse achieved integration with the WMS system. Each unit processes over 2,000 orders daily, boosting efficiency by 8 times compared to manual operations. If you require intelligent integration, our technical team can collaborate with your IT team to customize a dedicated integration solution.
