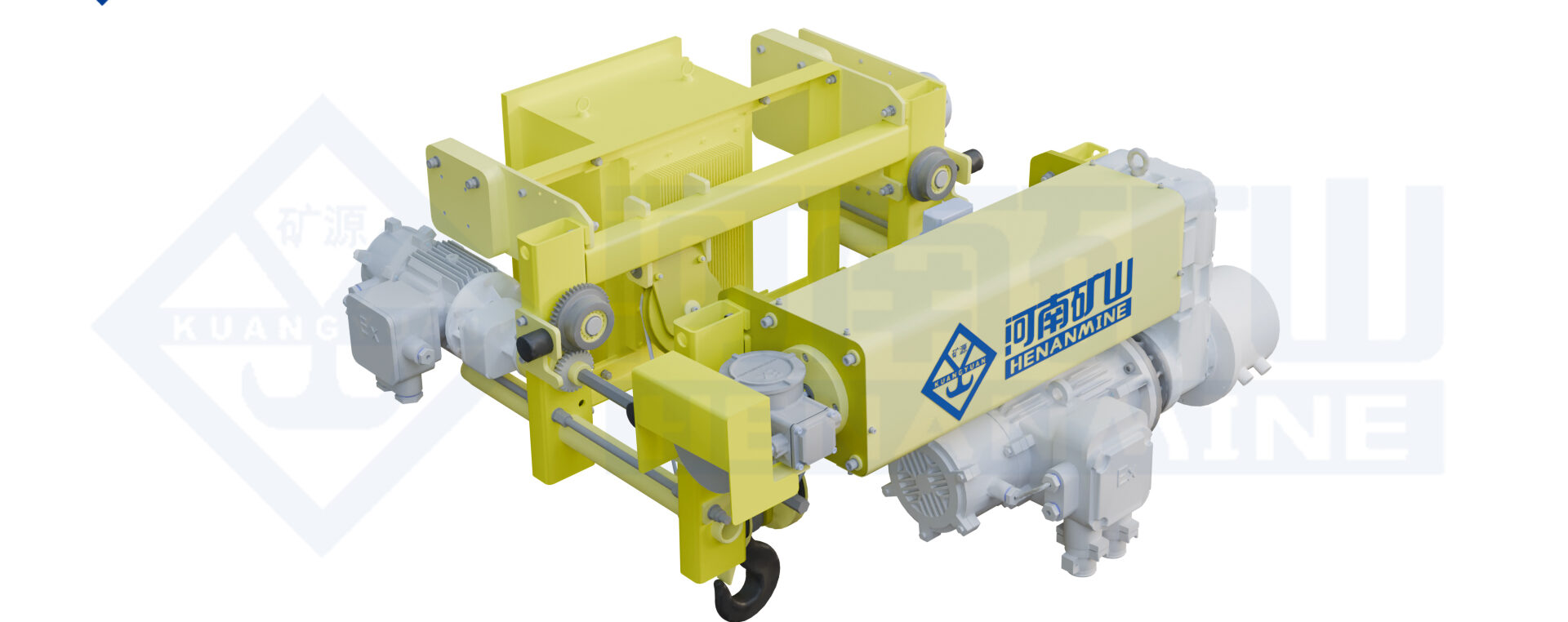

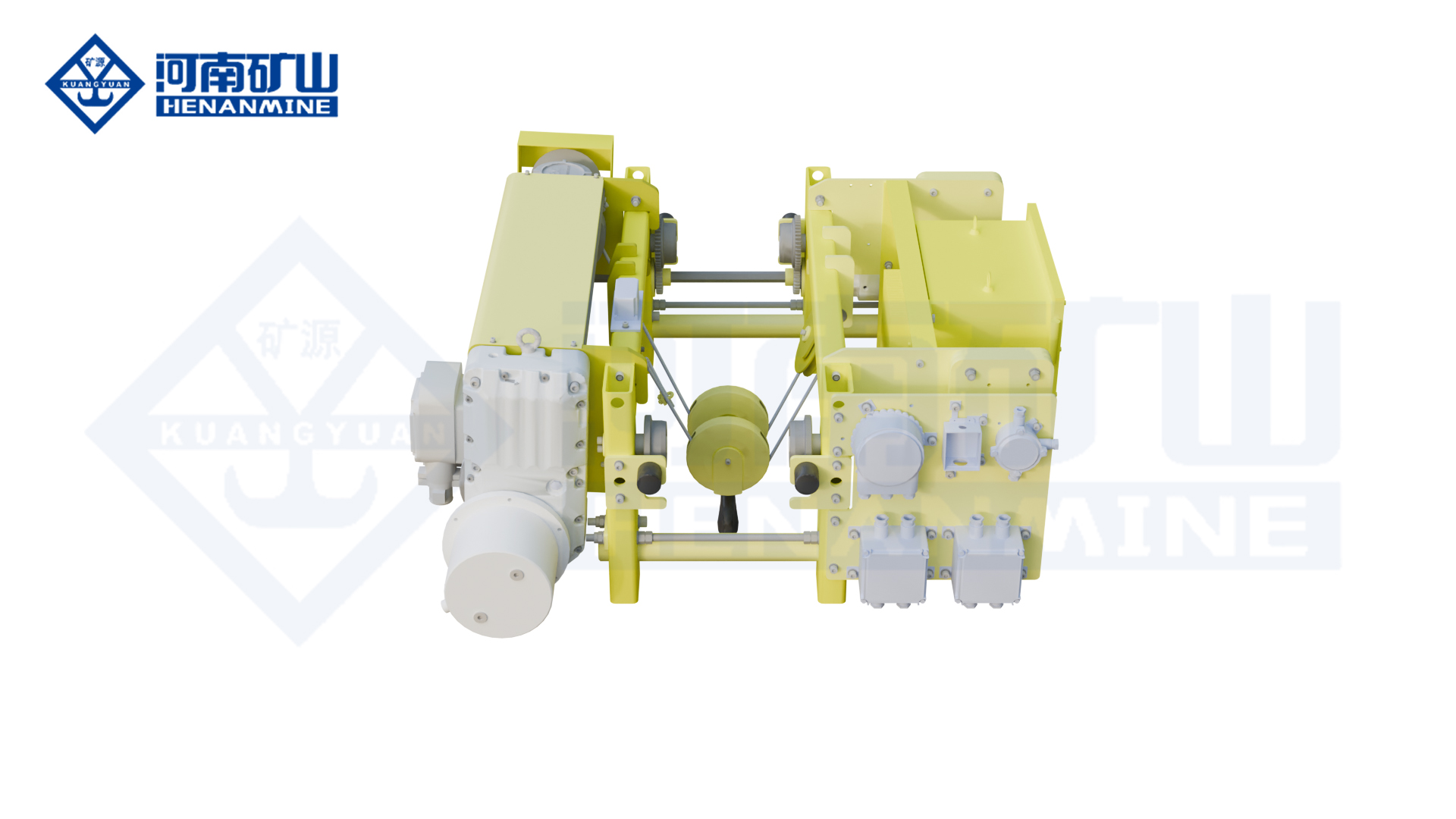

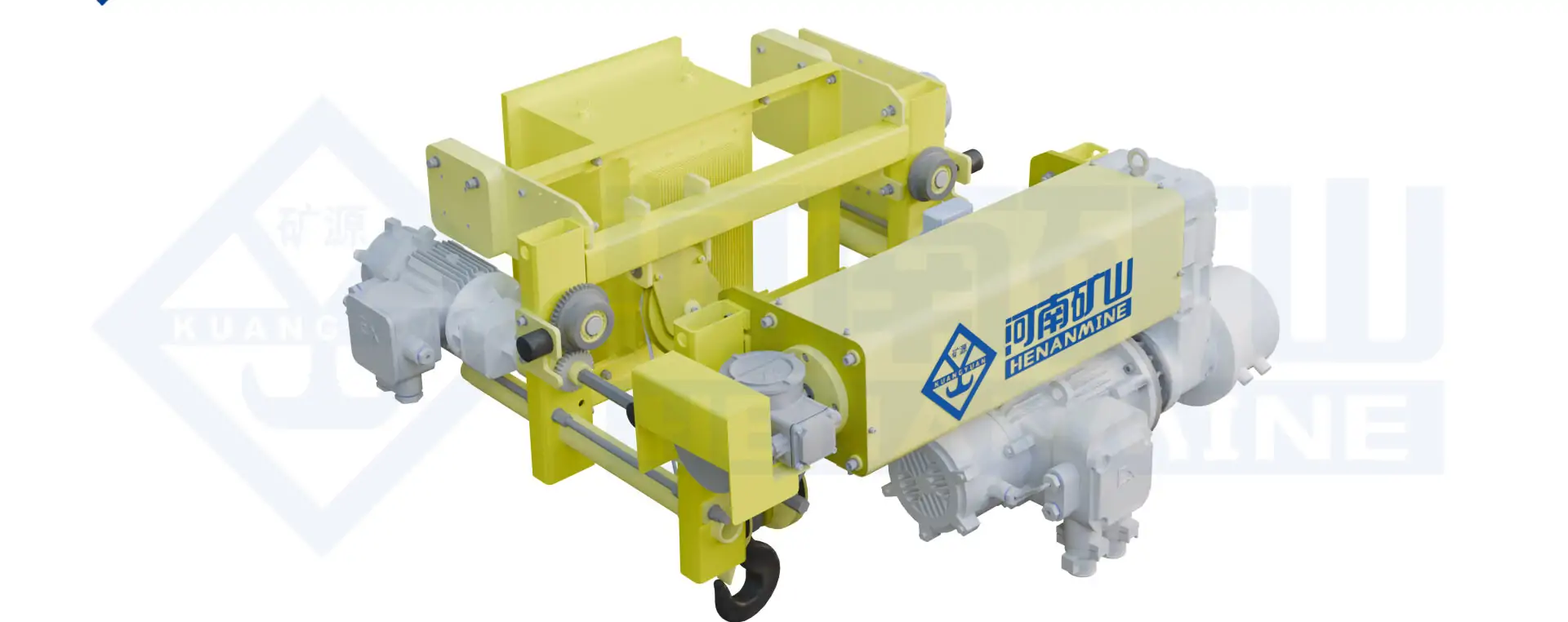

explosion-proof electric hoist
Henan Mine Crane manufactured for explosive gas environments and combustible dust environments is specialized lifting equipment that precisely addresses the pain points of traditional explosion-proof equipment such as “insufficient explosion-proof performance, frequent maintenance, and low energy efficiency.”
Lifting Capacity
0.25 t - 32 t or customized
Hoisting Height
6 m - 60 m or customized
Hoisting Speed
0.3 - 8 m/min
Travel Speed
14 - 30 m/min
Explosion-proof Grade
EXd BT4, EXd IIC T4; tD A21 IP65
Temperature Class
T4 - T6
Henan Mine Crane manufactured Explosion-Proof Electric Hoist
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
| Parameter | Specification | Remarks） |
| Lifting Capacity | 0.25 t – 32 t | Customizable according to working requirements |
| Hoisting Height | 6 m – 60 m | Optional extended height for special scenarios |
| Hoisting Speed | 0.3 – 8 m/min | Frequency conversion stepless speed regulation |
| Travel Speed | 14 – 30 m/min | Dual-motor drive for stable operation |
| Explosion-proof Grade | EXd BT4, EXd IIC T4; tD A21 IP65 | Adapt to gas and dust explosive environments |
| Temperature Class | T4 – T6 | Maximum surface temperature ≤ 85℃ |
| Duty Class | FC=25%（Intermediate） | Suitable for continuous heavy-duty operation |
| Power Supply | 3-phase AC 380V 50Hz | Explosion-proof electrical system |
| Working Environment | -20℃ ~ 40℃, RH ≤ 85%, Altitude ≤ 1000m | Adapt to high corrosion, high humidity environments |
| Steel Wire Rope | 6×19, 6×37; Diameter 3.6 – 17.5 mm | High-strength explosion-proof type |
| Control Mode | Explosion-proof wireless remote control, explosion-proof button box | Remote control range ≥ 100m |
| Minimum Curvature Radius | 0.8 m – 11 m | Adapt to narrow space operation |

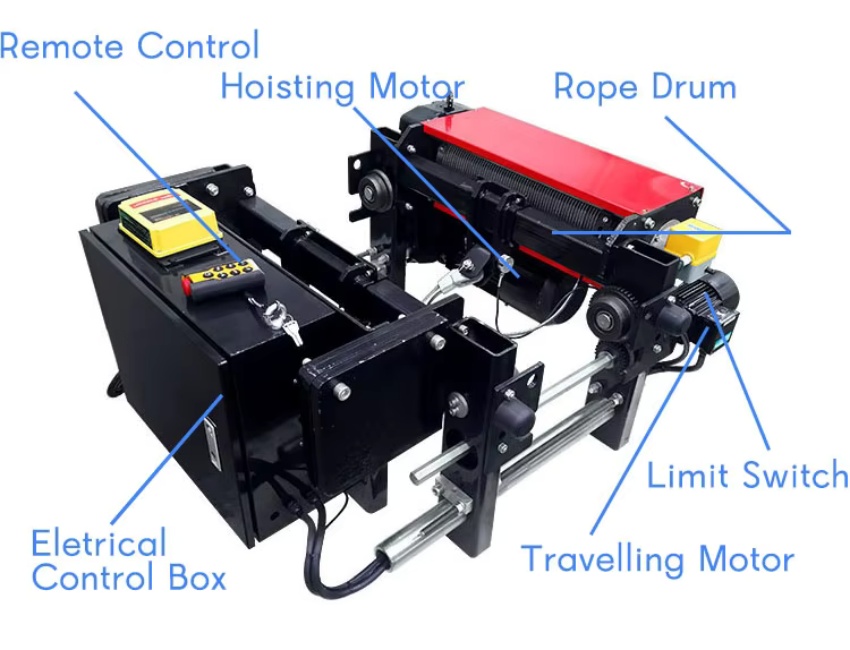

Product Introduction of Henan Mine Crane Manufactured Explosion-Proof Electric Hoist Cranes
Explosion-proof electric hoist cranes are core equipment ensuring operational safety in flammable and explosive hazardous environments. With advantages of “high safety compliance, high stability and durability, and high cost-effectiveness,” coupled with comprehensive quality service and assurance systems, they have become the preferred brand for: underground mining explosion-proof lifting equipment, and dust-proof electric hoists for flour mills. Specifically engineered for explosive gas environments and combustible dust atmospheres, it precisely addresses the pain points of traditional explosion-proof equipment—such as inadequate explosion protection, frequent maintenance, and low energy efficiency.
explosion-proof electric hoist
1. Core Features: Fortifying Safety Defenses in Hazardous Environments
(1) Comprehensive Explosion-Proof Compliance, Zero Safety Blind Spots
Equipment employs flameproof enclosure design, with explosion-proof casings rated for ≥1.5MPa pressure resistance and flange joint gaps controlled at 0.1-0.3mm to effectively contain internal flames. Explosion-proof ratings cover EXd BT4, EXd IIC T4 (gas explosion protection), and tD A21 IP65 (dust explosion protection), with temperature classes reaching T4-T6. Maximum surface temperature ≤85°C remains well below the ignition temperatures of flammable gases like hydrogen and methane, eliminating ignition risks at the source. Fully compliant with underground coal mine methane concentration requirements ≤1%, the dedicated underground coal mine explosion-proof electric hoist model has obtained MA/KA dual certification, ensuring suitability for various high-risk scenarios.
(2) Efficient and Stable Operation with Significant Cost Savings
Equipped with BZD series explosion-proof motors ranging from 0.4 to 13 kW, maintaining stable speeds of 1380-1400 r/min. Paired with integrated hardened gear reducers, transmission efficiency reaches 94.7%, reducing energy consumption by 20% compared to standard industry models.
(3) Flexible Scenario Adaptability and Modular Maintenance
Supports installation with single-girder or double-girder cranes, or standalone operation. Compatible with 10-63C I-beam tracks and minimum curvature radii of 0.8-11m, adapting to diverse environments including underground confined spaces, chemical workshops, and flour mill warehouses. Explosion-proof electric hoist customization allows adjustment of lifting capacity, height, and control methods per scenario, enabling “one machine for multiple applications.”
(4) Smart Safety Empowerment for Hassle-Free Operation
Integrated with an intelligent safety monitoring system, it continuously tracks critical parameters including motor temperature, bearing vibration, load capacity, and ambient gas concentration. When gas levels reach 20% of the lower explosive limit or component temperatures exceed thresholds, the system immediately triggers power shutdown, locks the brake, and activates audible/visual alarms. Simultaneously, data is transmitted via CAN bus to a remote platform. with a fault prediction accuracy exceeding 92%, enabling proactive mitigation of risks like motor overheating and wire rope wear.
(5) Quality Service & Assurance: Full-Cycle Worry-Free Support
Guided by Henan Mining’s philosophy of “Quality Builds Brands, Integrity Weaves the Future,” we’ve established a tripartite assurance system integrating “Quality Control – Service – Parts” to deliver full-lifecycle support from procurement to decommissioning.
Service coverage includes over 480 sales and service outlets worldwide, complemented by a 24/7 emergency hotline and tiered response protocols.
Spare parts are secured through 120 global warehouses maintaining 98% core component stock levels. Non-human-induced damage during warranty periods qualifies for free replacement, ensuring comprehensive safety and stability for explosion-proof electric hoist cranes.
What can I do for you?
| Value Category | Specific Benefits | Description |
| Explosion-proof Safety Guarantee | 99% reduction in safety accident risks; 100% compliance with explosion-proof standards | Dual explosion-proof certification (IECEx/ATEX) and intrinsic safety design, comprehensively block ignition sources, ensure safe operation in flammable and explosive environments |
| Operation Efficiency Improvement） | 35% higher hoisting efficiency; 20% reduction in operation cycle | IE4 high-efficiency motor + frequency conversion speed regulation, stable and fast operation |
| Maintenance Cost Reduction | 40% lower maintenance cost; 50% reduction in downtime | Modular design facilitates quick disassembly and replacement; intelligent fault early warning reduces troubleshooting time |
| Energy Conservation & Emission Reduction | 28% lower energy consumption | IE4 ultra-high efficiency explosion-proof motor reduces energy lossn |
| Multi-scenario Adaptability | Adapt to gas, dust, high corrosion environments; one machine for multiple purposes | Full-range explosion-proof grade coverage |
| Compliance & Risk Reduction | 100% compliance with national explosion-proof and special equipment standards | Provide complete explosion-proof certification and type test reports |

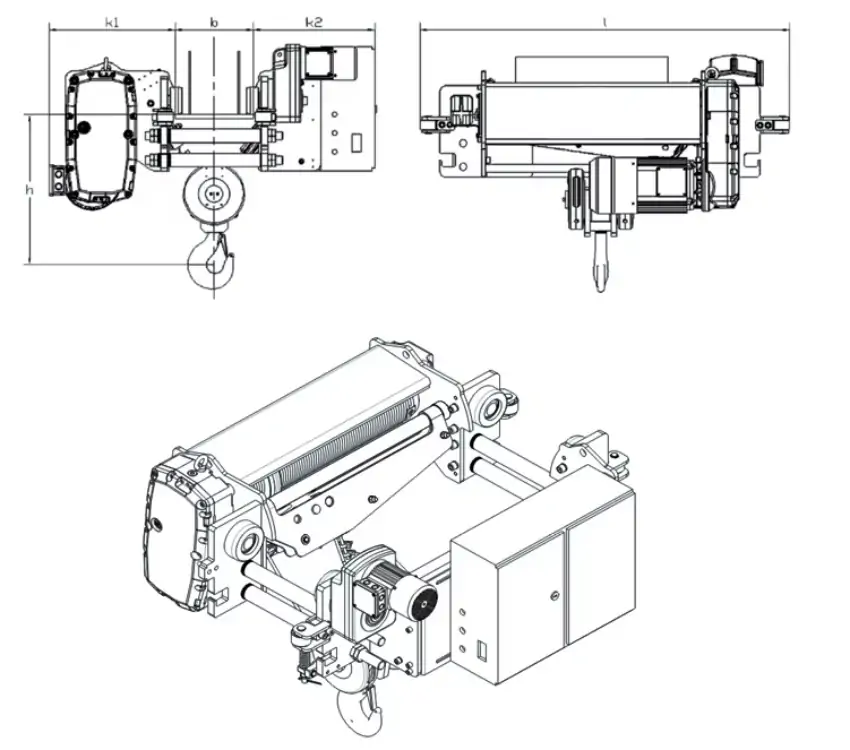

Detailed Specifications
| S.W.L.
（T） |
工作任务 | 升空高度
（男） |
升力速度
（m/min） |
绳索收起 | 行驶速度
（m/min） |
B
（嗯） |
K1
（嗯） |
K2
（嗯） |
L
（嗯） |
H
（嗯） |
车轮载重
（KN） |
重量
（kg） |
| 1.6 | M6 | 6 | 1.6/10 | 2/1 | 2~20 | 200~300 | 500 | 450 | 930 | 400 | 6.1 | 300 |
| 9 | 500 | 450 | 1100 | 400 | 6.2 | 335 | ||||||
| 12 | 500 | 450 | 1270 | 400 | 6.3 | 370 | ||||||
| 2.5 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 200~350 | 500 | 450 | 1180 | 430 | 9.1 | 315 |
| 9 | 500 | 450 | 1400 | 430 | 9.2 | 350 | ||||||
| 12 | 500 | 450 | 1620 | 430 | 9.3 | 385 | ||||||
| 3.2 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 250~350 | 500 | 450 | 1180 | 450 | 11.5 | 335 |
| 9 | 500 | 450 | 1400 | 450 | 11.6 | 370 | ||||||
| 12 | 500 | 450 | 1620 | 450 | 11.7 | 405 | ||||||
| 6.3 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 490 | 450 | 1170 | 500 | 22 | 400 |
| 9 | 490 | 450 | 1400 | 500 | 22.1 | 450 | ||||||
| 12 | 490 | 450 | 1630 | 500 | 22.2 | 500 | ||||||
| 8 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 28 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 28.1 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 28.2 | 640 | ||||||
| 10 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 34.7 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 34.8 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 34.9 | 640 | ||||||
| 10 | M6 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~450 | 560 | 550 | 1140 | 700 | 34.7 | 650 |
| 9 | 560 | 550 | 1320 | 700 | 34.8 | 690 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 34.9 | 730 | ||||||
| 12.5 | M5 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~500 | 560 | 550 | 1140 | 700 | 43.3 | 660 |
| 9 | 560 | 550 | 1320 | 700 | 43.4 | 700 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 43.5 | 740 |
Advantage display
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 500T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Details of Henan Mine Machinery's Rail-mounted Container Gantry Crane
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Application Scenarios for Henan Mine-Safe Explosion-Proof Electric Hoist Cranes
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
-
Refinery Raw Material and Finished Product WorkshopsSuitable for processes including crude oil distillation, solvent extraction, and finished oil filling. Used for lifting gasoline/diesel storage tanks, chemical raw material drums, catalyst loading tanks, and other materials.
-
Chemical Raw Material Synthesis WorkshopsSuitable for fertilizer, paint, and organic chemical production environments. Handles flammable solvent drums (methanol, ethanol, acetone) and equipment like reactor components and catalyst silos.
-
Oil & Gas Field Support FacilitiesUsed for equipment maintenance and material transfer at oil and gas gathering stations and natural gas liquefaction plants, handling natural gas filters, liquefied natural gas (LNG) cryogenic storage tank components, etc.
-
Pharmaceutical Solvent Extraction and Formulation WorkshopSuitable for antibiotic production, traditional Chinese medicine extraction, and injectable manufacturing processes. Used for handling alcohol extraction tanks, ether solvent drums, and active pharmaceutical ingredient (API) silos.
-
Fine Chemicals and New Materials WorkshopSuitable for lithium battery electrolyte, specialty adhesive, and electronic-grade chemical production. Handles flammable electrolyte drums (e.g., dimethyl carbonate, lithium hexafluorophosphate) and semiconductor-grade high-purity reagent storage tanks.
-
Flour Milling and Extraction WorkshopDesigned for flour mills and oil processing plants with dust explosion prevention requirements. Used for handling wheat/corn flour silo components and n-hexane solvent drums in extraction workshops.
-
Brewing and Beverage Production WorkshopsUsed in distillation workshops of liquor factories and fermentation workshops of breweries for handling alcohol fermentation tanks, distillation tower components, and transporting filled barrels.
-
Military Chemical Production WorkshopsSuitable for explosive, detonator, and specialty coating production environments. Used for handling explosive raw materials, detonator semi-finished products, coating resin tanks, and other materials.
-
Fireworks Production and Storage AreasUsed for transferring fireworks raw materials (potassium nitrate, sulfur) and stacking finished product boxes.
-
Painting and Spray Coating WorkshopSuitable for automotive and construction machinery painting lines, lifting vehicle bodies and components to spray stations, and transferring paint buckets and curing agent tanks.
-
Underground Auxiliary Tunnels in Coal MinesUsed for equipment maintenance in underground electrical and mechanical chambers, lifting explosion-proof motors, pump components, and other materials
Crane Operation Demonstration
China's premier crane supplier, driving the crane industry forward for 24 years
How to Choose the Best Crane Manufacturer in China
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
-
1Clarify Your Crane NeedsThoroughly understand your lifting requirements (load details, frequency, and workspace environment) before approaching crane manufacturers.
-
2Determine Crane Service ClassCalculate the required crane service class based on your operational intensity to ensure optimal performance and longevity.
-
3Explore Crane Supplier Custom Features:Investigate available customization options and special features to enhance safety, efficiency, and precision for your specific application.
-
4Assess Crane Factory Engineering CapabilityEvaluate the manufacturer's engineering strength to ensure they can design a suitable solution tailored to your needs.
-
5Verify Quality & Compliance of Crane CompanyCheck the crane manufacturer's manufacturing quality, certifications, and compliance with international standards and your local safety regulations.
-
6Ensure Support & ReferencesConfirm the manufacturer provides reliable after-sales support and has a proven track record with positive references in your industry or region.
Why We Are More Trustworthy
Henan Mine Crane Factory is a premier provider of integrated crane and material handling solutions, covering R&D, design, manufacturing, sales, and service for end-to-end support.
Experienced company
Established in 2002, Henan Mine Crane Factory is a high-tech crane enterprise. Using advanced global design and manufacturing tech, we craft top-quality single/double-beam cranes and electric hoists.
Professional team & equipment
Our 1.62 million ㎡ factory has 3,500+ staff, 200 senior engineers, and 428+ global sales/service points. With 2,000+ processing machines handling 20+ processes, we ensure excellence.
Productive capacity
The annual output of cranes is over 80,000 units. The company produces and sells more than 11000 double beam and gantry cranes annually, More than 73000 single beam cranes, and More than 100000 sets (sets) of single and double beam electric hoists and accessories.
Customized design services
We know the right crane is key. Our engineers partner with clients to design and build cranes tailored to specific needs, ensuring optimal performance.
Why Our Cranes Earn Customers' Trust
Henan Mine Crane Co., Ltd. has a strong technical team with over 10 top experts and 200+ mid-to-senior engineers. They've obtained over 700 national patents and provincial-level tech achievements, with over 670 authorized patents. Henan Mine Crane Factory led/participated in over 100 standard formulations/revisions, won the China Standard Innovation Contribution Award, and is a key member of multiple lifting machinery standardization committees. Dr. Xu Lei serves as Deputy Leader of the ISO/TC96 Domestic Technical Counterpart Expert Working Group.
The services we provide
China's premier crane supplier, driving the crane industry forward for 24 years
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Regular Maintenance Reminder
Establish customer equipment files, and regularly send maintenance reminders based on
equipment usage time and operation intensity. Provide detailed maintenance manuals and
video tutorials
Technical support consultation
Provide 7×12-hour online technical consultation service. Senior consultants answer
questions in real time regarding product selection, parameter matching, installation
specifications
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Our Patents and Certifications
China's premier crane supplier, driving the crane industry forward for 24 years
Customer Testimonials & Top Choices
China's premier crane supplier, driving the crane industry forward for 24 years
Become our distributor
Array
Become our agent
Full range of lifting equipment, international standard quality and ample production capacity, ensuring worry-free agency support.
Professional cross-border after-sales team + global parts warehouses, 24-hour response, full-cycle service to help you effortlessly expand your market.
Generous agency policies + regional exclusive protection, guaranteeing your profits and worry-free cooperation.
We sincerely invite global partners with resources to join hands, jointly develop the global crane market, and achieve mutual benefit and win-win outcomes!
Your Questions and Answers Regarding Explosion-Proof Electric Hoists
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
-
Do your explosion-proof electric hoists have corresponding mining certifications?Professional Answer: Absolutely compatible! Our models specifically designed for underground coal mines not only achieve an explosion-proof rating of EXd IIC T4 but also hold the Mining Product Safety Mark. We are one of the few companies in the crane industry with dual certifications.
-
How effective is the dust protection in flour mills?Professional Answer: Dust protection is fully guaranteed—no malfunctions from dust ingress! The equipment meets dust explosion-proof rating tD A21 IP65. Its fully enclosed dustproof housing, combined with IP65-rated motors, reducers, and control boxes, completely prevents dust from entering internal components.
-
Does the equipment require professional maintenance?Professional Answer: Maintenance cycles and costs are highly advantageous! No specialized personnel are required for maintenance, as our modular design allows core components to be disassembled and reassembled using standard tools.
-
Is the wireless remote control signal stable?Professional Answer: Signal stability is guaranteed, preventing misoperation! We utilize explosion-proof industrial-grade wireless remote control modules operating at 433MHz with exceptional electromagnetic interference resistance.
-
Can the equipment operate in mining areas at -30°C?Professional Answer: Absolutely stable operation! We offer models specifically customized for frigid mining regions, passing -30°C cold-start testing. They operate reliably in the harsh environments of Northeast and Northwest China.
-
Do you provide installation and commissioning services after purchase?Professional Answer: Absolutely! We offer full-process “Installation + Commissioning + Inspection Assistance” services for your complete peace of mind.
-
What is the warranty period for the equipment?Professional Answer: Our warranty policy leads the industry, with prompt on-site service even in remote areas! Full machine warranty: 1 year. Core explosion-proof components (explosion-proof motor, reducer, electrical control system): 3 years. Core safety devices (overload limiter, fire-cutoff limiter): 5 years. Free repair or replacement for non-human-induced damage within warranty period.
Operating Manual for Shipbuilding Gantry Cranes Manufactured by Henan Mine Machinery
China's premier crane manufacturer, driving high-quality development in the crane industry for 24 years
-
Each crane must display a rated load capacity plate in a conspicuous location.
-
No personnel are permitted on the girder during operation, nor may the hook be used to transport persons
-
Operation is prohibited without a valid operator's license or under the influence of alcohol.
-
Operators must maintain full concentration during operation; talking, smoking, or engaging in unrelated activities is strictly forbidden.
-
Keep the crane clean and tidy; do not store equipment, tools, flammable materials, explosives, or hazardous substances haphazardly.
-
Do not overload the crane.
-
When operating along obstacle-free paths, the hook, lifting device, or bottom surface of the load must remain at least 2 meters above ground level. When crossing obstacles, the load must clear the obstacle by at least 0.5 meters
-
For loads under 50% of rated capacity, both lifting mechanisms may operate simultaneously. For loads exceeding 50% of rated capacity, only one mechanism may operate.
-
.For bridge cranes equipped with main and auxiliary hooks, do not simultaneously raise or lower both hooks (except under special circumstances).
-
Welding or hammering on suspended loads, or working beneath suspended loads, is prohibited (except when properly supported).
-
Inspection or maintenance work may only be performed after power has been disconnected and a “Do Not Operate” sign is displayed on the power switch. If live work is unavoidable, implement safety measures and assign dedicated supervision.
-
Do not throw objects from the vehicle indiscriminately.
-
Regularly inspect limit switches and interlock protection devices.
-
Do not use limit switch impact as a stopping method.
-
Do not lift or lower loads when hoist brakes malfunction.
-
Do not operate the hoist above personnel or equipment.
-
When welding any part of the crane, use a dedicated ground wire; do not use the crane body as a ground.
-
When the hook is at its lowest position, ensure at least two full turns of safety rope remain on the drum.
-
Cranes must not collide with each other; using one crane to push another into operation is strictly prohibited.
-
When lifting heavy objects, molten metal, explosives, or hazardous materials, first slowly raise the load 100–200 mm off the ground to test brake reliability.
-
Maintenance and inspection lighting must operate at voltages below 36V.
-
All electrical equipment enclosures on bridge cranes must be grounded. If trolley rails are not welded to the main girder, grounding measures must be implemented. Grounding conductors may use galvanized flat iron with a cross-sectional area exceeding 75mm², bare copper wire of 10mm², or galvanized round steel exceeding 30mm². The operator's cab or crane body shall have more than two grounding points. The grounding resistance from any point on the crane to the power supply neutral point shall be less than 4Ω.
Directly state your needs and receive professional advice!
30 Years of Lifting R&D, Following Strict European Standards, Intelligent
Empowerment
for Heavy Loads, Providing Global Safe & Excellent Solutions
The project was delivered on time and landed safely
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Improve efficiency
Break through operational bottlenecks and improve overall project progress efficiency
Avoiding risks
Build a solid safety line and avoid potential risks of high-risk operations
Delivery
Adapt to diverse working conditions and ensure stable project implementation and delivery
