Electric Single-Girder Overhead Crane

The Henan Mine LX Electric Single-Girder Suspended Crane is a light-to-medium duty lifting solution engineered for small-to-medium lifting applications. Its core design features a single main girder suspension structure paired with an electric hoist lifting mechanism. It offers lifting capacities ranging from 0.5 to 20 tons, spans from 4 to 22.5 meters, and lifting heights from 3 to 9 meters. Suitable for standard operating conditions including ambient temperatures, light dust environments, and clean rooms. Widely adopted by small and medium-sized enterprises in machinery manufacturing, electronics, food processing, warehousing, and light industry, it delivers efficient and flexible lifting solutions for workshop material transfer, cargo handling, and equipment maintenance.

LX Electric Single-Girder Suspension Crane

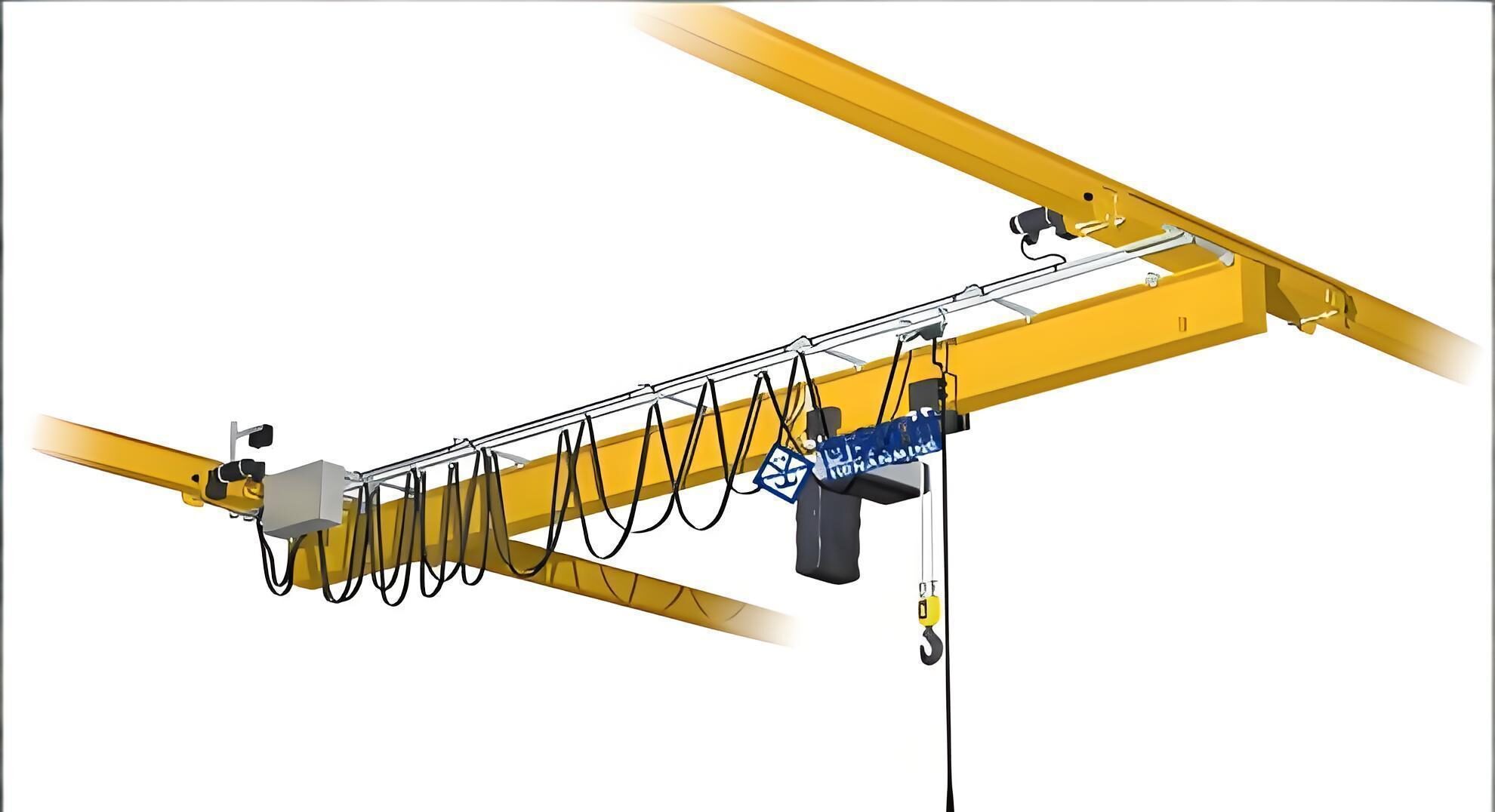

• Features suspended installation where the main girder is directly secured to building corbels or roof beams via suspension devices, eliminating the need for ground-level columns. This frees up 100% of floor space, making it ideal for compact workshops with narrow aisles and densely packed equipment.
• Optimized girder cross-section design creates a lightweight, compact structure with a minimum operational clearance of just 2.5m. Suitable for low-ceiling facilities over 4m tall, it preserves natural lighting and avoids interference with existing equipment operations.
• Flexible track layout adapts to factory configurations, supporting straight, L-shaped, U-shaped, and other configurations to achieve full-area coverage without dead zones.


  Electric Single-Girder Overhead Crane

• Main beams utilize Q235B/Q355B high-strength steel, formed through CNC bending and automated welding. The entire structure undergoes shot blasting rust removal treatment, with weld quality meeting GB/T 12469-2019 Grade 2 standards. It exhibits excellent bending and torsional resistance, maintaining deformation-free performance under long-term 16-ton heavy-duty operation;

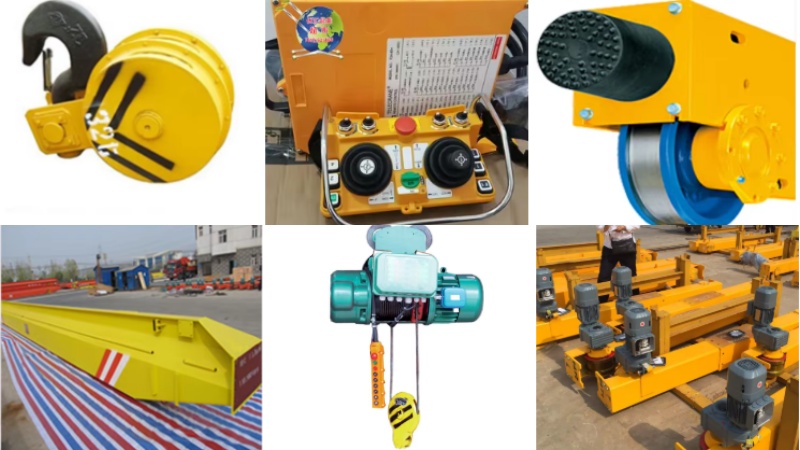

• Equipped with Henan Mine’s proprietary CD/MD electric hoist, featuring a hardened gear reducer in the lifting mechanism. Transmission efficiency exceeds 95%, ensuring smooth operation with low noise (≤65dB) to prevent material swaying or impact during lifting.
• The trolley travel mechanism utilizes axle-mounted reducers paired with high-wear-resistant wheel sets, minimizing travel resistance and ensuring smooth starts/stops. When integrated with the variable frequency speed control system (optional), it enables precise positioning, meeting the demands of handling precision components.

• Multi-layered safety features: Standard overload protection, travel limit switches, emergency braking, and anti-disengagement hooks. The electric hoist motor includes overheat protection, automatically shutting down and triggering alarms during abnormal conditions to prevent accidents.
• Flexible operation: Standard ground control handle with optional 100-meter wireless remote. Clearly labeled buttons enable simple operation, allowing single-person lifting tasks to reduce labor costs.
• Complete compliance certifications: Certified under the National Special Equipment Manufacturing License (Class A), compliant with GB/T 14405-2011, GB 6067, and other national standards, ensuring smooth acceptance by special equipment inspection authorities.


  LX Electric Single-Girder Suspension Crane

• High Cost-Effectiveness: Over 40% lower procurement cost than bridge cranes. Installation requires no civil engineering, saving site modification and equipment investment costs—ideal for budget-conscious SMEs.
• Rapid Installation & Delivery: Simple structure with highly standardized components. Standard models install and commission in 1-2 days; customized models deliver in 7-15 days without disrupting production.
• Energy Efficiency & Cost Savings: Equipped with YE4 ultra-efficient copper-core motors, achieving over 30% energy savings compared to traditional motors. With an average daily operation of 8 hours, annual electricity cost savings can reach thousands of yuan.
• Customized Adaptability: Tailored models available based on factory structure and lifting requirements, including low-headroom, cleanroom, and mild corrosion-resistant types. Precise customization of track length and lifting height is supported.

• Machine Tool Industry: Transferring small-to-medium machine tool components, moving workpieces between processes, routine equipment maintenance, etc.
• Electronics/Precision Manufacturing: Lifting electronic components, material transfer in cleanrooms (with cleanroom-certified models);
• Food/Light Industry: Loading/unloading of food ingredients, finished product warehousing/transfer, material handling for packaging lines;
• Warehousing & Logistics: Loading/unloading in small-to-medium warehouses, shelf material access, short-distance transfers;
• Other Applications: Lifting parts in auto repair shops, component assembly in small assembly workshops, installation of small equipment in municipal projects.

• • Stringent Quality Control: Each unit undergoes multiple rounds of testing—including no-load, heavy-load, and dynamic load tests—before shipment, accompanied by comprehensive inspection reports and product certification to ensure compliance;
  • End-to-End Dedicated Service: Complimentary on-site facility structure assessment and load-bearing evaluation, with customized installation plans; professional teams handle installation and commissioning, assisting clients through special inspection institute acceptance;
  • Global After-Sales Network: Over 480 service centers worldwide staffed with professional engineers, offering 24-hour response and on-site arrival within 24 hours for faults (48 hours for remote areas).
    Warranty Commitment: – 1-year warranty for entire unit – 3-year warranty for core components (electric hoist, motor, reducer) – Free repair or replacement for non-human-induced damage during warranty period Annual maintenance agreements available for scheduled on-site specialized servicing.
