Single-girder bridge crane
Double-girder bridge crane
Single-beam suspension crane
Explosion-proof bridge crane
Insulated Bridge Crane
Electromagnetic Bridge Crane
Metallurgical bridge crane

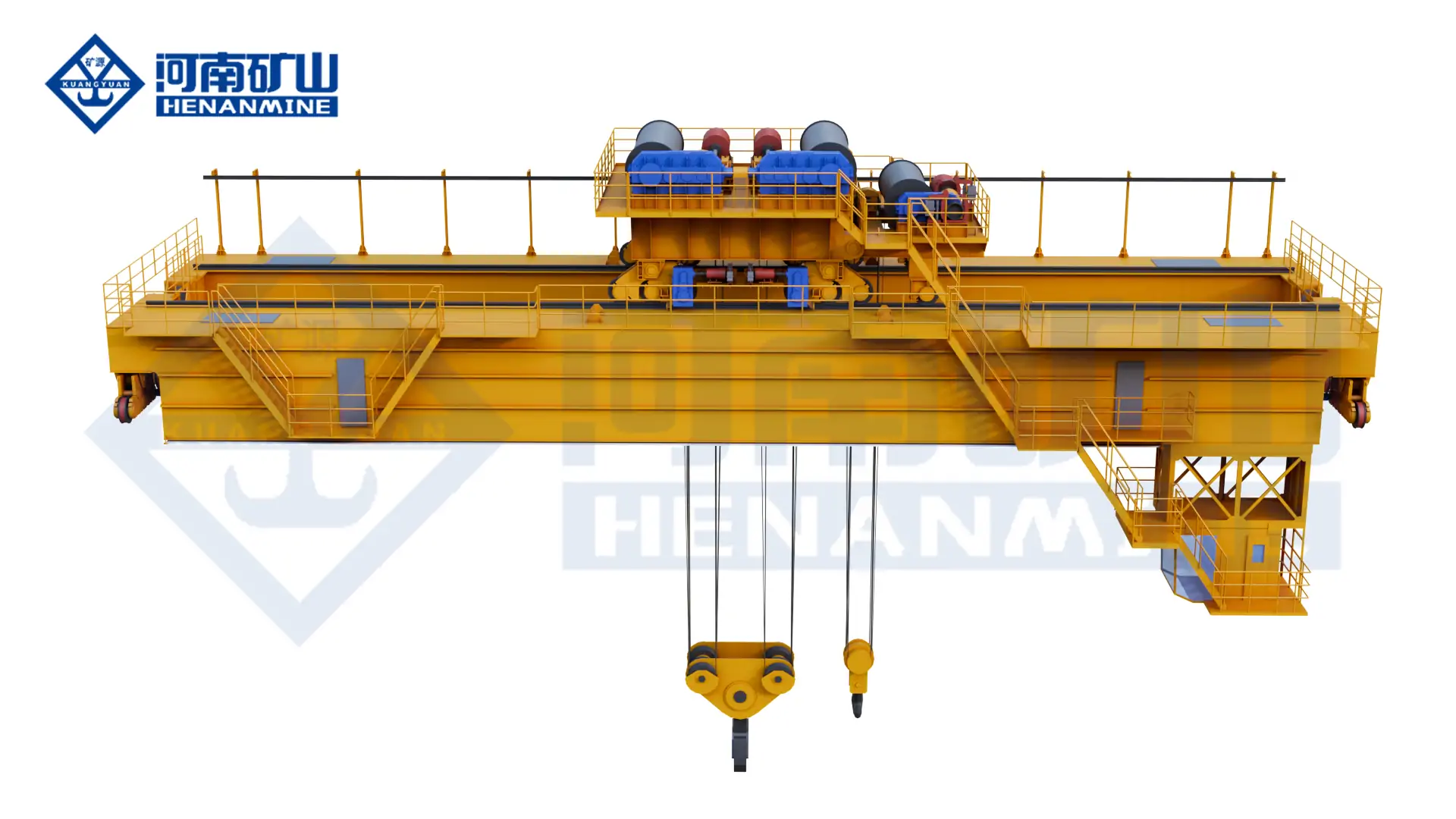

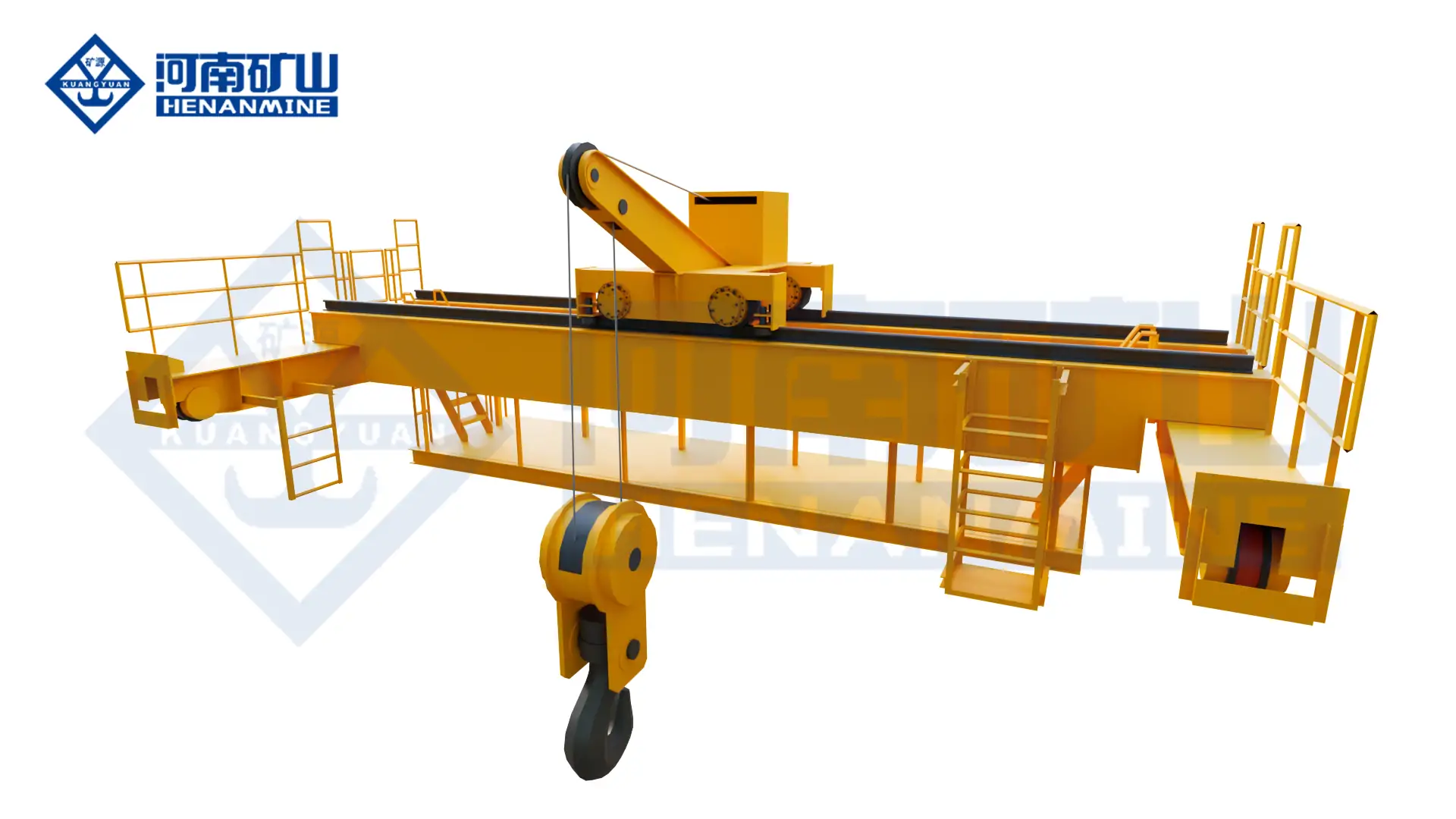

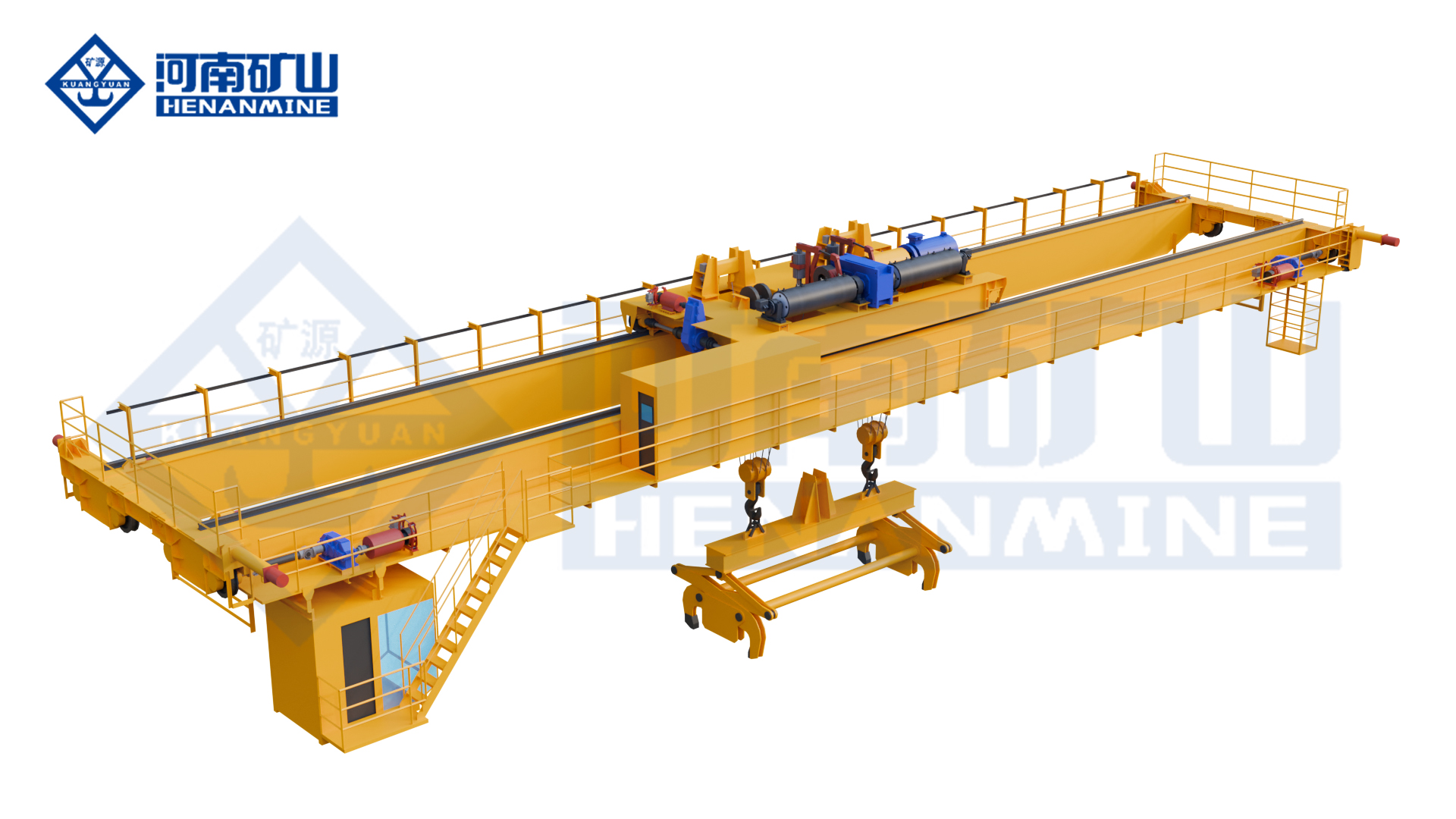

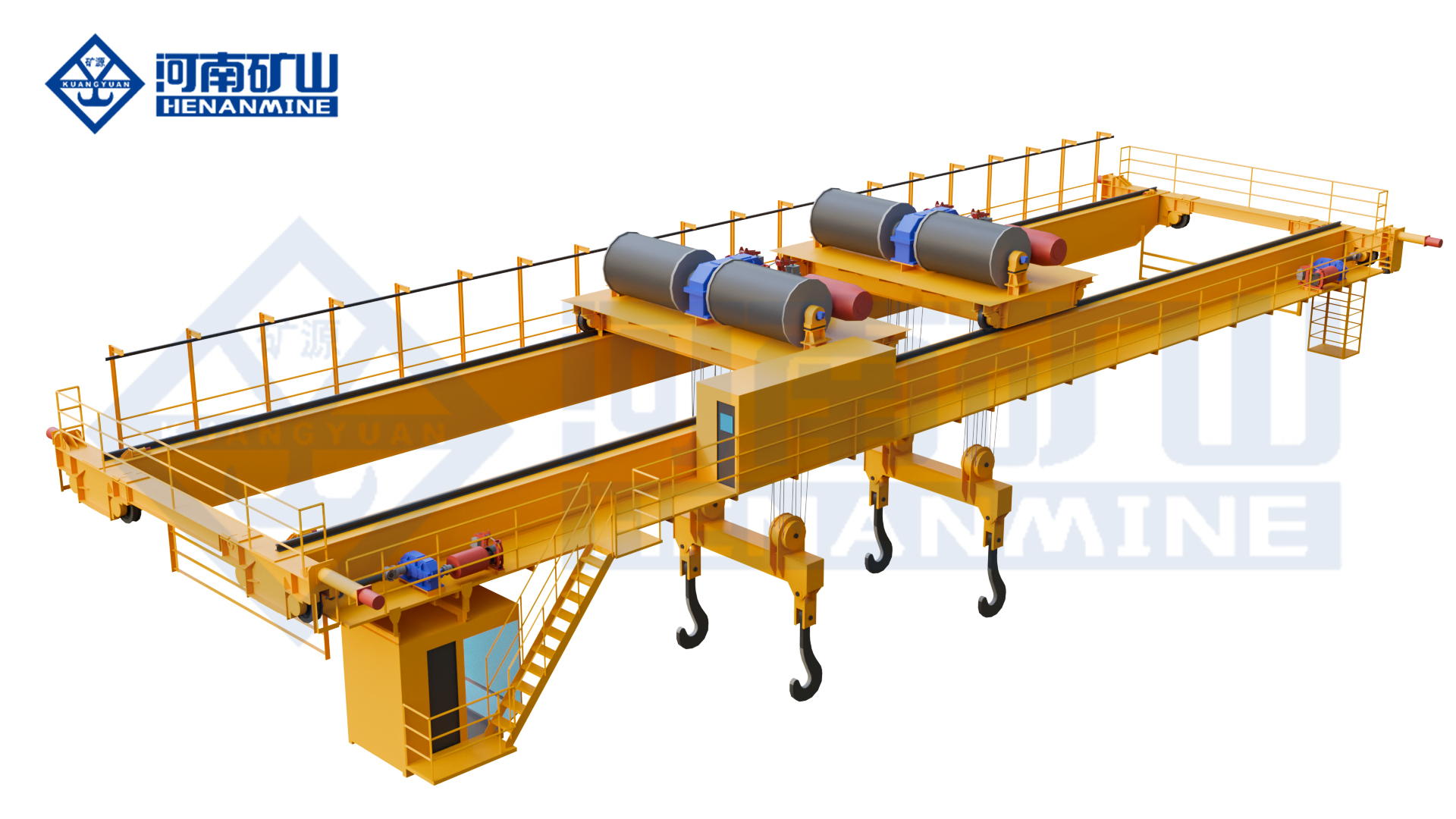

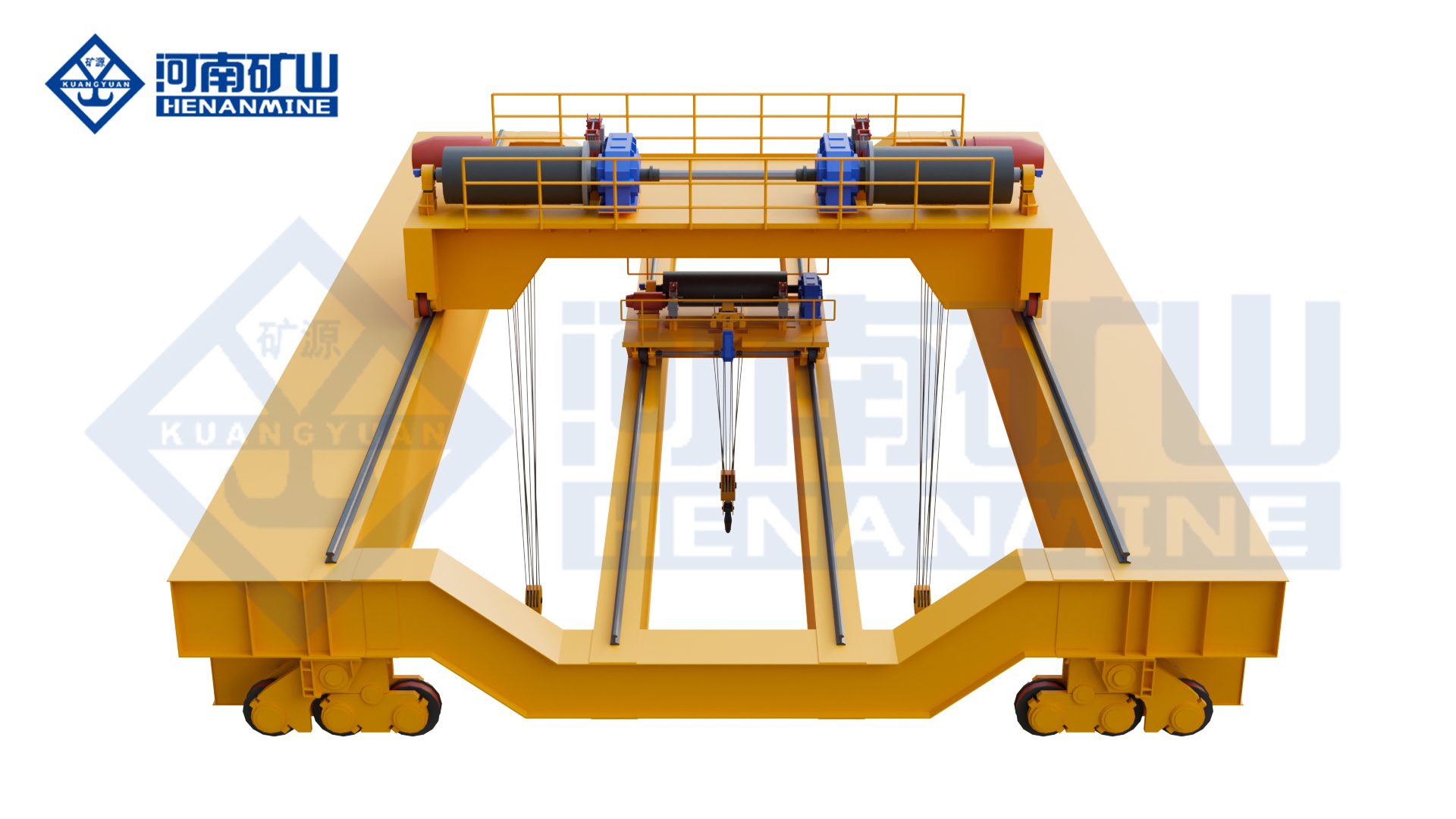

Metallurgical Bridge Crane
The YZD metallurgical bridge crane manufactured by Henan Mine is specialized lifting equipment for metal smelting environments. Featuring a single-point lifting mechanism with a forged hook as the load-handling device and equipped with a gantry-type lifting attachment, it is designed for transporting liquid molten metal. Multiple safety protection devices, including a safety brake, are installed,
The crane performs vertical lifting, longitudinal, and lateral movement functions. It enables intermittent, repetitive material handling and molten metal pouring during smelting processes, operating at duty classes A6 to A8.
Lifting Capacity
5t- 500t or customized
Span
10 - 35 m or customized
Lifting Height
8m- 30m or customized
Working Temperature Range
-20℃ ~ 160℃
Work Class
A6, A7,A8

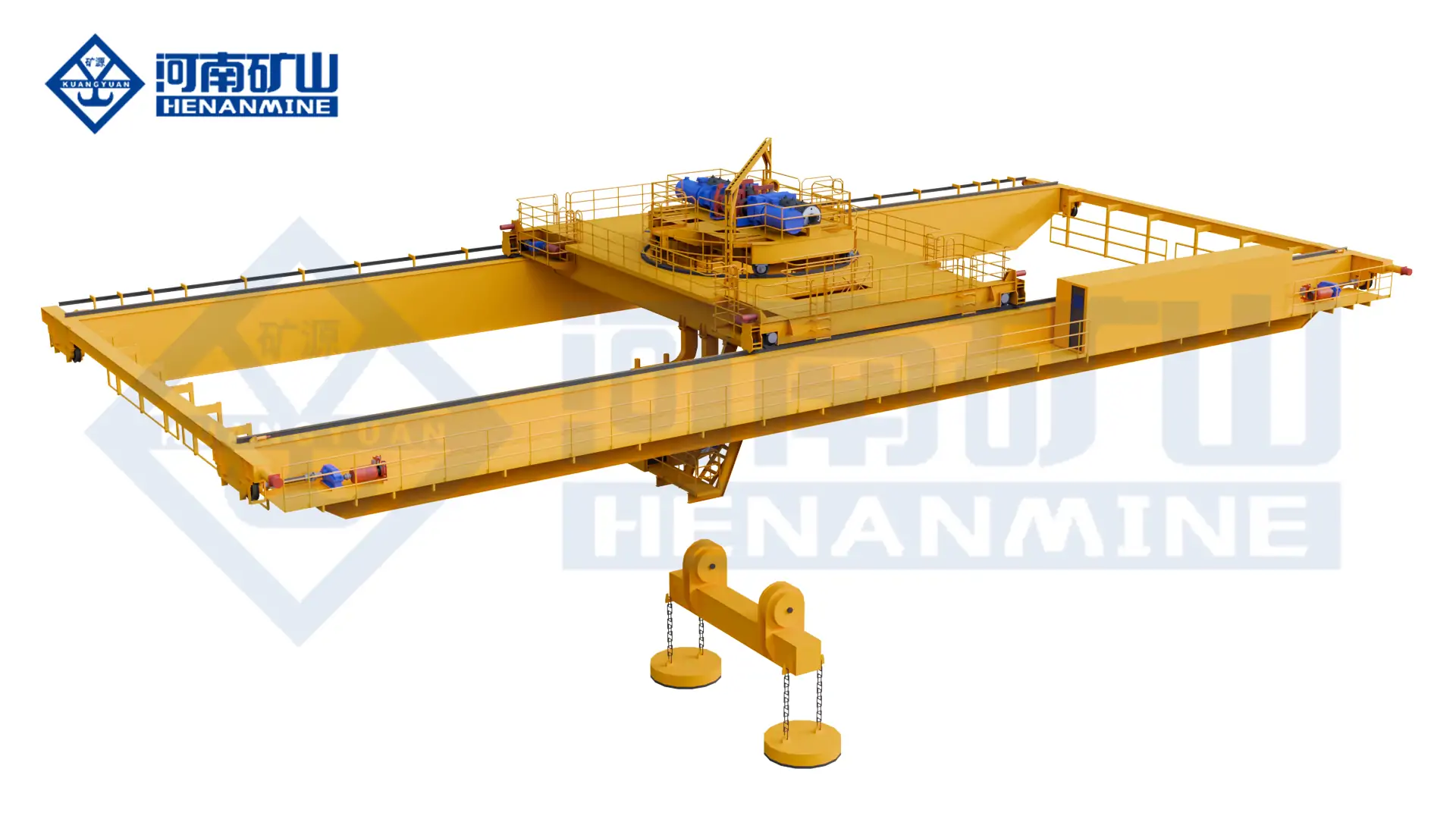

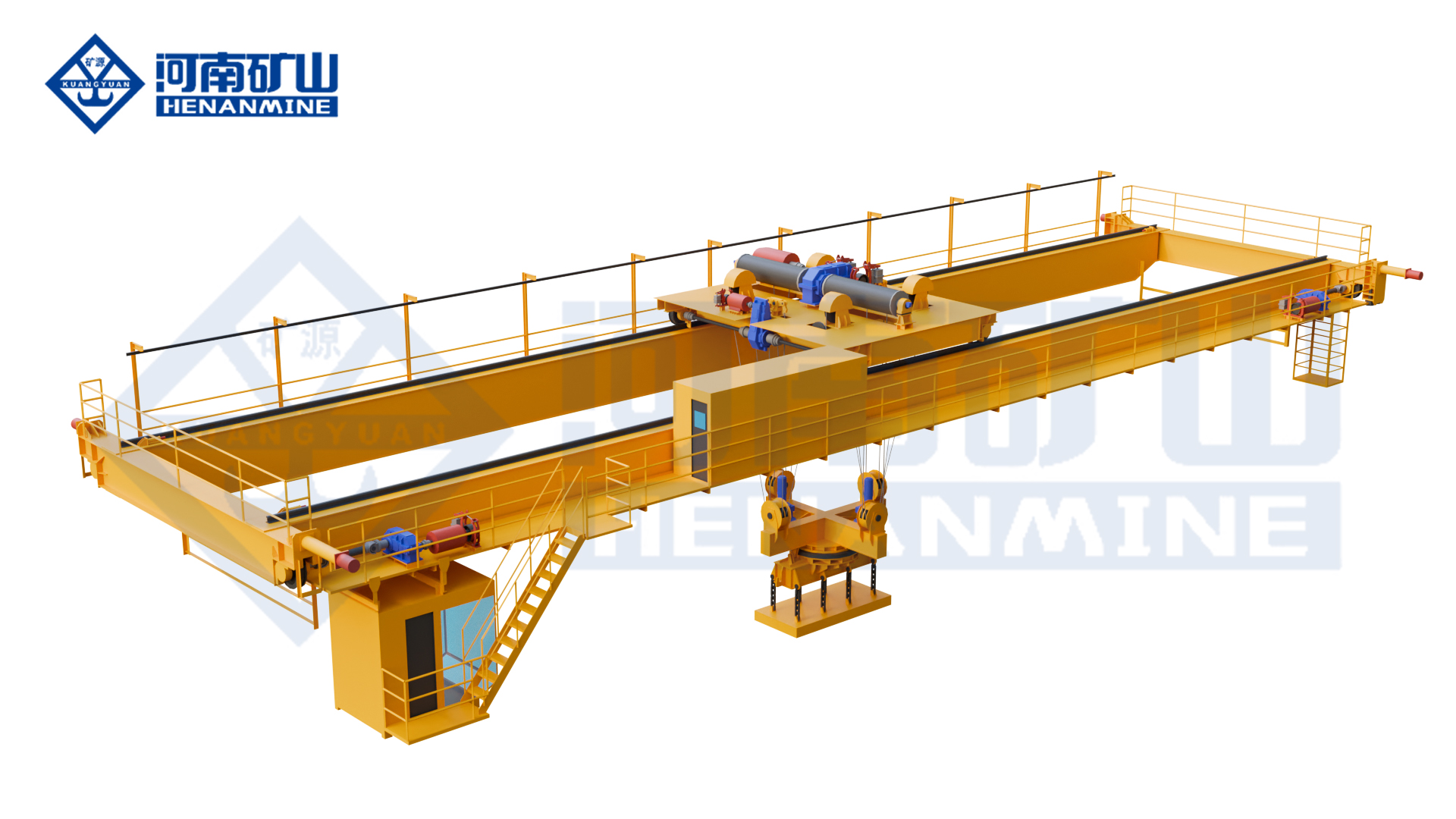

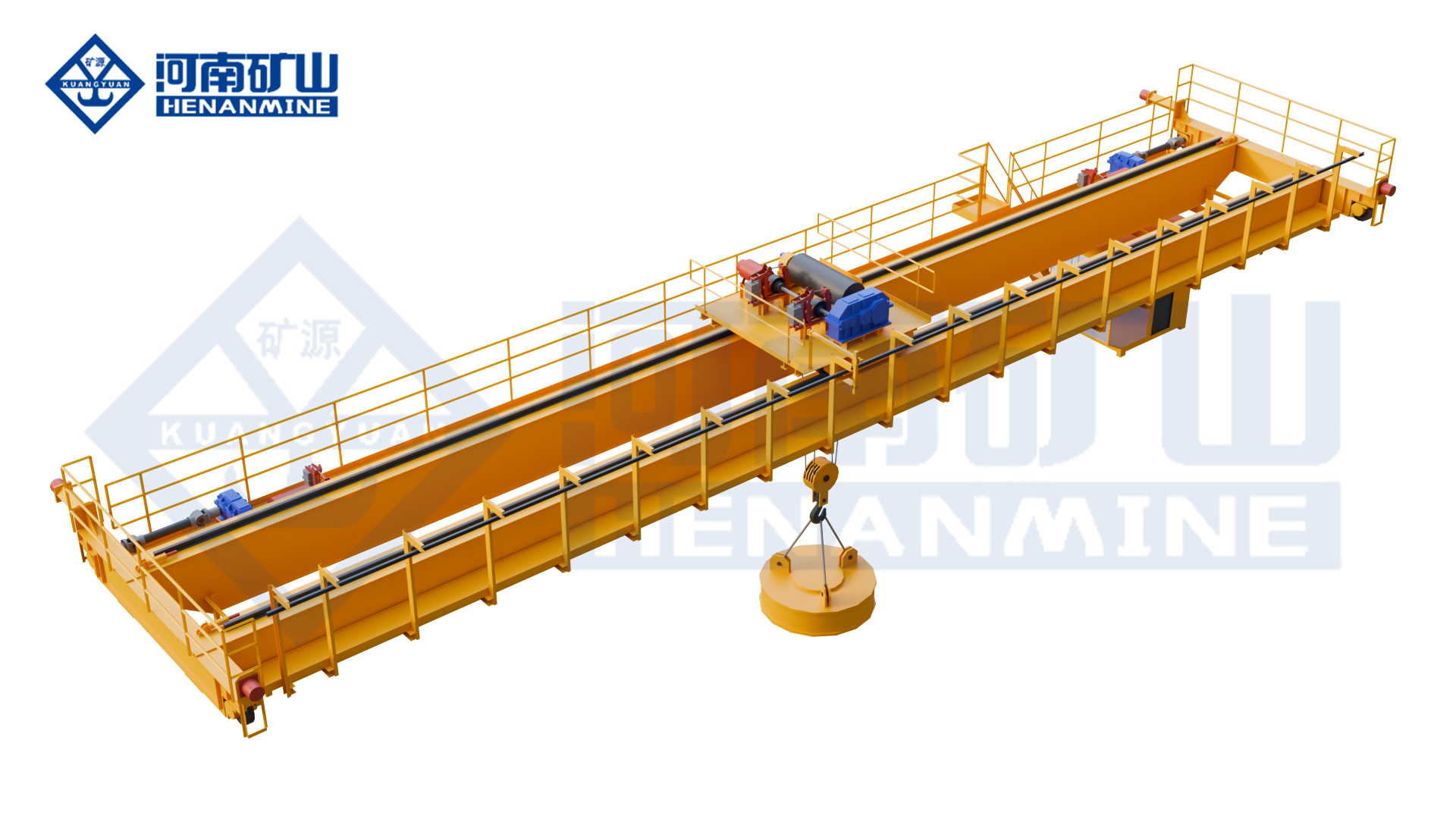

Electromagnetic Bridge Crane
Henan Mine's QC Electromagnetic Bridge Crane is currently one of the most widely used lifting machines. It can load, unload, and transport materials and equipment intermittently and repeatedly in general operating environments, featuring vertical lifting, longitudinal, and lateral movement capabilities. Lifting attachments include hook-and-electromagnetic-sucker configurations, with working classes ranging from A1 - A8.
Capacity
3t-50t or customized
Lifting Height:
5tm-35m or customized
Crane Span
10.5-35m or customized
Work Class
A6 A7 A8
Power Supply
Three-phase AC 50 Hz 380V

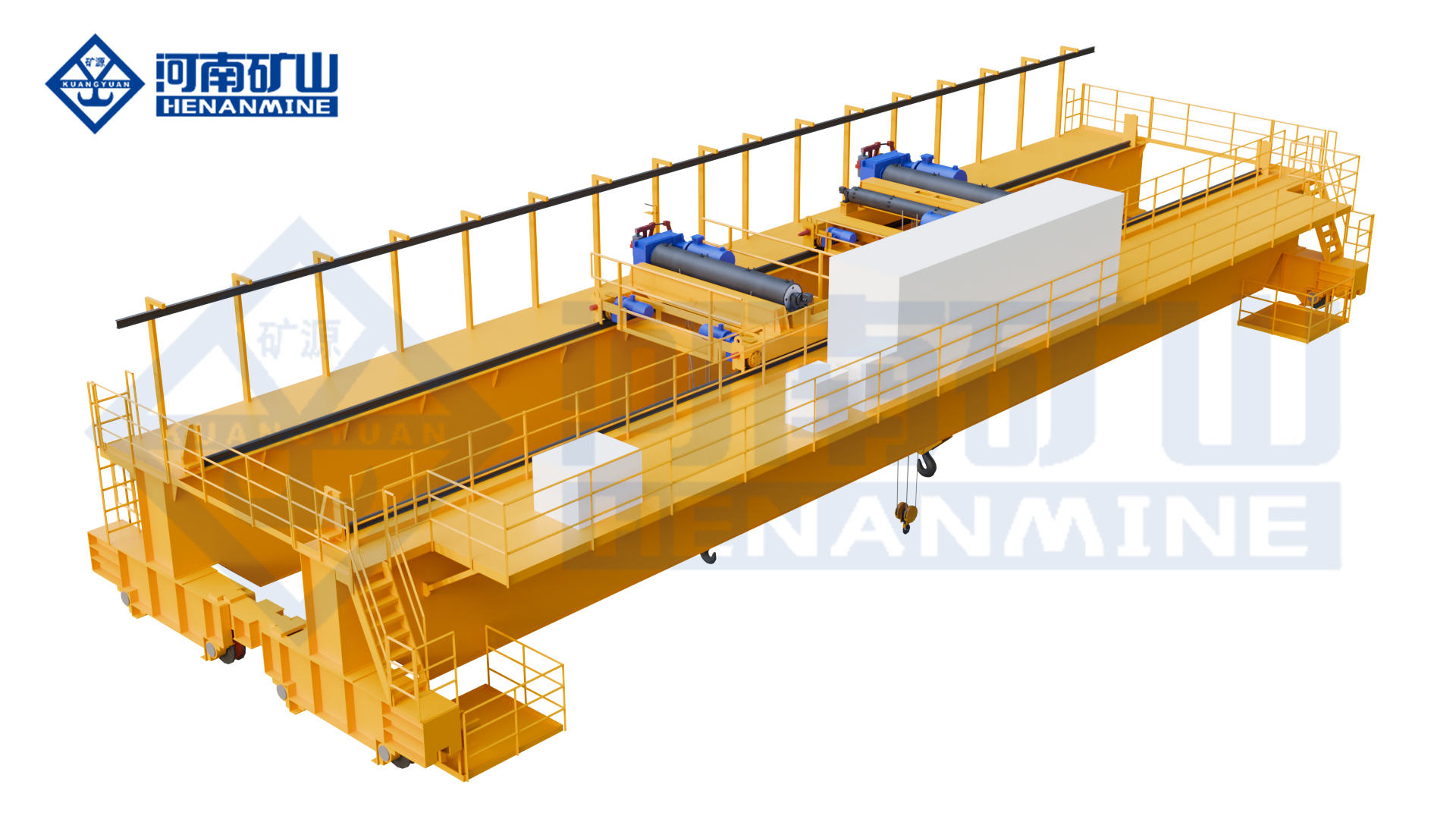

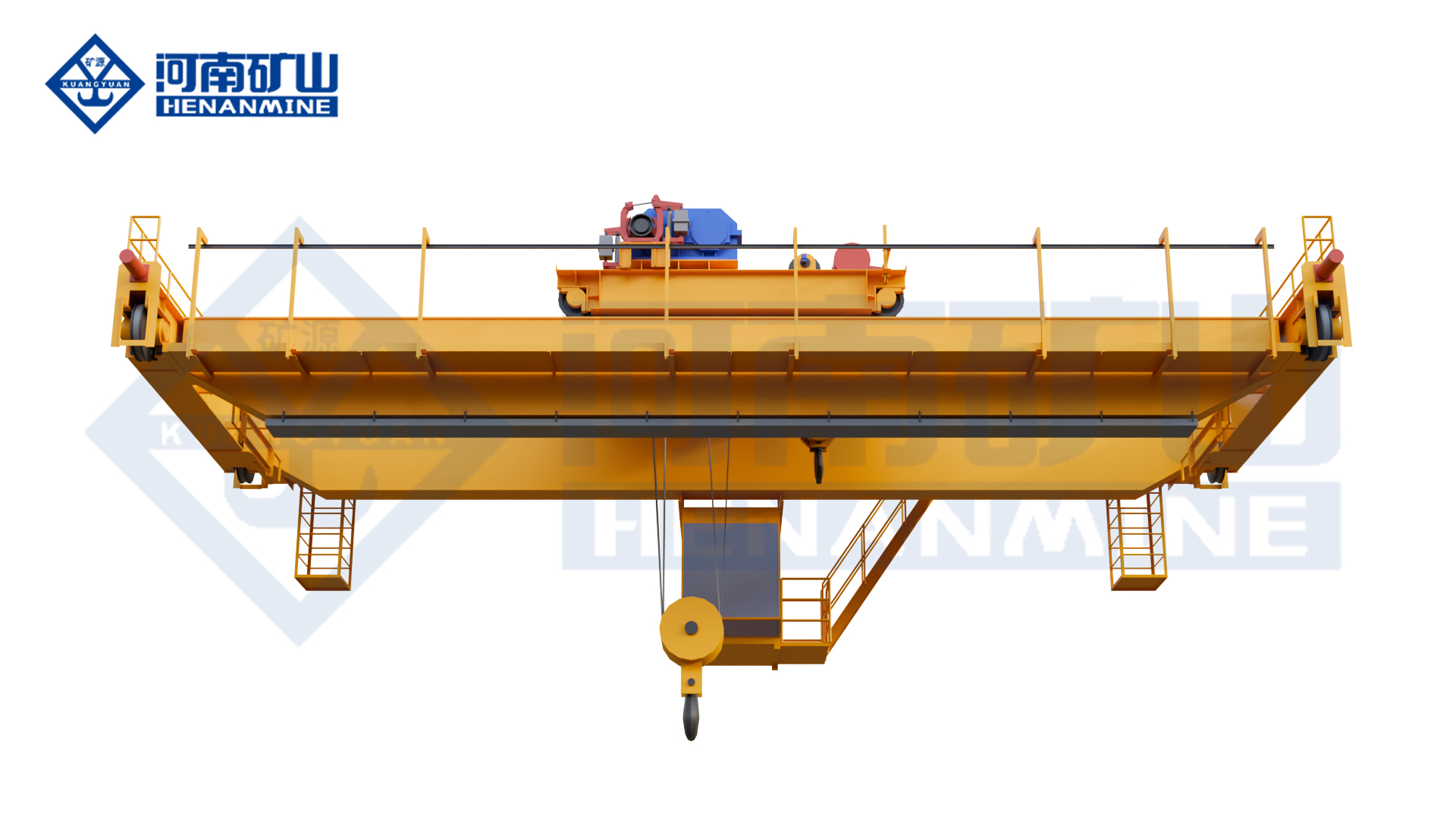

Insulated Bridge Crane
The QY insulated hook bridge crane manufactured by Henan Mine is a specialized lifting device designed for high-current, high-temperature, and corrosive environments. By incorporating multiple insulation devices at critical points, it prevents electrical conduction that could endanger personnel and equipment safety.
Capacity
10T-50T or customized
Span
10.5m-31.5m
Lifting height
6m-33m or customized
Lifting speed
20,30m/min
Power Supply
Three-phase AC 50 Hz 380V
Explosion-Proof Bridge Crane
QB Explosion-Proof Bridge Crane Manufactured by Henan Mine
Explosion-proof bridge crane are designed and manufactured based on general-purpose bridge cranes, specifically for work environments containing explosive gases or dust and corresponding operating conditions. These cranes possess explosion-proof characteristics, enabling intermittent and repetitive material and equipment handling with vertical lifting, longitudinal, and lateral movement capabilities.
Lifting Capacity
5 t-75 t
Work Class
A4/A5/A6
Crane Span
10.5 m~ 31.5 m
Lifting Height
6m, 9m, 30m or customized
Raged Voltage
Three-phase AC 380V 50HZ
Electric Single-Girder Overhead Crane
Henan Mine's suspended electric hoist bridge crane is a mid-air running lifting device with rails directly fixed to building structures. It is suitable for scenarios with limited factory space or requiring flexible layouts. Equipped with an electric hoist as the lifting mechanism, it can load, unload, and transport materials and equipment intermittently and repeatedly in general working environments. It features vertical lifting, longitudinal, and lateral movement capabilities.
Capacity
1t,2t,3t,5t,10,t16t,20t
Span
7.5-31.5m
Lifting height:
6m,9m,12m,18m,24m,30m
Work Class:
A3, A4,A5
Lifting speed
0.35/3.5,0.7/7,0.8/8m/min or 3.5,7,8m/min
Raged voltage
Three-phase AC 380V 50HZ
Double-girder bridge crane
Henan Mine's double-girder bridge cranes are currently among the most widely used lifting machinery. Equipped with electric hoists as their lifting mechanisms, they can load, unload, and transport materials and equipment intermittently and repeatedly in general operating environments, featuring vertical lifting, longitudinal, and lateral movement capabilities.
Low-headroom design with the hoist mounted on the trolley frame maximizes vertical space utilization.
Lightweight construction and low wheel load enable direct installation in lightweight industrial buildings, reducing civil engineering costs.
Lifting Capacity
3t-32t
Crane Span:
Max. 1m-31.5m or Customized
Lifting Height
3m-10m Customized
Work duty：
A3, A4,A5,A6,A7,A8
Raged voltage:
Three-phase AC 380V 50HZ
Crane control mode:
Pendantcontrol / Wireless remote control / Cabin control

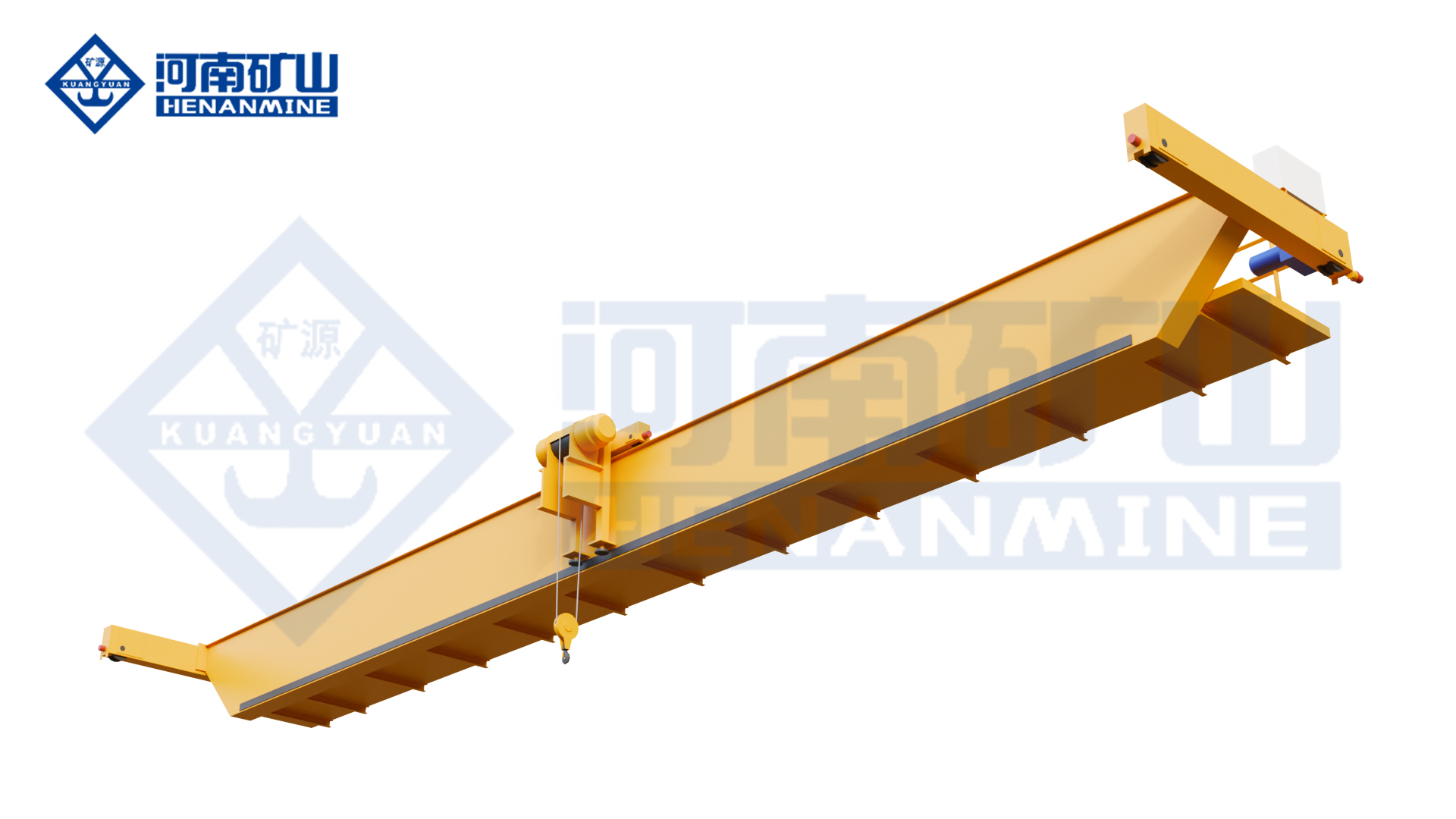

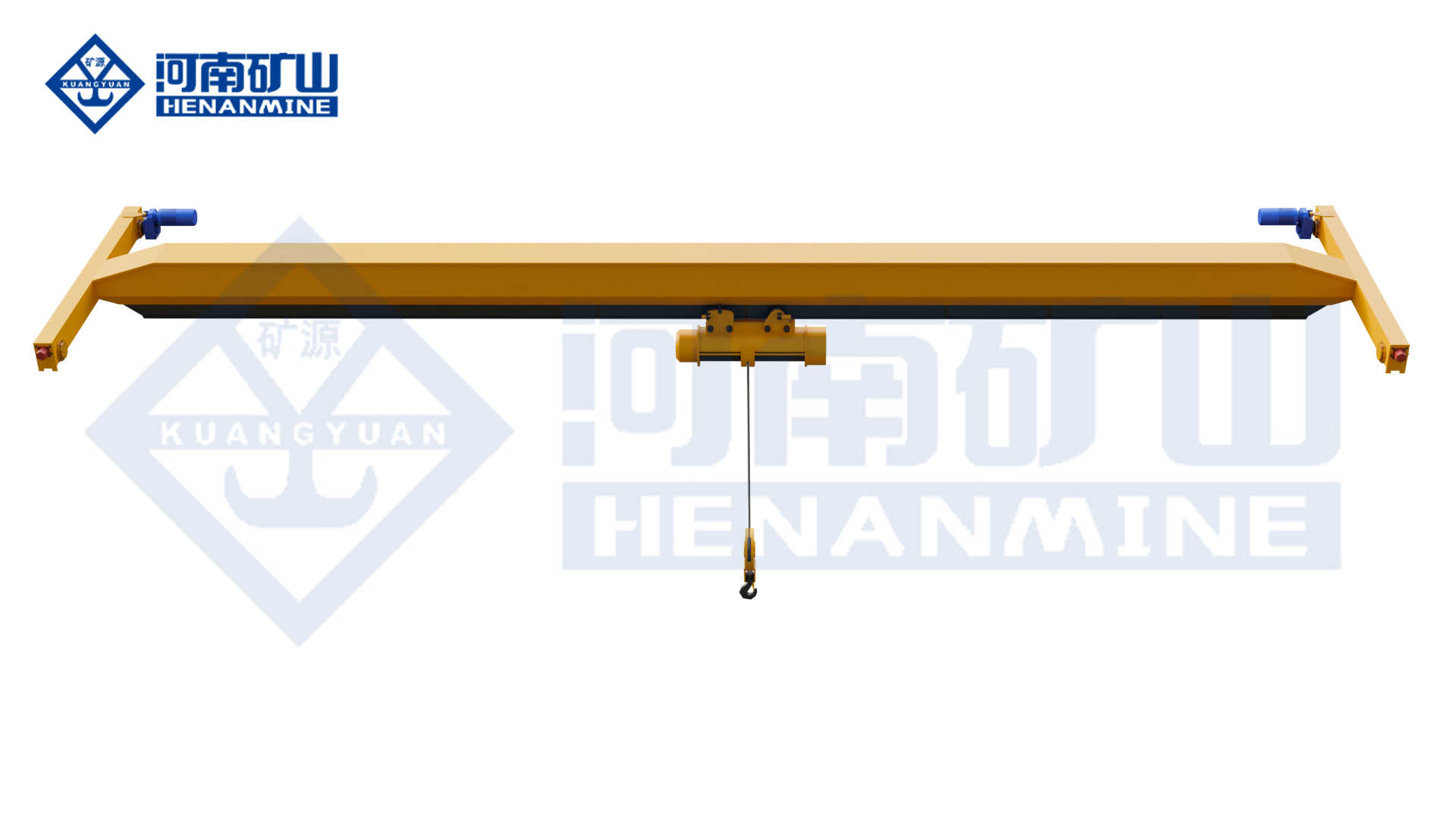

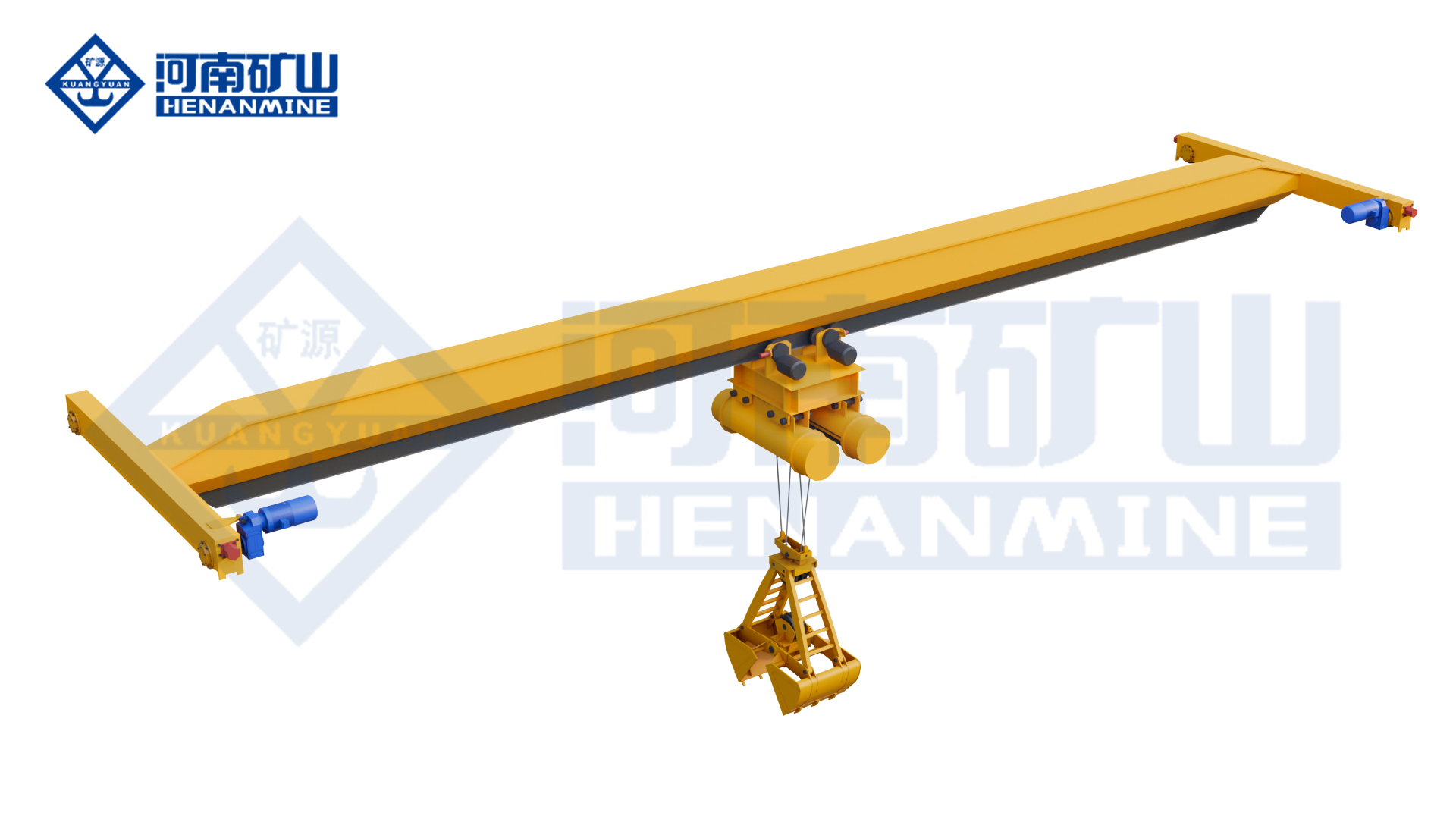

Single-girder bridge crane
Electric single-girder cranes are currently among the most widely used lifting machinery. Equipped with an electric hoist as their lifting mechanism, they can load, unload, and transport materials and equipment in intermittent, repetitive operations within general working environments. These cranes possess the capabilities for vertical lifting, longitudinal movement, and lateral travel.
Specification：
7.5m-31.5m on demand
Capacity:
1t-80t on demand
Lifting Height：
9m-30m on demand
Work duty：
380V, 50Hz, 3ph AC
control mode:
Floor control / Remote control / Cabin room control
Traveling speed:
20-30m/min
