Henan Mine Rail-mounted Container Gantry Crane Product Introduction and Frequently Asked Questions

The Henan Mine Rail-mounted Container Gantry Crane (abbreviated as RMG) is a specialized lifting equipment designed for container loading, unloading, and stacking operations. It is widely used in container yards, railway container transfer stations, port terminals, and similar scenarios, efficiently handling the lifting, transfer, and stacking of 20′, 40′, and 45′ international standard containers.

Leveraging Henan Mine Machinery’s decades of experience in crane R&D and manufacturing, this product is designed and produced in strict compliance with both international and domestic standards. It offers core advantages including high lifting capacity, stable operation, user-friendly controls, and reliable safety, making it the preferred equipment for enhancing container handling efficiency and reducing operational costs.

Henan Mine Rail-mounted Container Gantry Crane

     Core Structural Components

• Steel Gantry Structure: Utilizes a dual-girder design. All steel plates undergo pre-treatment involving sandblasting for rust removal, primer application, and primer drying. This process effectively eliminates internal stresses in the steel, enhances paint adhesion, and ensures structural appearance quality and corrosion resistance. The upper gantry features a U-shaped opening design, providing ample working space and accommodating a trolley maintenance frame for convenient equipment servicing. The crane travel mechanism employs dual-flange wheels with surface-hardened treads achieving a hardness of HB320–350 and a hardened depth exceeding 15mm. Paired with premium rolling bearings, this ensures smooth operation and extended service life.
• Hoisting Mechanism: Equipped with a high-precision hoisting winch system utilizing premium steel wire ropes and rolled sheaves. Gear tooth surfaces achieve a hardness of no less than 50 HRC with an effective hardening depth exceeding 2mm, delivering high transmission precision and robust load-bearing capacity. Telescopic lifting attachments can be configured per operational requirements, supporting single- or double-container lifting. Rated lifting capacities under the attachment span multiple specifications including 35t, 40.5t, and 50t, accommodating diverse container weight demands.
• Travel Mechanism: Includes traverse and gantry travel mechanisms. The traverse can feature a rotating design or be equipped with a rotating lifting device, enabling the entire crane to operate through portal legs. This significantly expands the working range and enhances operational flexibility. Travel speeds are precisely controllable: hoisting speed 0–20 m/min, traverse speed 0–30 m/min, gantry travel speed 0–40 m/min, adapting to different operational rhythms.

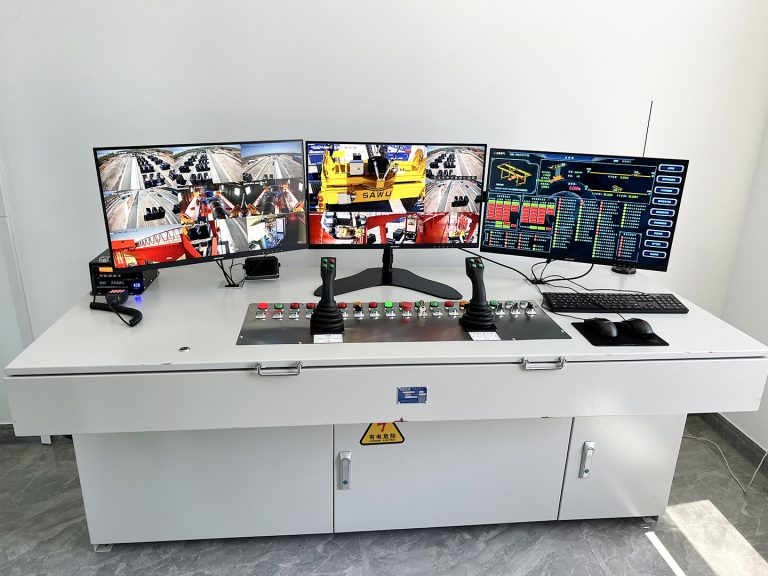

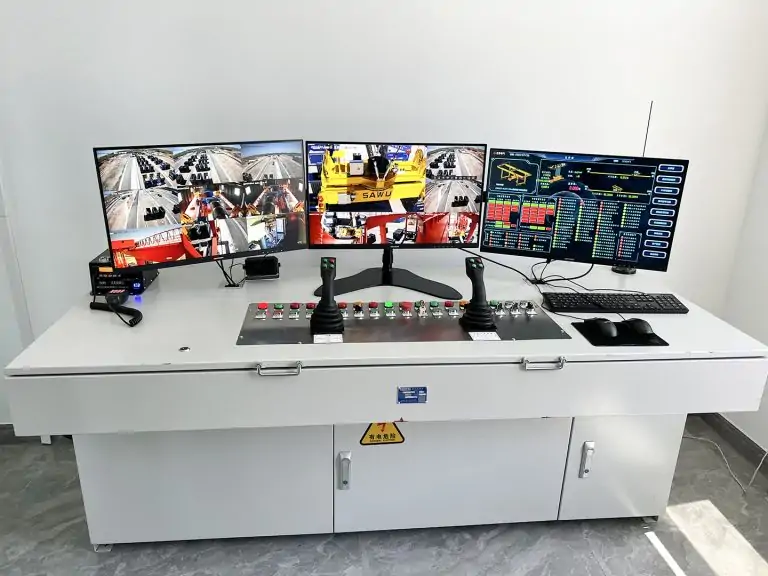

• Electrical Control System: Utilizes PLC centralized control technology for intuitive operation and precise regulation, enabling automated coordination of all mechanisms. Electrical components feature renowned brands, with power supply compatible with AC 380V 50Hz three-phase electricity (customizable to other standards). Comprehensive electrical protection devices ensure power safety and stable system operation.
• Safety Protection System: Equipped with comprehensive safety devices including load cells (overload protection), lightning arresters, anchoring devices, rail clamps, and wind guy wires. Effectively handles overloads, high winds, and other adverse conditions to maximize operator and equipment safety. Conforms to GB 14734 “Safety Regulations for Port Rail-mounted Container Gantry Cranes,” incorporating comprehensive limit switches, buffers, and other protective functions.


  Henan Mine Rail-mounted Container Gantry Crane

      Core Performance Advantages

• Eco-Friendly & Energy-Efficient: Electric drive system eliminates exhaust emissions for clean operation. Optional energy feedback devices recover potential energy during operations, reducing energy costs.
• High-Efficiency Operation, Strong Adaptability: Features fast and smooth running speeds with short cycle times, enabling efficient container stacking and transfer; supports handling of multiple container sizes and, with flexible operating modes, adapts to diverse site layouts and operational requirements.
• Reliable Quality, Extended Lifespan: Manufactured under strict ISO 9001:2008 quality management standards. Critical components utilize renowned brands like SKF/FAG, with bearings achieving a minimum service life of 12,500–25,000 hours. The overall system is designed for a 30-year operational lifespan, significantly exceeding industry averages.
• Easy Maintenance, Controllable Costs: Highly standardized and universal components facilitate procurement and replacement. The rational structural design reserves ample maintenance space, minimizing routine inspection and repair workloads to significantly reduce operational costs.
• Highly Customizable, Broad Adaptability: Core parameters like span, lifting height, and capacity can be tailored to customer site conditions and operational needs, precisely matching requirements across ports, rail freight yards, logistics parks, and other scenarios.


  Henan Mine Rail-mounted Container Gantry Crane

   Application Scenarios

This product is widely used in: railway container transfer stations, port container terminals, inland container yards, large logistics parks, industrial warehouse container handling areas, and other locations. It is particularly suitable for operations involving dense container stacking and high-frequency loading/unloading transfers, effectively enhancing site utilization and operational efficiency.
