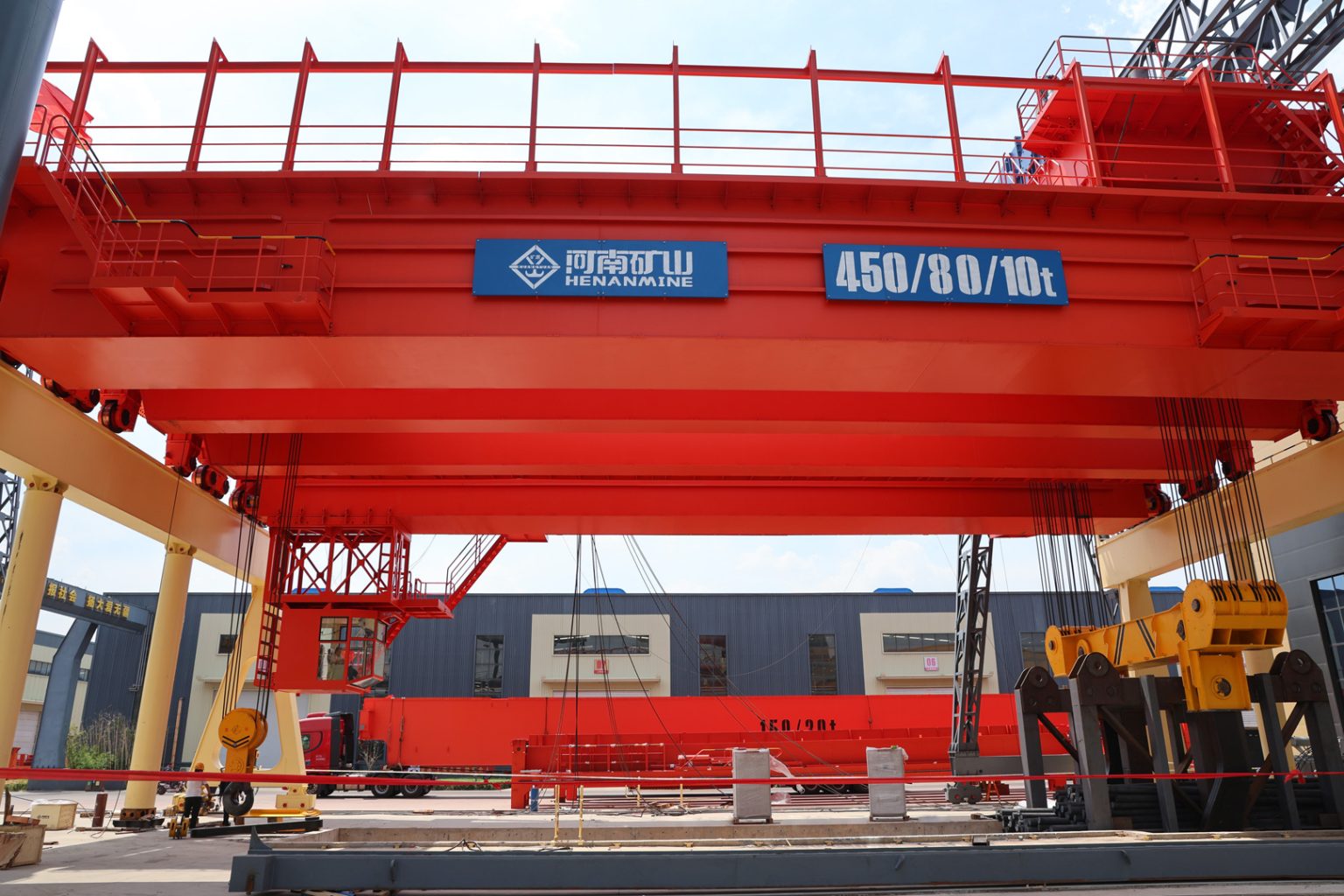

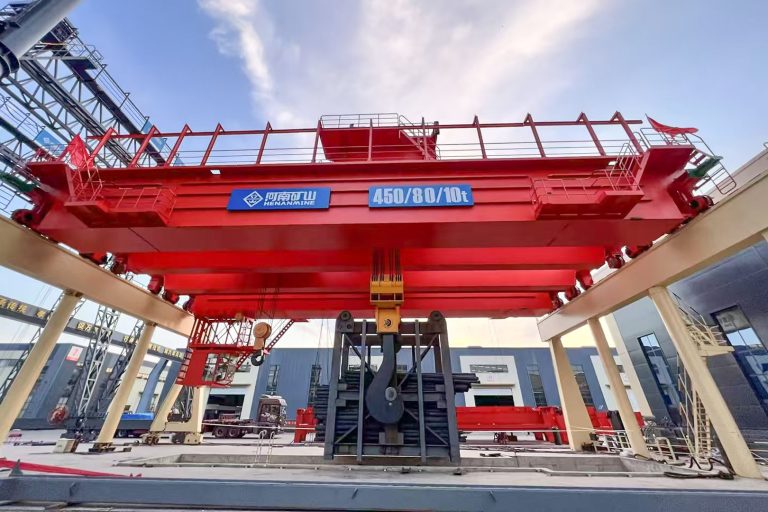

Henan Mine 450t Four-Girder Four-Girder Casting Crane—Smart Benchmark for Electric Arc Furnace Steelmaking

Casting cranes serve as the “heavy-duty core equipment” in electric arc furnace steelmaking processes. Their lifting capacity, span, safety, and intelligence directly determine the efficiency and safety baseline for molten metal handling in large steel enterprises. Centered on “Premium Intelligent Manufacturing + Technological Breakthroughs,” Henan Mine’s 450t Four-Girder Four-Girder Casting Crane stands as China’s benchmark model for electric furnace steelmaking—featuring the highest lifting capacity, most advanced technology, and widest span. Tailored specifically for molten metal handling, it has earned unanimous acclaim from metallurgical industry users.

I. Core Benchmark Project

1. Project Overview: The Ultimate Demand for High-End Electric Furnace Steelmaking

A major metallurgical enterprise focused on upgrading its high-end electric furnace steelmaking capacity required a foundry crane capable of handling “ultra-heavy loads, large-span operations, and ultimate safety” for critical molten metal transfer in its steelmaking and ironmaking plants. This necessitated near-demanding requirements for equipment reliability, safety, and intelligence.

To address this core need, Henan Mine custom-engineered the 450t Four-Girder Four-Girder Foundry Crane. Perfectly aligned with electric furnace steelmaking process characteristics, it became the project’s core lifting equipment for molten metal transfer, completely resolving the safety and efficiency challenges faced by traditional cranes in ultra-heavy-load, long-span scenarios.

2. Core Product Advantages

This 450t Four-Girder Four-Girder Casting Crane for Electric Furnace Steelmaking employs comprehensive technological innovation to overcome heavy-load lifting challenges, delivering core advantages across four dimensions: “Safety, Durability, Intelligence, and Efficiency.”

• Four-Girder Four-Girder Structure: Reinforcing Heavy-Load Safety Defenses: Utilizing an integrated large-reduction gear arrangement with four girders and four rails, it achieves a 50% safety improvement over traditional double-girder or triple-girder designs. The large-span design perfectly accommodates the layout of large electric furnace steelworks, maintaining stable operation even under peak 450-ton loads. It completely eliminates the risk of structural deformation during heavy-duty operations, setting the standard as a high-safety four-girder, four-rail crane for molten metal handling.
• Integrated Machining Process Extends Equipment Lifespan: The trolley frame undergoes full annealing and integrated machining to completely eliminate processing stresses. Overall assembly precision exceeds industry standards by 30%, with operational vibration controlled within 3mm. This ensures stable molten metal handling while extending equipment lifespan by 40% compared to similar products, significantly reducing customer maintenance costs.
• Finite Element Modeling Analysis for Enhanced Structural Strength: Advanced finite element modeling analysis is employed during design, applying equal strength and equal lifespan principles to components. This achieves perfect structural-mechanism integration, meeting 450-ton heavy-load demands while optimizing equipment weight and energy consumption. Its cost-performance ratio far surpasses industry peers, establishing it as the high-value solution for large-tonnage foundry cranes.
• PLC Intelligent Control with Upgrade Potential: Equipped with a PLC control system and open industrial Ethernet bus, the crane reserves intelligent upgrade interfaces. This supports future integration with customer digital production platforms, enabling functional expansion and technological iteration—aligning with the trend toward intelligent upgrade-ready heavy-duty foundry cranes.
• Lifecycle Safety Monitoring for Efficient Control: Equipped with a dedicated safety monitoring management system, it enables real-time safety alerts, comprehensive operational data logging, and full-lifecycle inspection traceability. This ensures safe handling of molten metal while boosting production efficiency.

3. Industry Reputation

Upon commissioning, this 450t four-beam, four-rail foundry crane has become the global technical benchmark for heavy-duty foundry cranes in electric furnace steelmaking processes. Its “high reliability, high safety, high configuration” performance perfectly meets the core requirements for molten metal handling in electric furnace steelmaking.

II. Corporate Capabilities

• Technology R&D: Focused on developing large-tonnage, intelligent, and high-safety cranes, holding multiple core technology patents. Particularly advanced internationally in four-beam four-rail structural design and molten metal handling safety control.
• Production Capacity Assurance: Equipped with over 600 welding/machining robots and more than 100 automated production lines, enabling independent manufacturing of core components for large-tonnage casting cranes and ensuring full-process quality control.
• Quality Compliance: Products certified under ISO, CE, FEM, and other international standards, fully meeting global metallurgical safety requirements. Suitable for major projects including electric furnace steelmaking and blast furnace ironmaking across diverse countries and regions.

III. Global Deployment Cases: Validating International Adaptability of Heavy-Capacity Foundry Cranes

Henan Mine’s heavy-capacity foundry cranes have successfully served multiple global metallurgical projects

• Southeast Asian Electric Arc Furnace Steel Plant (5 Million Tons Annual Capacity): Supplied 2 units of 380t four-girder, four-rail casting cranes. Enhanced moisture-proof and anti-corrosion designs for the local high-temperature, high-humidity environment, enabling the client to achieve 400,000 tons of billet production per month.
• A European Special Steel Plant: Customized one 400t four-girder, four-rail casting crane to enable full-process visual control of molten metal handling, meeting stringent requirements for high-end specialty steel production.
• A Large Middle Eastern Metallurgical Project: Provided two 350t four-girder, four-rail casting cranes. The safety monitoring system was adapted for high-temperature radiation conditions, securing long-term contract renewals from the client.

IV. Dedicated Service System for International Clients

Addressing core concerns of overseas clients for heavy-duty lifting equipment, we established a comprehensive worry-free service mechanism:

1. Customized R&D: Providing full-cycle tailored services—from parameter design and 3D simulation to prototype testing—based on project processes, heavy-load requirements (200-500t), plant span, local conditions, and international standards;
2. Global Logistics & Compliance: Partnering with international logistics giants like Maersk and COSCO Shipping to resolve transportation and cross-border customs clearance challenges for oversized components of 450t-class cranes, ensuring timely and compliant delivery to designated locations.
3. Overseas On-Site Support: Deploy bilingual technical teams for equipment installation, commissioning, and specialized operator training. Provide dedicated guidance for high-risk molten metal handling to ensure rapid commissioning within 20 days.
4. After-Sales Maintenance Assurance: Operate a 24/7 multilingual service hotline. Establish three overseas spare parts warehouses in Germany, Singapore, and the UAE. Core spare parts for heavy-duty foundry cranes are delivered within 72 hours, with 95% remote fault diagnosis coverage.

V. Cooperation Vision

450t Four-Girder Four-Girder Molten Metal Transfer Crane Through the successful implementation of multiple major metallurgical projects, Henan Mine has consistently tackled heavy-load challenges with technological innovation, meeting high-end demands through “premium intelligent manufacturing.”

If your enterprise operates in metallurgical fields such as electric furnace steelmaking or blast furnace ironmaking and seeks large-tonnage four-girder four-rail casting cranes—specialized high-safety lifting equipment for molten metal—or customized solutions, please feel free to contact us anytime.

We not only deliver high-quality heavy-duty equipment meeting international standards but are also committed to becoming your trusted long-term strategic partner. With our “hard power in heavy-duty capabilities + soft power in intelligent solutions,” we empower the global metallurgical industry to achieve safe, efficient, and green development!
