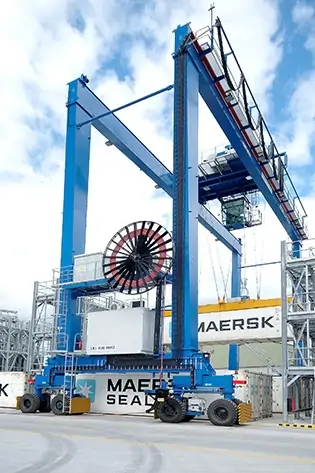

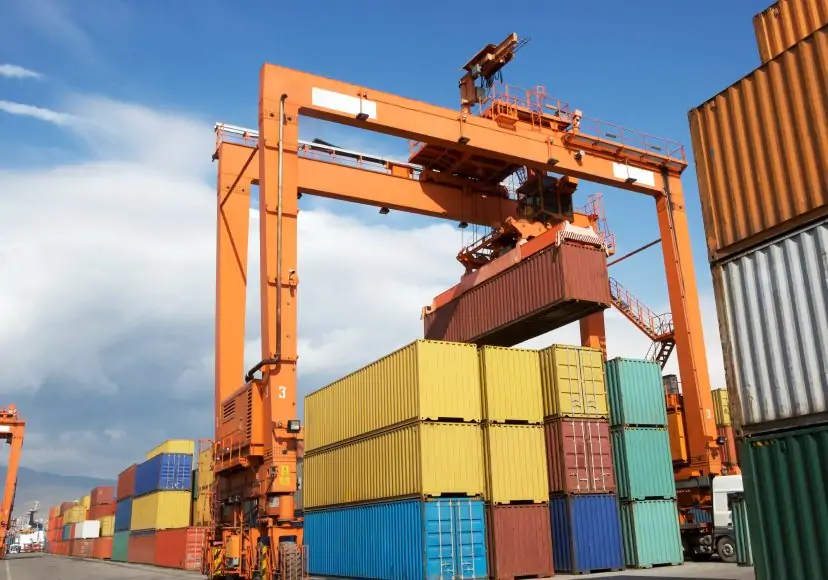

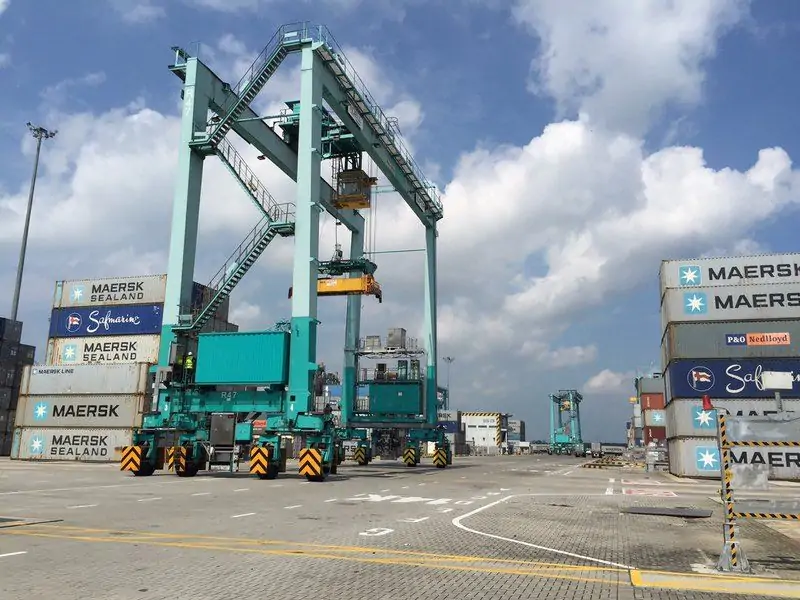

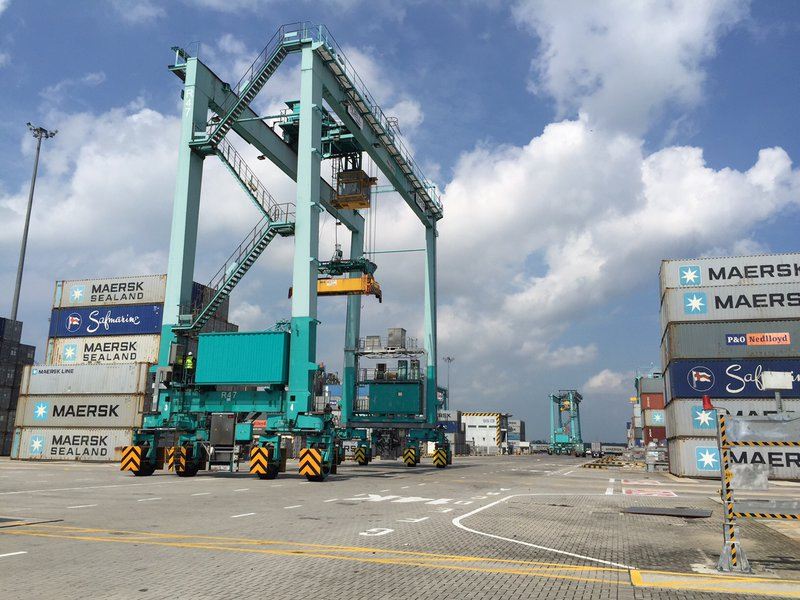

Rubber Tyred Gantry (RTG)
Henan Mine Rubber Tyred Gantry (RTG) ( Tyre Gantry Crane) is a high-end heavy-duty equipment relying on the development of national technology , the core highlights of the trackless flexible, heavy-duty stability, intelligent energy-saving, adapted to the trackless heavy-duty scenarios,
Lifting Weight:
35 t, 40.5 t, 50 t or customized
Span Length
8m - 35 m or customized
Lifting Height
6m - 21 m or customized
Work Class
A6 - A8
Working Temperature Range
-25℃～+40℃
Parameters of Rubber Tyred Gantry (RTG) Manufactured by Henan Mine Crane manufactured
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
| Parameter | Specification | Remarks |
| Rated Lifting Capacity | 20t – 100t | Customizable for heavy-load scenarios |
| Span | 5m – 30m | Extended span available on request |
| Lifting Height | 6m – 30m | Low headroom design optional |
| Lifting Speed | 0.5m/min – 6m/min | Frequency conversion stepless speed regulation |
| Travel Speed | 5m/min – 25m/min | Four-wheel steering system |
| Steering Mode | Straight, lateral, diagonal, in-situ rotation | Flexible adaptation to irregular sites |
| Positioning Accuracy | ≤±5mm | Laser + GPS dual positioning |
| Working Class | A6 – A8 | Suitable for continuous heavy-duty operation |
| Protection Level | IP55 (IP65 optional) | High temperature, dust and lightning protection |
| Working Environment | -30℃ ~ 50℃, Wind speed ≤25m/s | Adapt to outdoor harsh conditions |
| Certification | CE, GOST, CCS, A8 Safety Certification | Directly export to global markets |
Product Introduction of Henan Mine Crane manufactured Rubber Tyred Gantry (RTG)
Rail container gantry crane (also known as rail container gantry crane, referred to as rail crane) is a large-scale loading and unloading equipment running along a fixed track, mainly used in ports, railway yards and container yards for efficient loading and unloading of containers, handling and stacking operations.

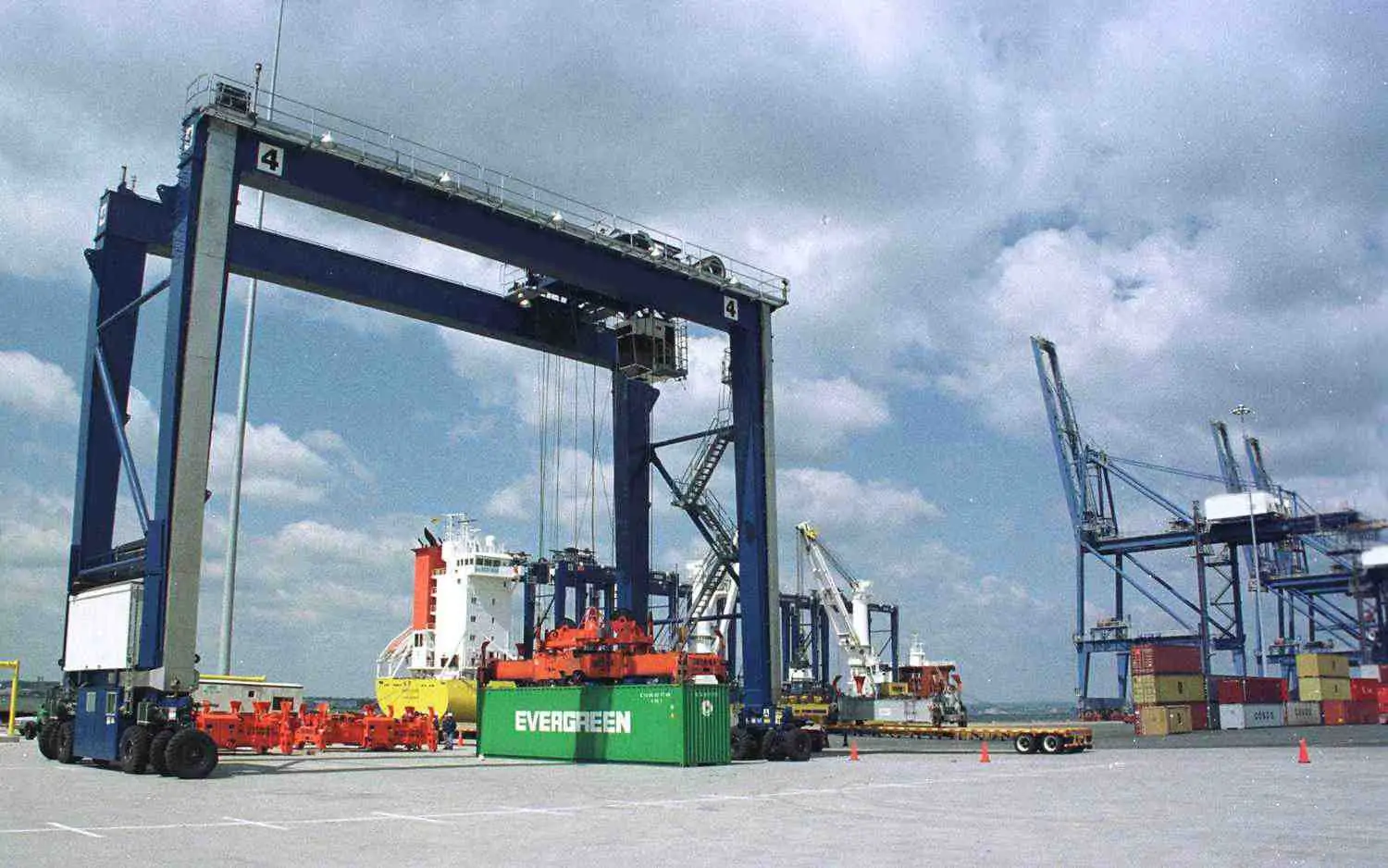

Henan Mine RTG Gantry Crane Detailed Product Description
The tyre crane is designed for trackless scene heavy load transfer stacking, adopting box main beam + rigid outrigger modular structure, imported core components, integrated four-wheel steering, precise positioning, intelligent monitoring and multiple protection systems.
It can operate 24 hours a day and is suitable for high temperature, high dust, strong wind and other harsh working conditions.
Core technical advantages and characteristics
Equipped with four-wheel steering system, supporting four driving modes, minimum turning radius of 5m, no need to pave the track, the transfer efficiency by 50%+.
Equipped with giant cross-country tyres and automatic monitoring and adjustment of tyre pressure, it can adapt to multiple ground conditions to ensure operational stability.
High-strength and lightweight structure, outstanding stability under heavy load.
The main beam adopts Q690 high-strength steel, with optimised design to increase flexural and torsional strength by 25%, and reduce deadweight by 12%-18%, which reduces ground bearing and infrastructure costs.
The outriggers are equipped with adaptive levelling device, which improves the stability of operation by 30% and passes A8 safety certification, suitable for high-frequency heavy-duty operation.
Intelligent and precise control, both operational efficiency and energy saving.
Full frequency conversion + PLC intelligent control, lifting and travelling speed stepless speed regulation, operating efficiency by 20% +; laser + GPS dual positioning, accuracy ≤ ± 5mm.
Optional hybrid energy-saving system, annual average energy saving of 30%, with intelligent fuel consumption monitoring, reduce operating costs.

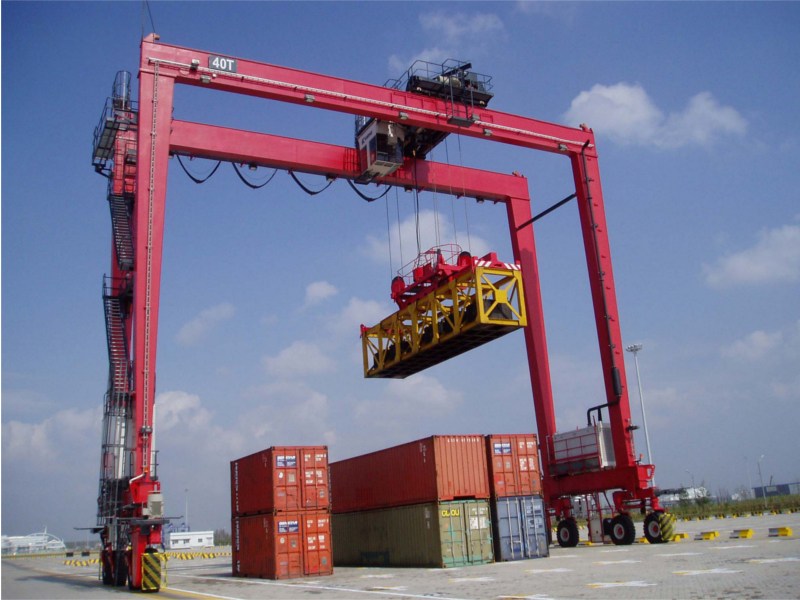

Multiple safety protection, risk avoidance in all scenarios.
Construct triple safety system, equipped with multiple protection devices such as overloading, over-rolling, anti-collision, etc.; IP55 protection for electrical system, high temperature resistance and lightning strike prevention.
Intelligent wind-resistant system is equipped as standard, with wind speed ≤25m/s for normal operation and ≥30m/s for automatic anchoring to ensure the safety of outdoor operation.
What Can Henan Mine Crane manufactured Rubber Tyred Gantry (RTG) Offer You?
| Value Category | Specific Benefits | Description） |
| Yard Utilization Improvement | 40%+ higher stacking density | Stacking capacity up to 4-5 layers of containers |
| Operation Efficiency Enhancement | 35%+ faster handling efficiency | Intelligent anti-sway and precise positioning reduce adjustment time; |
| Energy & Maintenance Cost Reduction | 30%+ lower energy consumption | Energy feedback system recycles regenerative energy; High-efficiency motor and lightweight design reduce energy loss |
| Labor Cost Reduction | 50%+ lower labor cost | Remote centralized control realizes multi-crane management by one person |
| Safety & Risk Reduction | 99% reduction in wind-related risk | Four-fold wind protection devices + intelligent early warning comply with port safety standards |
| Intelligent Transformation Adaptability | Seamless connection with intelligent management systems | Reserved open communication interfaces support automatic task scheduling and data statistics |

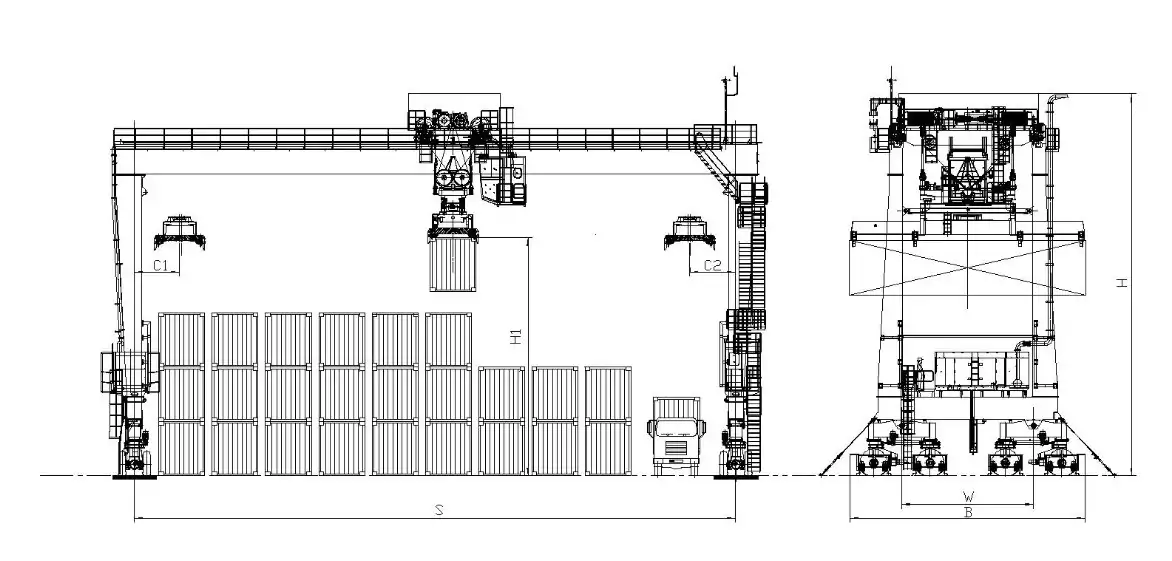

Parameters of Henan Mine Rubber Tyred Gantry (RTG)
|
Span(rail to rail center) |
6~data required |
||||
|
Cantilevers |
According to your demand, but not more than 1/3 of span |
||||
|
Lifting height |
6m, 9m, 12m or As required |
||||
|
Capacity |
3t, 5t |
10t |
15t, 16t |
20t, 25t |
30t, 32t |
|
Lifting speed(m/min) |
8, 8/0.8 |
7/0.7 |
3.5, |
4, 4/0.4 |
3, 3/0.3 |
|
3.5/0.35 |
|||||
|
Cross travelling speed(m/min) |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
|
Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
|
Duty Class |
A3/A4 |
||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||
|
Control model |
Pendant handle/ Cabin / Remote control |
||||
Advantage display
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 500T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Details of Henan Mine Crane manufactured RMG-Gantry Crane
China's premier crane supplier, driving high-quality development in the crane industry for 24 years

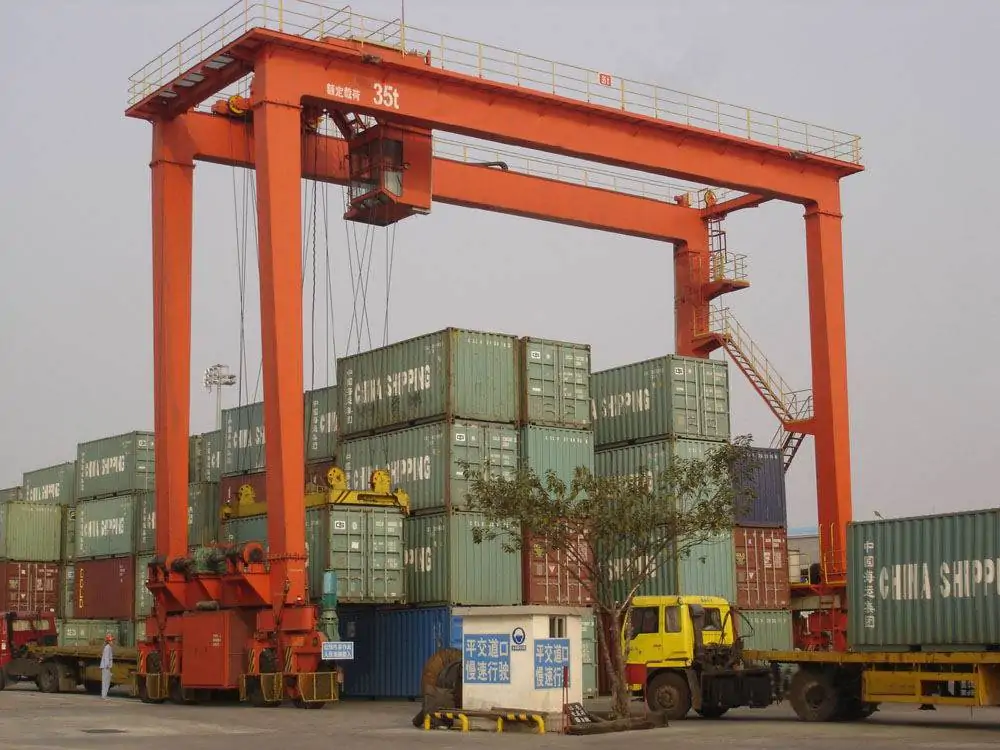

Application Scenarios of Henan Mine Crane manufactured Rubber Tyred Gantry (RTG)
The Tyre Gantry Crane (RTG) manufactured by Henan Mining is a mobile heavy-duty crane equipment that adopts a trackless tyre travelling mechanism and is specially designed for efficient stacking and transferring of containers.
-
Coastal small and medium-sized port yardPort tyre-type container stacker gantry crane, suitable for coastal small and medium-sized ports / feeder ports container stacking, sorting and transshipment operations, connecting the shore bridge and trailers.
-
Inland River Port Container Transshipment YardTrackless tyre-type container gantry crane for inland river ports, connecting inland river vessels and public railway transport, and completing container loading and unloading stacking.
-
Regional railway container freight stationRailway freight station tyre container gantry cranes, suitable for provincial and municipal sites container loading and unloading stacking, connecting the railway trunk line and branch line distribution
-
railway logistics park container distribution areaFlow park mobile tyre gantry crane, suitable for railway logistics park container distribution warehousing, to achieve ‘railway transport - park distribution - end distribution’ connection.
-
Large inland container logistics hubInland logistics park trackless tyre container stacker crane, to undertake the Hong Kong railway container distribution, distribution and bonded warehousing.
-
Cross-border e-commerce/bonded logistics parkBonded logistics park tyre container gantry cranes, suitable for cross-border e-commerce container storage, inspection and transshipment.
-
Automobile / Construction Machinery Industrial ParkAs a manufacturing industry supporting tyre container gantry crane, suitable for automotive, construction machinery and other industrial parks raw materials/finished products container transfer, to achieve ‘into the factory - factory’ full logistics.
-
home appliances / electronics industry logistics support areaHenan Mine Light Tyre Container Gantry Cranes are selected to be suitable for loading and unloading and stacking of finished products of household appliances/electronics enterprises.
-
wind power / photovoltaic infrastructure temporary yardAs a wind power infrastructure temporary tyre gantry crane, suitable for wind farms / photovoltaic power stations, temporary storage and transfer of heavy parts.
-
Emergency logistics / disaster relief materials yardEmergency tyre gantry crane, suitable for emergency logistics / disaster relief materials container loading and unloading stacking.
Crane Operation Demonstration
China's premier crane supplier, driving the crane industry forward for 24 years
How to Choose the Best Crane Manufacturer in China
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
-
1Clarify Your Crane NeedsThoroughly understand your lifting requirements (load details, frequency, and workspace environment) before approaching crane manufacturers.
-
2Determine Crane Service ClassCalculate the required crane service class based on your operational intensity to ensure optimal performance and longevity.
-
3Explore Crane Supplier Custom Features:Investigate available customization options and special features to enhance safety, efficiency, and precision for your specific application.
-
4Assess Crane Factory Engineering CapabilityEvaluate the manufacturer's engineering strength to ensure they can design a suitable solution tailored to your needs.
-
5Verify Quality & Compliance of Crane CompanyCheck the crane manufacturer's manufacturing quality, certifications, and compliance with international standards and your local safety regulations.
-
6Ensure Support & ReferencesConfirm the manufacturer provides reliable after-sales support and has a proven track record with positive references in your industry or region.
Why We Are More Trustworthy
Henan Mine Crane Factory is a premier provider of integrated crane and material handling solutions, covering R&D, design, manufacturing, sales, and service for end-to-end support.
Experienced company
Established in 2002, Henan Mine Crane Factory is a high-tech crane enterprise. Using advanced global design and manufacturing tech, we craft top-quality single/double-beam cranes and electric hoists.
Professional team & equipment
Our 1.62 million ㎡ factory has 3,500+ staff, 200 senior engineers, and 428+ global sales/service points. With 2,000+ processing machines handling 20+ processes, we ensure excellence.
Productive capacity
The annual output of cranes is over 80,000 units. The company produces and sells more than 11000 double beam and gantry cranes annually, More than 73000 single beam cranes, and More than 100000 sets (sets) of single and double beam electric hoists and accessories.
Customized design services
We know the right crane is key. Our engineers partner with clients to design and build cranes tailored to specific needs, ensuring optimal performance.
Why Our Cranes Earn Customers' Trust
Henan Mine Crane Co., Ltd. has a strong technical team with over 10 top experts and 200+ mid-to-senior engineers. They've obtained over 700 national patents and provincial-level tech achievements, with over 670 authorized patents. Henan Mine Crane Factory led/participated in over 100 standard formulations/revisions, won the China Standard Innovation Contribution Award, and is a key member of multiple lifting machinery standardization committees. Dr. Xu Lei serves as Deputy Leader of the ISO/TC96 Domestic Technical Counterpart Expert Working Group.
The services we provide
China's premier crane supplier, driving the crane industry forward for 24 years
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Regular Maintenance Reminder
Establish customer equipment files, and regularly send maintenance reminders based on
equipment usage time and operation intensity. Provide detailed maintenance manuals and
video tutorials
Technical support consultation
Provide 7×12-hour online technical consultation service. Senior consultants answer
questions in real time regarding product selection, parameter matching, installation
specifications
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Our Patents and Certifications
China's premier crane supplier, driving the crane industry forward for 24 years
Customer Testimonials & Top Choices
China's premier crane supplier, driving the crane industry forward for 24 years
Become our distributor
Array
Become our agent
Full range of lifting equipment, international standard quality and ample production capacity, ensuring worry-free agency support.
Professional cross-border after-sales team + global parts warehouses, 24-hour response, full-cycle service to help you effortlessly expand your market.
Generous agency policies + regional exclusive protection, guaranteeing your profits and worry-free cooperation.
We sincerely invite global partners with resources to join hands, jointly develop the global crane market, and achieve mutual benefit and win-win outcomes!
Your Top Concerns About Henan Mine Crane manufactured Rubber Tyred Gantry (RTG)and Professional Answers
China's premier crane supplier, driving the crane industry forward for 24 years
-
What are the advantages of RTG gantry cranes compared with RMG rail-mounted models?Answer: The core advantages are trackless flexibility, strong site adaptation, and efficient transfer. RTG does not need to lay tracks, and the four-wheel steering can be rotated 360° in situ, which increases the transfer efficiency by 50%.
-
What international certifications have the products passed?Answer: The product can be exported directly to the global core market, and has passed CE, GOST, CCS and other international certifications, and meets the standards of many countries. Provide complete certification documents to assist in customs clearance, has been exported to 122 countries, overseas projects are successfully accepted.
-
Is the stability of the equipment guaranteed in the harsh environment?Answer: Sufficient protection, fully adapted to harsh working conditions. Intelligent wind-resistant system can cope with 30m/s strong wind, and it is automatically anchored.
-
Does the equipment have requirements for ground bearing?There is no need for special preparation for transferring, and the ground load-bearing requirement is low. Trackless design + off-road tyres, can be adapted to a variety of ground, without dismantling in transit.
-
Can rubber tyre cranes be customised?Answer: It can be customised in all dimensions to accurately meet the needs. Adapted to ports, wind power and other scenarios, professional team docking.
-
Is the equipment high in fuel consumption?Answer: Low fuel consumption, support multiple energy saving. Standard full frequency drive, annual average energy saving of 15% +; optional hybrid system, annual average energy saving of 30%.
-
Is the maintenance cost high?Answer: No need for professional team, low maintenance cost. The core components are maintenance-free, the common degree of wearing parts is 90%, and ordinary workers can be trained in 2 days.
-
Can you guarantee on-time delivery?Answer: The delivery cycle is controllable, and bulk purchase is more advantageous. Conventional specifications 15-30 days for a single unit, 45-60 days for customised models, bulk purchasing can compress the cycle by 15-20%.
-
Compared with Konecranes and Demag, what is the cost-effective advantage of Henan Mining RTG?Answer: Cost performance far exceeds that of international brands, and the full life cycle cost is 40%+ lower. Purchasing cost is 30-40% lower, operation and maintenance cost is 30% lower, and service and spare parts cost is only 60% of international brands.
Operating Manual for Henan Mine Crane manufactured Rubber Tyred Gantry (RTG)
China's premier crane manufacturer, driving high-quality development in the crane industry for 24 years
-
Each crane must display a rated load capacity plate in a conspicuous location.
-
No personnel are permitted on the girder during operation, nor may the hook be used to transport persons
-
Operation is prohibited without a valid operator's license or under the influence of alcohol.
-
Operators must maintain full concentration during operation; talking, smoking, or engaging in unrelated activities is strictly forbidden.
-
Keep the crane clean and tidy; do not store equipment, tools, flammable materials, explosives, or hazardous substances haphazardly.
-
Do not overload the crane.
-
When operating along obstacle-free paths, the hook, lifting device, or bottom surface of the load must remain at least 2 meters above ground level. When crossing obstacles, the load must clear the obstacle by at least 0.5 meters
-
For loads under 50% of rated capacity, both lifting mechanisms may operate simultaneously. For loads exceeding 50% of rated capacity, only one mechanism may operate.
-
.For bridge cranes equipped with main and auxiliary hooks, do not simultaneously raise or lower both hooks (except under special circumstances).
-
Welding or hammering on suspended loads, or working beneath suspended loads, is prohibited (except when properly supported).
-
Inspection or maintenance work may only be performed after power has been disconnected and a “Do Not Operate” sign is displayed on the power switch. If live work is unavoidable, implement safety measures and assign dedicated supervision.
-
Do not throw objects from the vehicle indiscriminately.
-
Regularly inspect limit switches and interlock protection devices.
-
Do not use limit switch impact as a stopping method.
-
Do not lift or lower loads when hoist brakes malfunction.
-
Do not operate the hoist above personnel or equipment.
-
When welding any part of the crane, use a dedicated ground wire; do not use the crane body as a ground.
-
When the hook is at its lowest position, ensure at least two full turns of safety rope remain on the drum.
-
Cranes must not collide with each other; using one crane to push another into operation is strictly prohibited.
-
When lifting heavy objects, molten metal, explosives, or hazardous materials, first slowly raise the load 100–200 mm off the ground to test brake reliability.
-
Maintenance and inspection lighting must operate at voltages below 36V.
-
All electrical equipment enclosures on bridge cranes must be grounded. If trolley rails are not welded to the main girder, grounding measures must be implemented. Grounding conductors may use galvanized flat iron with a cross-sectional area exceeding 75mm², bare copper wire of 10mm², or galvanized round steel exceeding 30mm². The operator's cab or crane body shall have more than two grounding points. The grounding resistance from any point on the crane to the power supply neutral point shall be less than 4Ω.
