New electric hoist
Henan Mine KS new electric hoist is a highly adaptable lightweight lifting equipment, the use of integrated compact design, integrated hoisting motor, reducer and other core components, saving installation and use of space, can be installed alone or supporting the use of various types of cranes.
Lifting Capacity
0.25 t - 20 t or customized
Hoisting Height
3 m - 18 m or customized
Hoisting Speed
0.3 - 10 m/min
Travel Speed
14 - 30 m/min
Explosion-proof Grade
EXd BT4, EXd IIC T4; tD A21 IP65
Temperature Class
T4 - T6
Henan Mine Crane manufactured new electric hoist
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
| Parameter | Specification | Remarks |
| Rated Lifting Capacity | 0.5t – 10t | Customizable for special scenarios |
| Test Load | 1.25 times the rated load | Comply with ISO 9001 standards |
| Lifting Height | 3m – 30m | Height extension available on request |
| Lifting Speed | 0.3m/min – 8m/min | Frequency conversion stepless speed regulation |
| Travel Speed | 10m/min – 20m/min | Independent frequency conversion drive |
| Power Supply | 380V/50Hz, 415V/60Hz (Customizable) | Low voltage control (24V-36V) |
| Motor Power | 0.5kW – 1.8kW | German imported lifting motor |
| Working Class | M5 – M6 | Suitable for continuous heavy-duty operation |
| Protection Level | IP55 (IP65 optional) | Anti-corrosion, dust-proof and waterproof |
| Working Environment | -20℃ ~ 40℃, RH ≤ 85% | Adapt to harsh working conditions |
| Certification | CE, ISO 9001, GOST, FEM 9.1310 | Compliant with global standards |
Product Introduction of Henan Mine Crane Manufactured new electric hoist crane
Henan Mine KS new electric hoist detailed product introduction
Henan Mine KS new electric hoist is a highly adaptable lightweight lifting equipment, the use of integrated compact design, integrated hoisting motor, reducer and other core components, saving installation and use of space, can be installed alone or supporting the use of various types of cranes.
The core components have been subjected to stringent screening and testing, high-quality gears and high-strength chain with double brakes and intelligent monitoring module to ensure the stability of high-intensity operation and reduce the difficulty and cost of operation and maintenance.
Core features
Lightweight modular design, more convenient installation, operation and maintenance.
Adopting die-casting aluminium shell and thin-wall extrusion process, it reduces weight by 20%-30% and volume by 15% compared with traditional models, and its low headroom design is suitable for narrow operation scenarios. Modular structure makes the core components easy to disassemble and install, and ordinary workers can operate it after simple training. 95% of the wearing parts are common, and disassembling and transporting them can reduce the loss and cost of logistics.
High-efficiency and precise control, significant improvement of working efficiency.
Equipped with full frequency conversion drive and lifting motor imported from Germany, the lifting speed is 0.3-8m/min with stepless speed regulation, and the heavy load and light load are self-adaptive. Equipped with safe low-voltage control handle, supporting wireless (≥100m) + wired dual control, operational efficiency than the traditional models to enhance more than 35%.
Dual safety protection, comprehensively avoiding operational risks.
Equipped with electromagnetic + mechanical double independent brakes, 22,500 times fatigue test, failure rate close to zero; equipped with overload alarm (10%), mandatory stop (15%) and double limit protection. IP55 protection for electrical parts, triple anti-corrosion treatment, salt spray test up to 1000 hours, suitable for harsh environments.
Intelligent operation and maintenance empowers and reduces the cost of the whole life cycle.
Intelligent monitoring module is equipped as standard, with fault identification accuracy of over 92% and 72 hours advance warning. Gearbox oil bath lubrication, maintenance cycle extended to 500 hours, operation and maintenance costs reduced by 40%. Product design life of 15 years, the main beam warranty of 5 years, with the whole service network, to achieve a full cycle of worry-free operation and maintenance.
Multi-scenario adaptation, outstanding customisation capability
It supports customisation of lifting height, voltage, protection level and other parameters, and is suitable for wind power, port, intelligent storage and other industries. Functions can be optimised according to the needs of the scene, such as anti-rocking for wind power models and enhanced anti-corrosion for port models, to meet the needs of personalised operations.
What can I do for you?
| Value Category | Specific Benefits | Description |
| Cost Saving | 20-30% lighter weight; 40% lower maintenance cost | Modular design reduces installation, maintenance and spare parts costs |
| Efficiency Improvement | 35% higher working efficiency; stepless speed regulation | Dual-control mode and adaptive speed enhance operation efficiency |
| Safety & Reliability | Dual brake system; 92% fault early warning accuracy | Multi-layer protection avoids safety risks and ensures stable operation |
| Multi-scenario Adaptability | Customizable parameters; IP55-IP65 protection | Fit for manufacturing, logistics, wind power and other industries |
| Global Compliance | Full international certifications | Directly export to Europe, Southeast Asia, Russia and other markets |
| Intelligent Operation | Remote monitoring; cloud-based fault early warning | Reduce unplanned downtime and improve operation stability |

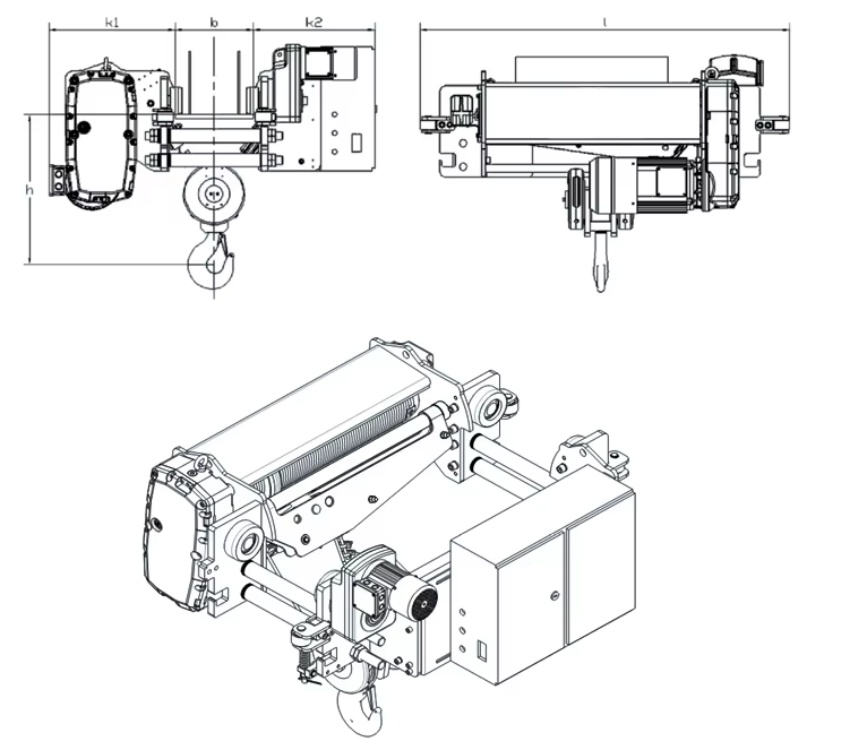

Detailed Specifications
| S.W.L
(T） |
Work duty | Lifting height
(m) |
Lifting speed
(m/min) |
Rope reeving | Travelling speed
(m/min) |
B
(mm) |
K1
(mm) |
K2
(mm) |
L
(mm) |
H
(mm) |
Wheel load
(KN) |
Weight
(kg) |
| 1.6 | M6 | 6 | 1.6/10 | 2/1 | 2~20 | 200~300 | 500 | 450 | 930 | 400 | 6.1 | 300 |
| 9 | 500 | 450 | 1100 | 400 | 6.2 | 335 | ||||||
| 12 | 500 | 450 | 1270 | 400 | 6.3 | 370 | ||||||
| 2.5 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 200~350 | 500 | 450 | 1180 | 430 | 9.1 | 315 |
| 9 | 500 | 450 | 1400 | 430 | 9.2 | 350 | ||||||
| 12 | 500 | 450 | 1620 | 430 | 9.3 | 385 | ||||||
| 3.2 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 250~350 | 500 | 450 | 1180 | 450 | 11.5 | 335 |
| 9 | 500 | 450 | 1400 | 450 | 11.6 | 370 | ||||||
| 12 | 500 | 450 | 1620 | 450 | 11.7 | 405 | ||||||
| 6.3 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 490 | 450 | 1170 | 500 | 22 | 400 |
| 9 | 490 | 450 | 1400 | 500 | 22.1 | 450 | ||||||
| 12 | 490 | 450 | 1630 | 500 | 22.2 | 500 | ||||||
| 8 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 28 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 28.1 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 28.2 | 640 | ||||||
| 10 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 34.7 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 34.8 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 34.9 | 640 | ||||||
| 10 | M6 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~450 | 560 | 550 | 1140 | 700 | 34.7 | 650 |
| 9 | 560 | 550 | 1320 | 700 | 34.8 | 690 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 34.9 | 730 | ||||||
| 12.5 | M5 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~500 | 560 | 550 | 1140 | 700 | 43.3 | 660 |
| 9 | 560 | 550 | 1320 | 700 | 43.4 | 700 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 43.5 | 740 |
Advantage display
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 500T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Detailed information of the new electric hoist crane made by Henan Mine
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Henan Mine Manufacturing KS new electric hoist crane application scene
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
-
Small and medium-sized machinery processing workshopSuitable for machine tool processing, agricultural machinery parts manufacturing and other processes, as a mechanical workshop KS new electric hoist material transfer equipment for lifting round steel, casting blanks, machine tool bed, engine parts and other heavy objects.
-
Machinery assembly and overhaul workshopFor the assembly and overhaul of engineering machinery and motor equipment, Henan Mining KS intelligent frequency conversion electric hoist crane is used for lifting gearbox shells, motor rotors, bearings and other accessories.
-
Small and medium-sized warehouses / logistics terminalsAs a warehouse KS low headroom electric hoist stacking equipment, suitable for hardware accessories, electronic products, industrial consumables and other goods high stacking and in and out of the warehouse transfer.
-
E-commerce / Express Sorting CentreIt is used for sorting and loading/unloading of large express and e-commerce goods. KS fast transfer type electric hoist cranes are used to lift express pallets, large parcels and crates.
-
Electronic equipment assembly workshopAs the electronic workshop KS precision electric hoist lifting equipment, used for lifting circuit boards, display panels, home appliances chassis and other precision parts. Suitable for clean environment requirement in electronic workshop.
-
food/medicine packaging workshopFor the transfer and stacking of food raw materials and pharmaceutical packaging materials, Henan Mining KS clean electric hoist crane is used to lift food tonnage packages, pharmaceutical cartons, packaging films and other materials.
-
Iron and steel plant auxiliary workshopSuitable for steel plant spare parts warehouse, cold rolling workshop auxiliary area, as metallurgical auxiliary KS electric hoist lifting equipment, used for lifting roll accessories, finished steel products, tools and consumables and other heavy objects.
-
Building materials/prefabricated components small production areaUsed for cement prefabricated parts, stone processing and other small-scale production scenarios, the use of KS dust-resistant electric hoist crane, lifting prefabricated floor slabs, stone barren materials, cement clinker and other materials.
-
Small infrastructure construction siteAs a temporary site KS electric hoist lifting equipment, suitable for small infrastructure projects, such as community renovation, rural road construction, for lifting rebar, cement pipes, construction machinery parts and other heavy objects.
-
Electric power/municipal maintenance siteFor substation equipment maintenance, municipal facilities maintenance and other scenarios, the use of KS lightweight electric hoist crane, lifting transformers, power distribution cabinets, municipal pipelines and other accessories.
-
Taboo SceneProhibited scenarios: not suitable for lifting high-temperature molten objects; prohibited from use in flammable and explosive environments
Crane Operation Demonstration
China's premier crane supplier, driving the crane industry forward for 24 years
How to Choose the Best Crane Manufacturer in China
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
-
1Clarify Your Crane NeedsThoroughly understand your lifting requirements (load details, frequency, and workspace environment) before approaching crane manufacturers.
-
2Determine Crane Service ClassCalculate the required crane service class based on your operational intensity to ensure optimal performance and longevity.
-
3Explore Crane Supplier Custom Features:Investigate available customization options and special features to enhance safety, efficiency, and precision for your specific application.
-
4Assess Crane Factory Engineering CapabilityEvaluate the manufacturer's engineering strength to ensure they can design a suitable solution tailored to your needs.
-
5Verify Quality & Compliance of Crane CompanyCheck the crane manufacturer's manufacturing quality, certifications, and compliance with international standards and your local safety regulations.
-
6Ensure Support & ReferencesConfirm the manufacturer provides reliable after-sales support and has a proven track record with positive references in your industry or region.
Why We Are More Trustworthy
Henan Mine Crane Factory is a premier provider of integrated crane and material handling solutions, covering R&D, design, manufacturing, sales, and service for end-to-end support.
Experienced company
Established in 2002, Henan Mine Crane Factory is a high-tech crane enterprise. Using advanced global design and manufacturing tech, we craft top-quality single/double-beam cranes and electric hoists.
Professional team & equipment
Our 1.62 million ㎡ factory has 3,500+ staff, 200 senior engineers, and 428+ global sales/service points. With 2,000+ processing machines handling 20+ processes, we ensure excellence.
Productive capacity
The annual output of cranes is over 80,000 units. The company produces and sells more than 11000 double beam and gantry cranes annually, More than 73000 single beam cranes, and More than 100000 sets (sets) of single and double beam electric hoists and accessories.
Customized design services
We know the right crane is key. Our engineers partner with clients to design and build cranes tailored to specific needs, ensuring optimal performance.
Why Our Cranes Earn Customers' Trust
Henan Mine Crane Co., Ltd. has a strong technical team with over 10 top experts and 200+ mid-to-senior engineers. They've obtained over 700 national patents and provincial-level tech achievements, with over 670 authorized patents. Henan Mine Crane Factory led/participated in over 100 standard formulations/revisions, won the China Standard Innovation Contribution Award, and is a key member of multiple lifting machinery standardization committees. Dr. Xu Lei serves as Deputy Leader of the ISO/TC96 Domestic Technical Counterpart Expert Working Group.
The services we provide
China's premier crane supplier, driving the crane industry forward for 24 years
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Regular Maintenance Reminder
Establish customer equipment files, and regularly send maintenance reminders based on
equipment usage time and operation intensity. Provide detailed maintenance manuals and
video tutorials
Technical support consultation
Provide 7×12-hour online technical consultation service. Senior consultants answer
questions in real time regarding product selection, parameter matching, installation
specifications
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Our Patents and Certifications
China's premier crane supplier, driving the crane industry forward for 24 years
Customer Testimonials & Top Choices
China's premier crane supplier, driving the crane industry forward for 24 years
Become our distributor
Array
Become our agent
Full range of lifting equipment, international standard quality and ample production capacity, ensuring worry-free agency support.
Professional cross-border after-sales team + global parts warehouses, 24-hour response, full-cycle service to help you effortlessly expand your market.
Generous agency policies + regional exclusive protection, guaranteeing your profits and worry-free cooperation.
We sincerely invite global partners with resources to join hands, jointly develop the global crane market, and achieve mutual benefit and win-win outcomes!
Your most concerned questions and answers about the new electric hoist crane
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
-
Where is the cost-effective advantage of your new electric hoist?Answer: Cost-effective far more than competitors, the whole life cycle cost is more than 30% lower. Procurement, operation and service costs are lower than international brands, core components of the same source, stable performance, brand endorsement and global certification.
-
What international certifications have the products passed?Answer: The products have passed CE, ISO 9001, GOST and other international certifications, which are in line with global standards. We provide complete certification documents to assist in customs clearance, and have been exported to 122 countries and passed local inspections successfully.
-
Is the service life of the equipment guaranteed in the harsh environment?Answer: Sufficient guarantee. Electrical components IP55 protection (optional IP65), shell triple anti-corrosion, salt spray test up to 1,000 hours; design life of 15 years, the existing equipment for 2 years of continuous operation without corrosion, dust failure, the stability of the industry beyond the average.
-
Can we customise crane equipment with exclusive specifications?Answer: Fully customisable. Relying on modular design and national technology centre, core parameters such as lifting capacity and lifting height can be customised to adapt to special scenarios such as wind power and alpine to meet individual needs.
-
How long is the delivery cycle for bulk purchase?Answer: Delivery is guaranteed and bulk purchase is faster. 15-30 days for a single unit of conventional specifications, 25-35 days for a batch of more than 10 units; sufficient production capacity and perfect reserve of core components can avoid the risk of shortage.
-
How is the after-sales response time?Answer: Global fast response, remote areas are also covered. The core area 48 hours to the door, remote areas 72 hours to arrive, the world's 12 major spare parts warehouse, the core components 48 hours delivery.
-
How long does the chain of electric hoist last?Answer: The chain has top wear resistance and long service life. Using 80 grade hardened alloy steel chain, wear-resistant and rust-resistant, breaking tension up to 5 times more than the rated load, service life of 8-10 years under normal maintenance, equipped with special anti-rust chain bag.
-
Is it difficult to operate the equipment?Answer: It is easy to operate and free training is provided. Safe low voltage handle + dual control mode, ordinary workers 1-2 hours training can be independently operated, free to provide a full range of training to ensure proficiency in the hands.
New Electric Hoist Crane Operation Manual Made by Henan Mine
China's premier crane manufacturer, driving high-quality development in the crane industry for 24 years
-
Each crane must display a rated load capacity plate in a conspicuous location.
-
No personnel are permitted on the girder during operation, nor may the hook be used to transport persons
-
Operation is prohibited without a valid operator's license or under the influence of alcohol.
-
Operators must maintain full concentration during operation; talking, smoking, or engaging in unrelated activities is strictly forbidden.
-
Keep the crane clean and tidy; do not store equipment, tools, flammable materials, explosives, or hazardous substances haphazardly.
-
Do not overload the crane.
-
When operating along obstacle-free paths, the hook, lifting device, or bottom surface of the load must remain at least 2 meters above ground level. When crossing obstacles, the load must clear the obstacle by at least 0.5 meters
-
For loads under 50% of rated capacity, both lifting mechanisms may operate simultaneously. For loads exceeding 50% of rated capacity, only one mechanism may operate.
-
.For bridge cranes equipped with main and auxiliary hooks, do not simultaneously raise or lower both hooks (except under special circumstances).
-
Welding or hammering on suspended loads, or working beneath suspended loads, is prohibited (except when properly supported).
-
Inspection or maintenance work may only be performed after power has been disconnected and a “Do Not Operate” sign is displayed on the power switch. If live work is unavoidable, implement safety measures and assign dedicated supervision.
-
Do not throw objects from the vehicle indiscriminately.
-
Regularly inspect limit switches and interlock protection devices.
-
Do not use limit switch impact as a stopping method.
-
Do not lift or lower loads when hoist brakes malfunction.
-
Do not operate the hoist above personnel or equipment.
-
When welding any part of the crane, use a dedicated ground wire; do not use the crane body as a ground.
-
When the hook is at its lowest position, ensure at least two full turns of safety rope remain on the drum.
-
Cranes must not collide with each other; using one crane to push another into operation is strictly prohibited.
-
When lifting heavy objects, molten metal, explosives, or hazardous materials, first slowly raise the load 100–200 mm off the ground to test brake reliability.
-
Maintenance and inspection lighting must operate at voltages below 36V.
-
All electrical equipment enclosures on bridge cranes must be grounded. If trolley rails are not welded to the main girder, grounding measures must be implemented. Grounding conductors may use galvanized flat iron with a cross-sectional area exceeding 75mm², bare copper wire of 10mm², or galvanized round steel exceeding 30mm². The operator's cab or crane body shall have more than two grounding points. The grounding resistance from any point on the crane to the power supply neutral point shall be less than 4Ω.
Directly state your needs and receive professional advice!
30 Years of Lifting R&D, Following Strict European Standards, Intelligent
Empowerment
for Heavy Loads, Providing Global Safe & Excellent Solutions
The project was delivered on time and landed safely
China's premier crane supplier, driving high-quality development in the crane industry for 24 years
Improve efficiency
Break through operational bottlenecks and improve overall project progress efficiency
Avoiding risks
Build a solid safety line and avoid potential risks of high-risk operations
Delivery
Adapt to diverse working conditions and ensure stable project implementation and delivery
