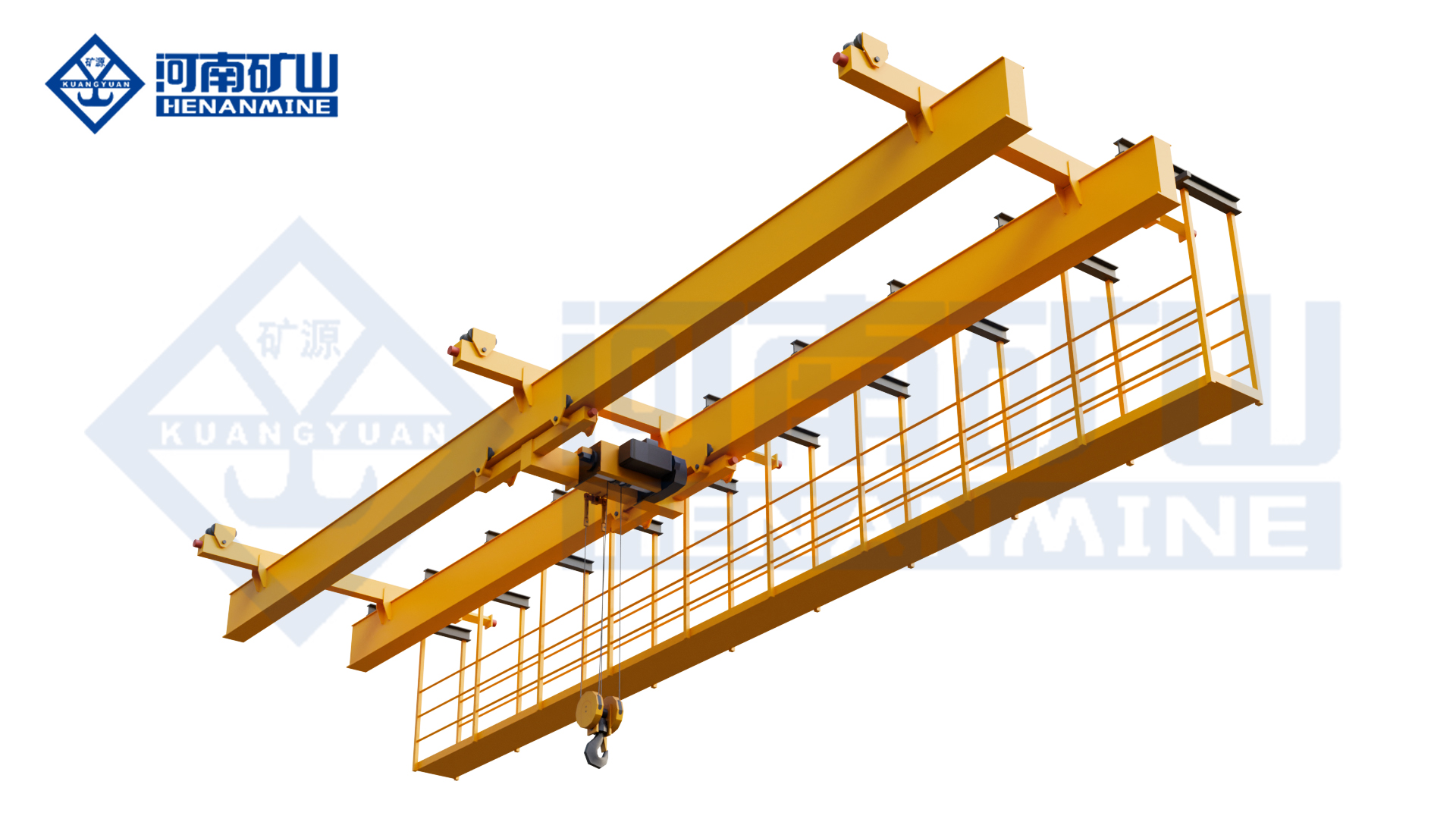

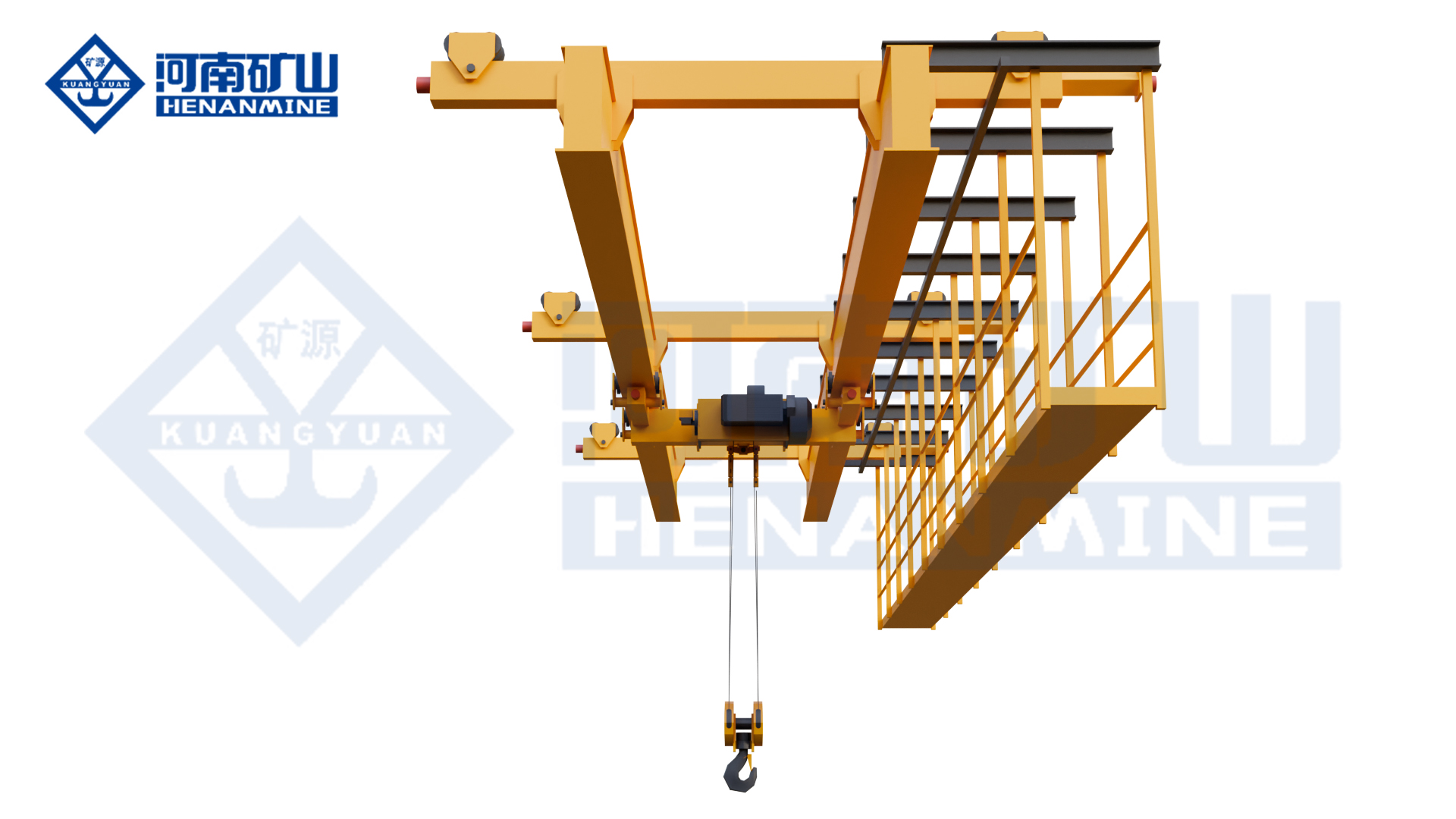

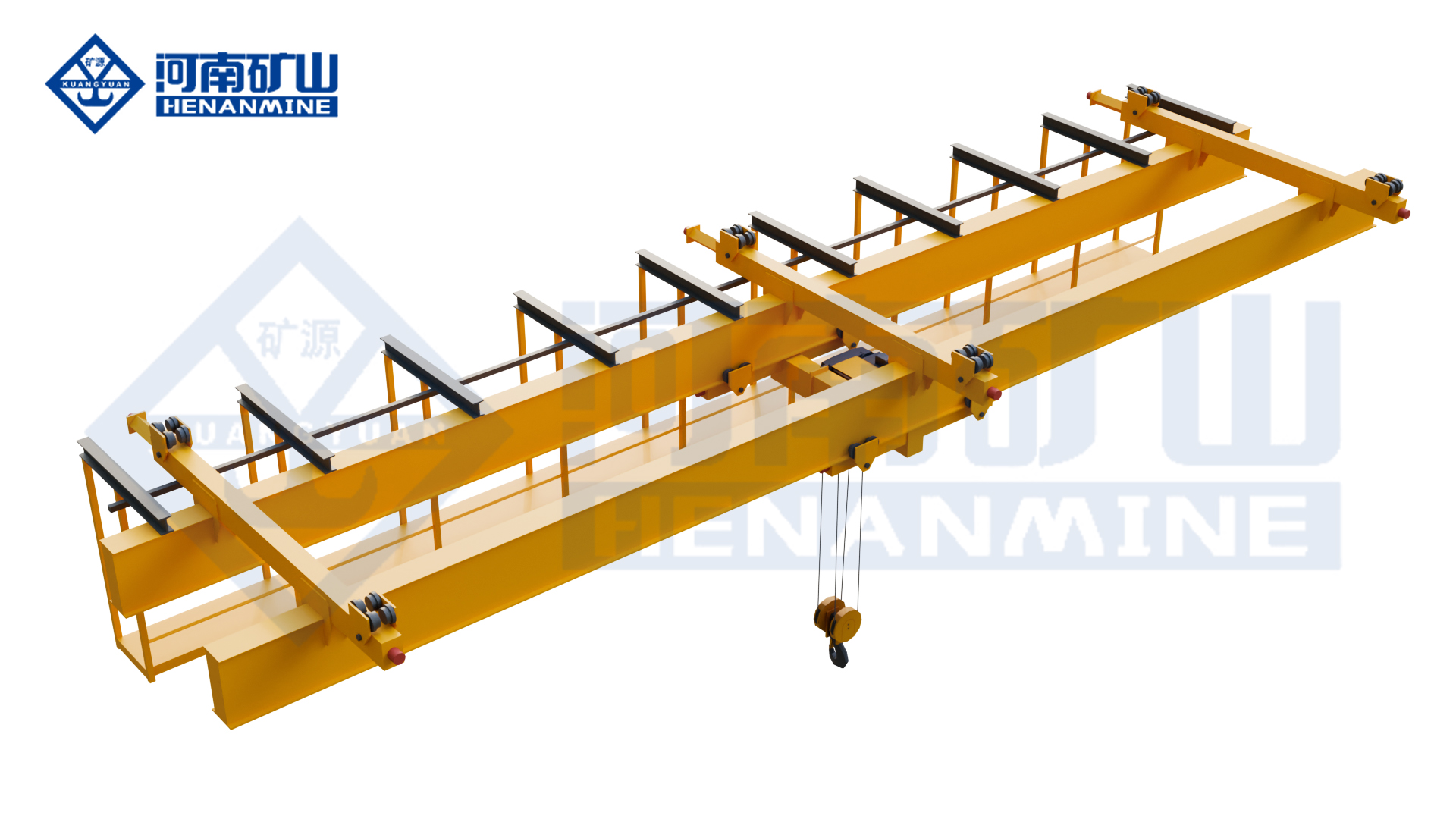

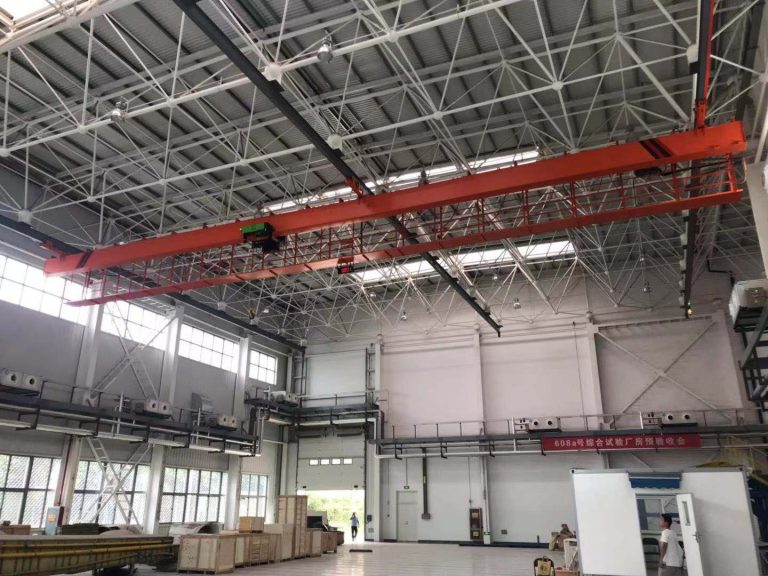

Multi-Support Double Girder Underhung Crane
Henan Mine Crane multi-pivot electric double girder suspension crane is designed for large-span industrial plants, warehouses, aircraft manufacturing plants, aircraft maintenance workshop to create a special suspension lifting equipment, working level A3-A5, can complete the lifting of large components, precision assembly, equipment maintenance, material transfer the whole process of operations!
Lifting Capacity
3t - 40t or Customized
Crane Span:
10 - 80m or Customized
Lifting Height
6m-30m or Customized
Working Class
A3 - A5 or Customized
Power Supply
220-690V, 50/60Hz
Hoisting Speed
0.5 - 16m/min
Parameters of Multi-Support Double Girder Underhung Crane Manufactured by Henan Mine Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
| Parameter | Specification | Unit | Remarks |
| Rated Lifting Capacity | 3 – 40 | t | Customizable |
| Span | 10 – 80 | m | Max up to 80m for extra long span |
| Lifting Height | 6 – 30 | m | Customizable |
| Working Class | A3 – A5 | – | Medium duty for assembly & maintenance |
| Hoisting Speed | 0.5 – 16 | m/min | Frequency conversion adjustable |
| Trolley Travel Speed | 2 – 20 | m/min | Stepless speed regulation |
| Crane Travel Speed | 5 – 60 | m/min | Frequency control, smooth running |
| Suspension Type | Multi-Support (Multi-Rail) Ceiling Suspended | – | Fully ceiling mounted, no ground support |
| Structure Type | Double Girder Underhung | – | High rigidity, anti-sway |
| Protection Level | IP54 | – | Dust-proof & splash-proof |
| Power Supply | 220-690V, 50/60Hz | V | Customizable for global market |
| Material | High-Strength Lightweight Steel | – | Ultrasonic welding testing |
| Certification | ISO, CE, FEM | – | Direct export without modification |
| Control Mode | Wireless Remote / Cabin Control | – | Optional dual control |
| Type Test Code | LHDX | – | Electric Hoist Bridge Crane |
| Application | Aircraft Mfg, Large Span Workshop, Hangar | – | Mainly for extra long span scenarios |
Product Introduction of Henan Mine Crane Multi-Support Double Girder Underhung Crane
1. Product core positioning and design standards
Henan Mine Crane multi-pivot electric double girder suspension crane core positioning: for the world’s large-span plant, aircraft manufacturing / maintenance, aerospace assembly and other scenarios to provide ground zero occupation, low roof load, modular and scalable exclusive suspension lifting solutions. It is suitable for all kinds of large-span industrial scenes in the world.
2. Core structure and functional design
- Full-roof suspension and multi-point load equalization structure: the track and the machine are completely suspended under the roof, no ground legs, no ground track, 100% no obstruction on the ground, the production line layout, material stacking, and personnel passage are completely free; the multi-point (multi-rail) load equalization design is adopted to evenly disperse the load, significantly reduce the load of the equipment on the roof structure of the plant, effectively reduce the height of the building, and save the cost of civil engineering of the plant.
- Modular and flexible design: the whole machine is modularized, and the number of pivot points, span and lifting capacity can be extended as required, and the lifting system can be easily modified in the later stage to meet the needs of new layout and new capacity of the workshop without the need for overall replacement of the equipment, so that the extension cost is lower and the modification is faster.
- Double-beam stability and precise control: double-beam rigid structure, running smoothly without shaking, with frequency conversion speed control system, lifting, traveling speed stepless adjustment, accurate positioning, suitable for precision assembly of aircraft parts, large-scale equipment overhaul and other high-precision operations; power supply is stable, no chewing rails, no risk of derailment.
- Lightweight and safety protection: the lightweight and high-strength design of the fuselage reduces the load-bearing pressure on the roof; it is equipped with full-dimensional safety devices such as travel limit, anti-derailment, overload protection, emergency stop, etc., which ensures the safety of aerial suspension operations and conforms to the global industrial safety norms.
- Global customization: Customized span (up to 80m), lifting capacity (3t-40t), number of pivot points, control mode (remote control/cab), and power supply 220V-690V/50-60Hz to meet the specifications of power grids and workshops in different countries around the world.
3. Core product advantages
- The ground is completely unoccupied: full-roof suspension, no ground support structure, releasing 100% of the ground space, maximizing the utilization rate of the workshop, especially suitable for aircraft manufacturing, large-span assembly workshop.
- Reduce the cost of plant construction: Multi-point load equalization reduces the load on the roof, which can reduce the height of the building and the structural strength requirements, and save a large amount of civil construction and infrastructure investment.
- Modular and easy to expand: standardized modular design, flexible transformation and expansion in the later stage, adapting to the workshop layout adjustment and capacity upgrading, with higher cost-effectiveness in the whole life cycle.
- Long span adaptability: the maximum span can reach 80m, a perfect solution to the industry pain point that traditional cranes can not cover large-span workshops.
- Stable and safe operation: double girder structure + multi-pivot support + multiple safety protection, stable, safe and reliable operation, suitable for precision assembly and continuous operation.
- Global export compliance: ISO, CE, FEM certified, can be exported directly without modification, provide a full set of technical data in English, and assist in customs clearance.
4. Global Adaptation and Application Scenarios
- Core scenarios: aircraft manufacturing plants, aircraft maintenance hangars, aerospace assembly workshops, large-span machining plants, special assembly warehouses.
- General scenarios: ultra-long span logistics warehouse, high-speed railroad overhaul workshop, ship segment assembly workshop, large equipment maintenance workshop.
- Environmental adaptation: stable operation in -25℃~+40℃ environment, clean workshop can be upgraded with silent and dustproof configuration.
5. Global exclusive supporting services
- Provide a full set of technical data, installation drawings, operation and maintenance manuals in English/Spanish/Arabic/Russian to meet global equipment access requirements.
- 7 × 24 hours remote video installation and commissioning, door-to-door installation and training, cost transparency.
- Global core regional equipment parts library, 72-hour delivery of conventional spare parts, multi-language after-sales support.
What Can Henan Mine Crane Multi-Support Double Girder Underhung Crane Offer You?
| Value Category | Specific Benefits | Description |
| Floor Space Utilization | 100% Floor Clearance | Fully ceiling-suspended, no ground supports or tracks, total freedom for production layout & traffic |
| Construction Cost Saving | Reduce Building Cost | Multi-support load distribution lowers roof structure pressure & building height, cut construction investment |
| Span Adaptability | Extra Long Span Available | Max span up to 80m, ideal for large-span workshops & aircraft manufacturing facilities |
| Flexibility | Modular & Retrofittable | Modular design, easy to upgrade or retrofit for new workshop layout & production needs |
| Operation Stability | Double Girder & Smooth Running | Dual-beam structure, multi-support, anti-sway, frequency control for precise & stable lifting |
| Safety Performance | Comprehensive Safety Protection | Limit switch, derailment protection, overload protection, emergency stop for safe suspension operation |
| Global Adaptability | International Certification | ISO/CE/FEM certified, customizable voltage 220-690V 50/60Hz, direct global export |
| Load Capacity | Wide Lifting Range | Rated capacity 3-40t, customizable for aircraft parts, large components & equipment maintenance |
| Maintenance | Easy Maintenance | Modular structure, standard parts, low failure rate, global spare parts supply |
| Working Environment | Wide Temperature Adaptation | Working temperature -25℃~+40℃, suitable for global workshops & hangars |
| Expansion | Easy System Upgrade | Retrofit lifting system without replacing the whole crane, lower upgrade cost |
Parameters of Multi-Support Double Girder Underhung Crane
|
Capacity |
T |
32/10 |
||||||
|
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Lifting height |
m |
9/12/16/24 |
||||||
|
Lifting speed |
m/min |
3(3/0.3) or7(7/0.7） |
||||||
|
Trolley travelling speed |
m/min |
20 |
||||||
|
Crane travelling speed |
m/min |
20 |
||||||
|
Total weight |
kg |
12530 |
14660 |
16360 |
18870 |
21650 |
24260 |
27060 |
|
Max. Wheel load |
KN |
167 |
184 |
196 |
206 |
215 |
224 |
233 |
|
Rail recommended |
Model |
43kg/m |
||||||
|
Total motor power |
kw |
20 |
||||||
|
Main dimension (mm) |
Span(m) |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Rail top to crane top |
H |
1900 |
||||||
|
Rail top to hook center |
H4 |
-700 |
||||||
|
Crane base distance |
W |
1600-2500 |
||||||
|
Crane width |
B |
5070-5960 |
5572-6222 |
|||||
|
Trolley rail distance |
K |
1600-2550 |
||||||
|
Hook left limitation |
S1 |
1100 |
||||||
|
Hook right limitation |
S2 |
1600 |
||||||
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 100T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Details of the Multi-Support Double Girder Underhung Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
What industries are the Multi-Support Double Girder Underhung Crane suitable for?
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
-
Heavy Equipment Manufacturing WorkshopMulti-point double girder suspension traveling crane with balanced force structure, adopts top suspension installation, does not occupy the ground working space, and is suitable for the smooth lifting and transferring of heavy parts and large equipment components.
-
Steel Structure Processing PlantMulti-point double girder suspension traveling crane is suitable for large-span and multi-span continuous plant, with uniform force distribution and effective reduction of beam deformation, and is used for daily transportation of all kinds of steel profiles, steel components and semi-finished workpieces.
-
Complete set of equipment assembly workshopMulti-point double girder suspension traveling car runs on the top track without site limitation, synchronized and independent operation in multiple areas without interfering with each other, meets the parts and components, machine accessories lifting in different areas, and improves the assembly efficiency.
-
Large mold processing workshopMulti-point double girder suspension traveling crane has strong load bearing capacity of double girder bearing structure, smooth running brake and accurate positioning, suitable for disassembling and assembling of heavy-duty molds, jigs and fixtures, shifting and warehousing turnover operations.
-
Wind power and hydropower supporting plantMulti-point double girder suspension traveling crane is customized for the abnormal shaped workshop and old renovation workshop, covering the whole area without dead angle, and easily completing the lifting and transferring of super-long and large abnormal shaped parts.
-
Mechanical equipment maintenance workshopMulti-pivot double girder suspension traveling crane has no column obstruction, open access to the workshop, and multi-pivot buffer design for stable operation, which is convenient for large-scale mechanical equipment dismantling, overhauling, installation and other lifting operations.
-
Mechanical parts processing plantMulti-point double girder suspension traveling crane is suitable for long and narrow workshop, narrow production section, flexible installation to adapt to the transformation of the old plant, and efficiently complete the cycle of rough parts, processed workpieces, finished products and materials transfer.
-
Metallurgy and chemical industry supporting sectionMulti-point double girder suspension traveling crane is equipped with anticorrosive and dust-proof configuration, adapting to the harsh working conditions of high dust and humidity, and suspended closed operation, which can stably meet the needs of high-frequency lifting and transportation of industrial and mining fittings and heavy consumables.
-
Large industrial storage warehouseMulti-point double girder suspension traveling crane maximizes the use of space on the top of the plant, releases the ground access and stacking area, covers the warehouse area with a large span, and realizes the regular stacking of heavy goods, in and out of the warehouse transfer.
