Multi-Point Suspension Crane

Henan Mine Crane LXD type electric single girder suspension crane is a special suspension lifting equipment specially developed for large-span operation scenes, for the electric single girder suspension crane high-end customized models, the equipment relies on multi-pivot (multi-rail) suspension design and three-in-one synchronous drive system to achieve load uniformity and dispersion, the whole machine.

The equipment relies on multi-point (multi-track) suspension design and three-in-one synchronous drive system to achieve uniform load dispersion, stable operation of the entire machine, with vertical lifting, longitudinal and transverse three-dimensional movement, can be realized in the large-span industrial environment of the material and equipment intermittent, repetitive loading and unloading handling, Henan Mine Crane in the field of large span lifting of the core products.

This large-span suspension crane continues the Henan Mine Crane manufactured hard core and scene customization advantages, the core solution to the conventional suspension cranes in the large-span scene of the roof bearing pressure, beam deformation and vibration, plant construction costs are high three major pain points, and the large-span crane is suitable for overseas aircraft manufacturers, aircraft manufacturers, and aircraft manufacturers.

Suitable for overseas aircraft manufacturing plants, aircraft maintenance workshops, large heavy assembly plants, ultra-wide storage centers and other large-span operation scenes.

The whole machine adopts lightweight and high-strength structural design, and the core parts are selected from international standardized models, which are compatible with overseas common parts specifications, significantly reducing the subsequent maintenance and spare parts replacement costs;

At the same time, it is equipped with three-in-one drive system to realize precise and synchronized operation of each suspension point, which fully meets the medium and high intensity operation requirements of large-span scenarios, and is a cost-effective solution for material lifting in large-span factories.

Multi-point electric single beam suspended crane

1. Product core positioning and design background

The core positioning of LXD type multi-pivot electric single girder suspension crane is to solve the problem of lifting and transportation and infrastructure costs of large-span plant, in view of the conventional suspension cranes in large-span scenes above 10m, easy to appear in a single point of the roof load is too large, the beam deformation and vibration, and need to be raised and strengthened plant resulting in soaring infrastructure costs of the industry pain points, Henan Mining through the multi-pivot decentralized operation of the single girder suspension crane is a cost-effective solution.

Henan Mine Crane is able to adapt to 10m-60m large-span operation scenarios through multi-pivot point load dispersion and lightweight structural design, and at the same time, there is no need to over-reinforce the roof of the factory building, no need to raise the height of the building, which greatly saves the cost of factory building construction and renovation of overseas customers, and it has already become the standard lifting equipment for overseas aviation manufacturing, large-scale heavy industry and other industries.

2. Core structural design

The whole structure of the machine is designed around the core requirements of large span, decentralized load, stable operation, modular assembly structure, the core consists of three key parts, the structure of the synergy to achieve efficient and safe lifting of large-span scenarios:

2.1 Suspension bearing structure: adopting multi-pivot point (multi-rail) suspension design, the number of pivot points can be customized according to the span, and the weight of the whole machine and load will be evenly dispersed to the roof of the plant through multiple suspension points, which greatly reduces the pressure on the roof of a single point.

2.2 Driving and operating mechanism: the standard three-in-one driving system is integrated in the running end beam of each suspension point, which realizes the synchronous start-stop and synchronous operation of all suspension points through precise synchronous control technology, completely avoiding the problems of main beam jamming and deflection caused by unsynchronized pivot points in the large-span operation, and the stability of the operation is far more than that of the conventional driving system;

2.3 Lifting mechanism: equipped with customized electric hoist lifting mechanism, seamless connection with the main beam, according to the lifting needs of different lifting capacity of the optional hoist, with vertical lifting and trolley transverse movement function, flexible operation, suitable for large-span plant in the multi-area lifting needs, the hoist protection level is suitable for the industrial operating environment, can be a long time and stable operation.

Large span suspended crane for factory

3. Core product advantages (fit the needs of overseas super-large-span plant, different from conventional suspension cranes)

As a multi-pivot distributed load suspension crane specially designed for large-span scenarios, its core advantages revolve around large-span adaptability, structural safety, cost savings, and stable operation, which is perfectly suited to the operation and procurement pain points of overseas aerospace manufacturing, large-scale heavy industry and other customers, and is also the core highlights that differentiate it from the conventional electric single girder suspension cranes:

3.1 Multi-pivot point load dispersion, reduce roof pressure, improve structural safety: the core design highlights of multi-pivot point (multi-rail) suspension, through multiple suspension points will be evenly dispersed load, single-point pressure compared to conventional single-pivot suspension cranes reduced by more than 60%, no need to do additional reinforcement of the plant roof, significantly reducing the risk of damage to the roof structure, while the main beam force uniformity, and effectively reduce the deformation and vibration of the beam, the safety of equipment operation and service life significantly reduced. At the same time, the main beam is subjected to uniform force, which effectively reduces the deformation and vibration of the beam, and greatly improves the safety and service life of the equipment;

3.2 Three-in-one drive system, high synchronization of each pivot point, more stable operation: equipped with the industry’s high-end three-in-one drive system, with accurate synchronization control technology, to achieve the complete synchronization of all suspension points, no jamming, no deflection, no jitter, even in the 60m large span, the whole machine is still running smoothly, to completely solve the problem of poor synchronization of the conventional drive system in large-span scenarios, and to enhance the efficiency and safety of the lifting. efficiency and safety;

3.3 Lightweight design, reduce building height, save large amount of plant costs: the machine adopts high-strength lightweight structure design, self-weight is 20% lower than the same span of conventional cranes, and at the same time, the multi-pivot suspension design does not need to additionally raise the height of the main beam mounting, which effectively reduces the building height of the plant, and according to the actual calculations, it can save more than 30% of the cost of construction and renovation of the plant for overseas customers, and it is the cost optimization choice for the large-span plant. It is a cost optimization choice for large-span factory buildings;

3.4 Modular assembly, strong adaptability, customizable fulcrum and span: the whole machine is modular assembly structure, the number of suspension fulcrum, main beam span, lifting weight can be customized according to the actual size of the customer’s plant and lifting needs, from 10m conventional large span to 60m extreme large span can be adapted to the same time, and according to the operating scenarios can be equipped with explosion-proof, dust-proof, and other customized design, to meet the needs of different industries overseas. The product can also be customized according to the operation scenario, such as explosion-proof and dust-proof.

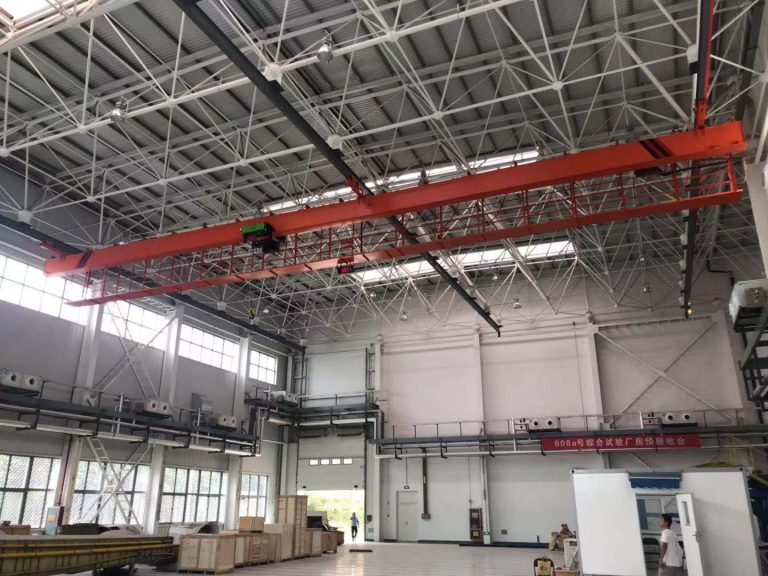

Multi-pivot suspension traveling

4. Overseas adaptability and core application scenarios of the product

4.1 Core application scenarios: This special suspension crane for aircraft manufacturing plants is widely used in various types of overspan industrial scenarios overseas, including aircraft manufacturing plants, aircraft maintenance workshops, large-scale heavy assembly workshops, ultra-wide steel structure plants, large-scale warehousing centers, ship segment processing workshops, etc., and it can be responsible for lifting, loading and unloading, and shifting of aircraft parts, large-scale heavy equipment, steel structure parts, oversized goods, etc;

4.2 Overseas standards and grid adaptation: the products comply with China’s national crane industry standards, core accessories and international common specifications are compatible, without additional modifications can be adapted to overseas countries lifting equipment operating specifications; power supply parameters to support customization (220V-660V/50Hz/60Hz), can be perfectly adapted to the North America, Europe, Southeast Asia, the Middle East and other overseas different regions of the power grid requirements, to completely solve the problem of power incompatibility. It can completely solve the problem of incompatibility of power supply;

4.3 Overseas Environment Adaptation: The surface of the whole machine is professionally treated with anti-rust, anti-corrosion and anti-dust treatment, which can be adapted to different operating environments such as high humidity, coastal salt spray and high dust in the workshop overseas, greatly enhancing the service life of the equipment, and reducing the incidence of failures in the harsh overseas environments;

4.4 Installation and Layout Adaptation: The equipment is of modular assembly design, with light weight and simple assembly, which can be adapted to the overall layout of overseas large-span plants, and can be installed without large lifting equipment, and can be assembled with small lifting equipment only, which can greatly reduce the difficulty and cost of installation at overseas sites.

5. Overseas exclusive supporting services

Henan Mine Crane, as a professional manufacturer of suspension cranes, provides a full range of supporting services for overseas customers, completely eliminating the concerns of overseas procurement, so that customers can buy with confidence and ease of mind: 5.1 Data support: provide a full set of English technical data, including installation drawings, operation manuals, maintenance manuals, parts manuals, all signs and instructions are bilingual, so that it is convenient for overseas customers to access and use;

5.2 Installation guidance: Equipped with 724-hour overseas remote video installation guidance, technicians to answer questions in the installation process in real time, can also be arranged according to customer demand for professional and technical personnel to install, the cost is transparent and negotiable;

5.3 Spare parts guarantee: there are spare parts agents in Malaysia, Germany, Russia and other overseas core regions, three-in-one drive, suspension pivot accessories, electric hoists and other commonly used wearing parts are in stock, and can be shipped to the neighboring countries within 72 hours after the order is placed by the overseas customers, to ensure that the spare parts are supplied in a timely manner;

5.4 After-sales technology: the opening of 724-hour English after-sales hotline, overseas customers can consult any equipment problems at any time, the technical staff can provide remote fault diagnosis and solutions, complex faults can be arranged for overseas network personnel to deal with door-to-door, to minimize the loss of downtime.
