European Single Girder Gantry Crane

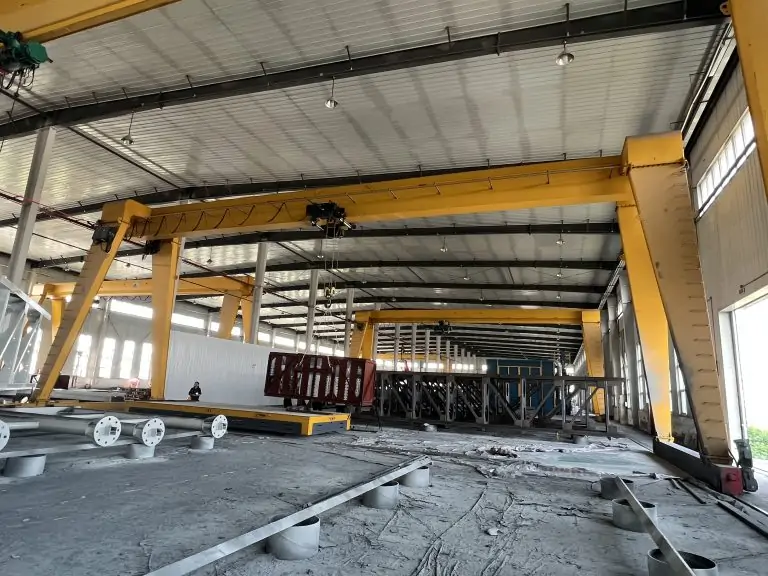

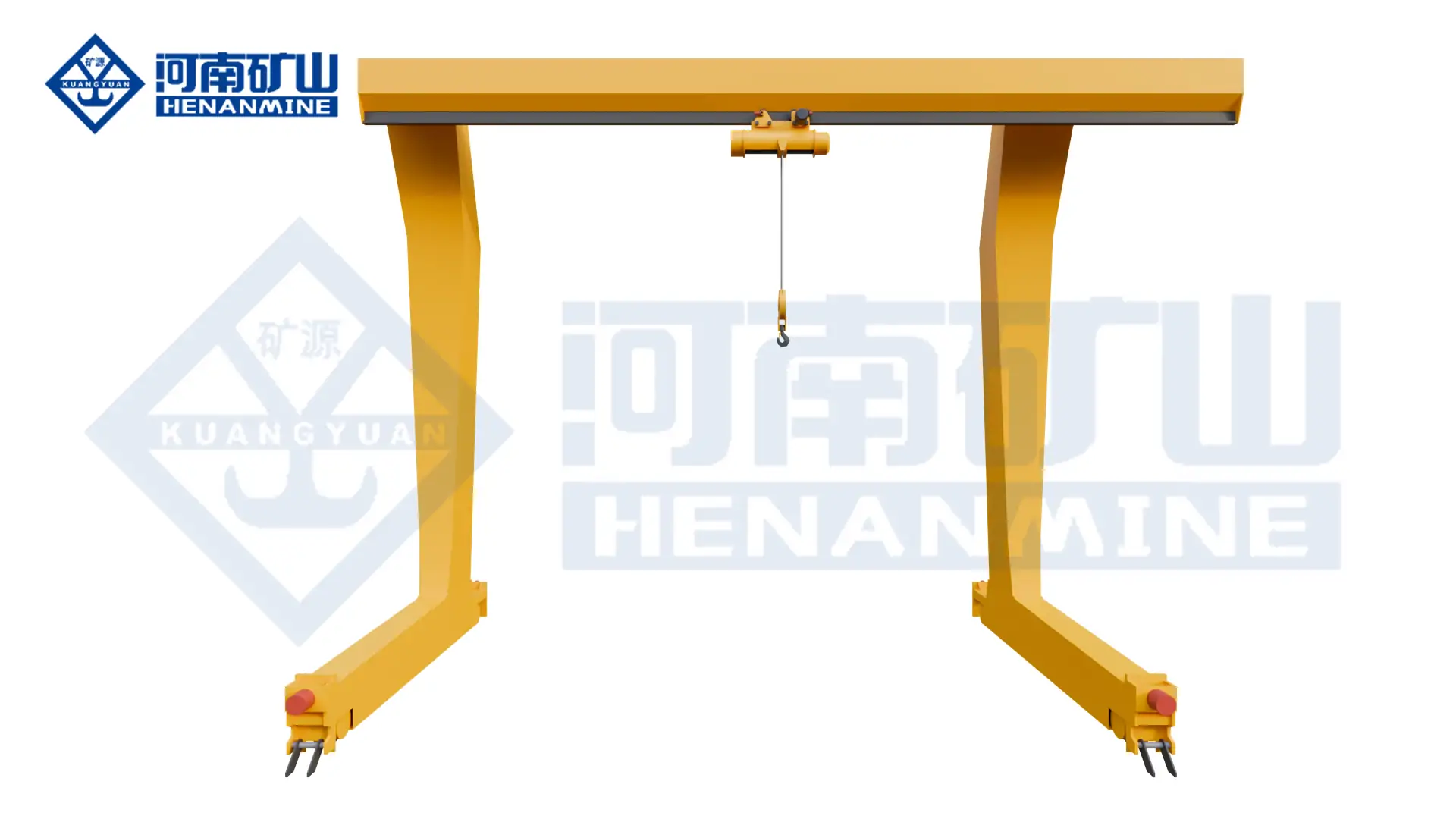

Henan Mine Crane The new electric hoist gantry crane, using European-style electric hoist for the hoisting mechanism, supported by both sides of the outriggers running on the ground track, can complete the vertical lifting of materials, longitudinal and lateral movement, pick-up device to support hooks, grabs, electromagnetic suction cups a variety of configurations, the outriggers can be cantilevered to expand the scope of operation, Henan Mine Crane fusion of European design, to create a new generation of explosive gantry lifting products.

This new electric hoist gantry crane for global material handling scenarios to do a comprehensive upgrade: support for handle buttons, wireless remote control multiple modes of operation, easy and flexible control!

90% of the core precision castings and high-end drive components produced independently, modular design allows couplings, wheels and other core components can be quickly replaced; lightweight design of the entire machine, with low noise, low energy consumption, smooth operation characteristics, to achieve the heavy load slow speed, light load fast intelligent speed regulation, energy saving and consumption reduction effect is outstanding.

The equipment is suitable for all kinds of conventional material handling needs, mature manufacturing process, lower operation and maintenance costs, is the first choice for upgrading lifting equipment in the global workshop, yard, warehousing, building materials market and other scenarios.

1. Product core positioning and design standards

KSMH new electric hoist gantry crane core positioning: to provide customers around the world with European-style upgrades, modular, energy-saving and lightweight new generation of general material handling gantry lifting solutions.

2. Core structure and functional design

1. Multi-mode intelligent control system: support handle button control + wireless remote control dual mode of operation, can be accurately operated in close proximity, long-distance flexible operation, simple operating logic, adaptable to different operating habits and scene requirements.
2. Self-produced core components: 90% of precision castings and high-end drive components are produced independently, with high precision, good matching and strong stability, which guarantees the reliability of equipment operation and reduces the failure rate from the source.

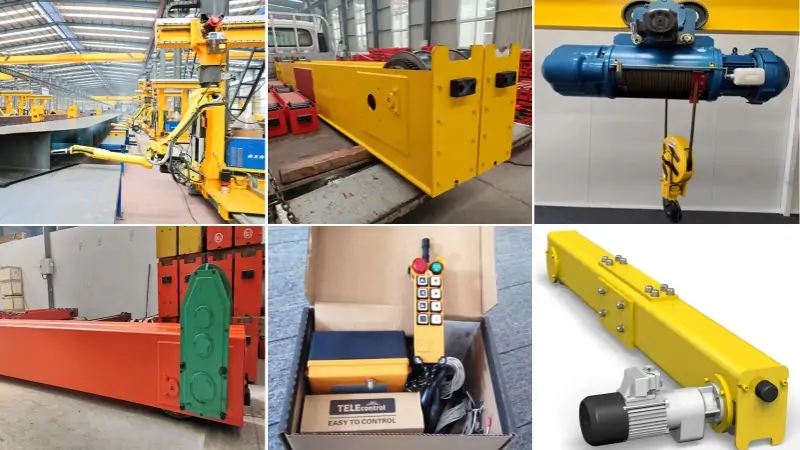

3. Modular quick-change structure: the whole machine adopts modular integrated design, and the core components such as couplings, wheels and electric hoists can be independently disassembled and quickly replaced, which significantly shortens the maintenance time and reduces the loss of downtime.

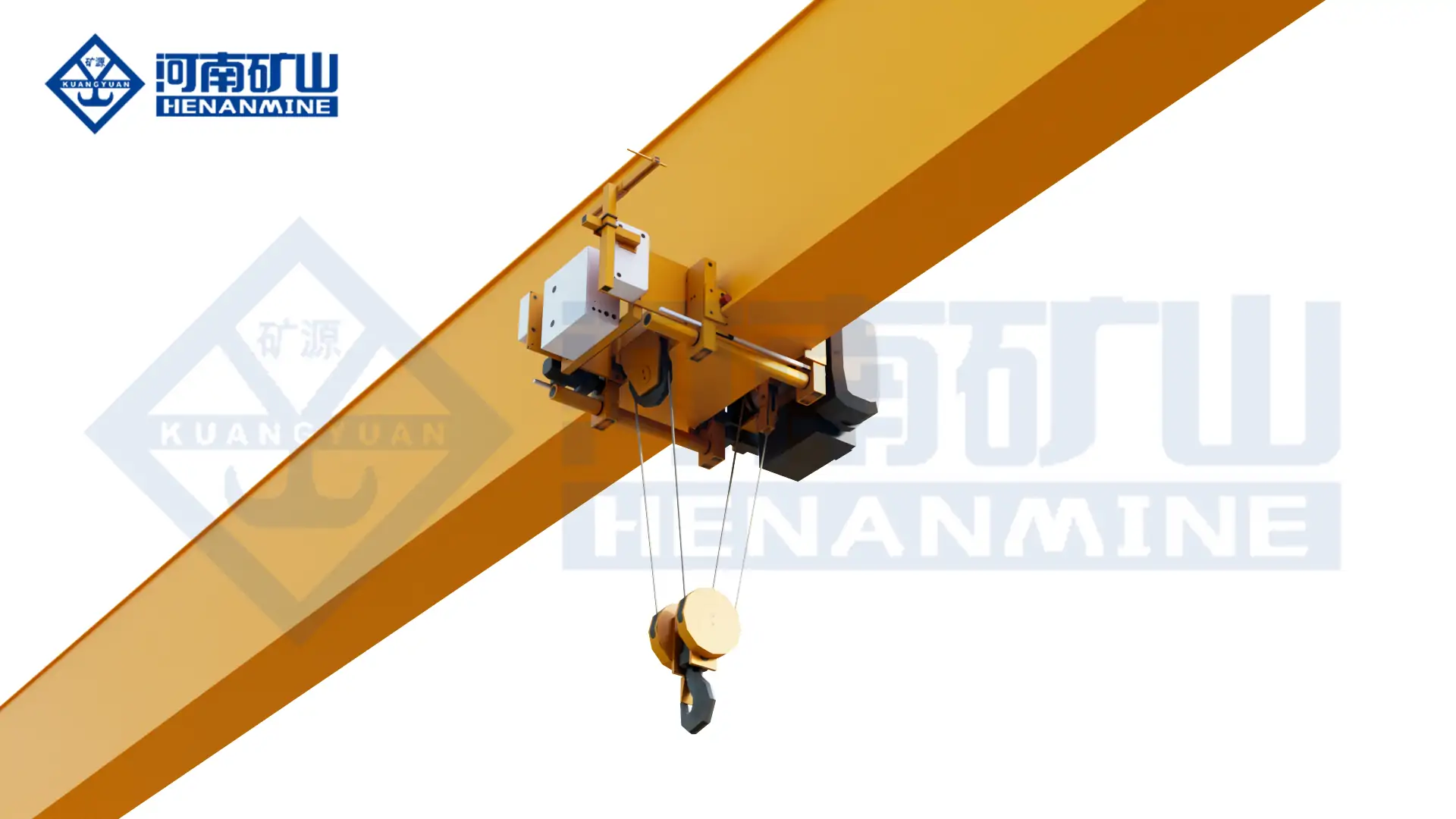

4. Lightweight and energy-saving body: European optimized lightweight structure design, lighter weight, less wheel pressure, with intelligent speed control system, to achieve heavy load slow speed, light load fast, smooth operation, low noise, energy consumption is greatly reduced.
5. Multi-purpose pick-up device: flexible selection of hooks, grabs, electromagnetic suction cups, hooks for lifting miscellaneous goods, grabs for loading and unloading bulk materials, electromagnetic suction cups for handling steel, a machine to adapt to the whole range of conventional material operations.
6. Flexible cantilever configuration: the outboard side of the outrigger can be configured with cantilever structure, realizing trans-inside to trans-external operation and expanding the handling range; the cantilever can also be canceled, adapting to the narrow operating space and stronger site adaptability.


3. Core product advantages

1. Flexible and easy to operate: dual operation modes can be selected, wireless remote control to get rid of the cable bondage, wider operating range, ordinary workers quickly master the operating skills.
2. Reliable self-produced core components: 90% of the core components are independently developed and produced, with high precision, long service life, good matching, and long-term stability of equipment operation.
3. Modularized quick-change and easy maintenance: the core components are modularized, easy to replace, no need to disassemble the whole machine, low maintenance difficulty, low cost and high efficiency.
4. Lightweight energy saving: European lightweight design + intelligent speed control, low noise, low energy consumption, heavy load stable, light load fast, long-term use to save a lot of electricity costs.
5. Global adaptability and easy export: support international certification, global grid customization, European design compatible with global habits, can be directly exported around the world.

4. Global Adaptation and Application Scenarios

• Application Scenarios: Global machining workshops, logistics and storage parks, building materials processing plants, outdoor yards, steel markets, small ports, etc., used for loading and unloading, handling and shifting of conventional materials such as steel, components, packing boxes, bulk materials, finished equipment, and so on.
• Standard Adaptation: Support CE, ISO9000, GOST, FEM and other international certifications, power supply 220V-660V/50-60Hz fully customized, adapted to global power grid standards.
• Environment: rainproof, dustproof, weatherproof, stable operation in indoor workshop, outdoor open air, high dust environment, coastal salt spray environment can be upgraded with anticorrosion.


5. Global exclusive supporting services

• Provide a full set of technical data, installation drawings, operation manuals, modular parts replacement guide in English/Spanish/Arabic.
• 7×24 hours global remote video installation and debugging guidance, lightweight structure, easy to install, fast assembly
• Equipment parts centers in Germany, the United States, Malaysia, the United Arab Emirates, self-produced core components 72 hours of rapid global delivery, the original quality assurance
• Multi-language after-sales hotline, professional new gantry crane engineers remote troubleshooting, energy-saving system maintenance guidance.
