Double girder electric hoist gantry crane
Henan Mine Crane Double Main Girder Electric Hoist Gantry Crane is a heavy-duty general-purpose gantry crane developed in strict compliance with the standard of electric hoist gantry crane, with high-quality electric hoist as the hoisting mechanism, double main girder box structure and bilateral outrigger support design, can complete the vertical lifting and lowering of the material, longitudinal and lateral movement.
Lifting Weight:
3t - 50t or customized
Span Length
7.5m - 35m or customized
Lifting Height
4m - 30m or customized
Work Class
A3 - A5
Power Supply
380V/50Hz; 220-660V/50-60Hz
Parameters of the Double girder electric hoist gantry crane Manufactured by Henan Mine
China's premier crane supplier, driving the crane industry forward for 24 years
| Parameter | Specification | Remarks |
| Type | MHS | Type test specification |
| Product Name | Electric Hoist Gantry Crane | Type test product name |
| Rated Lifting Capacity | 3t – 50t | Customizable for heavy load |
| Span | 7.5m – 35m | Customizable for yard/port |
| Lifting Height | 4m – 30m | Higher with sitting type hoist |
| Working Class | A3 – A4 | Conventional heavy duty intermittent operation |
| Structural Form | Double girder, outriggers with/without cantilever | Higher rigidity & stability |
| Lifting Mechanism | Special electric hoist (sitting type trolley) | Higher lifting height |
| Operation Mode | Pendant control / remote control / cabin control | Optional |
| Power Supply | 380V/50Hz; 220-660V/50-60Hz | Global power grid customizable |
| Protection Level | IP54 | Dustproof, rainproof |
| Application | Heavy load & large span material handling | Workshop, port, steel yard, warehouse |
| Certification | National crane standard | Assist CE/ISO9001/GOST/FEM application |
Henan Mine Crane Double girder electric hoist gantry crane Product Introduction
Henan Mine Crane Double Main Girder Electric Hoist Gantry Crane is a heavy-duty general-purpose gantry crane developed in strict compliance with the standard of electric hoist gantry crane, with high-quality electric hoist as the hoisting mechanism, double main girder box structure and bilateral outrigger support design, can complete the vertical lifting and lowering of the material, longitudinal and lateral movement.
Outriggers can be cantilevered to expand the operating range, can also be designed without cantilever, suitable for heavy-duty, large-span material handling needs, Henan Mine Crane for heavy-duty handling scenarios to create a cost-effective double girder gantry lifting main products.
This double girder electric hoist gantry crane for the global heavy-duty operation scenarios to do special optimization: double girder structure compared to the single girder hoist gantry bearing stronger, more stable operation;
Sitting hoist running trolley, higher lifting height than directly suspended hoist; electric hoist as the hoisting mechanism, compared with the winch mechanism double girder gantry, lower procurement costs, routine maintenance is easier, is the preferred double girder gantry lifting solutions for global heavy-duty material handling.
1. Product core positioning and design standards
The core positioning of MHS double girder electric hoist gantry cranes is to provide customers around the world with double girder gantry lifting solutions that are heavy-duty and stable, with high lifting capacity and low cost and easy maintenance. Designed in line with China’s national industry standards for electric hoist gantry cranes, synchronized with the international FEM, EU CE, ISO standards, for the four core pain points of “heavy-duty load bearing, large-span stability, high lifting requirements, low maintenance costs”, the use of double girder rigid structure and sit-down electric hoist configuration to meet the regular heavy-duty intermittent operations, suitable for the global indoor workshop, high lifting requirements, and low cost and easy maintenance. It is suitable for indoor workshops, outdoor yards, port terminals and other heavy-duty handling conditions around the world.
2. Core structure and function design
- Heavy-duty structure of double main girder: Adopting rigid design of double main girder box, with even load distribution, strong bending and torsion resistance, compared with single girder hoist gantry, the carrying capacity and stability are greatly improved, and there is no obvious deformation and shaking during heavy-duty operation, so it is suitable for large-tonnage material lifting.
- Sitting hoist lifting mechanism: Sitting hoist running trolley layout, different from the direct hanging hoist, effectively improves the effective lifting height of the whole machine, which is suitable for the demand of high headroom operation and makes full use of the vertical space in the workshop/freight yard.
- Cost-effective lifting configuration: Using the mature electric hoist as the lifting mechanism, compared with the wire rope winch double girder gantry, the machine has a lower procurement cost, simpler structure, more convenient maintenance, and does not require complex maintenance processes, reducing the cost of the whole cycle of use.
- Flexible cantilever configuration: the outboard side of the outrigger can be equipped with cantilever structure to realize the transfer of materials from inside the span to outside the span, expanding the operating range; the cantilever can also be canceled to adapt to the narrow operating space, which is more adaptable to the site.
- Smooth running mechanism: the traveling mechanism runs smoothly and has no impact when starting and stopping, together with the rigid structure of double main beams, the material is accurately positioned in the process of lifting and transporting, avoiding collision of materials and wear and tear of the equipment, and improving the safety of operation.
- Generalized control system: support handle control, wireless remote control, driver’s room control multiple modes, simple and easy to understand the operating logic, adapt to different operating habits and scenarios, ordinary workers can be operated independently after simple training.
3. Core product advantages
- Heavy load and high stability: double main beams have strong structural rigidity, the carrying capacity and operational stability far exceeds that of single beam models, heavy lifting without deformation and shaking, safer operation.
- High lifting adaptability: sitting hoist trolley design, effective lifting height is higher, to meet the needs of high headroom, high vertical lifting, to enhance the site utilization rate.
- Low cost and easy maintenance: electric hoist lifting mechanism, simple structure, common accessories, convenient maintenance, procurement and operation and maintenance costs are much lower than the winch type double girder gantry.
- Wide site adaptation: cantilever/no cantilever options, indoor and outdoor universal, suitable for factories, yards, ports, steel markets and other scenes of heavy-duty handling.
- Global adaptability and easy to export: support international certification, global power grid customization, standardized design and strong compatibility, can be directly exported around the world.
4. Global Adaptation and Application Scenarios
- Application Scenarios: Global machining workshop, logistics and storage park, steel market, harbor yard, hydropower station, building materials processing plant, etc., used for loading, unloading, handling and shifting of heavy materials such as heavy components, steel, equipment and bulky goods.
- Standard adaptation: Support CE, ISO9000, GOST, FEM and other international certifications, power supply 220V-660V/50-60Hz is fully customized, adapted to global power grid standards.
- Environmental adaptation: rainproof and dustproof, weatherproof, indoor workshop, outdoor open air, high dust routine environment can be stable operation, coastal salt spray environment can be upgraded anticorrosive.
5. Global exclusive supporting services
- Provide English/Spanish/Arabic full set of technical data, installation drawings, operation manuals, maintenance guides;
- 7×24 hours global remote video installation and commissioning guidance, standardized structure, simple and efficient installation process;
- Equipment parts centers in Germany, the United States, Malaysia, the United Arab Emirates, electric hoists, wheels, couplings and other core components 72 hours of rapid global delivery;
- Multi-language after-sales hotline, professional double girder gantry crane engineers remote troubleshooting, maintenance guidance

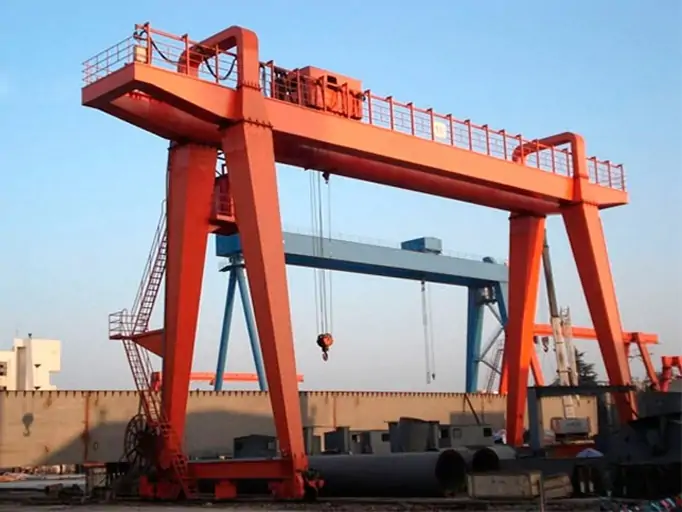

What Can the MG Double-Girder Gantry Crane Manufactured by Henan Mining Offer You?
| Value Category | Specific Benefits | Description |
| Load Capacity & Stability | Double girder rigid structure | Higher bearing capacity, less deformation, stable running |
| Lifting Height | Sitting type electric hoist trolley | Higher effective lifting height, better space utilization |
| Cost Efficiency | Electric hoist drive system | Lower purchase cost, simpler maintenance, less downtime |
| Operation Flexibility | With/without cantilever design | Expand working scope or fit narrow space |
| Application Scope | Heavy load handling suitable | Adapt to steel, equipment, large parts lifting |
| Environmental Adaptability | Indoor & outdoor universal | Stable in dust, rain and conventional harsh environment |
| Global Adaptability | International certification & custom power | Direct export worldwide, no modification |
| Maintenance Convenience | Simple structure & universal parts | Easy daily maintenance, low later cost |
Detailed Specifications for Henan Mine Crane Double girder electric hoist gantry crane
-
Technical parameter of double girder gantry crane
Capacity
Main
t
50
75
100
200
320
400
500
Aux
10
20
20
32
50
30
80
Span
S(m)
30
35
40
16
22
18
18
28.5
Lifting height
Main
m
Above rail max.22
22
16
12
13
18
3 3/10
Aux
Above rail max.24
17.5
13
14
20.0
34.0
Lifting speed
Main
m/min
7.68
6.25
4.62
0.2-1.8
0.14-1.4
0.15-1.5
0.15-1.5
Aux
19.8
9.28
9.28
6
7.5
6
0.6-6
Trolley speed
m/min
38.6
38.9
13.1
20
7
10
1.36-13.6
Crane speed
m/min
42.7
17.8
16
17
18
1.6-16
Work duty
A5
A5
A5
A5
A5
A5
A5
Track
QU 80
QU 100
QU 120
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 500T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Detailed Drawing of YZD Metallurgical Bridge Crane Manufactured by Henan Mine
China's premier crane supplier, driving the crane industry forward for 24 years
Application Scenarios of Double girder electric hoist gantry crane Manufactured by Henan Mine Crane
China's Premier Crane Manufacturer, Driving High-Quality Development in the Crane Industry for 24 Years
-
Large steel market and profile warehouse areaDouble girder gantry cranes transport heavy steel pipes, H-beams, steel plates, steel components and other long materials and heavy materials, double main girder structure is stable and does not sway, suitable for large quantities of heavy steel transfer.
-
Heavy Machinery Processing WorkshopDouble girder gantry cranes are used for lifting and assembling large machine tool fittings, heavy machinery components, molds, long shafts and other workpieces, with accurate positioning and smooth operation, suitable for heavy-duty work in workshops.
-
Large open-air cargo yard/logistics parkDouble girder gantry cranes are suitable for large cargoes, heavy equipment, auxiliary transfer of containers, stacking of long profiles, wide span coverage, outdoor durability, wind stability.
-
Large building materials processing baseDouble girder gantry cranes are used for lifting and transporting prefabricated cement parts, stone slabs and heavy building materials components, and can also be used with grabs for loading and unloading sand, gravel, ores and other bulk materials to meet the needs of building materials factories for heavy-duty loading and unloading.
-
Auxiliary cargo yard of harbor inland waterway terminalDouble girder gantry cranes are used for lifting and transporting general cargoes, heavy profiles and harbor equipment parts at the wharf, and they can be anticorrosive treated to adapt to the coastal salt spray and outdoor humid environment.
-
Bridges/Large Engineering SitesDouble girder gantry cranes are suitable for bridge construction and large-scale construction projects, lifting heavy materials such as steel bars, steel box girders, construction equipment, etc. They have strong load-bearing capacity and are quick to install.
-
Mining and Raw Material YardDouble girder gantry cranes are used for the transfer of ore, slag, heavy equipment parts, wear-resistant and dust-proof, adapting to the high dust and heavy continuous operation environment in mines.
-
Heavy Duty Warehousing and Bonded Storage AreaDouble girder gantry cranes are used for the access and stacking of heavy equipment, industrial finished products and large packaged goods, with flexible span and stable operation to enhance the efficiency of warehousing and transfer.
-
Metallurgical auxiliary production areaDouble girder gantry cranes are used for lifting metallurgical raw materials, furnace materials and heavy metallurgical fittings, with high temperature and dust resistance, and reliable double main girder load bearing to meet the needs of metallurgical auxiliary heavy-duty lifting.
-
Nuclear/Hydroelectric Power Construction SitesUsed for hoisting super-heavy equipment like nuclear reactor pressure vessels and hydroelectric turbine generators. Customized high-precision positioning models with radiation-proof sealed designs meet nuclear power's specialized operational environment requirements.
-
Aerospace Auxiliary Manufacturing WorkshopsUsed for lifting and assembling heavy components like aircraft fuselage frames and rocket boosters. Customized cleanroom models feature anti-static spray-coated surfaces to meet workshop cleanliness standards.
-
Model Selection RecommendationsSelect models ranging from 5 to 1000 tons based on material weight, allowing a 20% safety margin. Customize specialized protective configurations. Henan Mine offers on-site surveys to precisely match model parameters with site dimensions, operational environments, and lifting requirements. Optional smart operation and maintenance modules enable real-time operational monitoring and remote fault diagnosis.
Crane Operation Demonstration
China's premier crane supplier, driving the crane industry forward for 24 years
How to Choose the Best Crane Manufacturer in China
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
-
1Clarify Your Crane NeedsThoroughly understand your lifting requirements (load details, frequency, and workspace environment) before approaching crane manufacturers.
-
2Determine Crane Service ClassCalculate the required crane service class based on your operational intensity to ensure optimal performance and longevity.
-
3Explore Crane Supplier Custom Features:Investigate available customization options and special features to enhance safety, efficiency, and precision for your specific application.
-
4Assess Crane Factory Engineering CapabilityEvaluate the manufacturer's engineering strength to ensure they can design a suitable solution tailored to your needs.
-
5Verify Quality & Compliance of Crane CompanyCheck the crane manufacturer's manufacturing quality, certifications, and compliance with international standards and your local safety regulations.
-
6Ensure Support & ReferencesConfirm the manufacturer provides reliable after-sales support and has a proven track record with positive references in your industry or region.
Why We Are More Trustworthy
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
Experienced company
Established in 2002, Henan Mine Crane Factory is a high-tech crane enterprise. Using advanced global design and manufacturing tech, we craft top-quality single/double-beam cranes and electric hoists.
Professional team & equipment
Our 1.62 million ㎡ factory has 3,500+ staff, 200 senior engineers, and 428+ global sales/service points. With 2,000+ processing machines handling 20+ processes, we ensure excellence.
Productive capacity
The annual output of cranes is over 80,000 units. The company produces and sells more than 11000 double beam and gantry cranes annually, More than 73000 single beam cranes, and More than 100000 sets (sets) of single and double beam electric hoists and accessories.
Customized design services
We know the right crane is key. Our engineers partner with clients to design and build cranes tailored to specific needs, ensuring optimal performance.
Why Our Cranes Earn Customers' Trust
Henan Mine Crane Co., Ltd. has a strong technical team with over 10 top experts and 200+ mid-to-senior engineers. They've obtained over 700 national patents and provincial-level tech achievements, with over 670 authorized patents. Henan Mine Crane Factory led/participated in over 100 standard formulations/revisions, won the China Standard Innovation Contribution Award, and is a key member of multiple lifting machinery standardization committees. Dr. Xu Lei serves as Deputy Leader of the ISO/TC96 Domestic Technical Counterpart Expert Working Group.
The services we provide
China's premier crane supplier, driving the crane industry forward for 24 years
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Regular Maintenance Reminder
Establish customer equipment files, and regularly send maintenance reminders based on
equipment usage time and operation intensity. Provide detailed maintenance manuals and
video tutorials
Technical support consultation
Provide 7×12-hour online technical consultation service. Senior consultants answer
questions in real time regarding product selection, parameter matching, installation
specifications
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Our Patents and Certifications
China's premier crane supplier, driving the crane industry forward for 24 years
Customer Testimonials & Top Choices
China's premier crane supplier, driving the crane industry forward for 24 years
Related Product Recommendations
China's Premier Crane Supplier, Empowering the Lifting Industry for 24 Years
MHS Double-Girder Gantry Crane
Henan Mining Manufacturing's MHS gantry crane is currently one of the most widely used lifting machines. Equipped with an electric hoist as its lifting mechanism, it operates on ground rails supported by legs on both sides. Designed for intermittent and repetitive loading, unloading, and material/equipment handling in general work environments, it features vertical lifting capabilities along with longitudinal and lateral movement functions. The outriggers feature cantilevers on the outer sides, facilitating the transfer of items from the span to the area outside the span. Cantilevers may also be omitted.
KSMHS New Dual-Girder Gantry Crane
KSMHS New Dual-Girder Gantry Crane
Henan Mining's KSMHS gantry crane is currently one of the most widely used lifting machines. Equipped with an electric hoist as its lifting mechanism, it runs on ground rails supported by outriggers on both sides. It can load, unload, and transport materials and equipment intermittently and repeatedly in general operating environments, featuring vertical lifting, longitudinal, and lateral movement capabilities. Lifting attachments include hooks, grabs, and electromagnetic chucks to accommodate diverse material handling requirements. Outriggers with cantilevers facilitate transferring items from the span to the outside area, though cantilevers can be omitted. Working class ranges from A3 to A5.
MGC Slurry Gate Crane
The MGC Slurry-Discharging Gantry Crane manufactured by Henan Mine Machinery is a specialized gantry lifting device designed for subway construction scenarios. Also known as a slurry-discharging gantry crane or slurry-discharging portal crane, it is primarily used for lifting, flipping, and dumping tunnel spoil, as well as transporting tunnel segments. Its typical lifting capacity ranges from 45 to 50 tons, with a maximum lifting height of 100 meters, and it operates at a heavy-duty working level.
Core functions include: - Debris transfer and dumping: Utilizes specialized lifting attachments (beam hooks, debris-turning hooks) with hydraulic tilting mechanisms to lift, traverse, and automatically tip dump buckets for debris discharge. - Multi-condition adaptability: - 180° rotating trolley for adjustable debris discharge direction. - 8-wheel 4-wheel drive main crane equipped with wind-resistant rail clamps and ground anchoring devices to ensure construction stability.

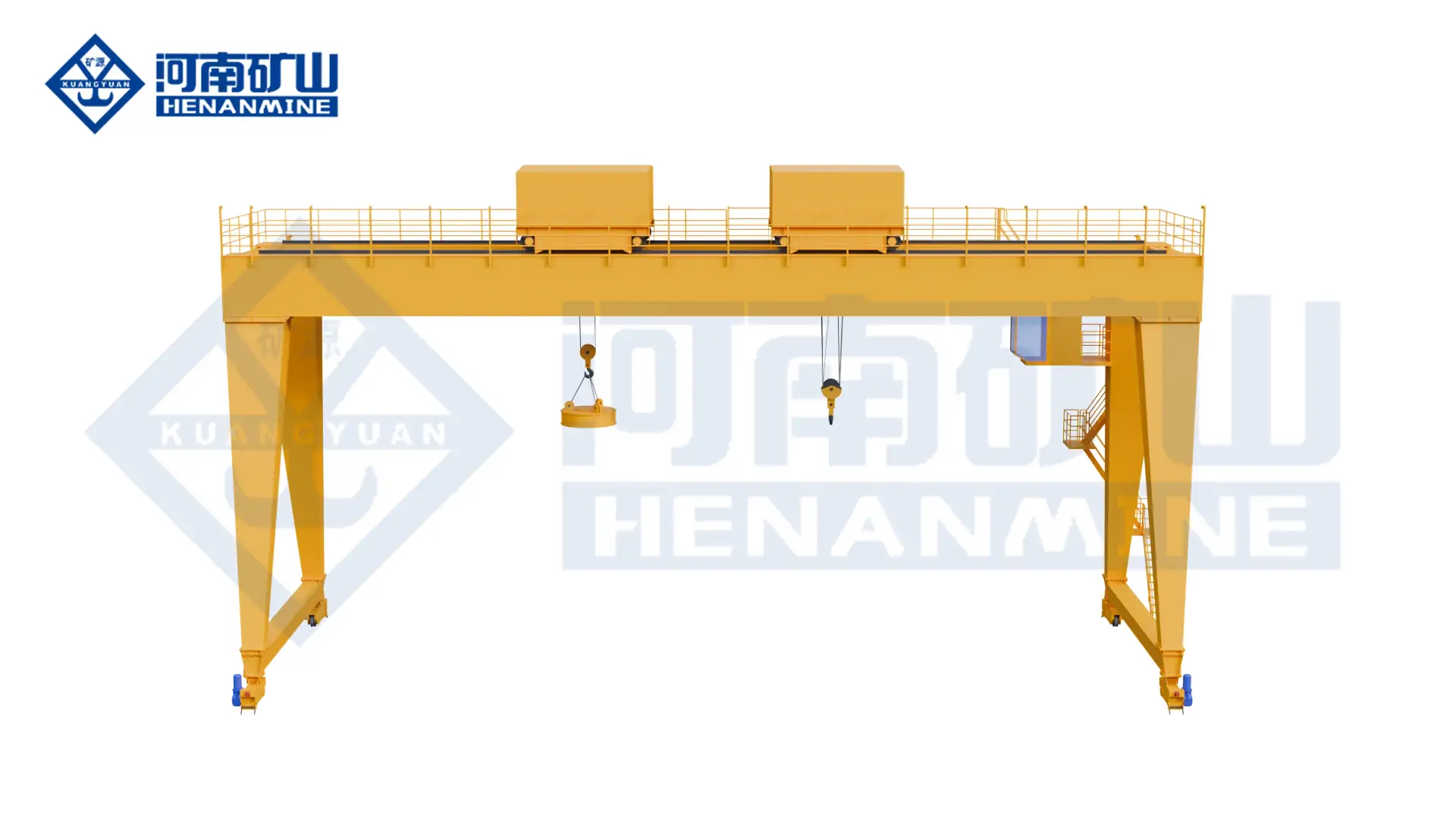

MEN General-Purpose Gantry Crane
Henan Mine Machinery's general-purpose gantry cranes are currently among the most widely used lifting equipment. Supported by outriggers on both sides running along ground rails, they enable intermittent, repetitive loading, unloading, and material/equipment handling in general outdoor environments. These cranes feature vertical lifting capabilities along with longitudinal and lateral movement functions. Lifting attachments include hooks, grabs, electromagnetic chucks, and other configurations to accommodate diverse material handling requirements. Depending on operational needs, outriggers may be fitted on both sides or only one side to facilitate transferring loads from the center of the span to the outer edges. Alternatively, cranes may be designed without outriggers. Working classes range from A3 to A8.
MC Electromagnetic Gantry Crane
Henan Mines Manufacturing's MC Electromagnetic Double-Girder Gantry Crane is a lifting device integrated with an electromagnetic lifting device. It is suitable for handling loose magnetic materials (such as scrap steel, iron ore, and steel billets) in metallurgical plants, ports, power stations, and similar facilities. Depending on operational requirements, outriggers may be installed on both sides or only one side to facilitate transferring goods from the center of the span to the outer edges. Outriggers can also be omitted.
This equipment enables efficient, automated loading, unloading, transfer, and stacking of various ferromagnetic ferrous materials, achieving a continuous operational cycle of “pick-up, transport, and release.”
MGY Metallurgical Gantry Crane
Henan Mine Machinery's MGY metallurgical double-girder gantry crane is currently one of the most widely used lifting machines. Supported by side legs on ground rails, it operates intermittently and repetitively in specialized work environments, featuring vertical lifting and both longitudinal and lateral movement capabilities. The metallurgical double-girder gantry crane is equipped with a gantry hook lifting device for handling molten steel ladles or maintenance slag ladles.
Key structural components such as the main girders and outriggers are protected with thermal insulation treatment, enabling them to withstand high-temperature radiation and ensuring long-term stable operation in high-temperature workshop environments.
MZ Grab Gantry Crane
Henan Mine Machinery's MZ Grab Double-Girder Gantry Crane is currently one of the most widely used lifting machines. Supported by outriggers on both sides, it operates along ground rails and can perform intermittent, repetitive tasks in specialized work environments. It features vertical lifting capabilities along with longitudinal and lateral movement functions. The Grab Double-Girder Gantry Crane is a heavy-duty lifting apparatus specifically designed for bulk material handling. Its defining characteristics are the combination of a double-girder gantry structure and a grab device.
Become our distributor
Array
Become our agent
Full range of lifting equipment, international standard quality and ample production capacity, ensuring worry-free agency support.
Professional cross-border after-sales team + global parts warehouse, 24-hour response, full-cycle service to help you effortlessly expand your market.
Generous agency policies + regional exclusive protection, guaranteeing your profits and worry-free cooperation.
We sincerely invite global partners with resources to join hands, jointly develop the global crane market, and achieve mutual benefit and win-win outcomes!
Your most concerned questions and answers about Henan Mine Crane manufactured Double girder electric hoist gantry crane
China's premier crane supplier, driving the crane industry forward for 24 years
-
What flexible cooperation options are available for international clients?Answer: We offer globally competitive cost-performance ratios and diversified international cooperation solutions! We provide multiple trade term options including FOB, CIF, and DDP, along with customized payment methods such as letters of credit, installment payments, and milestone-based project payments.
-
What is the core difference between double main girder gantry crane and single girder hoist gantry?Answer: The core difference in load carrying and stability, double main girder structure is more rigid, load distribution is more uniform, heavy load operation without deformation, no shaking, load carrying capacity is much higher than single girder models, more suitable for large tonnage, large span heavy load handling scenarios.
-
Can it be customized?Answer: It can be customized according to the size of the yard/workshop, the weight of the material, and the demand for vertical lifting.
-
What are the advantages of a seated hoist trolley over a direct suspended hoist?Answer: The seated hoist trolley is mounted on top of the double main girder and does not occupy the lower vertical space, resulting in a higher effective lifting height, which makes full use of the vertical headroom in the workshop/freight yard and solves the need for high racking and high lifting points.
-
What are the advantages of this double girder gantry compared with the winch type double girder gantry?Answer: Adopting electric hoist as the lifting mechanism, the whole machine cost is lower, the structure is simpler, the maintenance is more convenient, no need for professional maintenance, the accessories are common and easy to purchase, the whole life cycle cost is much lower than the winch type double girder door machine.
-
Where is the stability of double main girder structure better?Answer: The box design of double main girder has balanced force and high rigidity, so that the main girder has little deflection and no obvious shaking when heavy load is lifted, and the materials are positioned more accurately, which can effectively avoid the collision of materials and wear and tear of the equipment, and enhance the safety and efficiency of the operation.
-
What kind of sites are cantilevered and non-cantilevered suitable for?Answer: With cantilever is suitable for the site that needs to be transferred from inside to outside, expanding the handling range; without cantilever is suitable for the site is narrow, only need to work within the span of the scene, the structure is more simple, occupies less space.
-
Do the products meet international standards? Can they be directly exported to the world?Answer: Comply with China's electric hoist gantry crane standards, compatible with CE, ISO, GOST, FEM and other international certifications, power global customization, can be directly exported to Europe, America, Southeast Asia, the Middle East, Africa and other regions.Can it be used both indoors and outdoors?
-
How is the protection performance?Answer: Indoor and outdoor universal, the whole machine protection level IP54, rain, dust, weather resistance, conventional outdoor open air, high dust environment can be stable operation, coastal salt spray environment can be customized anticorrosion upgrade.
-
Is daily maintenance difficult? Do I need a professional?Answer: Maintenance is extremely simple, daily only need to check the electric hoist running status, lubricate the traveling parts, fasten the connecting parts can be, ordinary workers can be completed after simple training.
-
Compared with Konecranes Double girder electric hoist gantry crane brand, what is the cost-effective advantage?Answer: The whole life cycle cost of our Double girder electric hoist gantry crane is more than 50% lower than that of Konecranes, and the price of Konecranes is 3-4 times higher than that of the same specification with the same configuration of the model, we are factory direct supply without intermediaries, and we have our own high temperature lifting and quenching process adaptive core technology, and can also be personalized according to the customer's quenching process, which is more in line with the actual operational needs of enterprises in different regions of the world.
Operating Manual for Double girder electric hoist gantry crane Manufactured by Henan Mine
China's premier crane manufacturer, driving high-quality development in the crane industry for 24 years
-
Each crane must display a rated load capacity plate in a conspicuous location.
-
No personnel are permitted on the girder during operation, nor may the hook be used to transport persons
-
Operation is prohibited without a valid operator's license or under the influence of alcohol.
-
Operators must maintain full concentration during operation; talking, smoking, or engaging in unrelated activities is strictly forbidden.
-
Keep the crane clean and tidy; do not store equipment, tools, flammable materials, explosives, or hazardous substances haphazardly.
-
Do not overload the crane.
-
When operating along obstacle-free paths, the hook, lifting device, or bottom surface of the load must remain at least 2 meters above ground level. When crossing obstacles, the load must clear the obstacle by at least 0.5 meters
-
For loads under 50% of rated capacity, both lifting mechanisms may operate simultaneously. For loads exceeding 50% of rated capacity, only one mechanism may operate.
-
.For bridge cranes equipped with main and auxiliary hooks, do not simultaneously raise or lower both hooks (except under special circumstances).
-
Welding or hammering on suspended loads, or working beneath suspended loads, is prohibited (except when properly supported).
-
Inspection or maintenance work may only be performed after power has been disconnected and a “Do Not Operate” sign is displayed on the power switch. If live work is unavoidable, implement safety measures and assign dedicated supervision.
-
Do not throw objects from the vehicle indiscriminately.
-
Regularly inspect limit switches and interlock protection devices.
-
Do not use limit switch impact as a stopping method.
-
Do not lift or lower loads when hoist brakes malfunction.
-
Do not operate the hoist above personnel or equipment.
-
When welding any part of the crane, use a dedicated ground wire; do not use the crane body as a ground.
-
When the hook is at its lowest position, ensure at least two full turns of safety rope remain on the drum.
-
Cranes must not collide with each other; using one crane to push another into operation is strictly prohibited.
-
When lifting heavy objects, molten metal, explosives, or hazardous materials, first slowly raise the load 100–200 mm off the ground to test brake reliability.
-
Maintenance and inspection lighting must operate at voltages below 36V.
-
All electrical equipment enclosures on bridge cranes must be grounded. If trolley rails are not welded to the main girder, grounding measures must be implemented. Grounding conductors may use galvanized flat iron with a cross-sectional area exceeding 75mm², bare copper wire of 10mm², or galvanized round steel exceeding 30mm². The operator's cab or crane body shall have more than two grounding points. The grounding resistance from any point on the crane to the power supply neutral point shall be less than 4Ω.
Directly state your needs and receive professional advice!
30 Years of Lifting R&D, Following Strict European Standards, Intelligent
Empowerment
for Heavy Loads, Providing Global Safe & Excellent Solutions
The project was delivered on time and landed safely
Henan Mine Double girder electric hoist gantry crane Meets core lifting equipment requirements for small-to-medium factories, logistics parks, construction sites, and similar applications. This crane offers cost-effective operation, user-friendly controls, strong adaptability, and low maintenance costs.
Improve efficiency
Break through operational bottlenecks and improve overall project progress efficiency
Avoiding risks
Build a solid safety line and avoid potential risks of high-risk operations
Delivery
Adapt to diverse working conditions and ensure stable project implementation and delivery
