Double girder casting crane

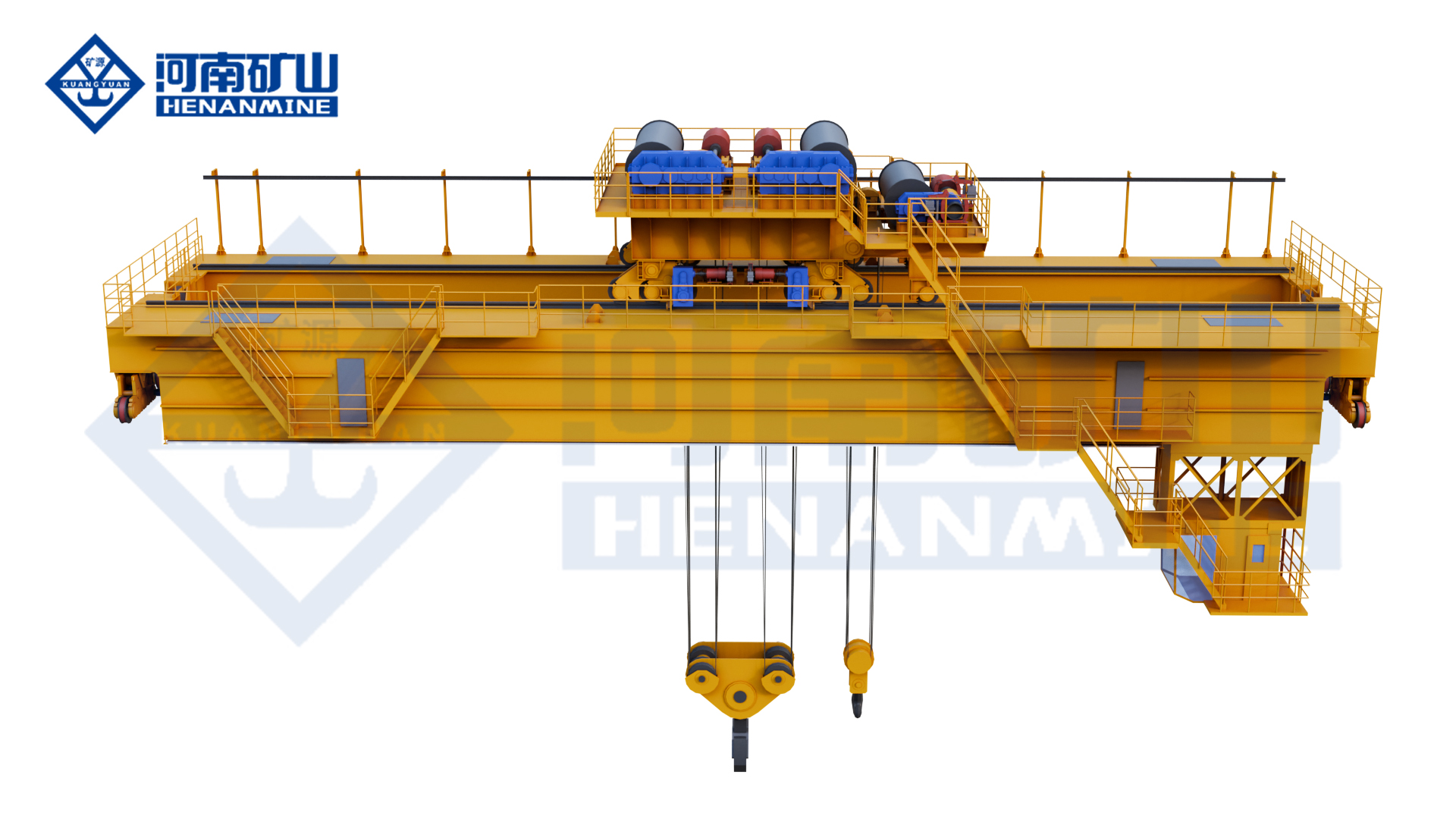

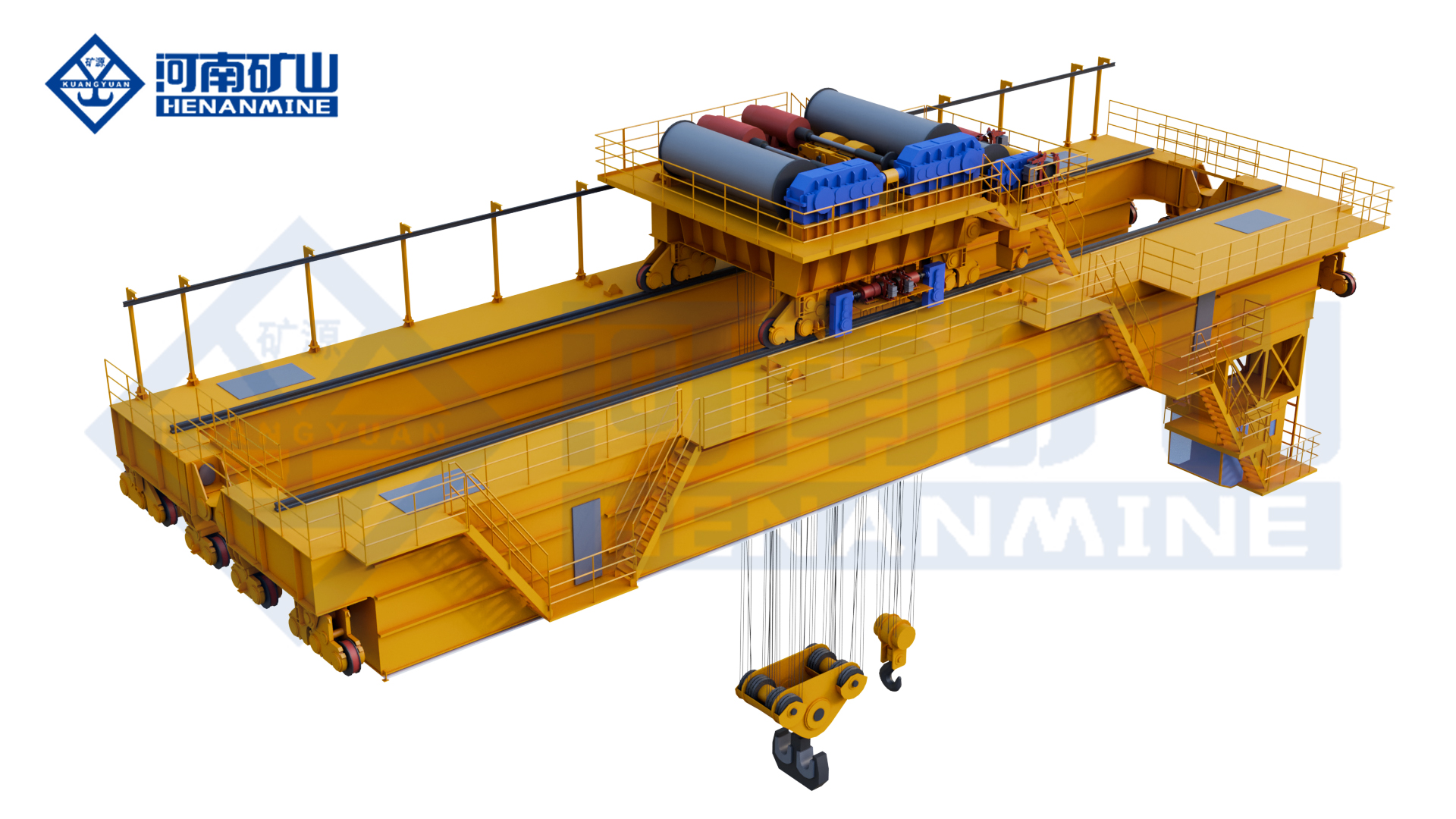

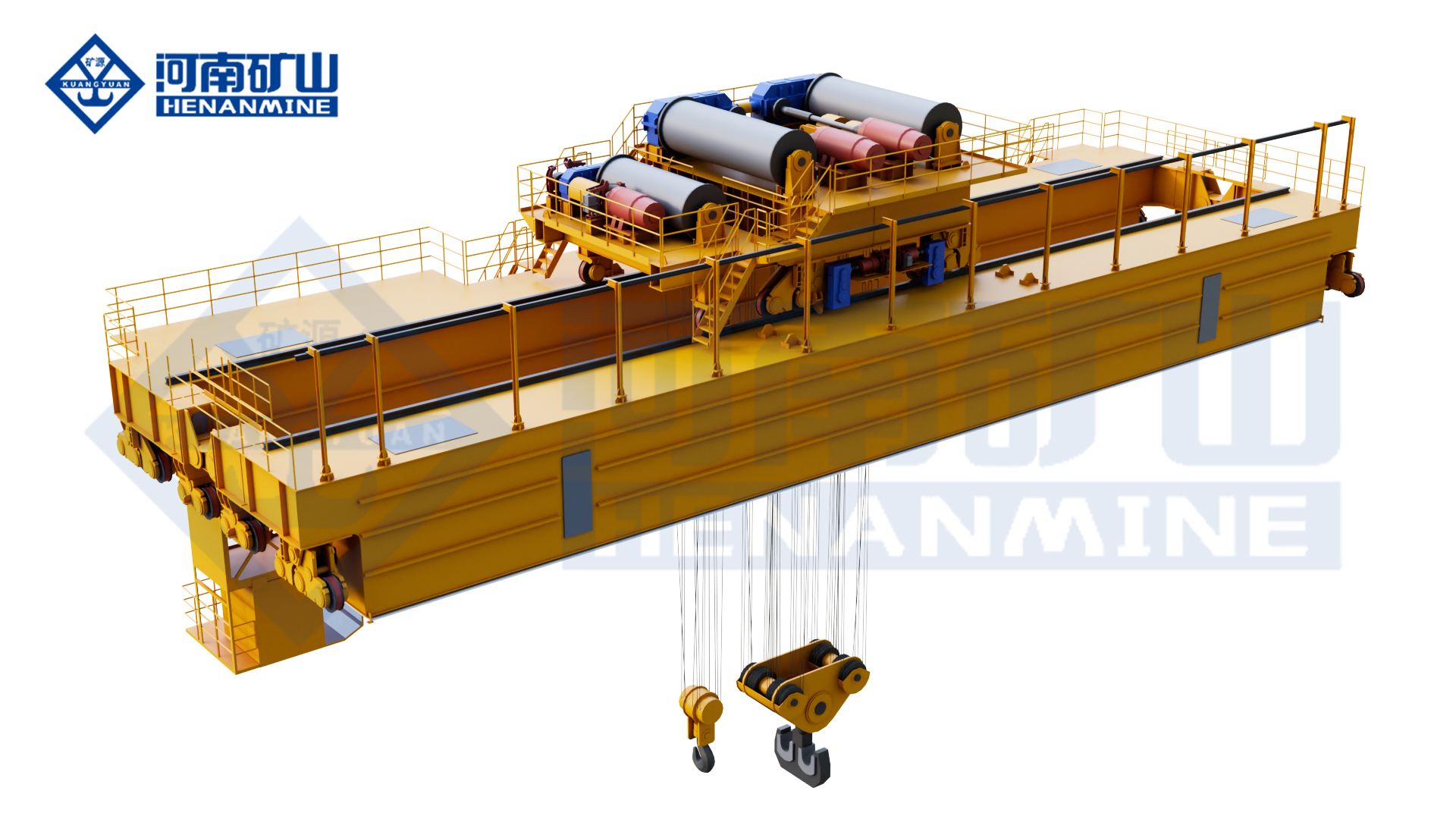

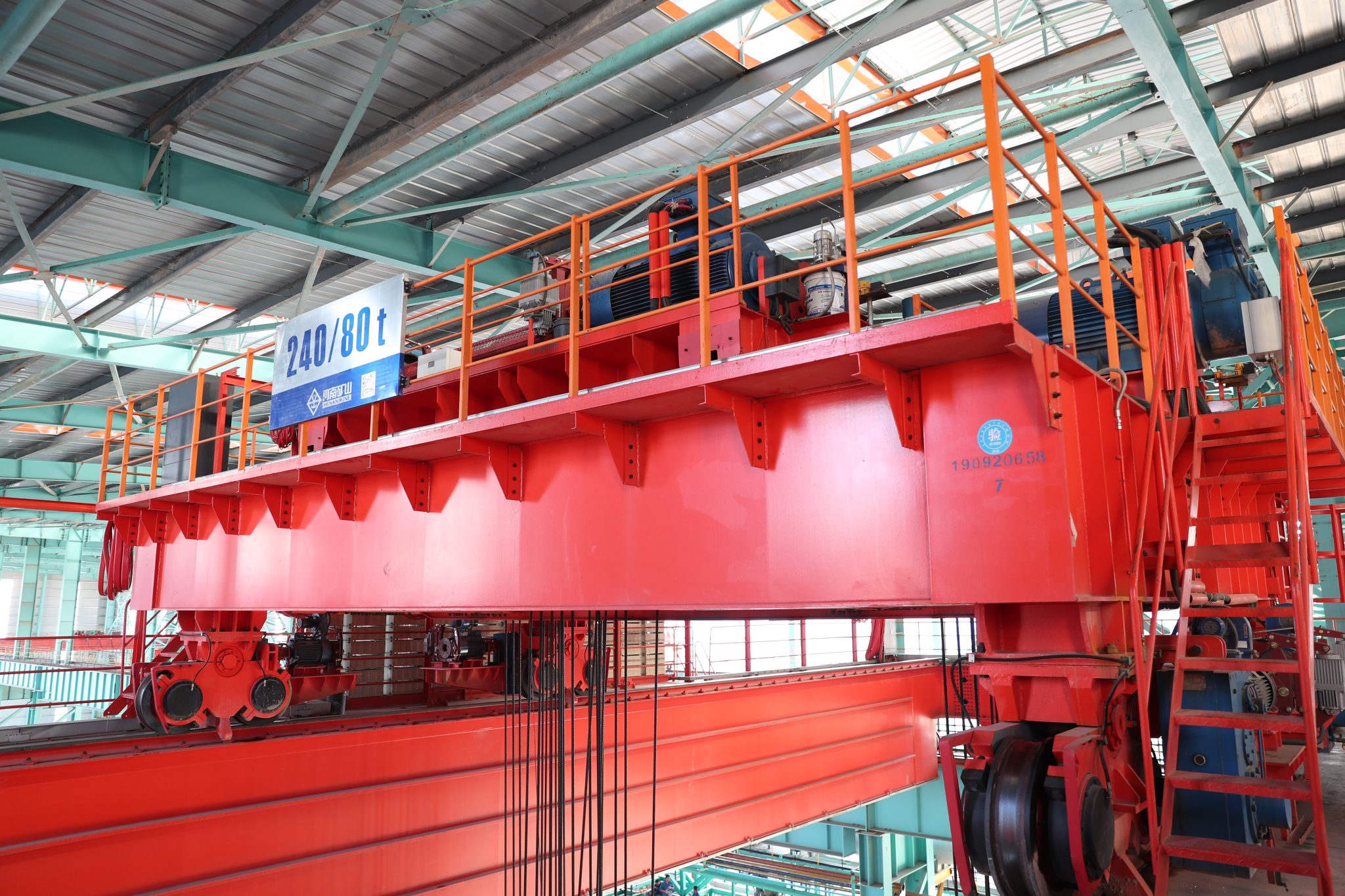

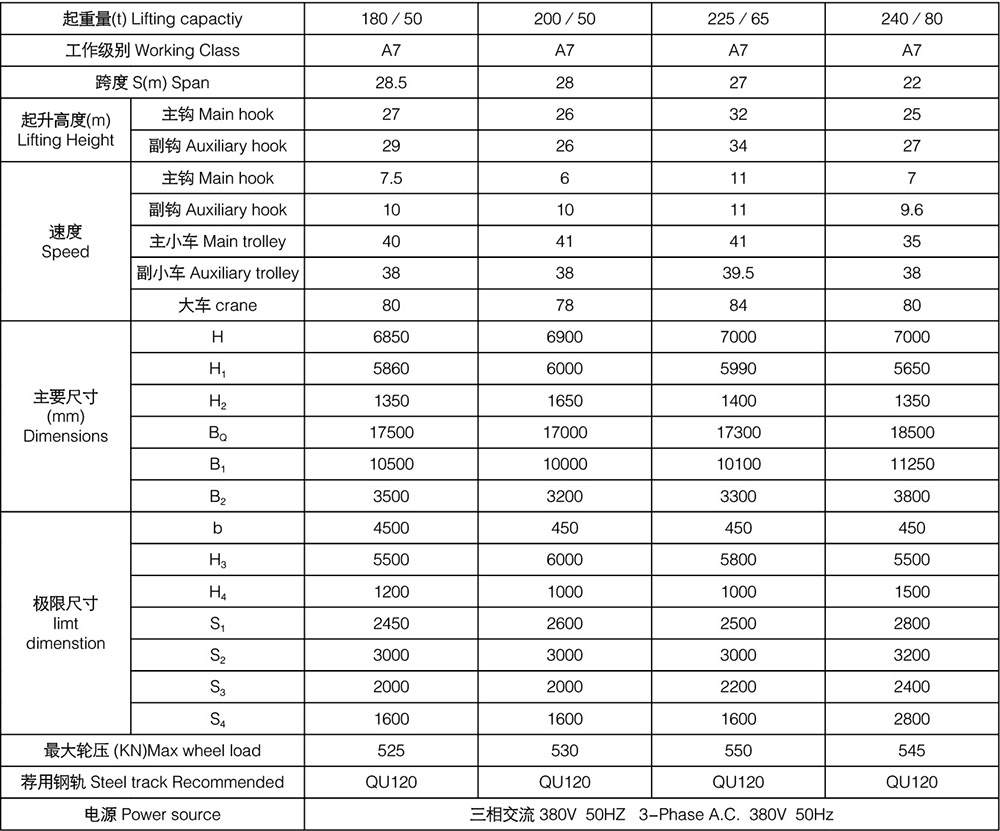

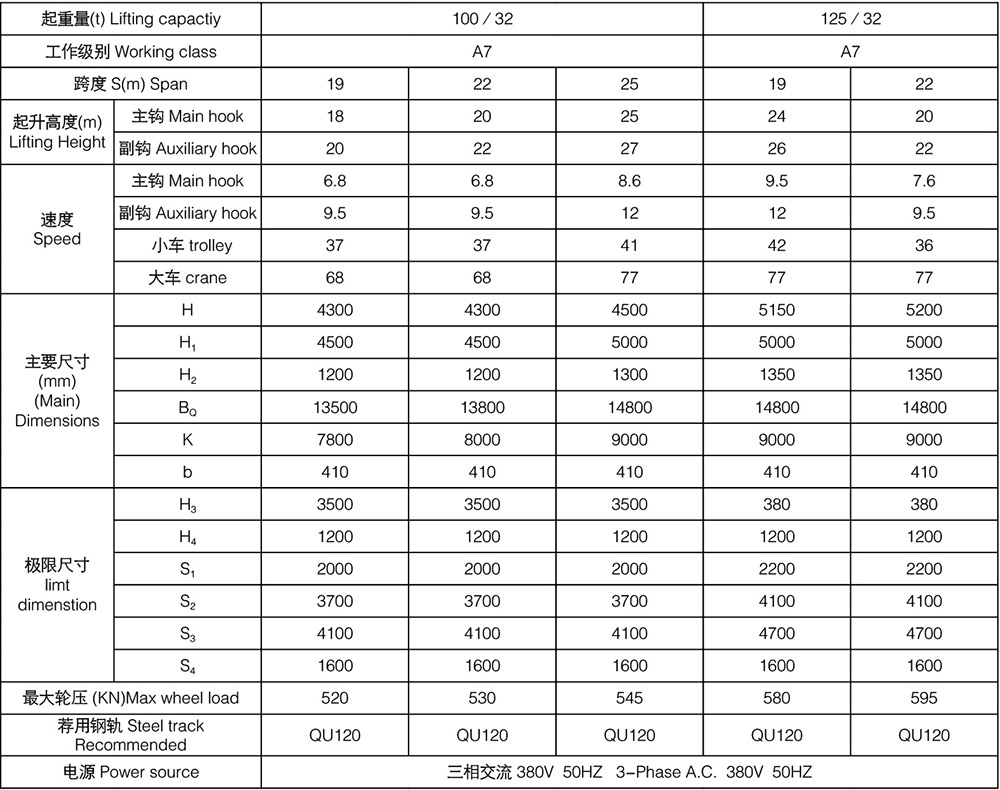

Henan Mine Crane YZ type double girder casting crane is strictly follow the metallurgical bridge crane national industry standards to create special equipment for molten metal, type test compliance, working level A7, designed for metal smelting workshop intermittent, repetitive heavy-duty operation design, universal global standards for accessories, adapted to the global iron and steel mills, smelting workshops, foundries, is a cost-effective choice for molten metal operations.

Product core positioning and design standards

The core positioning of YZ double girder casting crane: to provide safe, stable and efficient molten metal lifting solutions for global metallurgical foundry enterprises. Designed in line with China’s metallurgical crane standards, synchronous compatibility with international FEM, EU CE, IEC and other global certification requirements, for molten metal lifting “heavy load, high temperature, anti-shaking, anti-roofing, anti-track gnawing” five core needs, to create a special double girder structure suitable for smelting workshop, to meet the high-frequency, high-intensity continuous operation.

 Core structural design

1. Intelligent control system: the linkage platform integrates PLC module + touch screen, with WLK-type master command controller, clear feel, clear gear, with zero position self-recovery and locking device, to eliminate malfunction from the operation side; the whole vehicle adopts PLC + frequency converter communication control, with real-time synchronization of data, and automatic warning of faults.
2. Dual speed regulating and smooth mechanism: the lifting adopts stator voltage regulating and speed regulating, and the running adopts frequency converter speed regulating, no impact on starting and braking, no shaking and no spillage of the molten metal packages to be lifted, and high positioning accuracy, which is perfectly adapted to the precise requirements of pouring and mixing of molten iron.

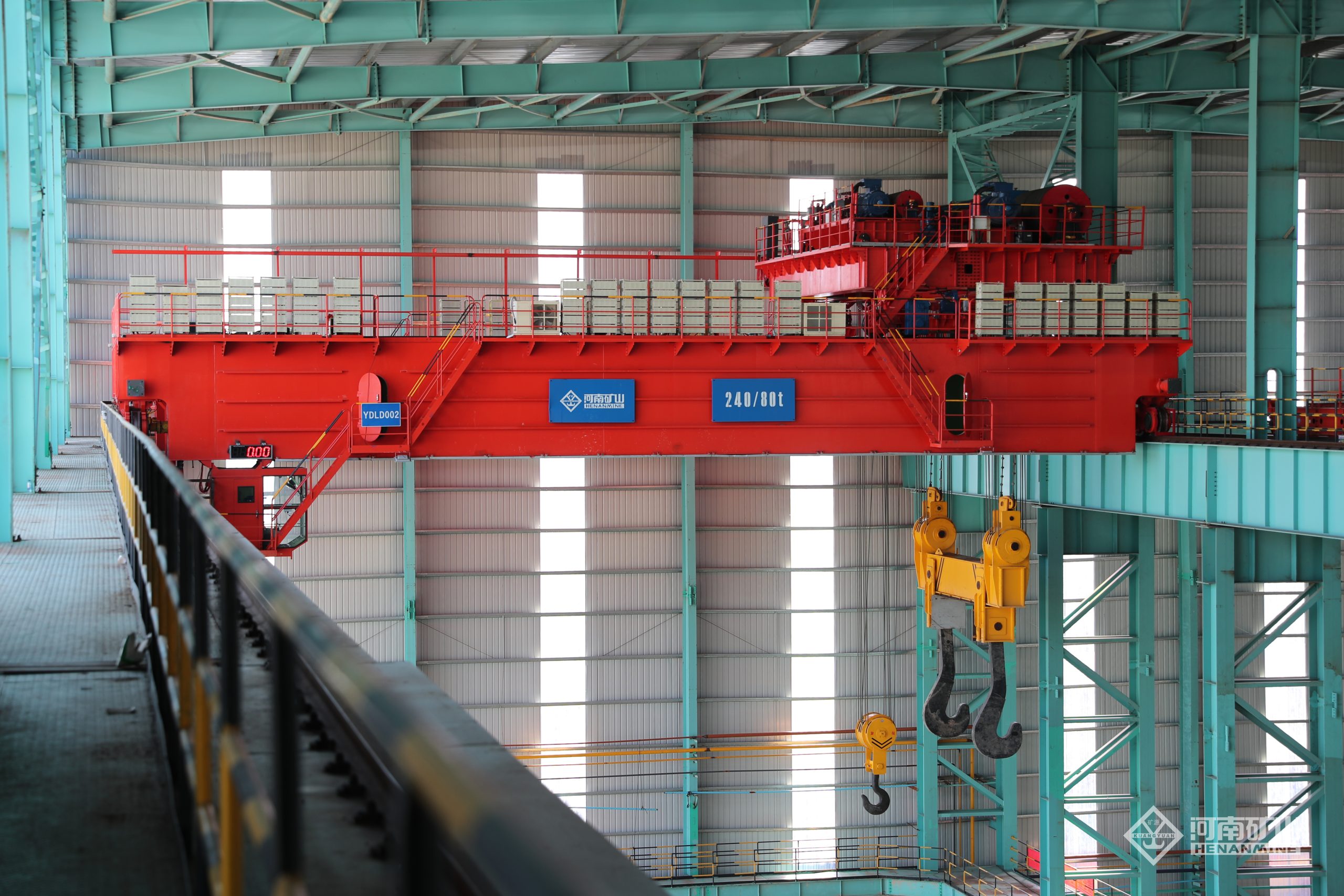

3. High-temperature thermal insulation protection: the main beam, end beams, trolley frame and other key structural parts are wrapped in multi-layer thermal insulation, which can withstand high-temperature radiation in smelting workshop without deformation of the structure or attenuation of the strength, and the electrical components are selected from high-temperature-resistant models, which can be operated stably in a long-term high-temperature environment.

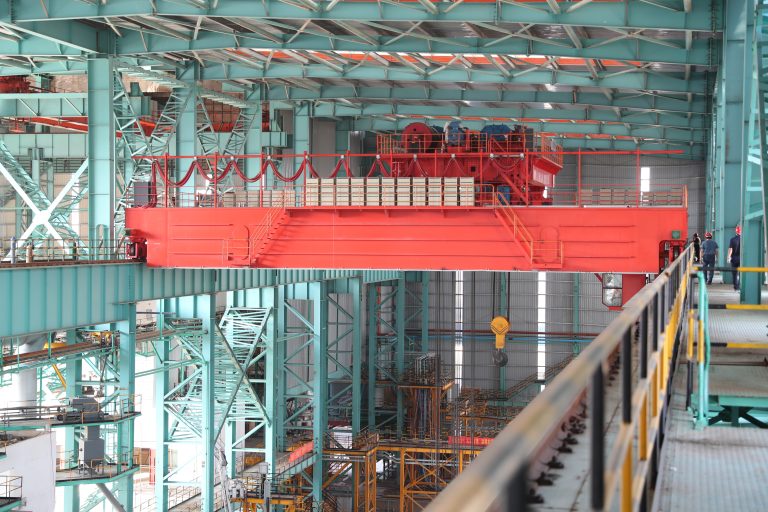

4. High-precision anti-gnawing wheels: 45°split structure wheel fixing tiles are processed by large-scale boring machine as a whole, and the installation precision is full, which can completely avoid wheel gnawing and partial load wear and prolong the service life of the whole vehicle.
5. Double safety protection: the lifting mechanism is equipped with double anti-roofing protection, combined with the vehicle safety monitoring system, real-time monitoring of load, travel, temperature, overload/overlimit automatic alarm shutdown, all-round protection of molten metal lifting safety.
6. Finite element optimized structure: the main beam, end beam and other stress components are accurately analyzed by finite element, with strong rigidity, anti-deformation, no shaking and no sinking during heavy load operation, suitable for long-term operation of large tonnage molten metal packages.


Core product advantages

1. Dual speed control system, smooth and precise, no spillage: stator voltage regulator + frequency conversion dual speed control, start and stop without impact, accurate positioning, a complete solution to the problem of molten metal lifting shaking, pouring inaccuracy.
2. Anti-gnawing wheels, longer life: 45 ° split wheels + overall boring machine processing, no gnawing, no partial grinding, the service life of the entire vehicle than ordinary casting cranes to enhance more than 30%.
3. High-temperature insulation, continuous operation without downtime: the key structure of thermal insulation treatment, high temperature radiation resistance, can be in the smelting of high-temperature environment 24 hours of continuous operation, the failure rate is extremely low.
4. Multiple safety protection, zero risk of high-risk operation: double anti-roofing + safety monitoring + zero self-locking + overload protection, full-dimensional avoidance of roofing, falling packages, chewing rails and other safety accidents.
5. Intelligent PLC control, easy to operate and maintain: human-machine interface visualization operation, self-diagnosis of faults, common international standards for accessories, convenient global maintenance.


 Global Adaptation and Application Scenarios

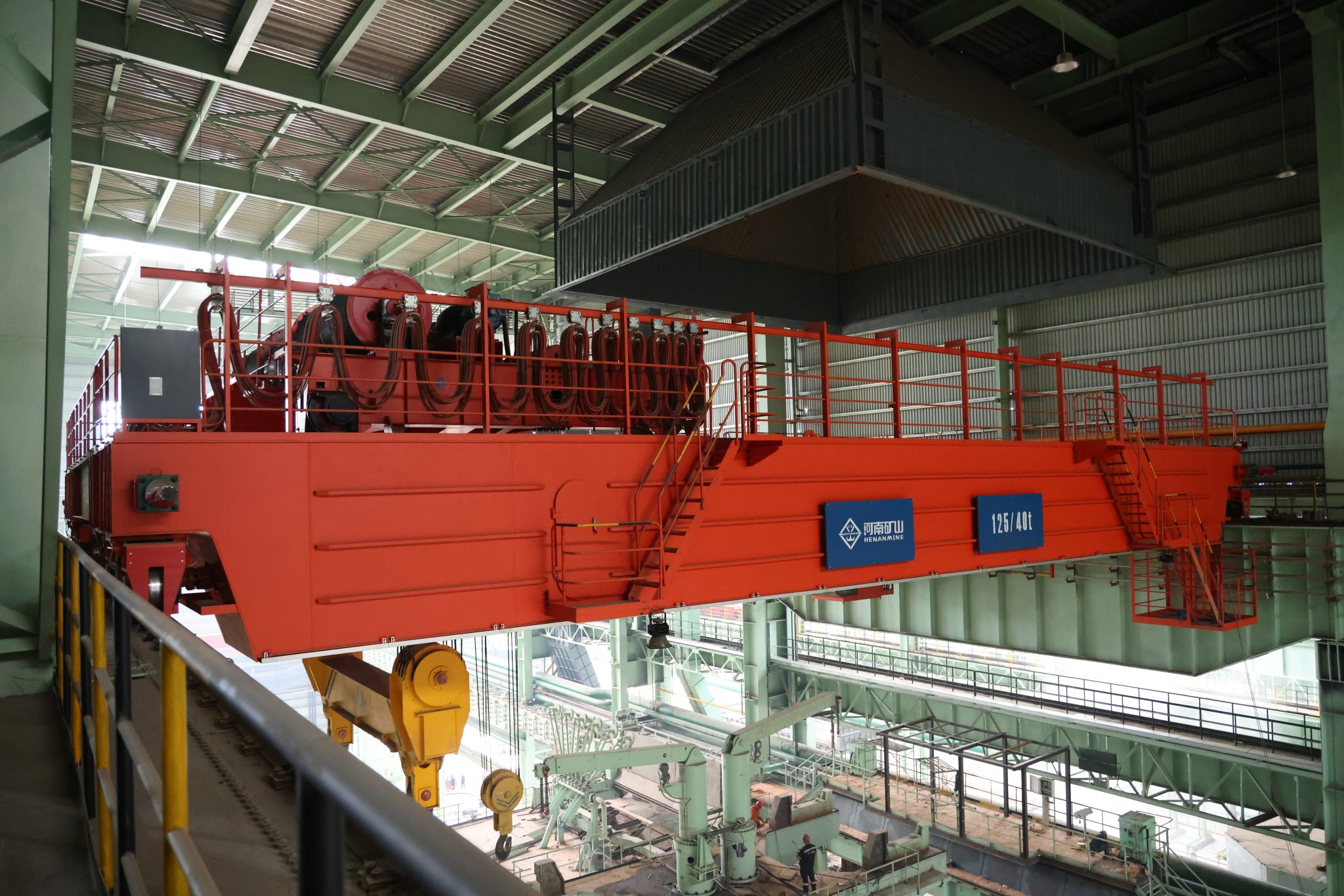

• Application Scenario: Global iron and steel smelting workshop, foundry, non-ferrous metal smelting plant, used for molten metal transfer, pouring, iron mixing, ladle lifting and so on.
• Standard Adaptation: Support CE, ISO9001, GOST, FEM and other international certifications, power supply 220V-660V/50-60Hz is fully customized, adapted to the global power grid.
• Environmental adaptation: high temperature resistance, high dust, resistance to minor corrosion, coastal salt spray environment can be upgraded with anticorrosion, and can be used stably in all kinds of smelting scenarios around the world.
