Double-girder bridge crane
Henan Mine Crane double-girder bridge cranes are currently among the most widely used lifting machinery. Equipped with electric hoists as their lifting mechanisms, they can load, unload, and transport materials and equipment intermittently and repeatedly in general operating environments, featuring vertical lifting, longitudinal, and lateral movement capabilities.
Specification：
7.5m-31.5m or customized
Capacity:
1t-80t or customized
Lifting Height：
9m-30m or customized
Work duty：
380V, 50Hz, 3ph AC or customized
control mode:
Floor control / Remote control / Cabin room control
Traveling speed:
20-30m/min or customized
Parameters of LH Double-Girder Bridge Cranes Manufactured by Henan Mine Crane
China's premier crane supplier, driving the crane industry forward for 24 years
| Parameter | Specification | Unit | Remarks |
| Rated Lifting Capacity | 3 – 32 | t | Customizable |
| Span | 7.5 – 31.5 | m | Adjustable according to workshop |
| Lifting Height | 6 – 30 | m | Customizable |
| Working Class | A3 – A5 | – | Light-medium duty for general handling |
| Hoist Type | Sitting-type Electric Hoist | – | Low headroom design |
| Wheel Process | Forged Wheel | – | High strength & wear resistant |
| Hoisting Speed | 0.8/5 – 8/16 | m/min | Single/dual speed optional |
| Travel Speed | 10 – 40 | m/min | Stable operation |
| Protection Level | IP54 | – | Dust-proof & splash-proof |
| Power Supply | 220-690V, 50/60Hz | V | Customizable for global market |
| Material | High-Strength Q235B/Q355B Steel | – | Stable structure |
| Certification | ISO, CE, FEM | – | Direct export without modification |
| Control Mode | Wireless Remote / Cabin Control | – | Optional dual control |
| Type Test Code | LH | – | Electric Hoist Bridge Crane |
| Application | Workshop, Warehouse, Yard, Power Station | – | Light-medium bulk material handling |
Product Introduction of Henan Mine Double-girder Electric Hoist Bridge Crane
1. Product core positioning and design standards
Henan Mine Crane electric hoist overhead crane core positioning: for the global light and medium-sized lifting scenarios to provide a compact structure, high space utilization, low construction costs, stability and durability of the general lifting solutions. To meet the needs of low and medium-frequency continuous operation, suitable for all kinds of general industrial workshops and warehousing scenarios around the world.
2. Core structure and function design
- Compact structure with low headroom: the optimized design of the seated hoist mounted on a small frame significantly reduces the vertical space occupation, effectively improves the utilization rate of vertical space in the workshop, and perfectly solves the lifting problems in low-slung factories and scenes with restricted floor heights.
- Lightweight body with small wheel pressure: The machine has light deadweight and small wheel pressure, so it can be directly installed in light plants without reinforcing the foundation of the plant, which significantly reduces the cost of plant construction and civil engineering renovation.
- High-quality core components: standard with forged wheels and Nanjing special drive device, transmission stability, wear resistance and durability, from the root to reduce the failure rate of the equipment, to ensure long-term stable operation.
- Flexible control mode: Supporting two modes of remote control on the ground and control in the cab, the operation is simple and convenient, which is suitable for different operating habits and scene requirements.
- Full-dimensional safety protection: Equipped with standard safety devices such as travel limit, overload protection, emergency braking, and anti-derailment, in line with global industrial safety standards.
- Modular customization and adaptation: lifting capacity, span, lifting height and control mode can be customized to meet the space and load requirements of various workshops and warehouses.
3. Core product advantages
- Low headroom and space-saving: The layout of the seated hoist optimizes the headroom size, which improves the effective lifting stroke under the same height of the plant, resulting in a higher space utilization rate.
- Lightweight body and low construction costs: Light weight and low wheel pressure, directly adapted to lightweight plants, eliminating the need for foundation reinforcement and reducing construction costs by more than 30%.
- High reliability and less failure: forged wheels + branded drive, strong durability of core components, simple routine maintenance, low operation and maintenance costs for the whole life cycle.
- Universal adaptable square scene: covering most of the light and medium lifting scenes such as machining, warehousing, power station, textile and food, etc., practicality is full.
- Global compliance and easy to export: ISO, CE, FEM certified, voltage/frequency customized globally, can be exported directly without modification, provide a full set of English technical data.
- Cost-effective and preferred: simple structure, cost-effective, performance to meet the needs of conventional lifting, is the first choice of lifting equipment for small and medium-sized enterprises.
- Compared with Konecranes core advantage: Compared with Konecranes light electric hoist cranes of the same specification, we have reduced the procurement cost by 35%-45% and shortened the delivery cycle by 50% under the premise of low headroom structure, suitable wheel pressure and equal quality of forged wheels, which is more suitable for light plants around the world.
- More in line with the global light plant, small and medium-sized workshop budget and fast commissioning needs, the global 72 hours direct delivery of spare parts, 7 × 24 hours multi-language after-sales service, cost-effective and service efficiency is leading.
4. Global Adaptation and Application Scenarios
- Core scenarios: machining workshop, product assembly workshop, conventional material warehouse, open yard, power station maintenance station.
- General scenarios: light textile workshop, food production workshop, metallurgical auxiliary workshop, small parts transfer station.
- Environment: Stable operation in -25℃~+40℃ environment, IP54 dust protection, not applicable to flammable and explosive, strong corrosive media.
5. Global exclusive supporting services
- Provide a full set of technical data, installation drawings, operation and maintenance manuals in English/Spanish/Arabic/Russian to meet global equipment access requirements.
- 7×24 hours remote video installation and commissioning, professional engineers to install and train at home, the cost is transparent and negotiable.
- Global core region spare parts warehouse, wheel, hoist, electronic control module and other spare parts 72 hours delivery, multi-language after-sales technical support.
What Can Henan Mine Crane Double girder Overhead Crane Offer You?
| Value Category | Specific Benefits | Description |
| Space Utilization | Low Headroom Design | Sitting-type hoist on trolley frame, reduce vertical space occupation, improve lifting height utilization |
| Construction Cost | Light Weight & Small Wheel Load | Light self-weight, small wheel load, directly installable on light workshop, reduce civil engineering cost |
| Operation Reliability | Forged Wheel & Quality Drive | Forged wheels + special drive, stable operation, low failure rate, long service life |
| Handling Efficiency | Compact & Flexible Operation | Compact structure, flexible traveling & lifting, suitable for medium-low frequency handling |
| Safety Performance | Comprehensive Safety Protection | Limit switch, overload protection, emergency brake, anti-derailment, ensure safe operation |
| Global Adaptability | International Certification | ISO/CE/FEM certified, customizable voltage 220-690V 50/60Hz, direct global export |
| Customization | Fully Customizable | Customize capacity, span, lifting height, control mode for different workshops |
| Maintenance | Easy & Low Cost | Simple structure, standard parts, easy maintenance, low annual operation cost |
| Application Scope | Wide General Usage | Suitable for machinery workshop, assembly, warehouse, yard, power station, light industry |
| Cost Performance | Economic & Practical | Affordable price, stable performance, ideal choice for small & medium enterprises |
| Operation Convenience | Multiple Control Modes | Wireless remote + cabin control, easy operation, suitable for global users |
Parameters of LH Double-Girder Bridge Cranes Manufactured by Henan Mine
| Capacity | T | 5 | ||||||
| Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Lifting height | m | 6/9/12/18/24/30 | ||||||
| Lifting speed | m/min | 8or8（8/0.8） | ||||||
| Trolley travelling speed | m/min | 20 | ||||||
| Crane travelling speed | m/min | 20 | ||||||
| Total weight | kg | 5230 | 6400 | 7450 | 8600 | 10560 | 12350 | 14850 |
| Max. Wheel load | KN | 39 | 43 | 48 | 53 | 59 | 62 | 71 |
| Rail recommended | Model | 38kg/m | ||||||
| Total motor power | kw | 8.3 | ||||||
| Main dimension (mm) | Span(m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Rail top to crane top | H | 1350 | 1550 | |||||
| Rail top to hook center | H4 | 385 | 540 | |||||
| Crane base distance | W | 2700-3100 | 3200-3600 | 3800 | ||||
| Crane width | B | 3200-3900 | 3700-4200 | 5300 | ||||
| Trolley rail distance | K | 1400-1800 | ||||||
| Hook left limitation | S1 | 1200 | 1200 | |||||
| Hook right limitation | S2 | 1200 | 1200 | |||||
|
Capacity |
T |
20/5 |
||||||
|
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Lifting height |
m |
9/12/18/24 |
||||||
|
Lifting speed |
m/min |
3.5(3.5/0.35) or8(8/0.8） |
||||||
|
Trolley travelling speed |
m/min |
20 |
||||||
|
Crane travelling speed |
m/min |
20 |
||||||
|
Total weight |
kg |
10500 |
11500 |
13640 |
15980 |
17700 |
20300 |
22920 |
|
Max. Wheel load |
KN |
118 |
129 |
135 |
148 |
156 |
164 |
169 |
|
Rail recommended |
Model |
38kg/m |
||||||
|
Total motor power |
kw |
19.3 |
||||||
|
Main dimension (mm) |
Span(m) |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Rail top to crane top |
H |
1790 |
||||||
|
Rail top to hook center |
H4 |
-350 |
||||||
|
Crane base distance |
W |
3750-4500 |
||||||
|
Crane width |
B |
4632-5982 |
||||||
|
Trolley rail distance |
K |
1600-2550 |
||||||
|
Hook left limitation |
S1 |
1100 |
||||||
|
Hook right limitation |
S2 |
1100 |
||||||
|
Capacity |
T |
32/10 |
||||||
|
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Lifting height |
m |
9/12/16/24 |
||||||
|
Lifting speed |
m/min |
3(3/0.3) or7(7/0.7） |
||||||
|
Trolley travelling speed |
m/min |
20 |
||||||
|
Crane travelling speed |
m/min |
20 |
||||||
|
Total weight |
kg |
12530 |
14660 |
16360 |
18870 |
21650 |
24260 |
27060 |
|
Max. Wheel load |
KN |
167 |
184 |
196 |
206 |
215 |
224 |
233 |
|
Rail recommended |
Model |
43kg/m |
||||||
|
Total motor power |
kw |
20 |
||||||
|
Main dimension (mm) |
Span(m) |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Rail top to crane top |
H |
1900 |
||||||
|
Rail top to hook center |
H4 |
-700 |
||||||
|
Crane base distance |
W |
1600-2500 |
||||||
|
Crane width |
B |
5070-5960 |
5572-6222 |
|||||
|
Trolley rail distance |
K |
1600-2550 |
||||||
|
Hook left limitation |
S1 |
1100 |
||||||
|
Hook right limitation |
S2 |
1600 |
||||||
Advantage display
Product Advantages Overview
Large-Tonnage Bearing
Rated lifting capacity ranges from 5T to 100T, and larger tonnages can be
customized for special needs. Adopting high-manganese steel main beam and
reinforced
Intelligent Precision Control
quipped with a PLC intelligent control system, supporting millimeter-level
positioning and automatic loading/unloading. Lifting and running speeds can be
flexibly adjusted, and
Multiple Safety Protections
Integrates multiple safety mechanisms such as overload protection, limit
protection,
anti-fall protection and emergency braking, equipped with high-definition
monitoring
and fault
Longer Service Life
Core components are made of high-quality materials such as wear-resistant alloy
and corrosion-resistant steel, reinforced by heat treatment process. The
electrical system
Details of the Double-girder Electric Hoist Bridge Crane Manufactured by Henan Mine
China's premier crane supplier, driving the crane industry forward for 24 years
What industries are the Double Overhead crane suitable for?
-
Small and medium-sized machining workshopoverhead crane is suitable for lifting and transferring small and medium-sized workpieces and machine tool fittings, the electric hoist is flexible in operation and the bridge structure covers the whole workshop, which can efficiently complete the convergence of work processes and reduce the intensity of manual handling
-
light industrial products processing workshopoverhead crane for light industrial products, plastic parts, small hardware lifting and stacking, equipment running smoothly without interference, suitable for light industrial mass production, high-frequency turnover needs.
-
Warehousing and logistics warehouseoverhead cranes are used for lifting and organizing small and medium-sized goods, packaged products and turnover materials, with precise lifting and lowering of electric hoist and bridge structure covering the whole area of the warehouse to improve the efficiency of warehousing and turnover.
-
Small equipment assembly workshopoverhead crane lifts small assembly parts, instruments and light components, electric hoist flexibly adjusts the lifting height and position, accurately docking assembly stations, suitable for small equipment assembly operations.
-
Hardware processing plantoverhead cranes are used for loading and unloading and transferring of hardware accessories and small metal products, with compact structure, not occupying too much space in the workshop, suitable for small and medium-sized processing plant operating environment.
-
electronic components production workshopoverhead crane low vibration and low noise design, electric hoist smooth lifting electronic components, circuit boards and other precision small parts, to avoid damage to the components, suitable for the electronics industry clean, precise operation needs.
-
food processing workshopoverhead crane can be customized clean models, electric hoist lifting food raw materials, packaging finished products, running without dust pollution, in line with the food industry health standards, suitable for indoor clean operation.
-
Building materials auxiliary materials workshopoverhead crane lifting cement bags, gravel packaging, small building materials accessories, electric hoist load capacity suitable for medium and light materials, flexible operation of the overhead crane, to meet the auxiliary materials transfer and feeding needs.
-
workshop equipment maintenance sectionoverhead crane for small machine tools, maintenance accessories, tools lifting and transfer, electric hoist operation is convenient, can be quickly docked maintenance station, enhance the efficiency of equipment overhaul.
How to Choose the Best Crane Manufacturer in China
Henan Mine Crane Co., Ltd. is a professional manufacturer and service provider of cranes and material handling products. Integrating R&D, design, manufacturing, sales, and service, we deliver comprehensive solutions and full-lifecycle support to our customers.
-
1Clarify Your Crane NeedsThoroughly understand your lifting requirements (load details, frequency, and workspace environment) before approaching crane manufacturers.
-
2Determine Crane Service ClassCalculate the required crane service class based on your operational intensity to ensure optimal performance and longevity.
-
3Explore Crane Supplier Custom Features:Investigate available customization options and special features to enhance safety, efficiency, and precision for your specific application.
-
4Assess Crane Factory Engineering CapabilityEvaluate the manufacturer's engineering strength to ensure they can design a suitable solution tailored to your needs.
-
5Verify Quality & Compliance of Crane CompanyCheck the crane manufacturer's manufacturing quality, certifications, and compliance with international standards and your local safety regulations.
-
6Ensure Support & ReferencesConfirm the manufacturer provides reliable after-sales support and has a proven track record with positive references in your industry or region.
Why We Are More Trustworthy
Henan Mine Crane Factory is a premier provider of integrated crane and material handling solutions, covering R&D, design, manufacturing, sales, and service for end-to-end support.
Experienced company
Established in 2002, Henan Mine Crane Factory is a high-tech crane enterprise. Using advanced global design and manufacturing tech, we craft top-quality single/double-beam cranes and electric hoists.
Professional team & equipment
Our 1.62 million ㎡ factory has 3,500+ staff, 200 senior engineers, and 428+ global sales/service points. With 2,000+ processing machines handling 20+ processes, we ensure excellence.
Productive capacity
The annual output of cranes is over 80,000 units. The company produces and sells more than 11000 double beam and gantry cranes annually, More than 73000 single beam cranes, and More than 100000 sets (sets) of single and double beam electric hoists and accessories.
Customized design services
We know the right crane is key. Our engineers partner with clients to design and build cranes tailored to specific needs, ensuring optimal performance.
Why Our Cranes Earn Customers' Trust
Henan Mine Crane Co., Ltd. has a strong technical team with over 10 top experts and 200+ mid-to-senior engineers. They've obtained over 700 national patents and provincial-level tech achievements, with over 670 authorized patents. Henan Mine Crane Factory led/participated in over 100 standard formulations/revisions, won the China Standard Innovation Contribution Award, and is a key member of multiple lifting machinery standardization committees. Dr. Xu Lei serves as Deputy Leader of the ISO/TC96 Domestic Technical Counterpart Expert Working Group.
The services we provide
China's premier crane supplier, driving the crane industry forward for 24 years
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Regular Maintenance Reminder
Establish customer equipment files, and regularly send maintenance reminders based on
equipment usage time and operation intensity. Provide detailed maintenance manuals and
video tutorials
Technical support consultation
Provide 7×12-hour online technical consultation service. Senior consultants answer
questions in real time regarding product selection, parameter matching, installation
specifications
Free customization scheme
The professional engineer team communicates in depth to understand needs, and provides
one-stop customized solutions including 3D model design, technical parameter calculation
Our Patents and Certifications
China's premier crane supplier, driving the crane industry forward for 24 years
Customer Testimonials & Top Choices
China's premier crane supplier, driving the crane industry forward for 24 years
Related Product Recommendations
China's Premier Crane Supplier, Empowering the Lifting Industry for 24 Years
Double-girder, double-trolley electric hoist bridge crane
Henan Mine Manufacturing
LHE Double-Trolley Electric Hoist Bridge Crane is currently one of the most widely used lifting machines. Its hoisting mechanism utilizes an electric hoist, enabling intermittent and repetitive loading, unloading, and transportation of materials and equipment in general working environments. It features vertical lifting, longitudinal, and lateral movement capabilities. The load-handling device employs a hook or other specialized lifting attachments, with dual trolleys facilitating lifting operations to meet user requirements for handling various material types.
The lifting mechanism utilizes a wire rope electric hoist, featuring a compact structure, small footprint, and extensive working range, effectively maximizing operational space.
Both main and trolley travel mechanisms are equipped with soft starters or variable frequency drives for smooth starts.
Dual trolley control employs advanced technologies such as encoders and CI card inverters, enabling independent operation or coordinated work between the two trolleys.
LHY Double-Girder Electric Hoist Metallurgical Bridge Crane
Henan Mine Manufacturing
LHY Electric Hoist Metallurgical Bridge Crane
is a lifting machine designed and improved upon the electric hoist bridge crane. Its lifting mechanism utilizes a metallurgical electric hoist, enabling intermittent and repetitive loading, unloading, and transportation of materials and equipment within metallurgical work environments. It features vertical lifting capabilities along with longitudinal and lateral movement functions. The lifting device is a hook, specifically designed for transporting molten metal.
The core function of the metallurgical hoist is to safely, reliably, and efficiently handle the lifting of various molten metals, red-hot billets, or heavy materials within high-temperature, high-dust, and high-intensity metallurgical workshops.
High safety and reliability. The electric hoist incorporates dual braking, overload protection, and dual limit switches as safety safeguards.
LHEA Double-girder Double-trolley Hoist Crane
LHEA Double-girder Double-trolley Crane Manufactured by Henan Mine
The double-trolley hoist is a lifting device developed from the double-hoist design. Equipped with an electric hoist as the lifting mechanism and two trolleys, it enables intermittent and repetitive loading, unloading, and transportation of materials and equipment in general operating environments. It features vertical lifting, longitudinal, and lateral movement capabilities. The load-handling device can be a hook or other specialized lifting gear to meet user requirements for handling various types of materials.
Low headroom design with the hoist mounted on the trolley frame maximizes vertical space utilization.
Lightweight construction with low wheel load allows direct installation in lightweight industrial buildings, reducing civil engineering costs.

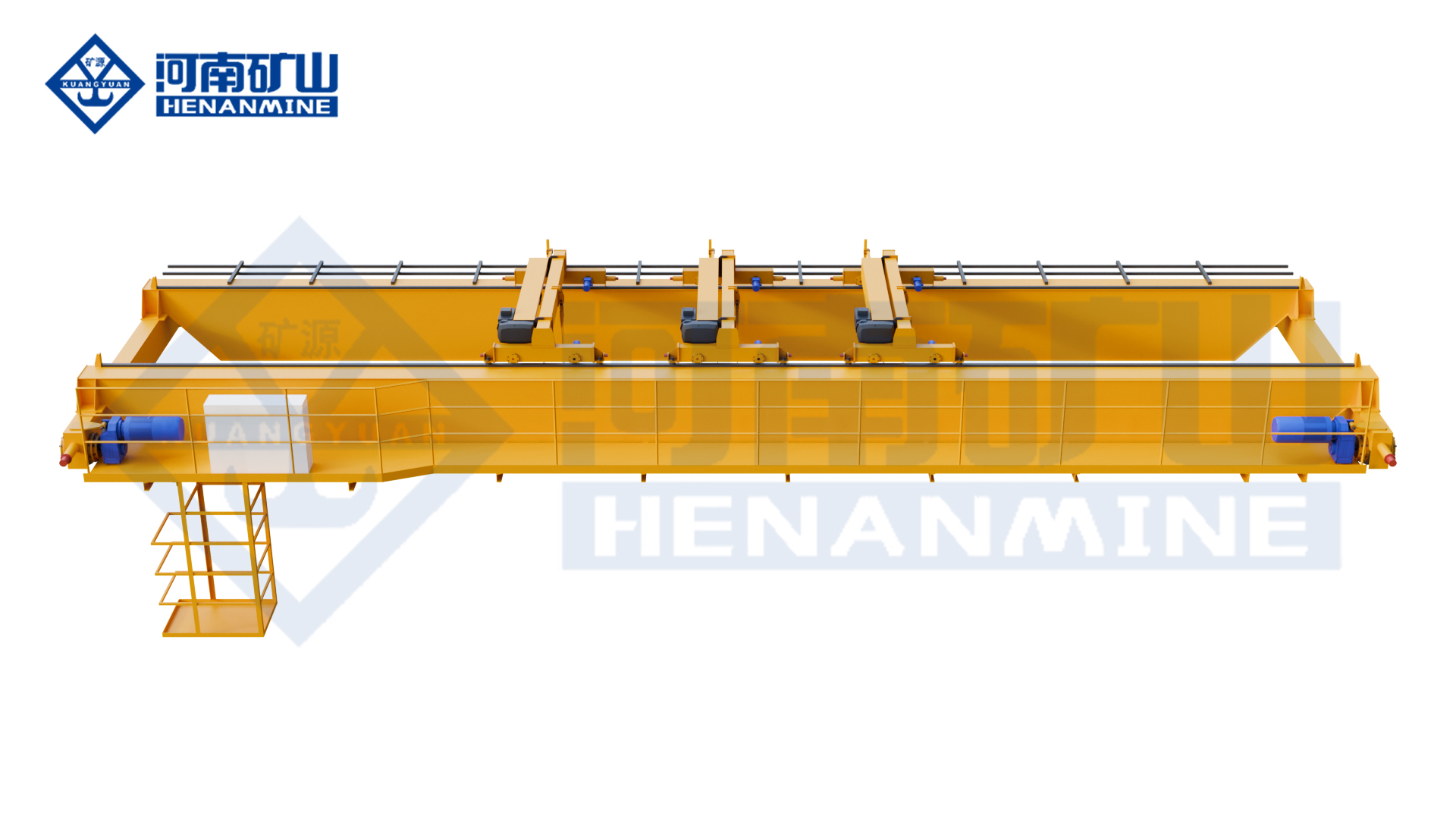

KSSLS Three-Trolley New Electric Hoist Double-Girder Bridge Crane
Henan Mine Manufacturing's KSSLS Three-Trolley New Electric Hoist Double-Girder Bridge Crane
Primarily used for handling large components and equipment maintenance in the papermaking industry
Features a modular design and high-strength materials for compact structure and lightweight construction. Paired with a large-diameter drum and dual-speed motor, it supports high-speed lifting and low-speed precision positioning, enhancing operational efficiency while reducing energy consumption.
Integrated variable frequency speed control technology ensures stable operation. The system is expandable with IoT remote monitoring and intelligent operation and maintenance capabilities.
The C-shaped hoist arrangement and square welded outer casing reduce headroom and overall dimensions, maximizing space utilization while lowering factory height requirements and foundation costs.

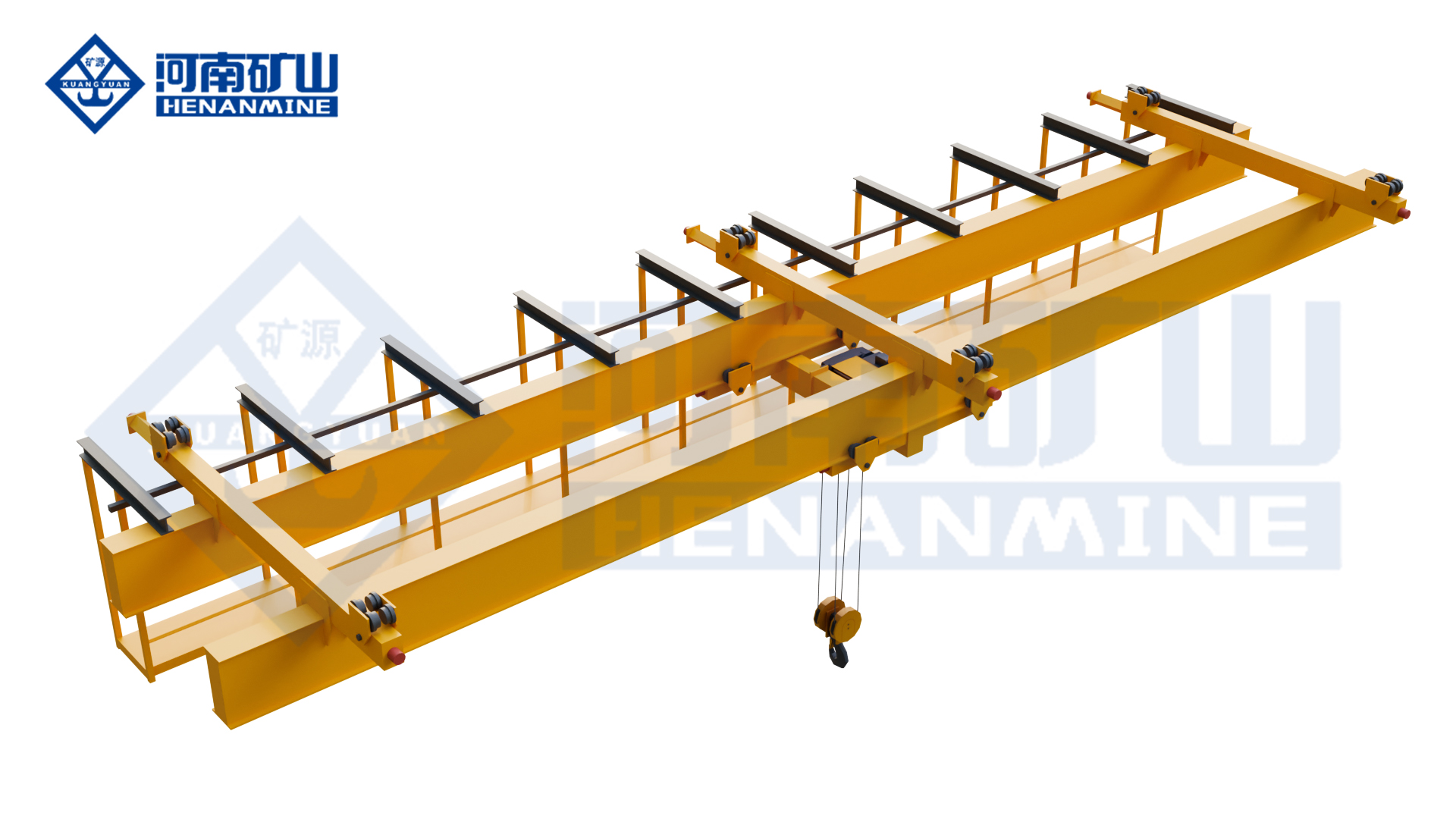

LHDX Multi-Point Electric Double-Girder Suspended Crane
Henan Mine Manufacturing's LHDX Multi-Point Electric Double-Girder Suspended Crane
The multi-point electric suspended crane is a specialized lifting solution designed for industrial facilities or warehouses requiring ultra-large spans, such as aircraft manufacturing plants and aircraft maintenance workshops. This multi-point (multi-track) suspended crane is engineered specifically for such applications.
Both the tracks and crane are fully suspended beneath the roof, leaving the floor 100% unobstructed. This provides complete freedom for ground-level equipment layout, production line arrangements, material storage, and personnel access.
This equipment reduces the impact on the factory roof structure, facilitates lower building heights, and significantly saves on construction costs.
Its modular design allows for easy retrofitting of the hoisting system to adapt to new layouts.

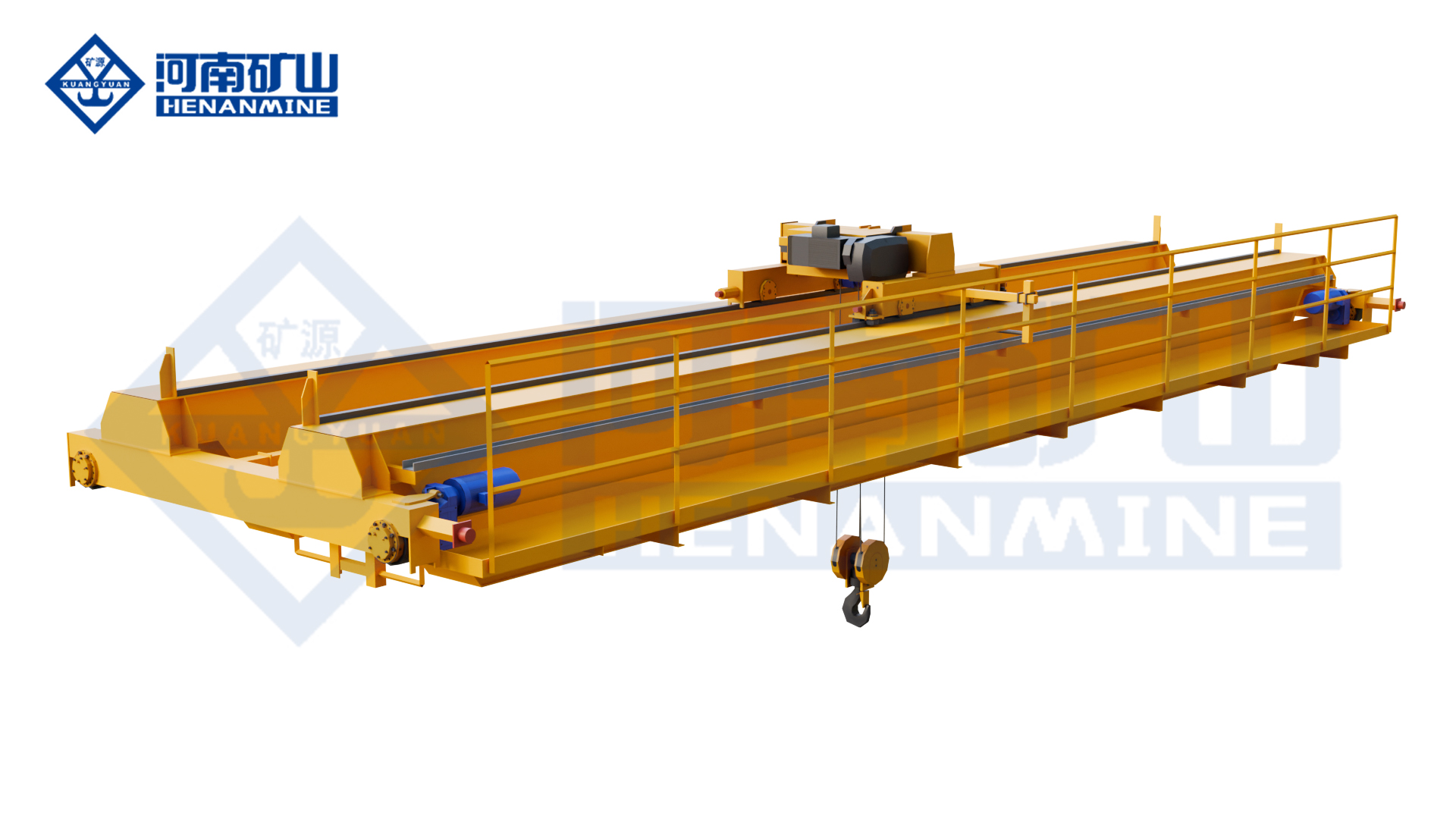

KSSL New Electric Hoist Double Girder Bridge Crane
KSSL New Electric Hoist Double-Girder Bridge Crane Manufactured by Henan Mine
Featuring an electric hoist bridge crane as the carrier and a fixed electric hoist as the lifting mechanism, this crane offers mature, reliable technology and a lightweight structure. It is suitable for material handling in various settings including machining, manufacturing, assembly, production, repair workshops, and warehouses. The new electric hoist bridge crane utilizes an advanced electric hoist as its lifting mechanism, featuring dual-speed lifting and variable frequency drive (VFD) travel control. This ensures smooth crane operation and minimizes impact on the factory building.
Modular design and high-strength materials achieve a compact structure and light self-weight. Combined with a large-diameter drum and dual-speed motor, it supports high-speed lifting and low-speed precision positioning, enhancing operational efficiency while reducing energy consumption.
Integrated variable frequency drive technology ensures stable operation; expandable IoT remote monitoring and intelligent maintenance capabilities.
C-shaped hoist arrangement with square welded outer casing reduces headroom and overall dimensions, maximizing space utilization while lowering building height requirements and foundation costs.
KSSLE New Dual-Trolley Electric Hoist Bridge Crane
Henan Mine Manufacturing's KSSLE New Dual-Trolley Electric Hoist Bridge Crane
The new dual-trolley electric hoist bridge crane features an innovative electric hoist as its lifting mechanism, offering dual-speed lifting and variable frequency speed control for travel. Two independent trolleys share the same runway, supporting both independent and coordinated operations. They can handle materials of different specifications individually or achieve precise lifting and balanced rotation of long items through synchronized control.
Modular design and high-strength materials ensure a compact structure and light weight. Combined with large-diameter drums and dual-speed motors, it supports high-speed lifting and low-speed precision positioning, enhancing operational efficiency while reducing energy consumption.
Integrated variable frequency drive technology ensures stable operation; expandable IoT remote monitoring and intelligent maintenance capabilities.
C-shaped hoist arrangement with square welded outer casing reduces headroom and overall dimensions, maximizing space utilization while lowering building height requirements and foundation costs.
Become our distributor
Array
Become our agent
Full range of lifting equipment, international standard quality and ample production capacity, ensuring worry-free agency support.
Professional cross-border after-sales team + global parts warehouse, 24-hour response, full-cycle service to help you effortlessly expand your market.
Generous agency policies + regional exclusive protection, guaranteeing your profits and worry-free cooperation.
We sincerely invite global partners with resources to join hands, jointly develop the global crane market, and achieve mutual benefit and win-win outcomes!
Common Issues with Double-girder bridge crane
China's premier crane supplier, driving the crane industry forward for 24 years
-
What are the core advantages of the low headroom design and is it suitable for low-rise plants?The seated hoist layout significantly reduces the vertical occupation space and effectively improves the lifting stroke. It can be installed in low-rise plants with restricted floor heights without remodeling, which is a perfect solution to the problem of lack of space.
-
The equipment has small wheel pressure, can it really be installed directly in light plantsYes. The lightweight design of the whole machine, wheel pressure is much lower than the traditional bridge machine, no need to reinforce the foundation of the plant, can be directly installed in light steel plant, saving a lot of civil construction costs.
-
What are the advantages of forged wheels compared with ordinary wheels?Forged wheels have higher strength, stronger wear resistance, smoother operation, lower failure rate, much longer service life than ordinary casting wheels, and reduce the later replacement maintenance.
-
Is it CE/ISO certified?Yes. Through the ISO, CE, FEM international certification, in line with global safety standards for lifting equipment, without modification, to provide a full set of English data, full assistance in customs clearance.
-
What are the operating modes?Support wireless remote control + cab dual mode, simple operating logic, clear gear, overseas employees can be skillfully operated after simple training.
-
Is it difficult to maintain the equipment?Maintenance is very simple. The structure is simple, the parts are common, only regular lubrication and inspection are needed, the core parts are durable, and the annual maintenance cost is very low.
-
Can it be customized according to the workshop span?Absolutely. We can customize the lifting capacity, span, lifting height and control mode to perfectly match the space and load requirements of various workshops and warehouses.
-
Can it be customized according to the workshop span?Yes. The whole machine is IP54 dustproof and splashproof, and can be equipped with rainproof device, which is suitable for outdoor yard, open-air warehouse and other conventional outdoor scenes, and stable operation
-
Compared with Konecranes light cranes, what are your core advantages?Under the same performance and adaptability, the procurement cost is 35%-45% lower, the delivery is faster, the adaptability of light plant is stronger, the after-sales response and the supply of spare parts is more efficient, and the cost-effectiveness is higher.
Operating Manual for Double-girder bridge crane
-
Each crane must display a rated load capacity plate in a conspicuous location.
-
No personnel are permitted on the girder during operation, nor may the hook be used to transport persons
-
Operation is prohibited without a valid operator's license or under the influence of alcohol.
-
Operators must maintain full concentration during operation; talking, smoking, or engaging in unrelated activities is strictly forbidden.
-
Keep the crane clean and tidy; do not store equipment, tools, flammable materials, explosives, or hazardous substances haphazardly.
-
Do not overload the crane.
-
When operating along obstacle-free paths, the hook, lifting device, or bottom surface of the load must remain at least 2 meters above ground level. When crossing obstacles, the load must clear the obstacle by at least 0.5 meters
-
For loads under 50% of rated capacity, both lifting mechanisms may operate simultaneously. For loads exceeding 50% of rated capacity, only one mechanism may operate.
-
.For bridge cranes equipped with main and auxiliary hooks, do not simultaneously raise or lower both hooks (except under special circumstances).
-
Welding or hammering on suspended loads, or working beneath suspended loads, is prohibited (except when properly supported).
-
Inspection or maintenance work may only be performed after power has been disconnected and a “Do Not Operate” sign is displayed on the power switch. If live work is unavoidable, implement safety measures and assign dedicated supervision.
-
Do not throw objects from the vehicle indiscriminately.
-
Regularly inspect limit switches and interlock protection devices.
-
Do not use limit switch impact as a stopping method.
-
Do not lift or lower loads when hoist brakes malfunction.
-
Do not operate the hoist above personnel or equipment.
-
When welding any part of the crane, use a dedicated ground wire; do not use the crane body as a ground.
-
When the hook is at its lowest position, ensure at least two full turns of safety rope remain on the drum.
-
Cranes must not collide with each other; using one crane to push another into operation is strictly prohibited.
-
When lifting heavy objects, molten metal, explosives, or hazardous materials, first slowly raise the load 100–200 mm off the ground to test brake reliability.
-
Maintenance and inspection lighting must operate at voltages below 36V.
-
All electrical equipment enclosures on bridge cranes must be grounded. If trolley rails are not welded to the main girder, grounding measures must be implemented. Grounding conductors may use galvanized flat iron with a cross-sectional area exceeding 75mm², bare copper wire of 10mm², or galvanized round steel exceeding 30mm². The operator's cab or crane body shall have more than two grounding points. The grounding resistance from any point on the crane to the power supply neutral point shall be less than 4Ω.
Directly state your needs and receive professional advice!
30 Years of Lifting R&D, Following Strict European Standards, Intelligent
Empowerment
for Heavy Loads, Providing Global Safe & Excellent Solutions
The project was delivered on time and landed safely
Henan Mine's Double-girder Electric Hoist Bridge Crane, renowned for their high lifting capacity, exceptional stability, and extensive operational range, are widely utilized across diverse industrial production and material handling scenarios. They serve as core lifting equipment for industrial and mining enterprises, logistics warehouses, and other sectors.
Improve efficiency
Break through operational bottlenecks and improve overall project progress efficiency
Avoiding risks
Build a solid safety line and avoid potential risks of high-risk operations
Delivery
Adapt to diverse working conditions and ensure stable project implementation and delivery
