Clean explosion-proof bridge crane

Henan Mine Crane ZJJB clean and explosion-proof overhead travelling crane is a high-end special overhead travelling crane integrating explosion-proof safety and dust-free cleanliness, specially designed for semiconductor manufacturing, chemical precision workshop and other high-precision + flammable and explosive dual requirements of the scene, with vertical lifting and vertical and horizontal three-dimensional movement

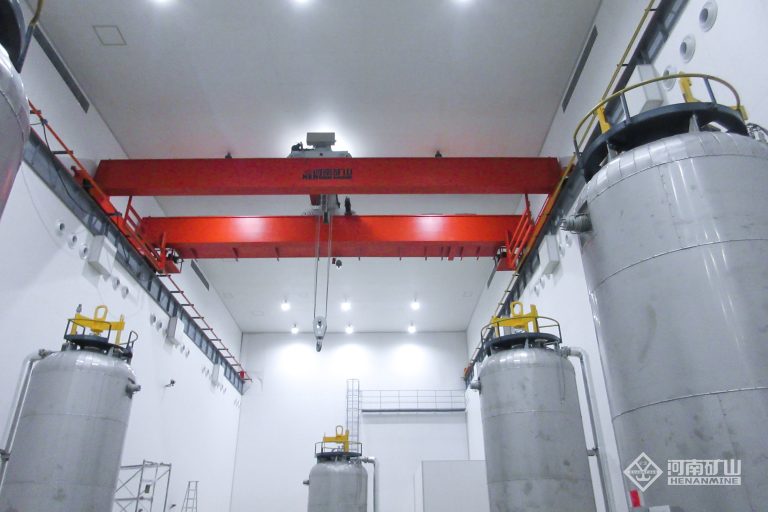

Clean explosion-proof crane for semiconductor manufacturing

1. Product Core Positioning and Design Criteria

ZJJB clean explosion-proof overhead travelling crane is the core positioning for overseas high-end precision manufacturing scenes to provide “explosion-proof safety + dust-free clean” integrated lifting and hoisting solutions, the design standards strictly follow the GB3836 series of explosion-proof safety standards, general standards for cleanroom operations, for semiconductor manufacturing, chemical precision synthesis, etc. Both the risk of flammable and explosive, but also the risk of dust accumulation, and also the core benchmark products in the field of high-end cleanliness.

There are flammable and explosive risks, but also for the workshop dust control has stringent requirements of the scene tailored to solve the traditional explosion-proof cranes easy to produce dust, dust accumulation, can not be adapted to the clean room operation of the industry’s pain points.

2. Core structural design

The entire structure of the machine is designed around the three core requirements of clean dust, explosion-proof and fireproof flower, frequency stable operation, high precision modular assembly structure, the core is composed of three key parts, the structure of the cooperative realization of high-precision hazardous scenes of safety, clean and efficient lifting:

2.1 Clean protection structure: the whole machine adopts high-pressure anti-static spraying process, forming a dense protective layer on the surface, with non-stick dust, non-dust-producing characteristics; the body, transmission components and connection gaps are made fully closed sealing treatment, to avoid accumulation of dust at source; hooks, wheels and other parts in direct contact with the material are made of stainless steel and do the passivation of the surface treatment, corrosion-free, no debris, and the abrasion parts are equipped with non-corrosive material and dust Wear parts are equipped with non-corrosive materials and dust collection devices to completely eliminate the equipment itself from producing dust and accumulating dust.

2.2 Explosion-proof safety mechanism: the electrical system is designed according to the explosion-proof standard, and the motors, controllers, cables and so on are all explosion-proof special models, and the cables are laid with explosion-proof casing; all the mechanical moving parts are treated with anti-static and spark suppression, eliminating the hidden danger of friction and collision-generated sparks, and realizing the explosion-proof safety from the double dimension of electric and mechanical, which is suitable for gas and dust flammable and explosive environments.

2.3 Frequency conversion drive control mechanism: the whole machine is equipped with frequency conversion control technology, the lifting and running mechanism realizes stepless speed regulation, stable running speed, no impact of starting and stopping, which greatly reduces the failure rate of the equipment and improves the precision of lifting and operating efficiency; the frequency conversion system adopts energy-saving design, which effectively reduces energy consumption while meeting the high precision operation, and meets the energy-saving demand of overseas high-end manufacturing enterprises.

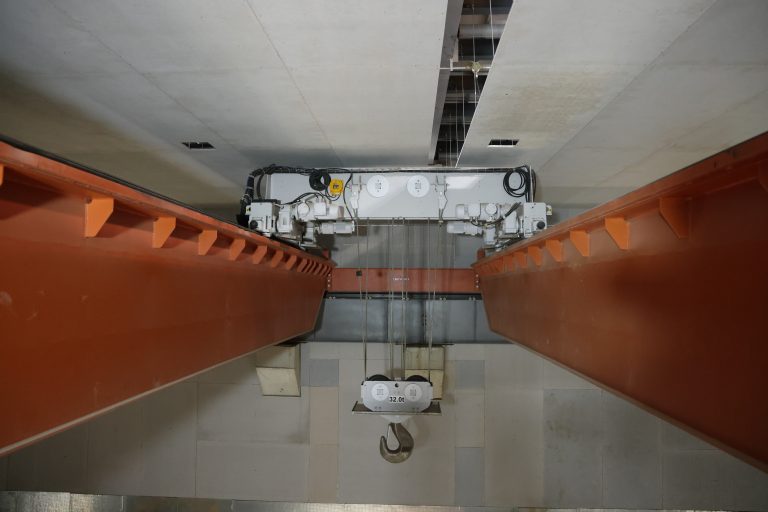

Anti-static spark-free clean room crane

3. Core product advantages (meet the needs of overseas high-end precision work, different from traditional explosion-proof equipment)

As a semiconductor explosion-proof crane specially designed for high-precision clean explosion-proof scenarios, its core advantages revolve around clean dust, double explosion-proof safety, frequency stability and high efficiency, high-precision adaptations to start, perfectly suited to overseas semiconductors, high-end chemical and other customer operations and procurement pain points, but also the core highlights of the difference between the traditional explosion-proof overhead travelling crane:

3.1 Full-dimensional clean design, adapt to the strict requirements of clean room: high-voltage anti-static spraying + fully enclosed sealing structure, to achieve the equipment does not stick to the dust, dust production, stainless steel passivation parts + dust collection device, to completely avoid the equipment on the clean environment of the workshop pollution, fully meet the semiconductor manufacturing, chemical precision workshop dust control requirements, without additional equipment to do clean transformation, can be directly stationed in the clean room operations.

3.2 Mechanical + electrical double explosion-proof, safety protection without dead ends: mechanical parts of the anti-static spark suppression, eliminating friction sparks from the source; electrical system full explosion-proof design, to eliminate electrical sparks, two-dimensional explosion-proof design not only to meet the requirements of the safe operation of flammable and explosive environments, but also to adapt to the high precision scene of the low-fault demand, equipment operation safety and reliability far more than the traditional explosion-proof cranes.

3.3 Frequency control technology, low failure and high precision and efficiency: variable frequency stepless speed control allows equipment to run at a stable speed, start and stop without impact, lifting positioning accuracy is higher, suitable for semiconductor wafers, precision chemical raw materials and other high-end materials lifting needs; at the same time, the frequency conversion technology significantly reduces the mechanical wear and tear of equipment, machine failure rate is significantly reduced, reducing equipment downtime for maintenance to enhance the overall efficiency of the workshop operations.

3.4 High-precision material selection, corrosion-resistant and long life: food-grade / industrial-grade stainless steel manufacturing and passivation treatment of material contact parts, wear parts of the selection of non-corrosive special materials, with excellent corrosion resistance, anti-debris characteristics, to adapt to the corrosive environment of the high-end chemical workshop, the service life of the equipment compared with the traditional explosion-proof cranes to enhance the 30% or more, reducing long-term cost of use.

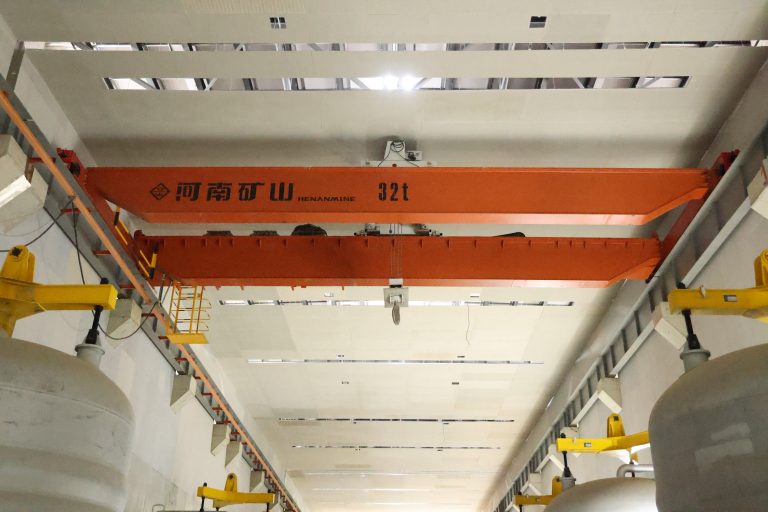

Dust-proof explosion-proof bridge crane for chemical precision workshop

4. Product global adaptability and core application scenarios

4.1 Core application scenarios: This clean explosion-proof crane for chemical precision workshop is widely used in various types of high-precision + flammable and explosive operation scenarios overseas, including semiconductor wafer fabrication workshop, chip packaging workshop, high-end chemical precision synthesis workshop, aseptic explosion-proof workshop for pharmaceuticals, optoelectronic display manufacturing workshop, etc., and it can undertake the lifting, loading, unloading, and transportation of high-end materials, such as precision wafers, chemical precision raw materials, aseptic pharmaceutical materials, and optoelectronic core components. It can undertake the lifting, loading and unloading, and shifting of materials;

4.2 Overseas standards and grid adaptation: the product complies with China’s national explosion-proof safety standards and cleanroom operation standards, the core components are compatible with the EU ATEX, the international IECEx explosion-proof certification system and the semiconductor industry’s ISO Class cleanliness requirements, and we can assist in applying for the international certifications such as CE, GOST, ISO, etc. according to the customer’s needs; the power supply parameter supports customization (220V-660V/50Hz/60Hz), and the power supply parameters support customization (220V-660V/50Hz/60Hz). The power supply parameters can be customized (220V-660V/50Hz/60Hz), which can be perfectly adapted to the needs of the power grids in North America, Europe, Southeast Asia, Japan and South Korea and other areas where overseas high-end manufacturing industries are concentrated;

4.3 Adaptation to overseas environment and operation: the sealing structure and anti-corrosion material design of the whole machine can be adapted to the constant temperature, humidity, corrosive and other special environments of overseas high-end manufacturing workshops; at the same time, the low-noise operation characteristics of the inverter control meet the low-noise operation requirements of the precision manufacturing workshops; the operation mode is adapted to the remote operation requirements of overseas clean rooms, which can minimize the contact between the personnel and the workshop and protect the clean environment;

4.4 Installation and Layout Ad aptation: Adopting high-precision modular assembly design, each component joint seam sealing treatment, on-site installation does not require large-scale lifting equipment, manually can complete the splicing, the installation process is dust-free, without contamination of the clean environment of the workshop; equipment span, lifting height can be customized according to the dimensions of the clean room, adapted to the layout of different specifications of the precision shop.

5. Overseas exclusive supporting services

Henan Mine Crane, as a professional manufacturer of high-end explosion-proof cranes, for the use of overseas high-end precision manufacturing enterprises, to provide a full range of exclusive clean explosion-proof ancillary services, completely eliminate the procurement, installation, maintenance concerns of overseas customers:

5.1 Data support: Provide a full set of English technical data, including explosion-proof test reports, cleanliness level test reports, installation drawings, clean room operation manuals, maintenance manuals, all data are in line with the international explosion-proof and clean standards, so that overseas customers can conveniently go through the procedures for access to workshop equipment;

5.2 Installation guidance: equipped with 724-hour overseas remote video installation guidance, technicians have * clean explosion-proof equipment installation qualifications, real-time answers to the clean room installation specifications, explosion-proof installation requirements and dust-free installation and operation points, but also according to customer needs to arrange for professional and technical personnel door-to-door installation, the whole process of following the clean room operation specifications;

5.3 Spare parts guarantee: there are spare parts agents in Malaysia, Germany, Japan and other overseas high-end manufacturing industry concentration areas, clean explosion-proof motors, frequency controllers, stainless steel parts and other common wearing parts are the original high-precision specifications, overseas customers can be shipped to the neighboring countries within 72 hours of the order, to ensure that the spare parts supply in a timely manner and does not affect the cleanliness of the workshop;

5.4 After-sales technology: open 7*24 hours English after-sales hotline, equipped with professional clean explosion-proof equipment technical engineers, can provide remote explosion-proof + clean double fault diagnosis and solutions, complex faults can be arranged for overseas network of professional and technical personnel door-to-door processing, to minimize the loss of equipment downtime.
